SN74S38D

SN74S38D

SKU: SN74S38D

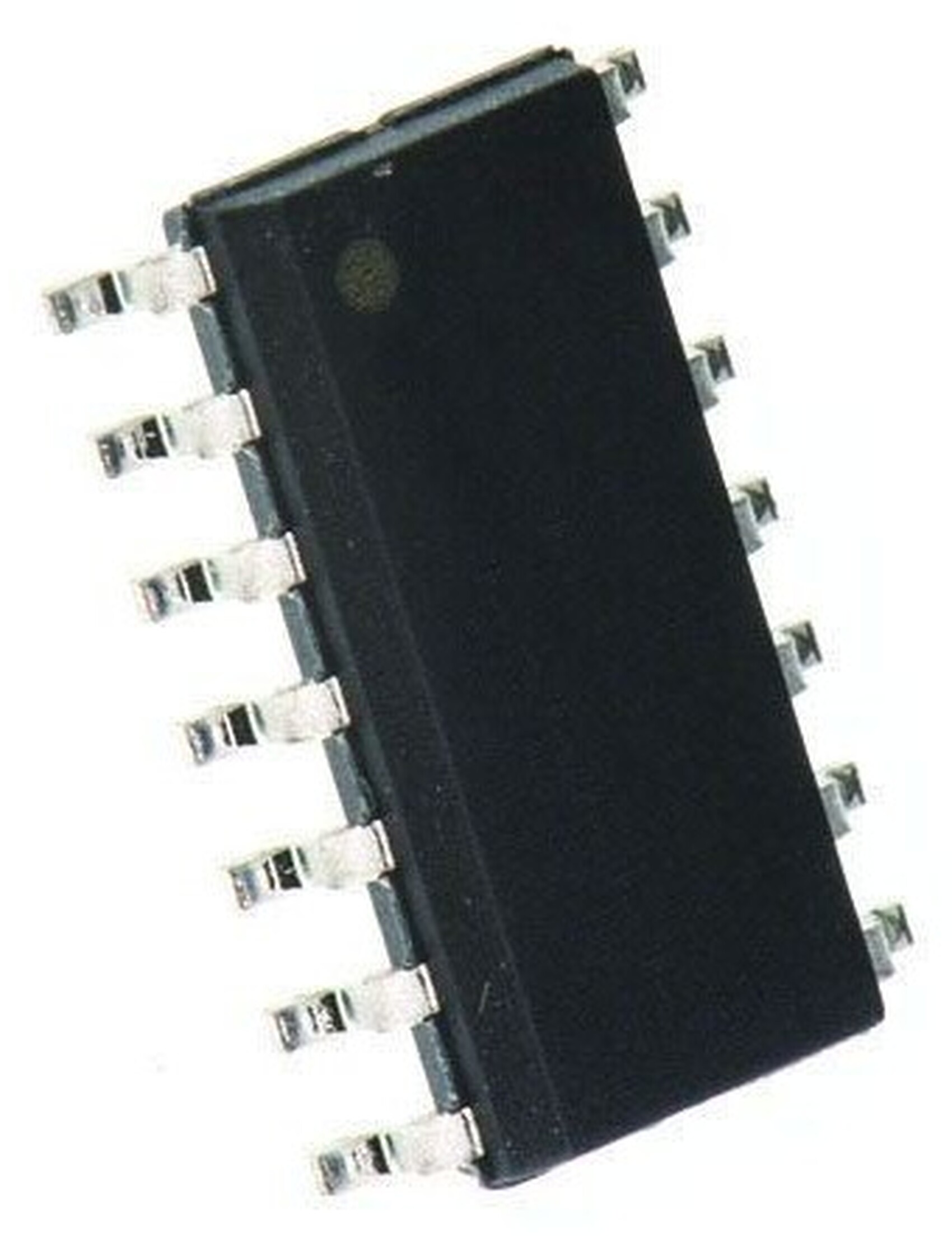

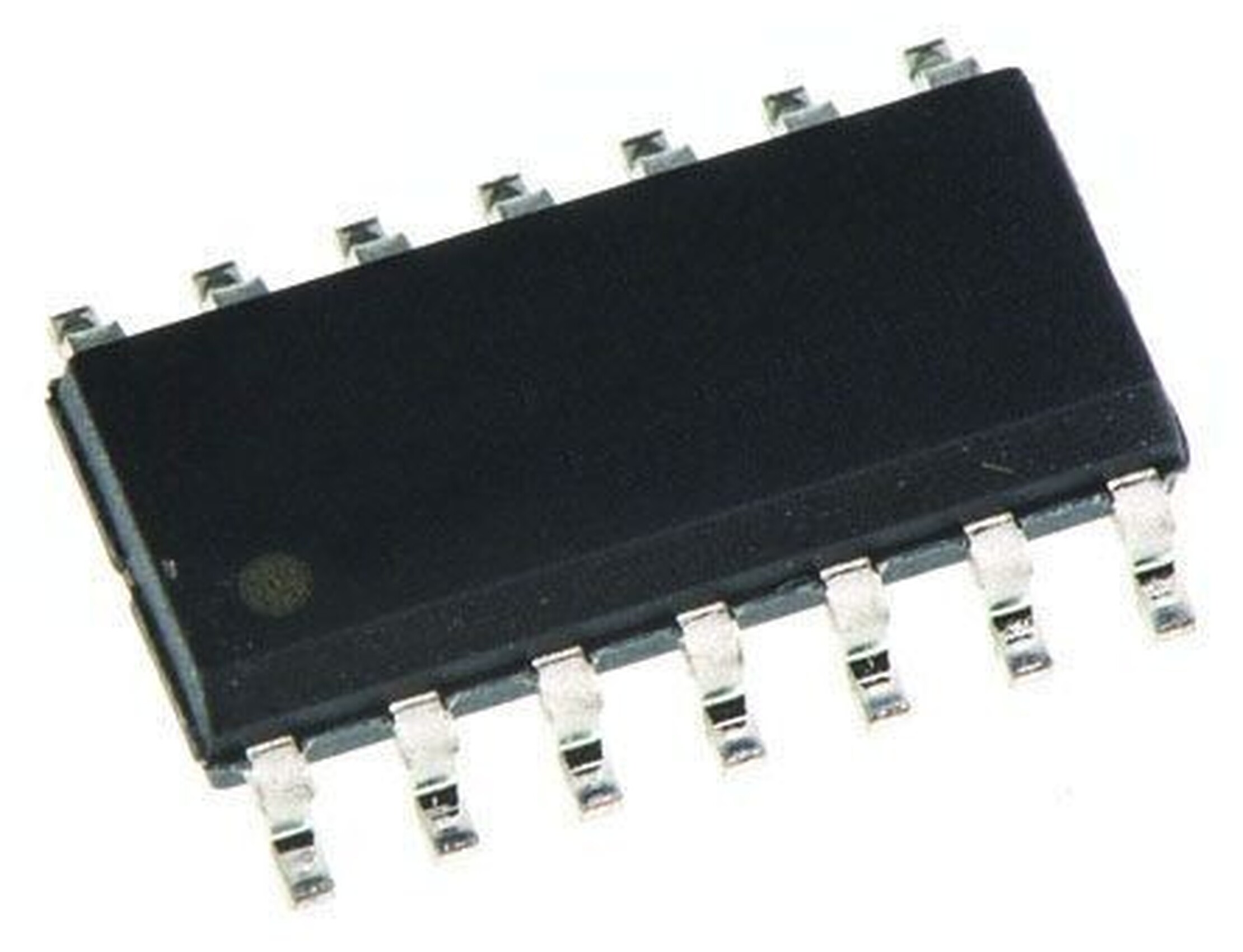

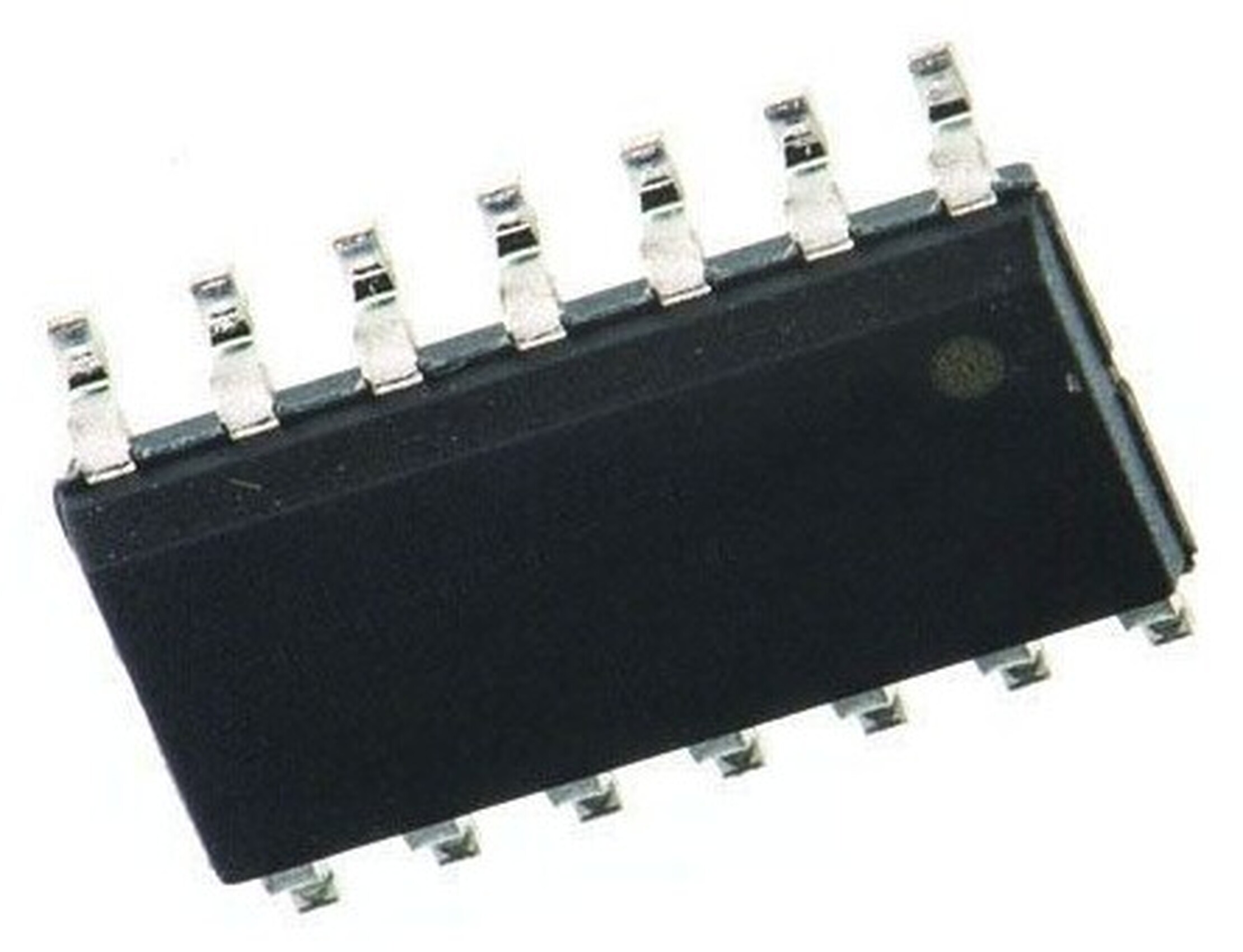

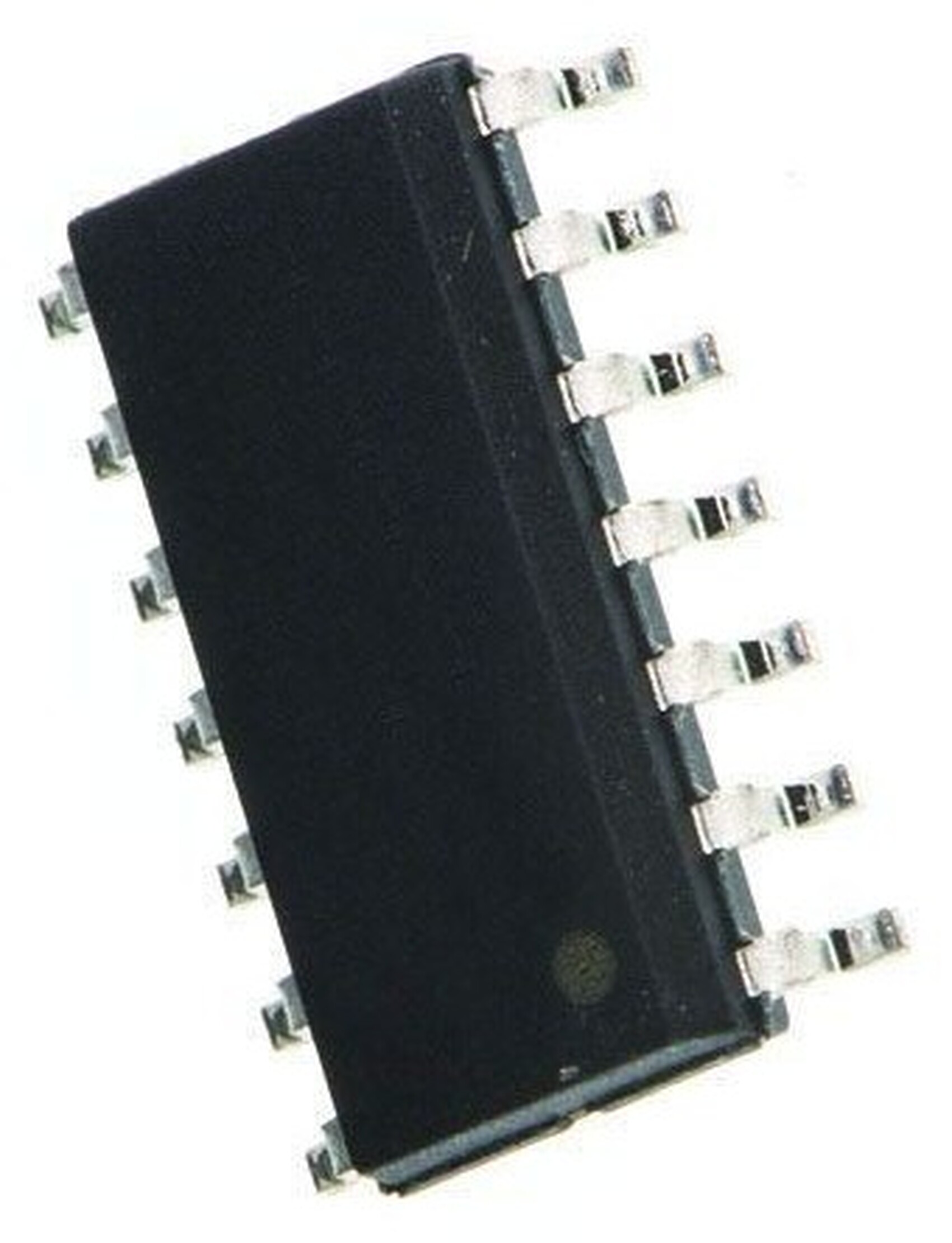

SN74S38D Logic IC CASE: SO MAKE: Texas Instruments
Product specifications
Type Logic IC
Case SO
Manufacturer Texas Instruments
Ckts Per Dev. 4
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Per Ckt 2
Output Config Open-Coll.
VOL Max. 0.5
tPD Max. (S) 10n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@Iol (A) 60m
Pinout Equivalence Number 14-87
Surface Mounted Yes/No YES
SKU 986520
