SN75119D

SN75119D

SKU: SN75119D

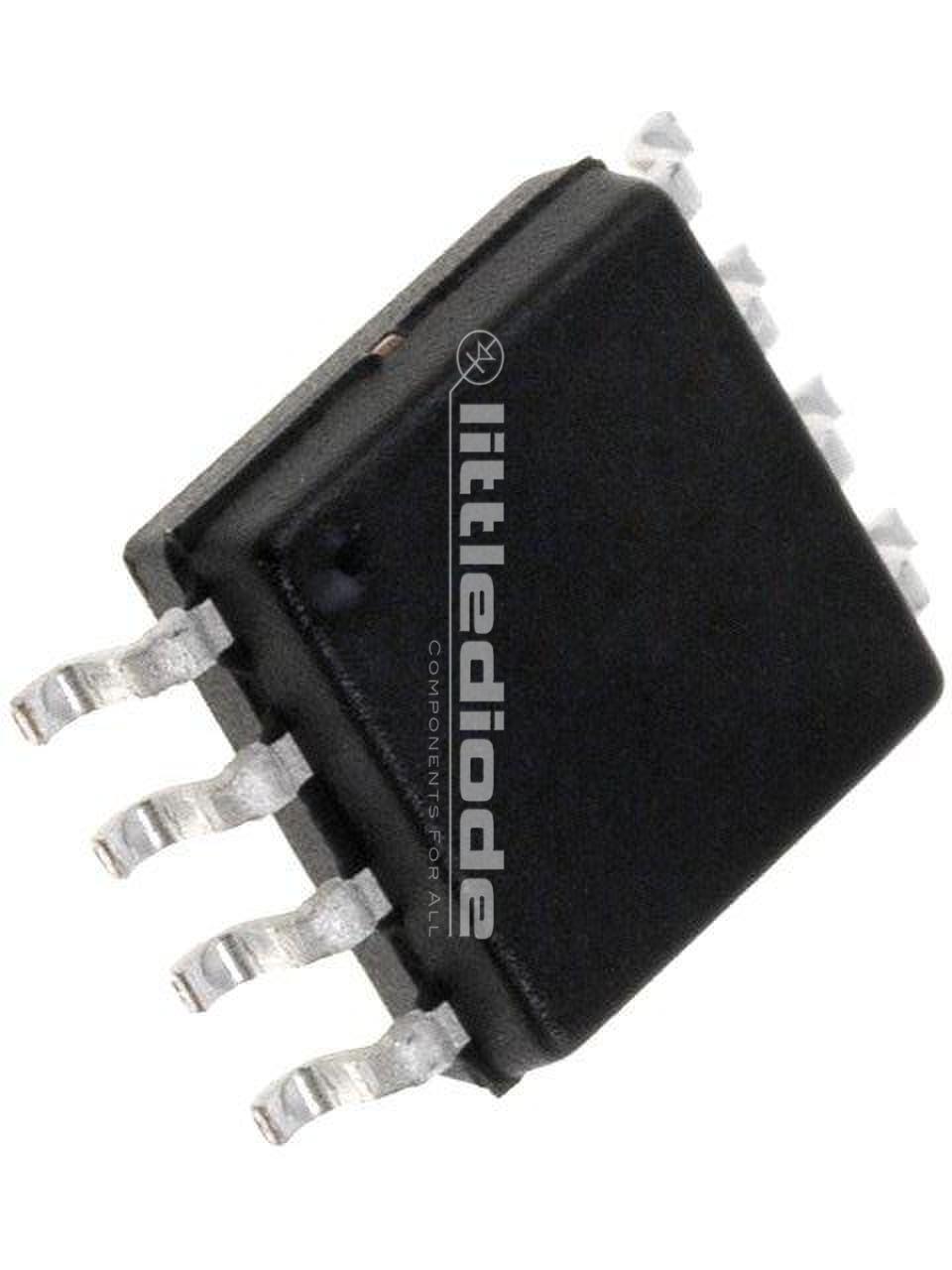

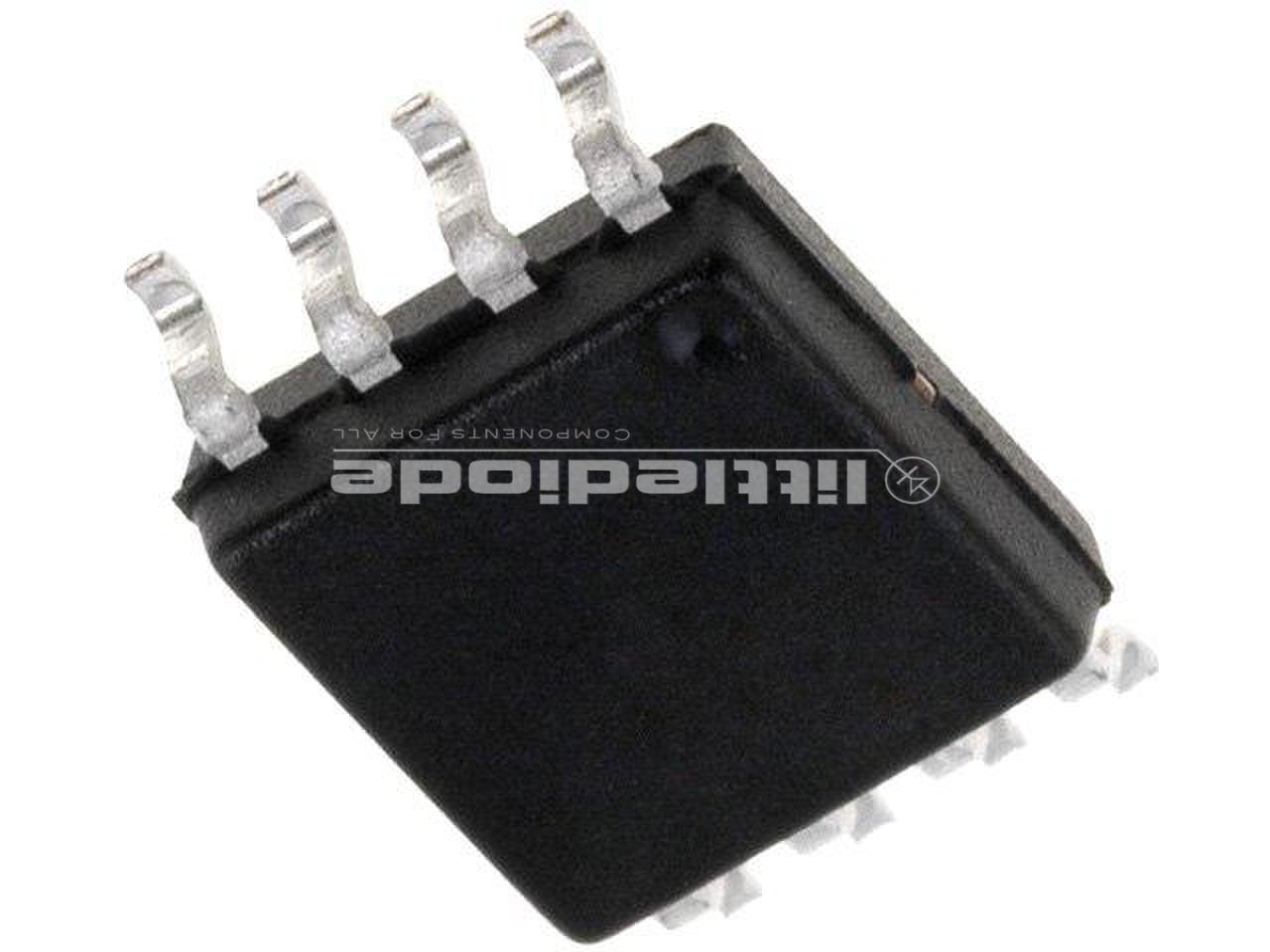

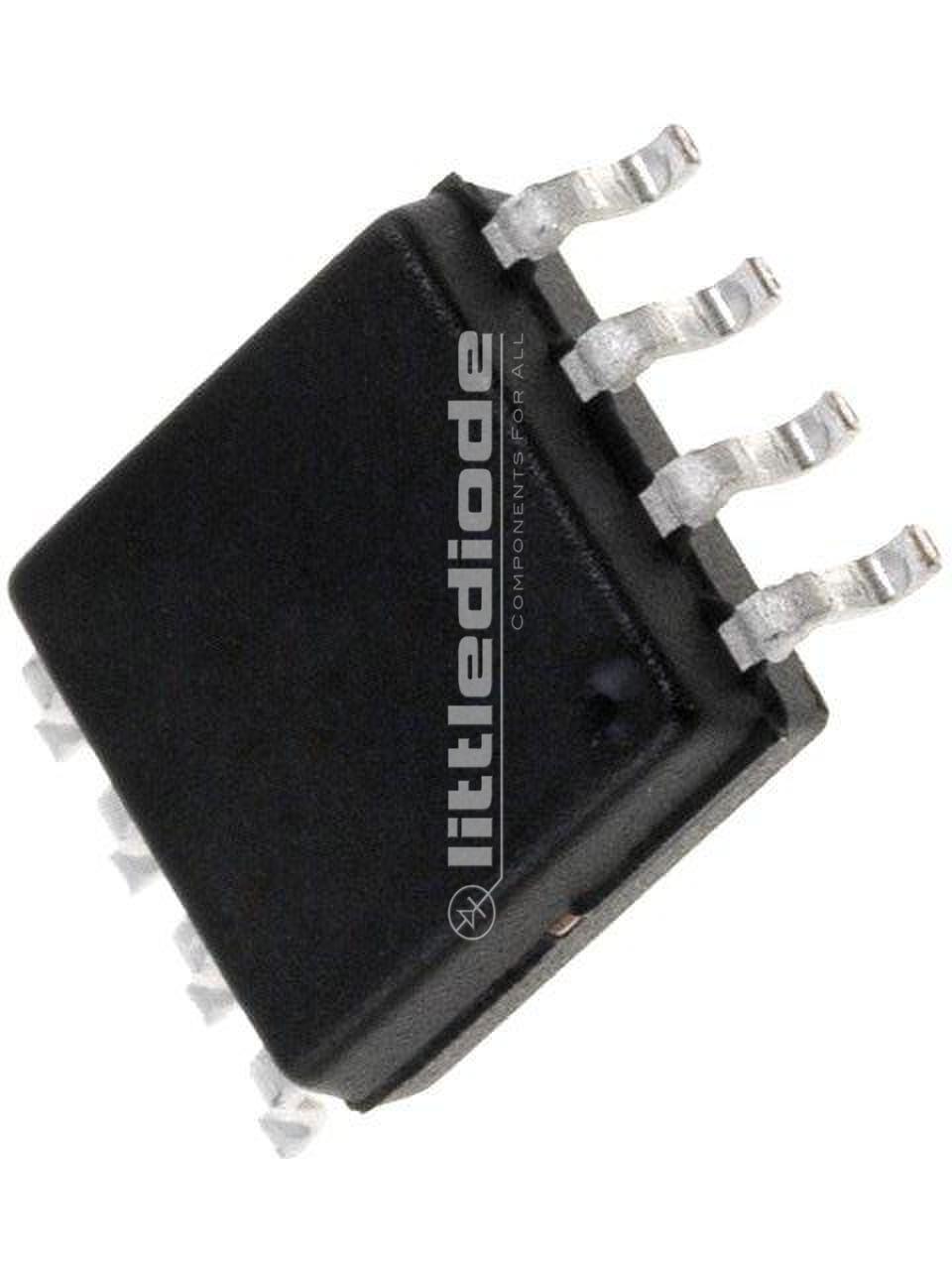

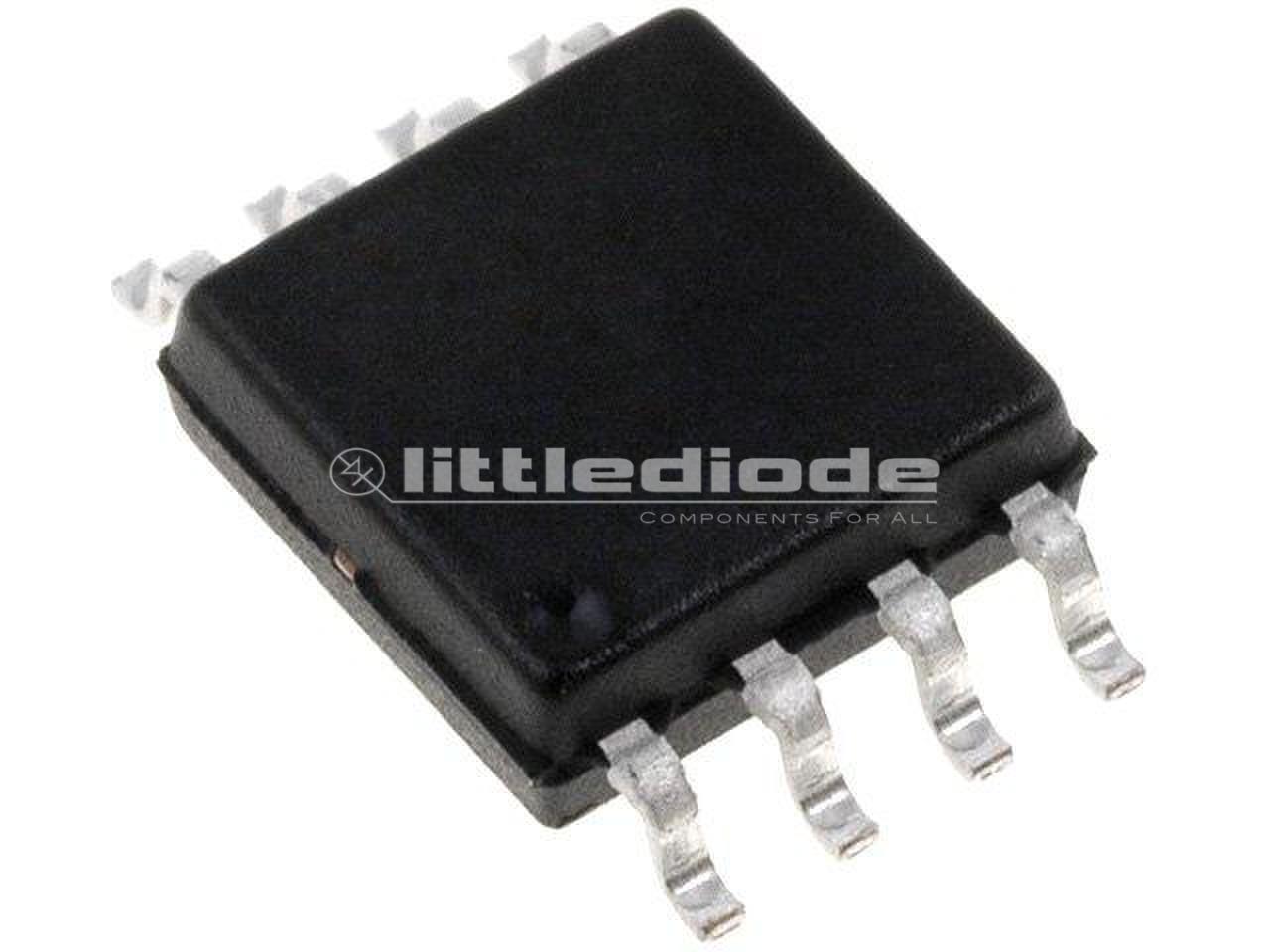

SN75119D Integrated Circuit CASE: SOIC8 MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case SOIC8
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 1.0
Inp Thrshld Lo (V) -1.0
Mode I/O D or S Differenti
tPD Max. (S) 40n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@IOL (A) 40m
VOL Max. (Drvr) 0.4
VOL Max. (Rcvr) 0.4
VOH Min (Rcvr) 2.4
Pinout Equivalence Number 8-83
No. of Pins 8
Surface Mounted Yes/No YES
SKU 971012
