SN75138N

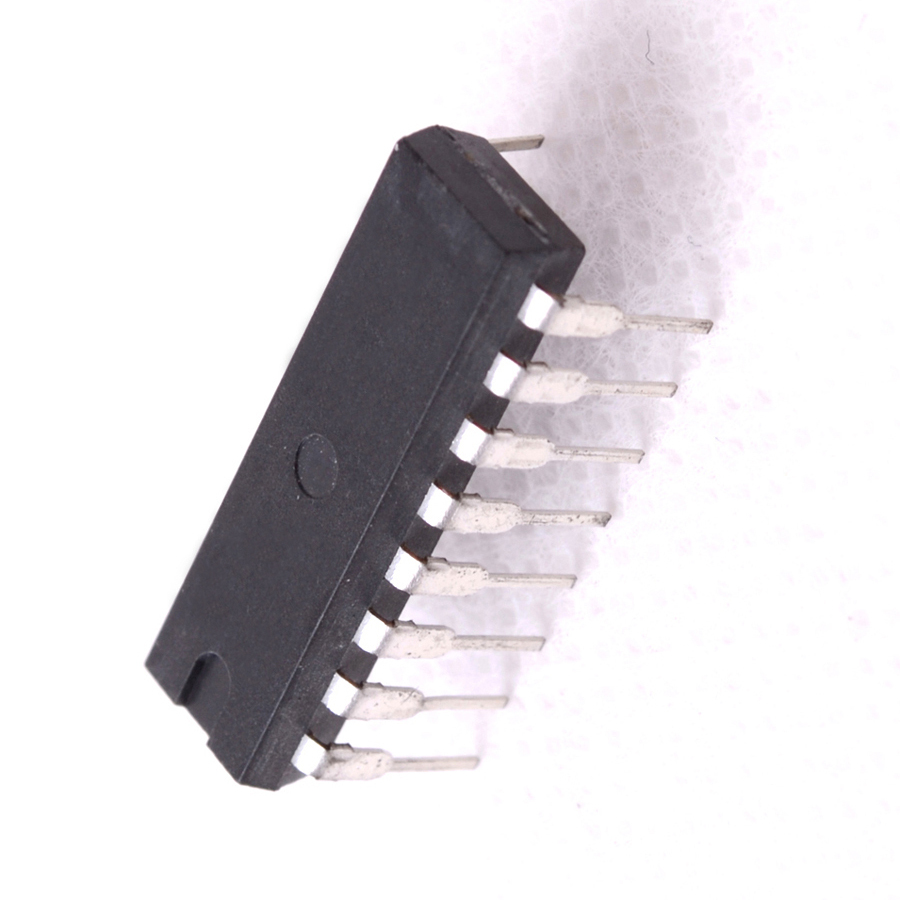

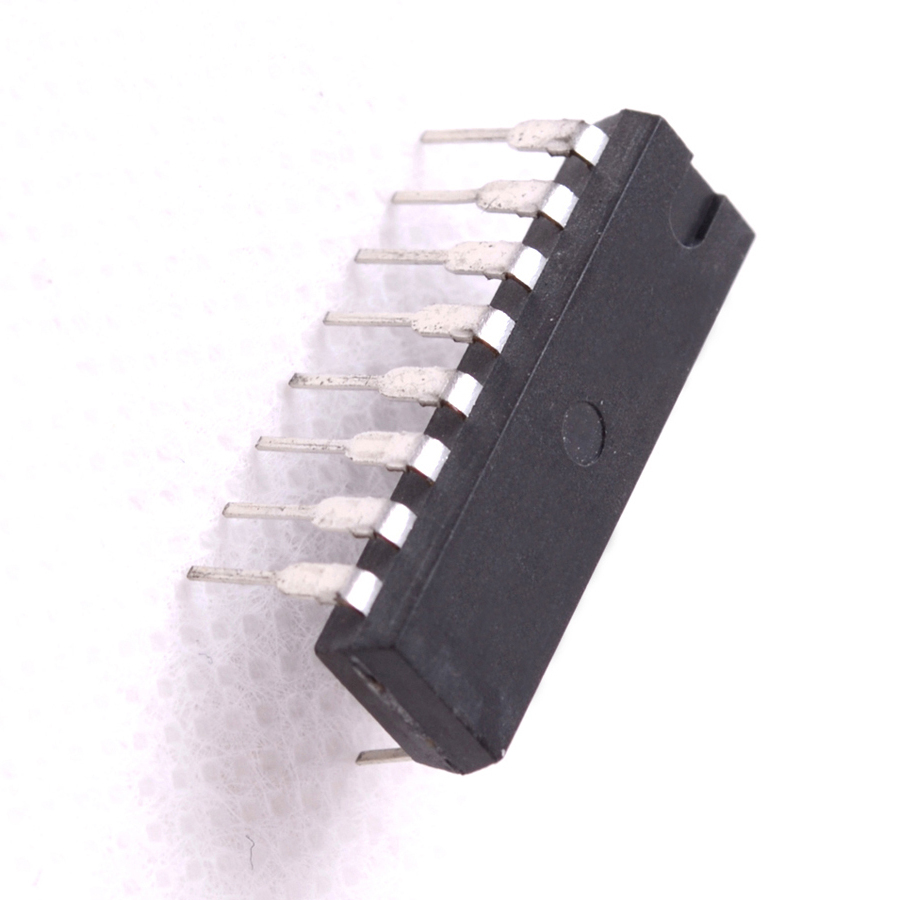

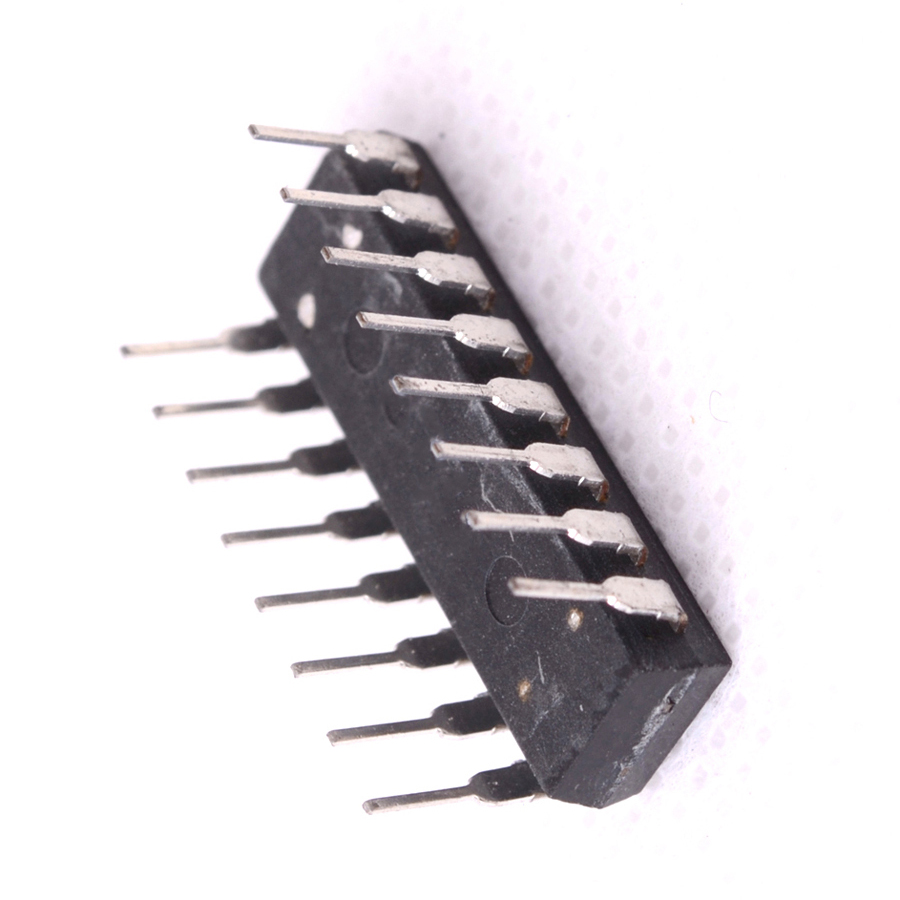

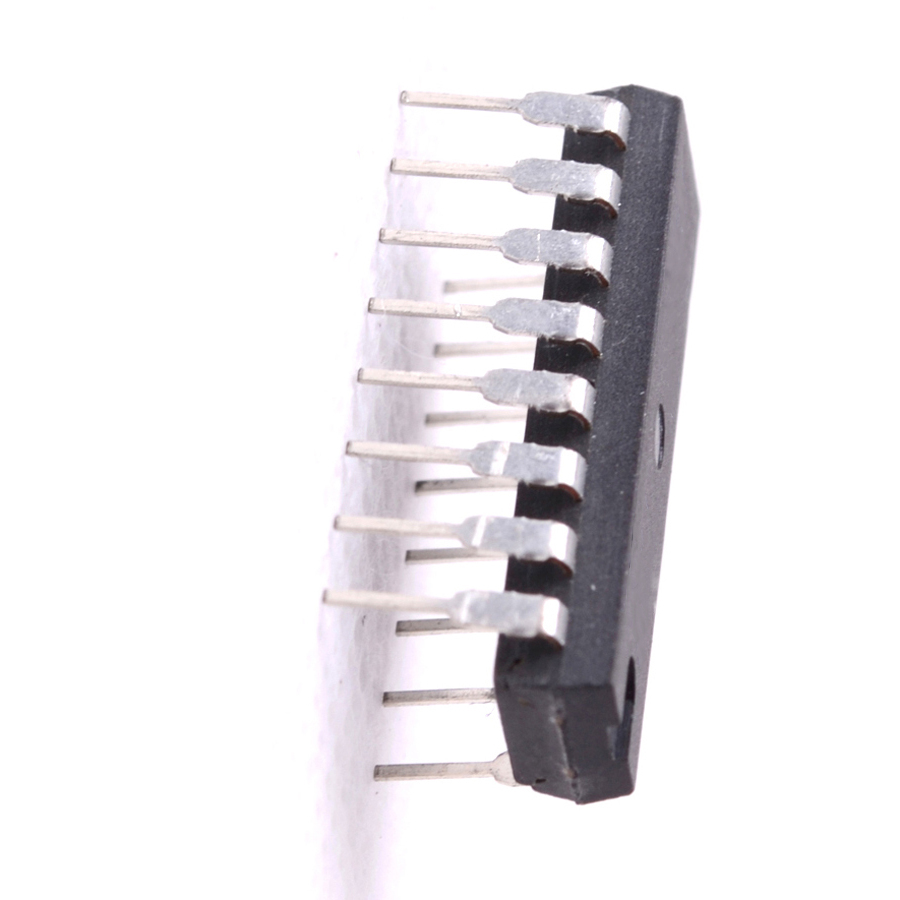

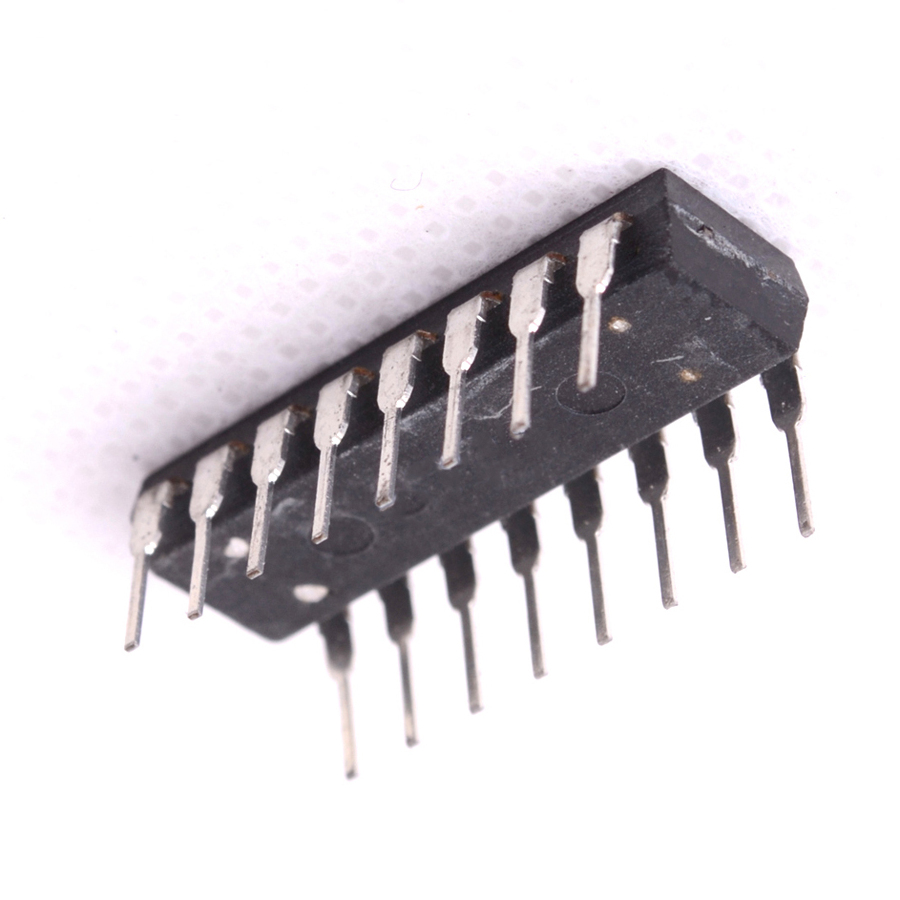

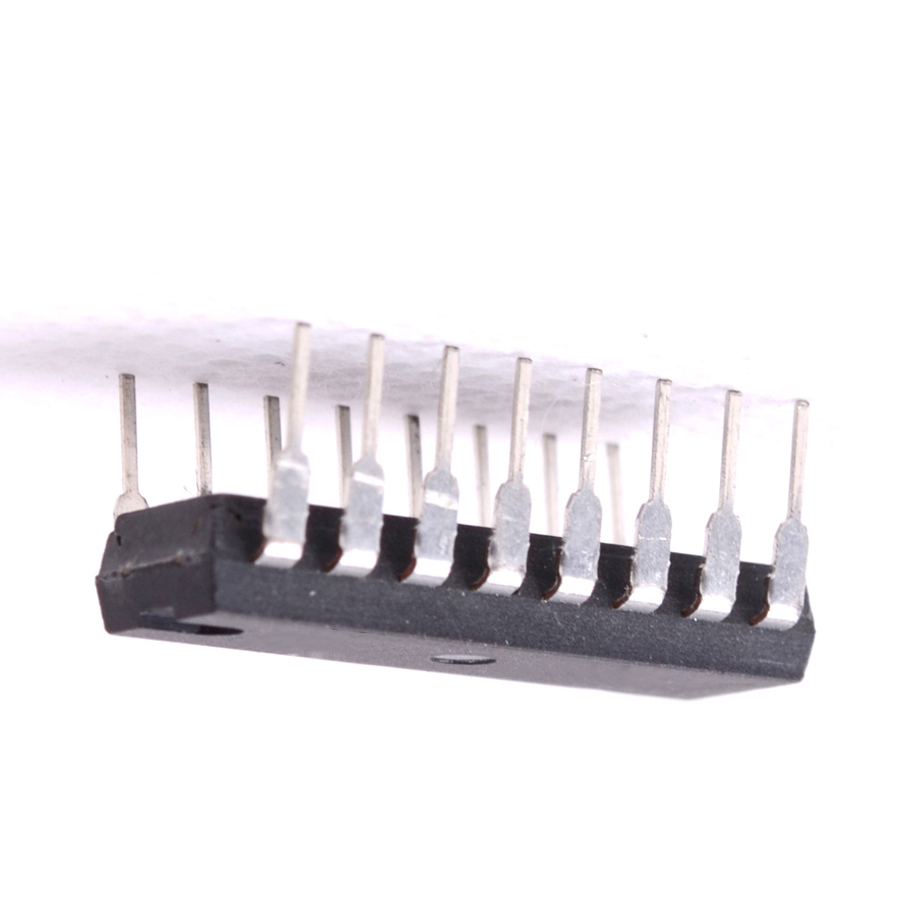

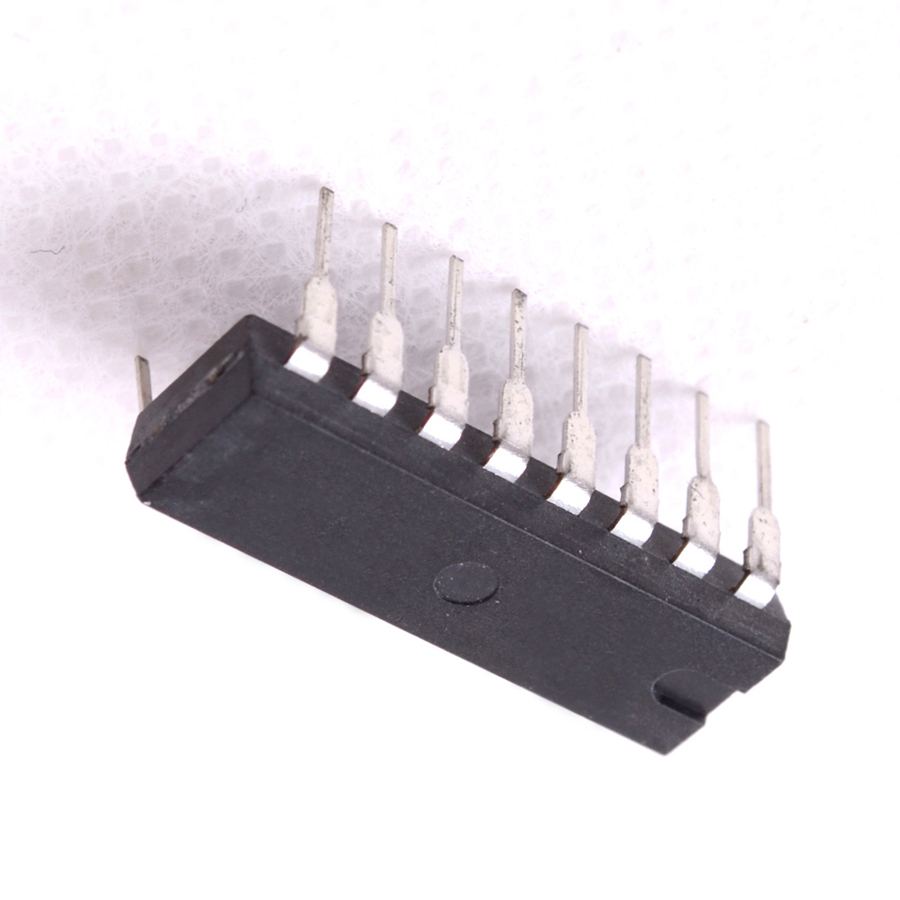

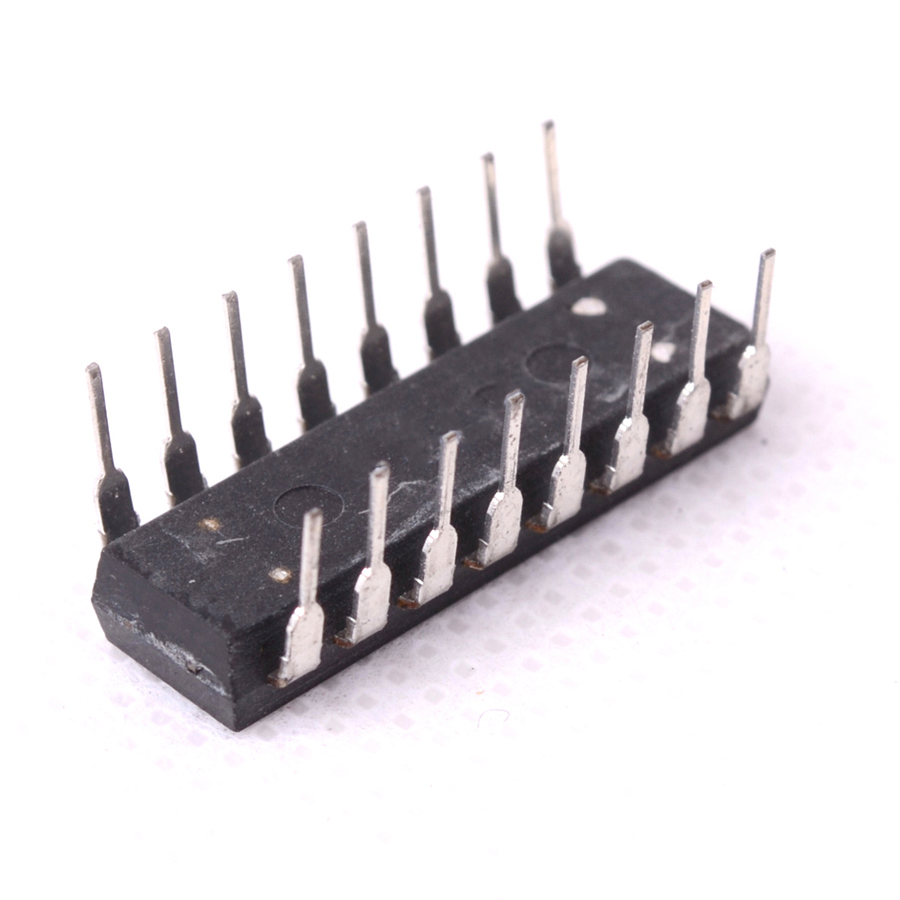

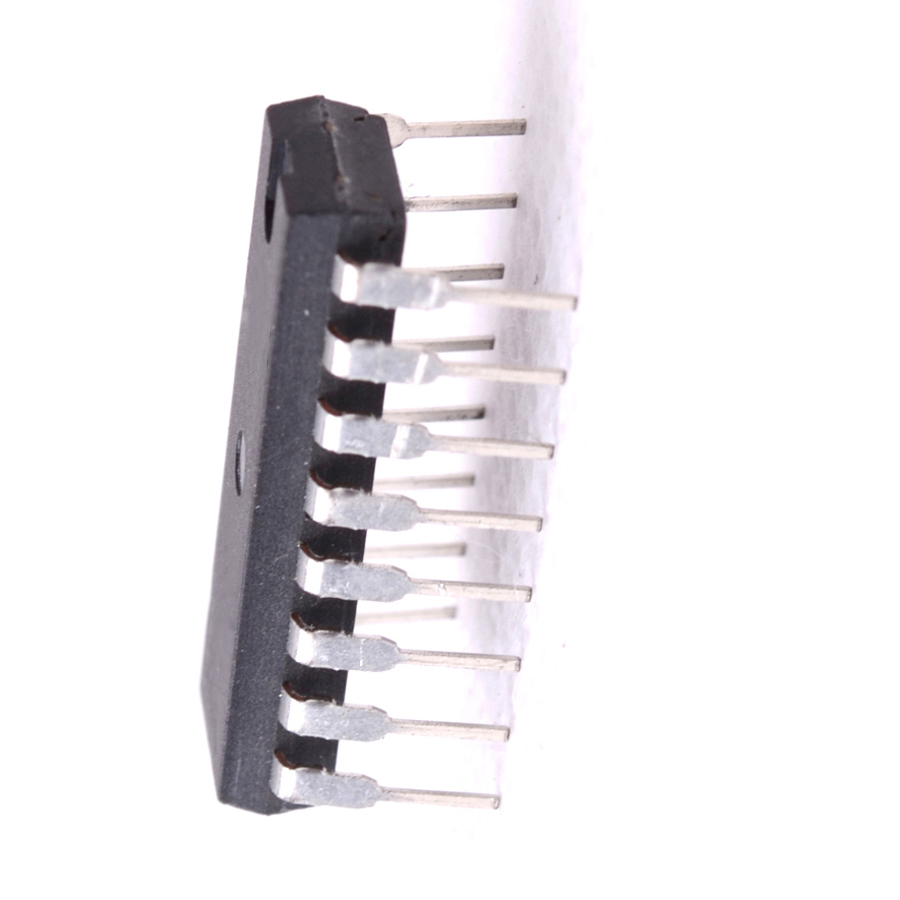

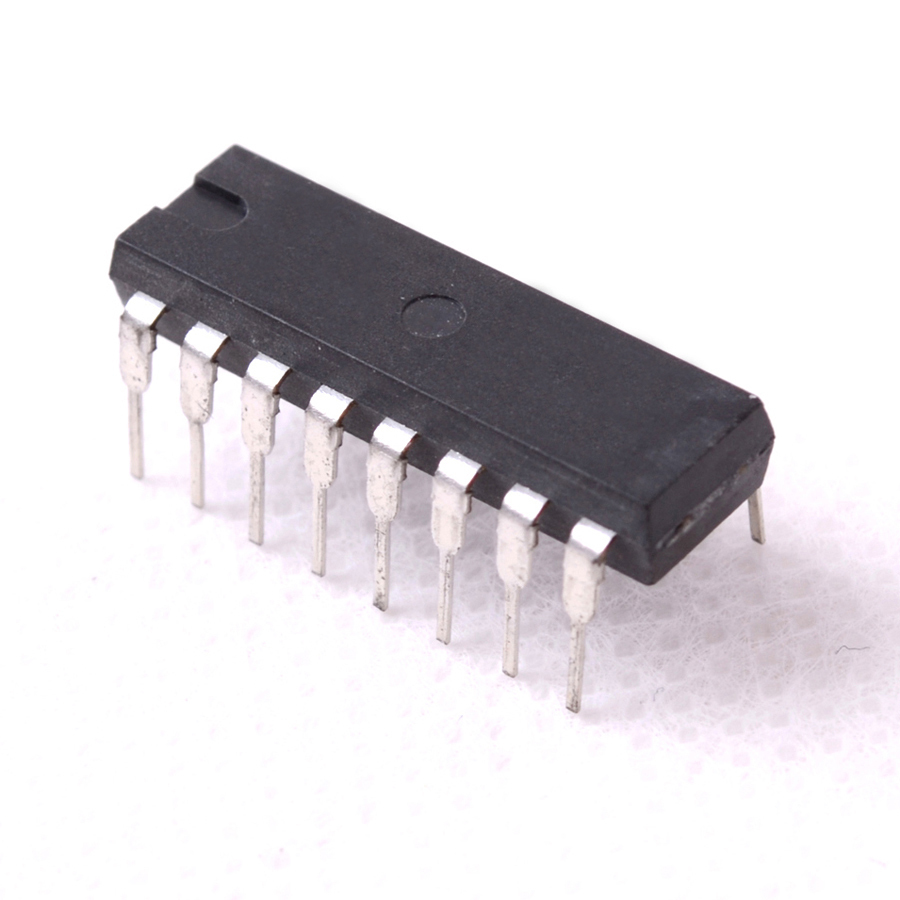

View detailed images (13)

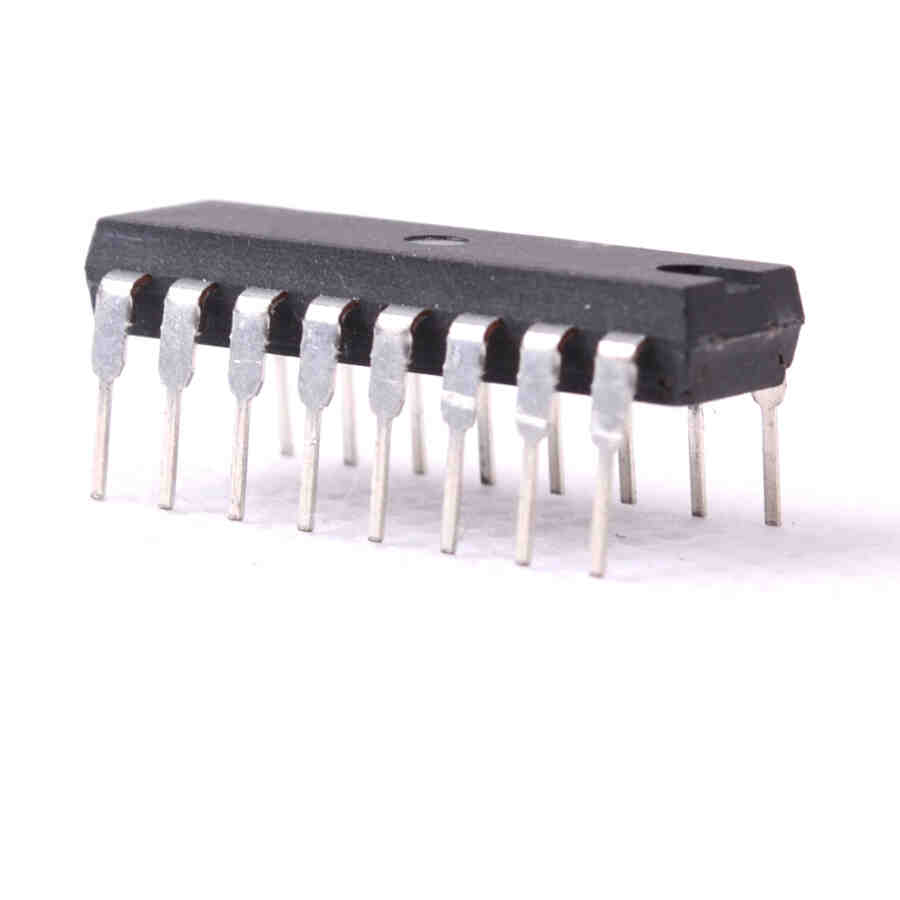

SN75138N

SKU: SN75138N
SN75138N is a quadruple bus transceiver for two-way data communication over single-ended transmission lines. Supplied in a 16-pin PDIP package, it runs from a single 5‑V supply, offers four independent channels with 100‑mA open-collector driver outputs, TTL‑compatible receiver outputs, and an operating temperature range of 0 to 70 °C.
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • Last 38 pieces Ready to Ship
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit INTERFACE-IC
Case DIP16
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 2.0
Inp Thrshld Lo (V) 0.8
Mode I/O D or S Differenti
tPD Max. (S) 32n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@IOL (A) 100m
VOL Max. (Drvr) .45
VOL Max. (Rcvr) 0.4
VOH Min (Rcvr) 2.4
Pinout Equivalence Number 16-256
Surface Mounted Yes/No NO
SKU 18950
