Home / Integrated Circuit / SN75161BDW
SN75161BDW

SN75161BDW

SKU: SN75161BDW

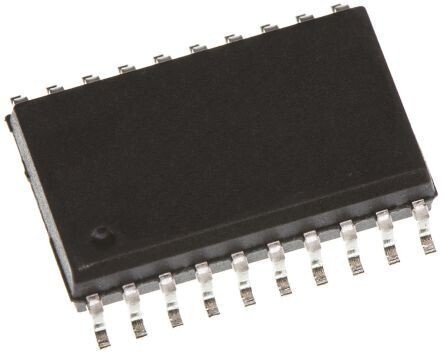

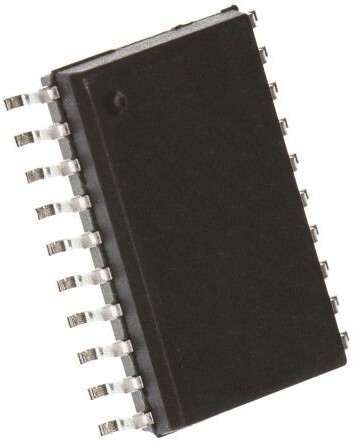

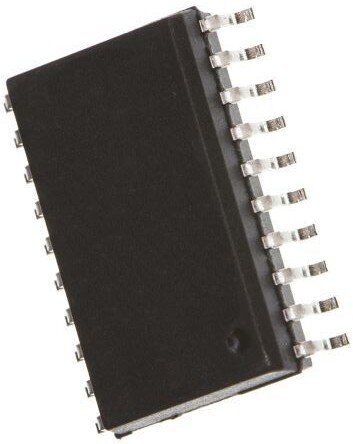

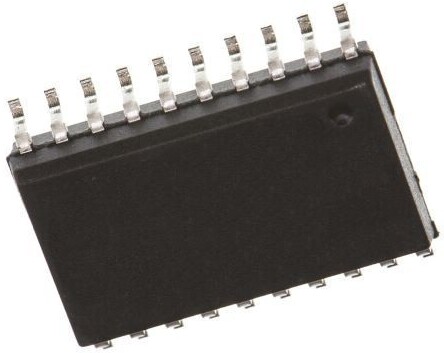

SN75161BDW Integrated Circuit CASE: SO MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case SO
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 2.0
Inp Thrshld Lo (V) 0.8
Mode I/O D or S Single-End
tPD Max. (S) 22n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@IOL (A) 48m
VOL Max. (Drvr) 0.5
VOL Max. (Rcvr) 0.5
VOH Min (Rcvr) 2.7
Pinout Equivalence Number 20-412
No. of Pins 20
Surface Mounted Yes/No YES
SKU 522256
