SN75176AD

SN75176AD

SKU: SN75176AD

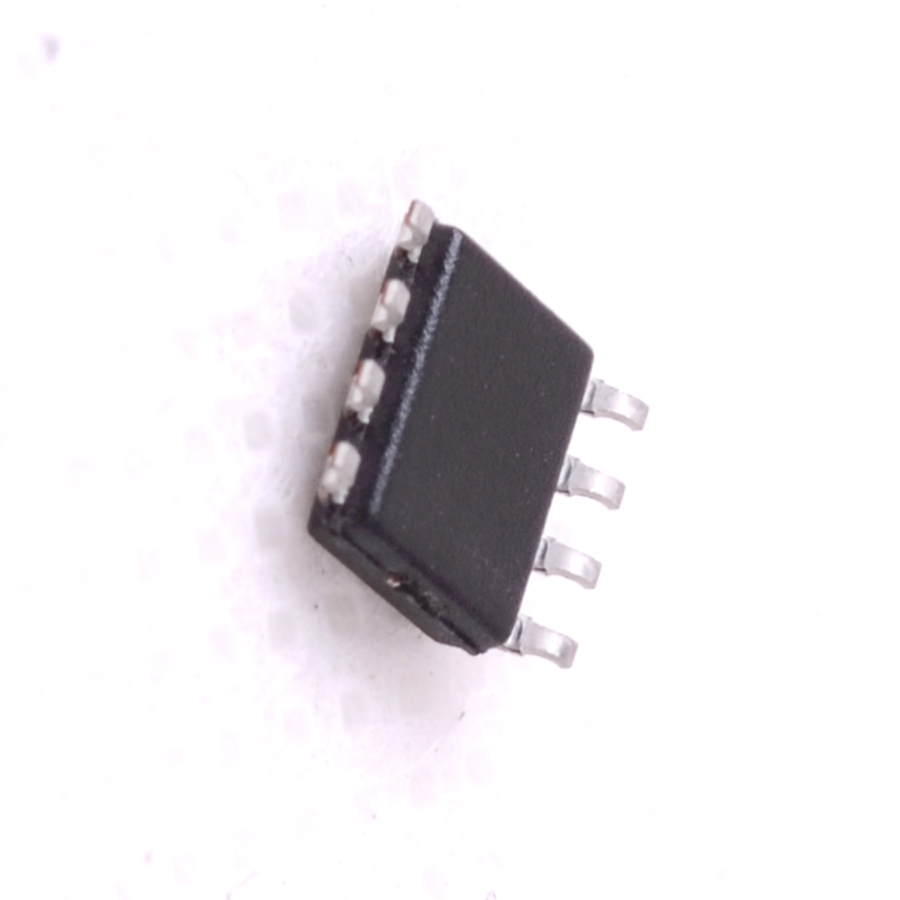

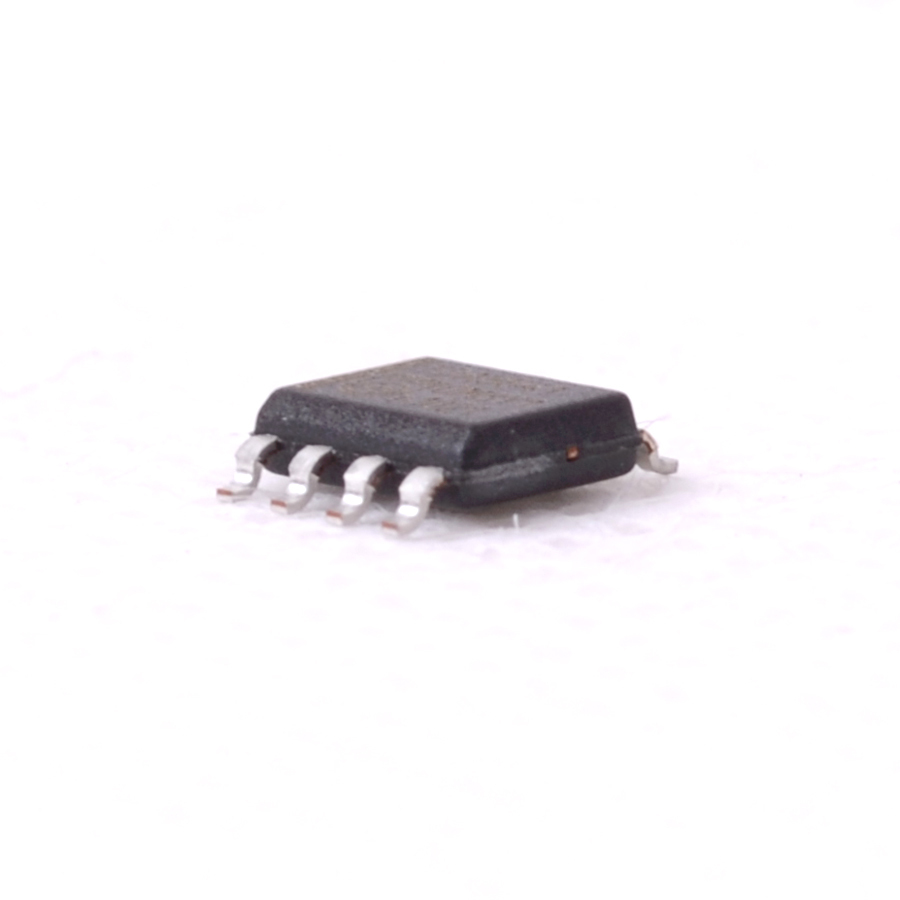

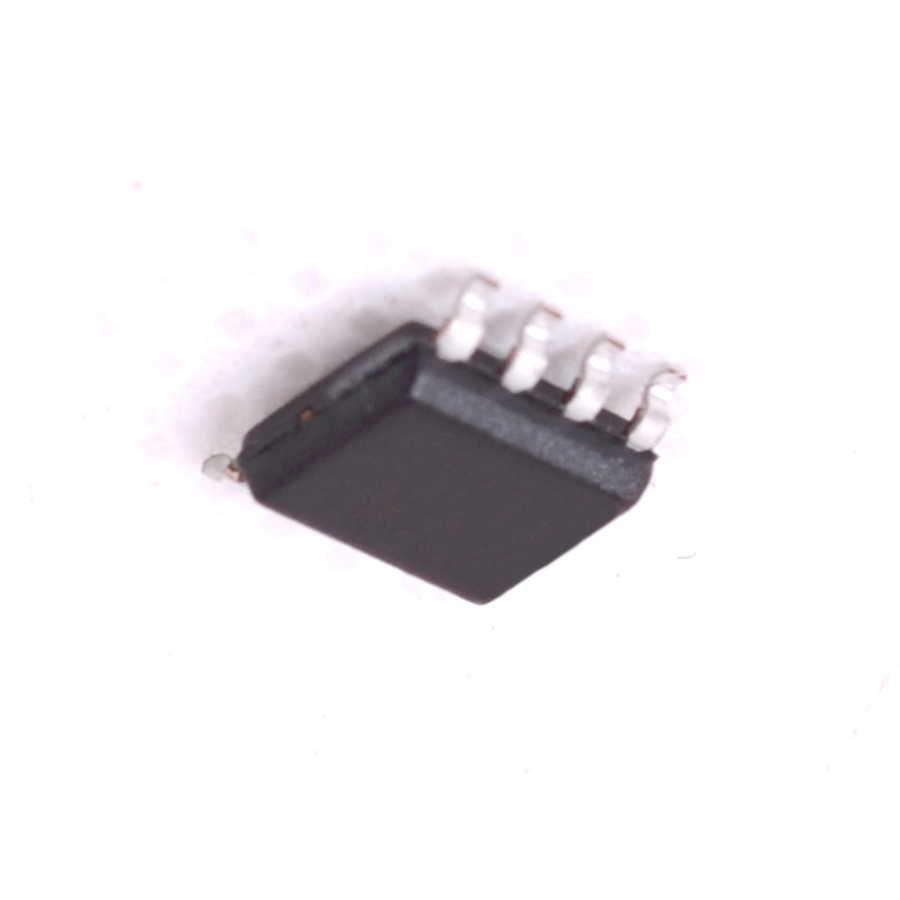

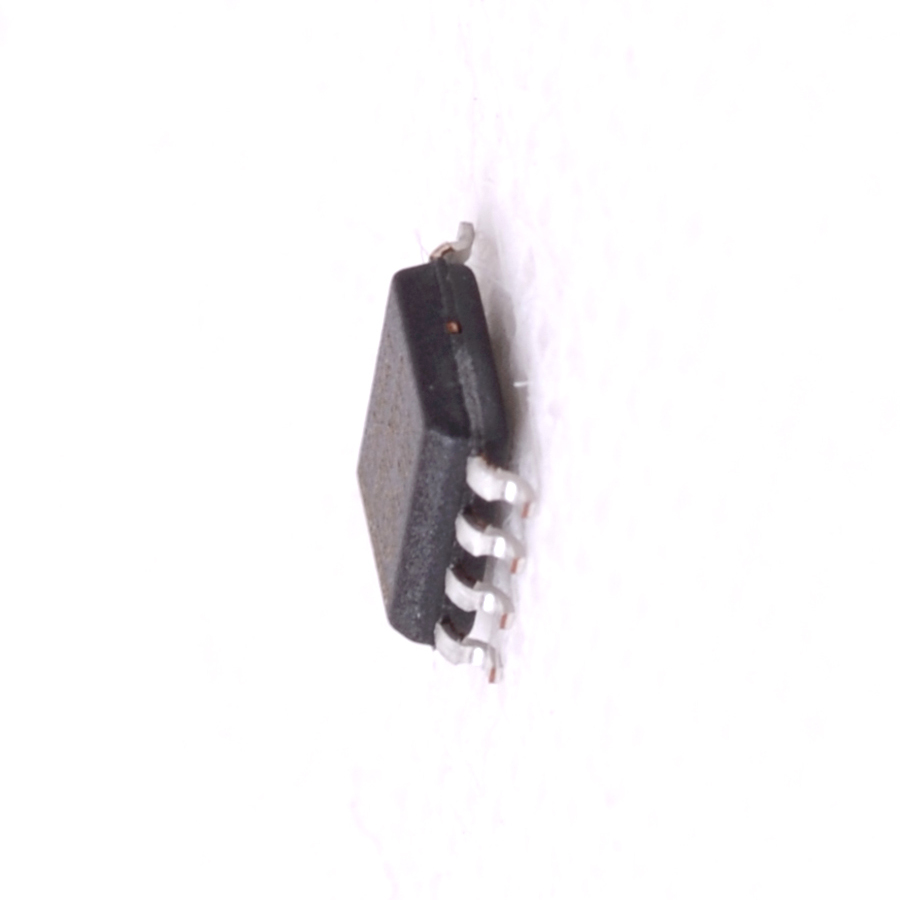

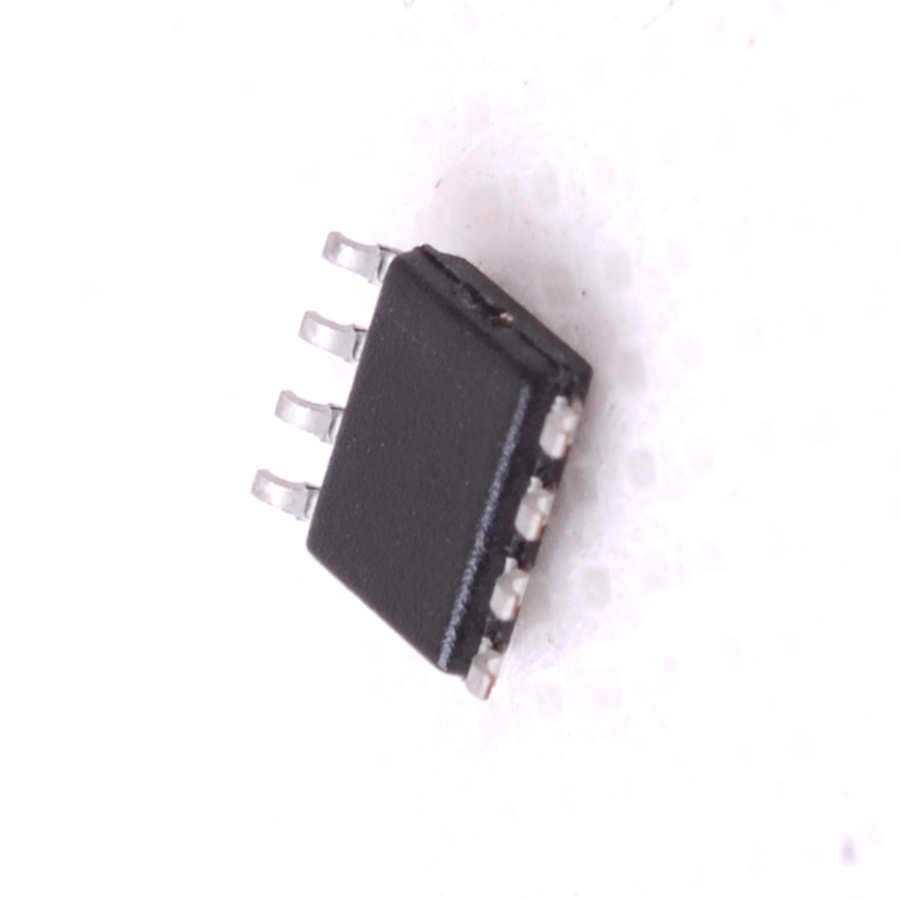

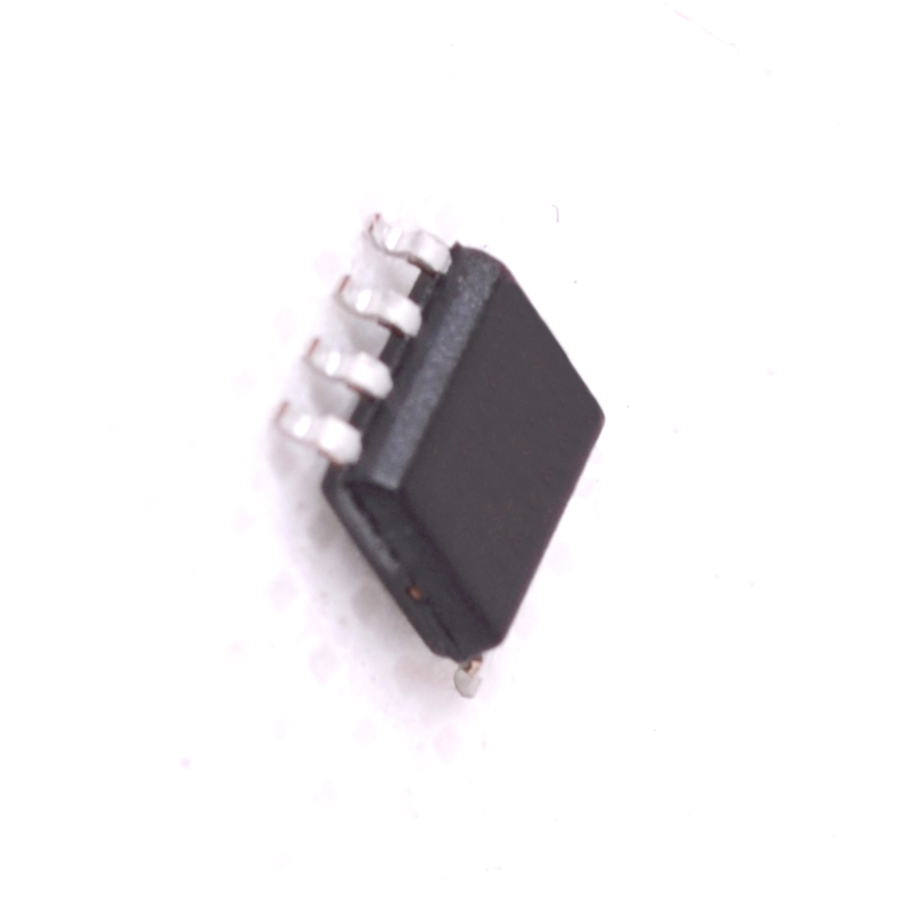

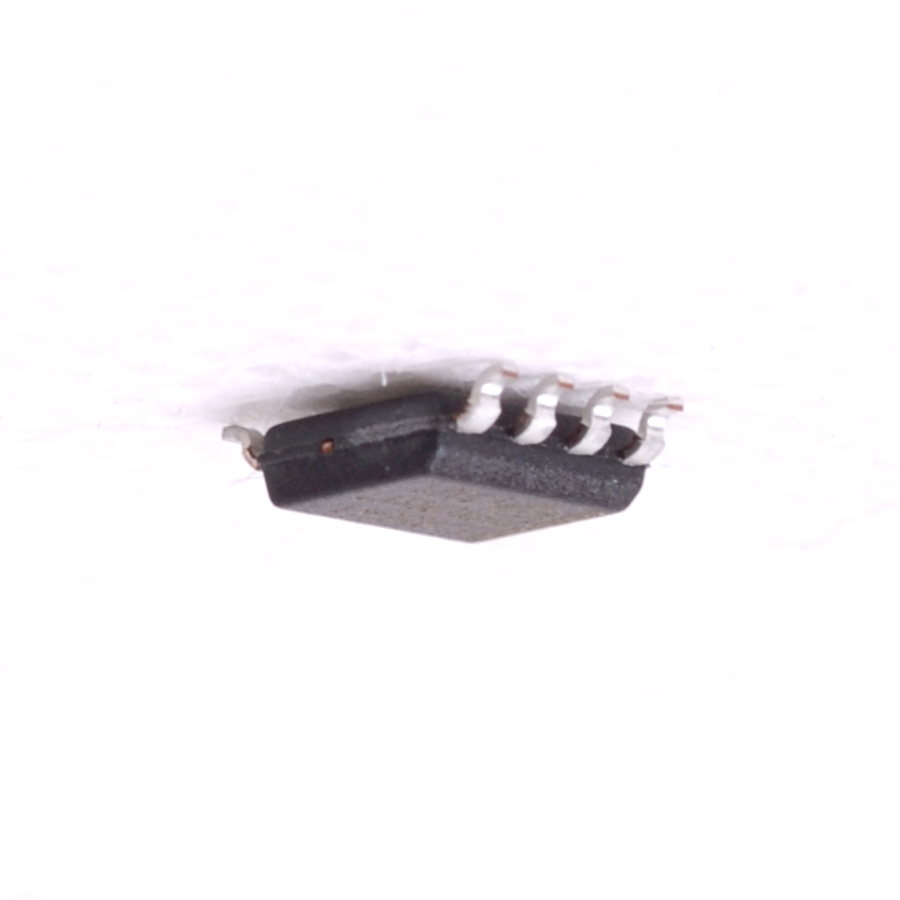

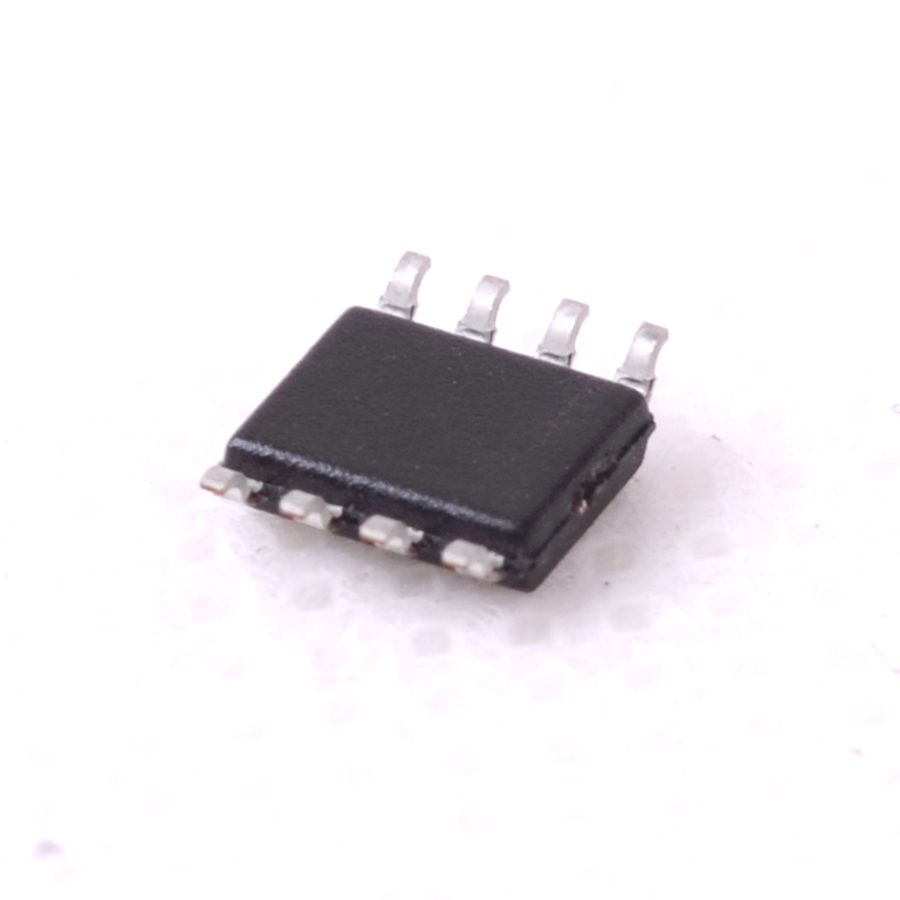

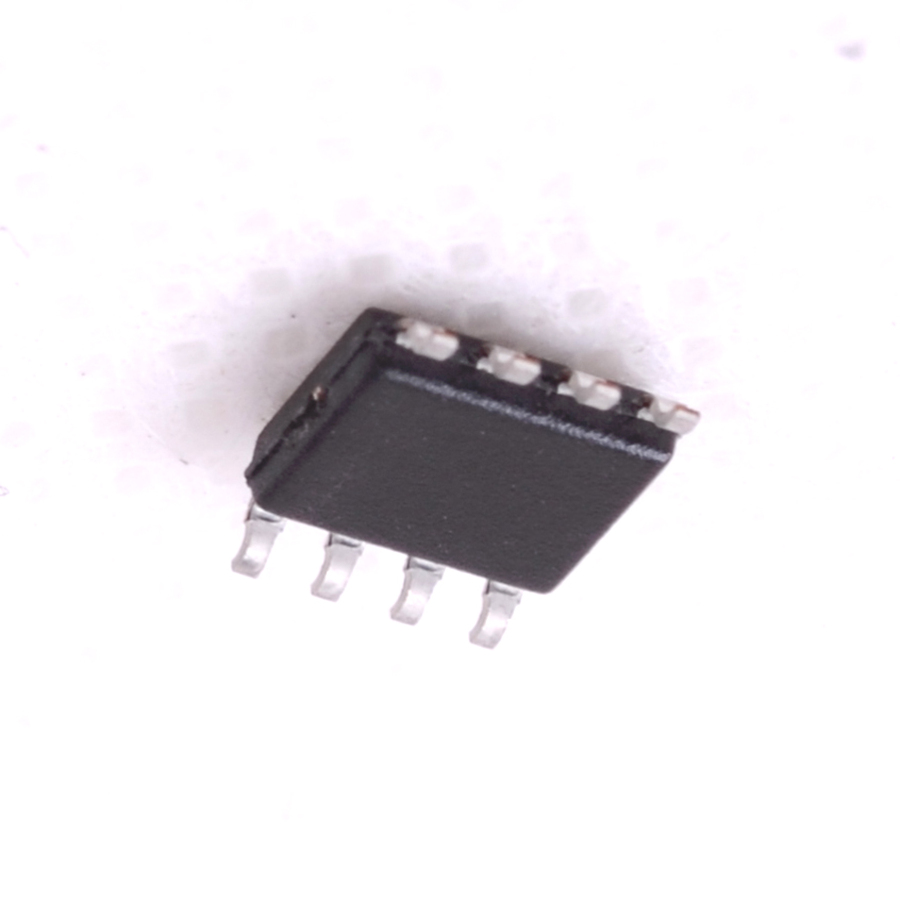

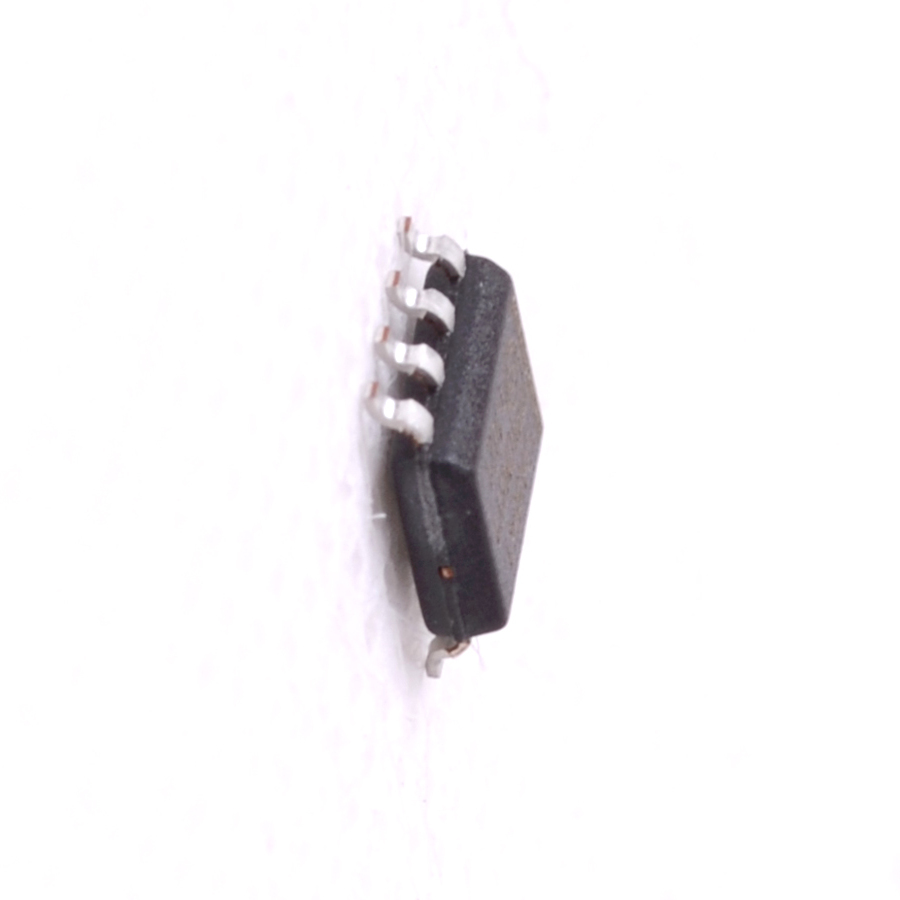

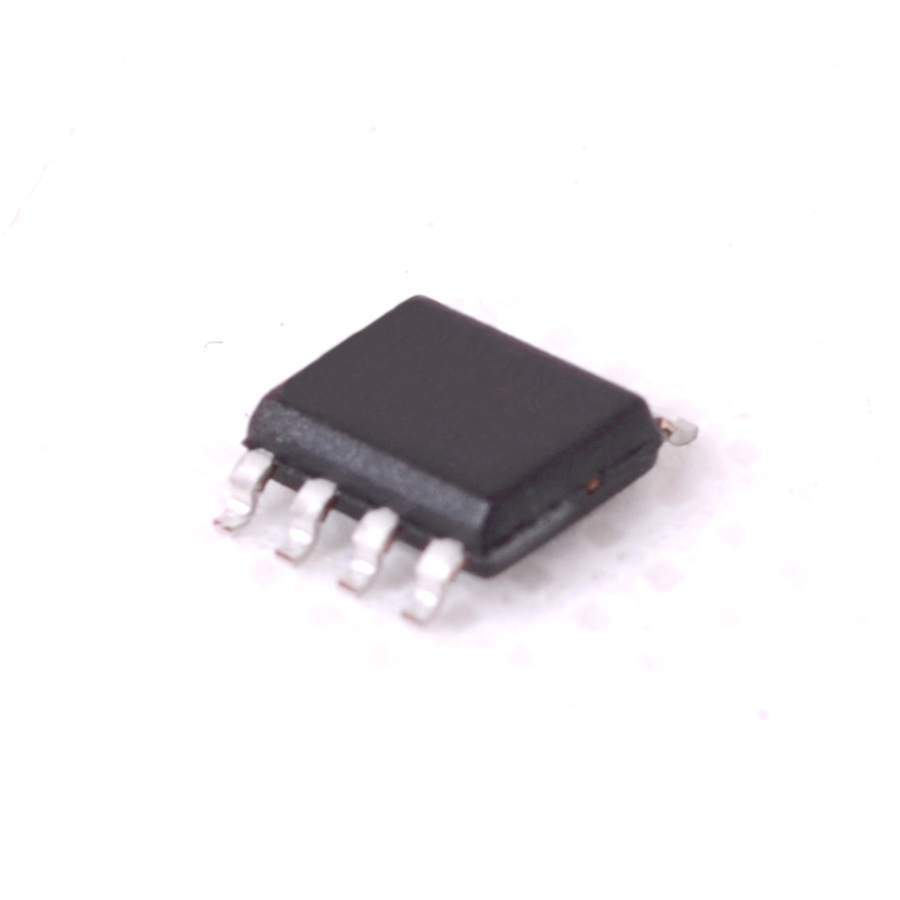

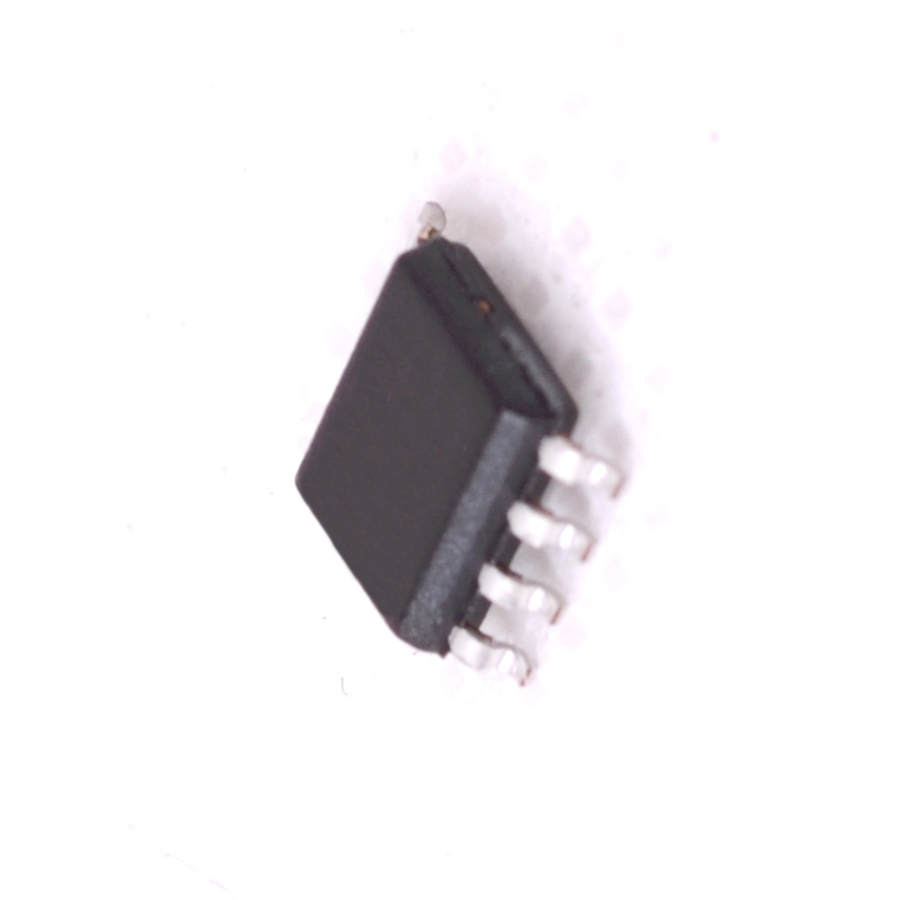

SN75176AD Integrated Circuit CASE: SOP8 MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case SOP8
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 0.2
Inp Thrshld Lo (V) -0.2
Mode I/O D or S Differenti
tPD Max. (S) 35n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@IOL (A) 33m
VOL Max. (Drvr) 1.1
VOL Max. (Rcvr) .45
VOH Min (Rcvr) 2.7
Pinout Equivalence Number 8-46
No. of Pins 8
Surface Mounted Yes/No YES
SKU 522255
