SN75447D

SN75447D

SKU: SN75447D

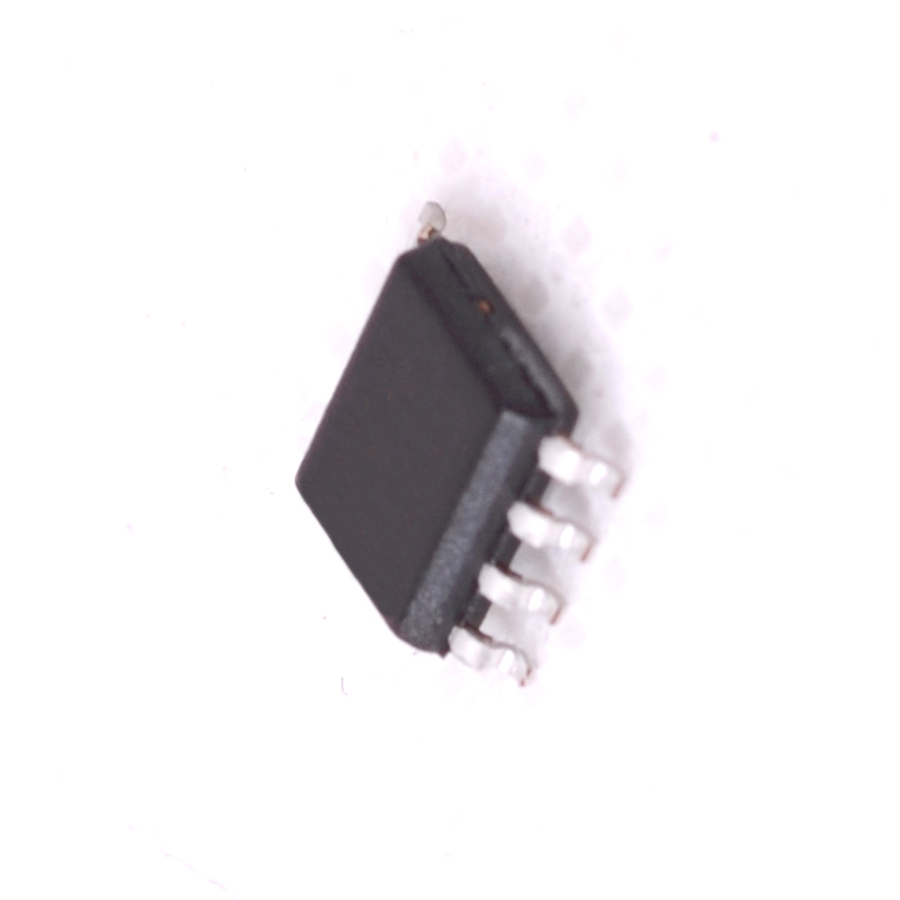

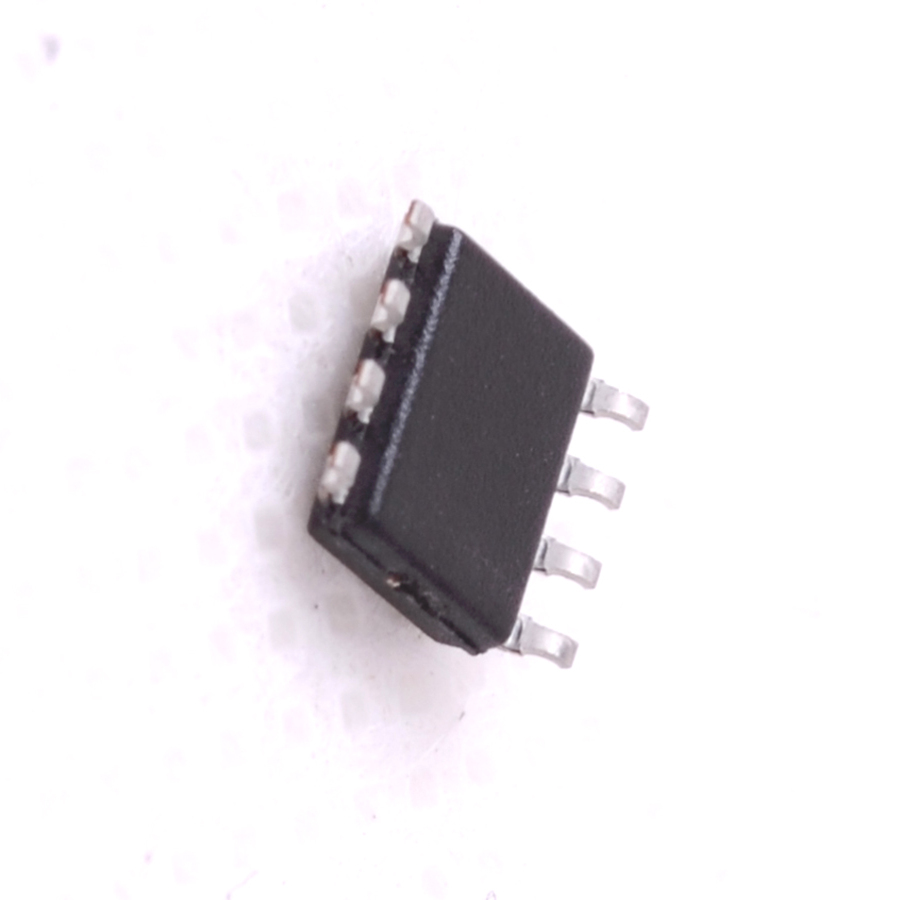

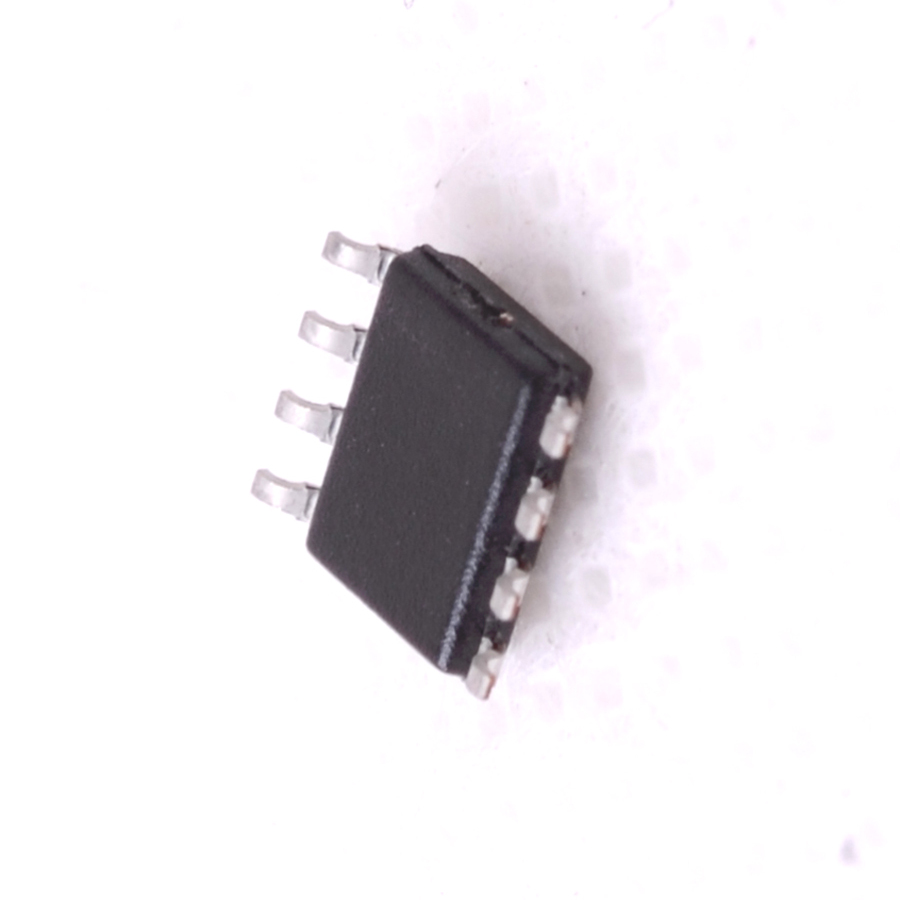

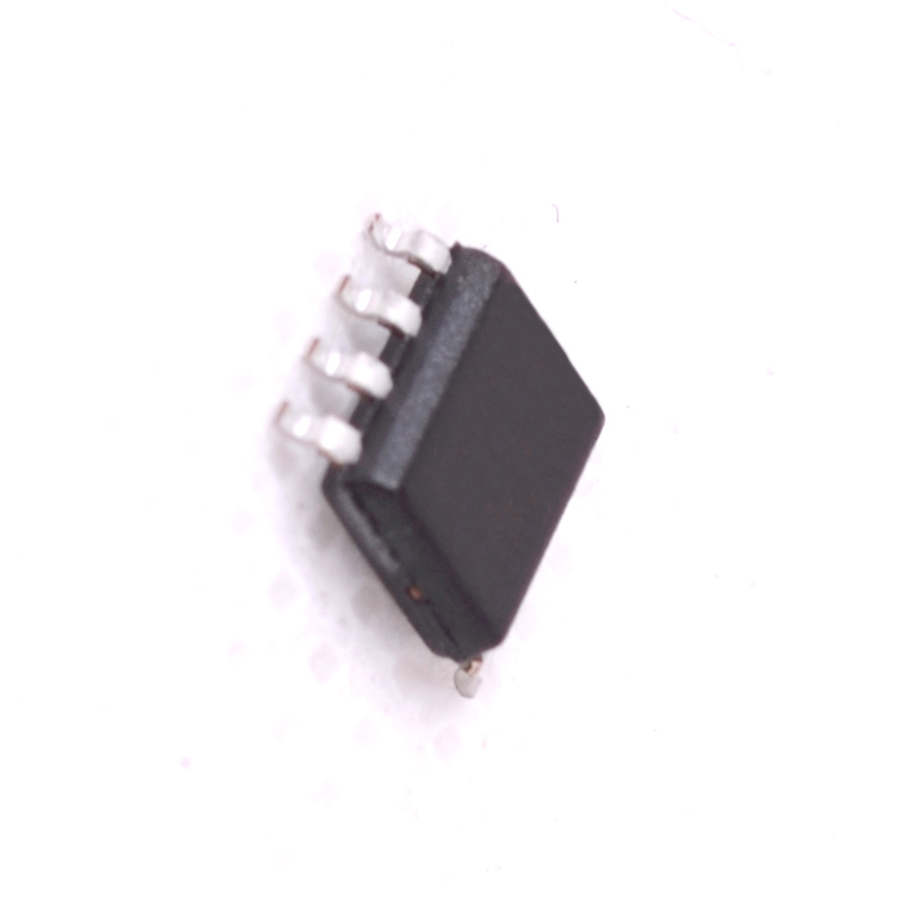

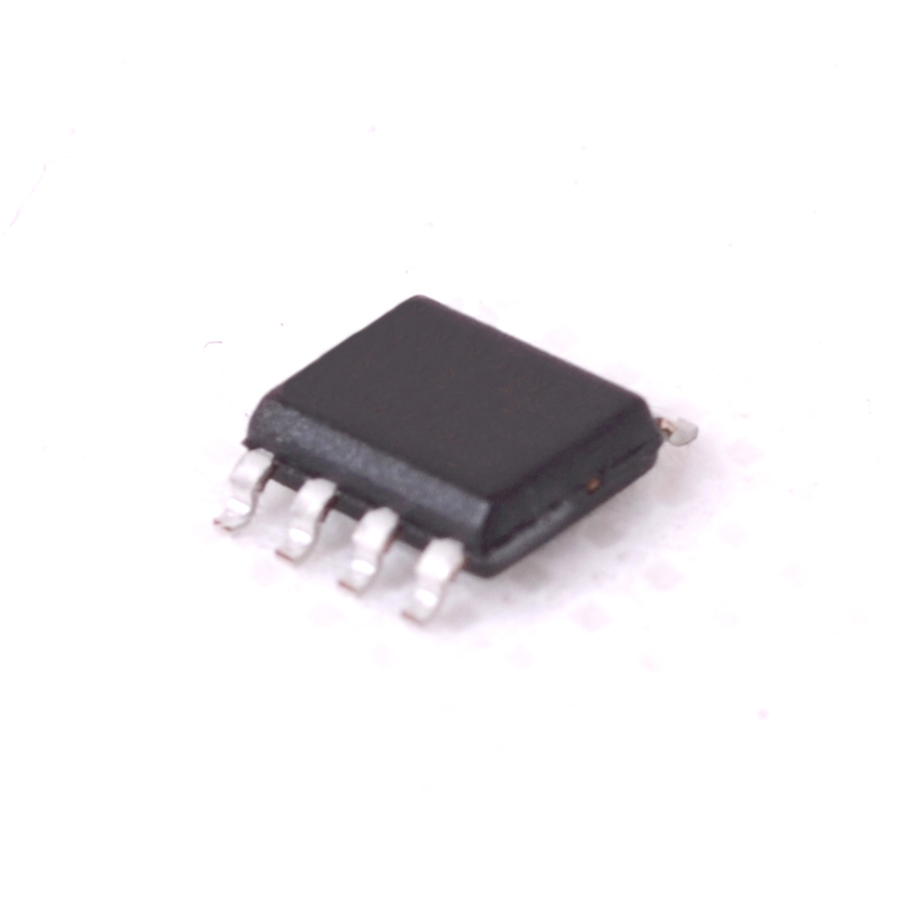

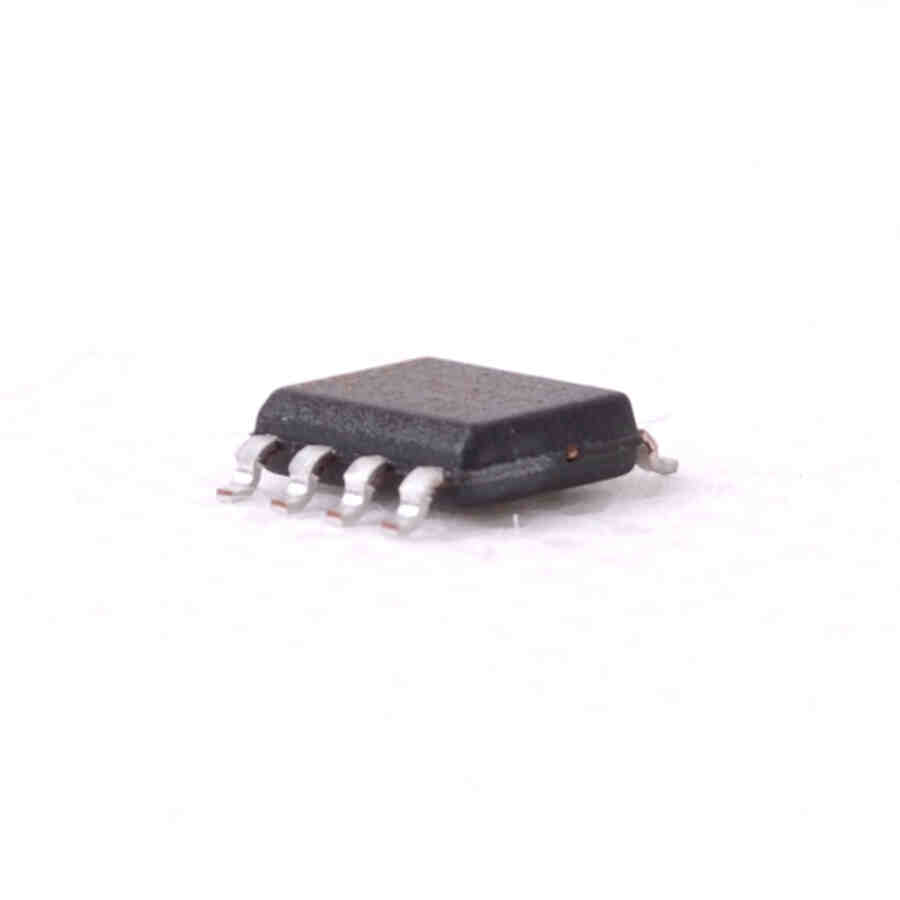

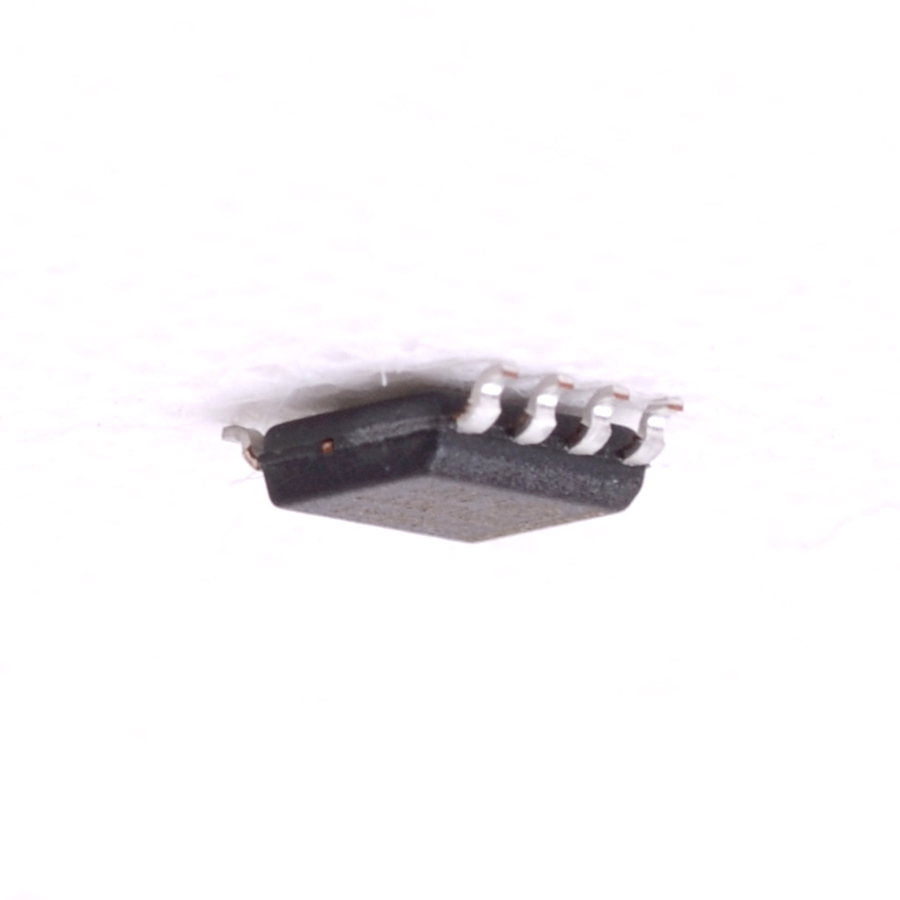

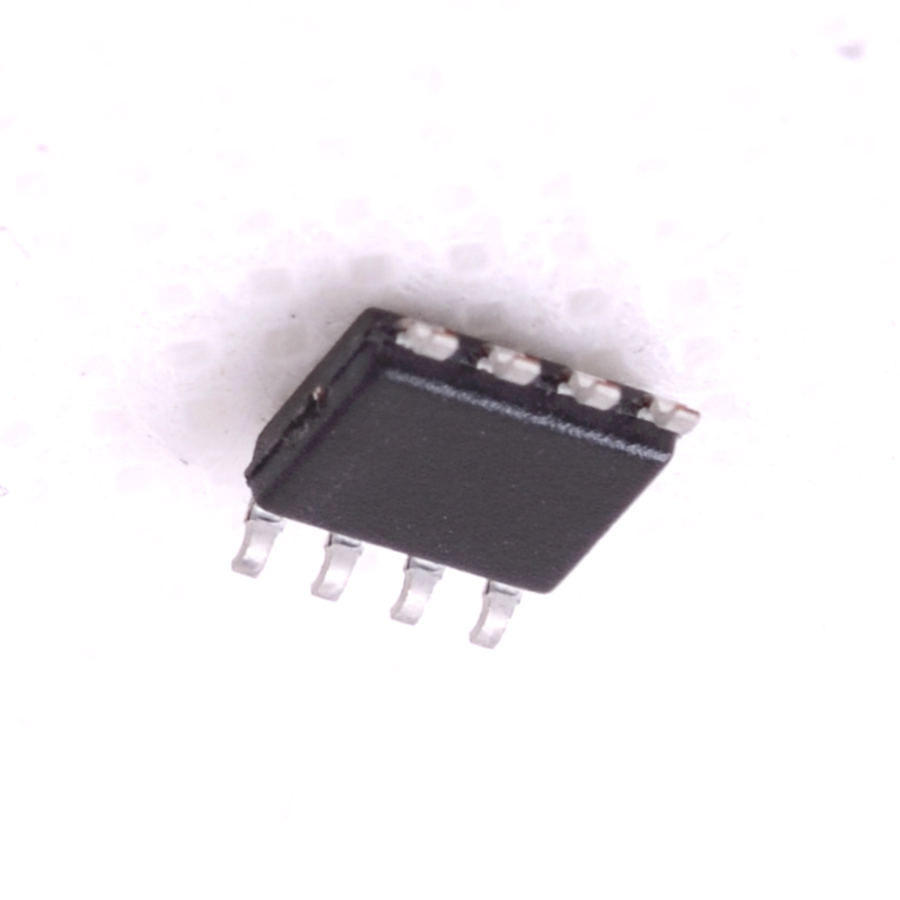

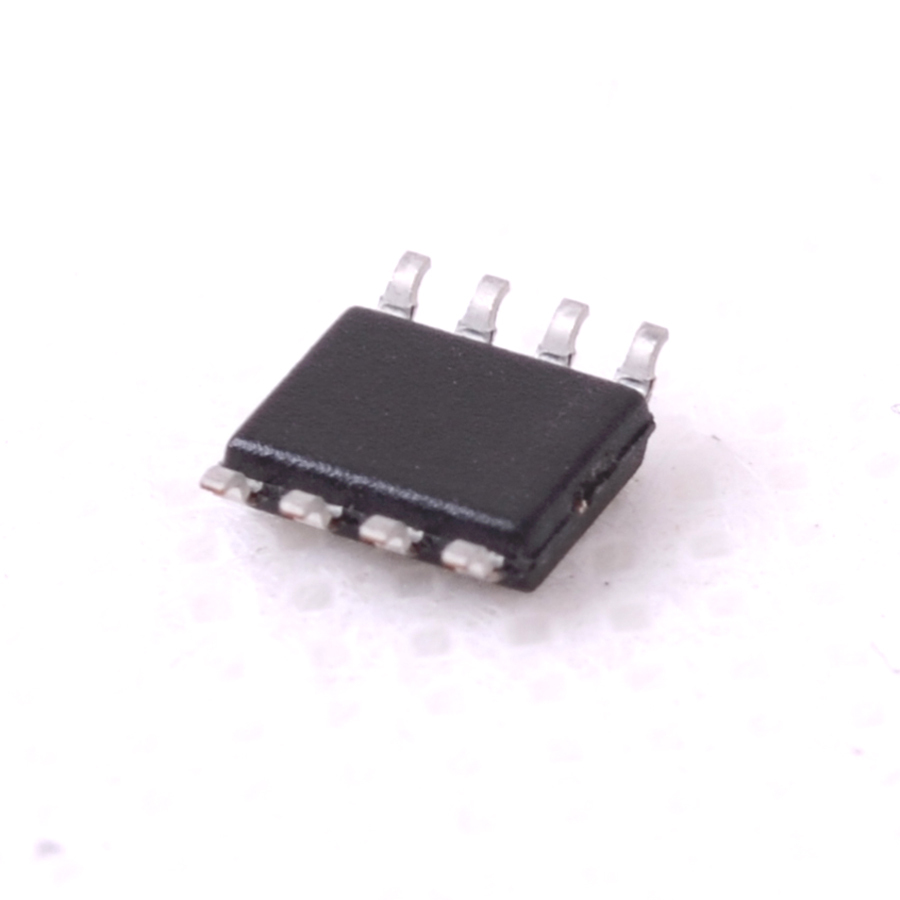

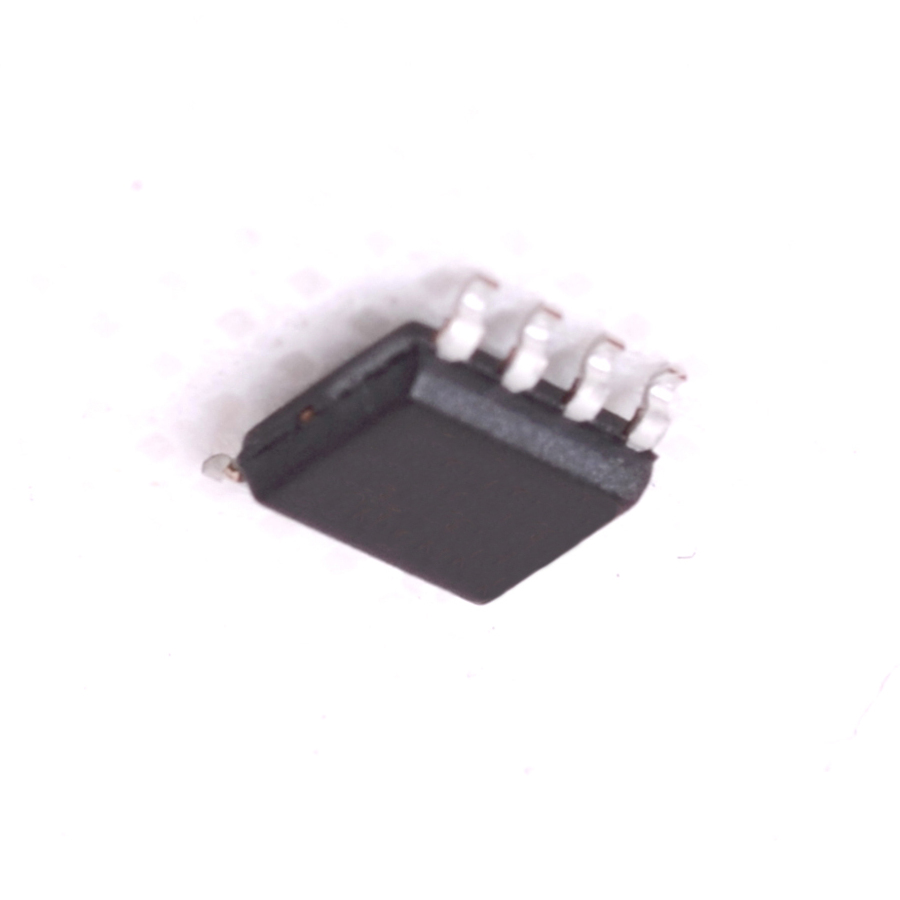

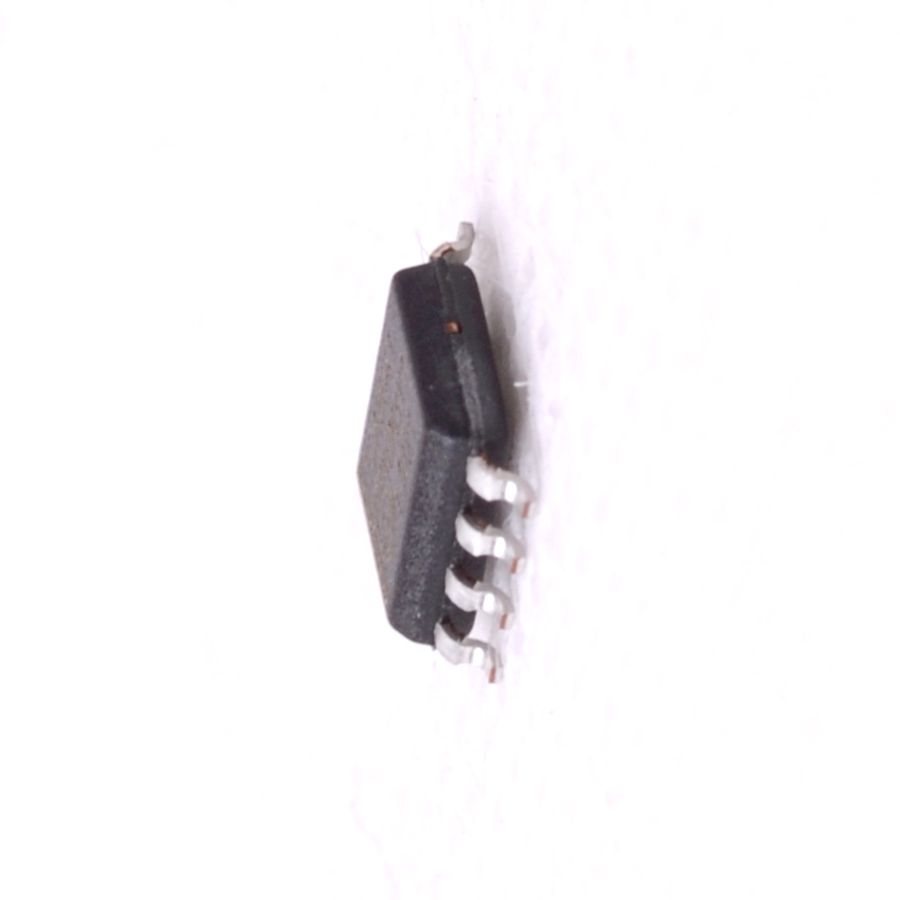

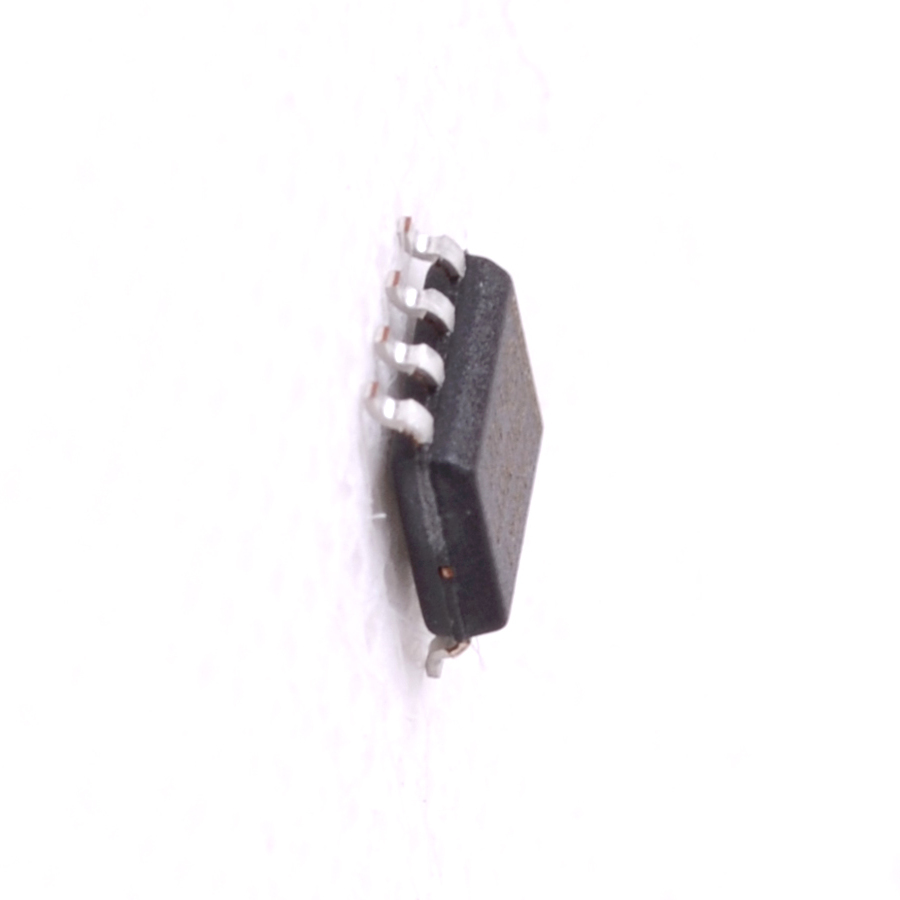

SN75447D Integrated Circuit CASE: SOP8 MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case SOP8
Manufacturer Texas Instruments
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Logic Family MOS,TTL
Output Config Open-Coll.
VOL Max. .75
Outp Transis. Ion Max. 400m
PD Max. (W) 90m
tPD Max. (S) 750n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. NAND
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 70
@Iol (A) 350m
Pinout Equivalence Number 8-92
No. of Pins 8
Surface Mounted Yes/No YES
SKU 927388
