SN75452B

SN75452B

SKU: SN75452B

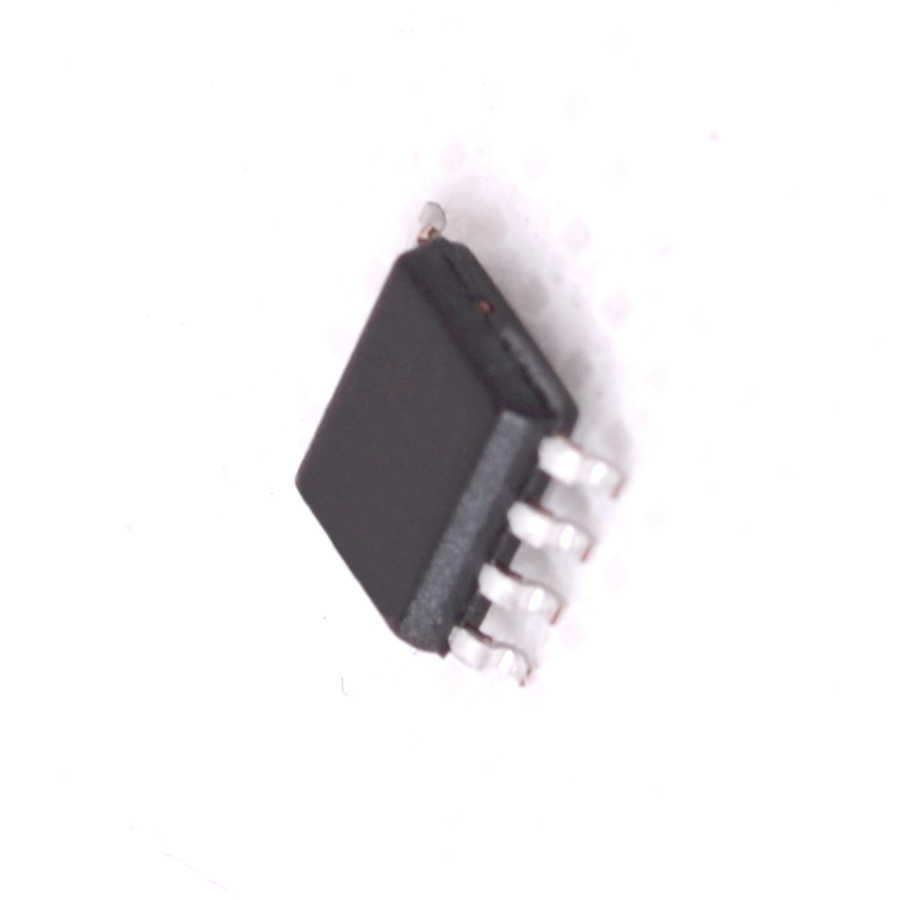

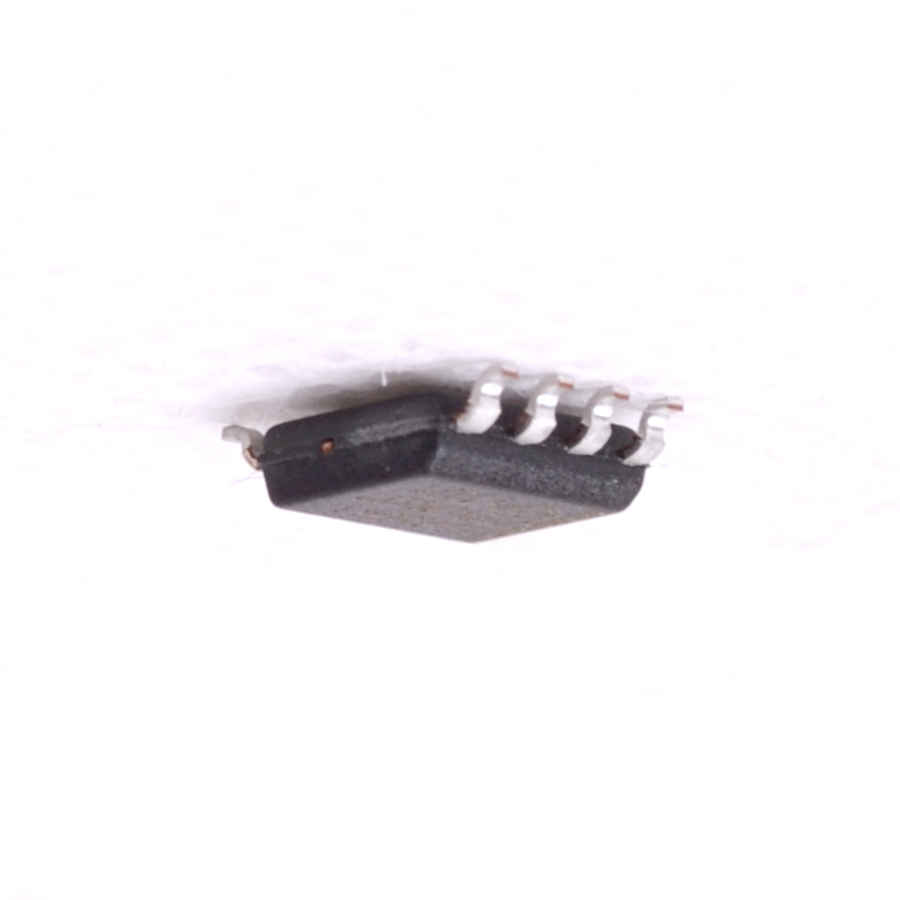

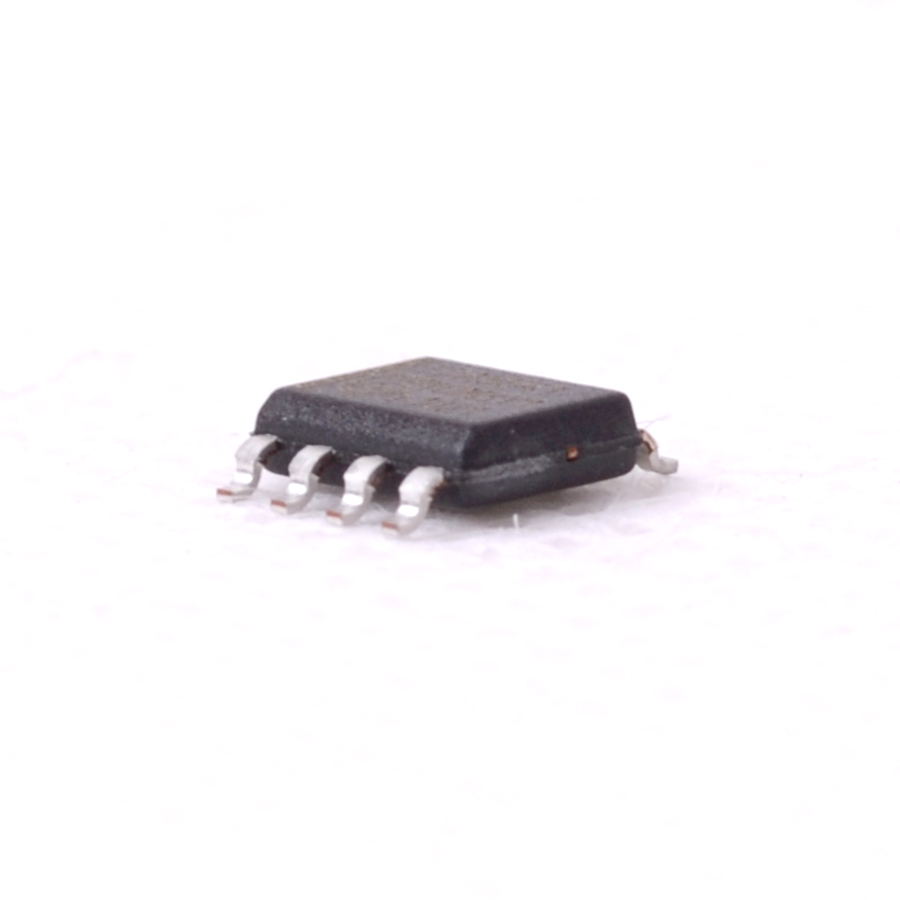

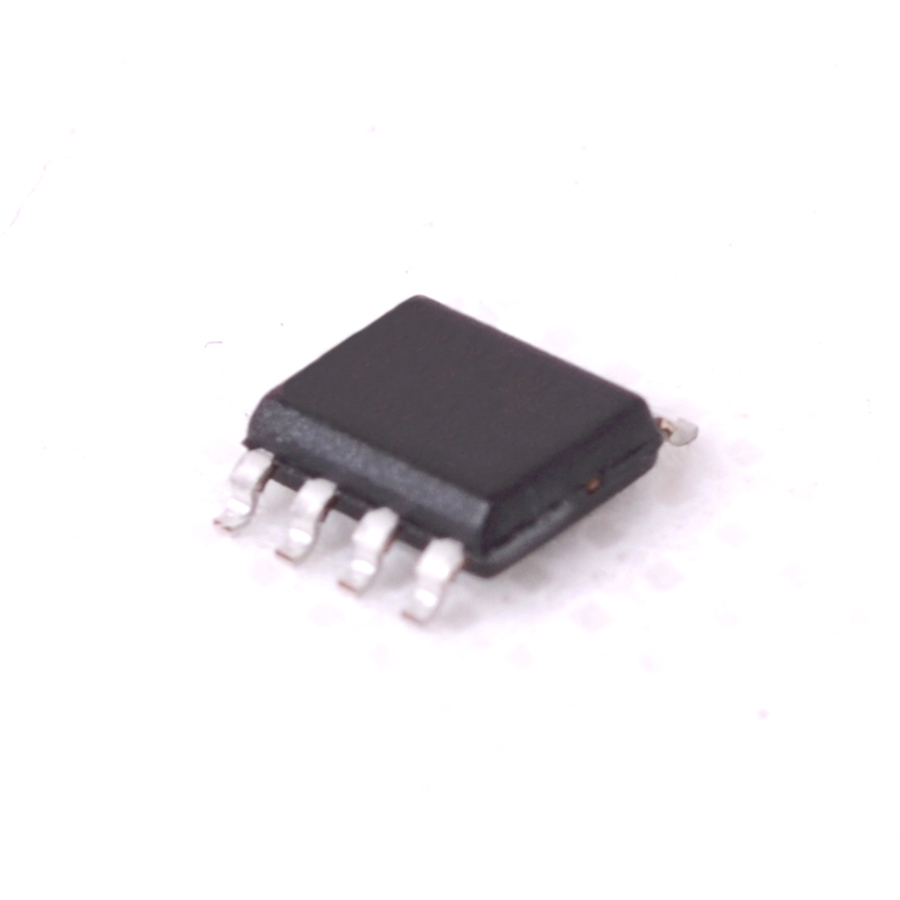

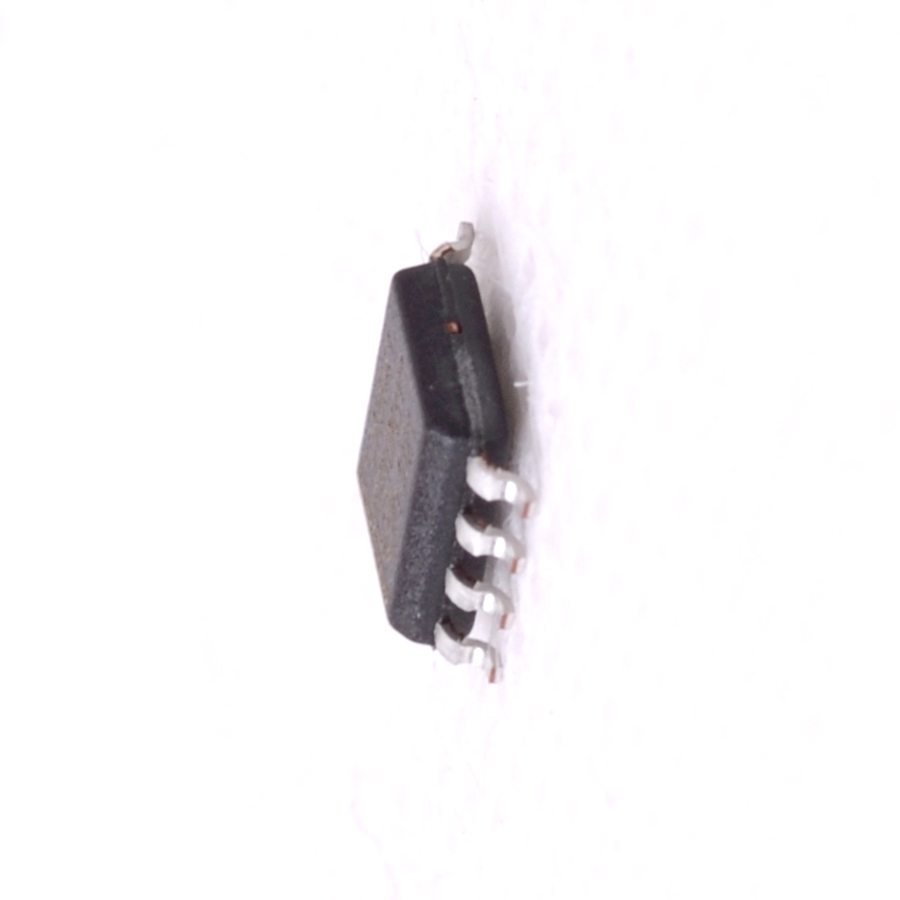

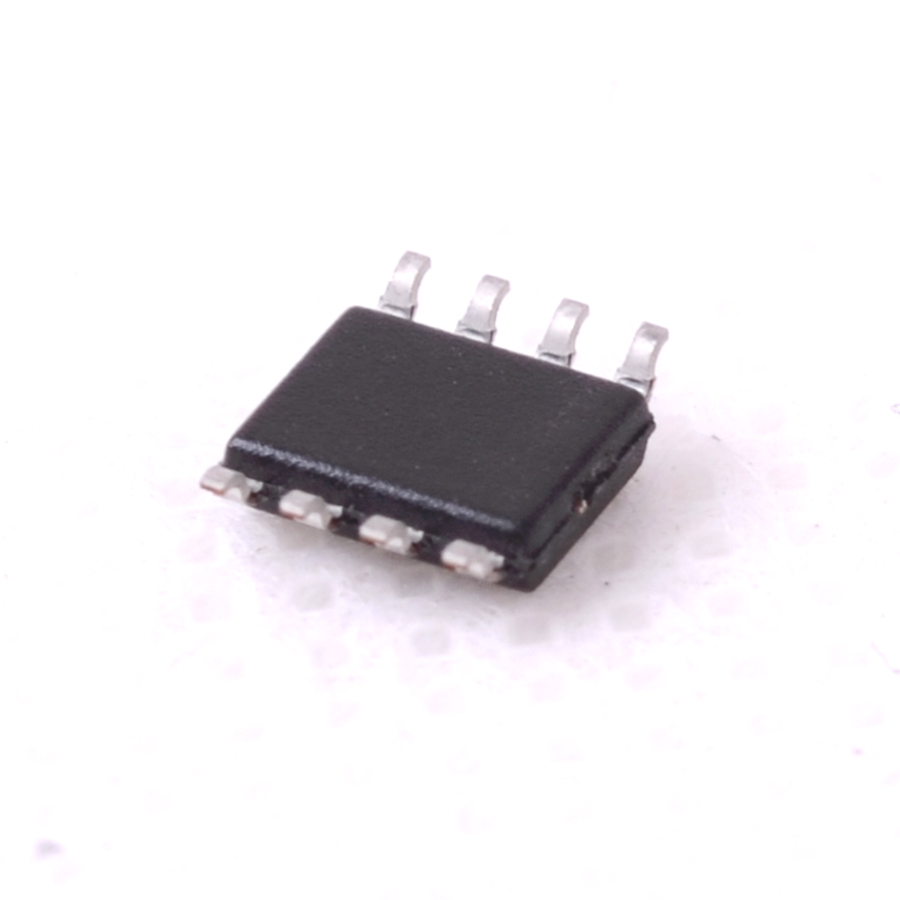

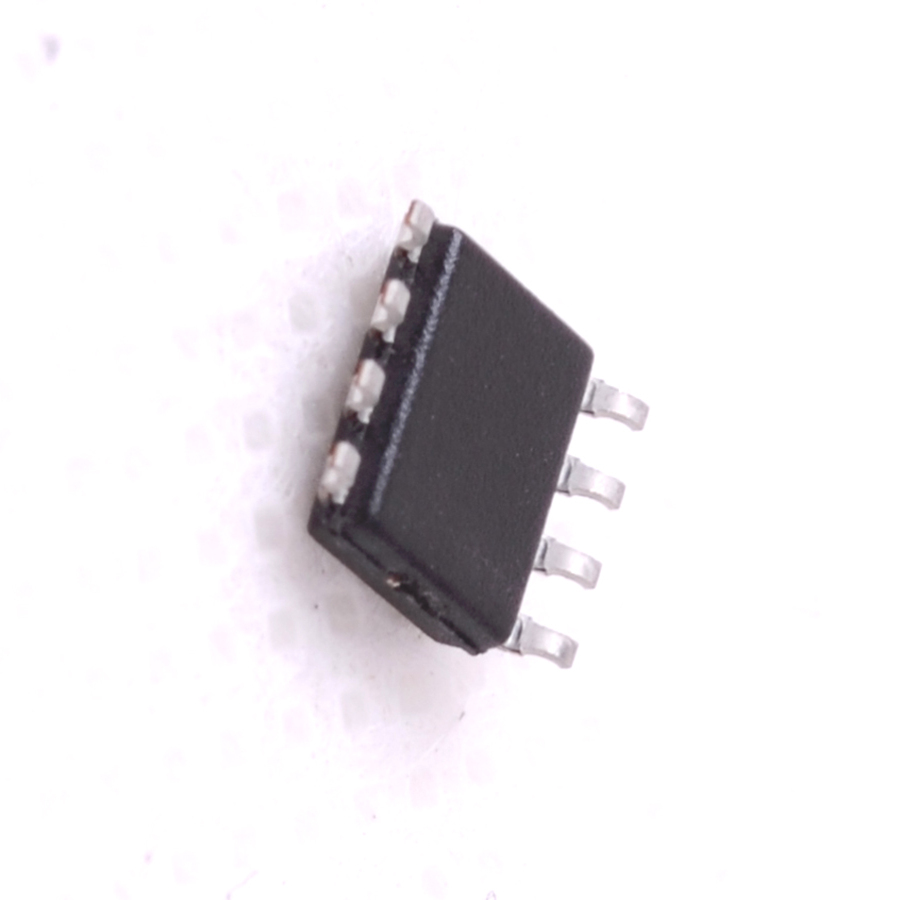

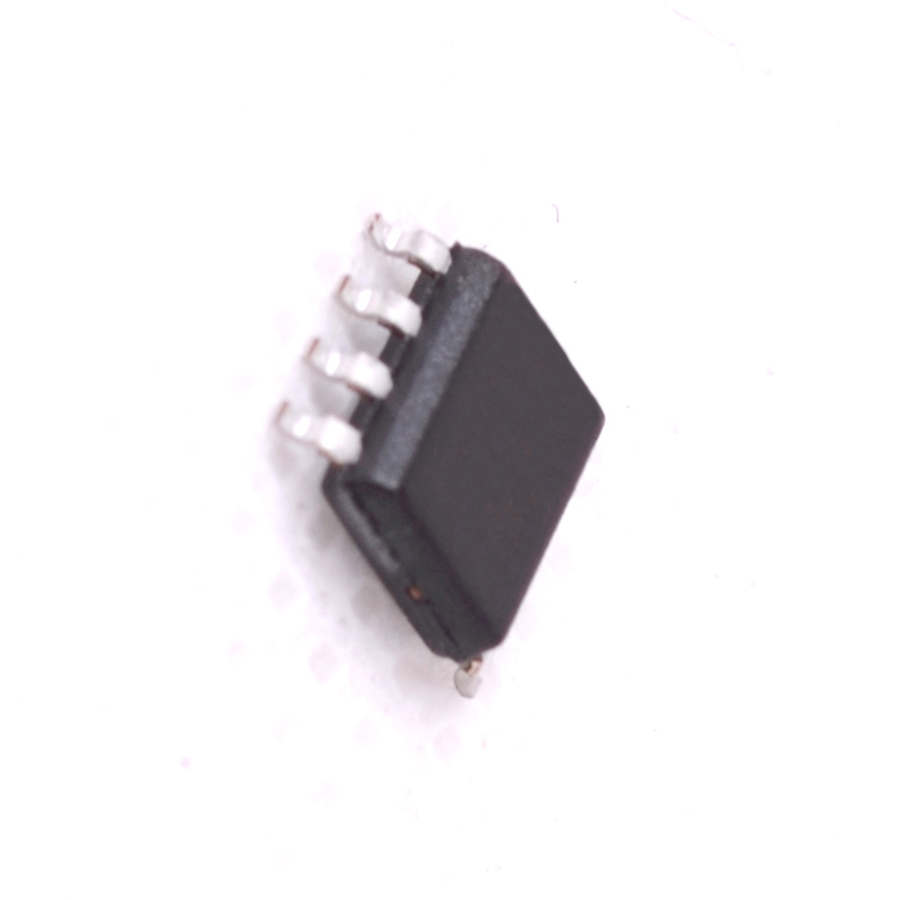

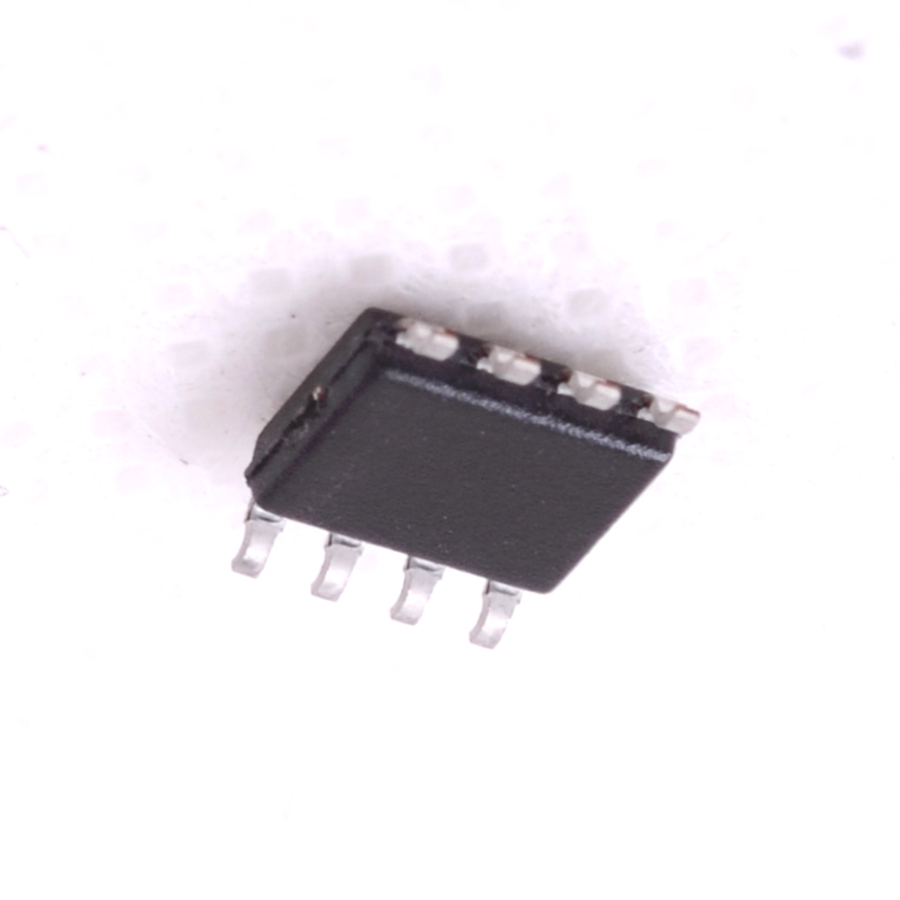

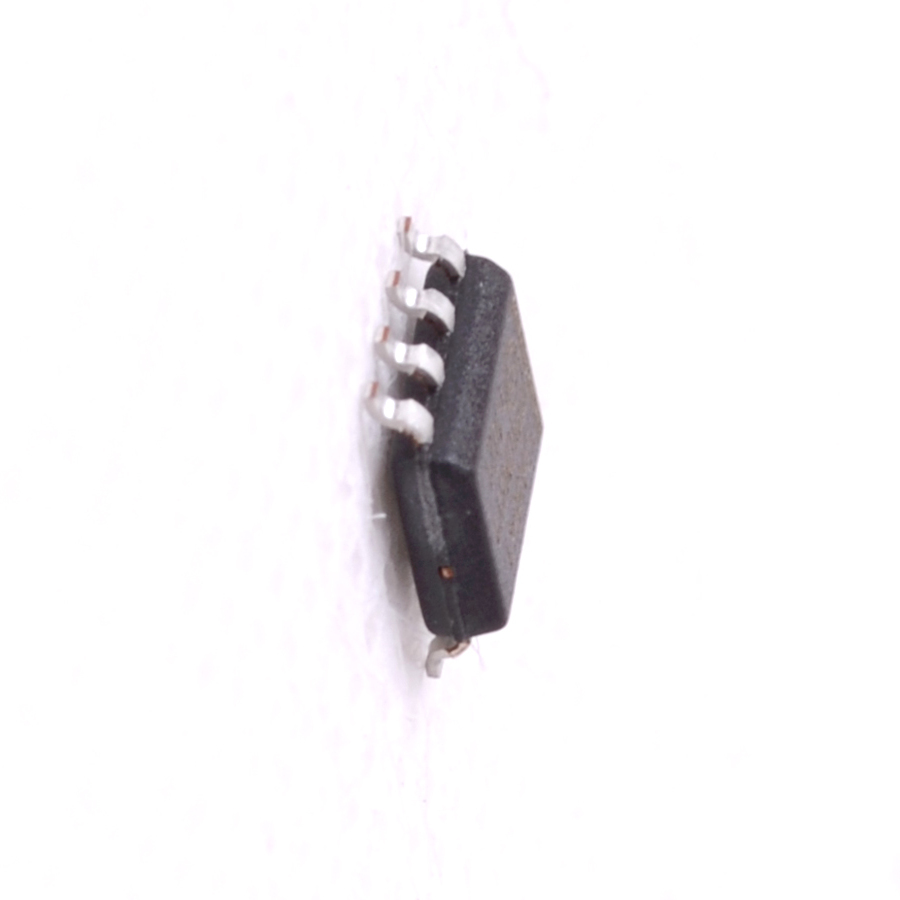

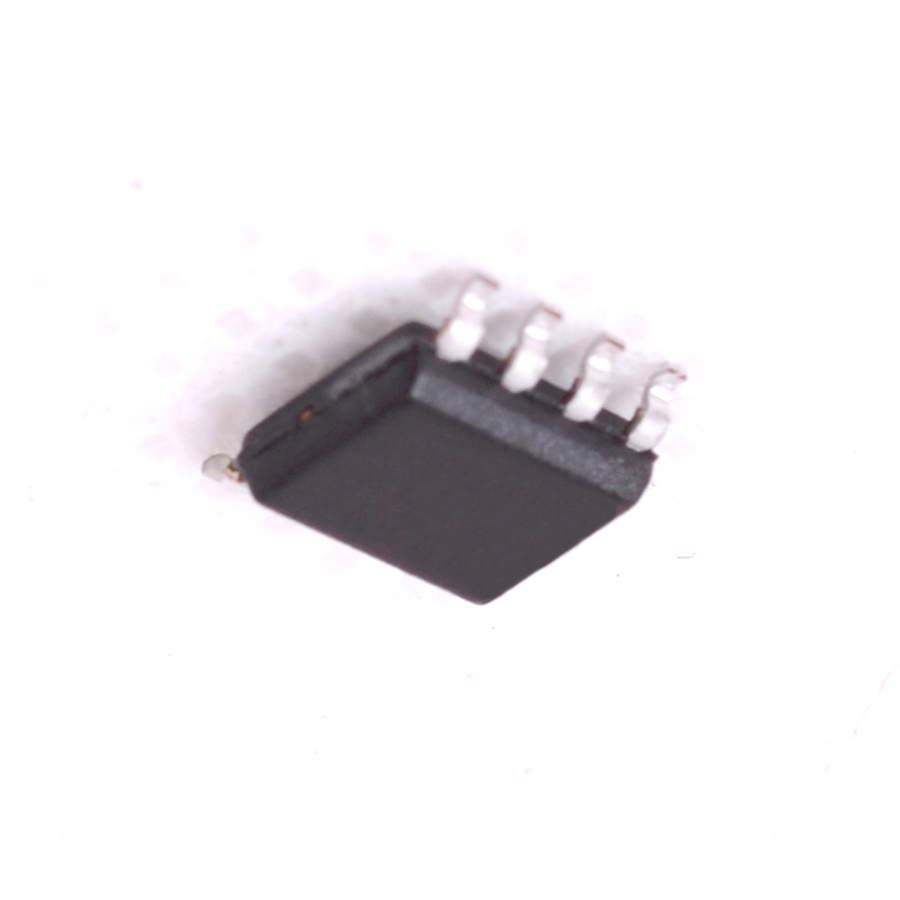

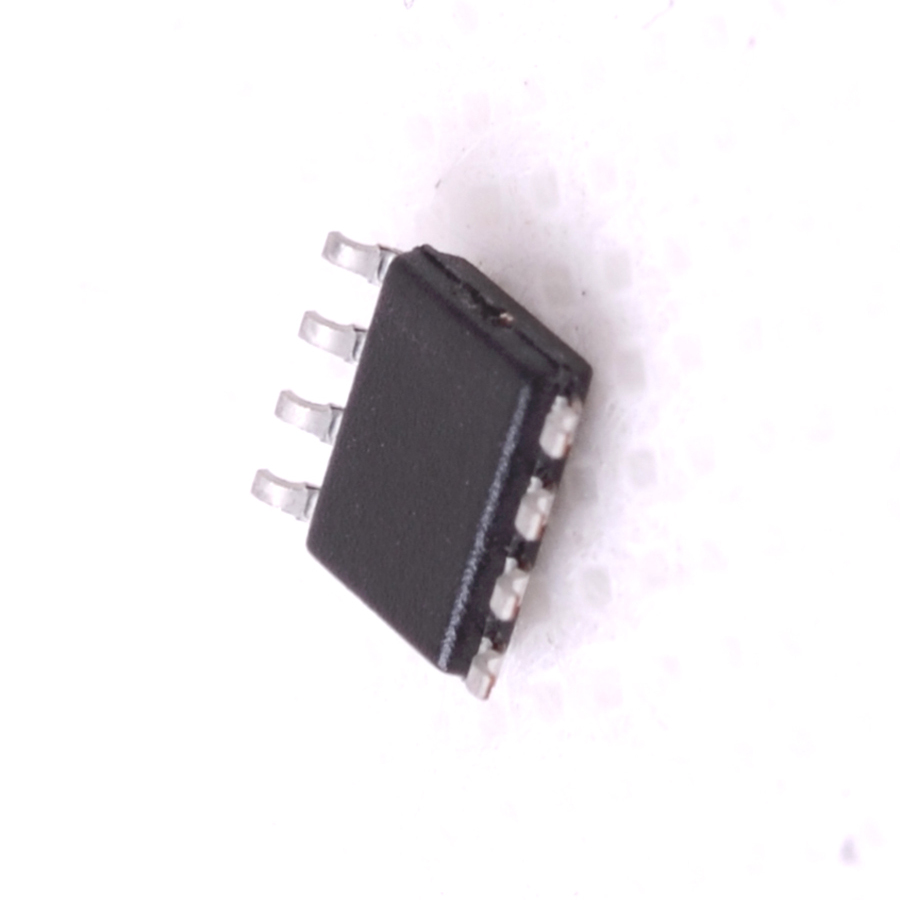

SN75452B Integrated Circuit CASE: SOP8 MAKE: Texas Instruments
Product specifications
Equivalent SN75452BD
Type Integrated Circuit
Case SOP8
Manufacturer Texas Instruments
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Logic Family DTL,TTL
Output Config Open-Coll.
VOL Max. 0.7
Outp Transis. Ion Max. 300m
PD Max. (W) 355m
tPD Max. (S) 35n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. NAND
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 30
@Iol (A) 300m
Pinout Equivalence Number 8-34
No. of Pins 8
Surface Mounted Yes/No NO
SKU 300045
