Home / Integrated Circuit / SN75454BD
SN75454BD

SN75454BD

SKU: SN75454BD

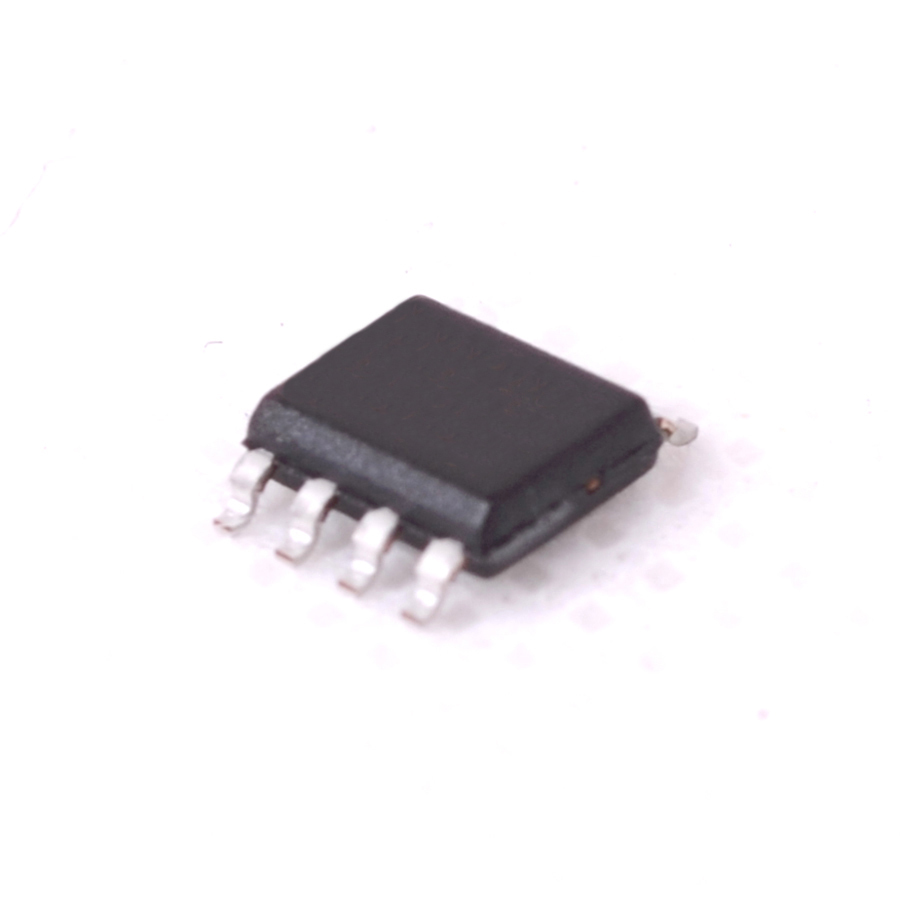

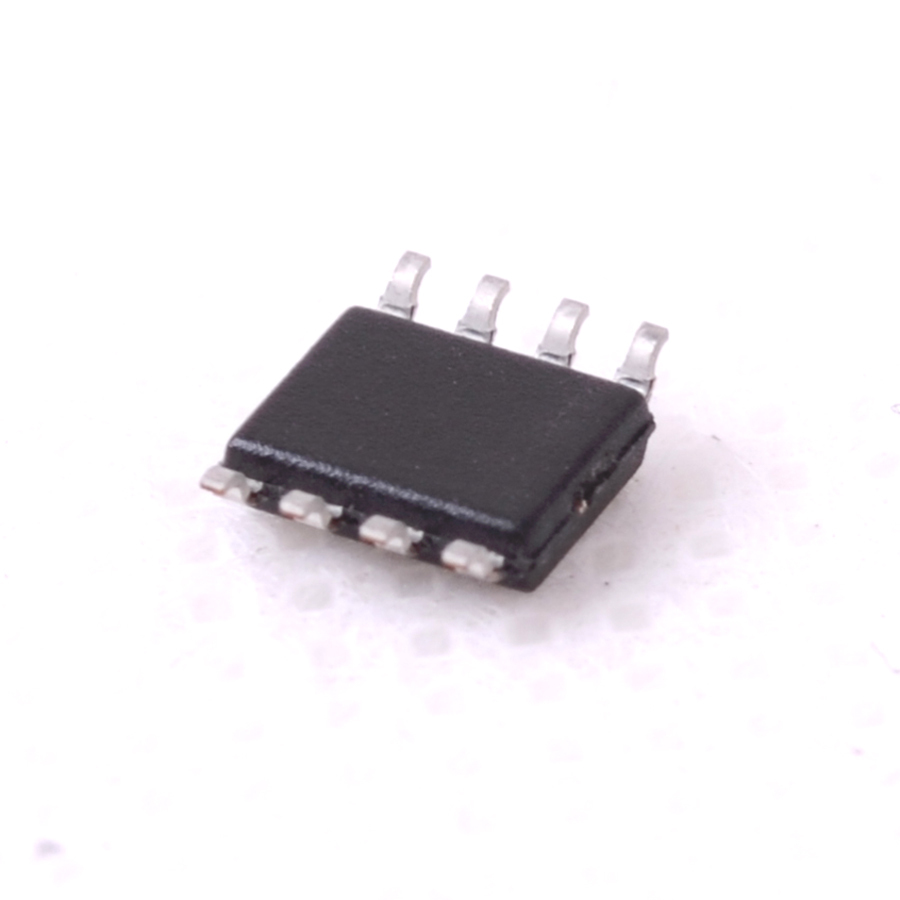

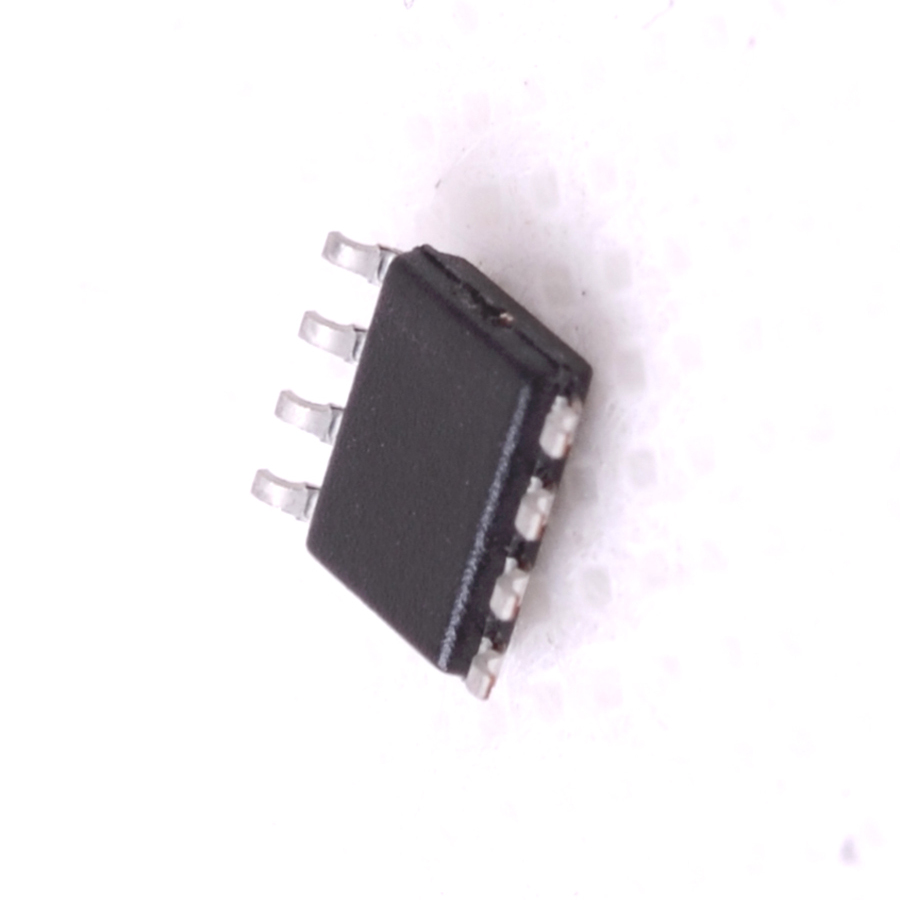

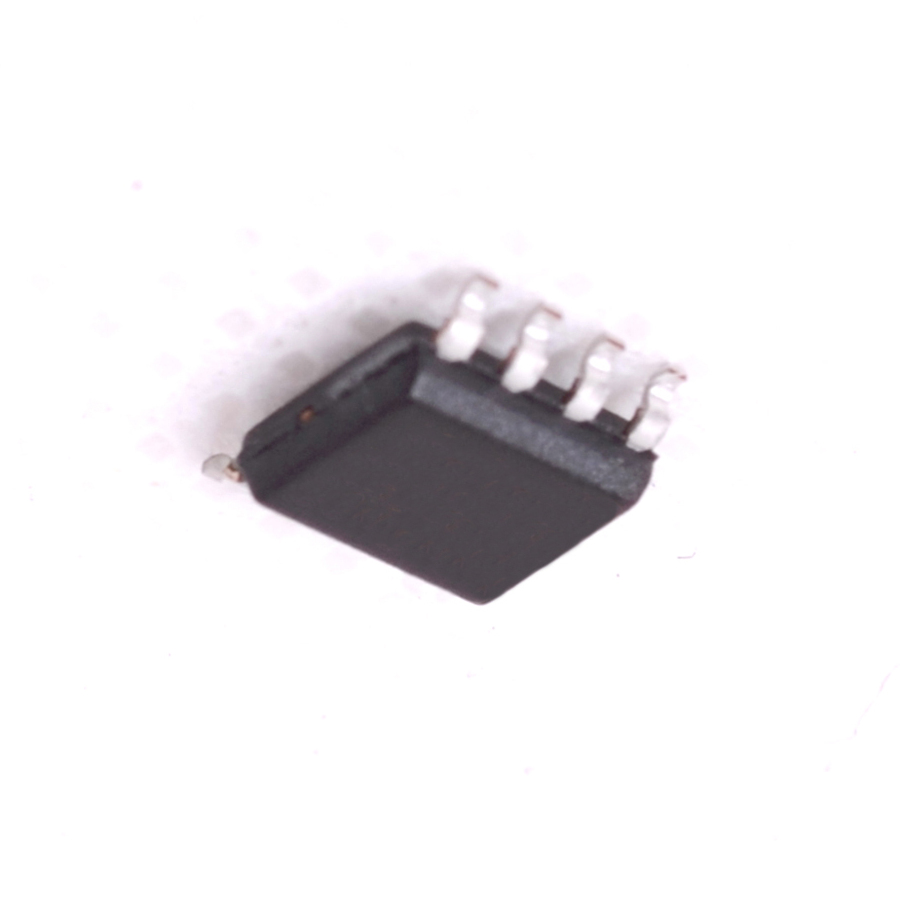

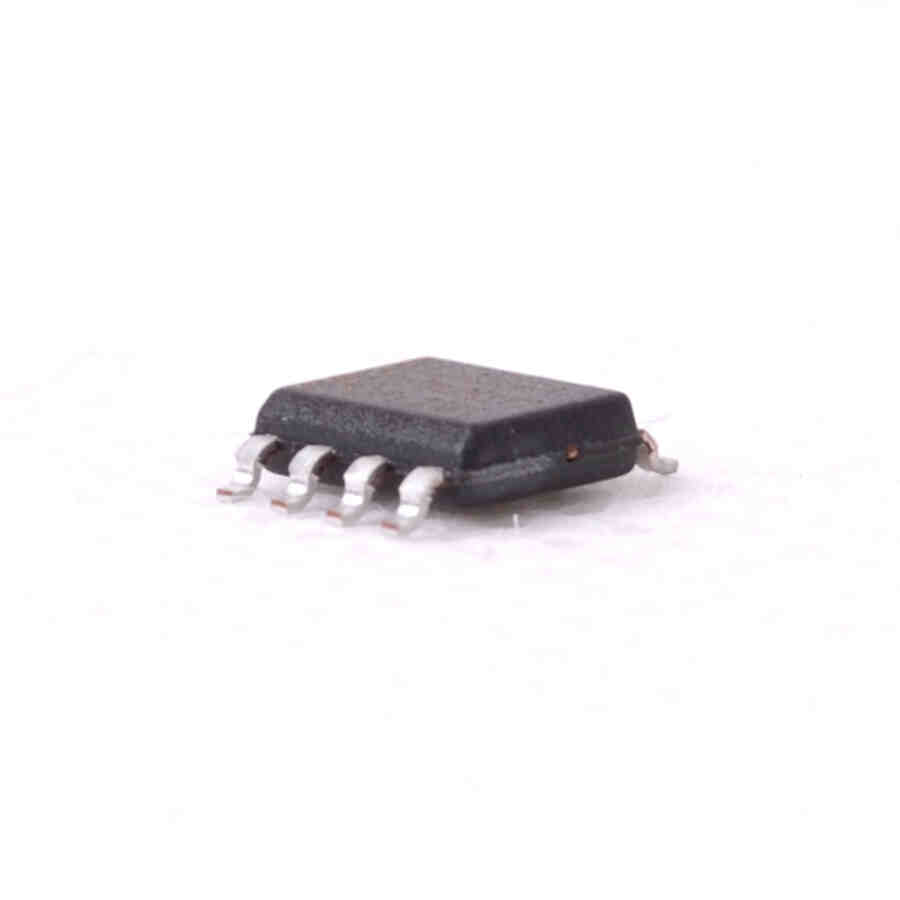

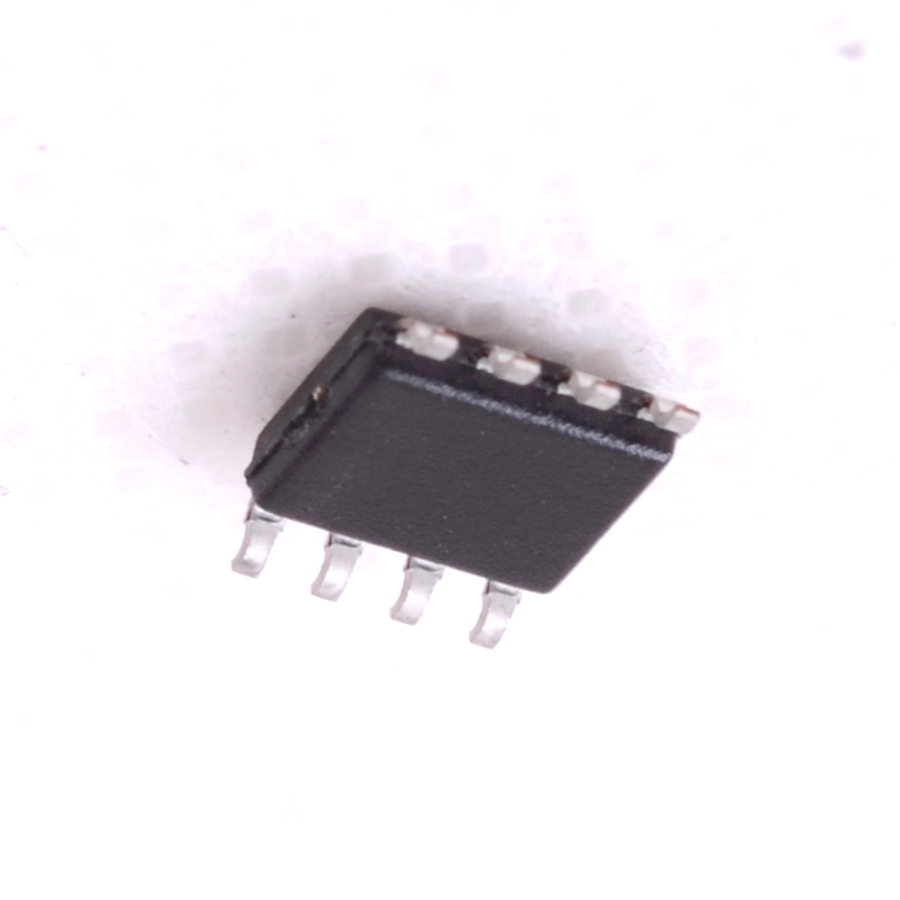

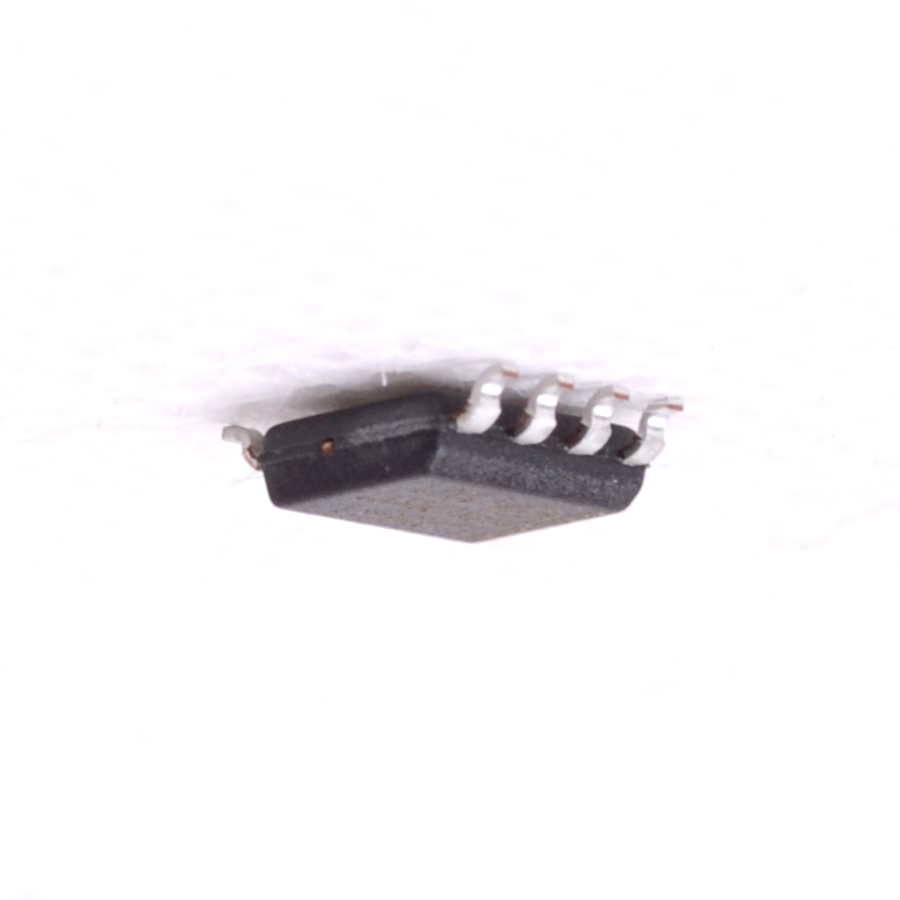

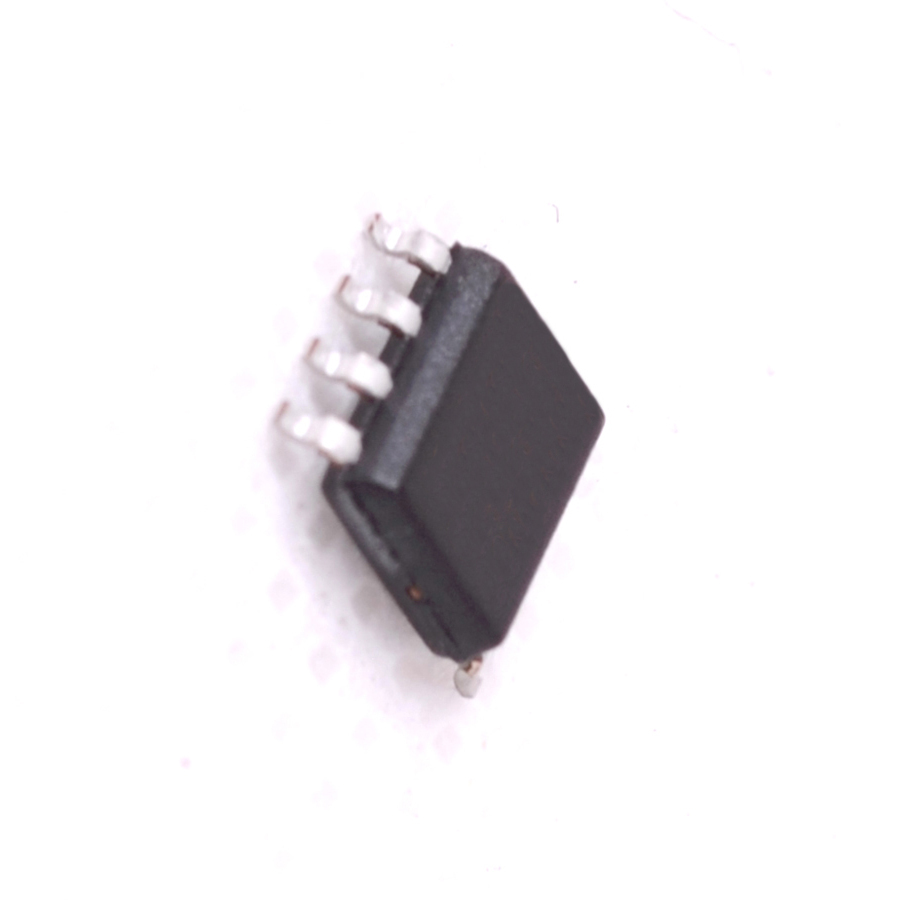

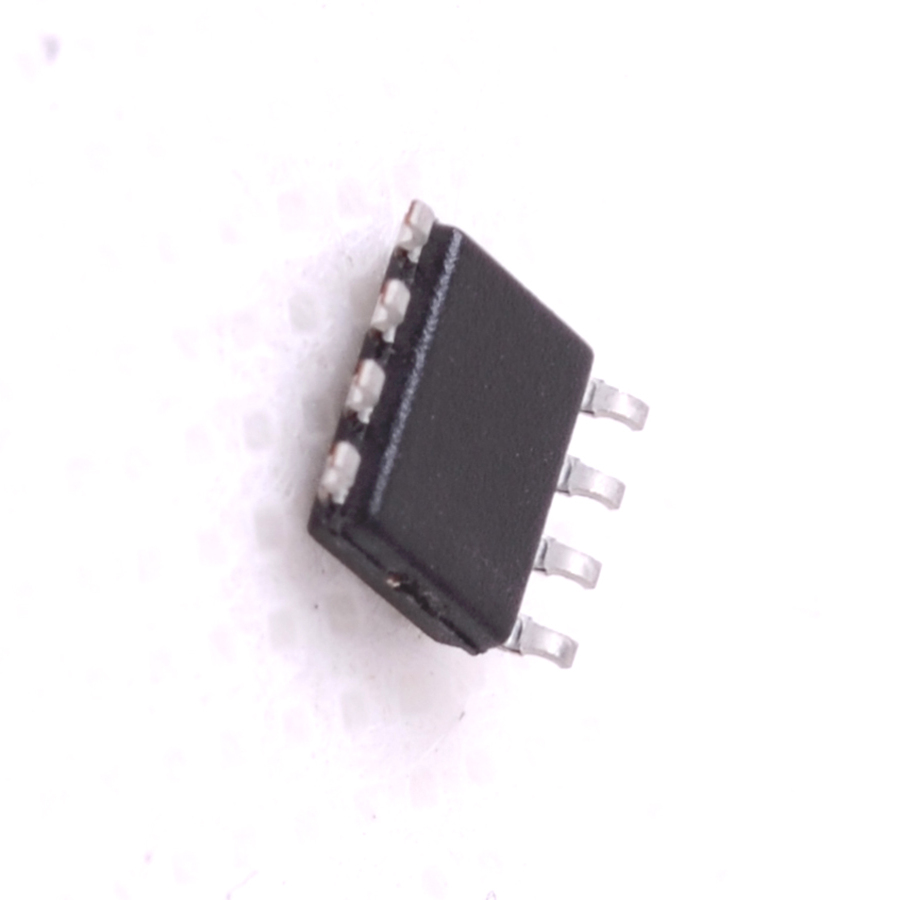

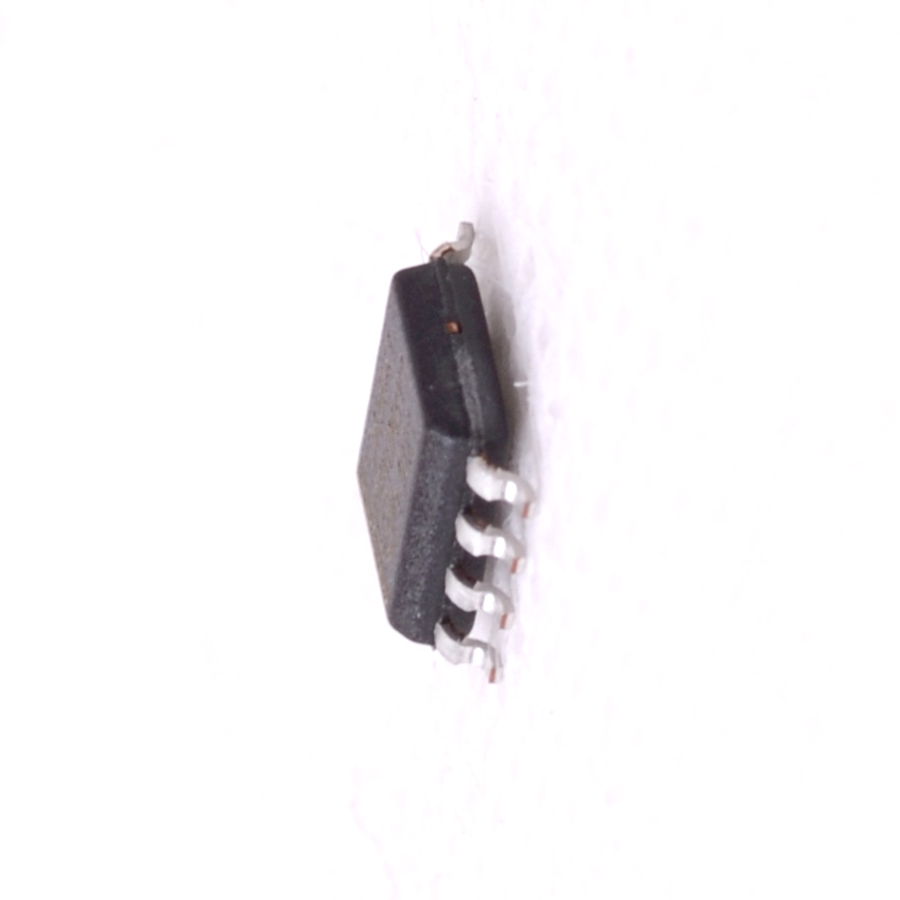

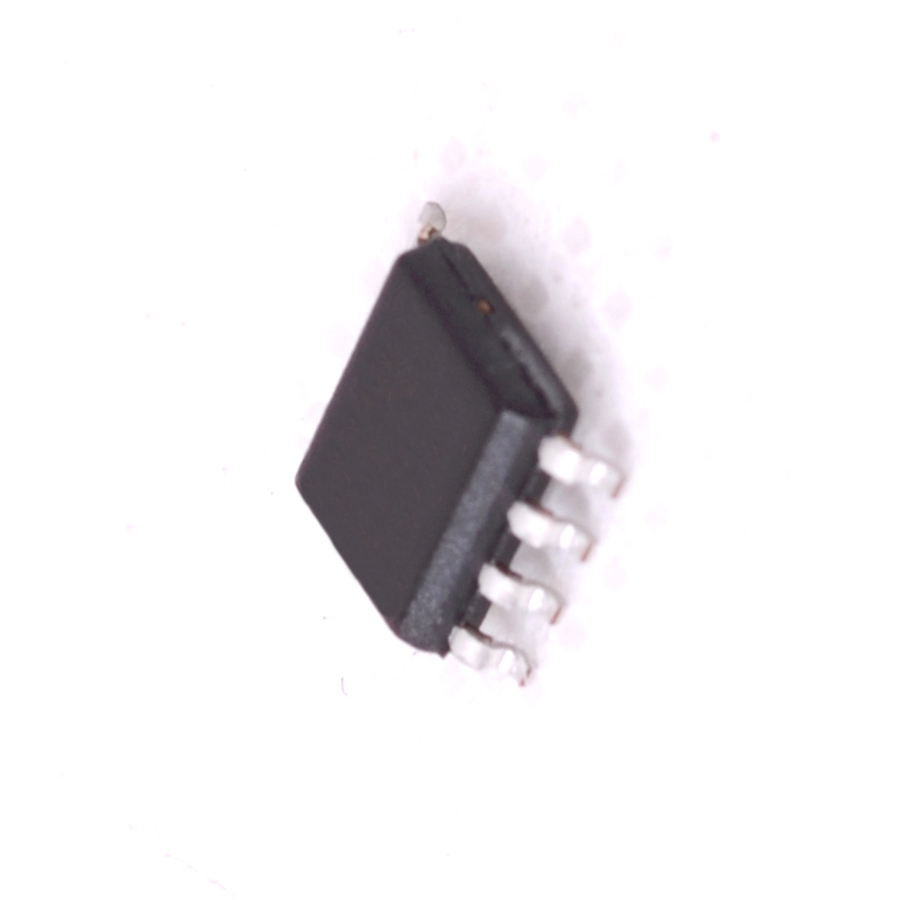

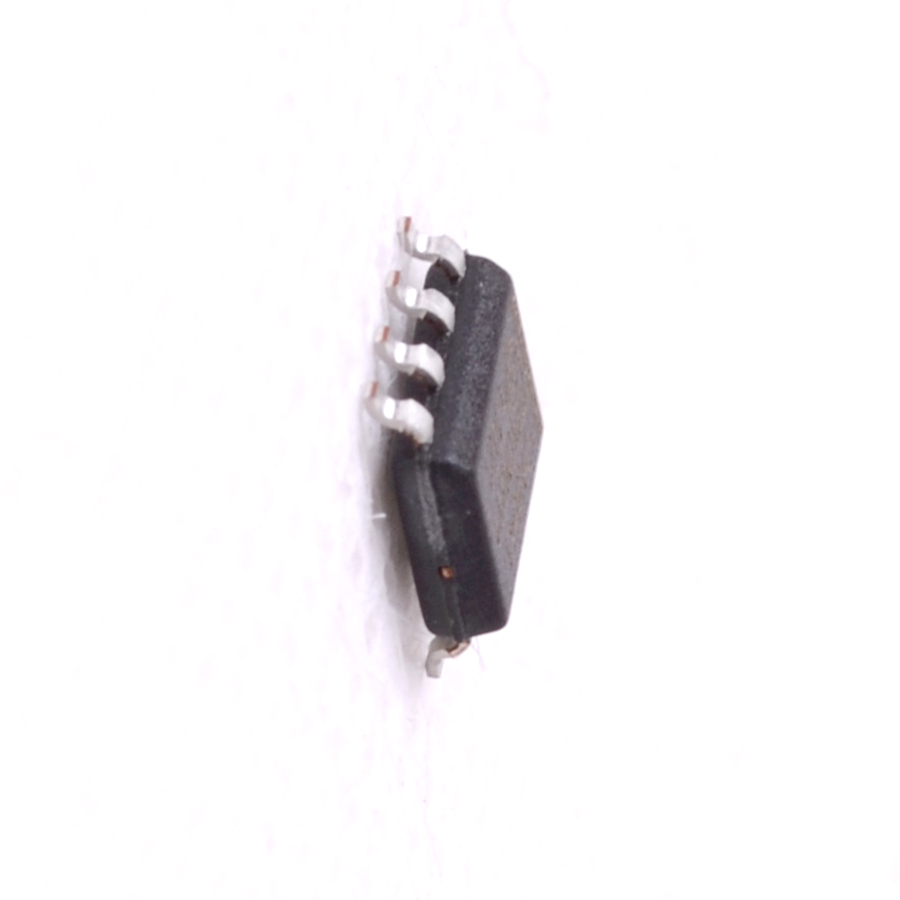

SN75454BD Integrated Circuit CASE: SOP8 MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case SOP8
Manufacturer Texas Instruments
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Logic Family DTL,TTL
Output Config Open-Coll.
VOL Max. 0.7
Outp Transis. Ion Max. 300m
PD Max. (W) 395m
tPD Max. (S) 35n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. NOR
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 30
@Iol (A) 300m
Pinout Equivalence Number 8-52
No. of Pins 8
Surface Mounted Yes/No NO
SKU 300053
