Home / Integrated Circuit / SN75462JG

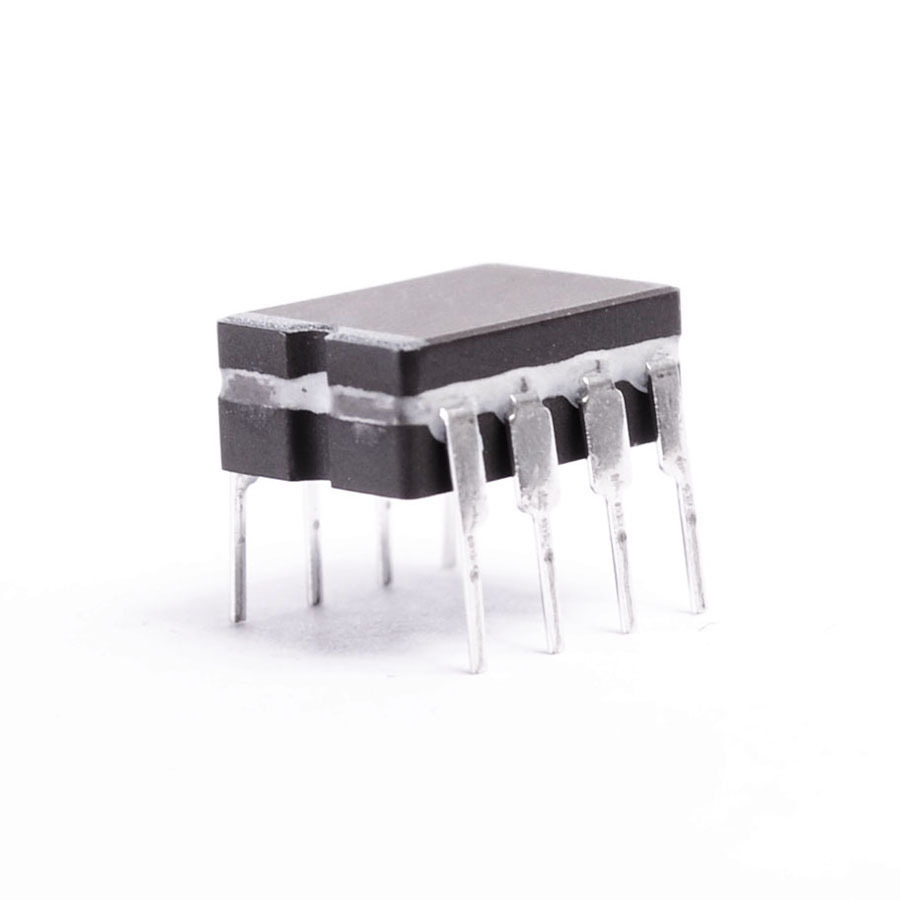

SN75462JG

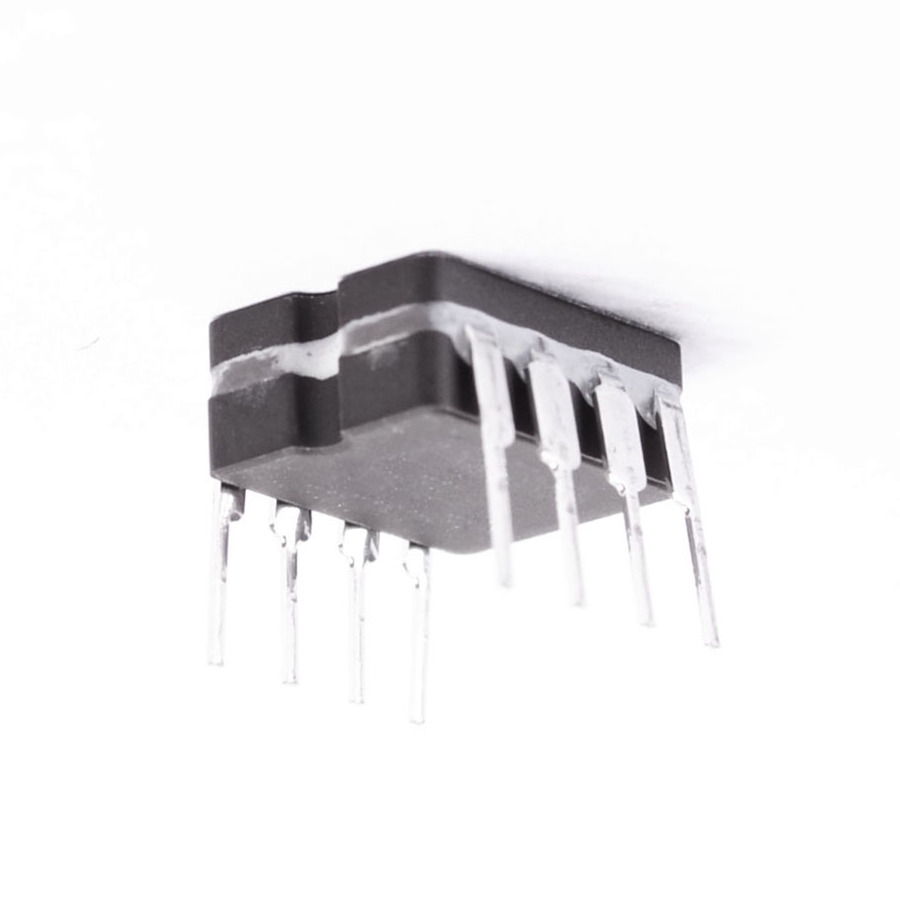

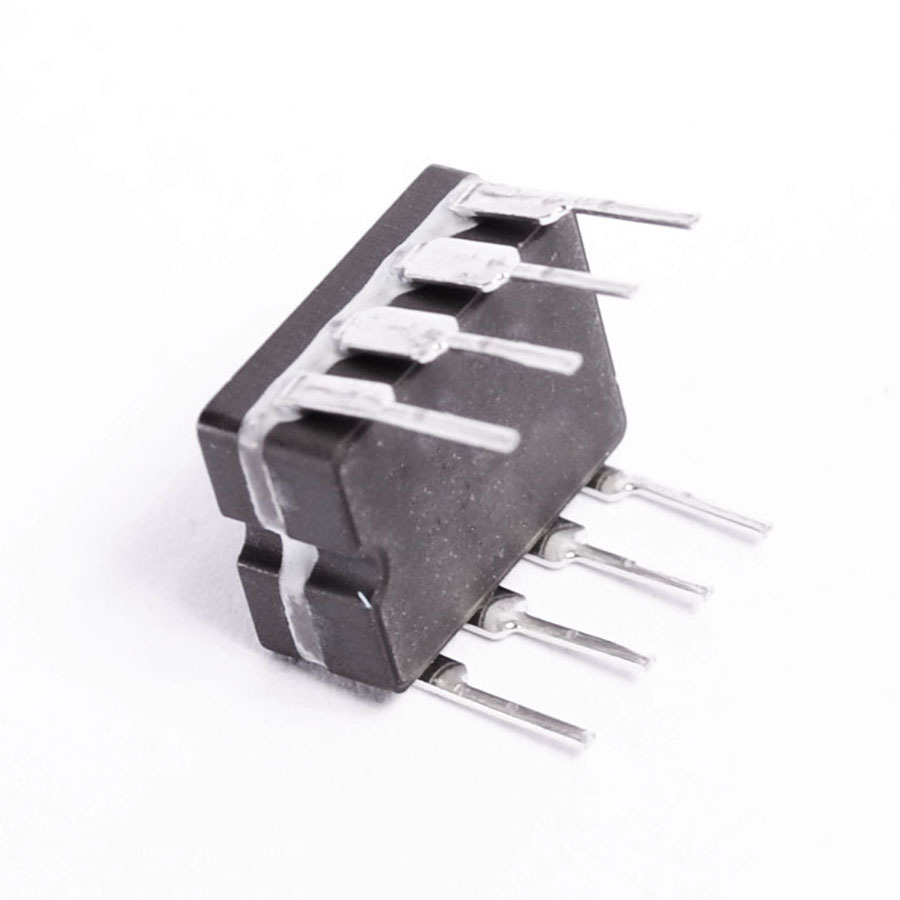

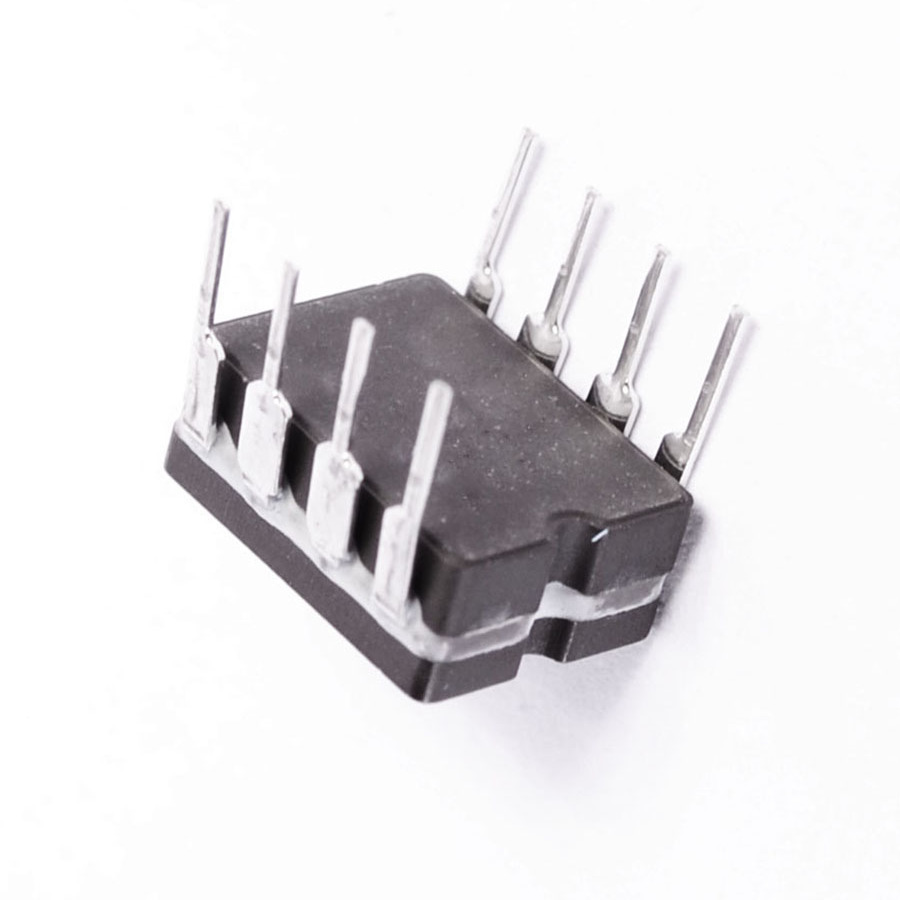

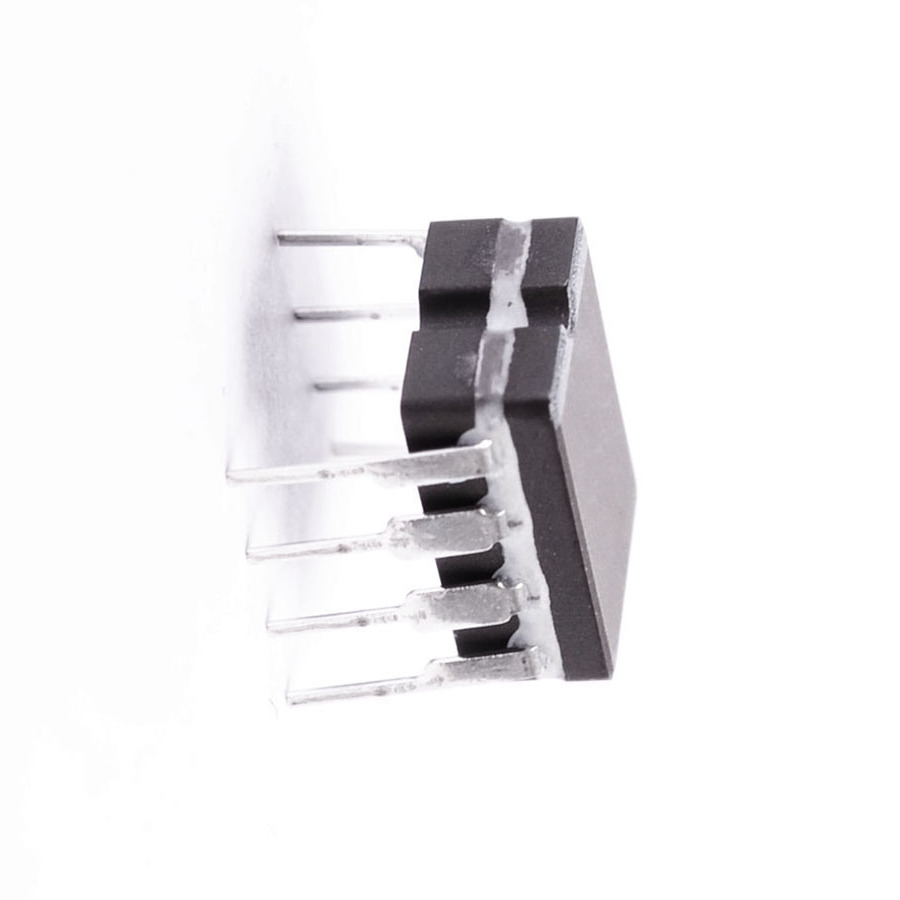

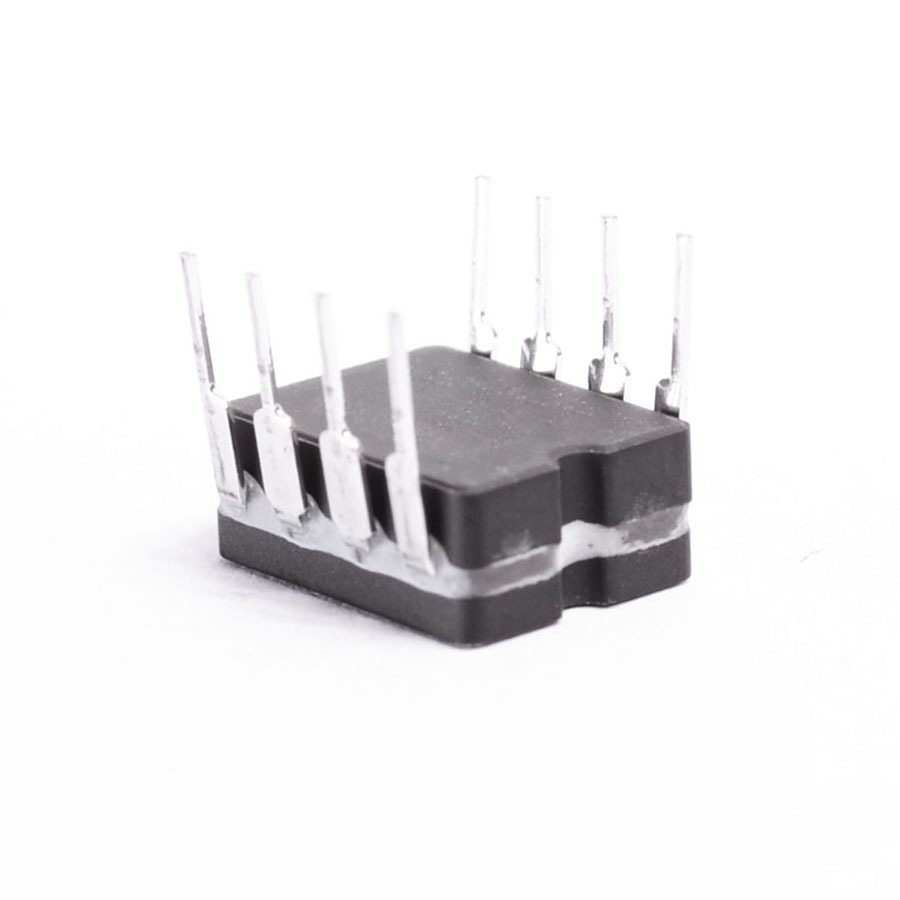

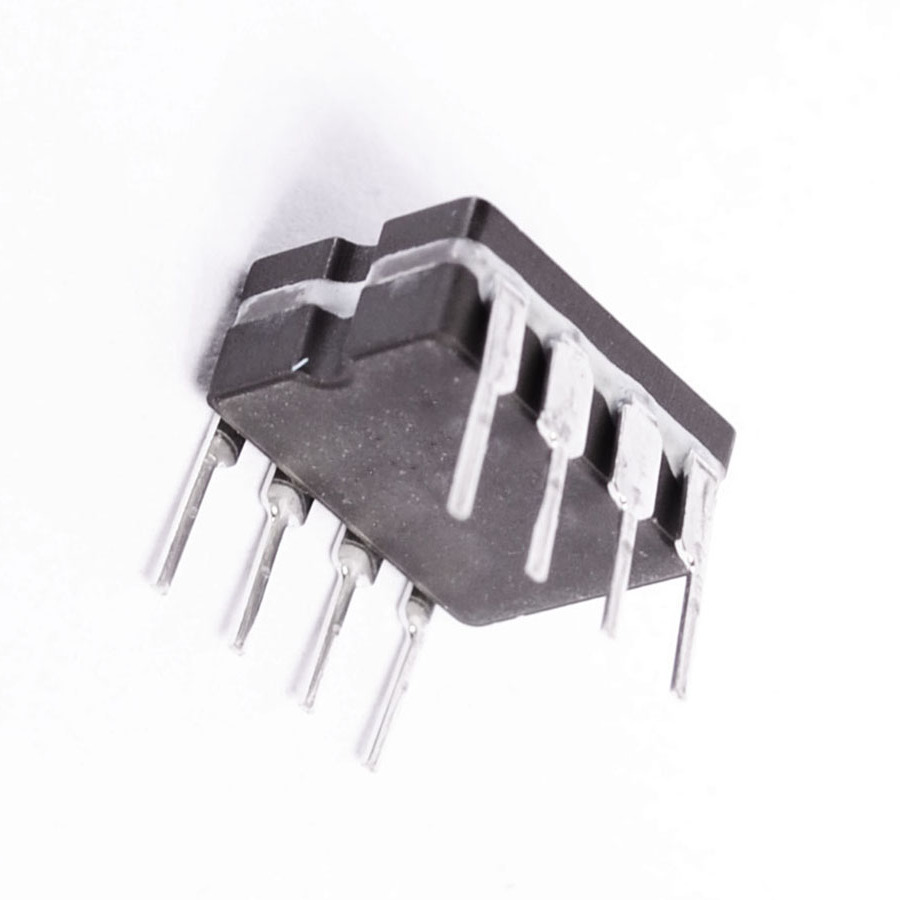

View detailed images (12)

SN75462JG

SKU: SN75462JG

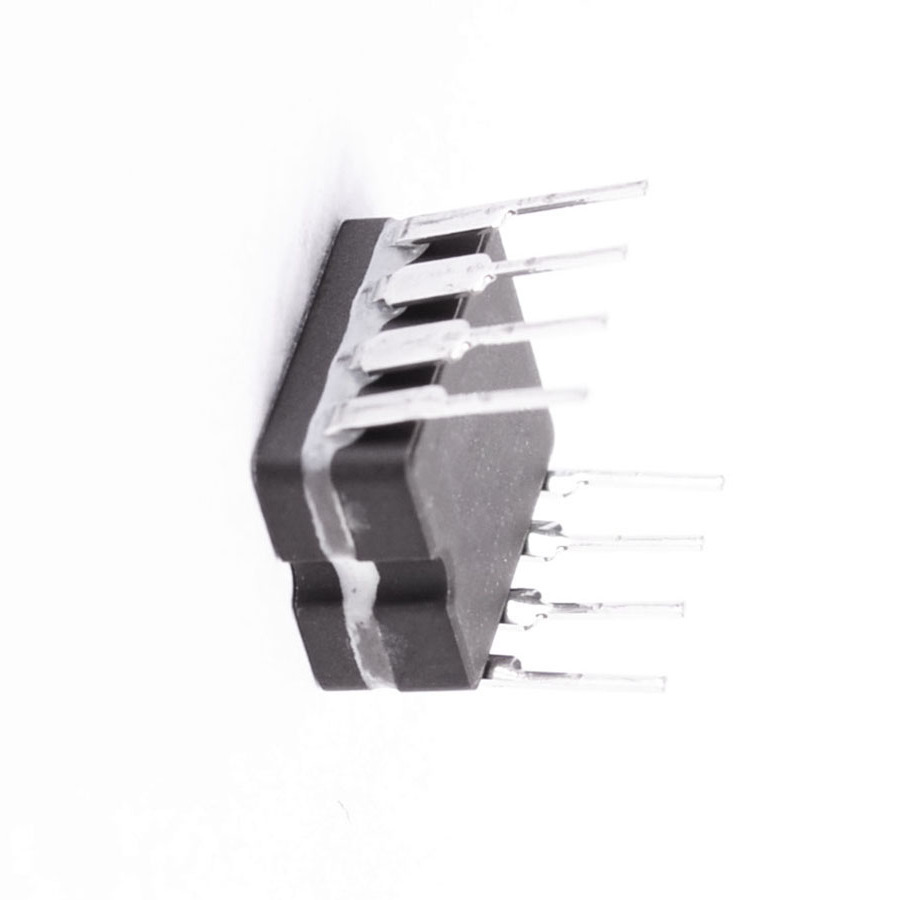

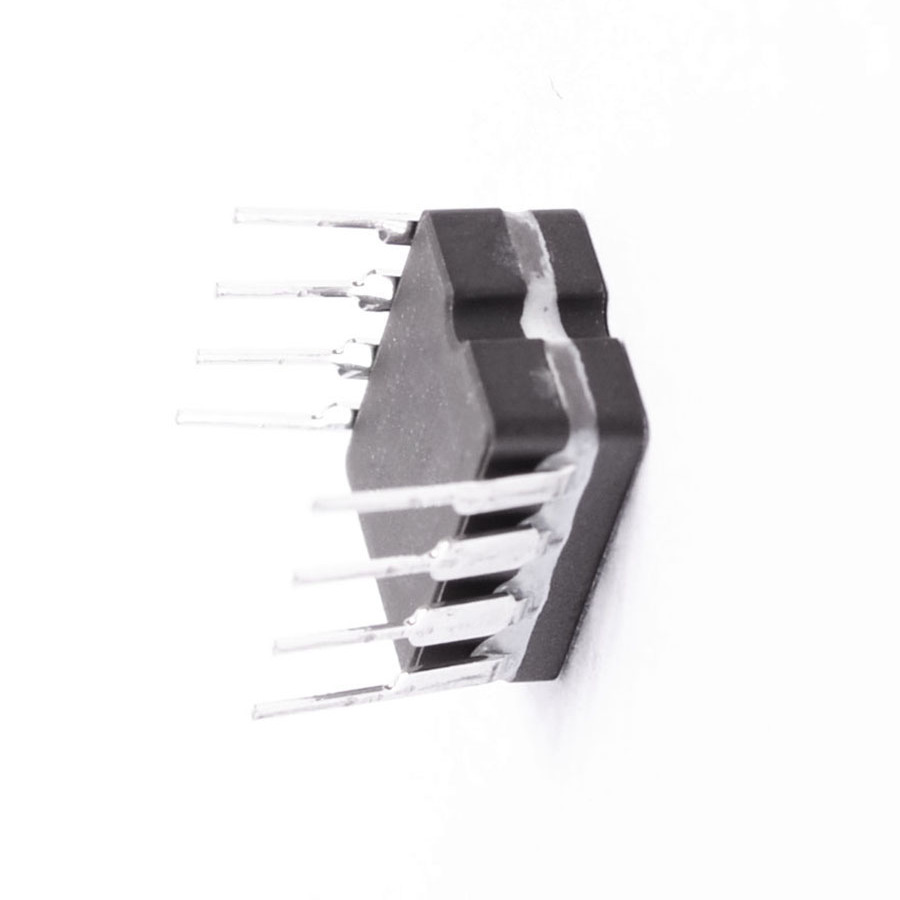

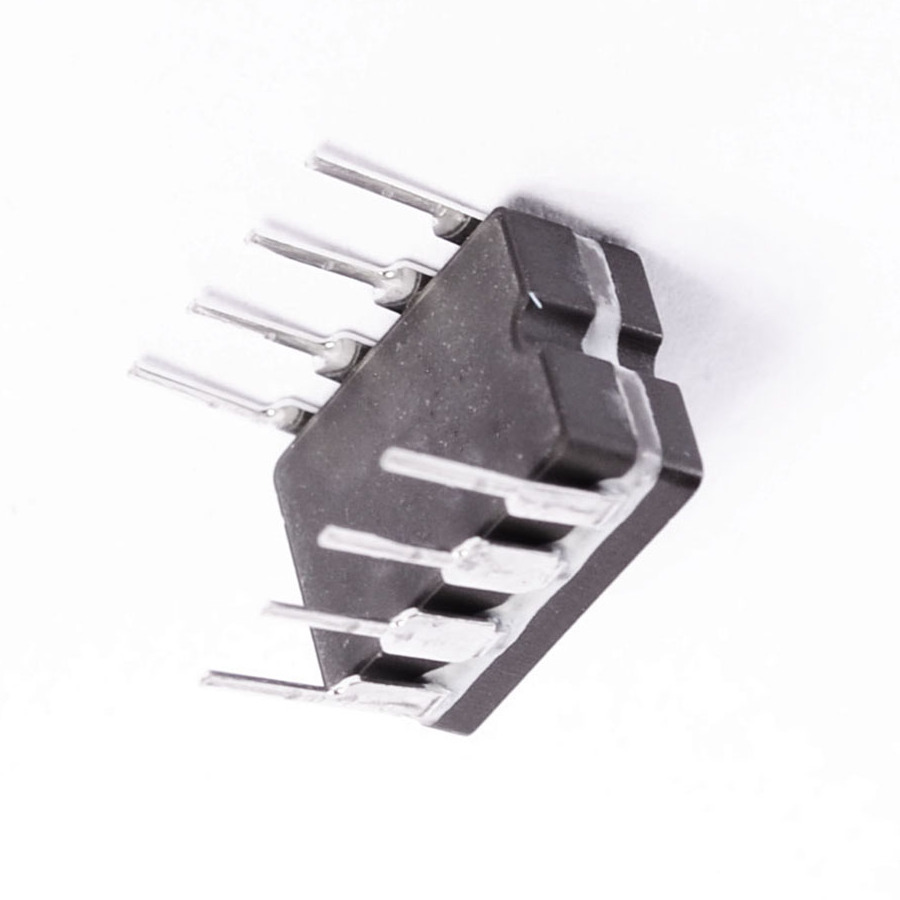

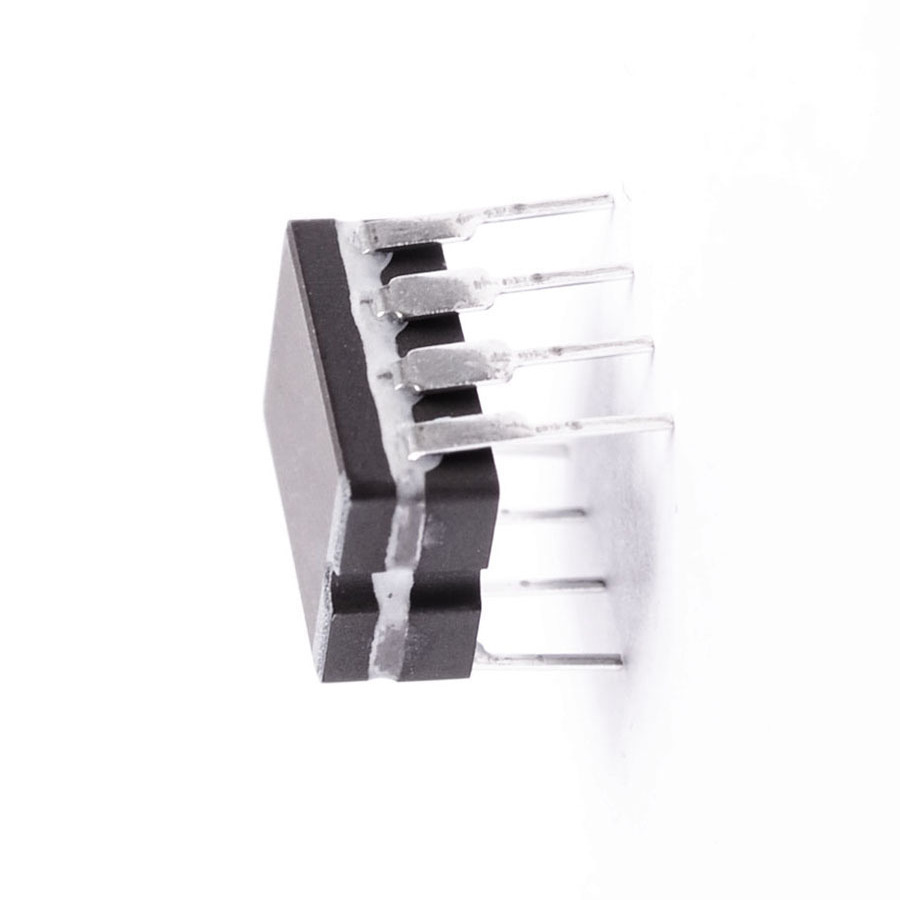

SN75462JG Integrated Circuit - Case: DIC8 Make: Texas Instruments
Price: £19.99
+ VAT 20% for UK purchases
£19.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit
Case DIC8
Manufacturer Texas Instruments
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Logic Family DTL,TTL
Output Config Open-Coll.
VOL Max. 0.7
Outp Transis. Ion Max. 300m
PD Max. (W) 1.0
tPD Max. (S) 55n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. NAND
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 35
@Iol (A) 300m
Pinout Equivalence Number 8-50
No. of Pins 8
Surface Mounted Yes/No NO
SKU 591882
