SN75472
View detailed images (13)

SN75472

SKU: SN75472

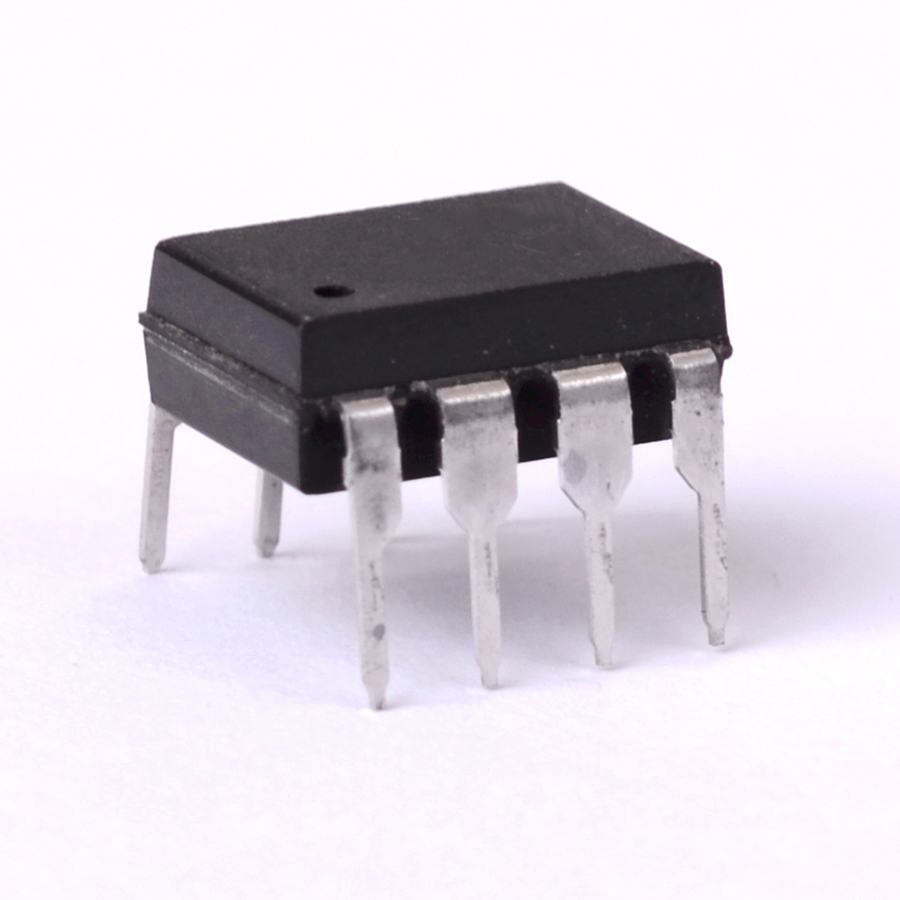

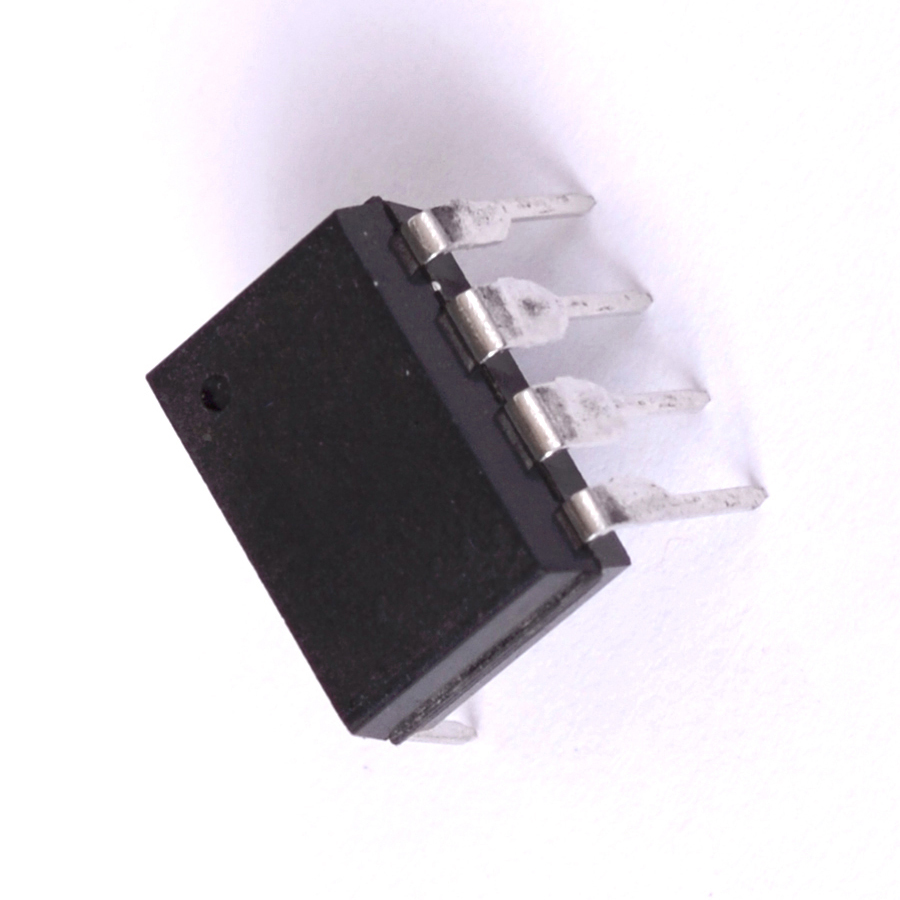

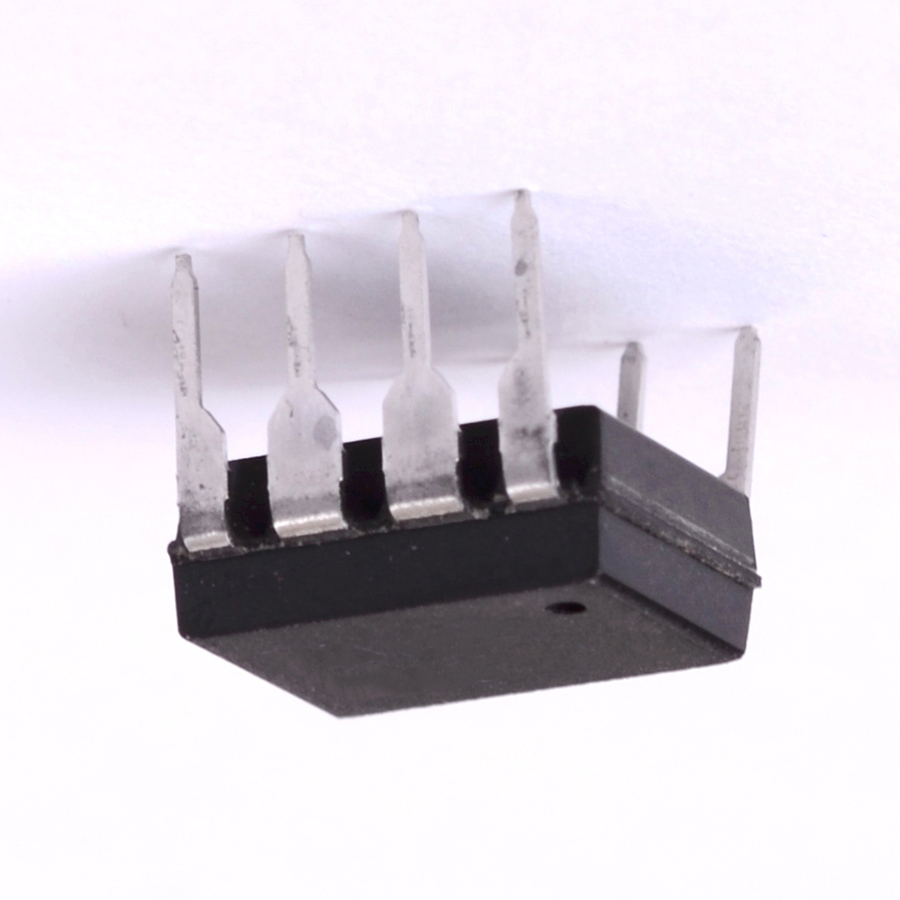

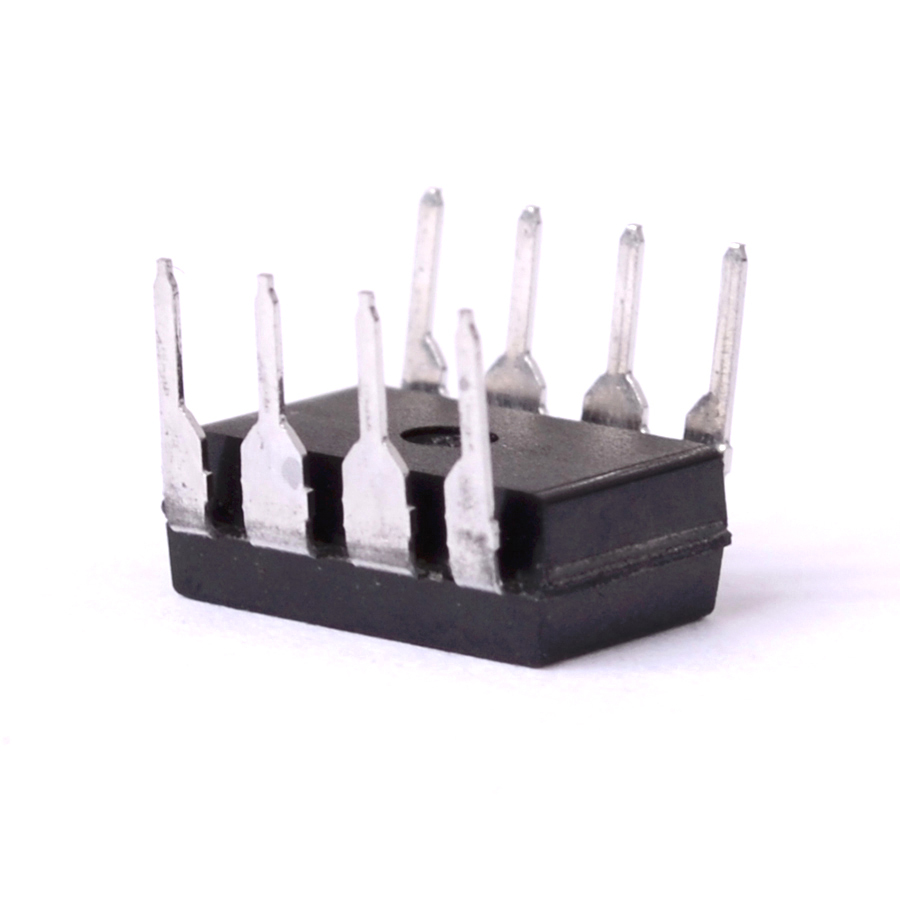

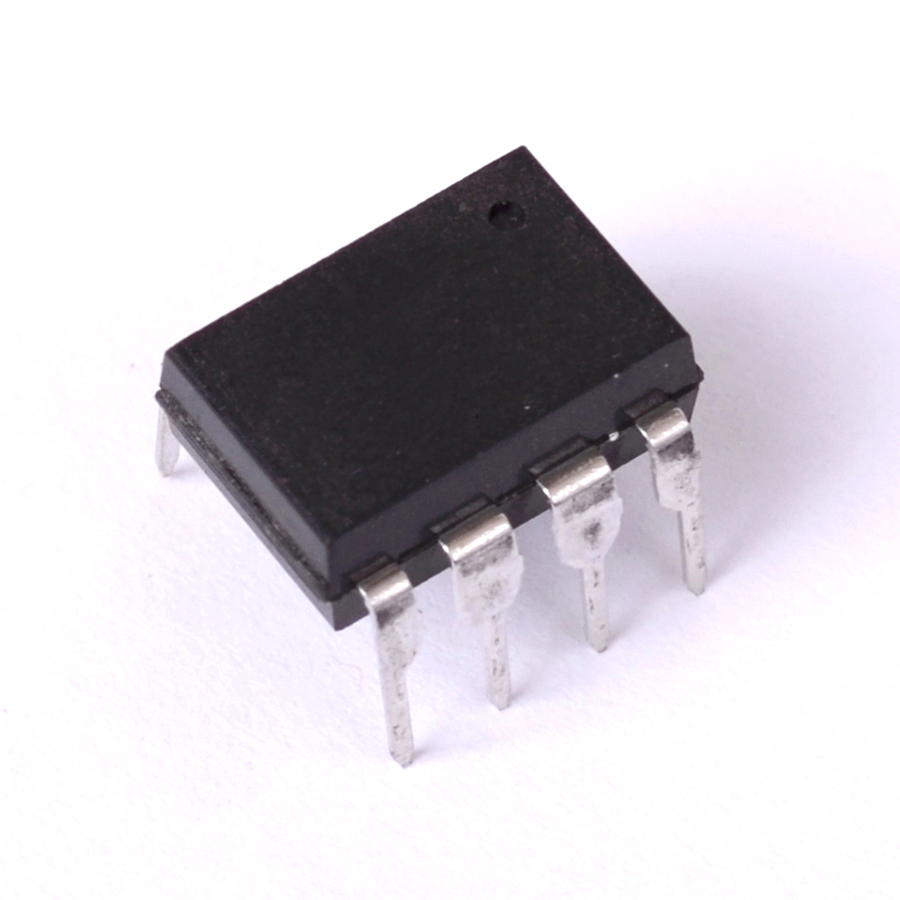

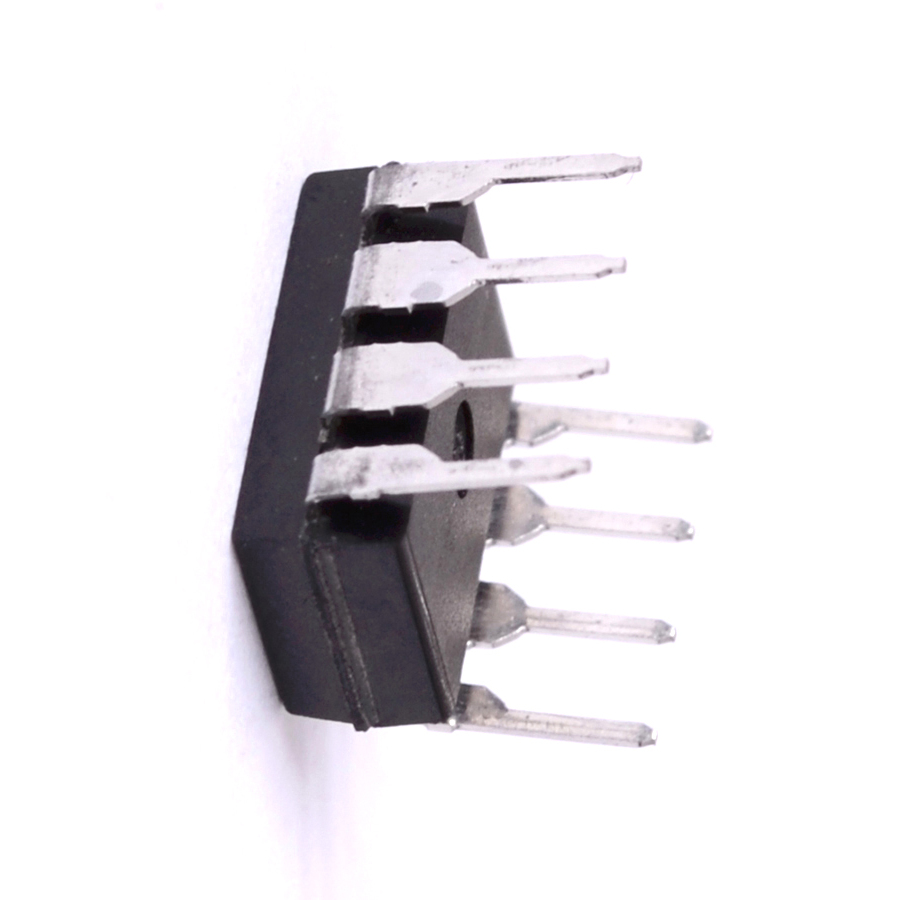

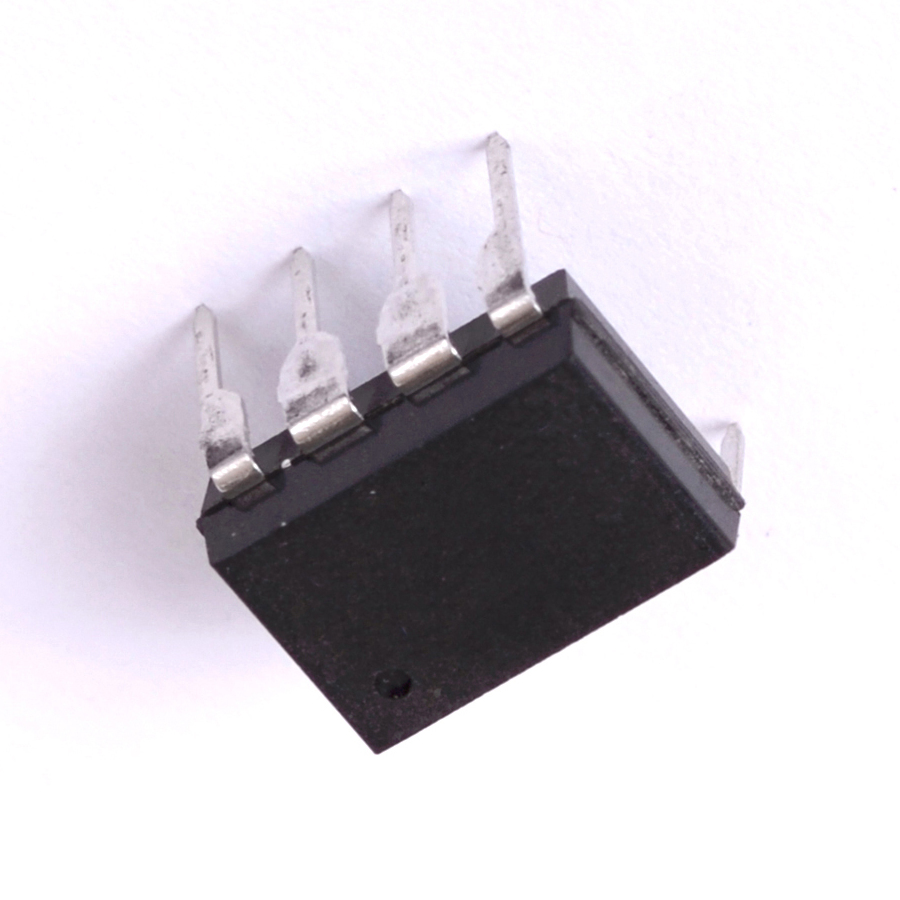

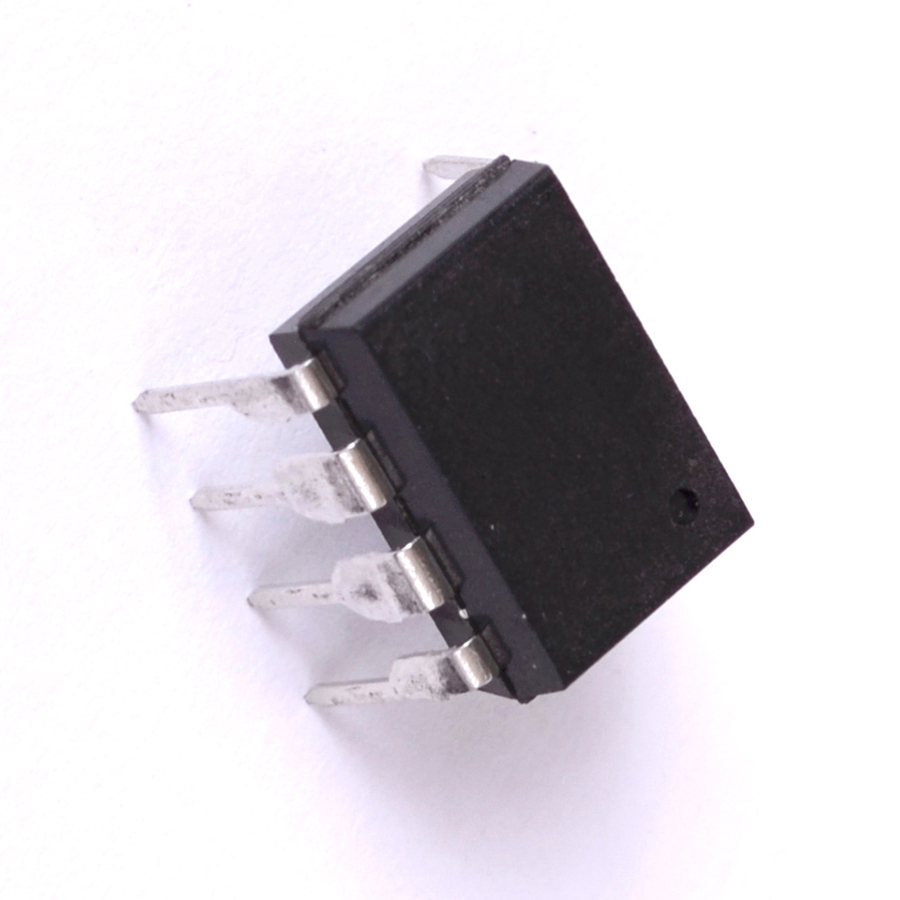

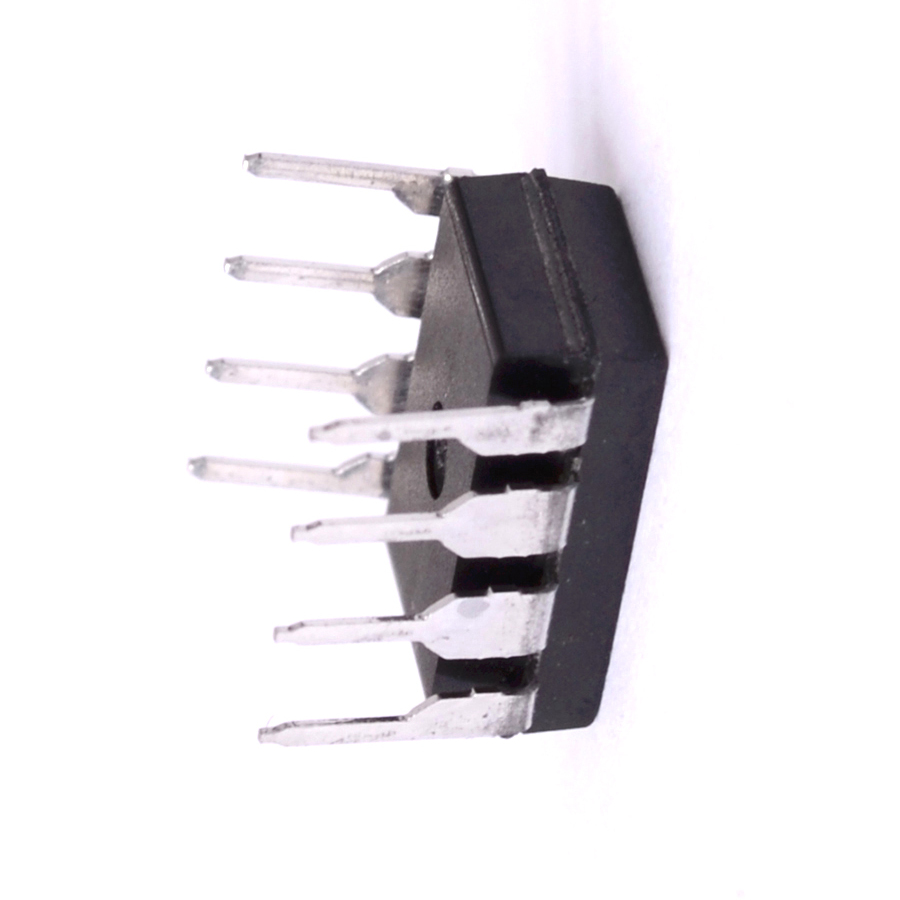

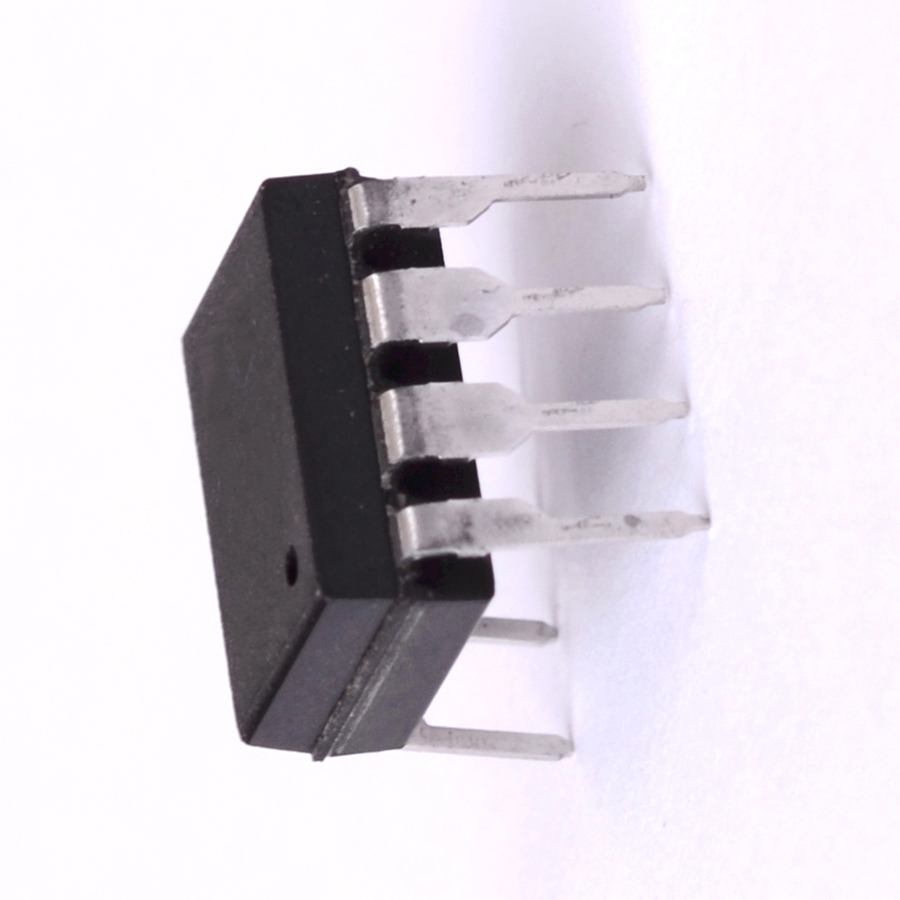

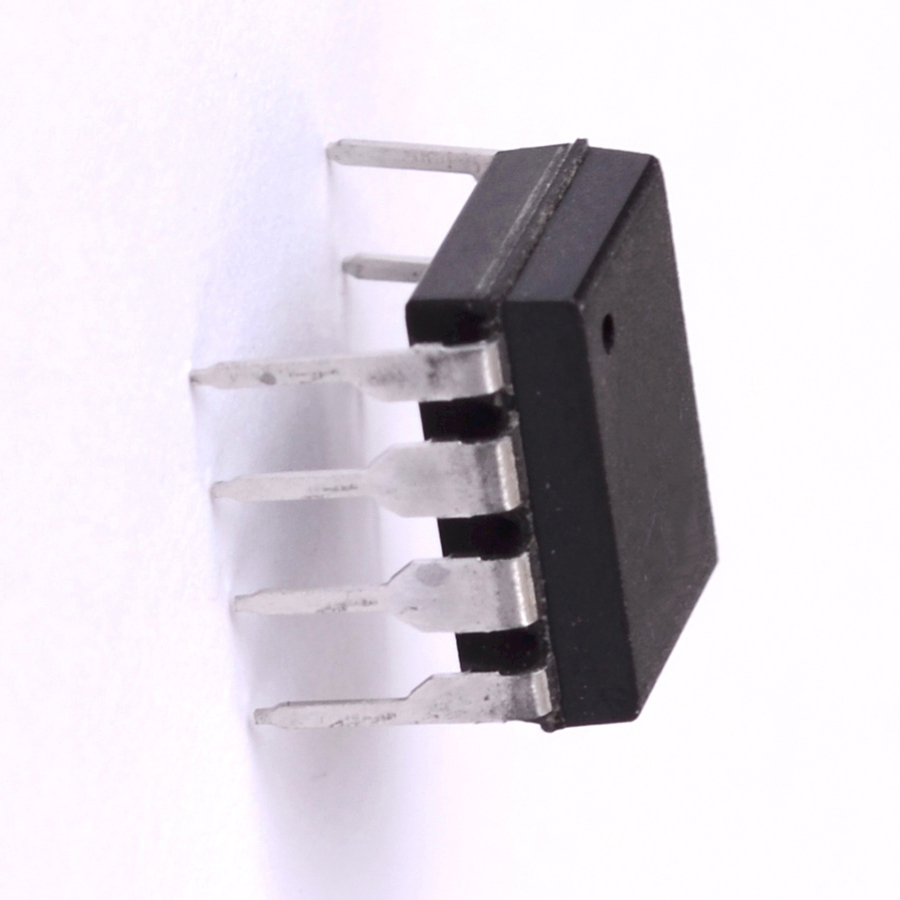

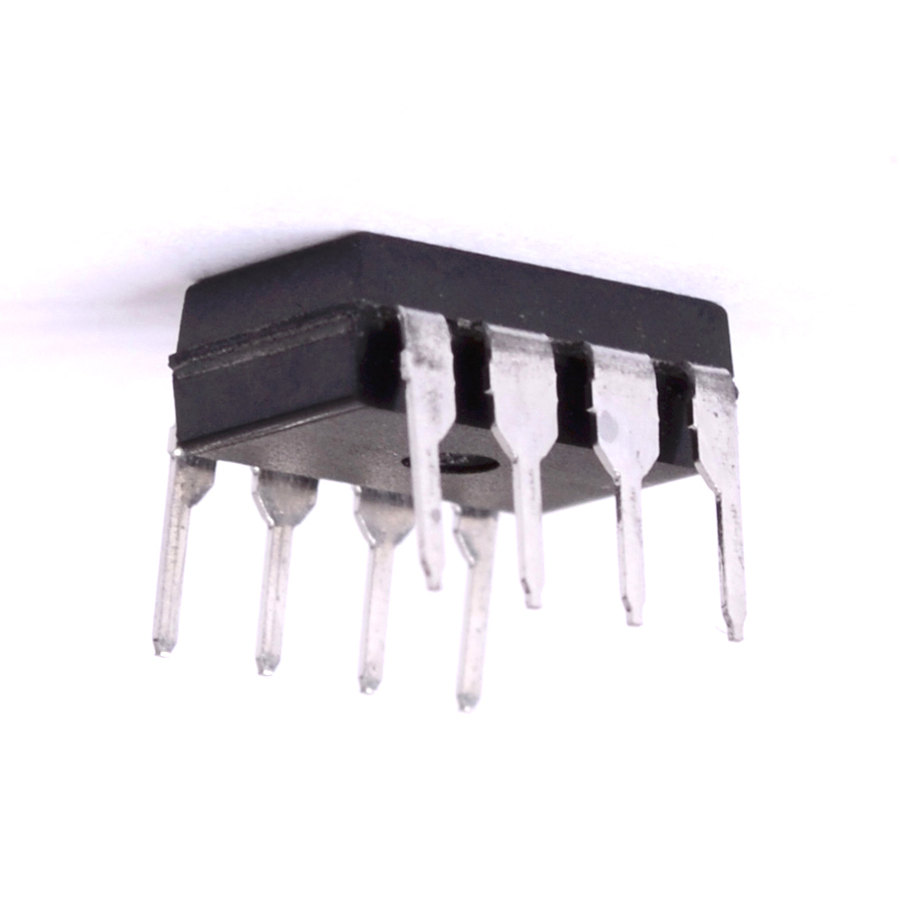

SN75472 Integrated Circuit - CASE: DIP8 MAKE: Texas Instruments
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 1 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
SN75472 Datasheet
Product specifications
Equivalent SN75472P
Type Integrated Circuit
Case DIP8
Manufacturer Texas Instruments
Vih Min (V) 2.2
Vil Max. (V) 0.8
Inp Logic Family DTL,TTL
Output Config Open-Coll.
VOL Max. 0.7
Outp Transis. Ion Max. 400m
PD Max. (W) 1.2
tPD Max. (S) 65n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. NAND
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 70
@Iol (A) 300m
Pinout Equivalence Number 8-35
No. of Pins 8
Surface Mounted Yes/No NO
SKU 111208
