SN75601

SN75601

SKU: SN75601

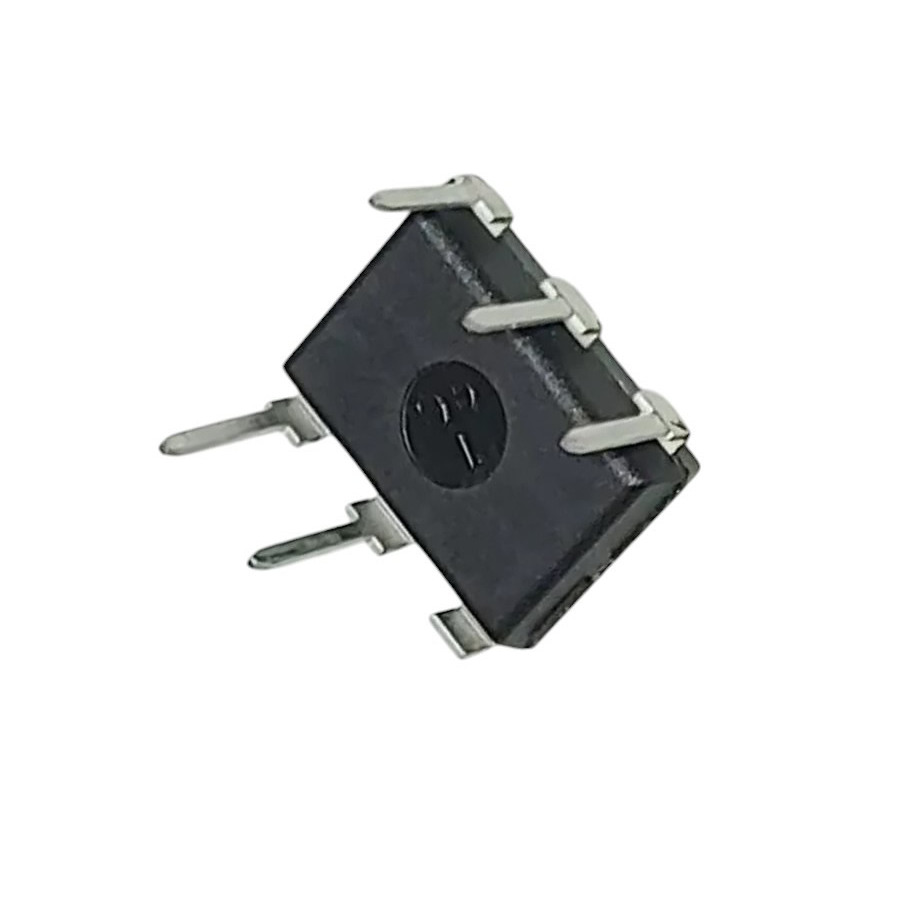

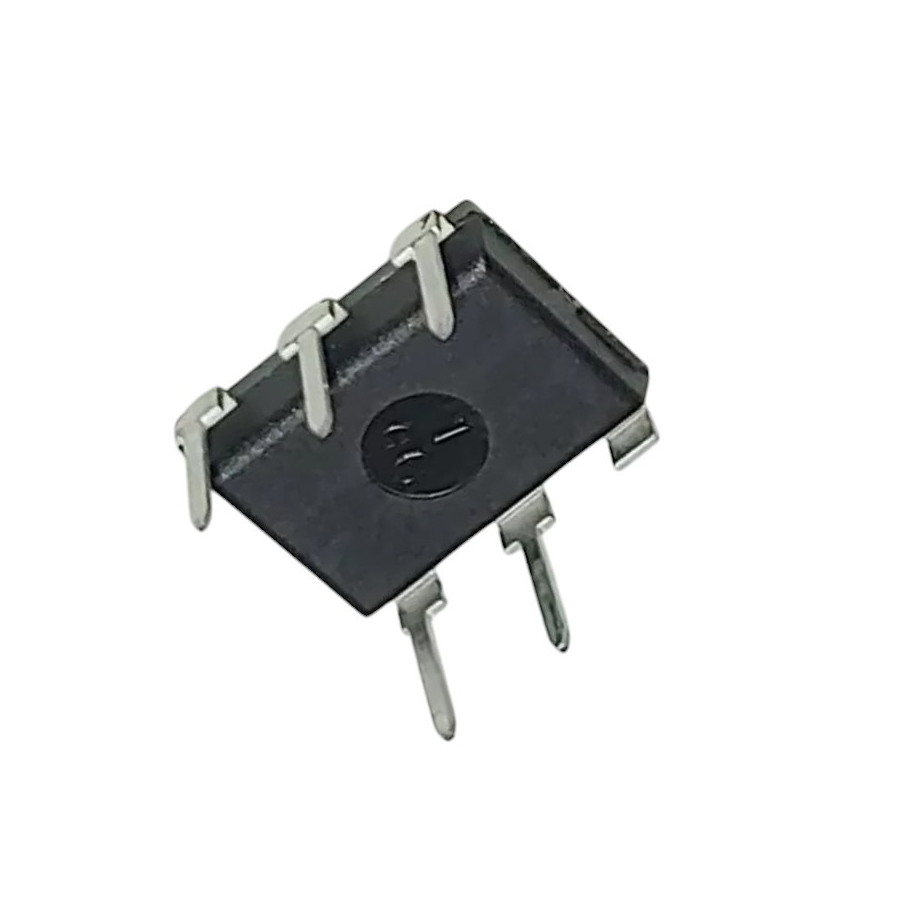

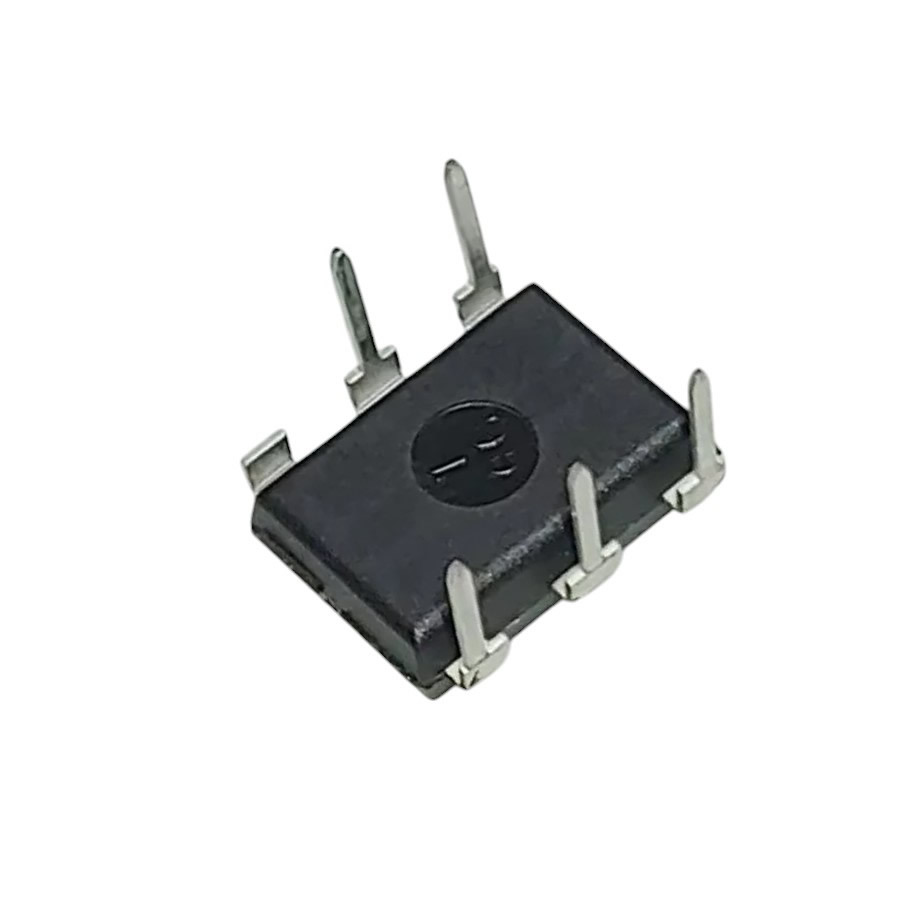

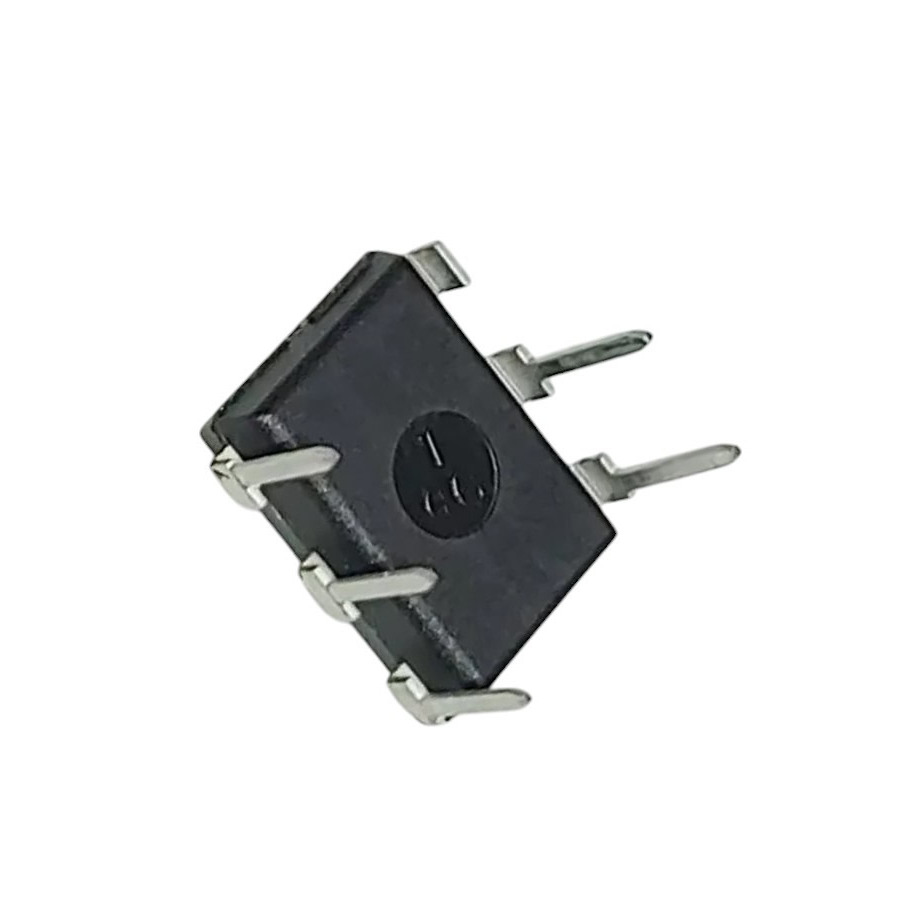

SN75601 Integrated Circuit CASE: DIP5 MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case DIP5
Manufacturer Texas Instruments
Inp Logic Family DTL,TTL
VOL Max. 2.5
Outp Transis. Ion Max. 3.0
PD Max. (W) 3.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 15
@Iol (A) 3.0
Pinout Equivalence Number 5-7
No. of Pins 5
Surface Mounted Yes/No NO
SKU 926502
