SN75ALS193D

SN75ALS193D

SKU: SN75ALS193D

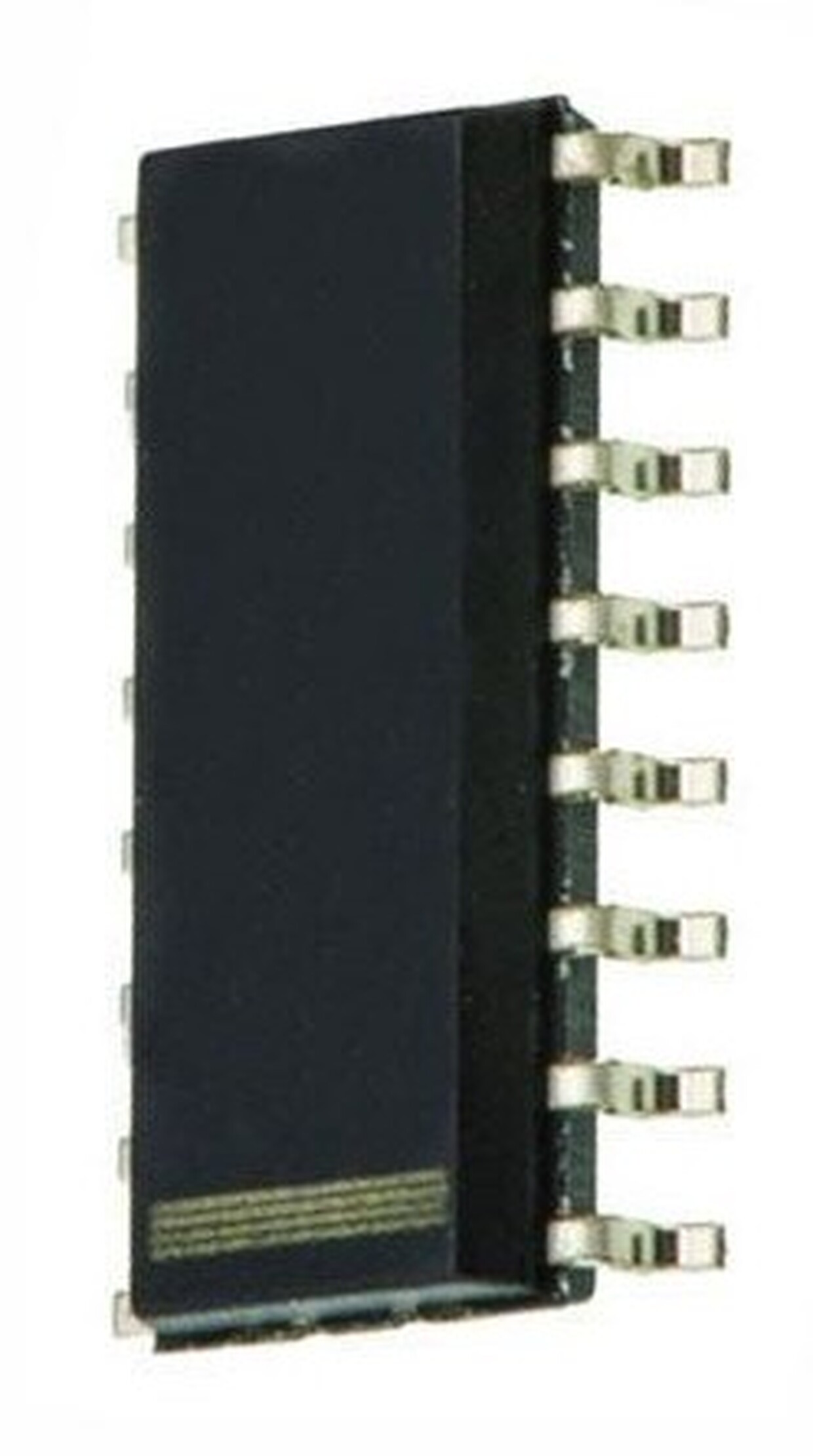

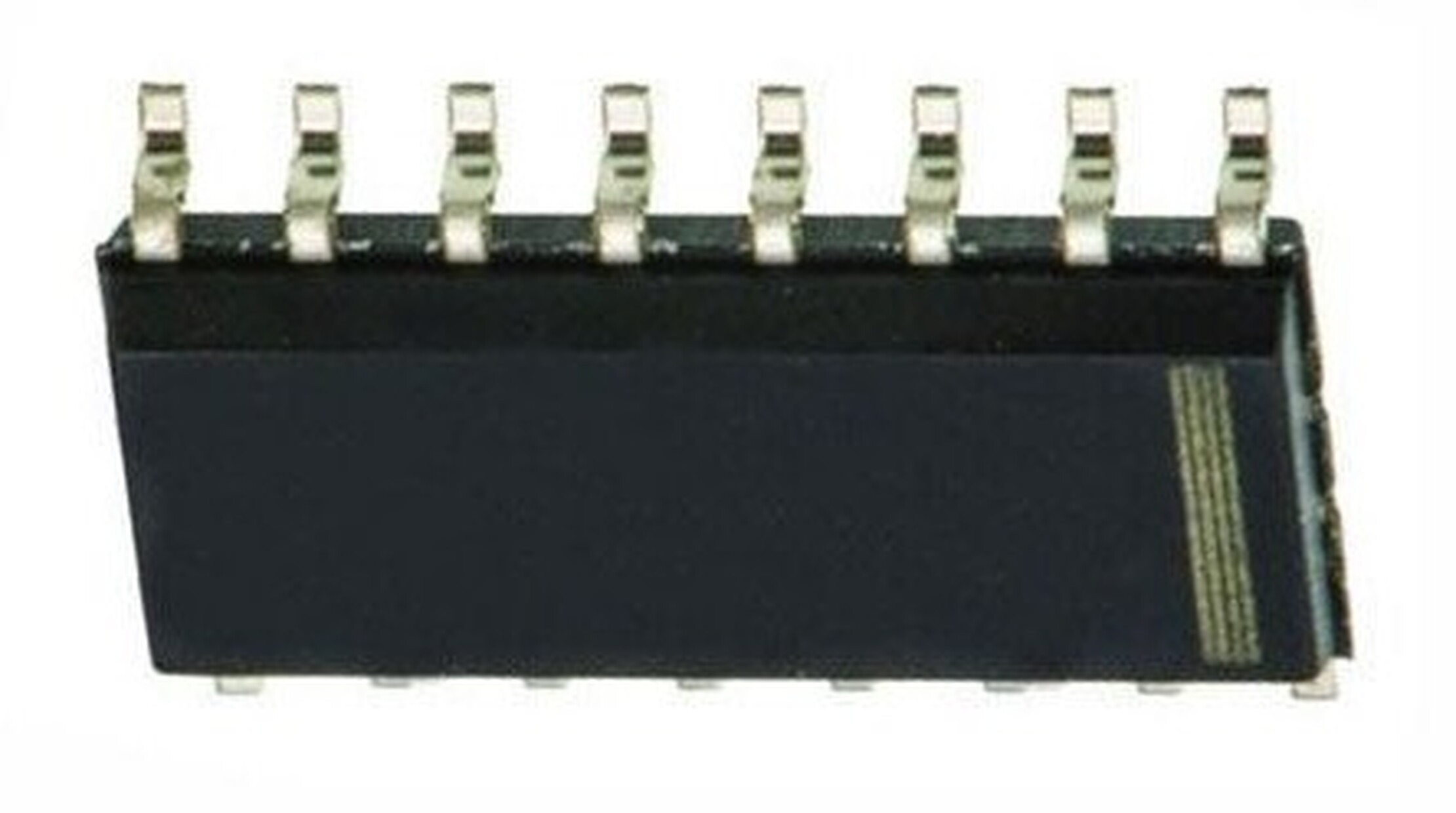

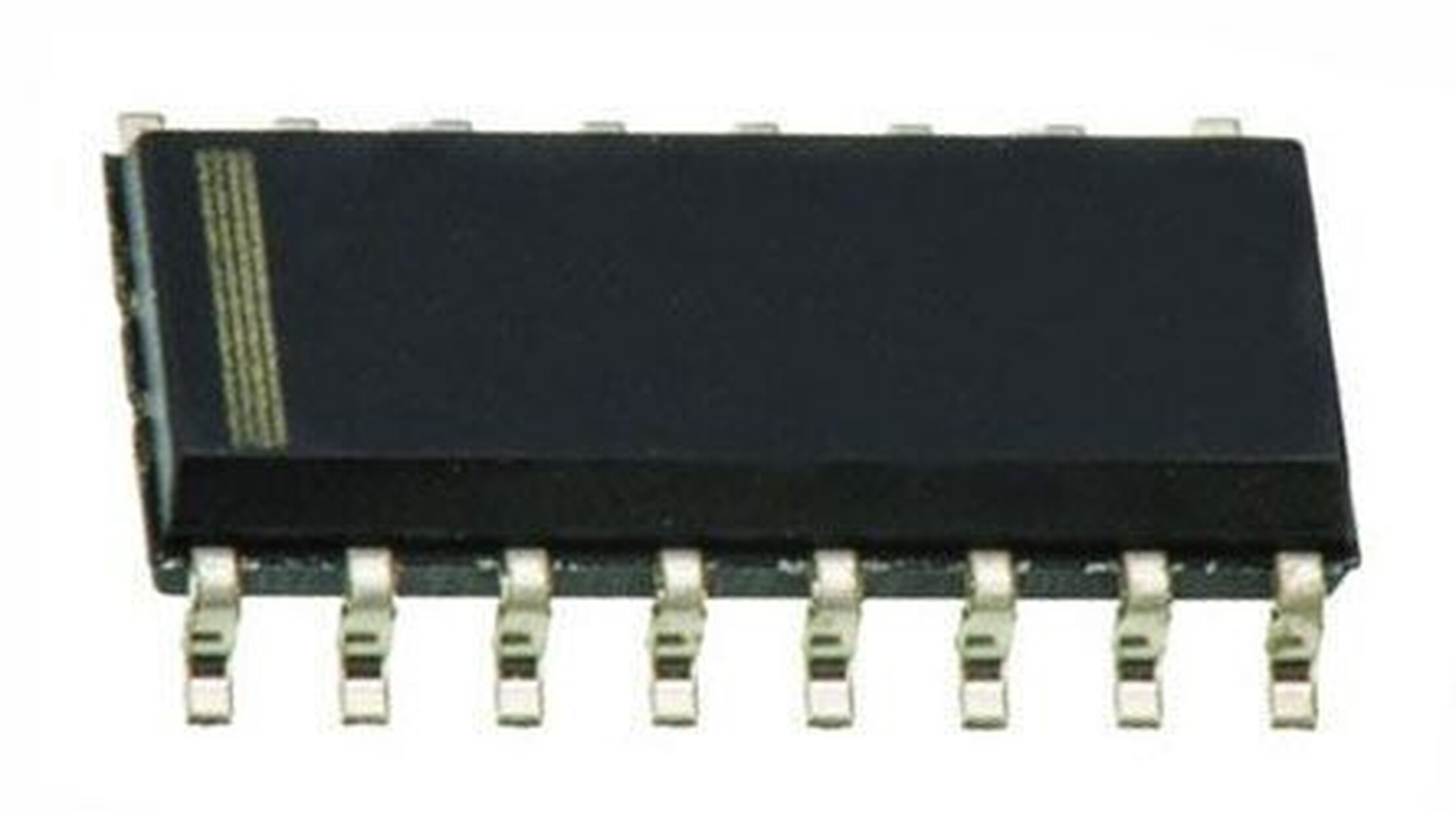

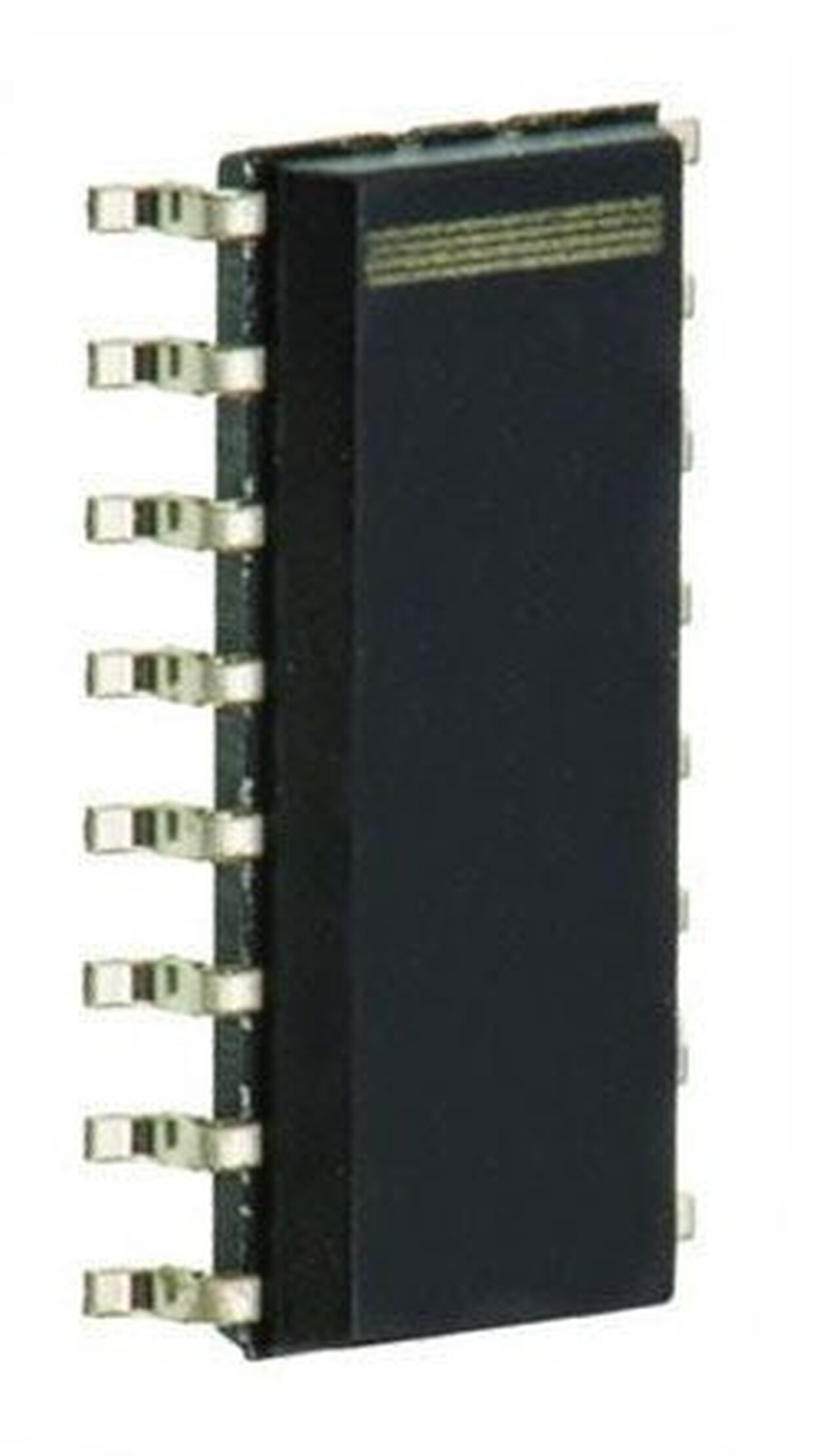

SN75ALS193D Integrated Circuit CASE: SO MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case SO
Manufacturer Texas Instruments
Ckts Per Dev. 4
Inp Thrshld Hi (V) 0.2
Inp Thrshld Lo (V) -0.2
VOL (loaded) Max. 0.5
VOH Min. 2.7
VOL Max. 0.5
PD Max. (W) 1.0
tPD Max. (S) 22n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@Iol (A) 16m
Pinout Equivalence Number 16-764
Surface Mounted Yes/No YES
SKU 970008
