SN75C185N

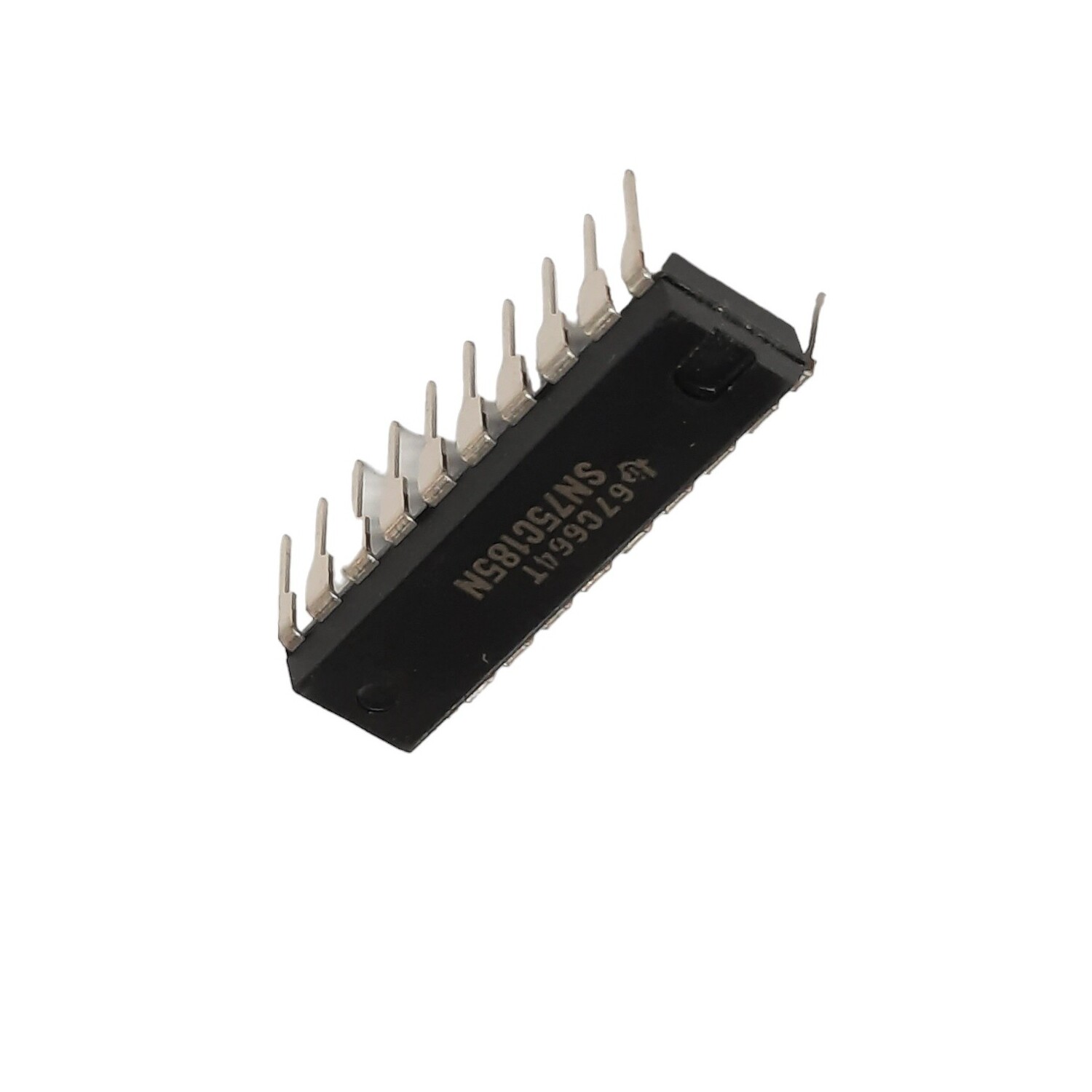

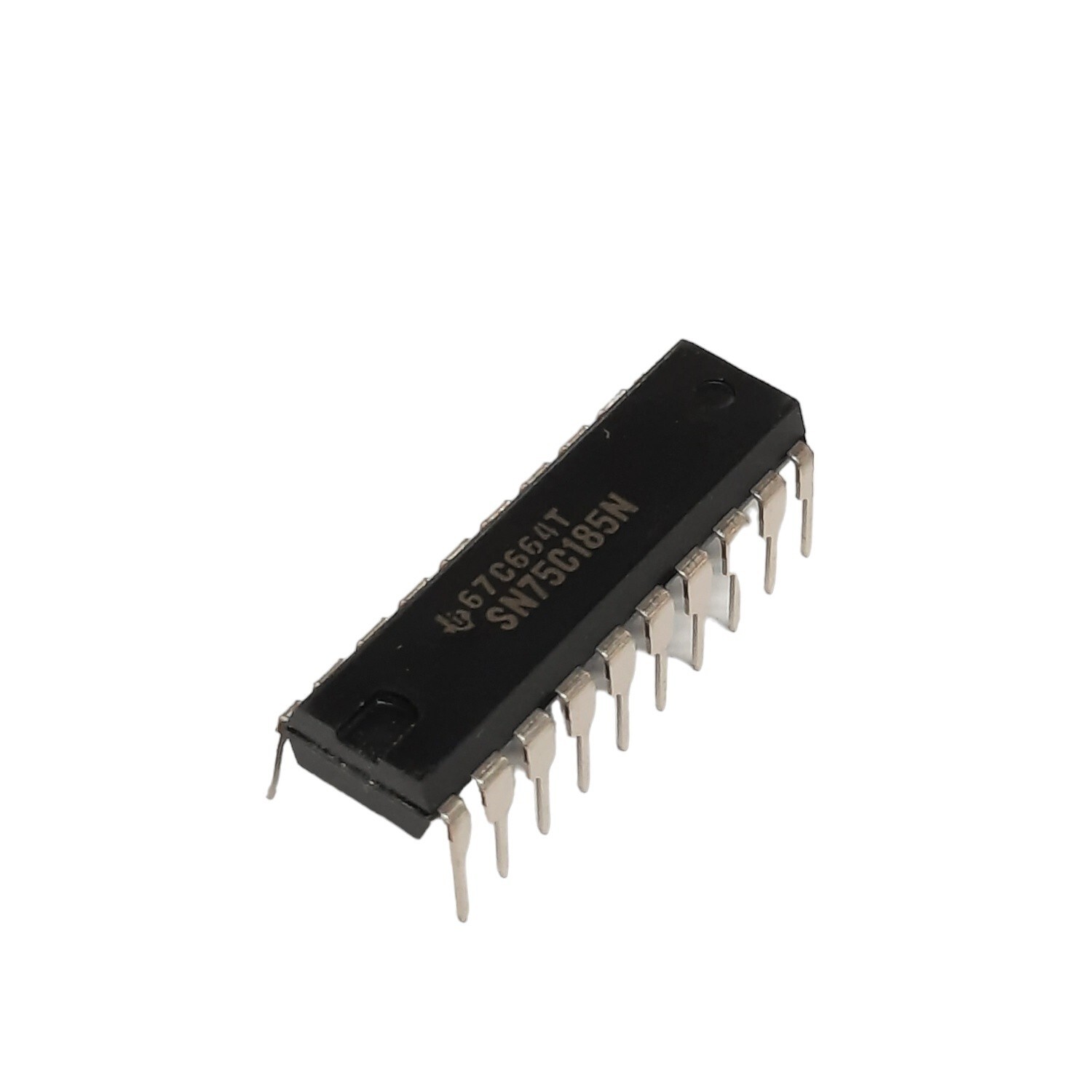

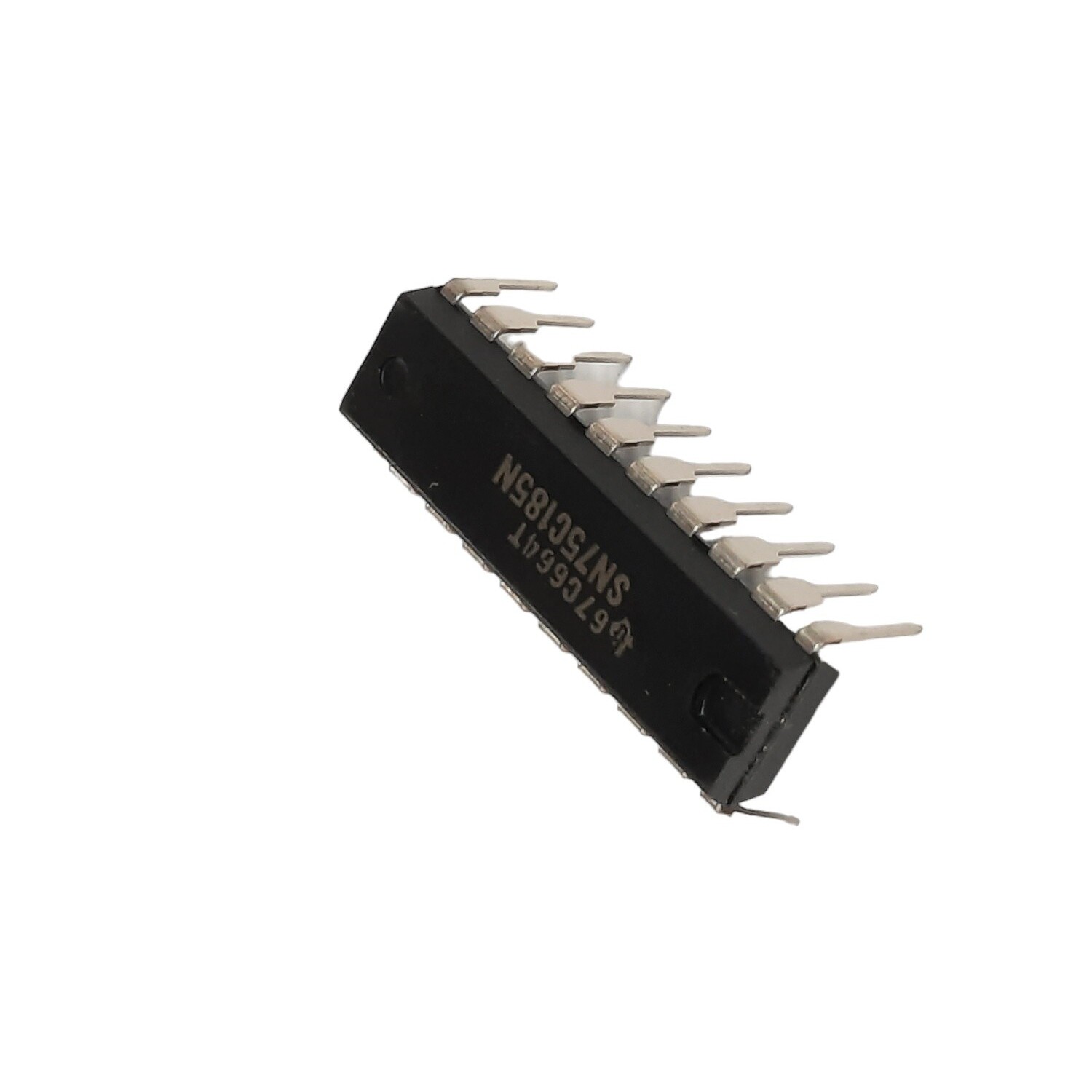

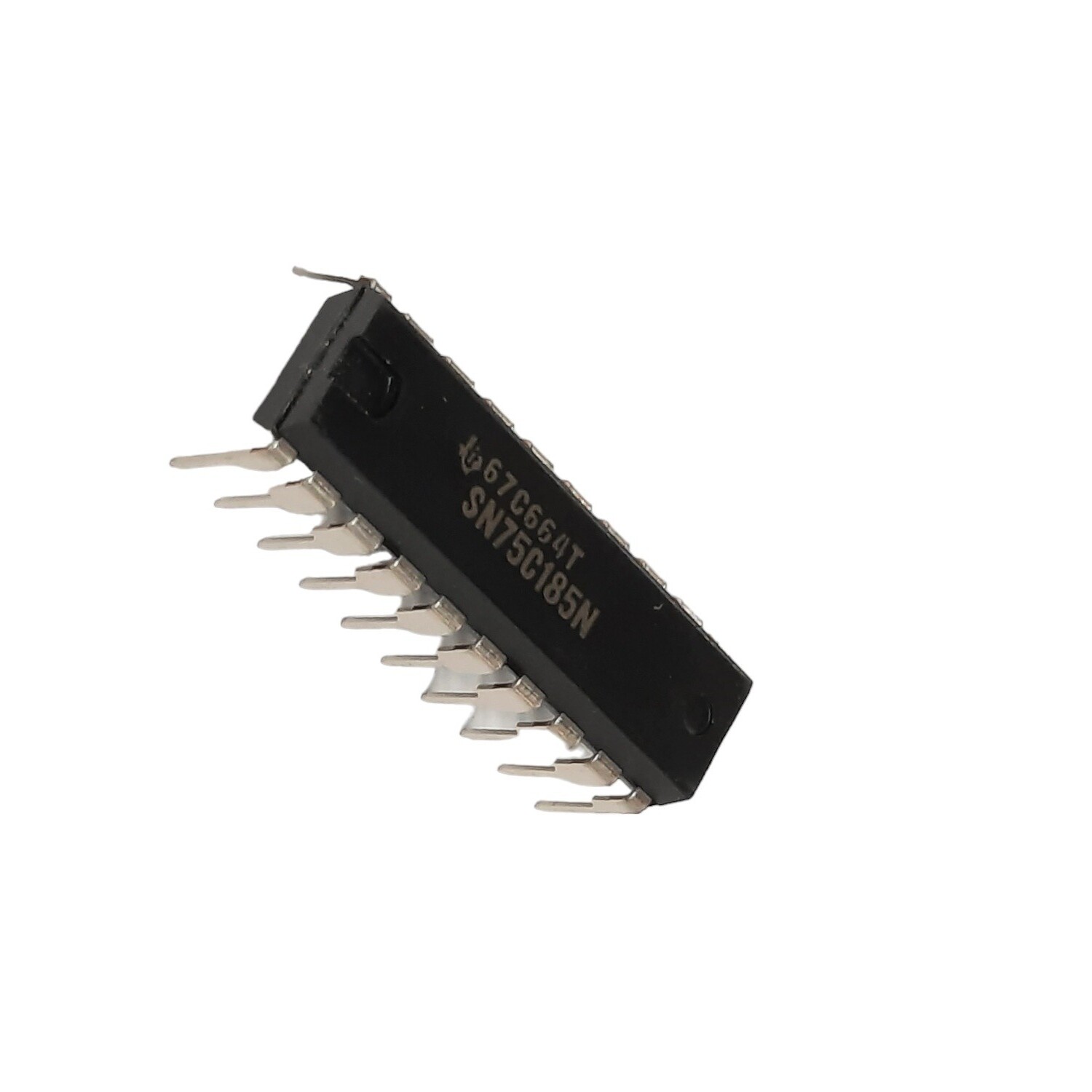

View detailed images (4)

SN75C185N

SKU: SN75C185N
SN75C185N Integrated Circuit INTERFACE-IC CASE: DIP20 MAKE: Texas Instruments
Price: £7.99
+ VAT 20% for UK purchases
£7.99
Qty
+ VAT 20% for UK purchases
  • 142 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit INTERFACE-IC
Case DIP20
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 2.1
Inp Thrshld Lo (V) 1.0
Mode I/O D or S Single-End
tPD Max. (S) 4u
Nom. Neg Supp -12
Nom. Pos. Supp 12
Tech. Bipolar MOS Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOL Max. (Drvr) -10
VOL Max. (Rcvr) 0.4
VOH Min (Rcvr) 3.8
Pinout Equivalence Number 20-846
Surface Mounted Yes/No NO
SKU 300126
