Home / Semiconductors / SNF40503
SNF40503
View detailed images (4)

SNF40503

SKU: SNF40503

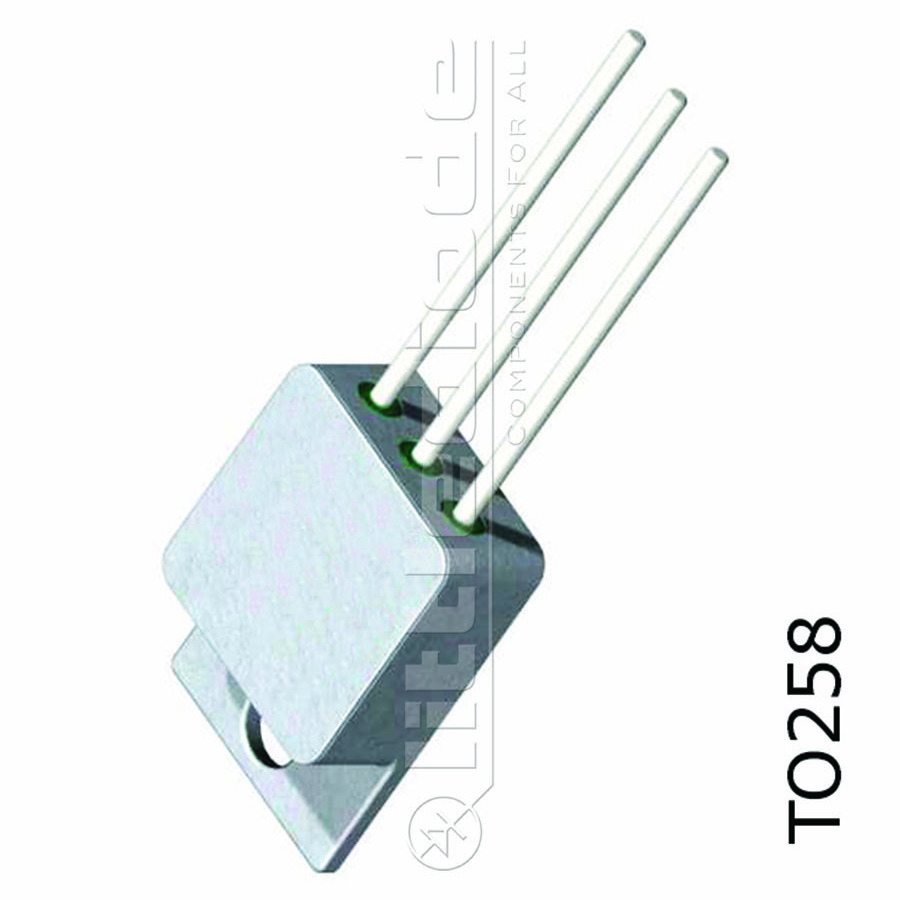

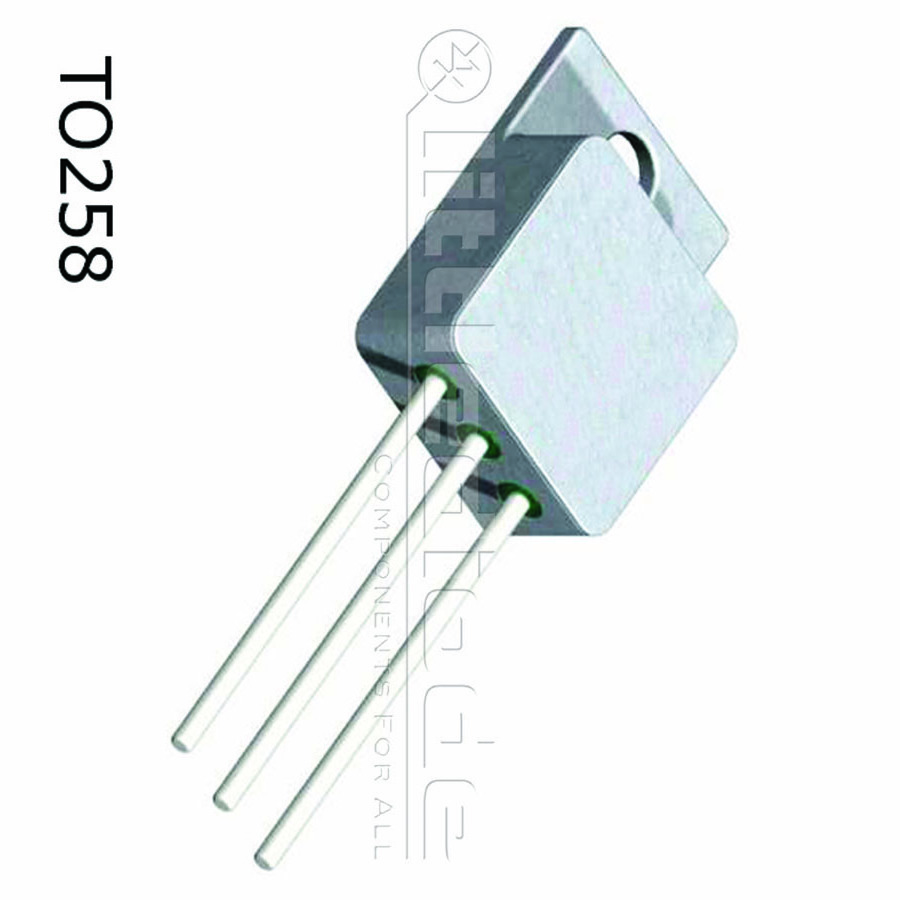

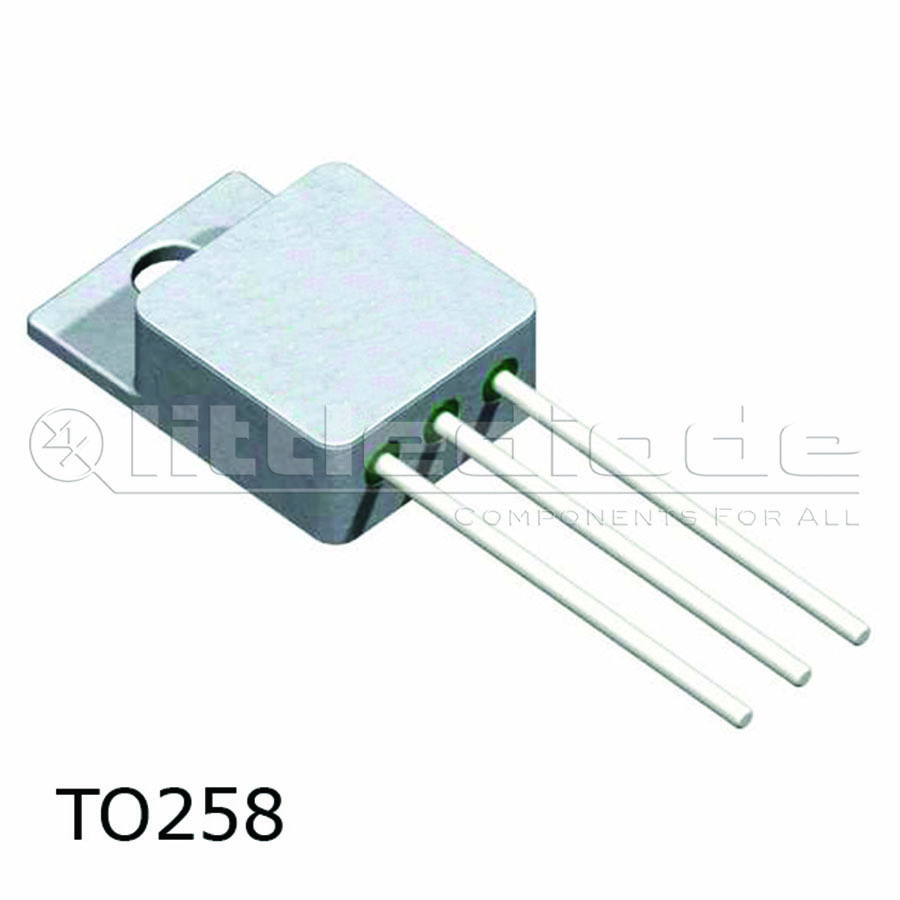

SNF40503 Semiconductor CASE: TO258 MAKE: Texas Instruments
Product specifications
Type Semiconductor
Case TO258
Manufacturer Texas Instruments
Vbr DSS 500
Vbr GSS 30
Max. PD (W) 250
Ciss Max. (F) 2.9n
td(on) Max (S) 28n
t(f) Max. (S) 71n
Id Max. (A) 21
Tr Max. (s) 55n
R(ds) On (Û) 0.3
t(stor) Max. (S) 92n
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-22
Surface Mounted Yes/No NO
SKU 1262638
