SS16

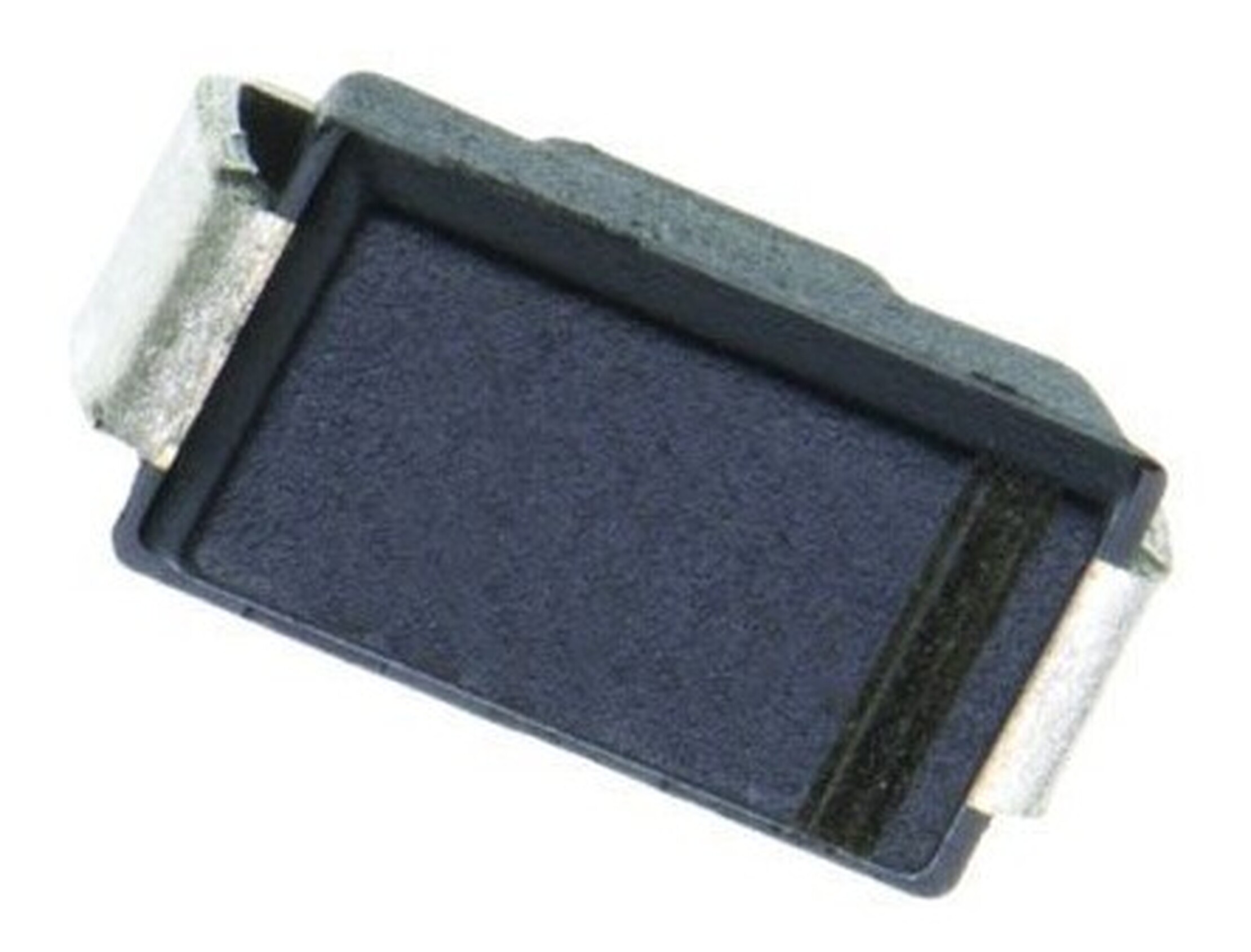

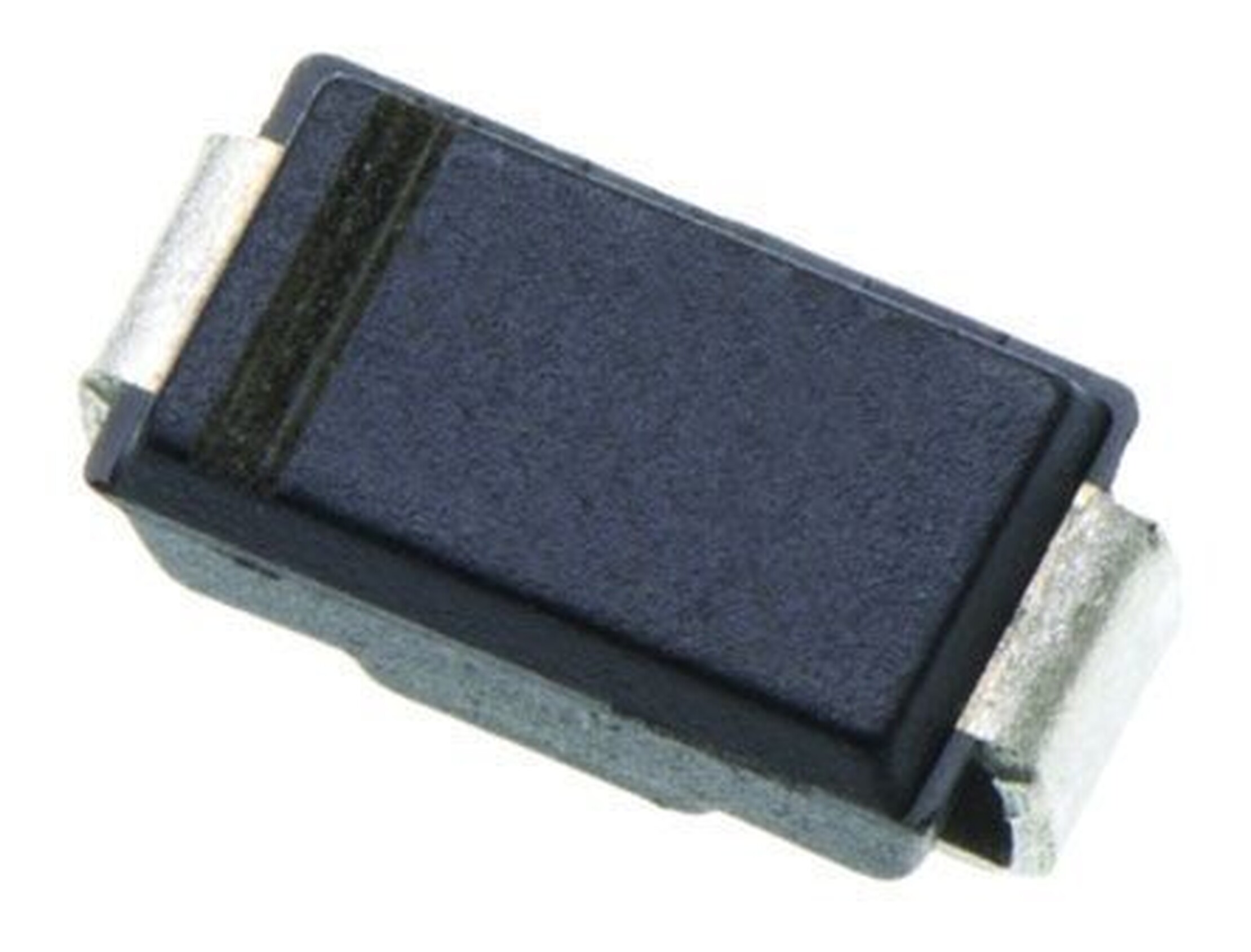

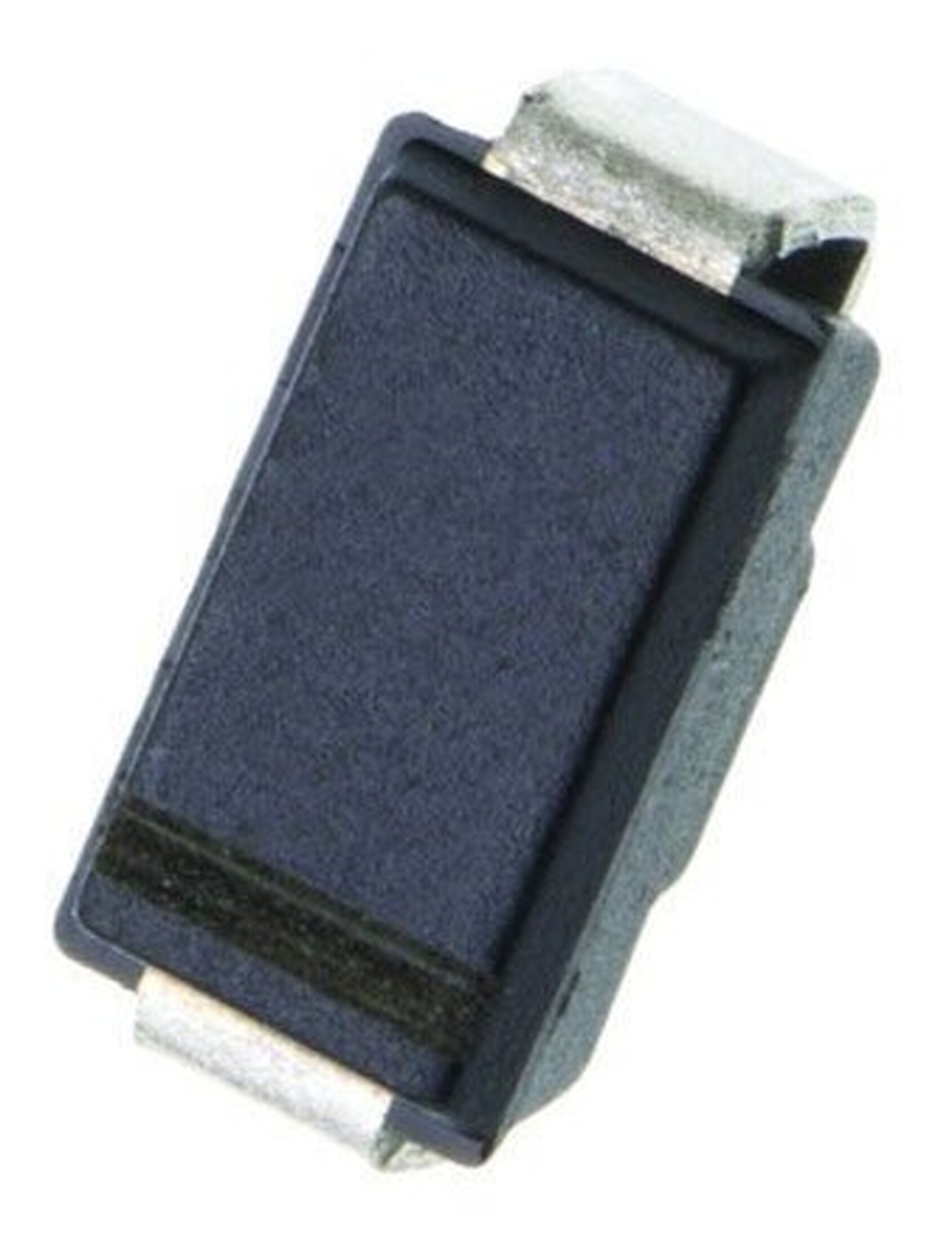

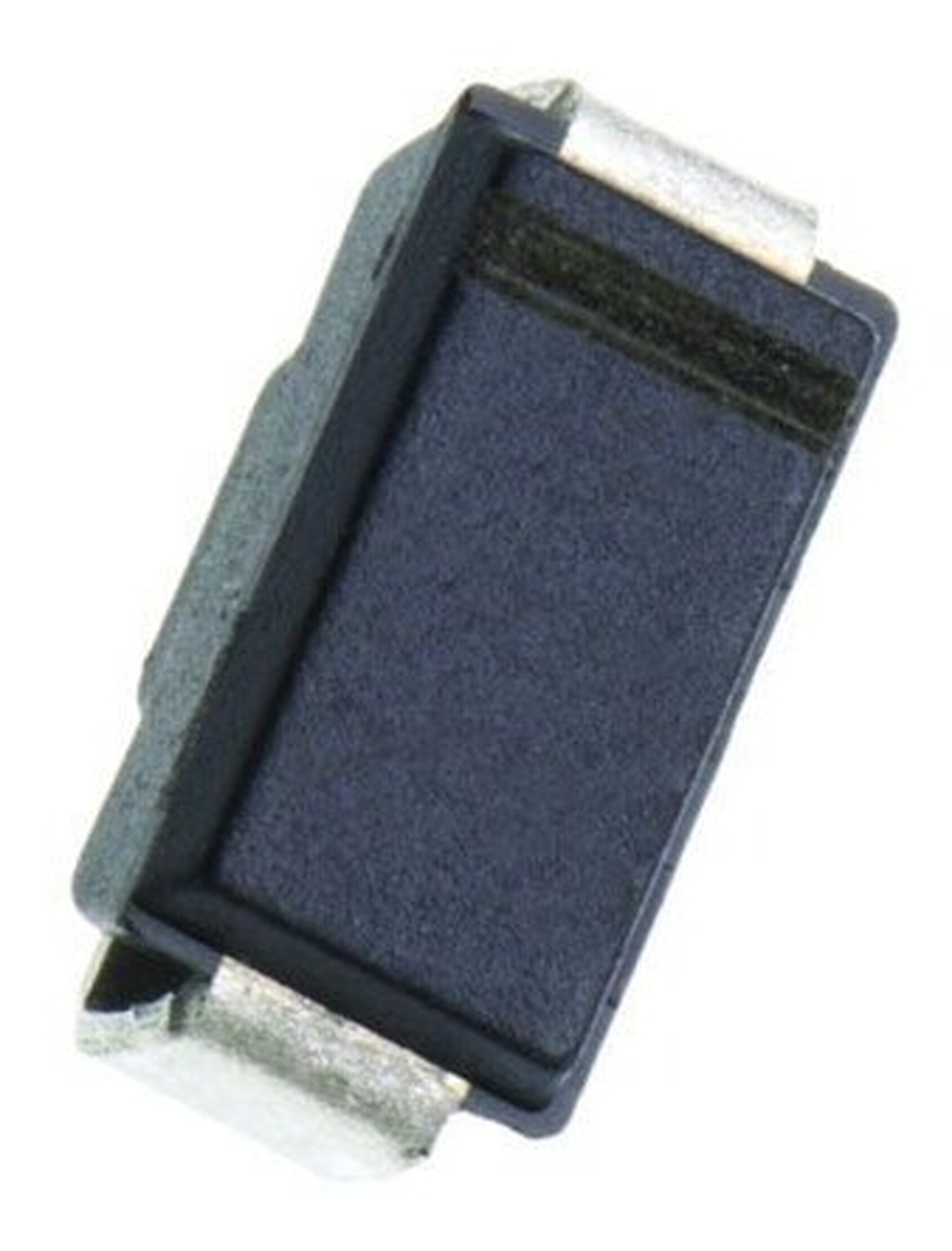

View detailed images (4)

SS16

SKU: SS16
SS16 SemiConductor CASE: SMA MAKE: Fairchild Semiconductor
Product specifications
Type SemiConductor
Case SMA
Manufacturer Fairchild Semiconductor
@Temp. (test) (°C) 100
Ir @ Diff. Temp (A) 5.0m
Outp Type Linear I
VRRM 60
1-Cycle Surge Current (A) 30
@Temp (test) (°C) 100
@Temp. (test) for Vf) 25
Vf Max. 750m
Ir @25°C 500u
I(out) (If AVG) Max. 1.0
@Volts (test) (V) 60
@If (test) 1.0
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 150
Pinout Equivalence Number N/A
No. of Pins N/A
Surface Mounted Yes/No YES
SKU 522217
