STA301A

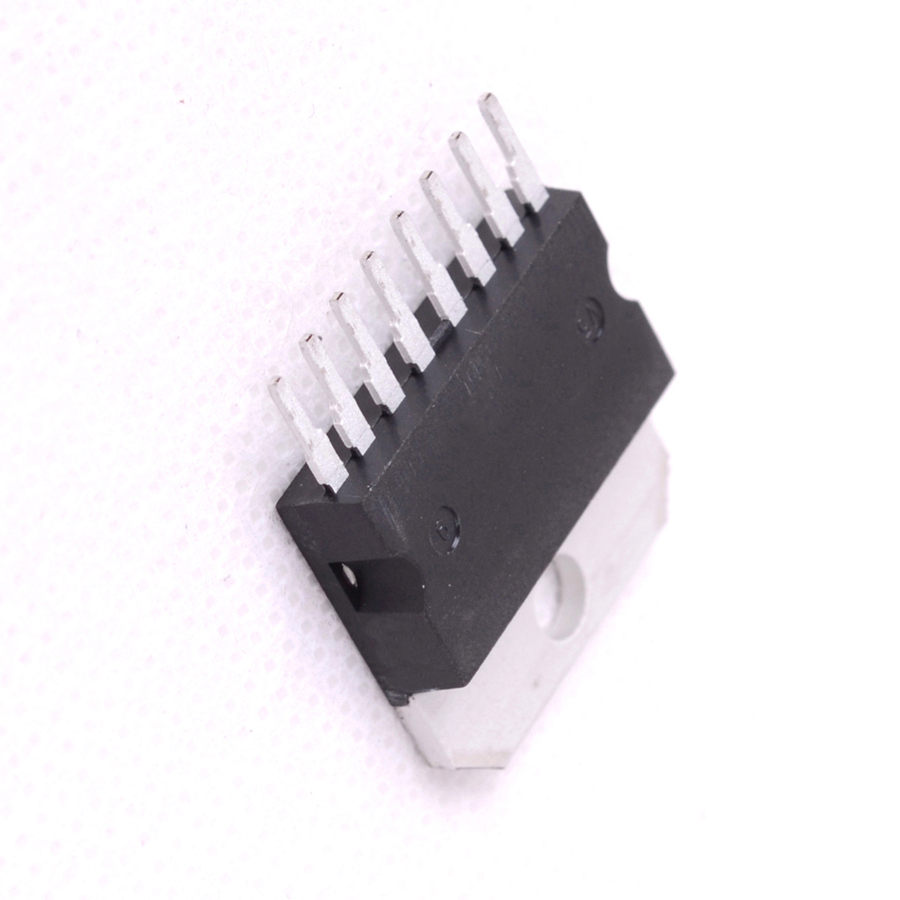

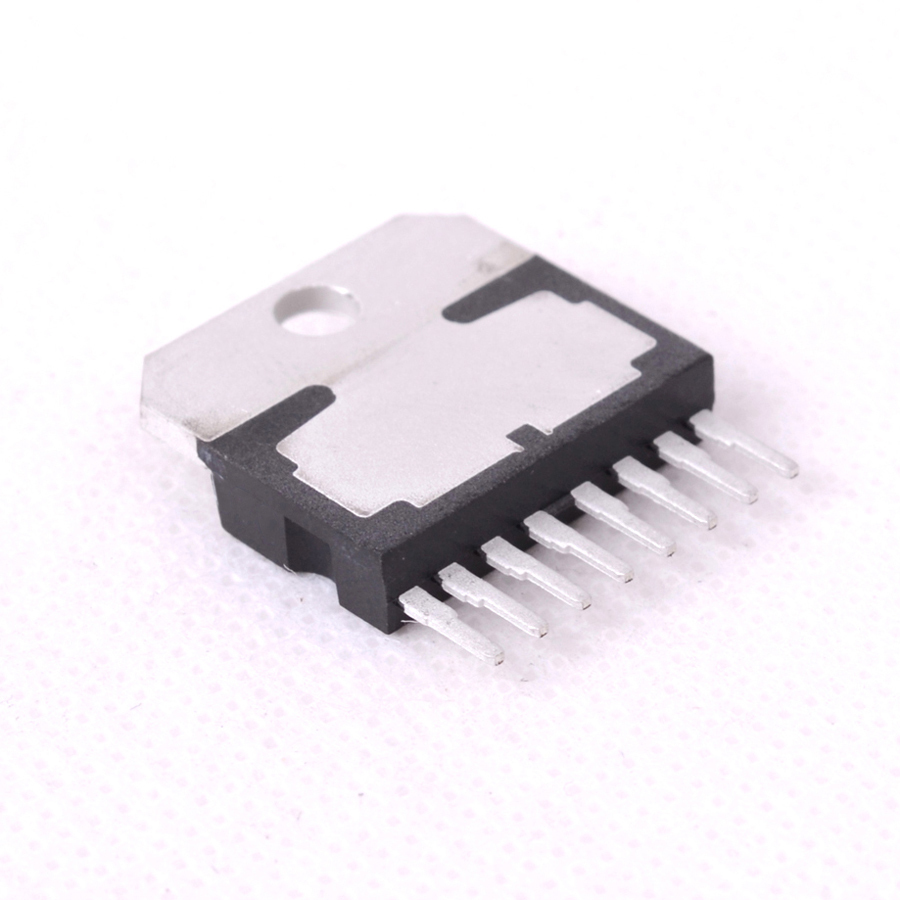

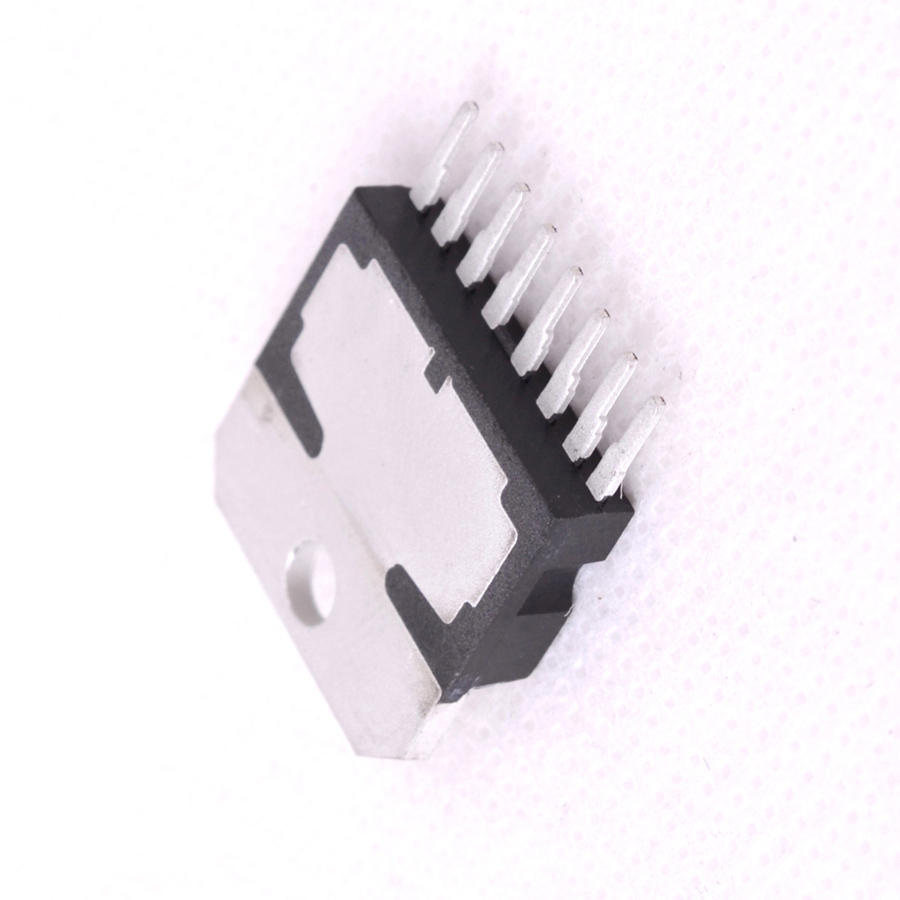

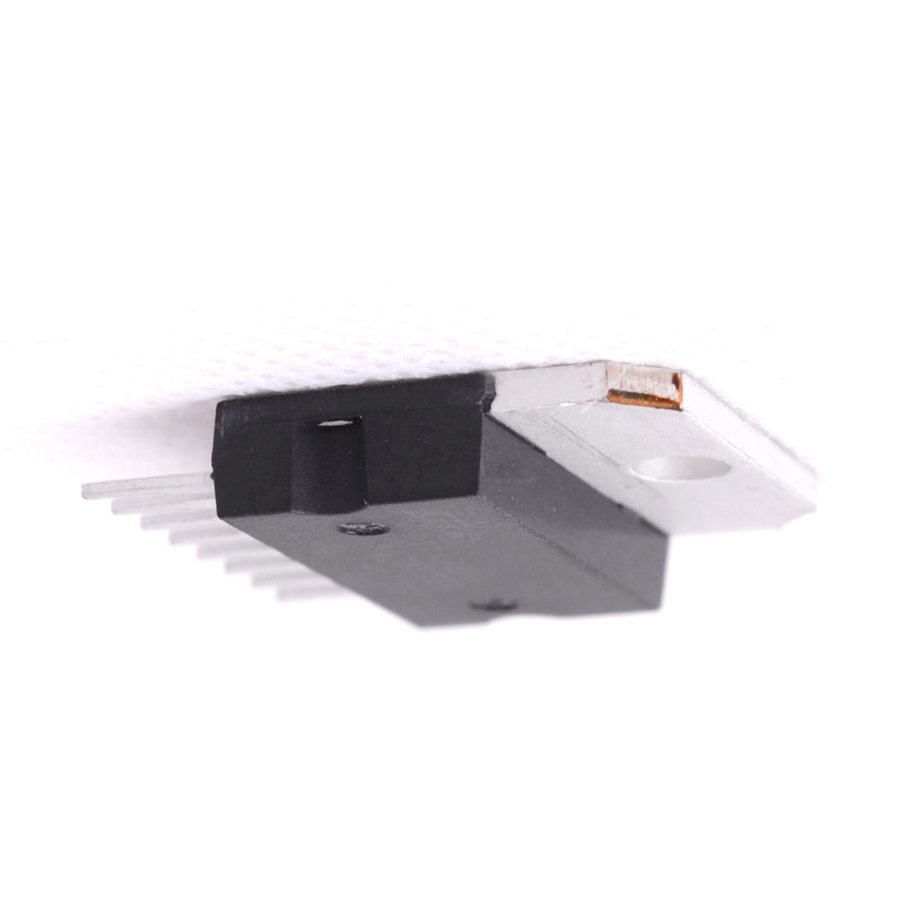

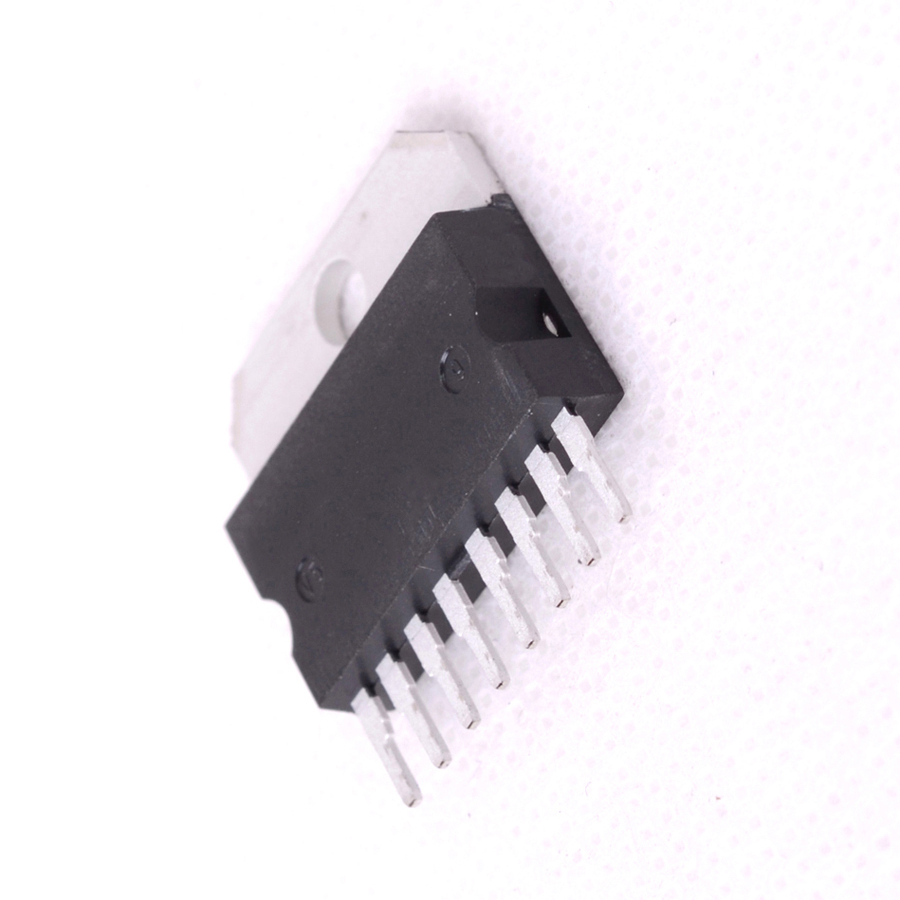

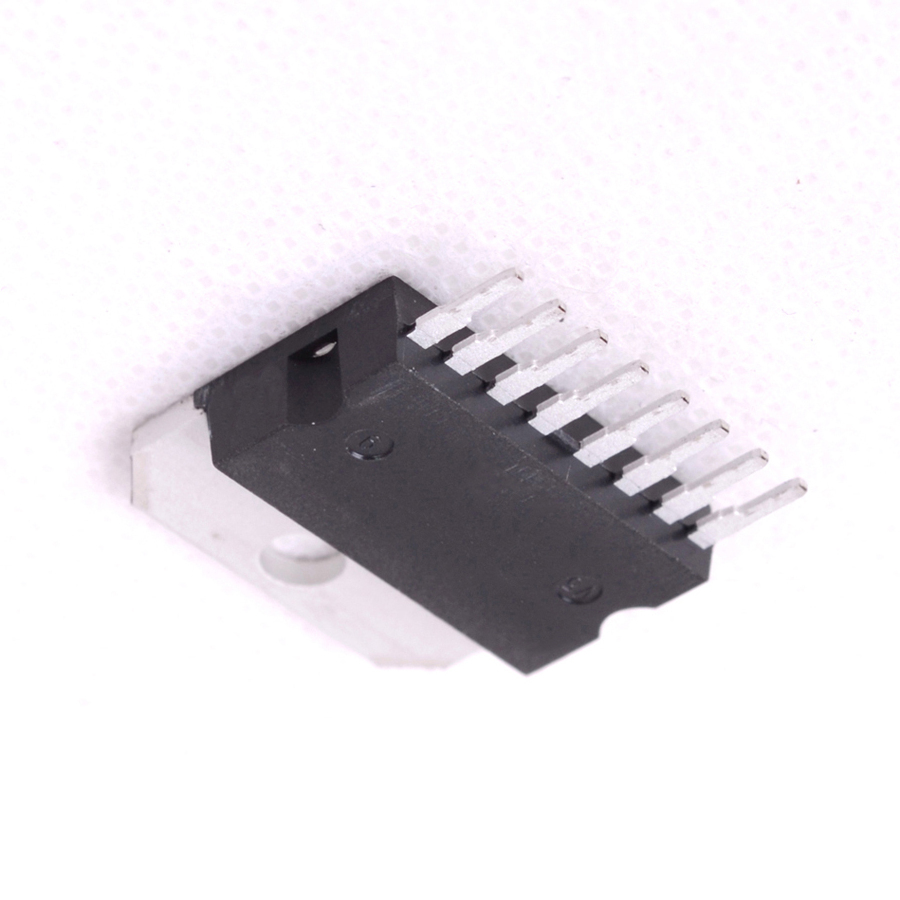

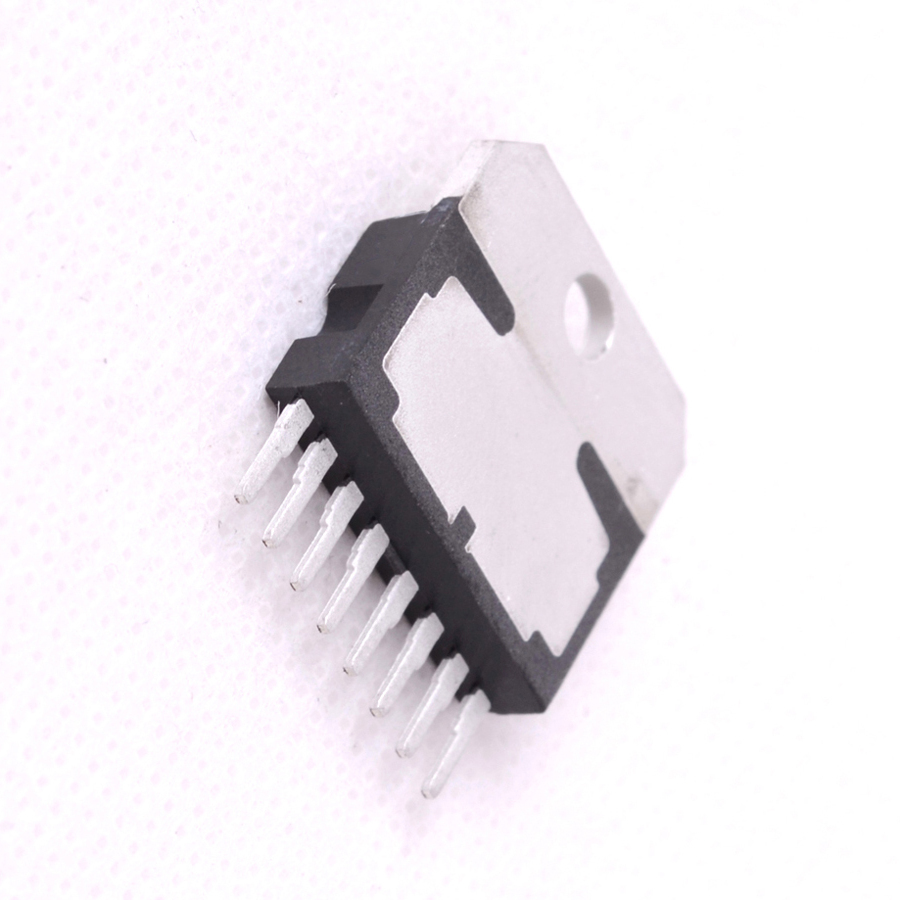

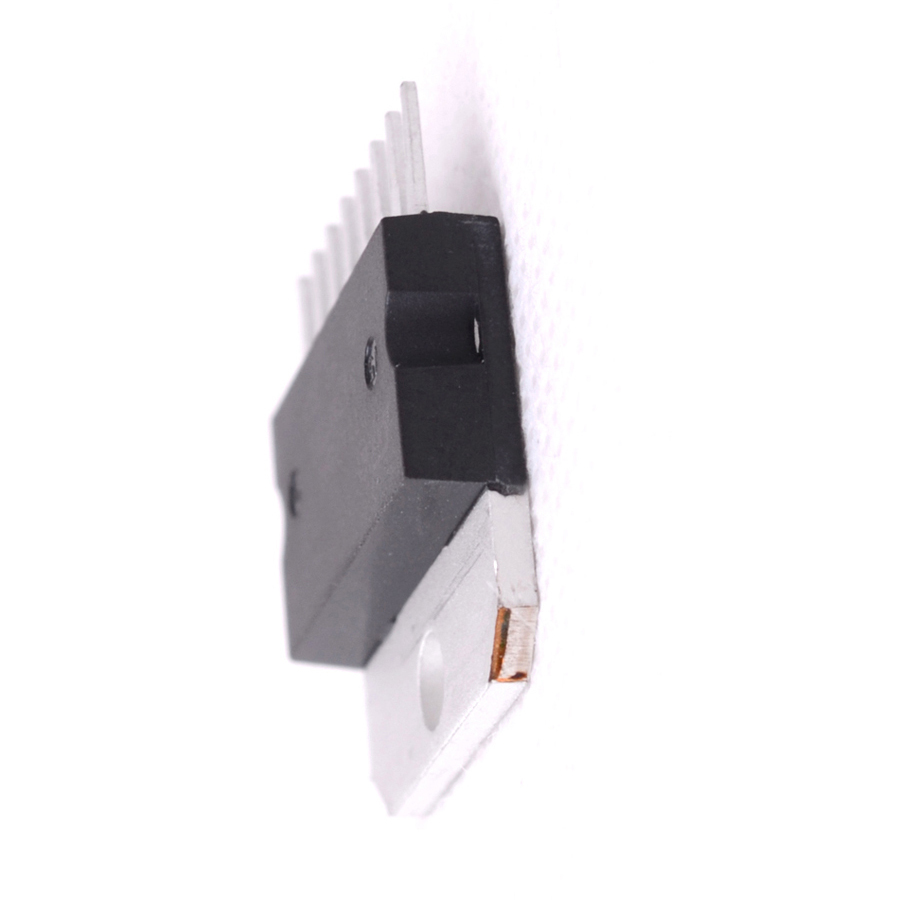

View detailed images (13)

STA301A

SKU: STA301A

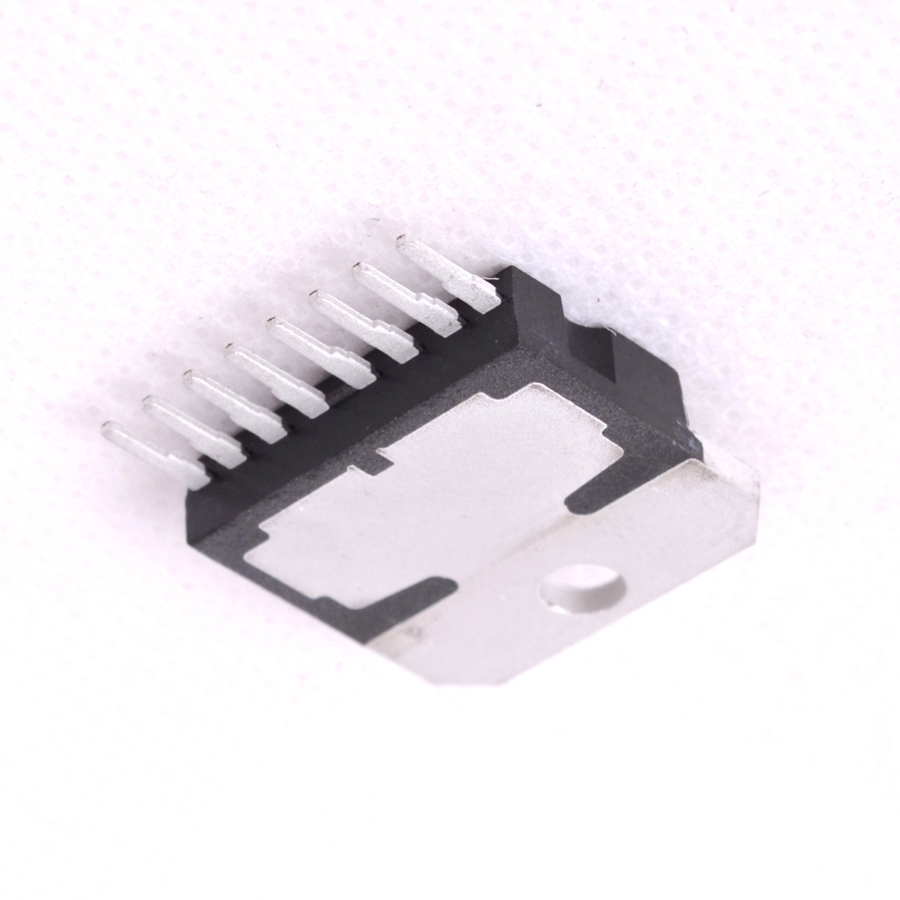

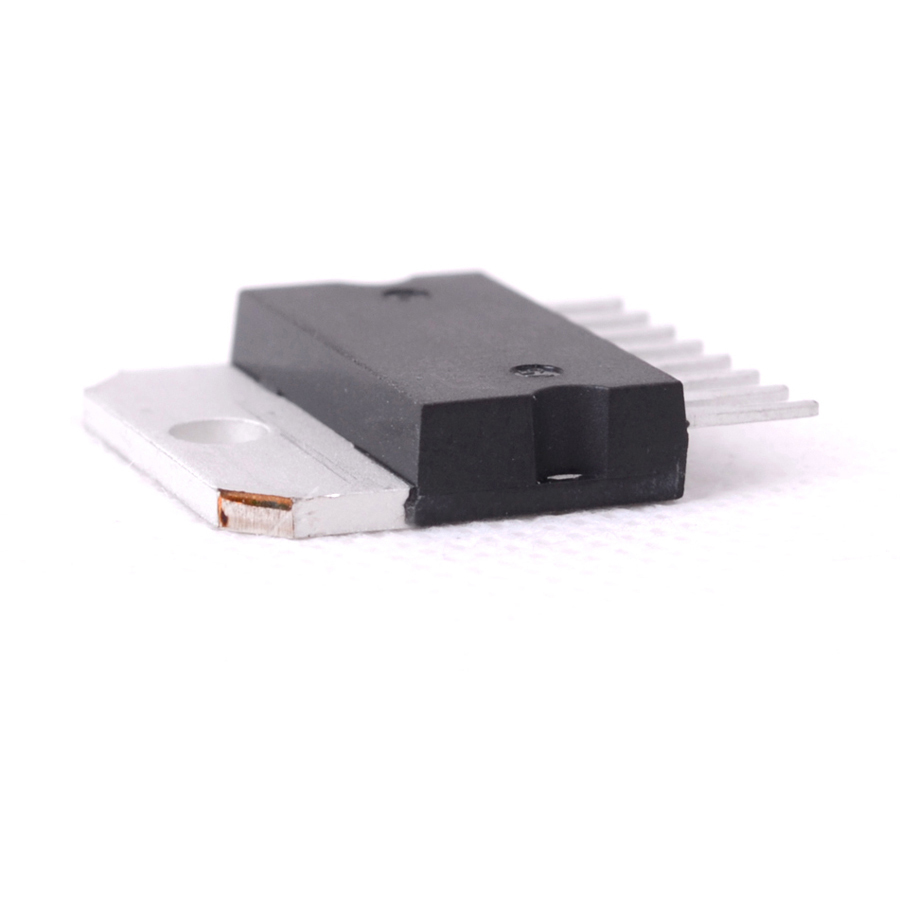

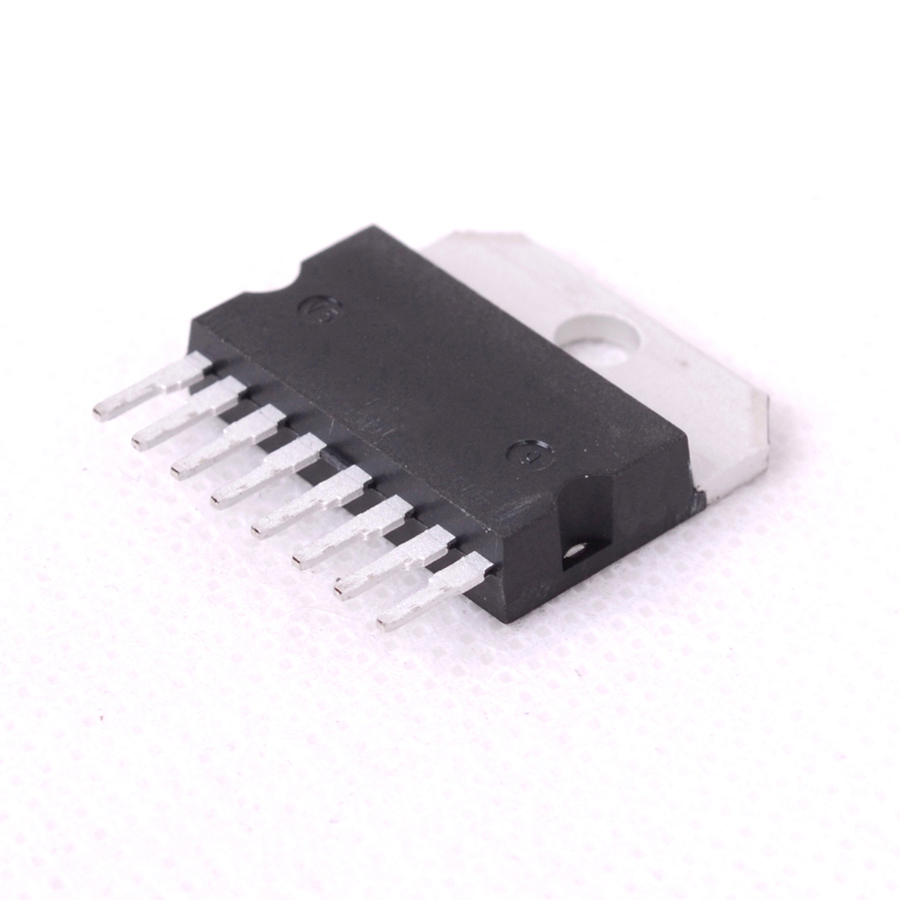

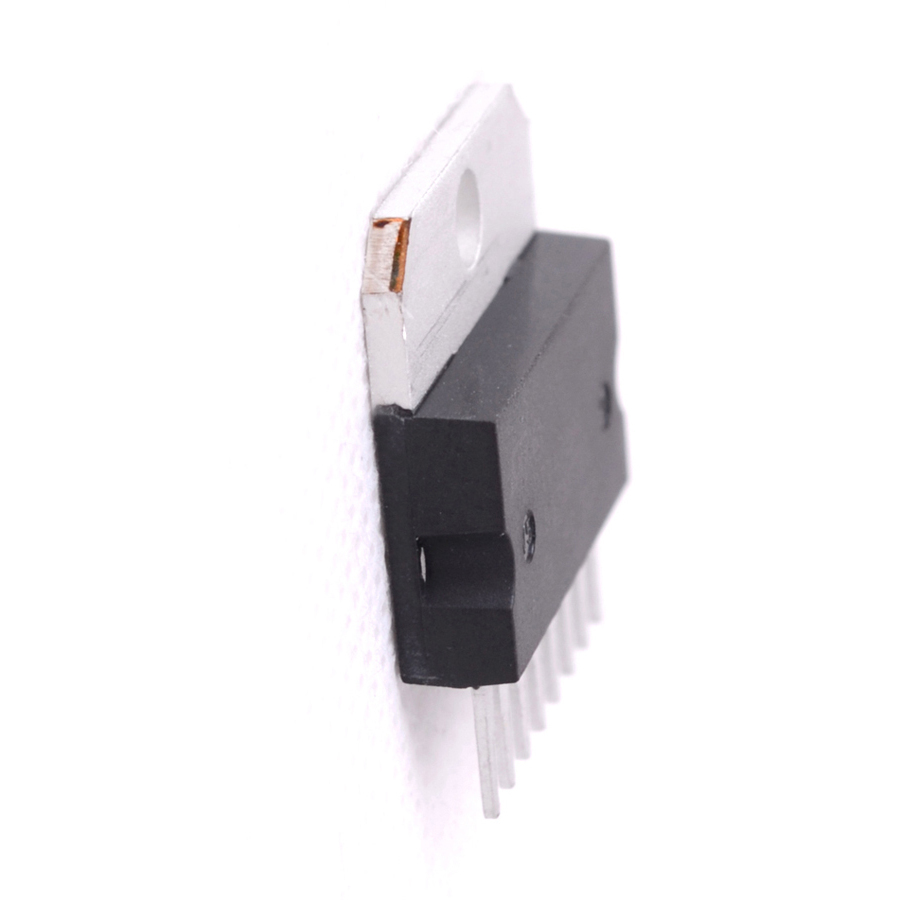

STA301A Transistor Silicon NPN CASE: SIP8 MAKE: Sanken
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT for International Orders)

£5.75 Inc. VAT (£4.79 Ex. VAT for International Orders)
Qty
  • 16 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
STA301A Datasheet
Product specifications
Type Transistor Silicon NPN
Case SIP8
Manufacturer Sanken
Min hFE 1k
Polarity NPN
PD Max. (W) 15
@VCE (test) (V) 4
@Ic (test) 3
Ic Max. 4
Vceo Max. 60
Pinout Equivalence Number 8-56
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 3 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 1000
SKU 18744
