STA302A
View detailed images (8)

STA302A

SKU: STA302A

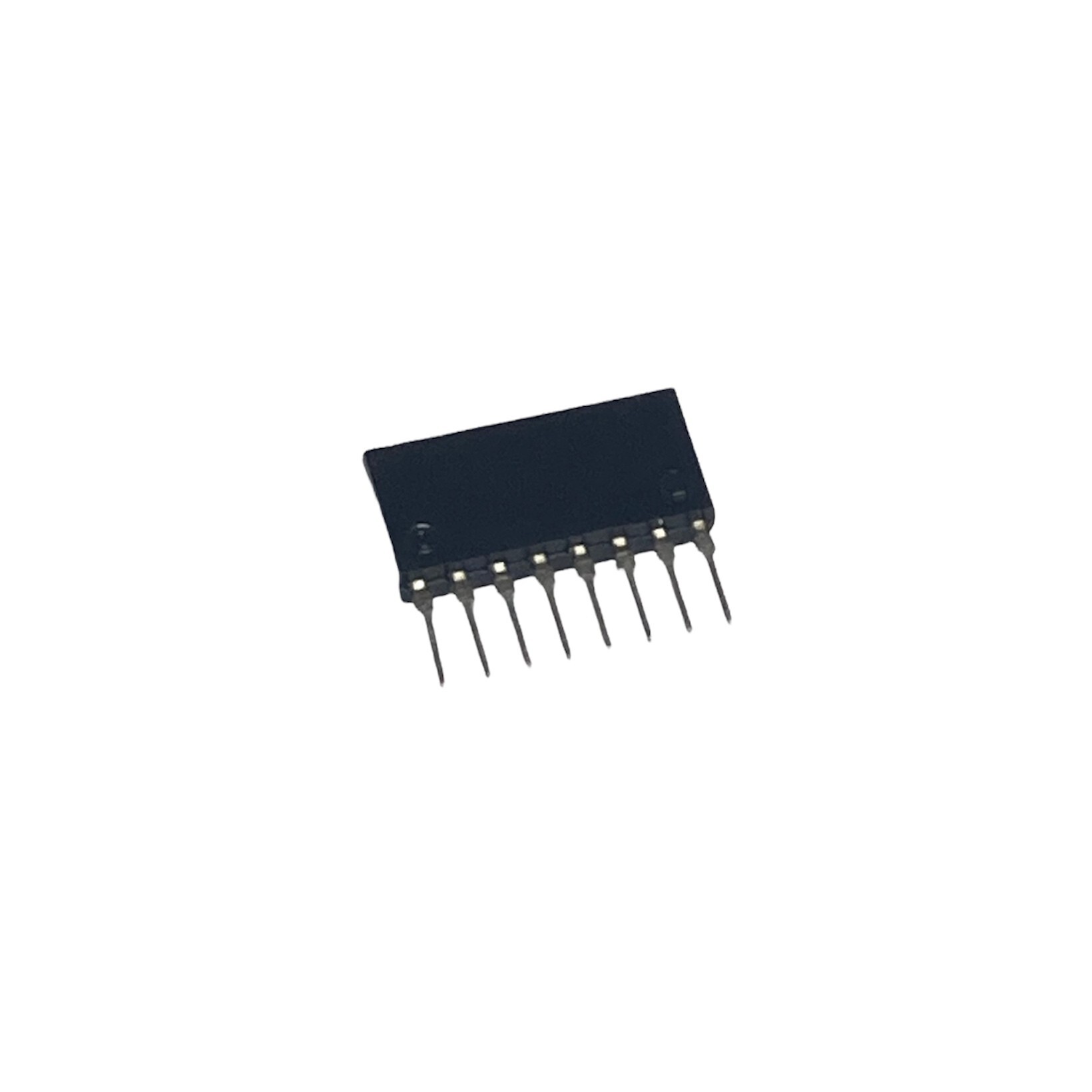

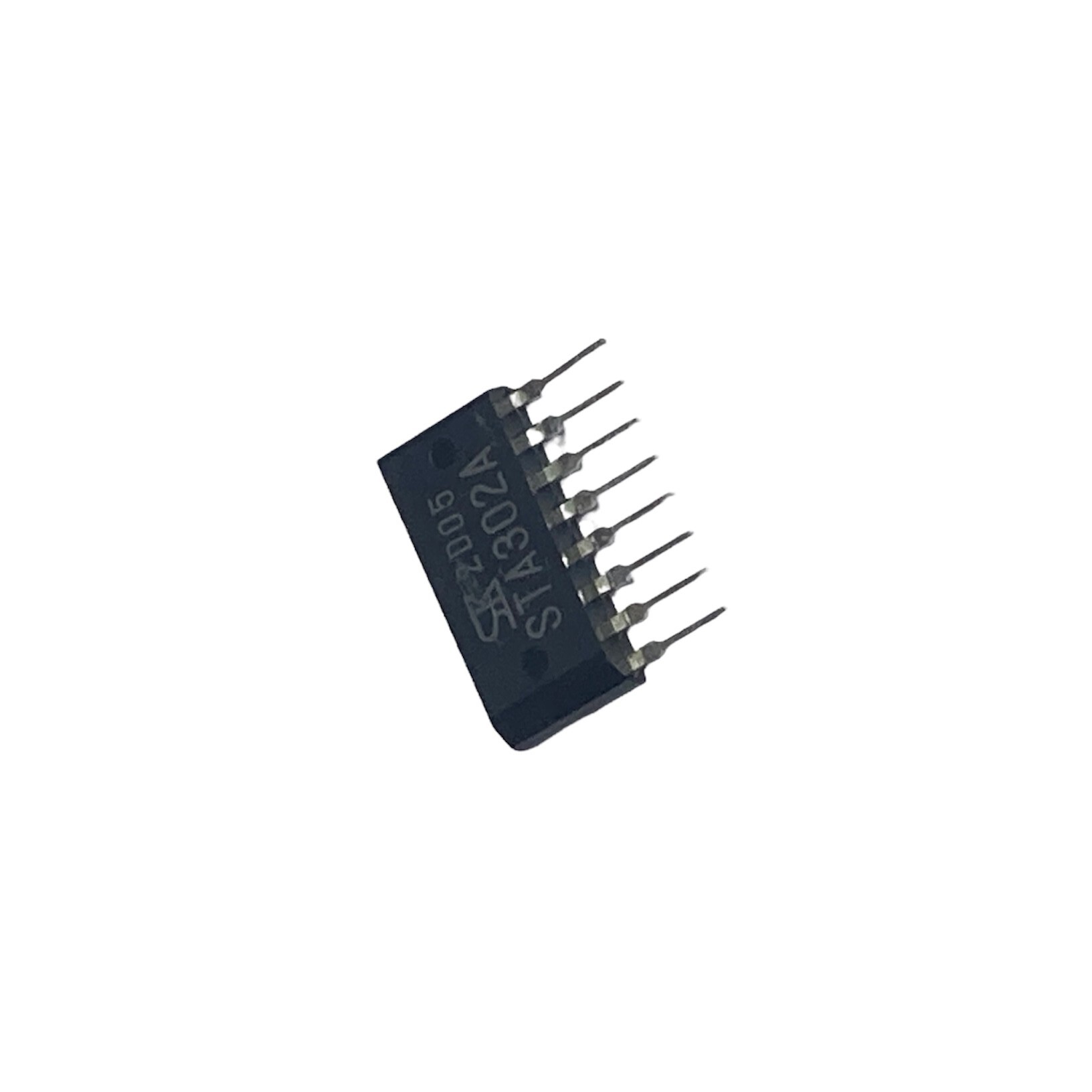

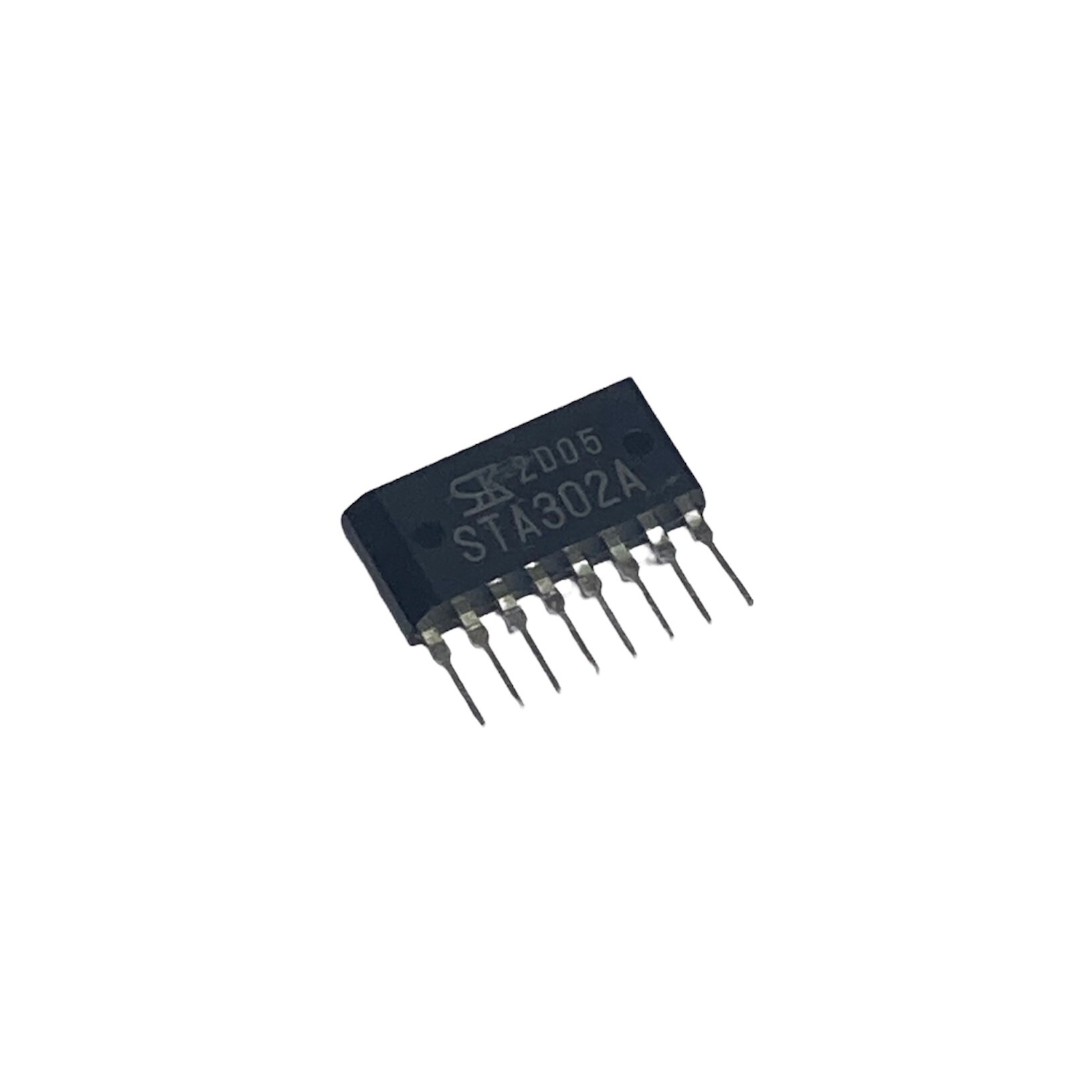

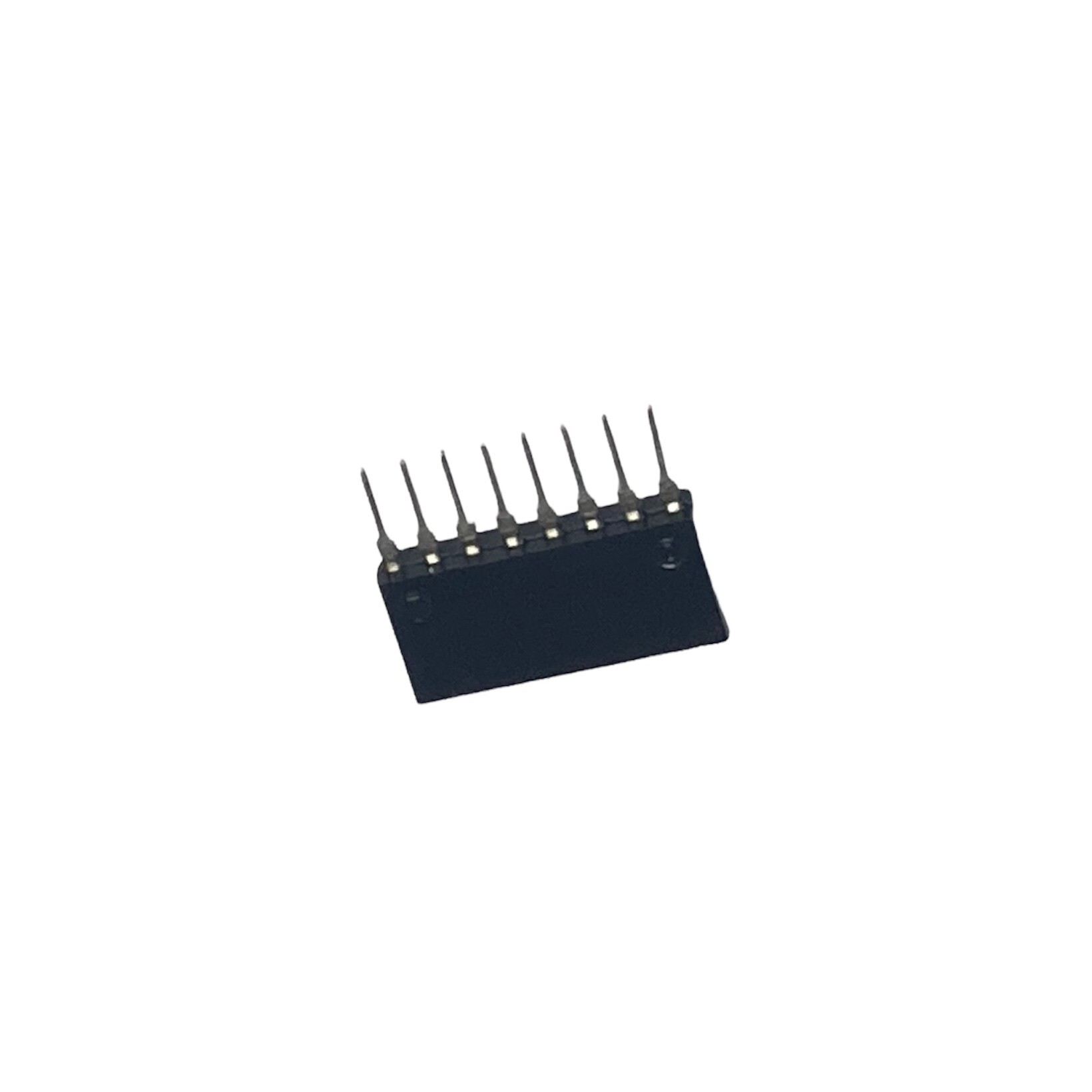

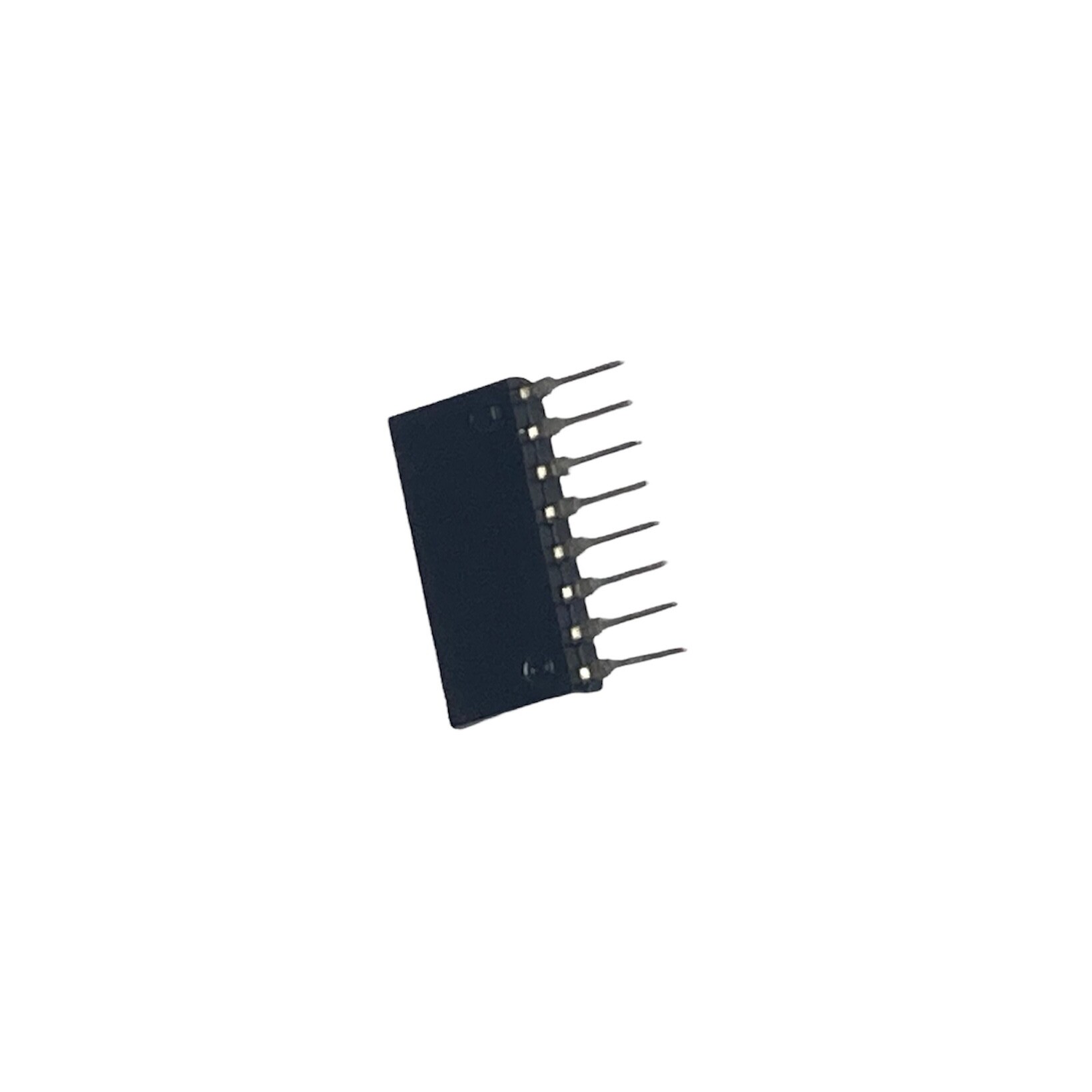

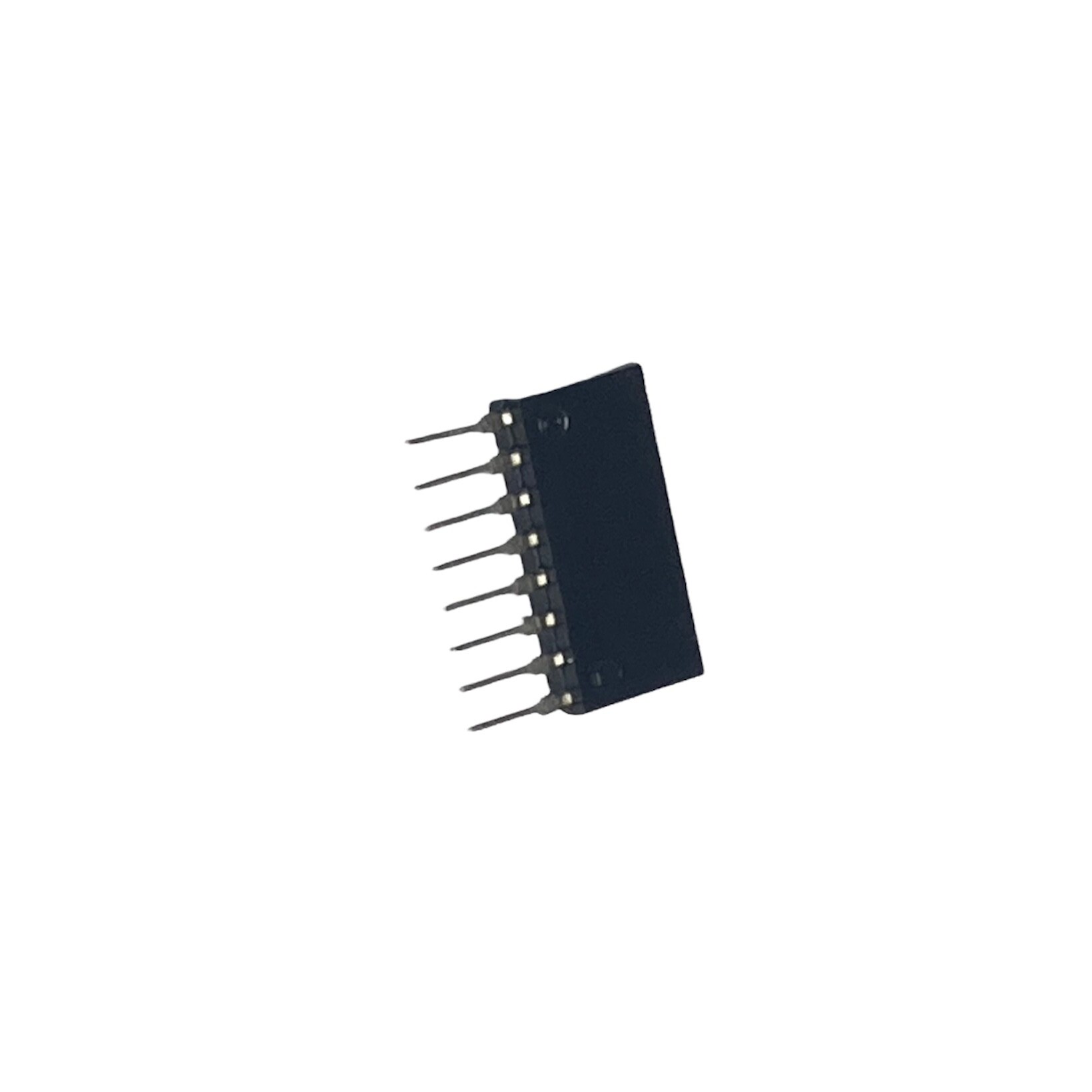

STA302A Transistor Silicon PNP CASE: SIP8 MAKE: Sanken
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 14 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
STA302A Datasheet
Product specifications
Type Transistor Silicon PNP
Case SIP8
Manufacturer Sanken
Min hFE 1k
Polarity PNP
PD Max. (W) 15
@VCE (test) (V) 4
@Ic (test) 3
Ic Max. 4
Vceo Max. 50
Pinout Equivalence Number 8-55
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 3 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 1000
SKU 80524
