STA322A

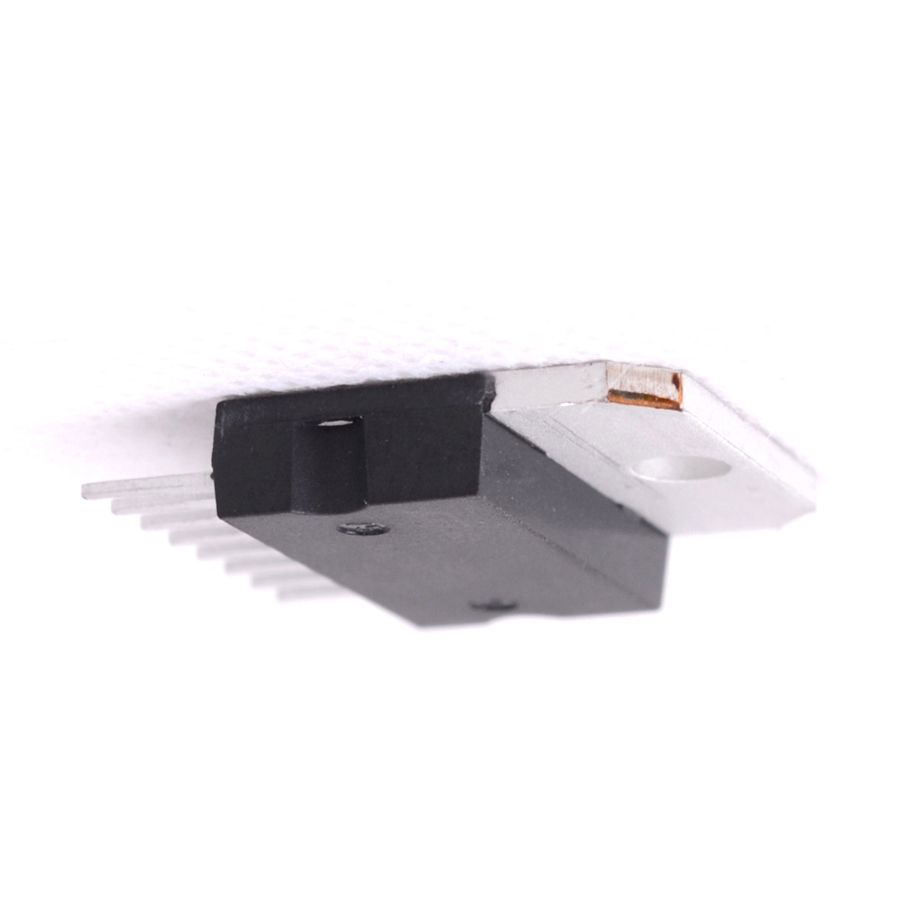

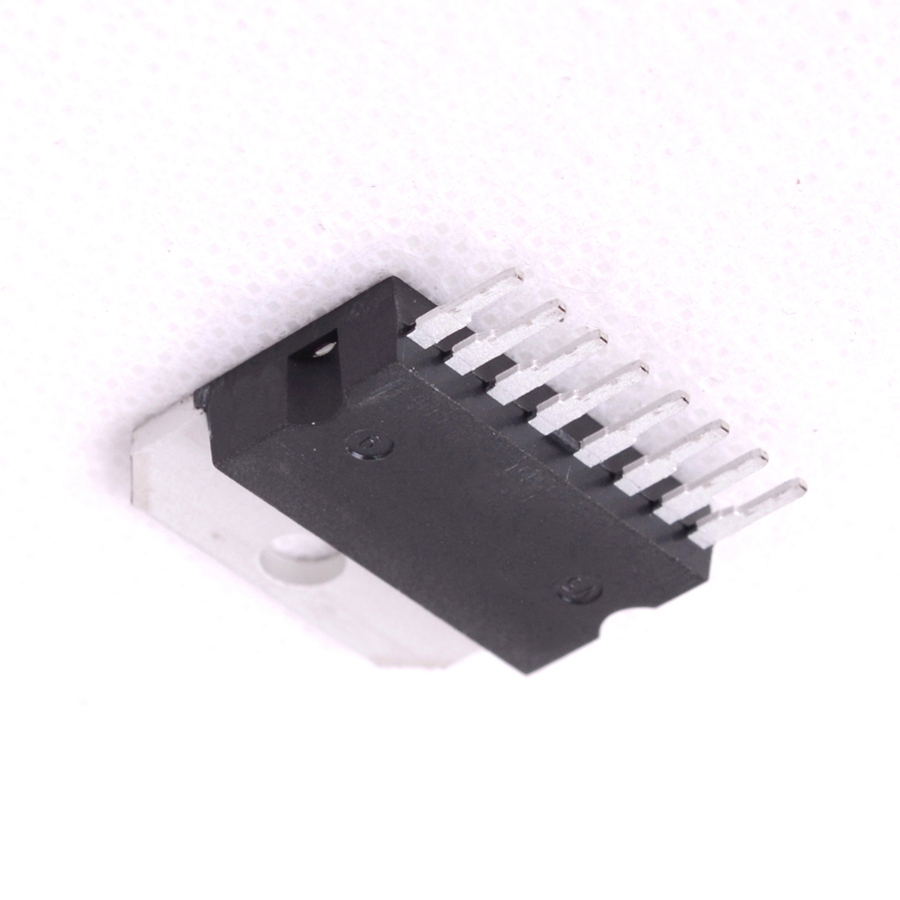

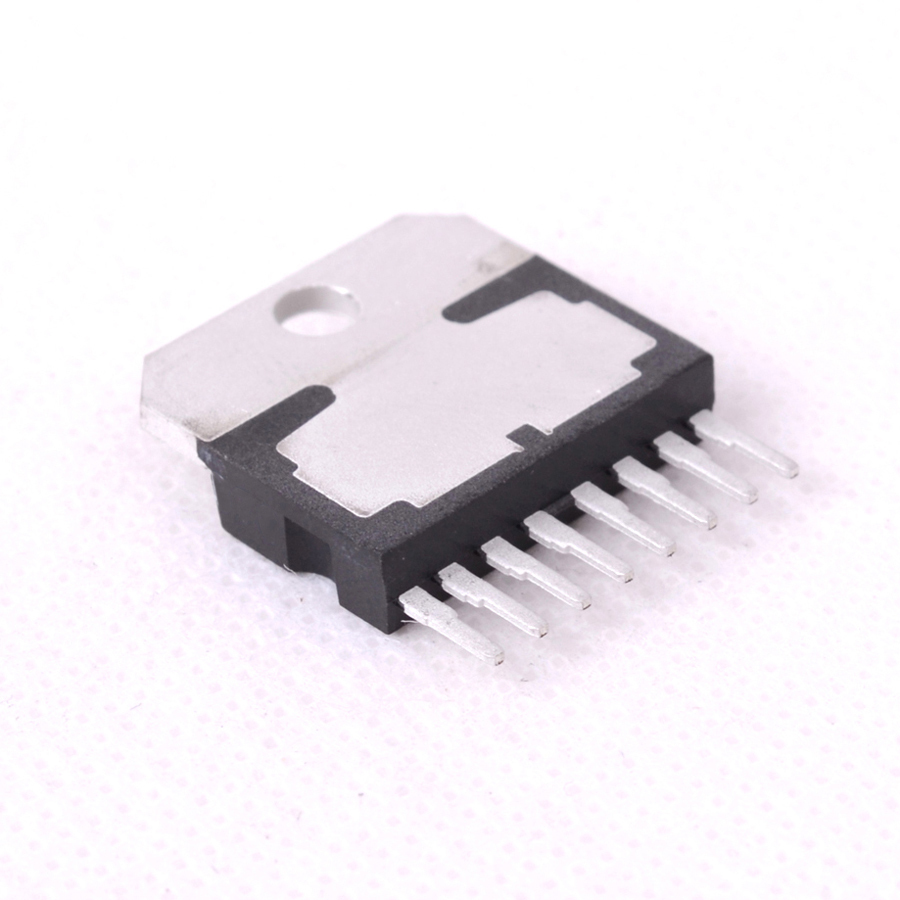

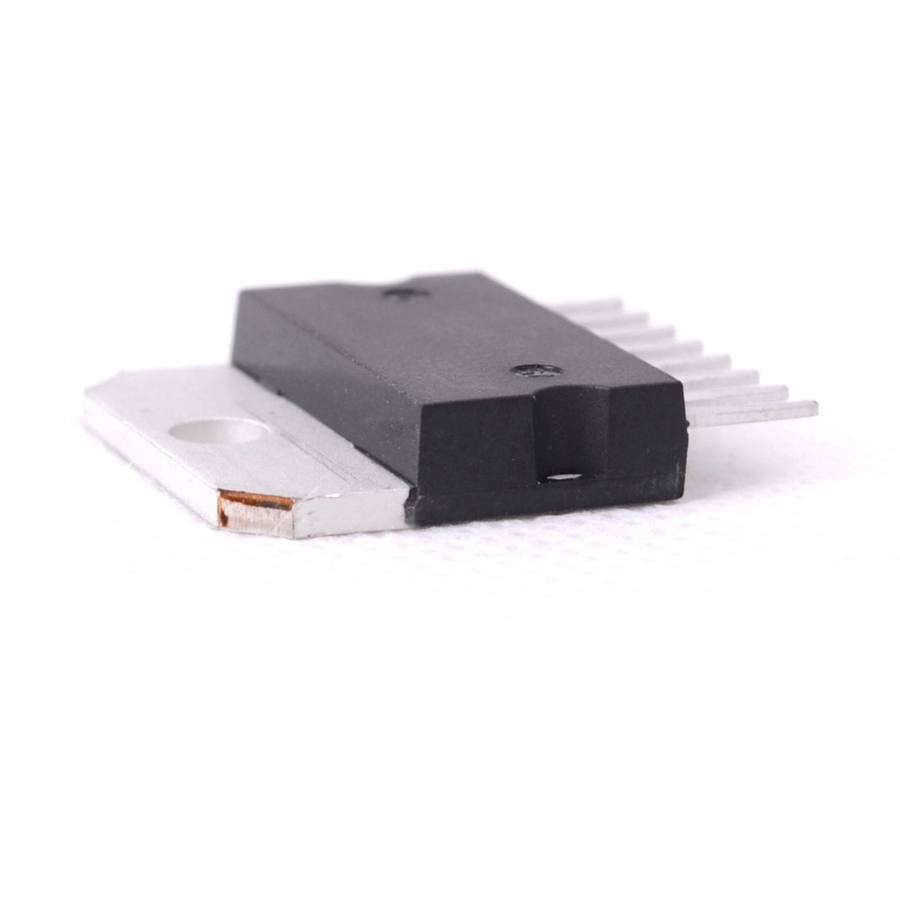

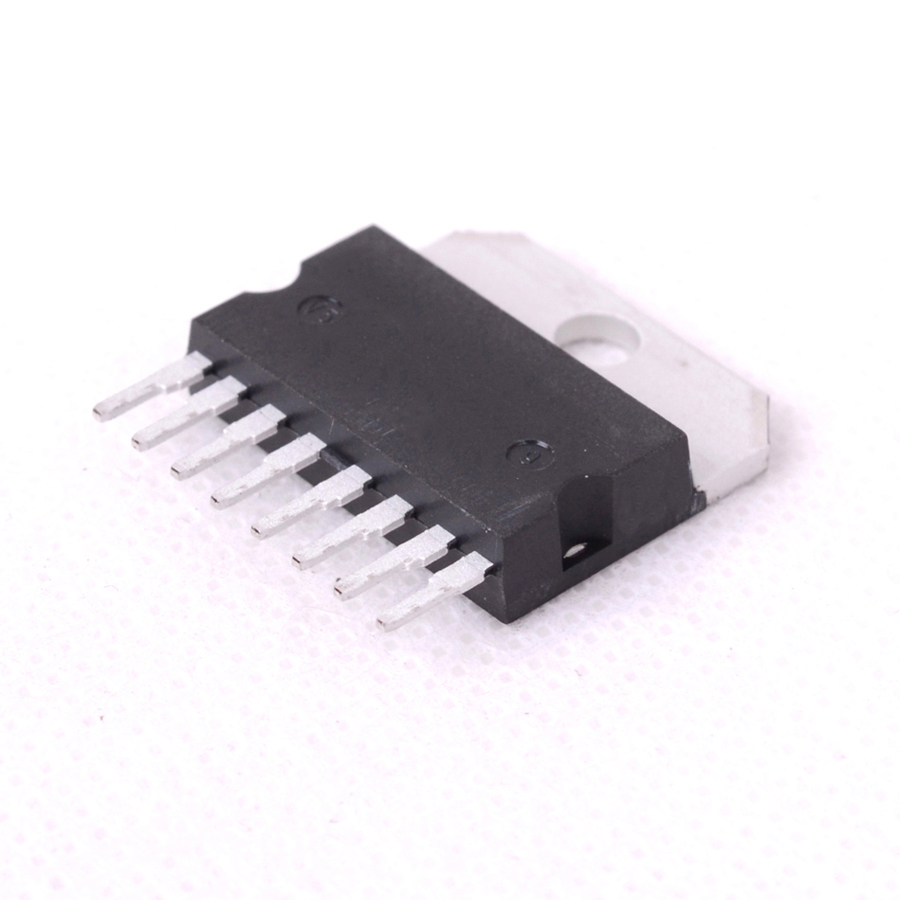

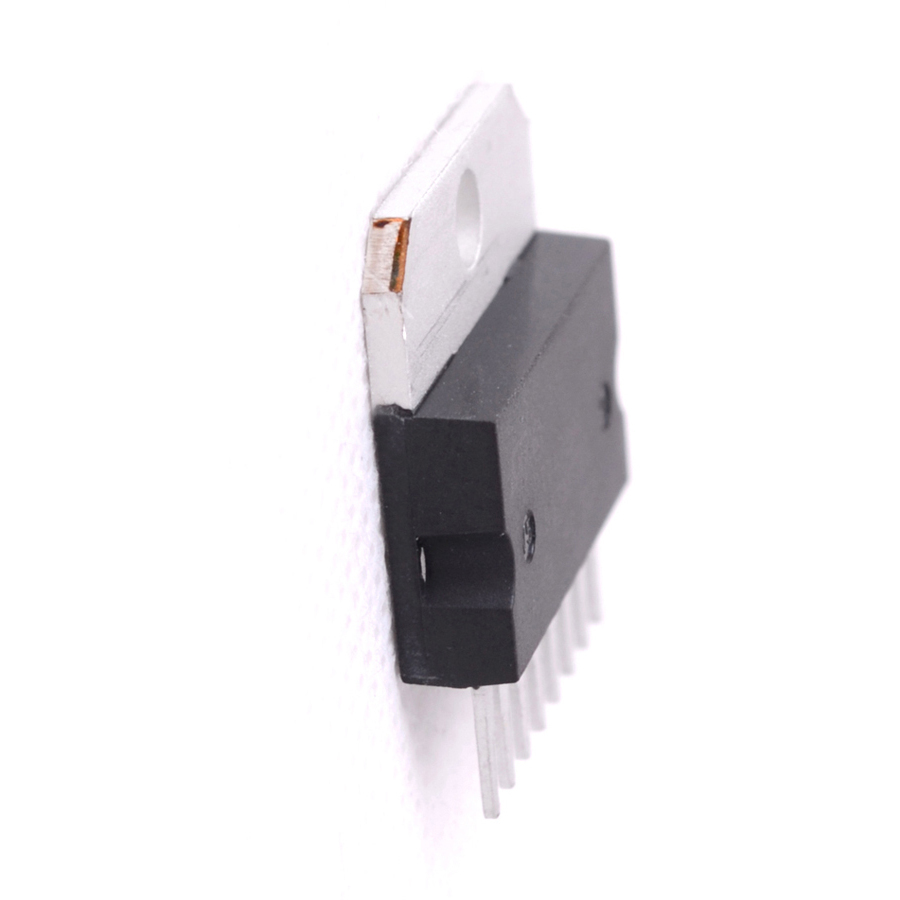

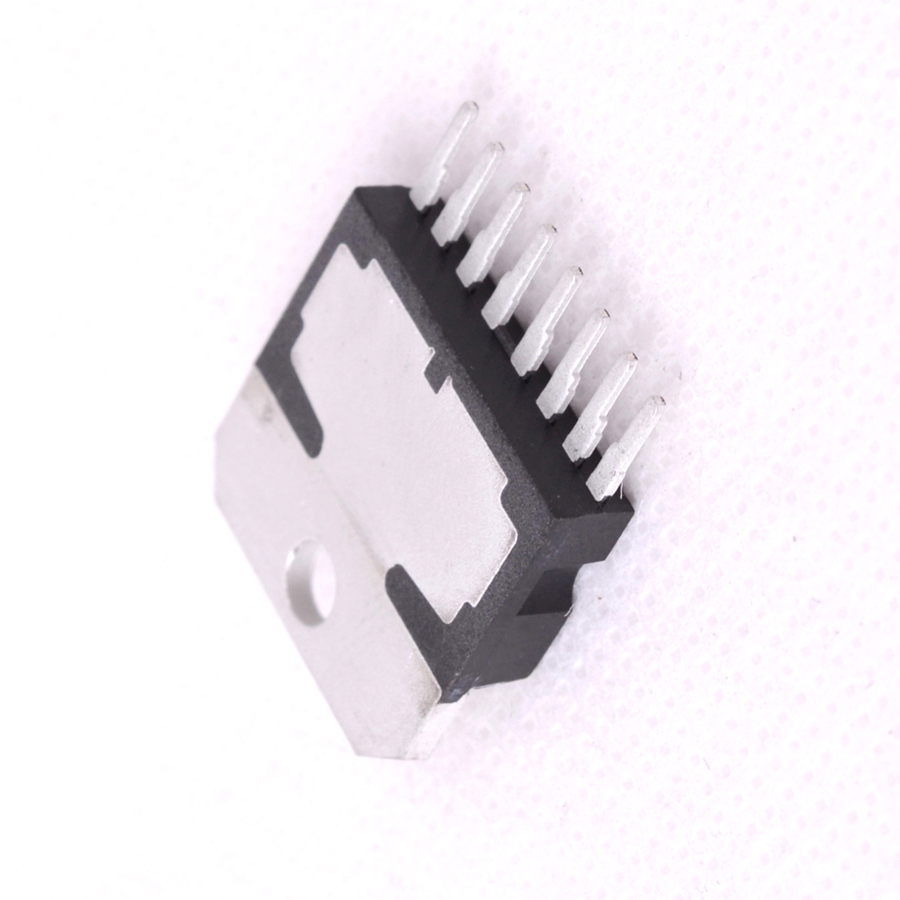

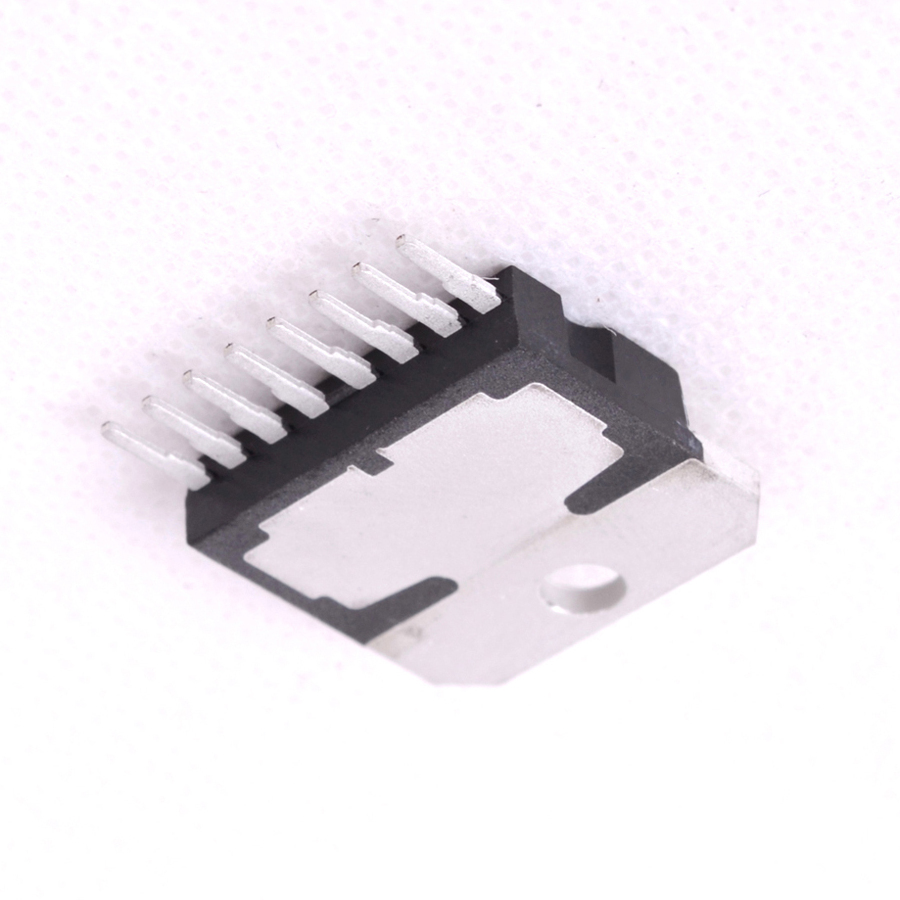

View detailed images (13)

STA322A

SKU: STA322A

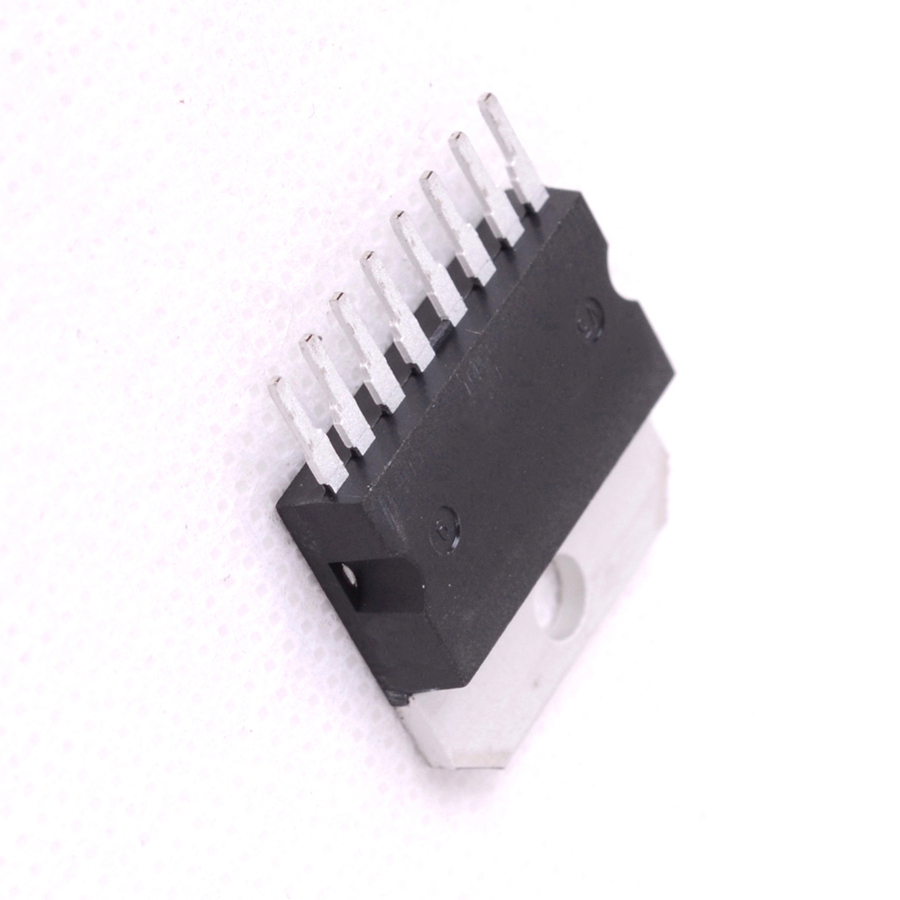

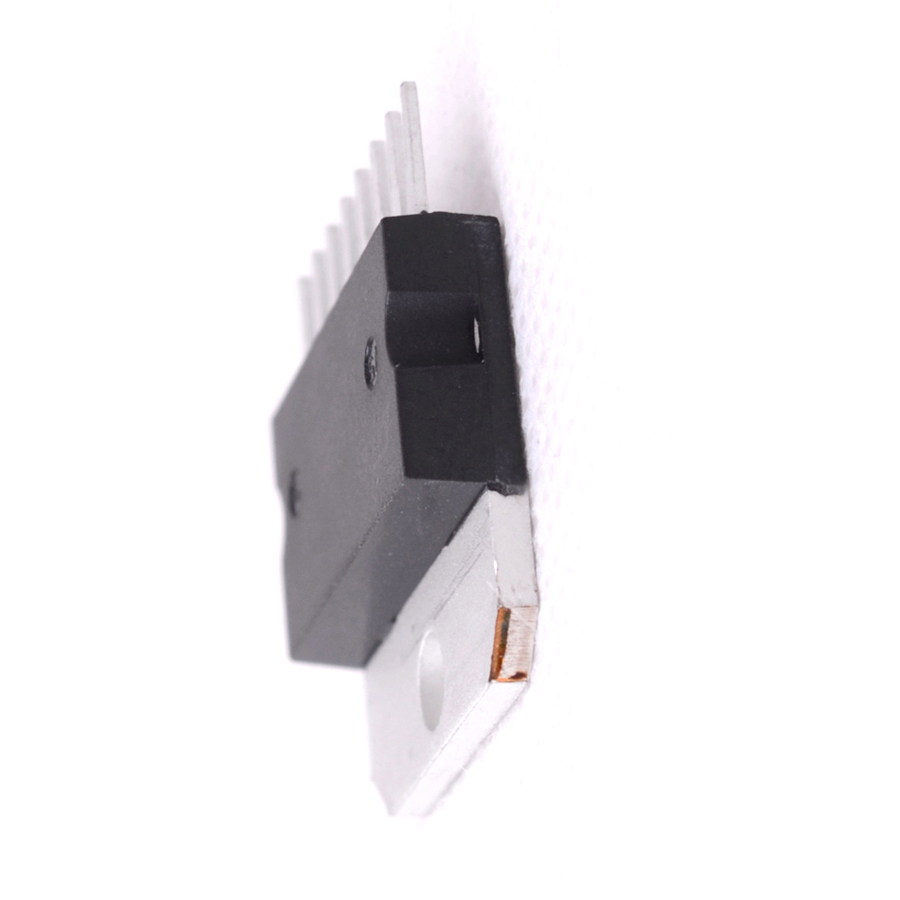

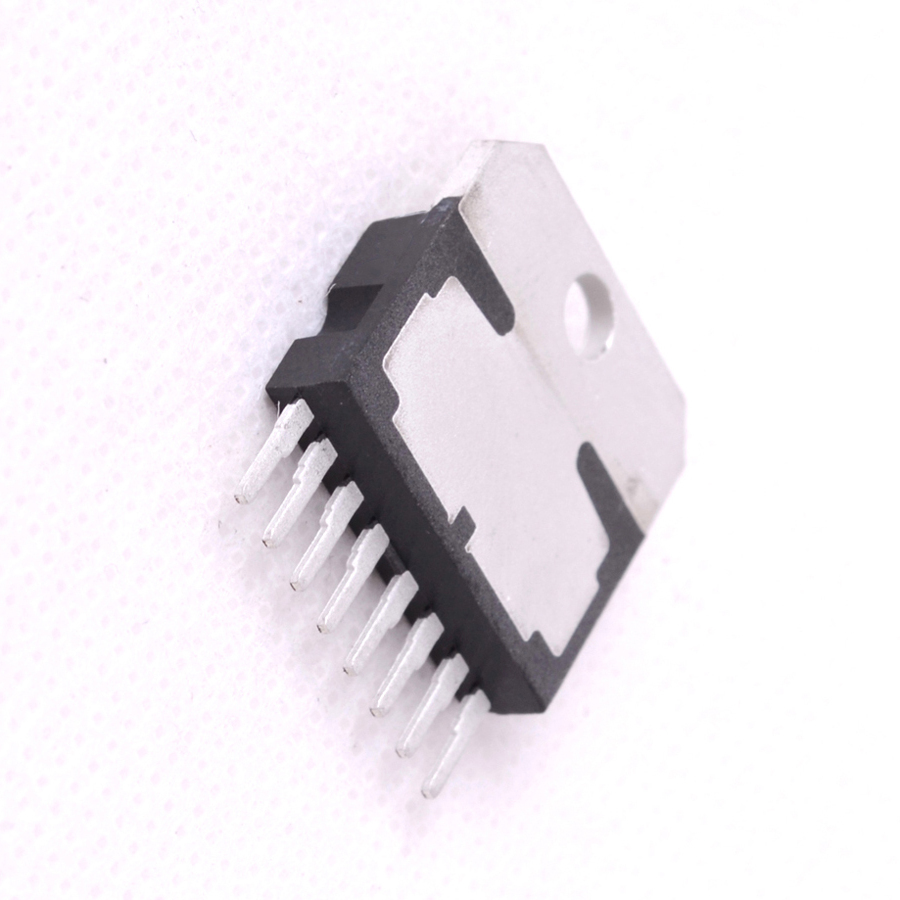

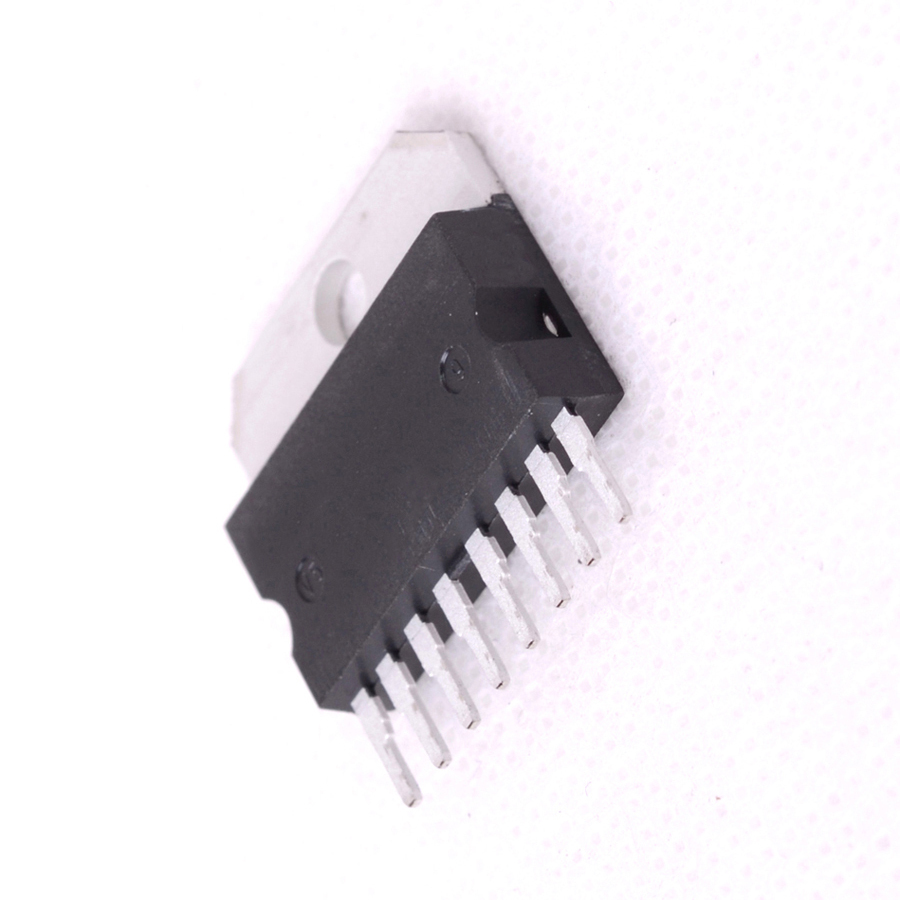

STA322A Transistor Silicon PNP CASE: SIP8 MAKE: Sanken
Datasheet
STA322A Datasheet
Product specifications
Type Transistor Silicon PNP
Case SIP8
Manufacturer Sanken
Min hFE 100
Mat. Silicon Logic
Polarity PNP
PD Max. (W) 3
@VCE (test) (V) 4
@Ic (test) 1
Ic Max. 3
Vceo Max. 50
Pinout Equivalence Number 8-51
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 3 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 100
SKU 304160
