STA404A

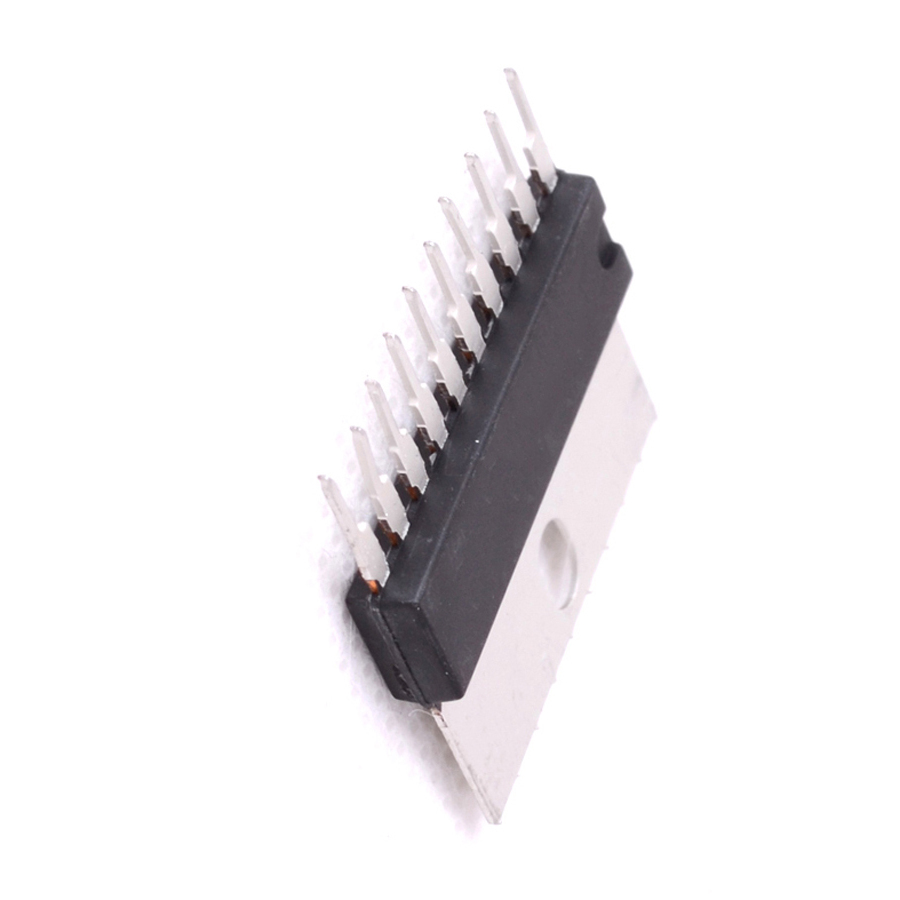

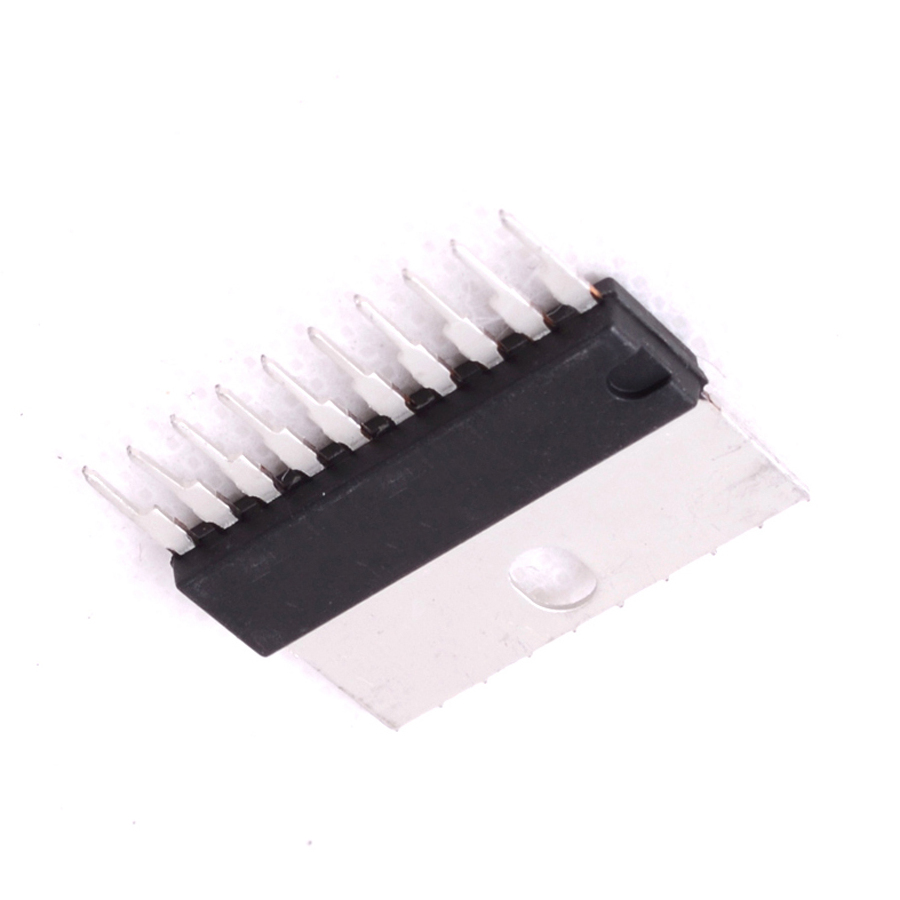

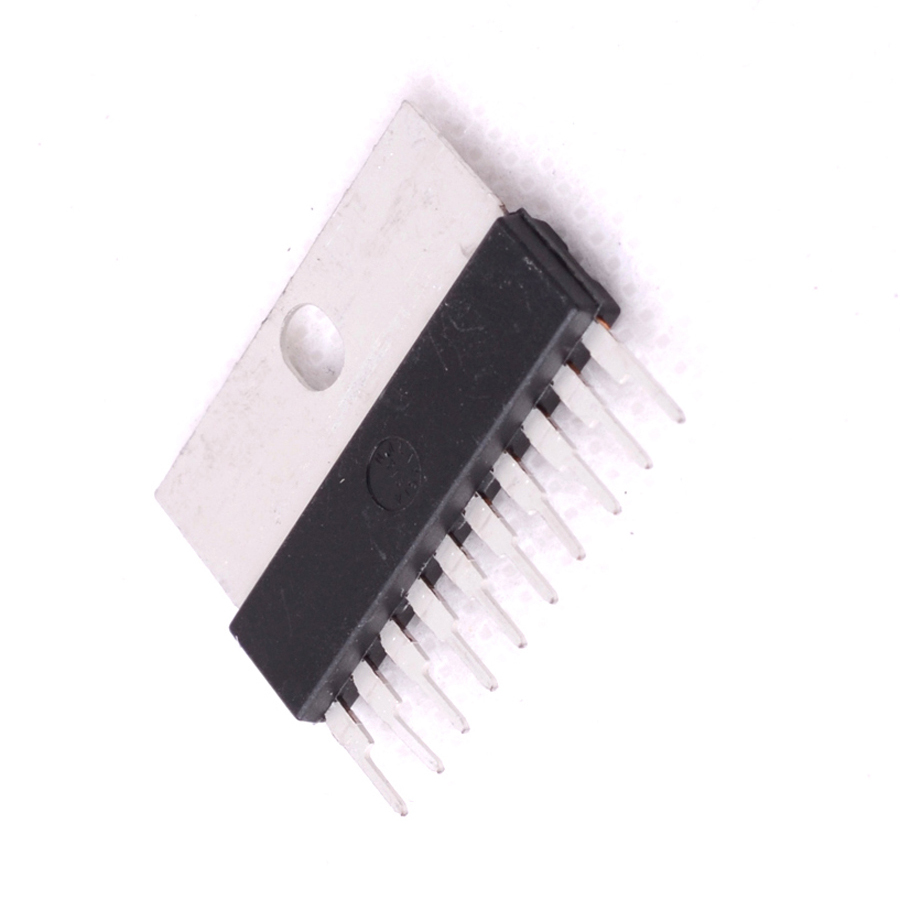

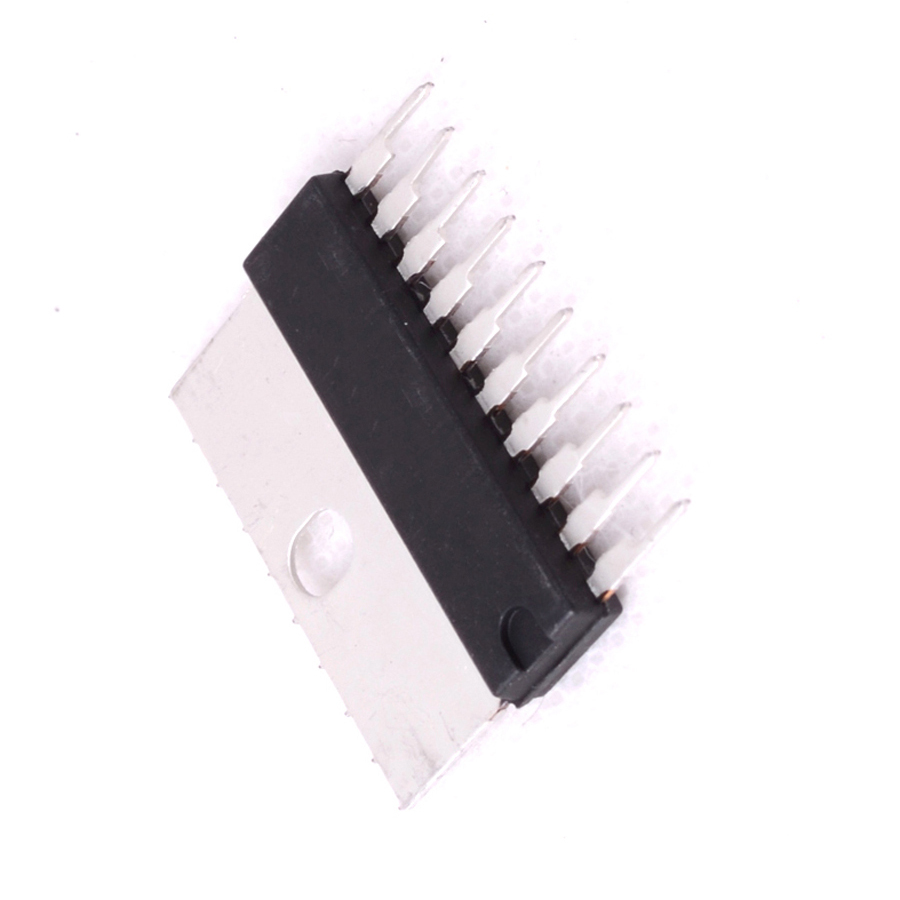

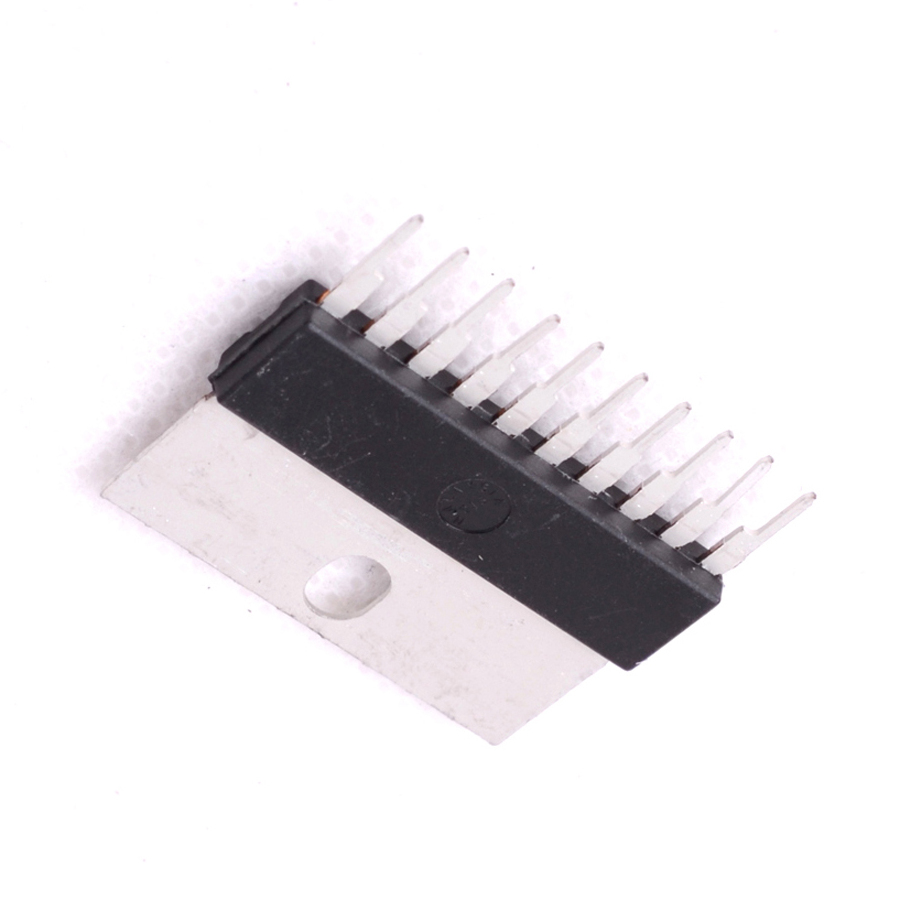

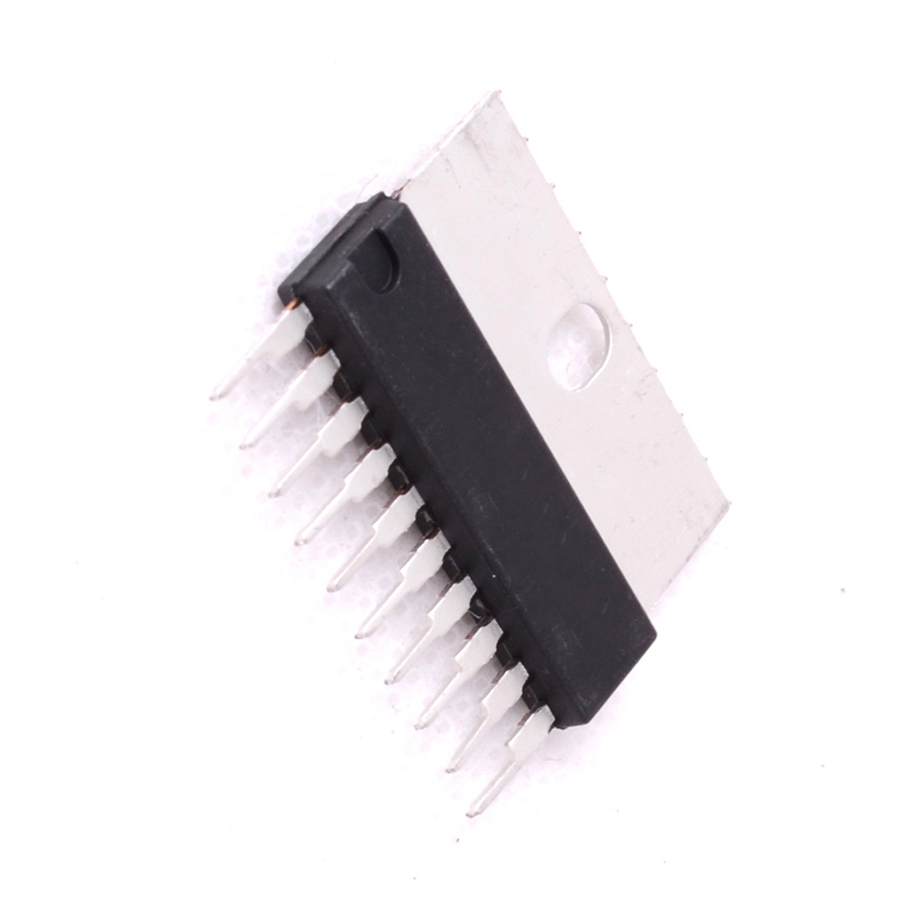

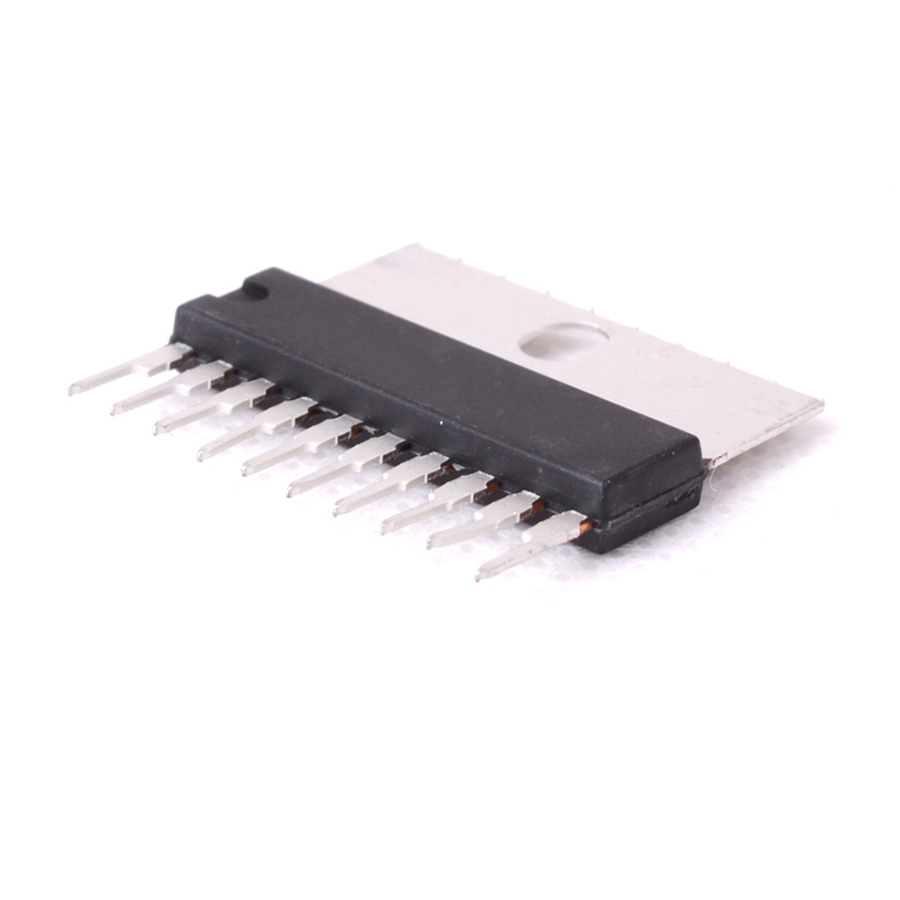

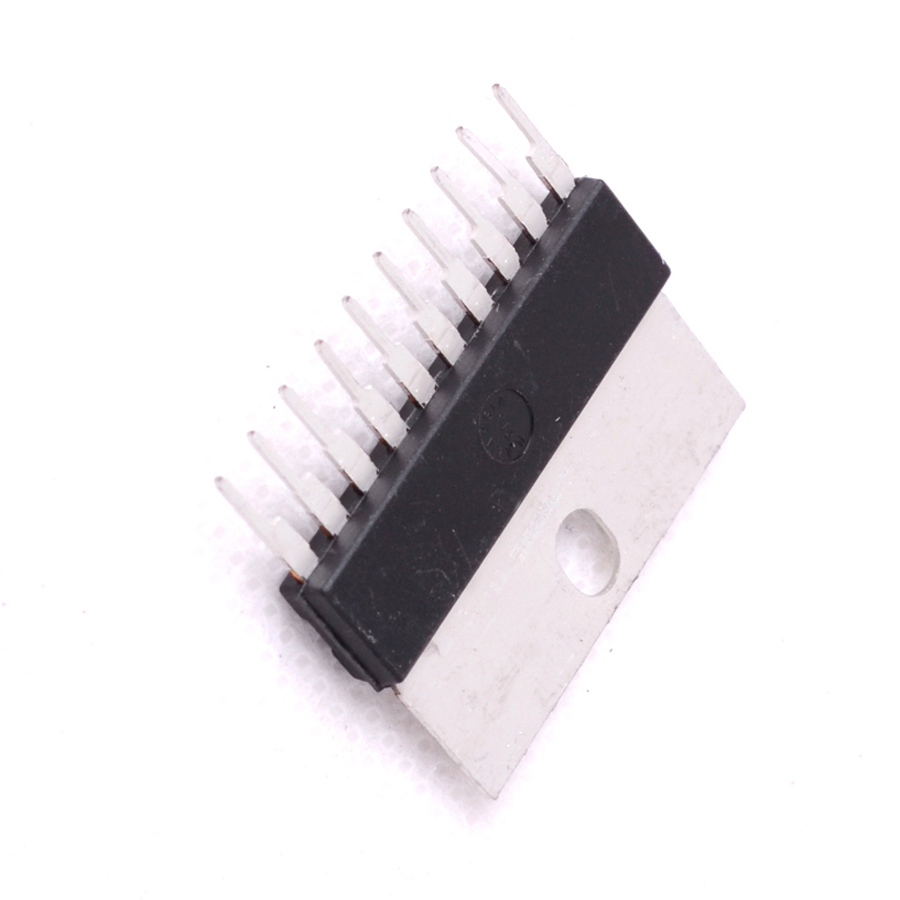

View detailed images (13)

STA404A

SKU: STA404A

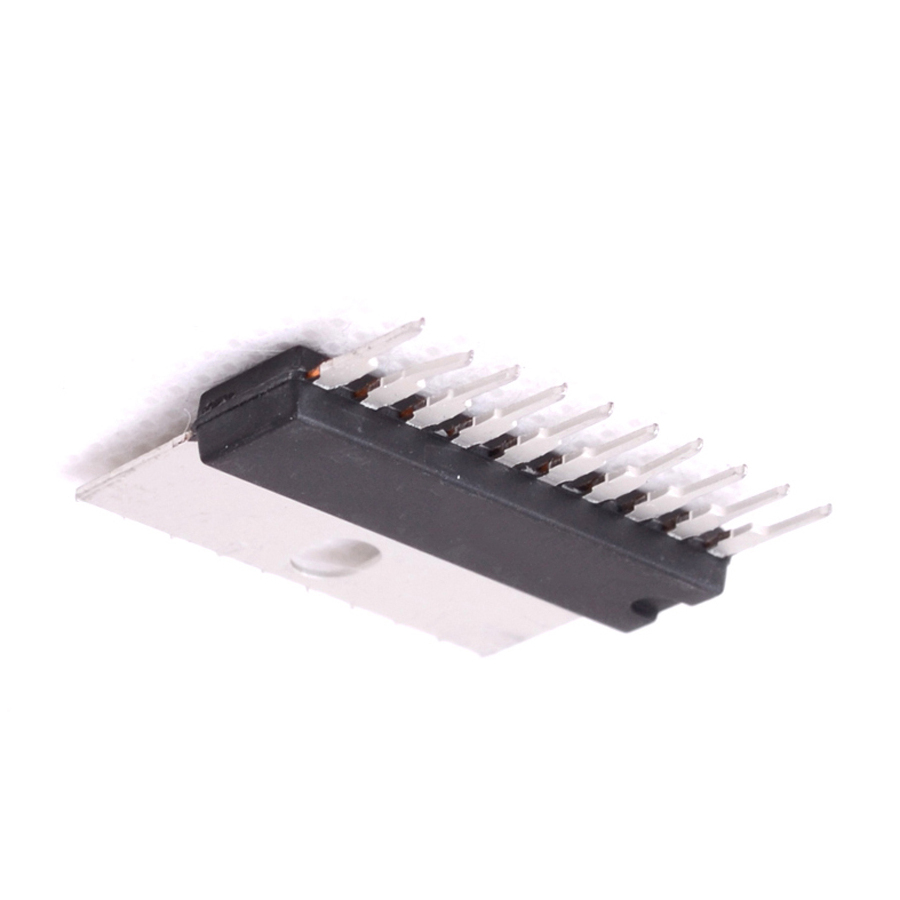

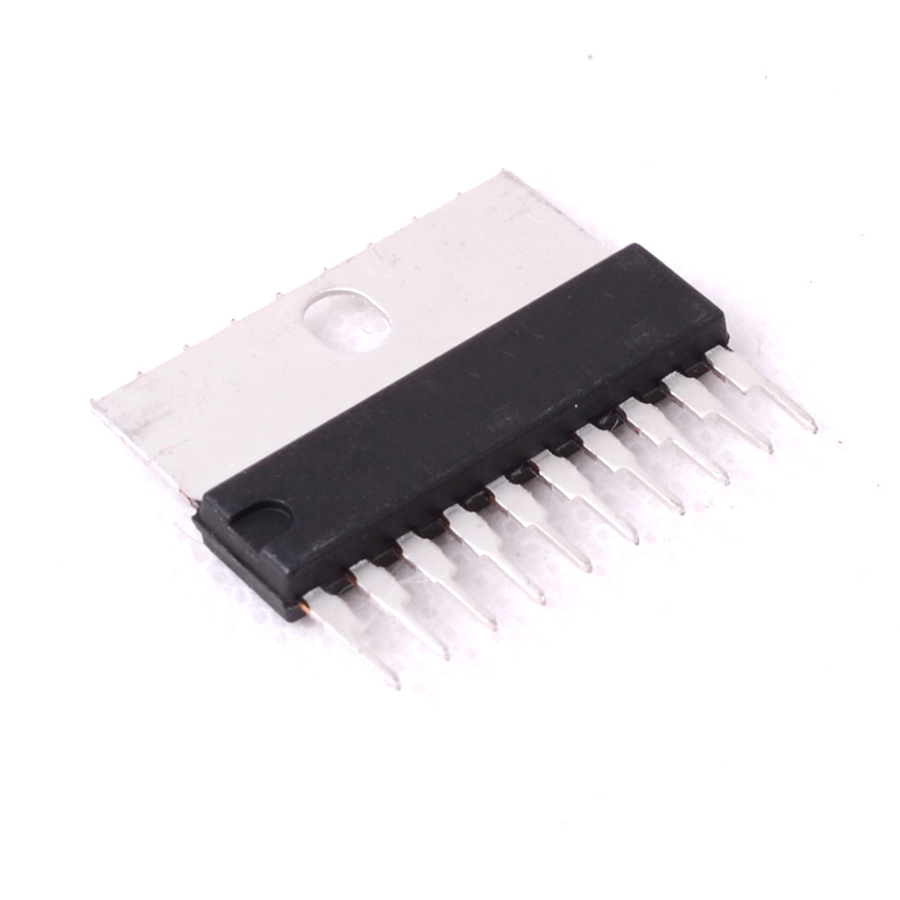

STA404A Transistor Silicon NPN - Case: SIP10 Make: Sanken
Price: £11.99
+ VAT 20% for UK purchases
£11.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
?
Datasheet
STA404A Datasheet
Product specifications
Type Transistor Silicon NPN
Case SIP10
Manufacturer Sanken
Min hFE 1k
Polarity NPN
PD Max. (W) 20
@VCE (test) (V) 4
@Ic (test) 1
Ic Max. 3
Vceo Max. 200
Pinout Equivalence Number 10-26
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 4 W
Maximum Collector-Base Voltage |Vcb| 200 V
Maximum Collector-Emitter Voltage |Vce| 200 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 1000
SKU 17254
