STA408A
View detailed images (13)

STA408A

SKU: STA408A

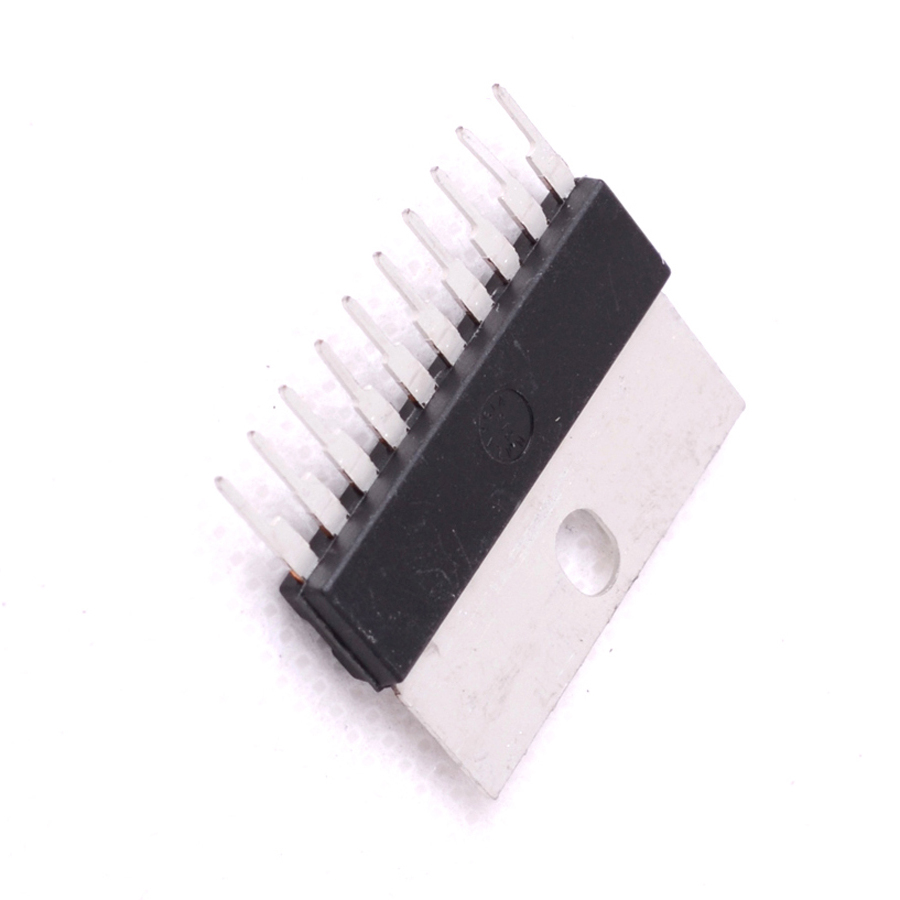

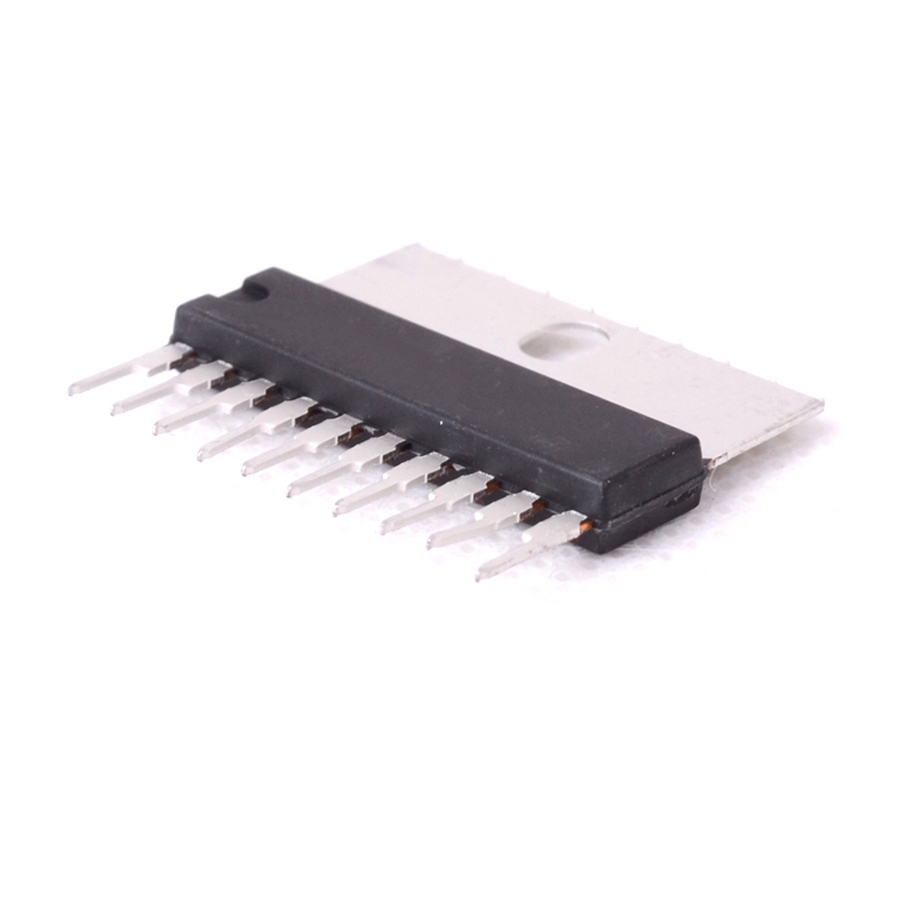

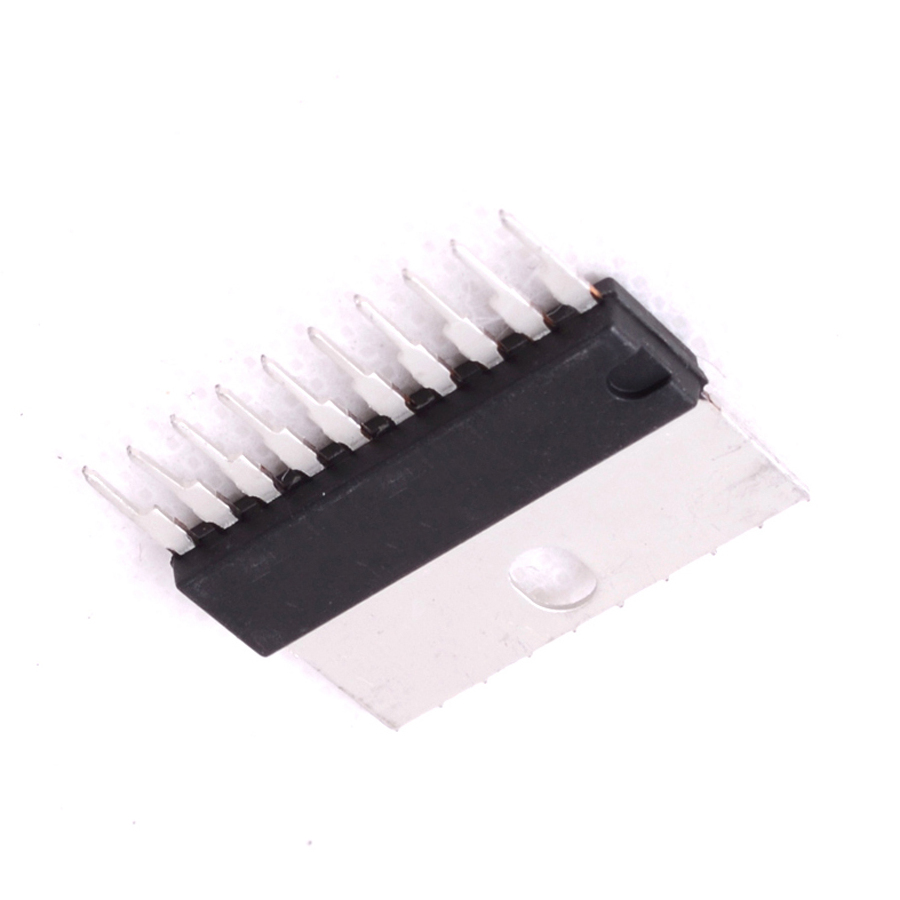

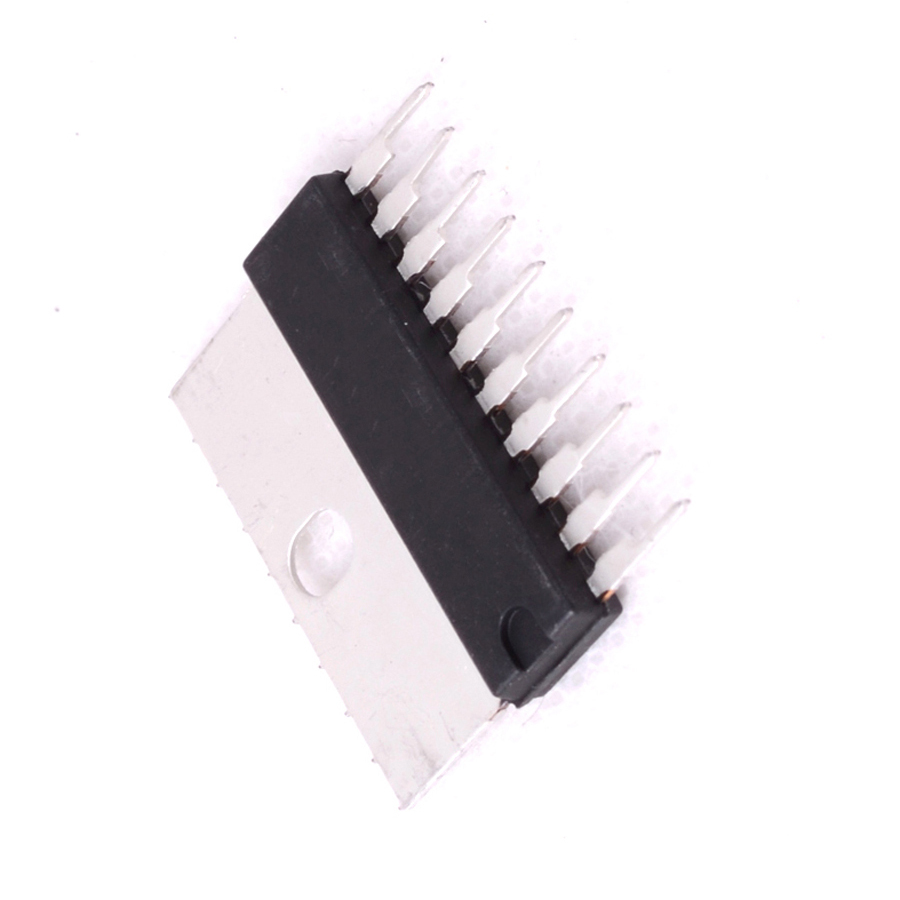

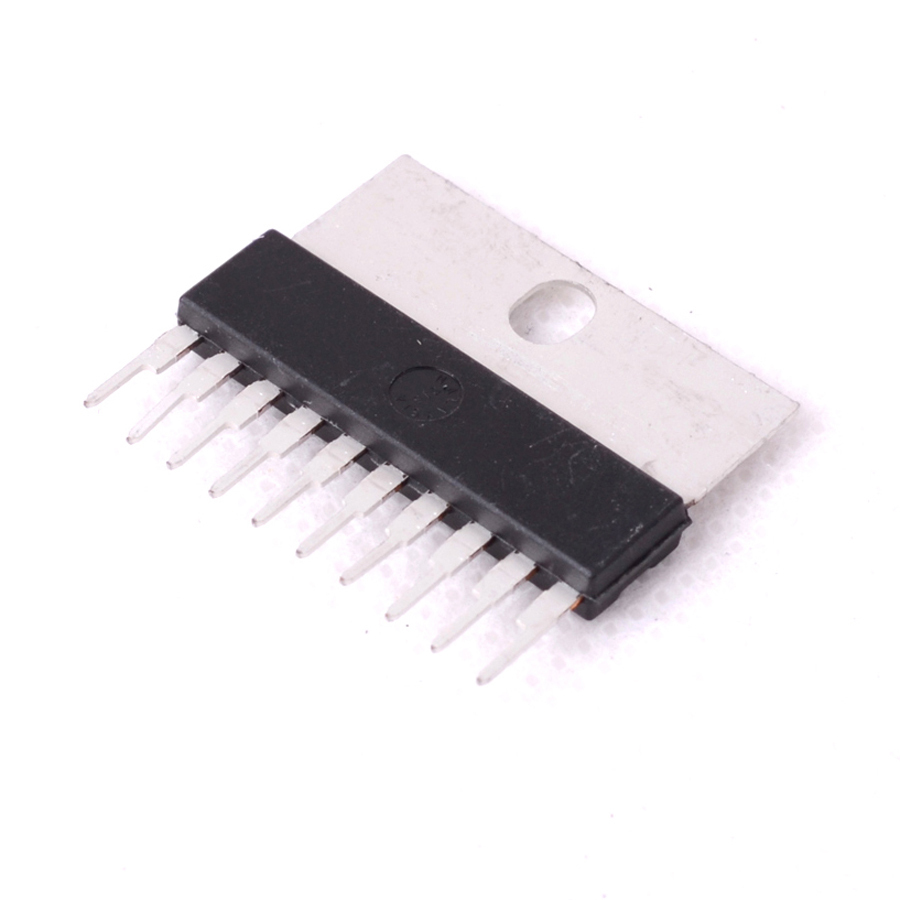

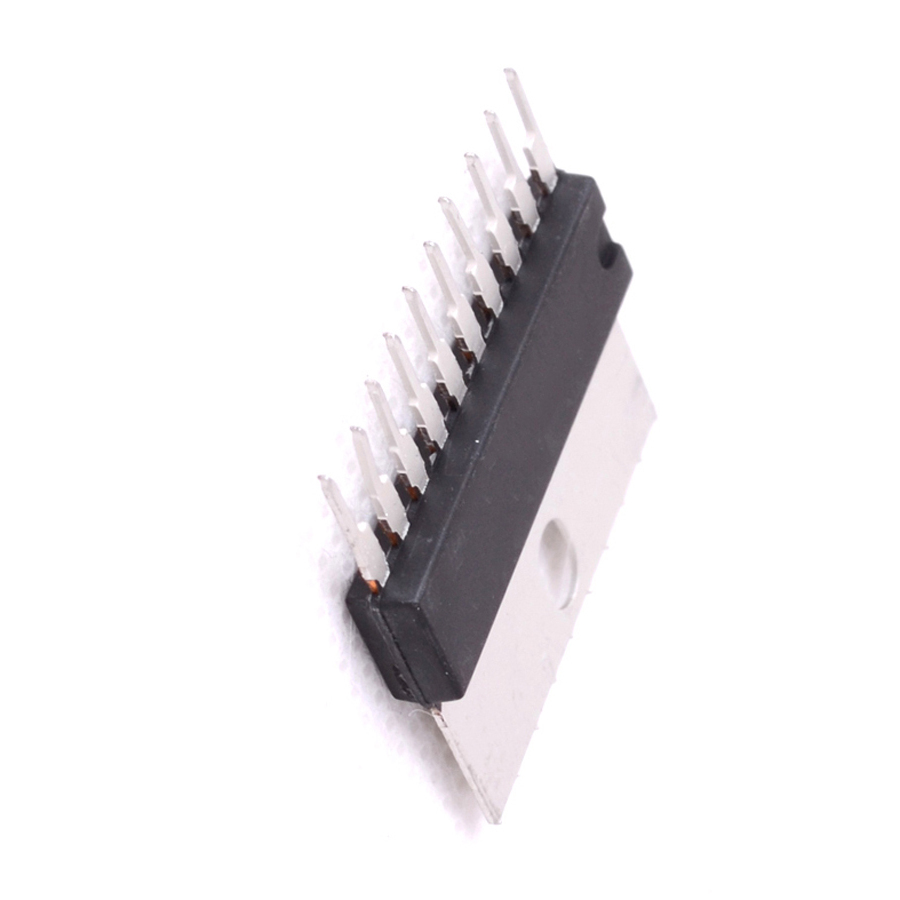

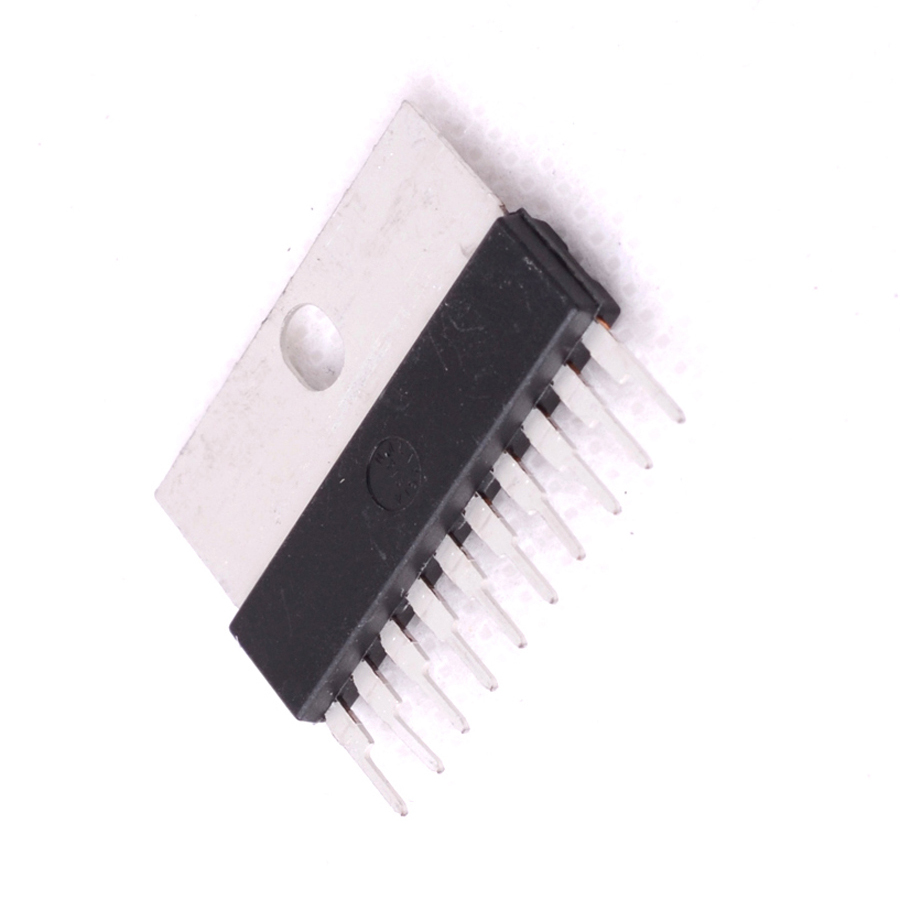

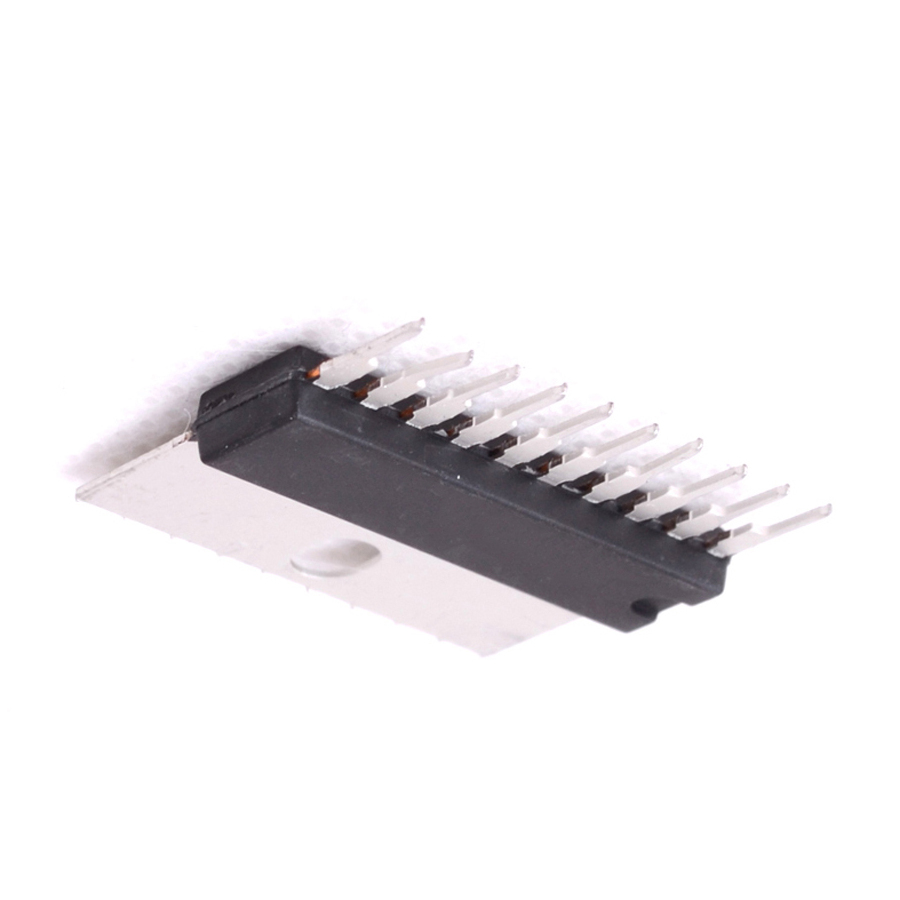

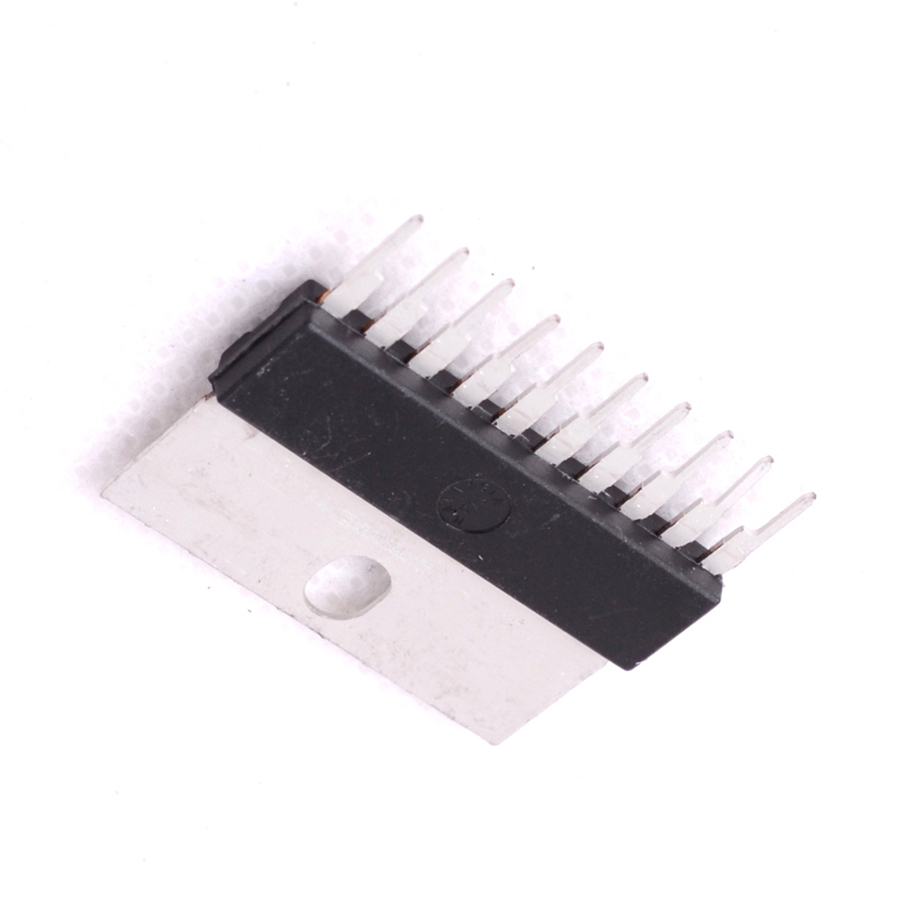

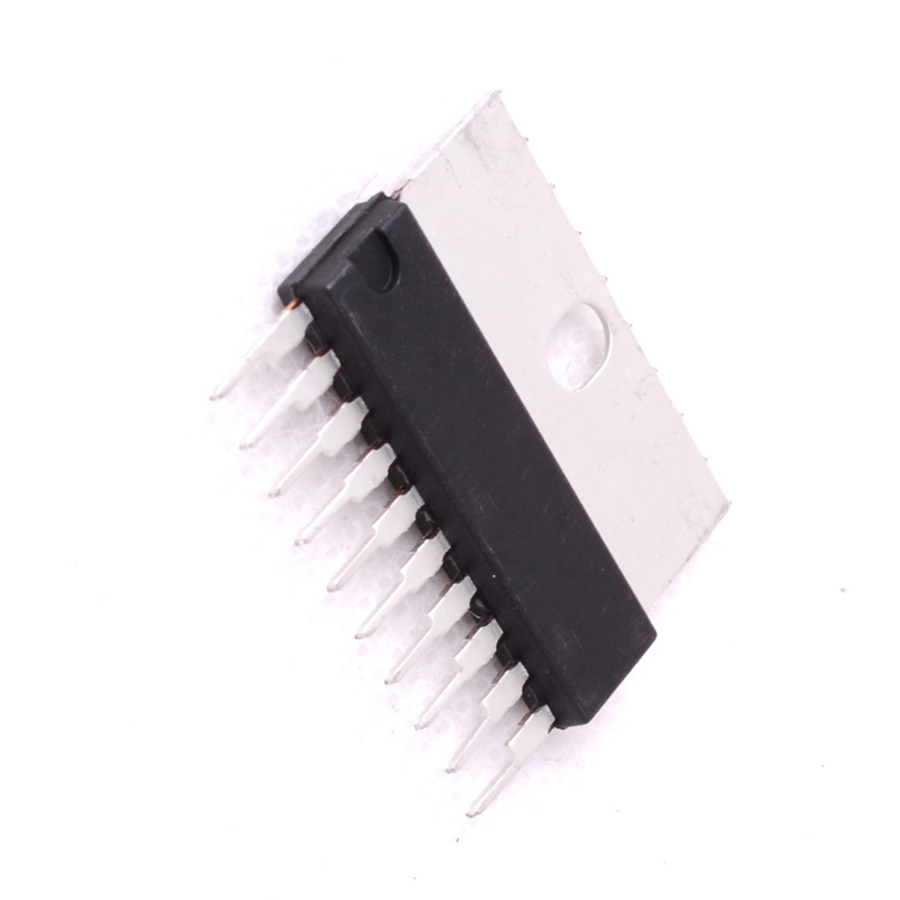

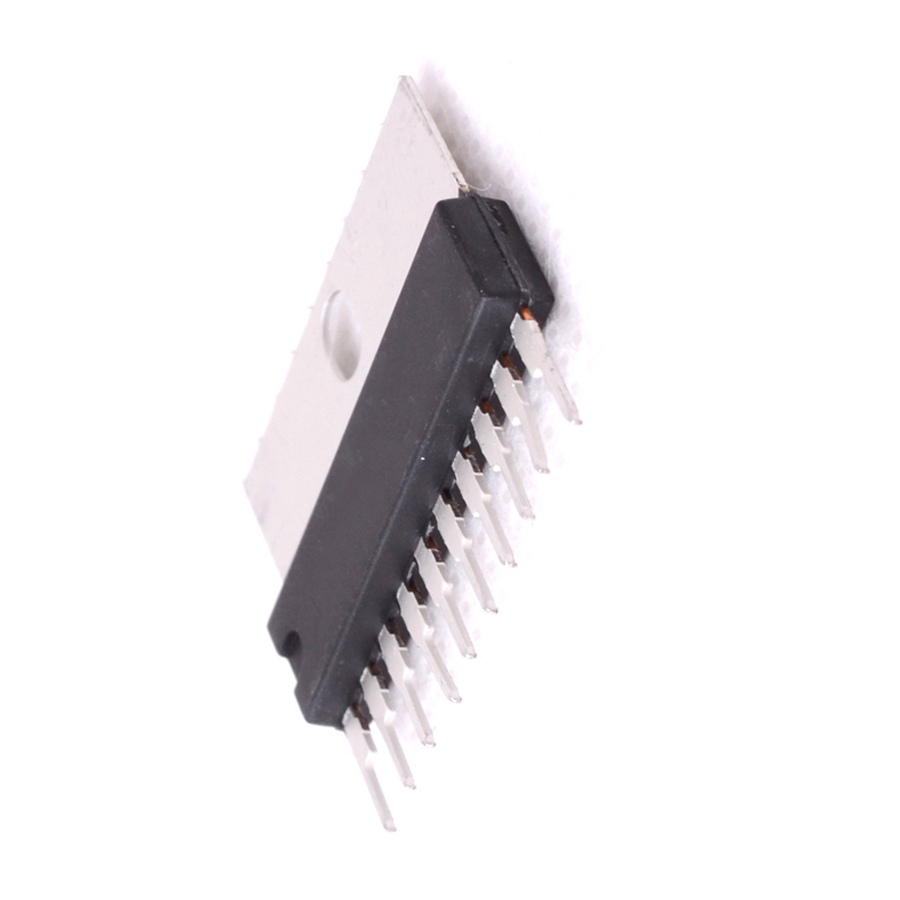

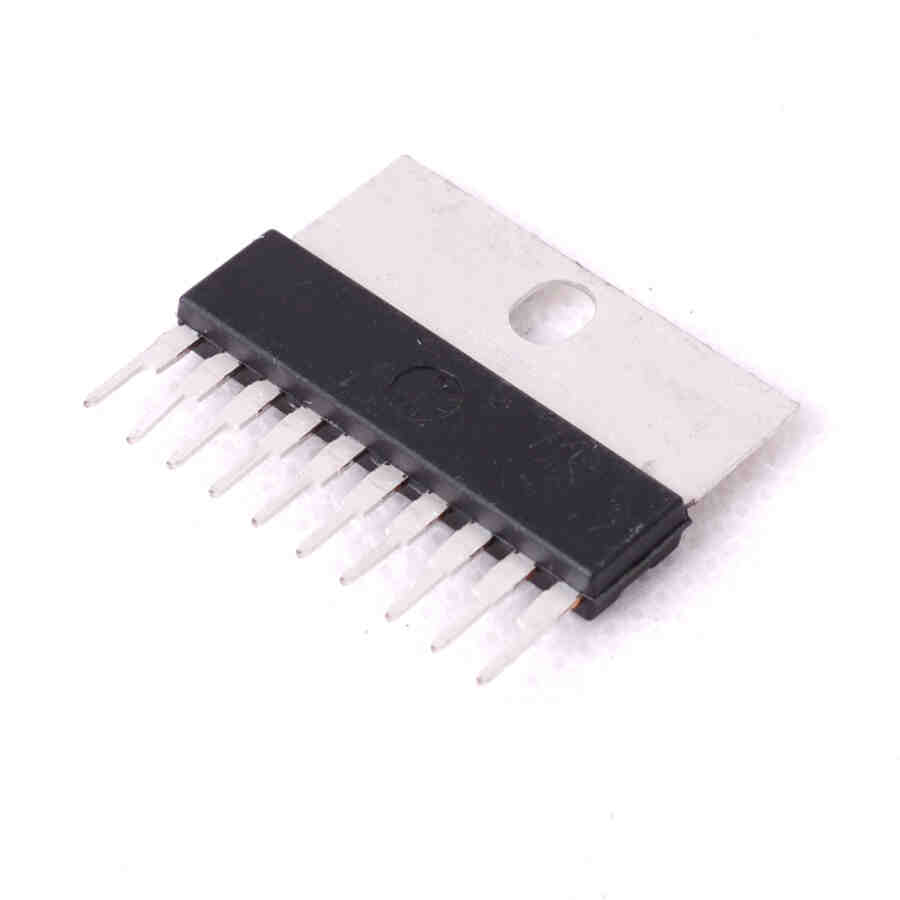

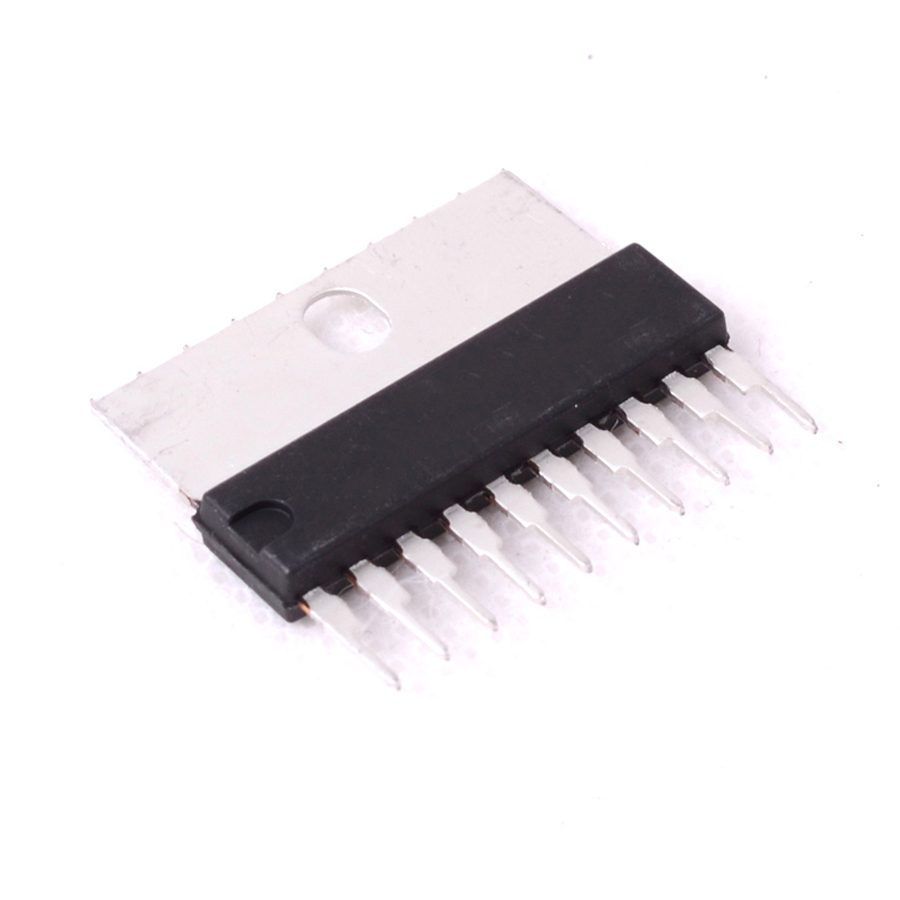

STA408A Transistor Silicon PNP CASE: SIP10 MAKE: Sanken
Price:
£28.79 Inc. VAT (£23.99 Ex. VAT)
£28.79 Inc. VAT (£23.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
STA408A Datasheet
Product specifications
Type Transistor Silicon PNP
Case SIP10
Manufacturer Sanken
Min hFE 2k
Mat. Silicon Logic
Polarity PNP
PD Max. (W) 4
@VCE (test) (V) 4
@Ic (test) 2
Ic Max. 4
Vceo Max. 120
Pinout Equivalence Number 10-39
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 4 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 311544
