STA412A
View detailed images (13)

STA412A

SKU: STA412A

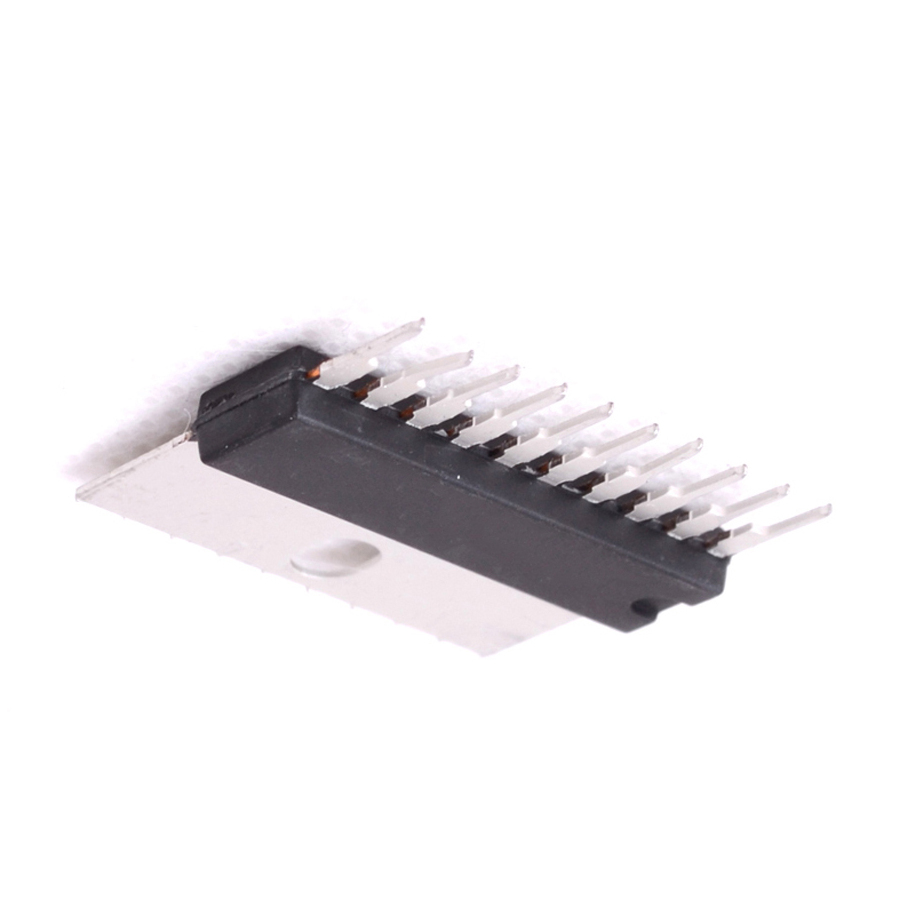

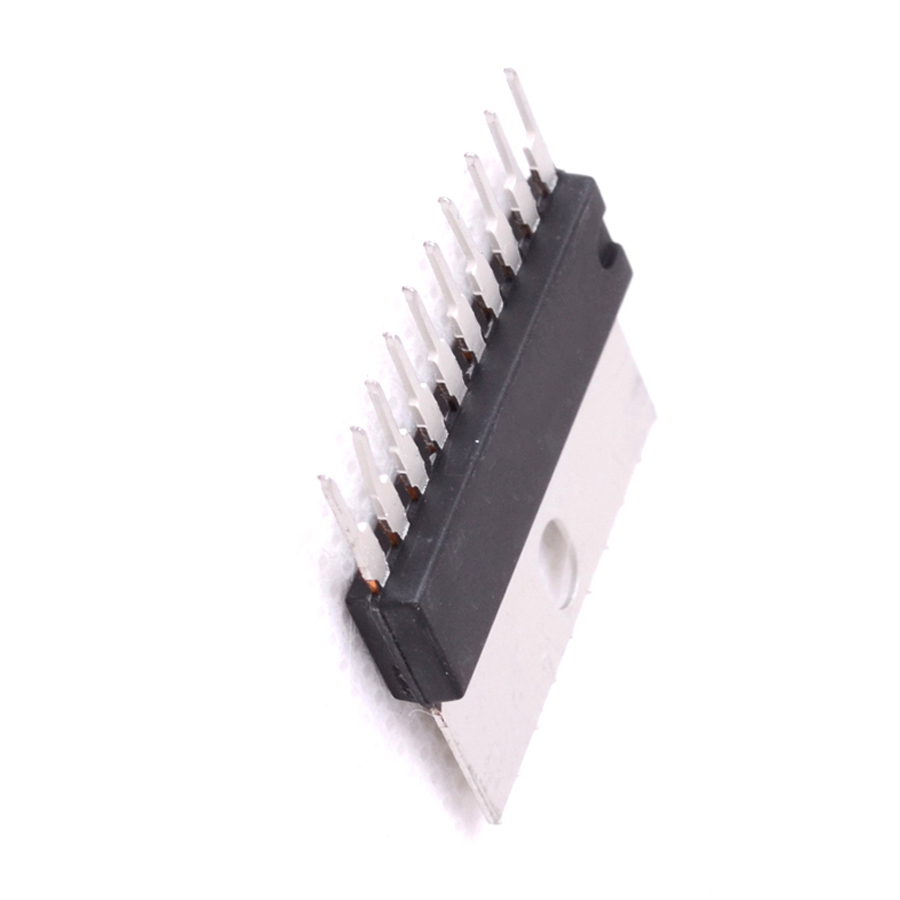

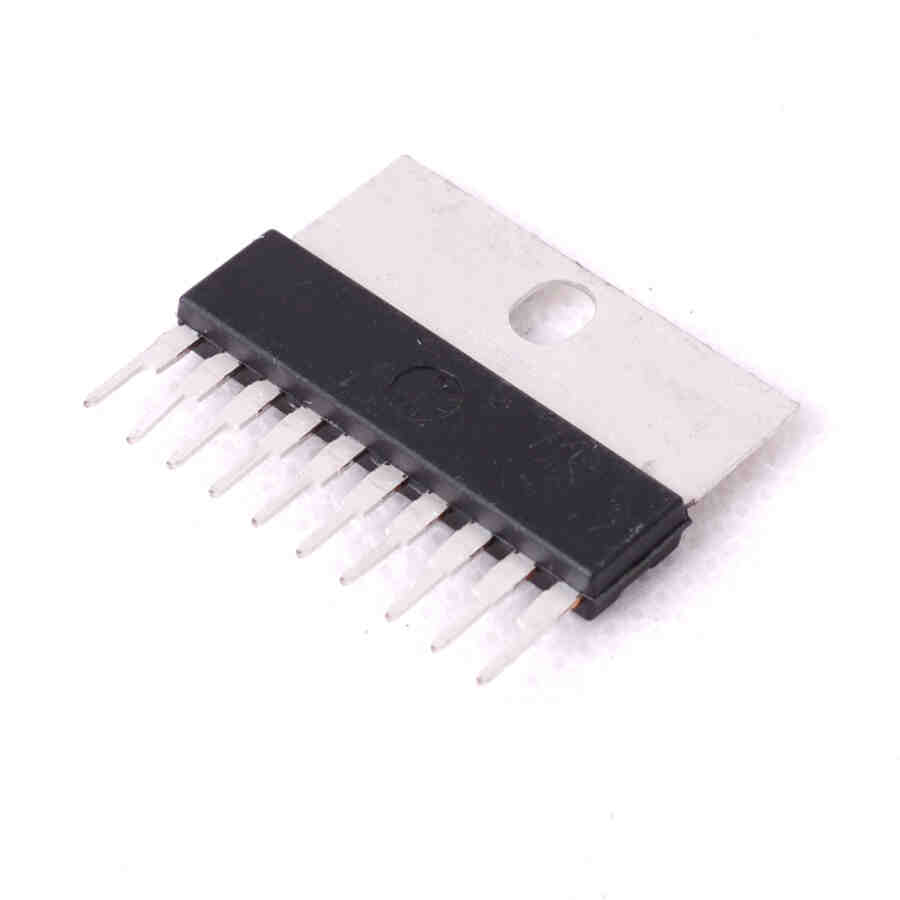

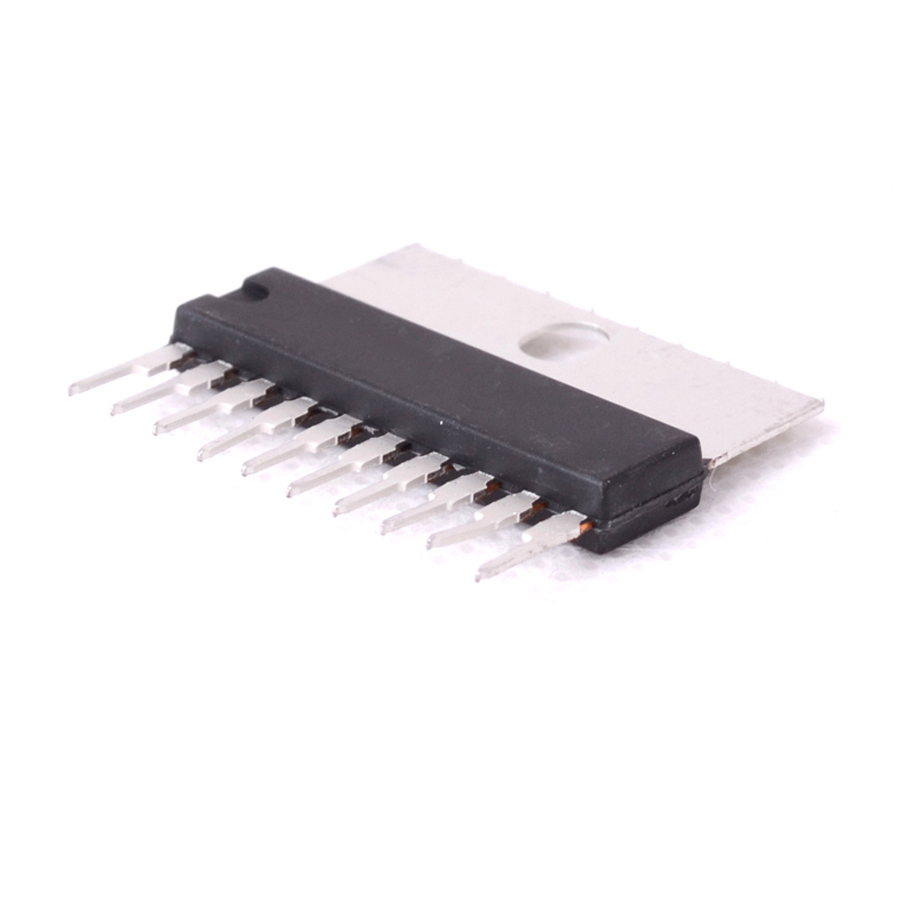

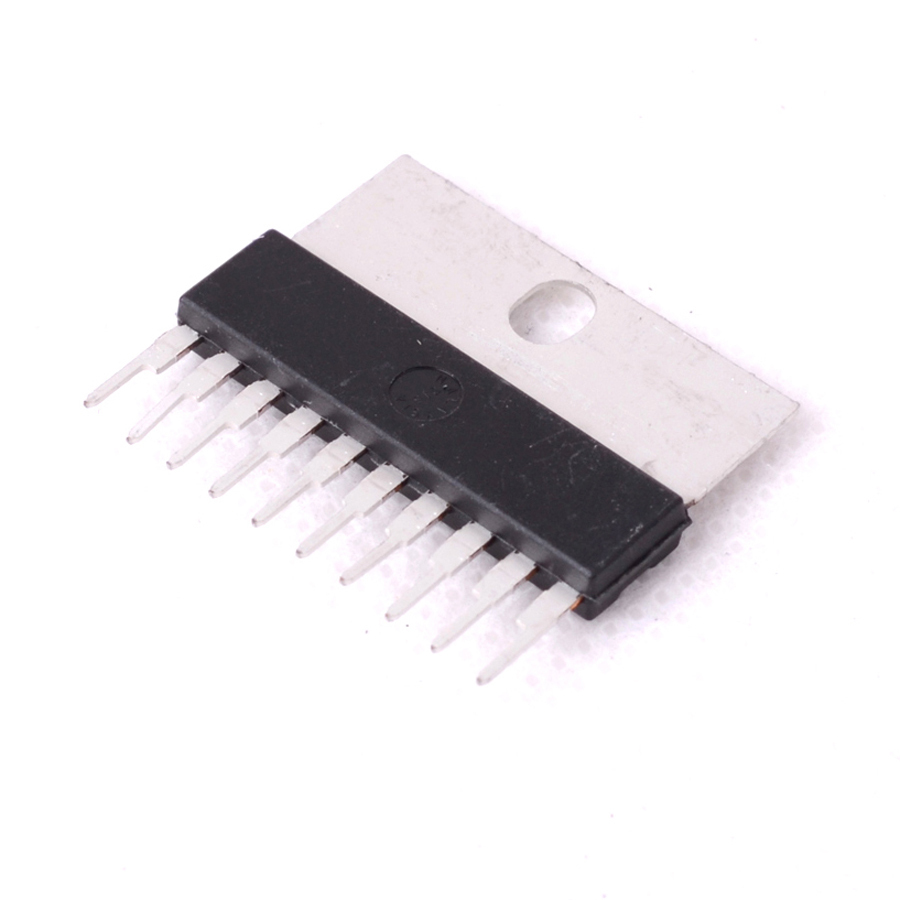

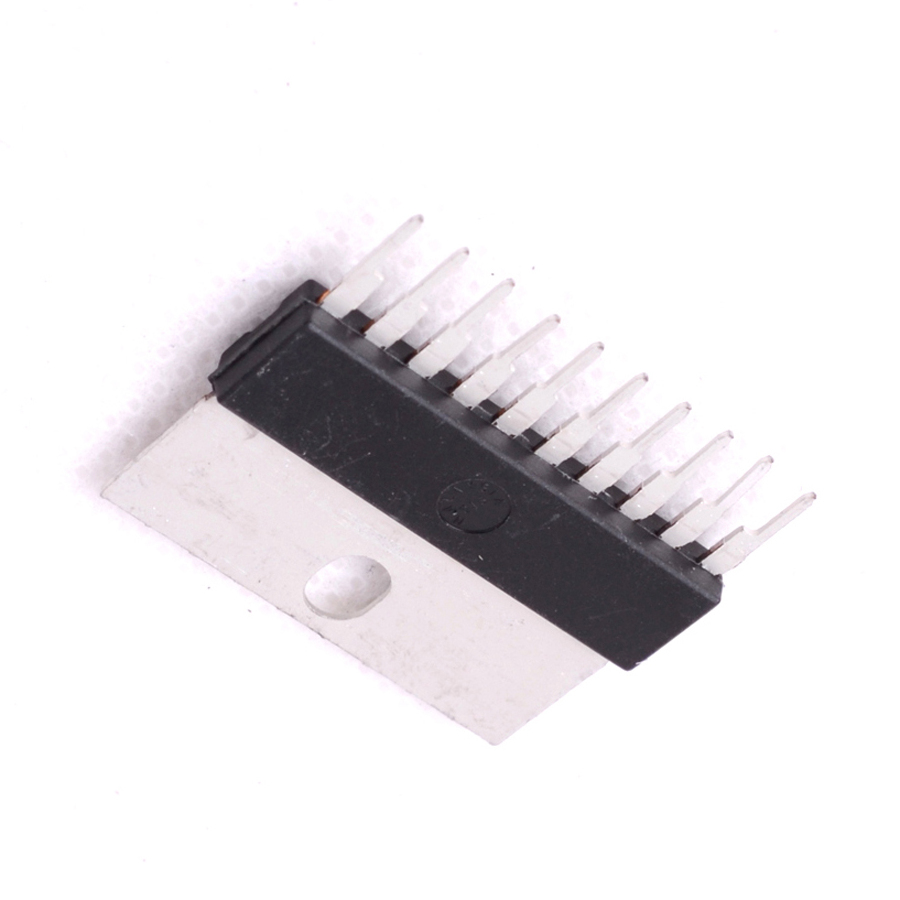

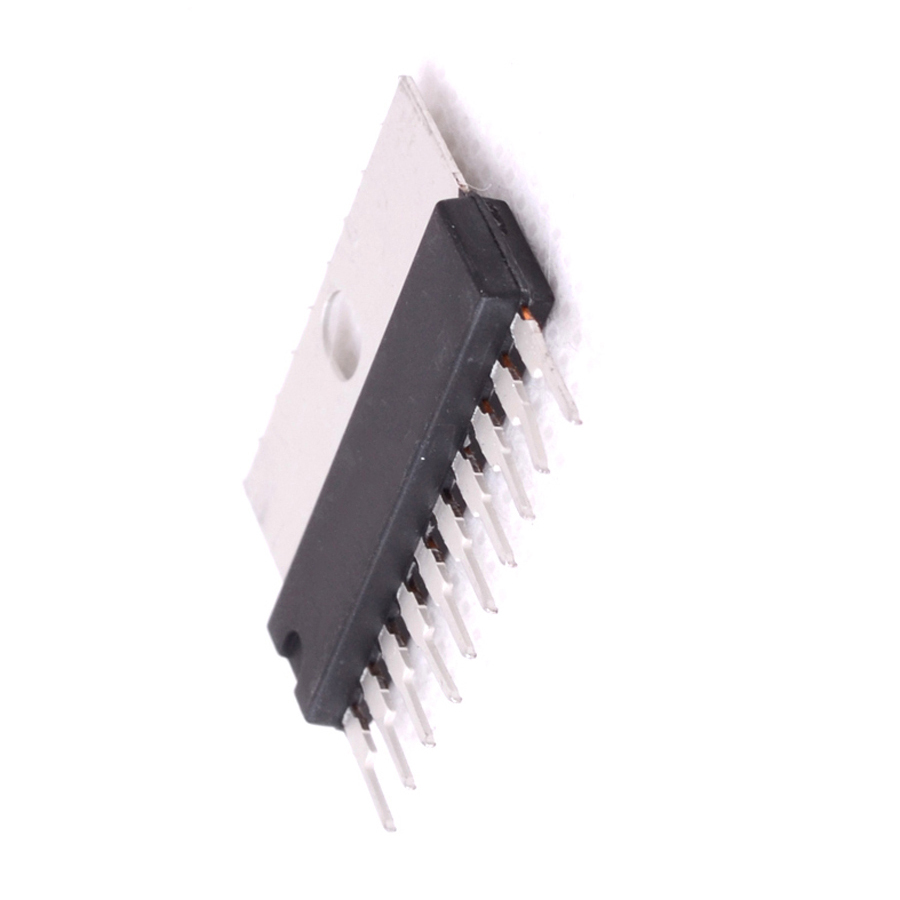

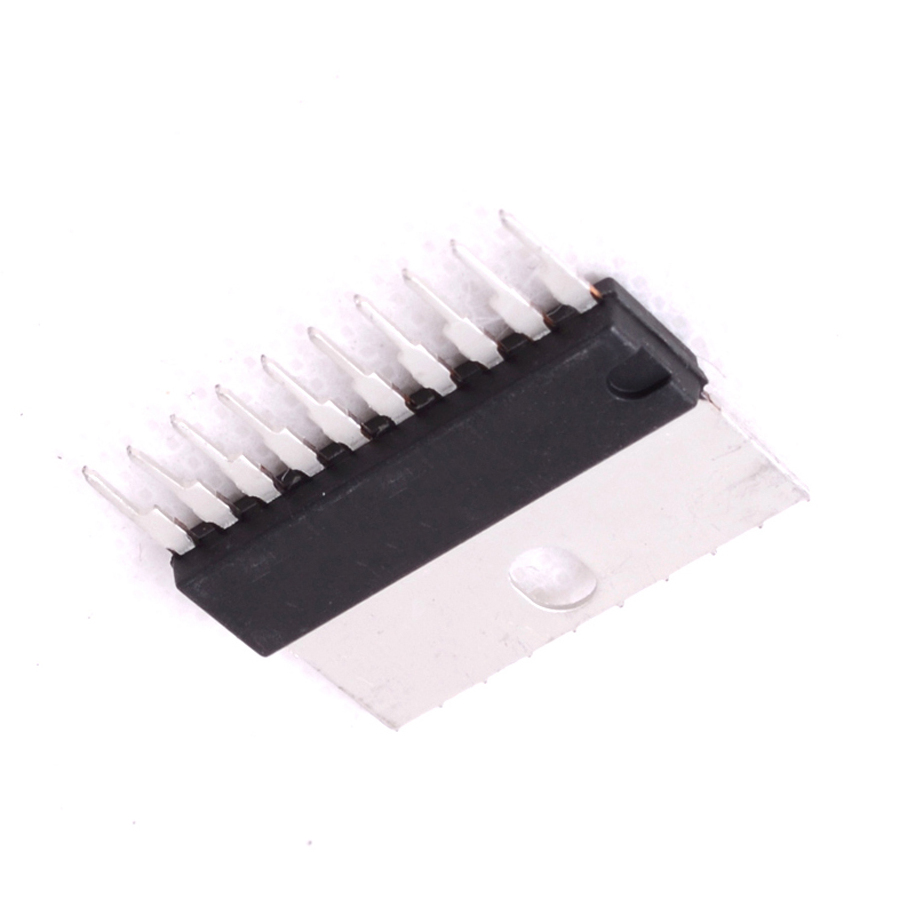

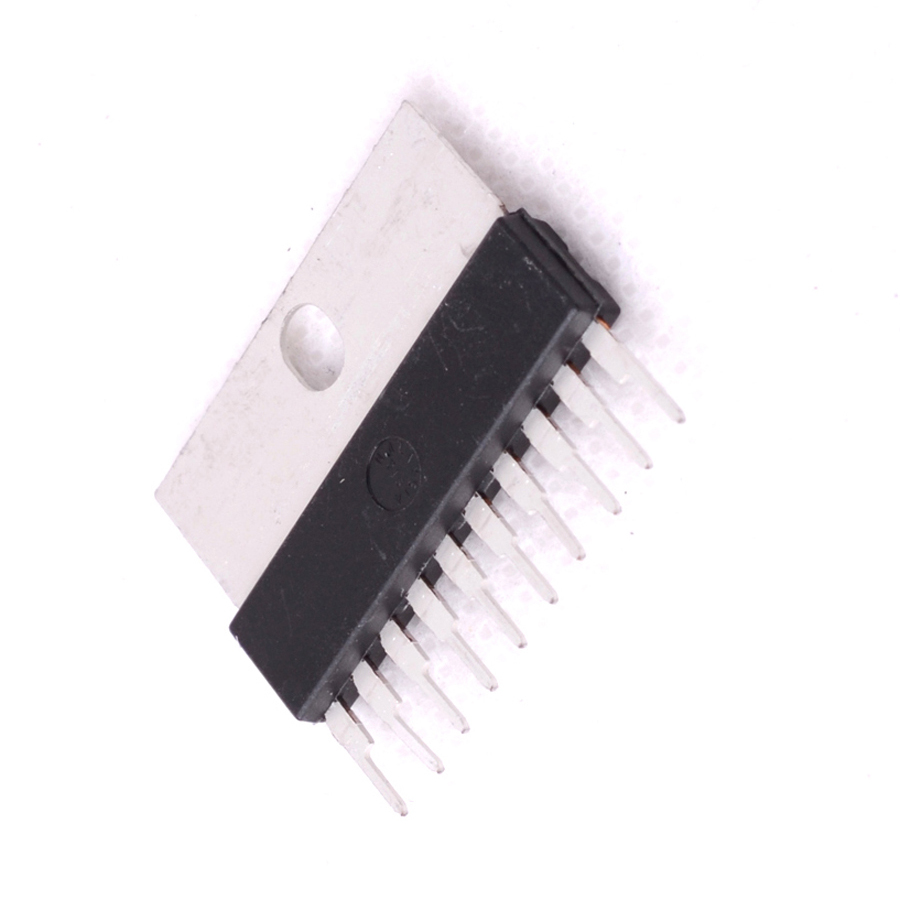

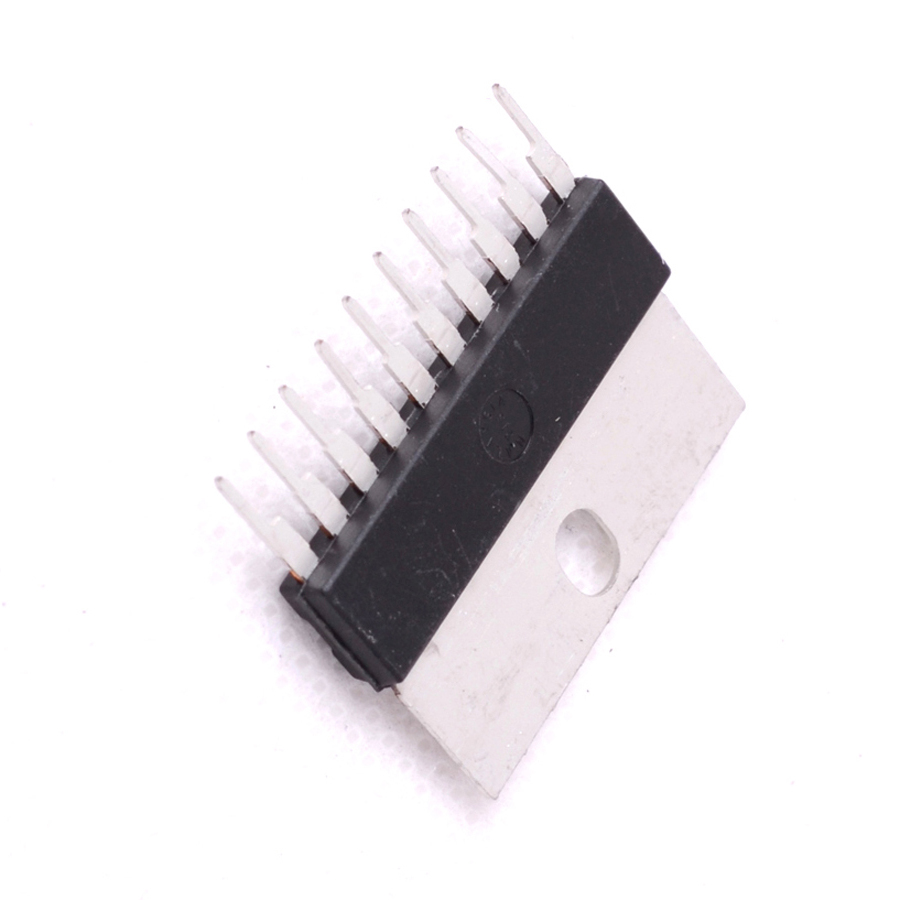

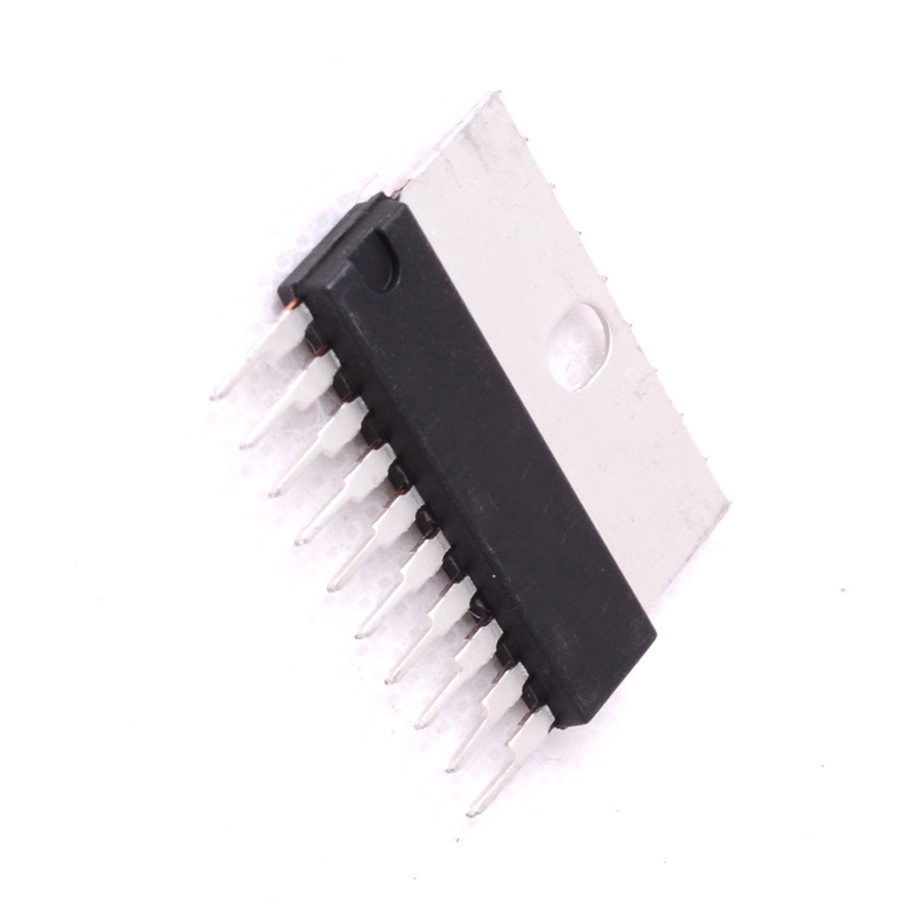

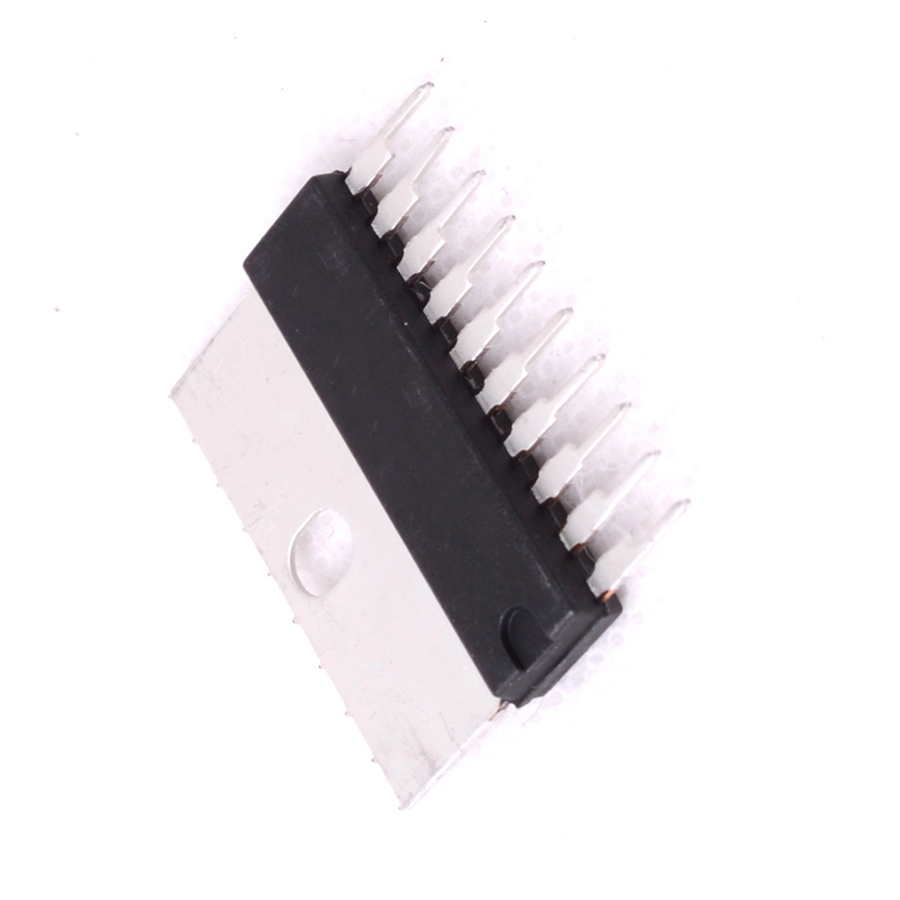

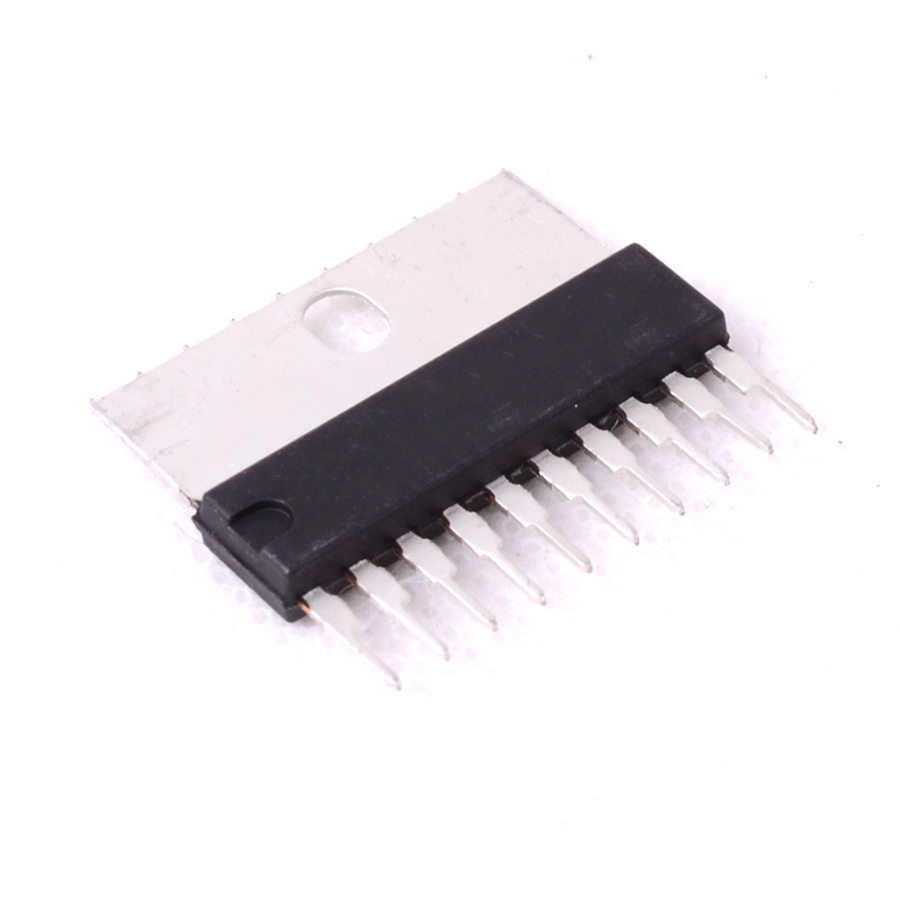

STA412A Transistor Silicon NPN CASE: SIP10 MAKE: Sanken
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
STA412A Datasheet
Product specifications
Type Transistor Silicon NPN
Case SIP10
Manufacturer Sanken
Min hFE 300
Polarity NPN
PD Max. (W) 20
@VCE (test) (V) 4
@Ic (test) 500m
Ic Max. 3
Vceo Max. 60
Pinout Equivalence Number 10-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 4 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 300
SKU 304176
