STA413A

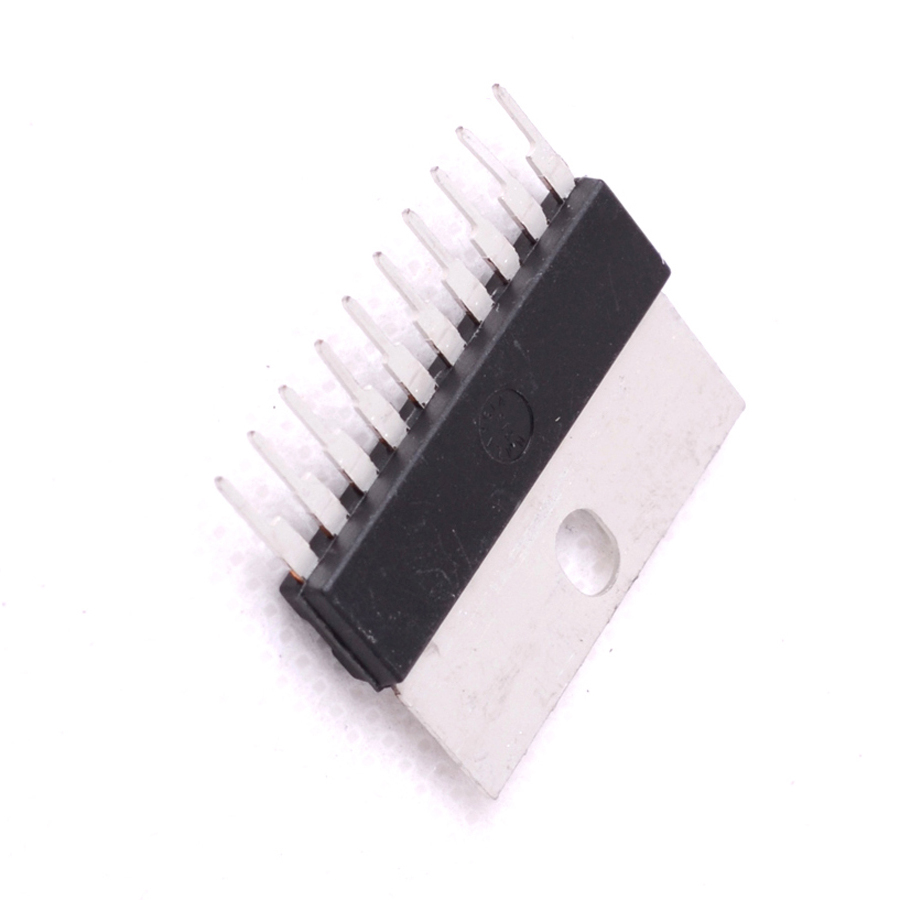

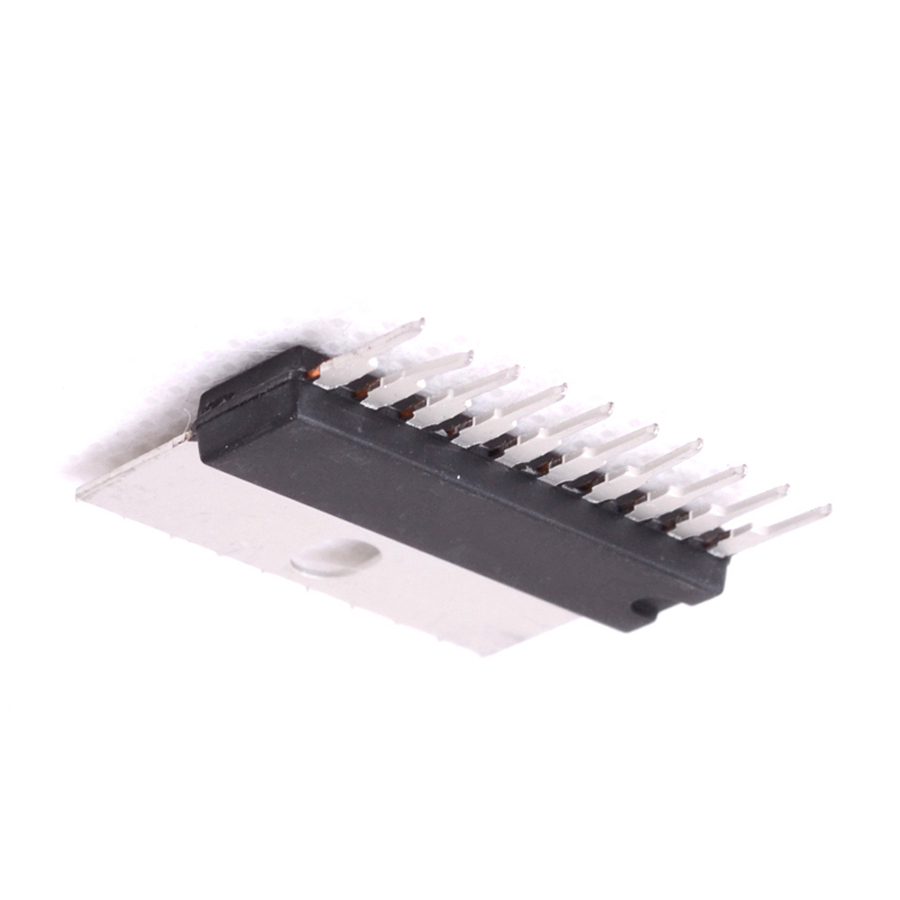

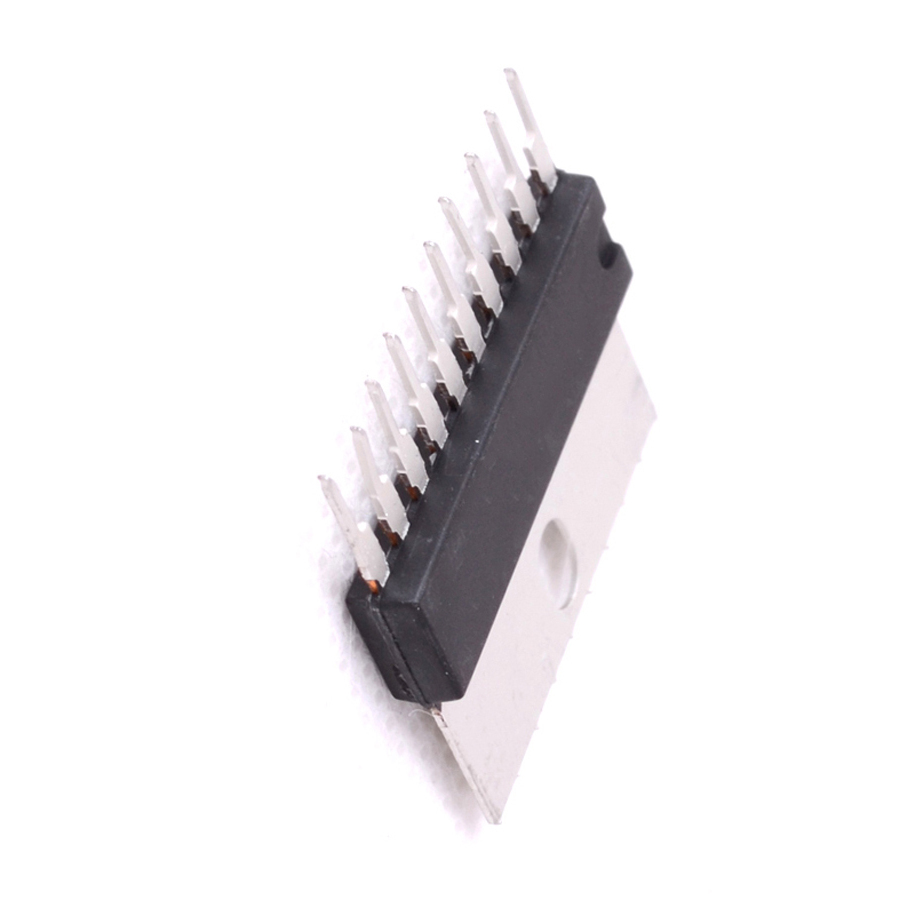

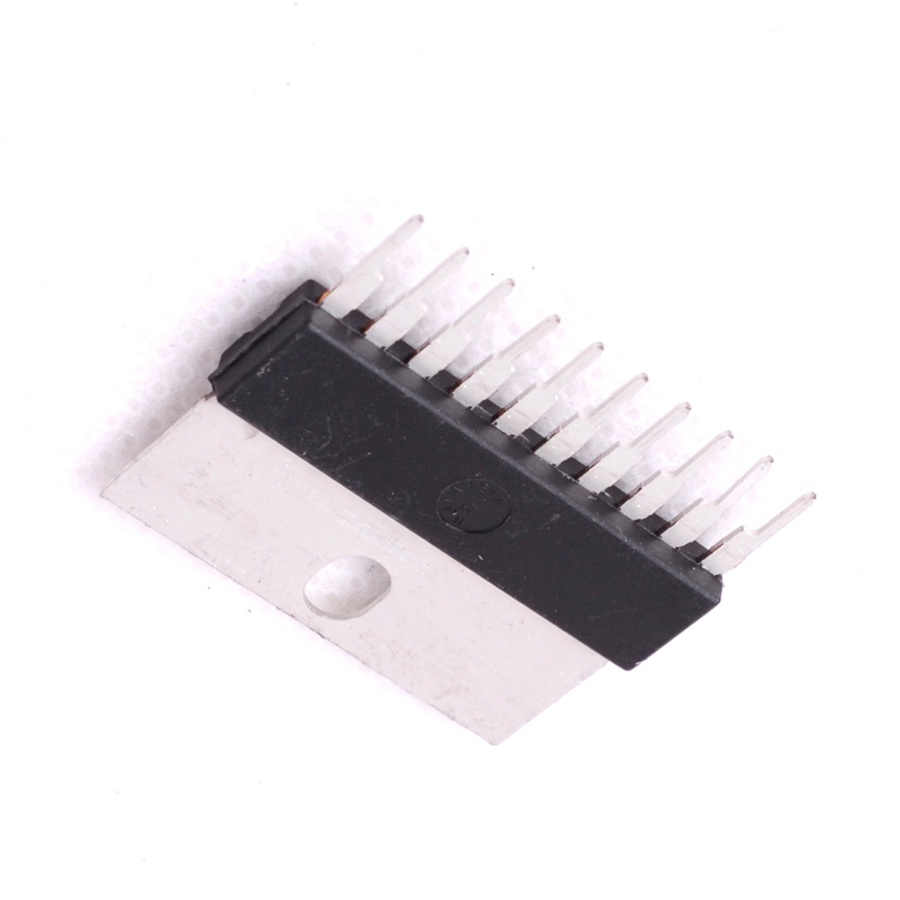

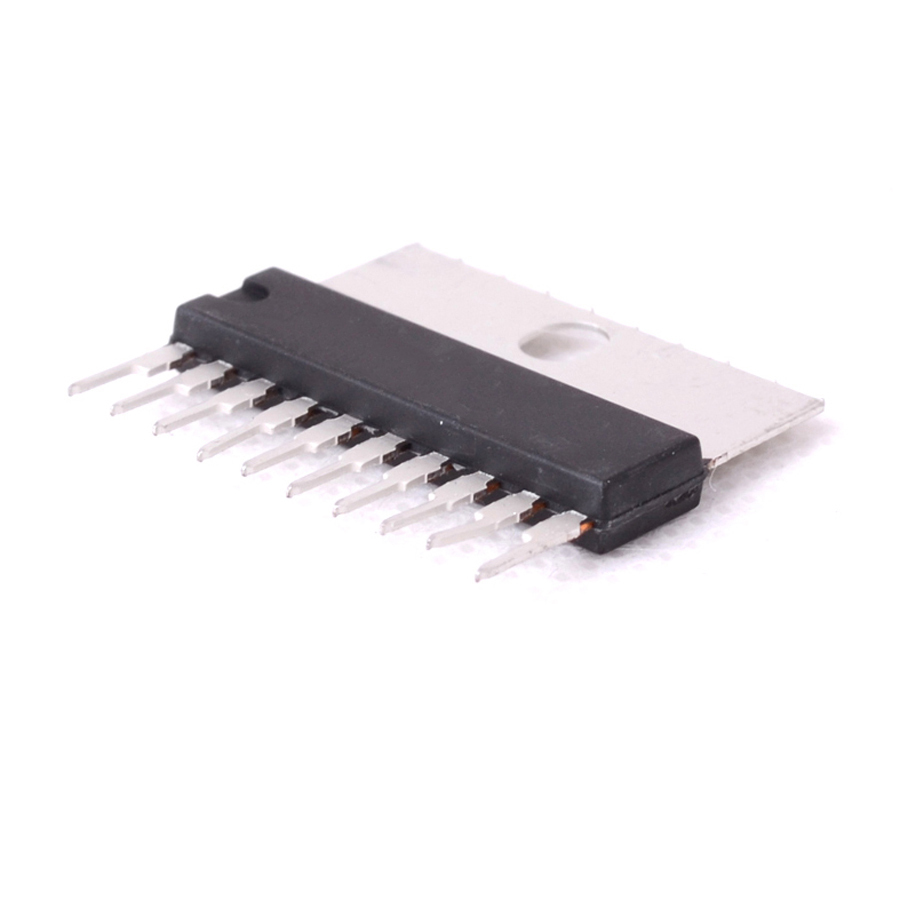

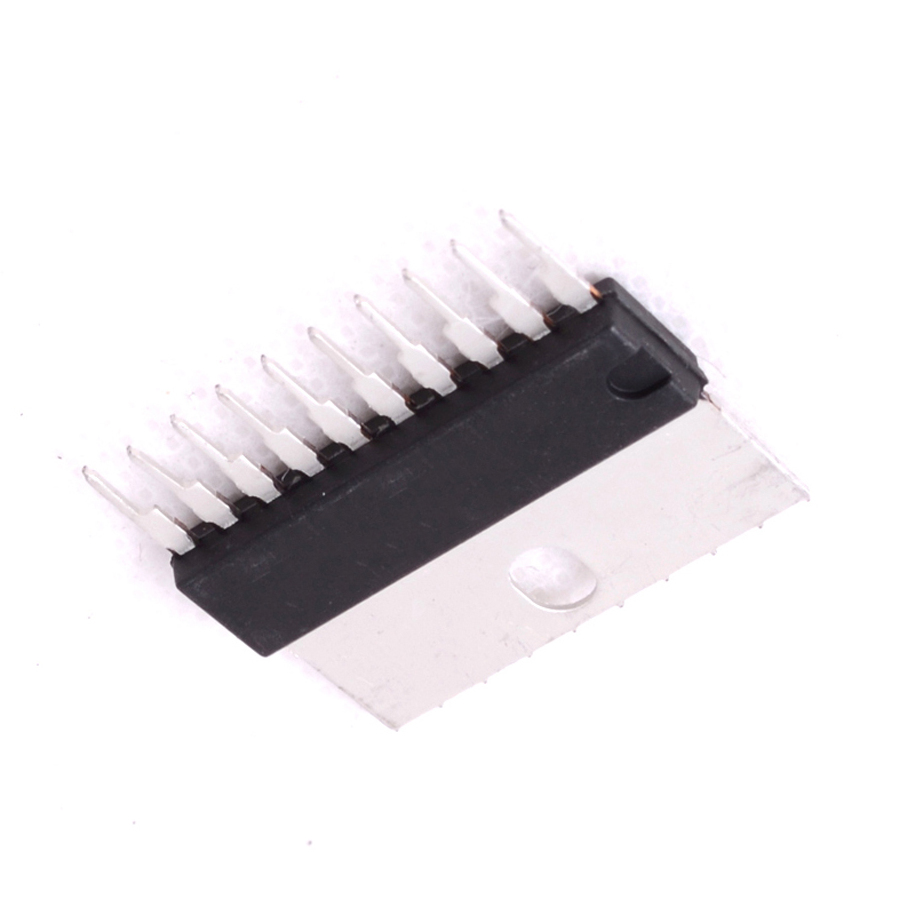

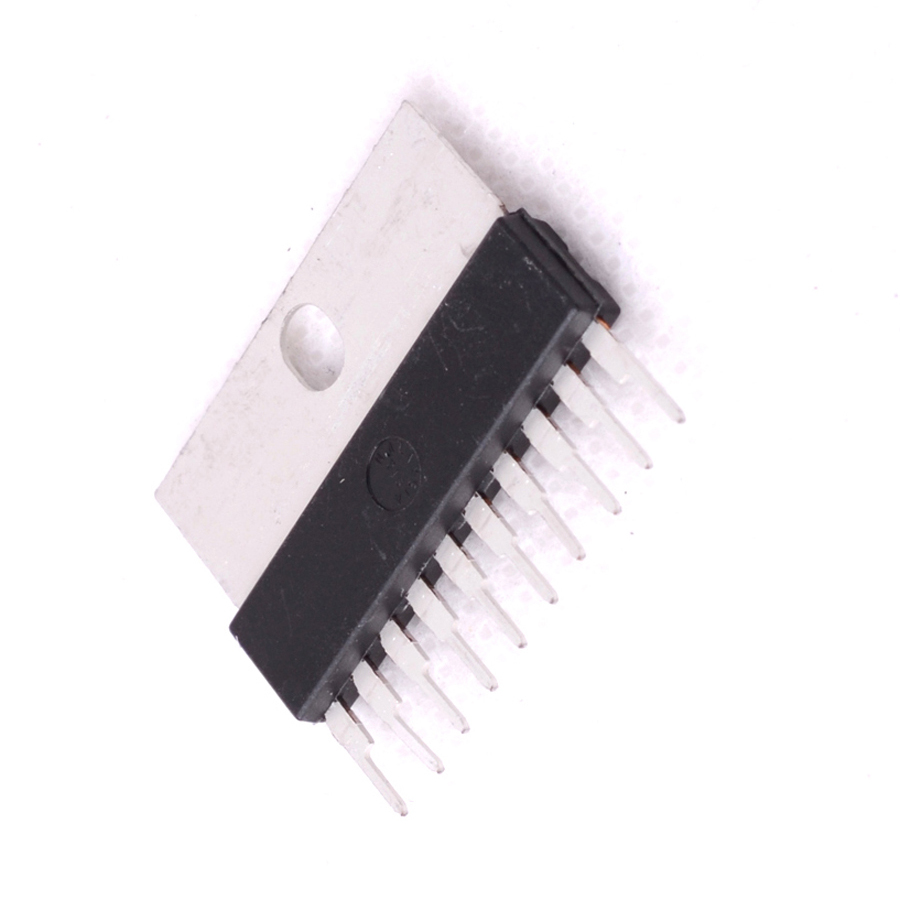

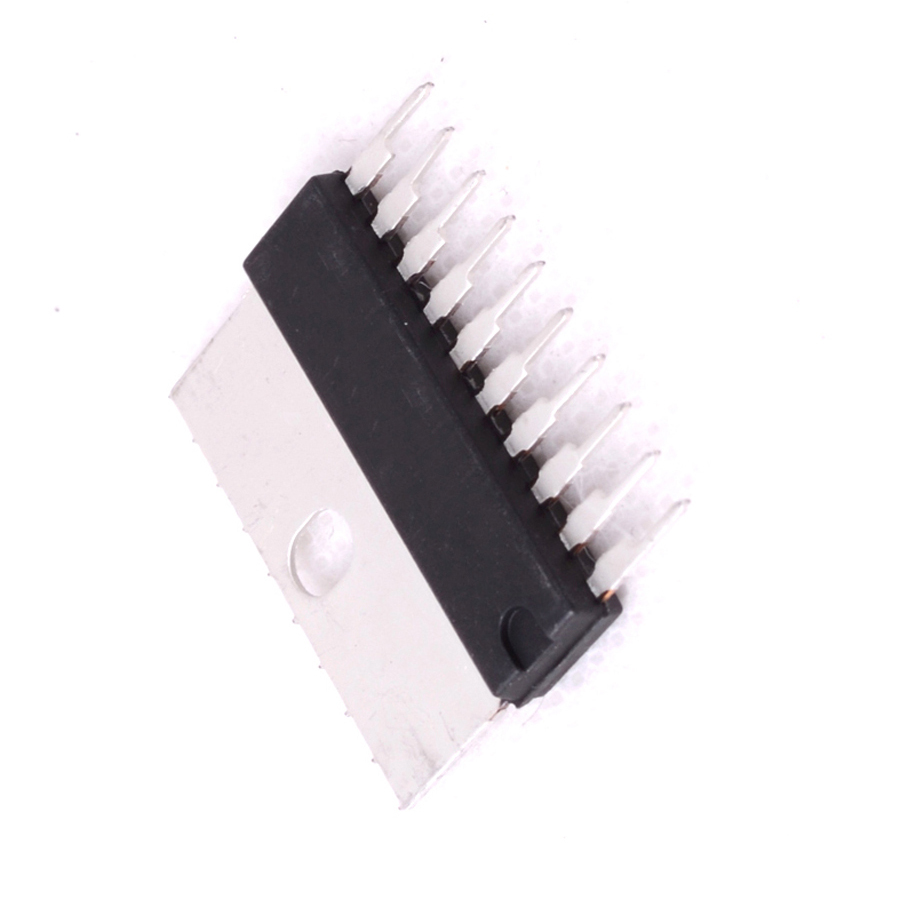

View detailed images (13)

STA413A

SKU: STA413A

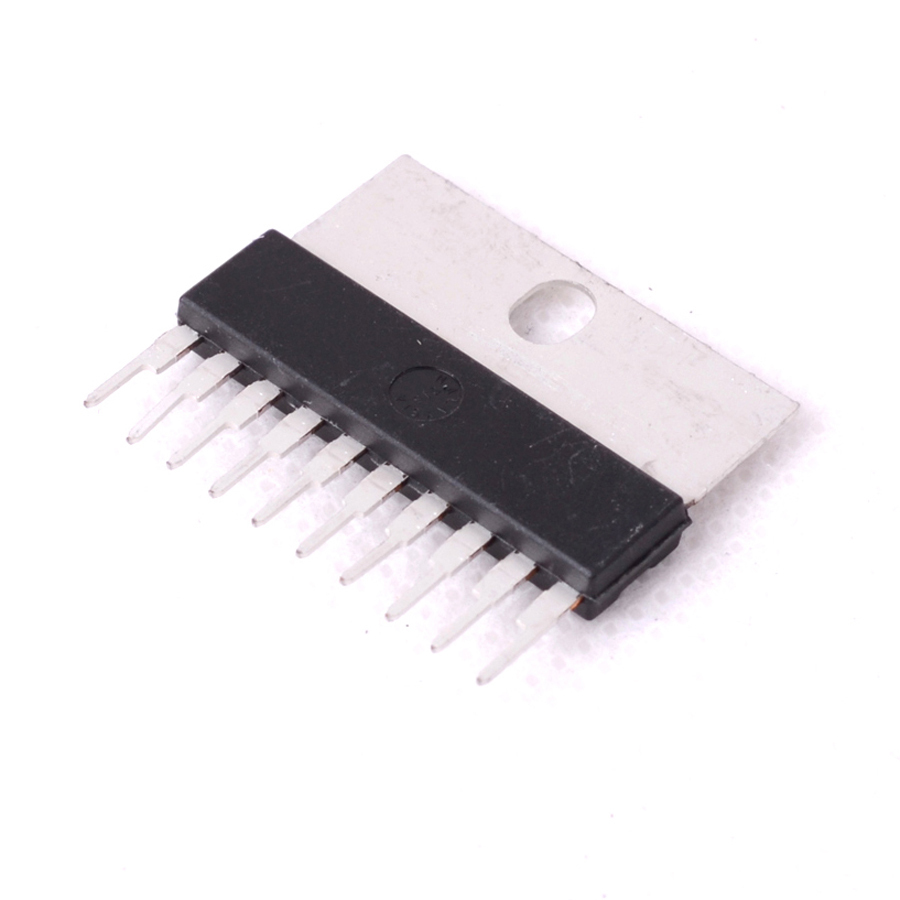

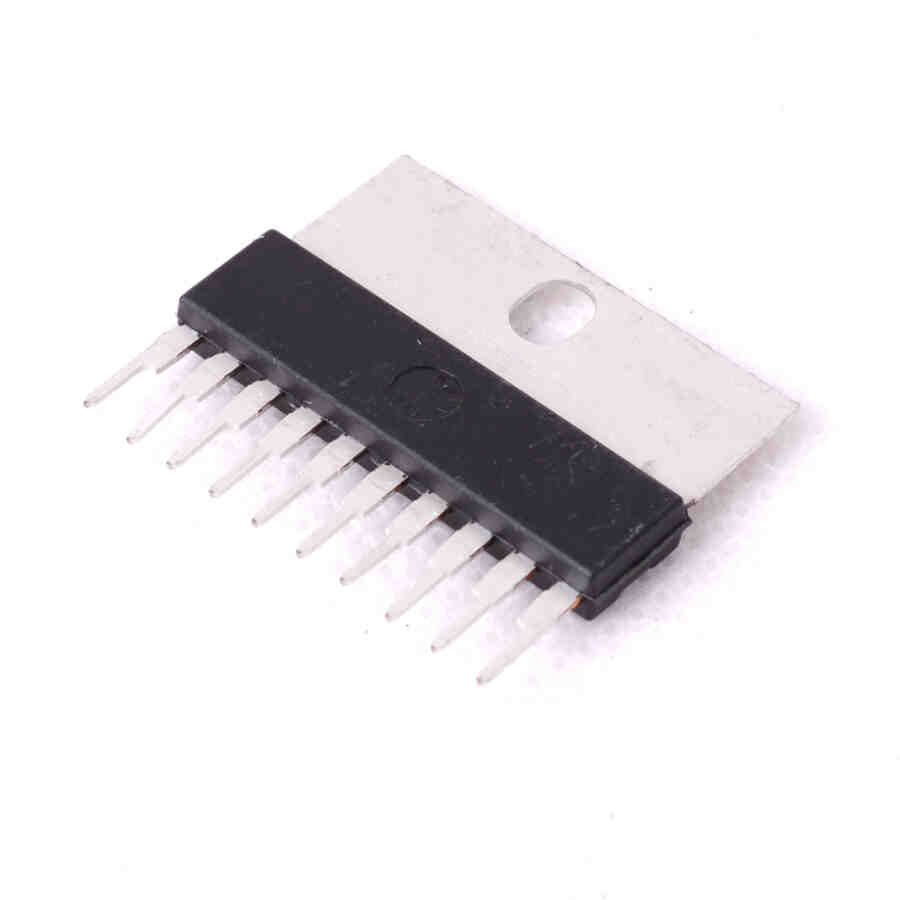

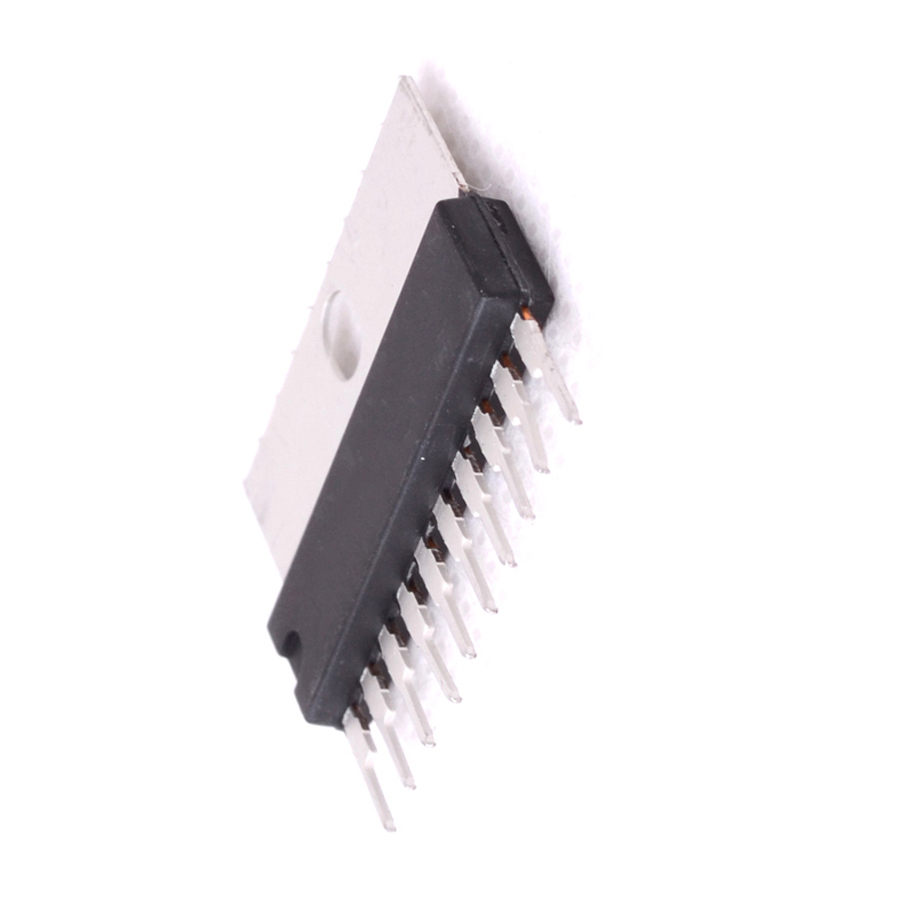

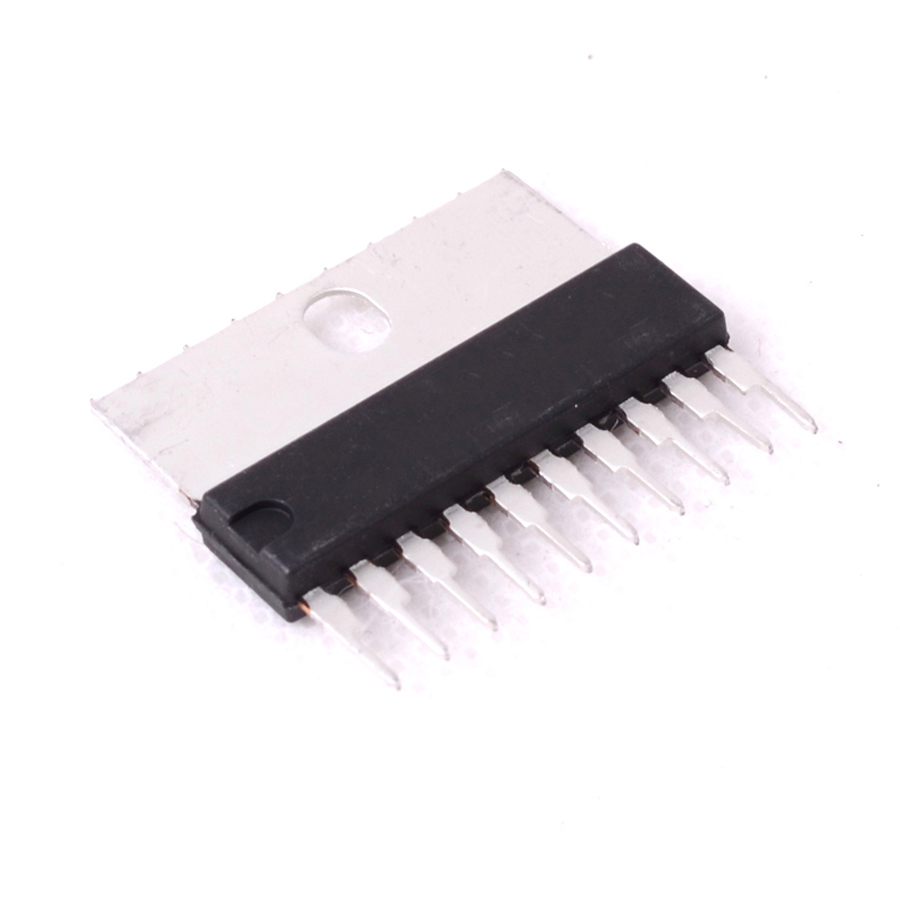

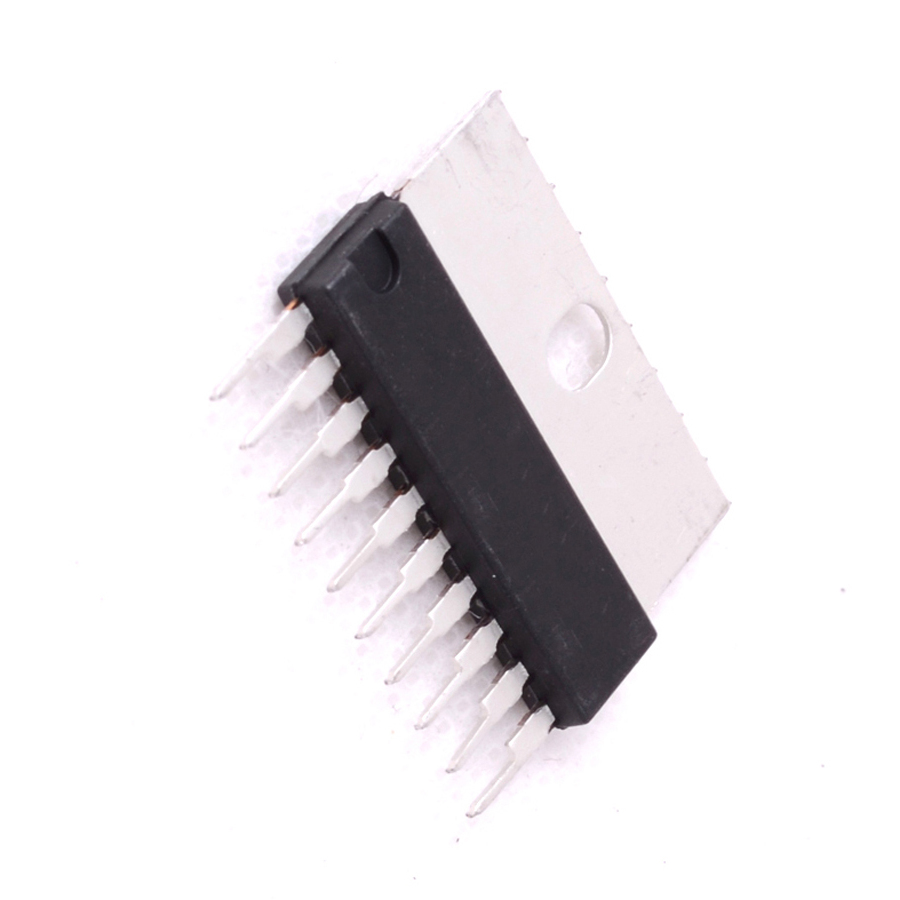

STA413A Transistor Silicon NPN CASE: SIP10 MAKE: Sanken
Datasheet
STA413A Datasheet
Product specifications
Type Transistor Silicon NPN
Case SIP10
Manufacturer Sanken
Min hFE 500
Mat. Silicon Logic
Polarity NPN
PD Max. (W) 4
@VCE (test) (V) 4
@Ic (test) 500m
Ic Max. 3
Vceo Max. 30
Pinout Equivalence Number 10-31
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 4 W
Maximum Collector-Base Voltage |Vcb| 35 V
Maximum Collector-Emitter Voltage |Vce| 35 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 500
SKU 304178
