STA421A
View detailed images (13)

STA421A

SKU: STA421A

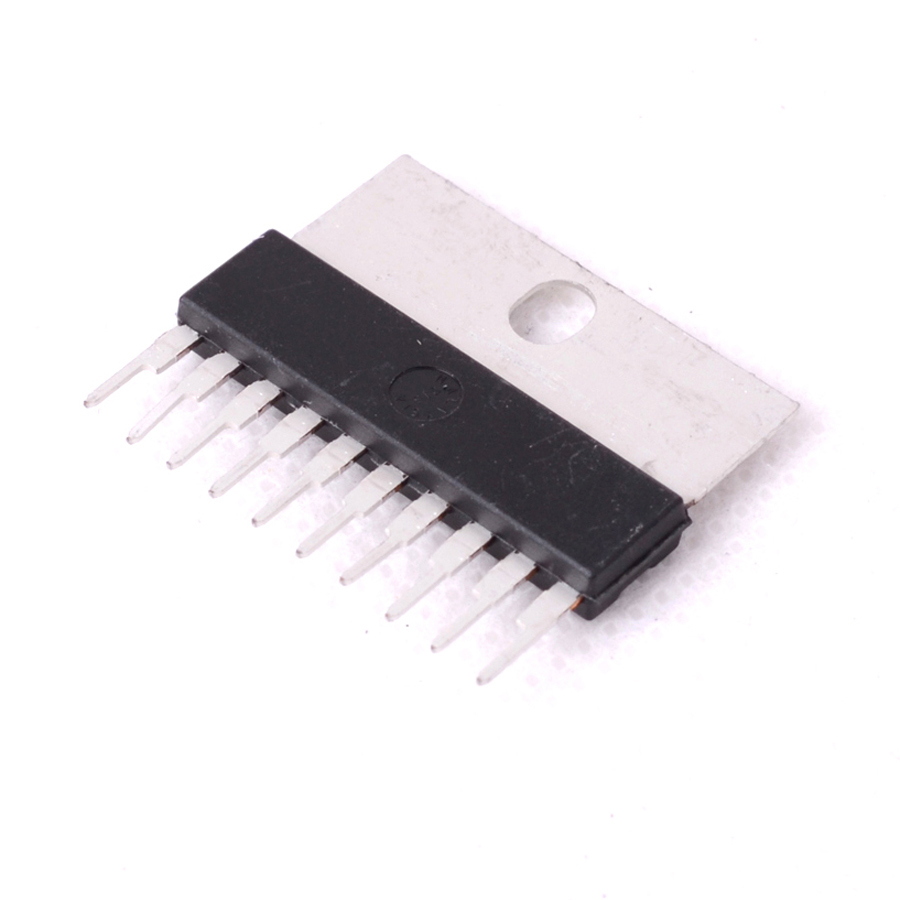

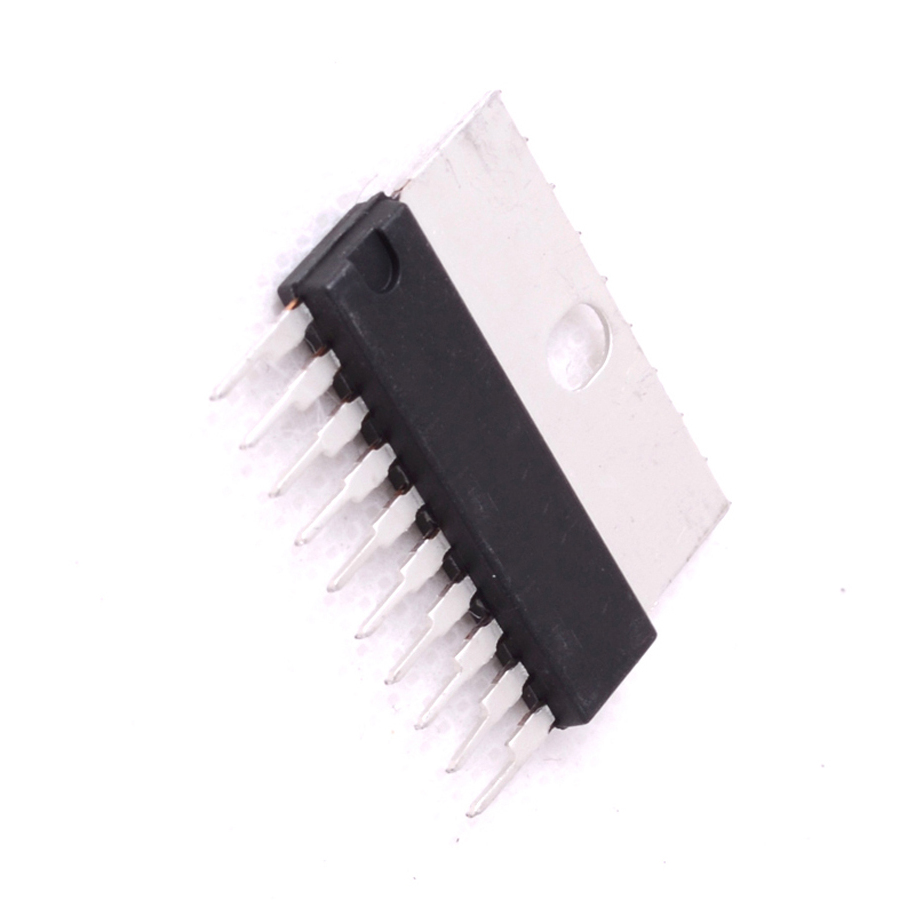

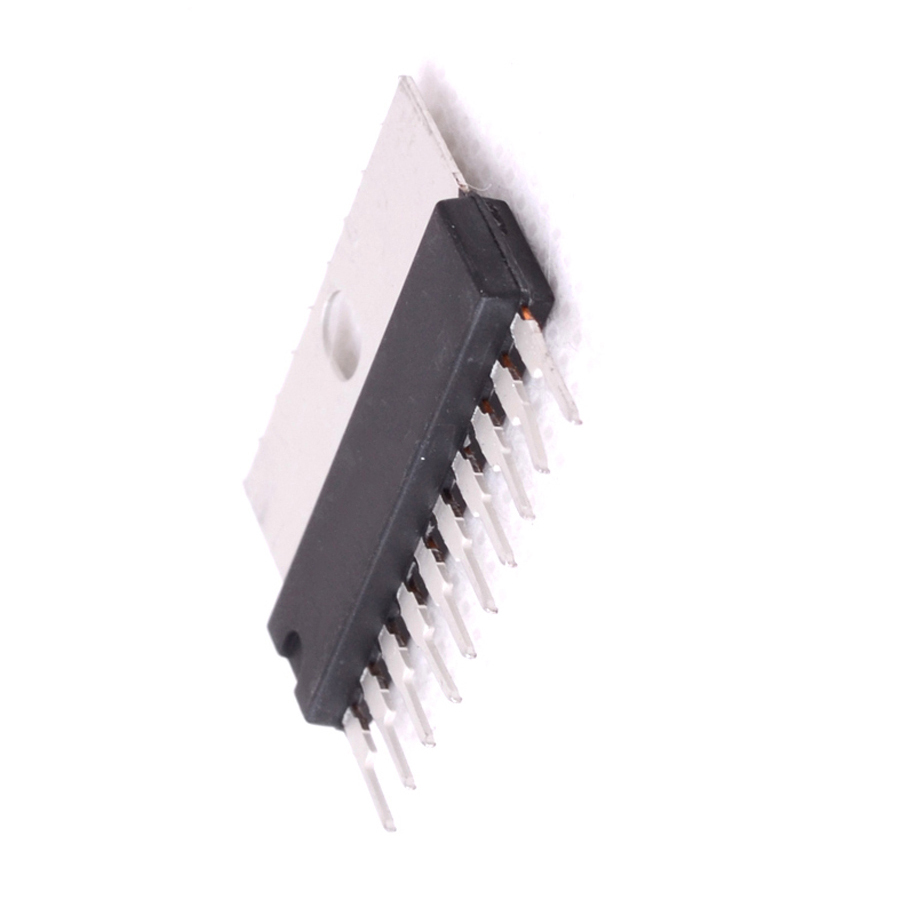

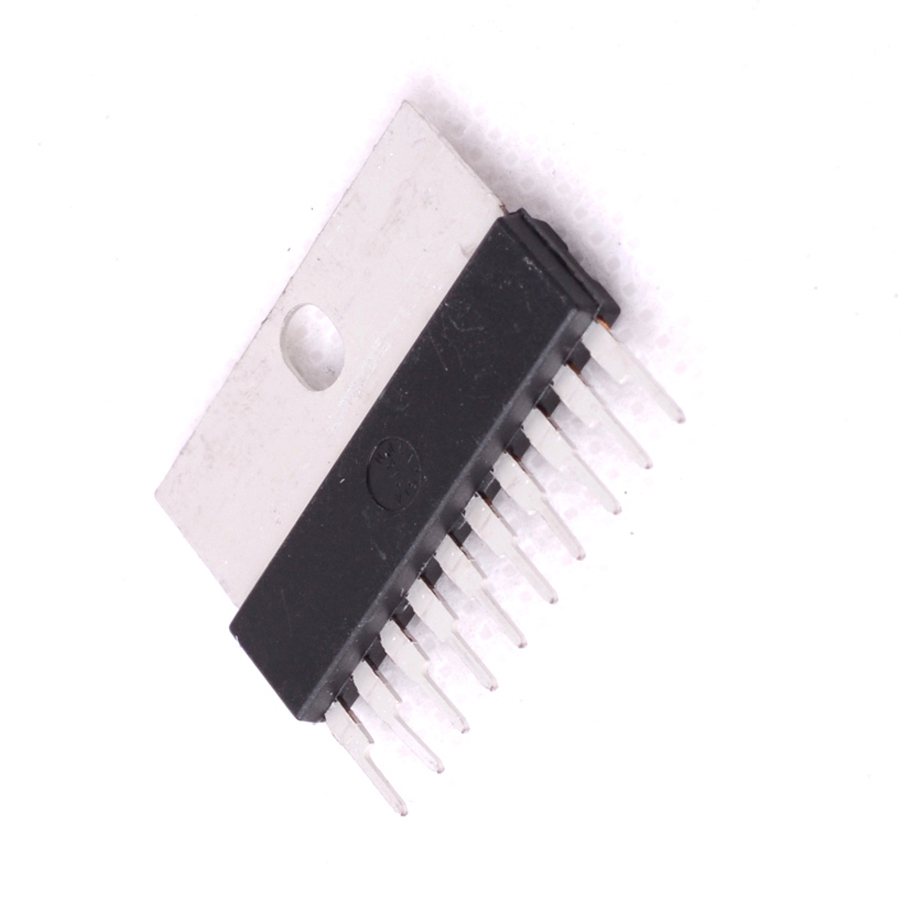

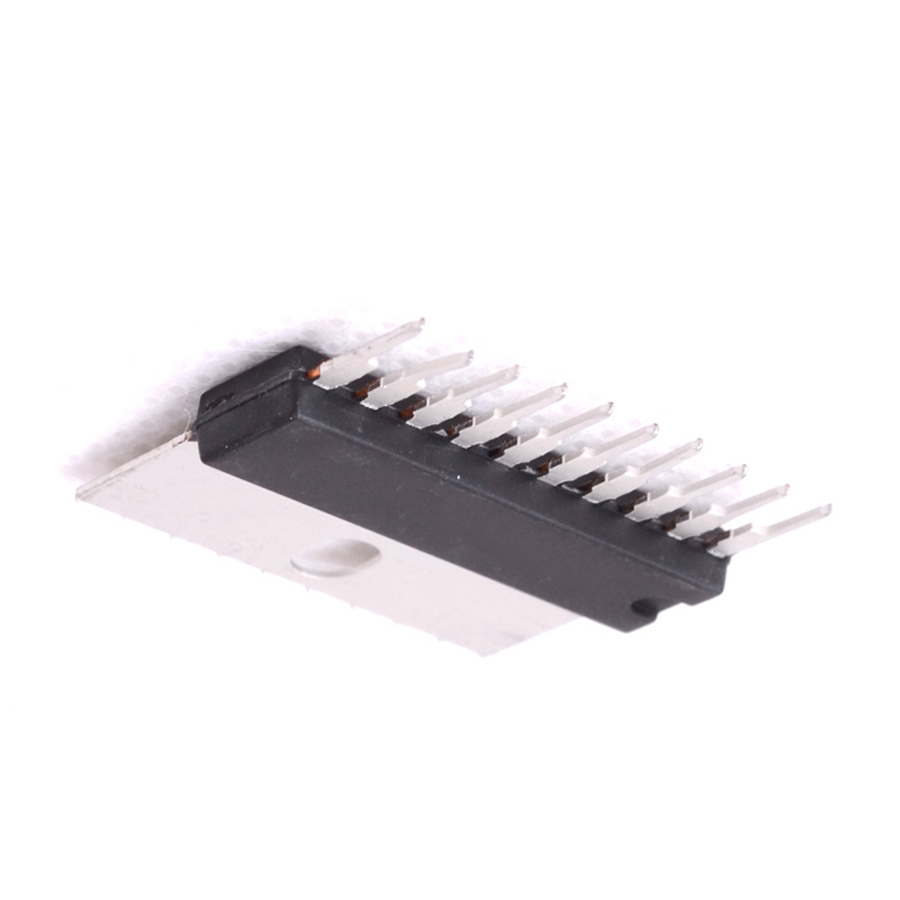

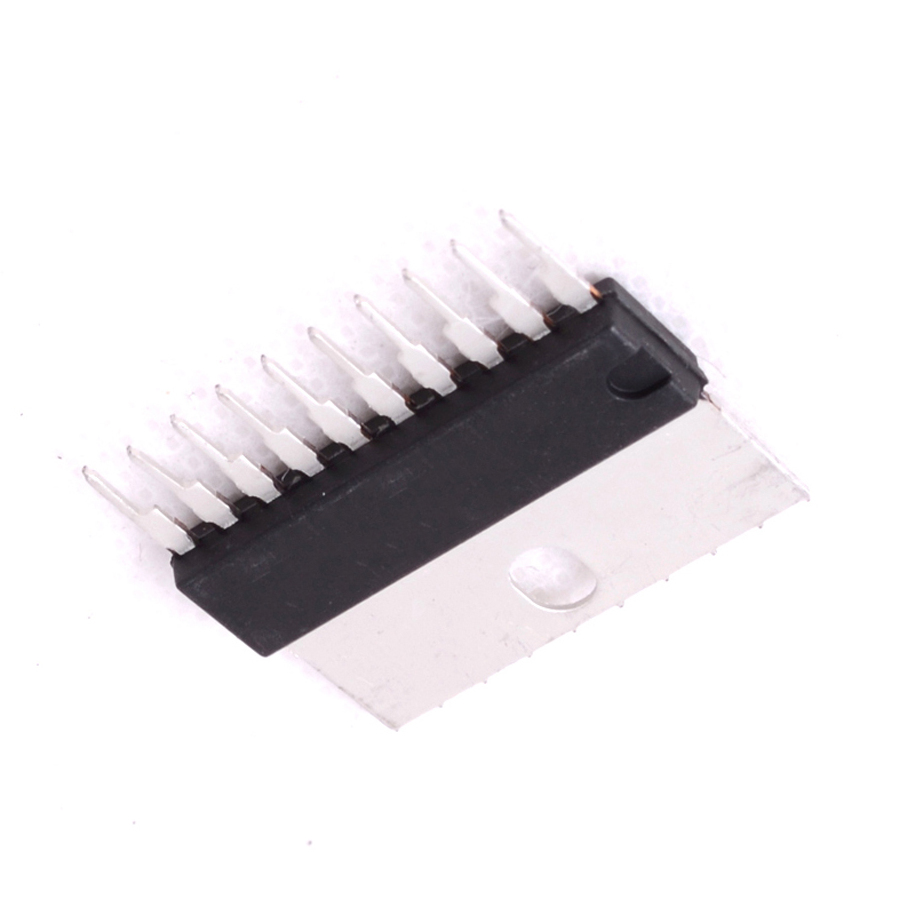

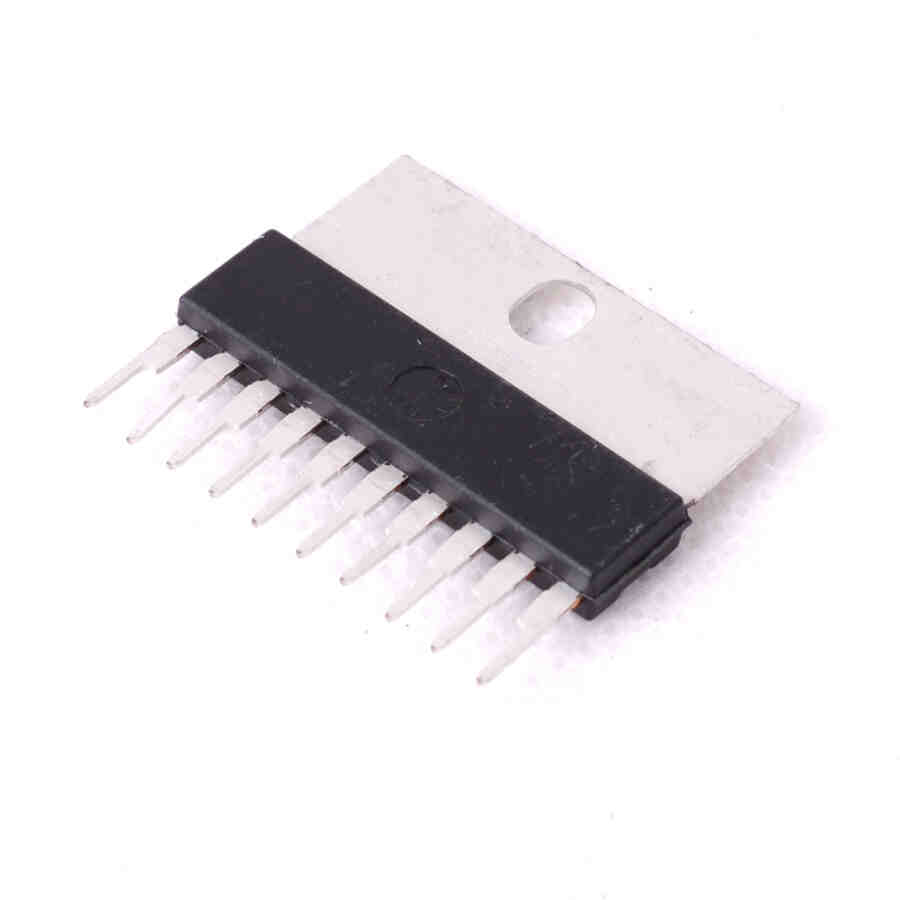

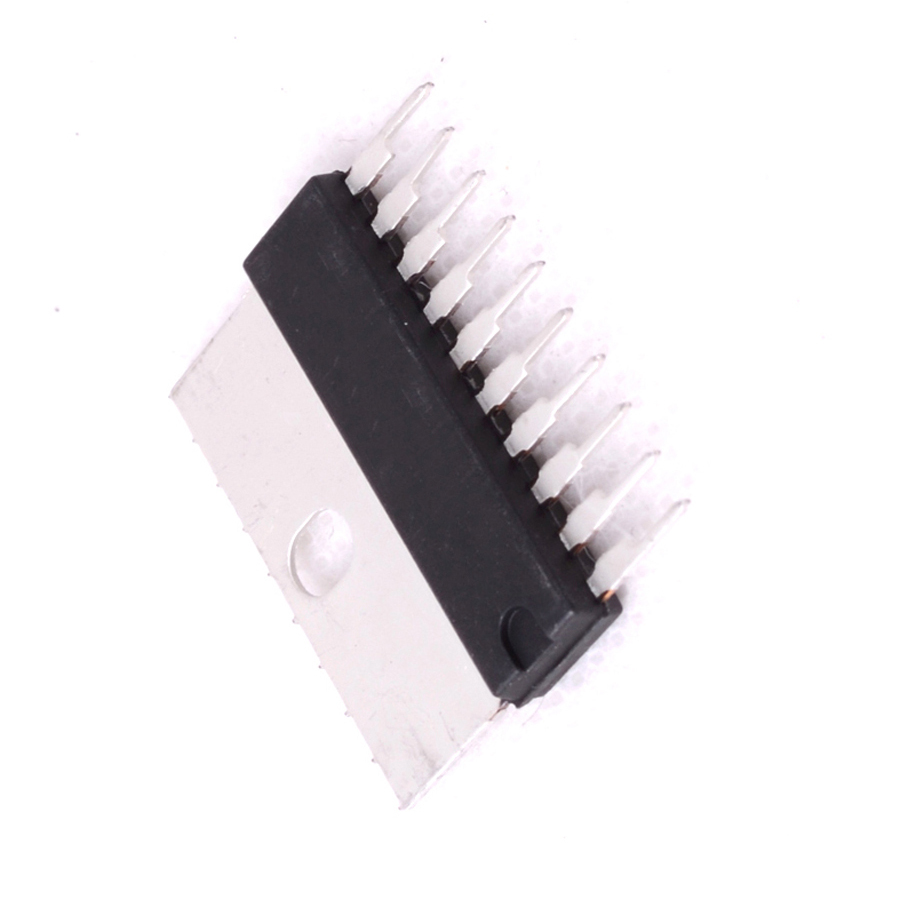

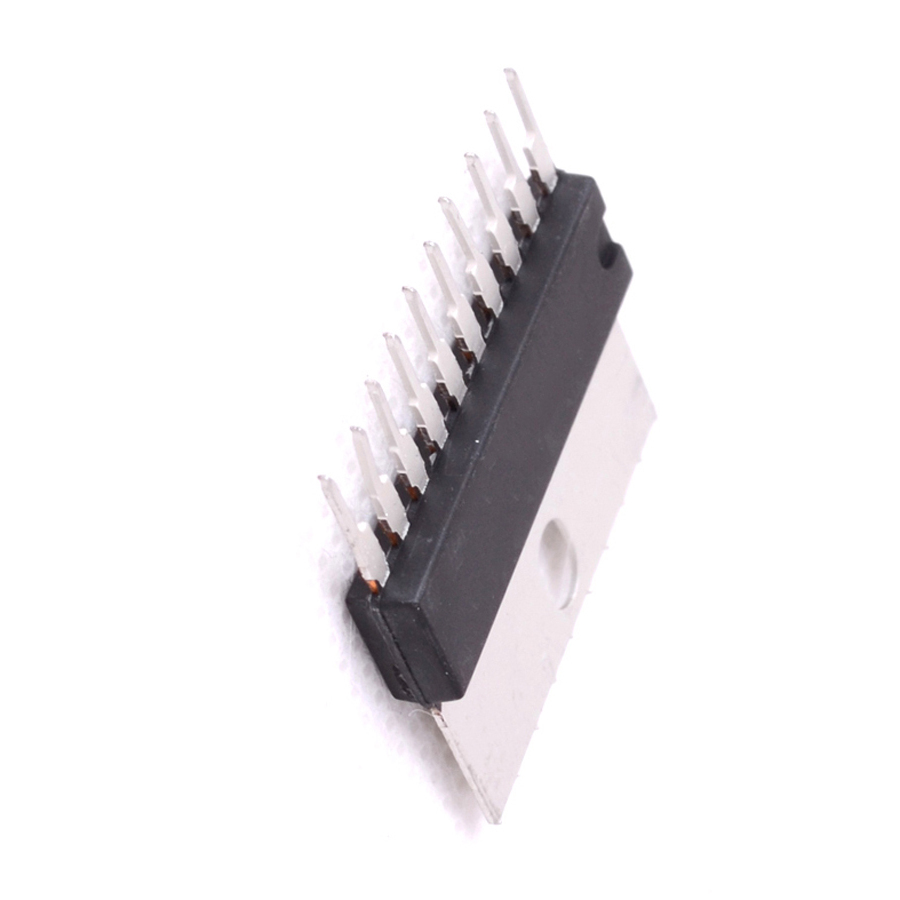

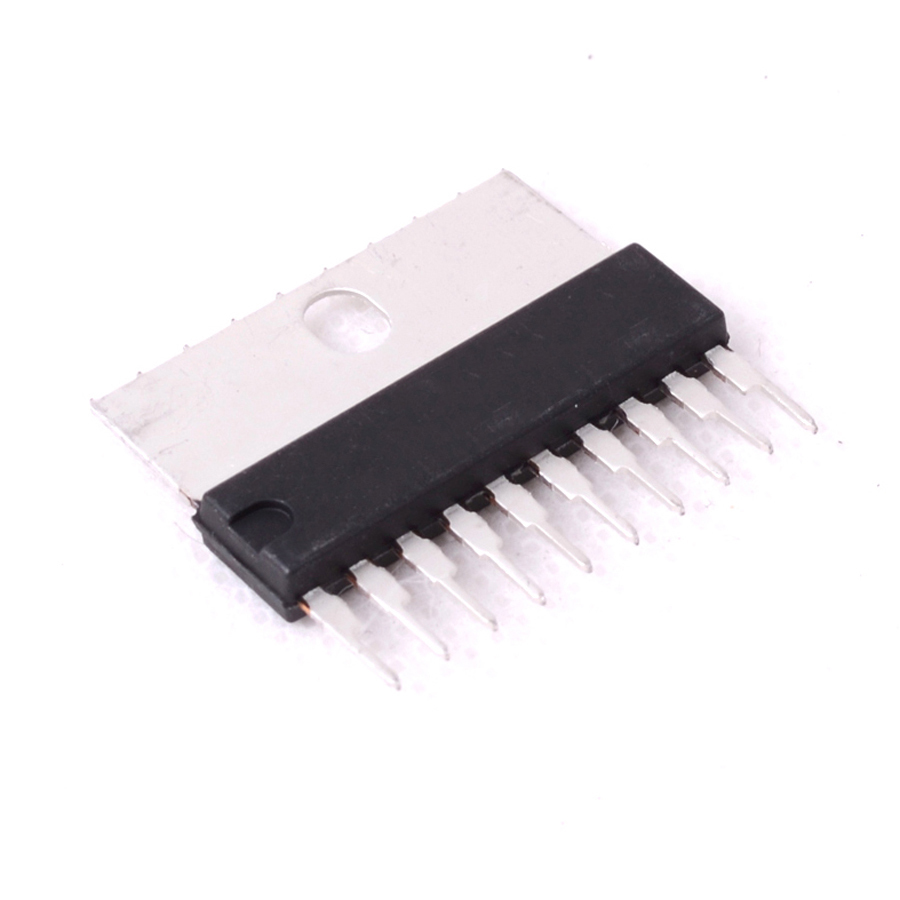

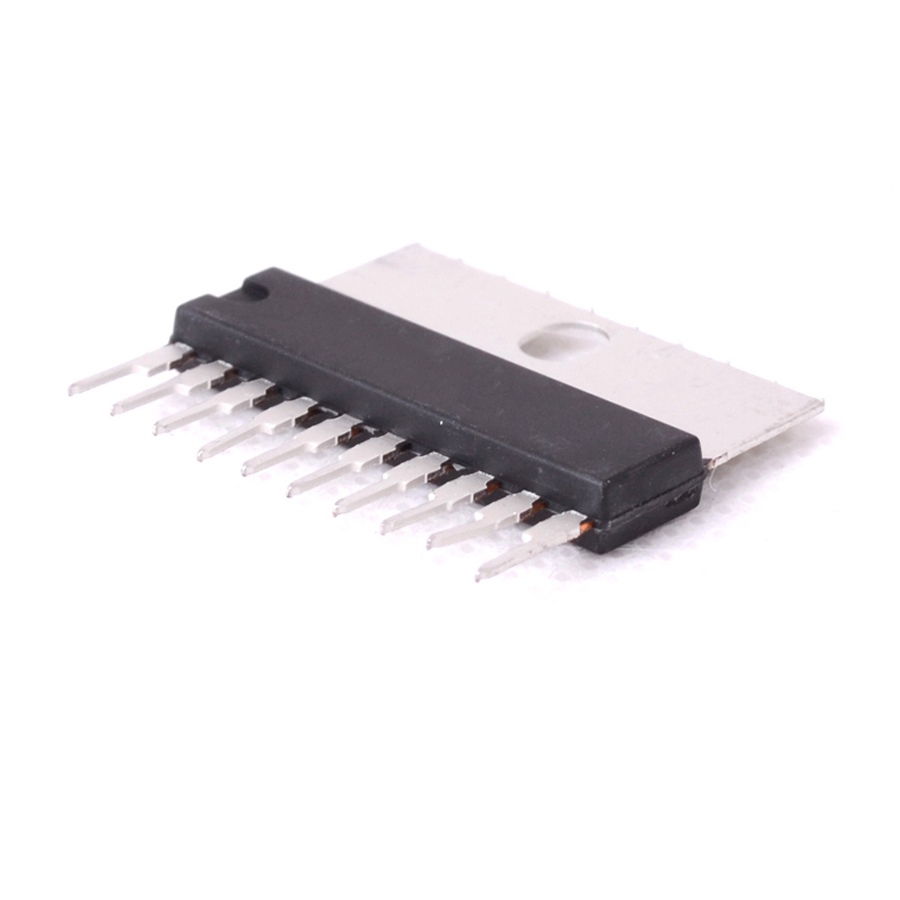

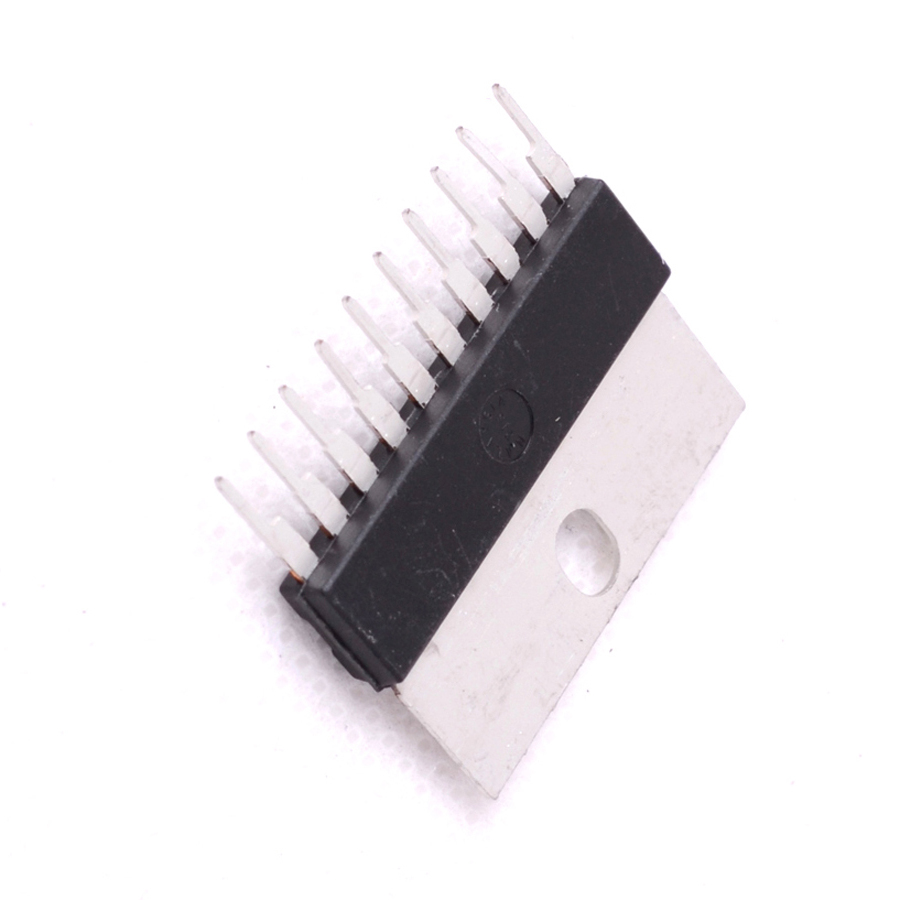

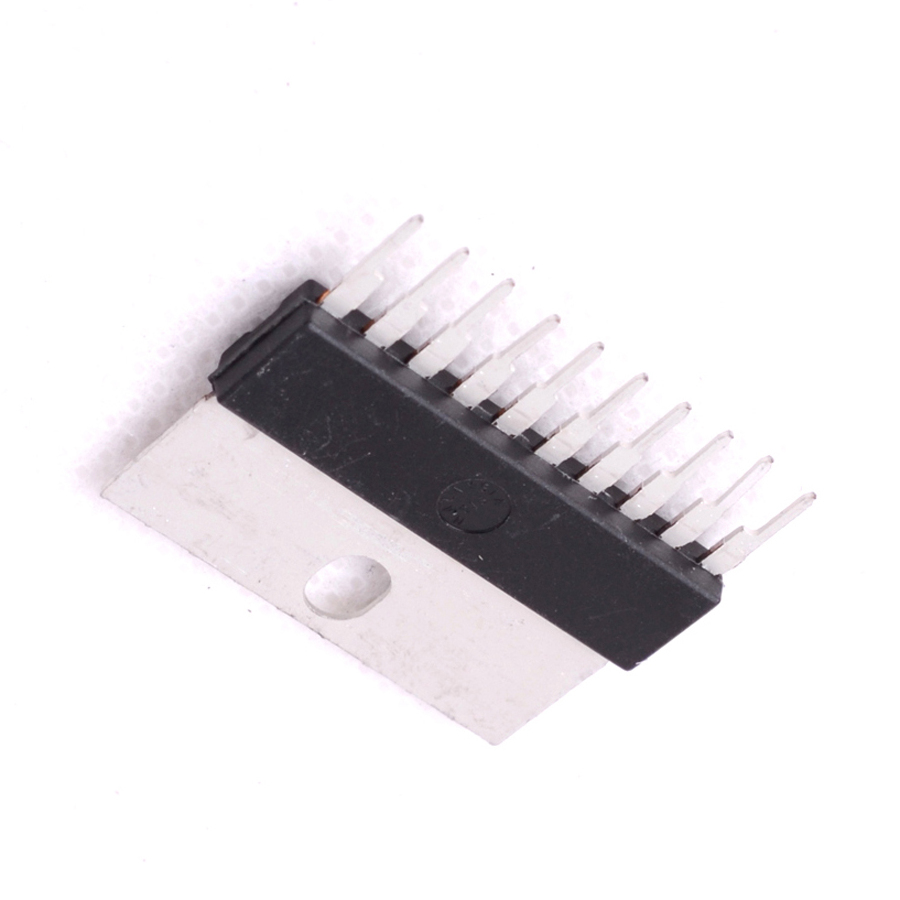

STA421A Transistor Silicon PNP CASE: SIP10 MAKE: Sanken
Datasheet
STA421A Datasheet
Product specifications
Type Transistor Silicon PNP
Case SIP10
Manufacturer Sanken
Min hFE 40
Polarity PNP
PD Max. (W) 20
@VCE (test) (V) 4
@Ic (test) 1
Ic Max. 3
Vceo Max. 60
Pinout Equivalence Number 10-13
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 4 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 40
SKU 304183
