STA460C

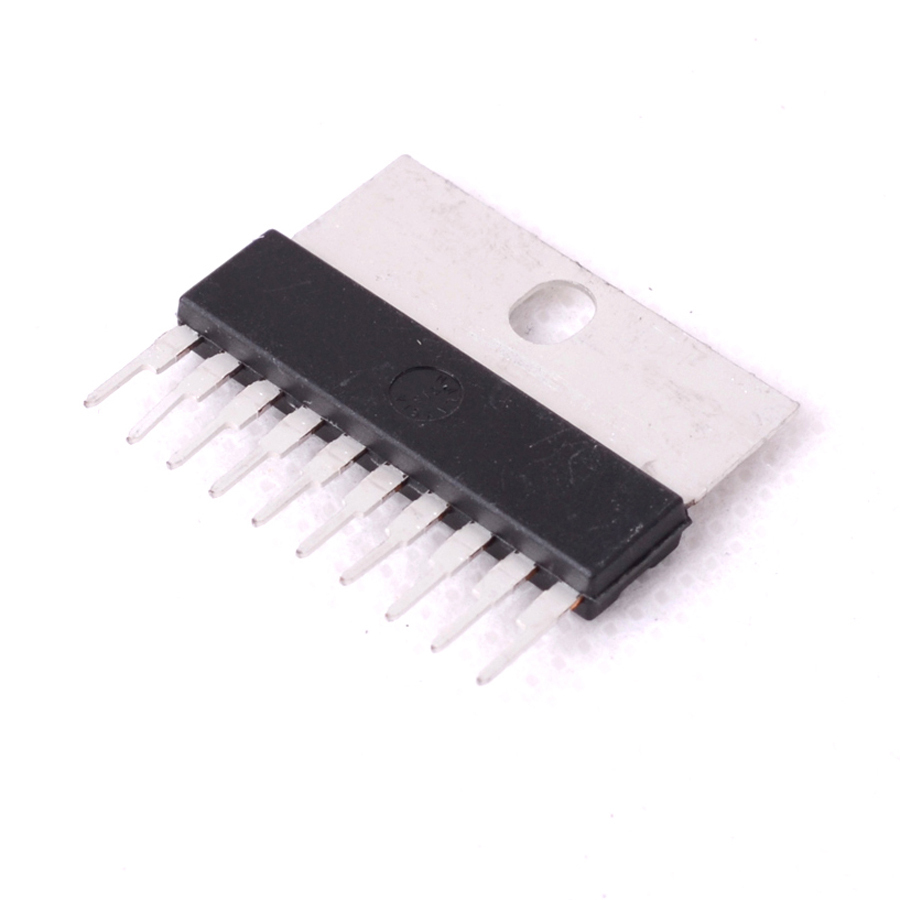

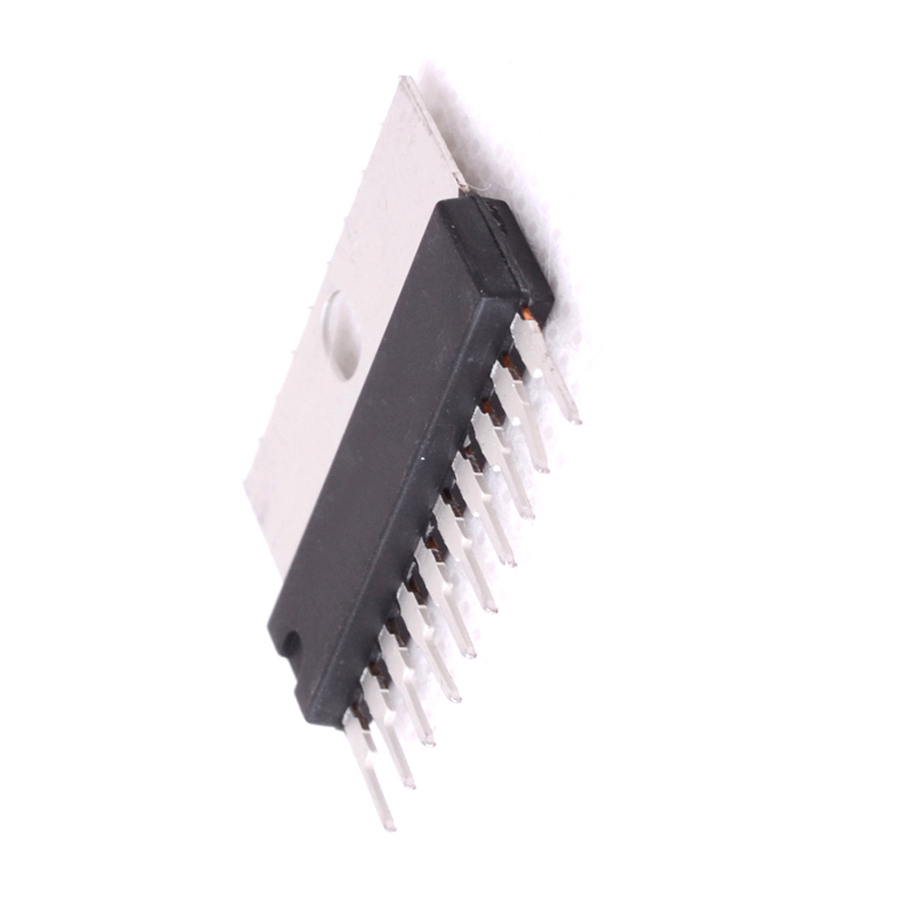

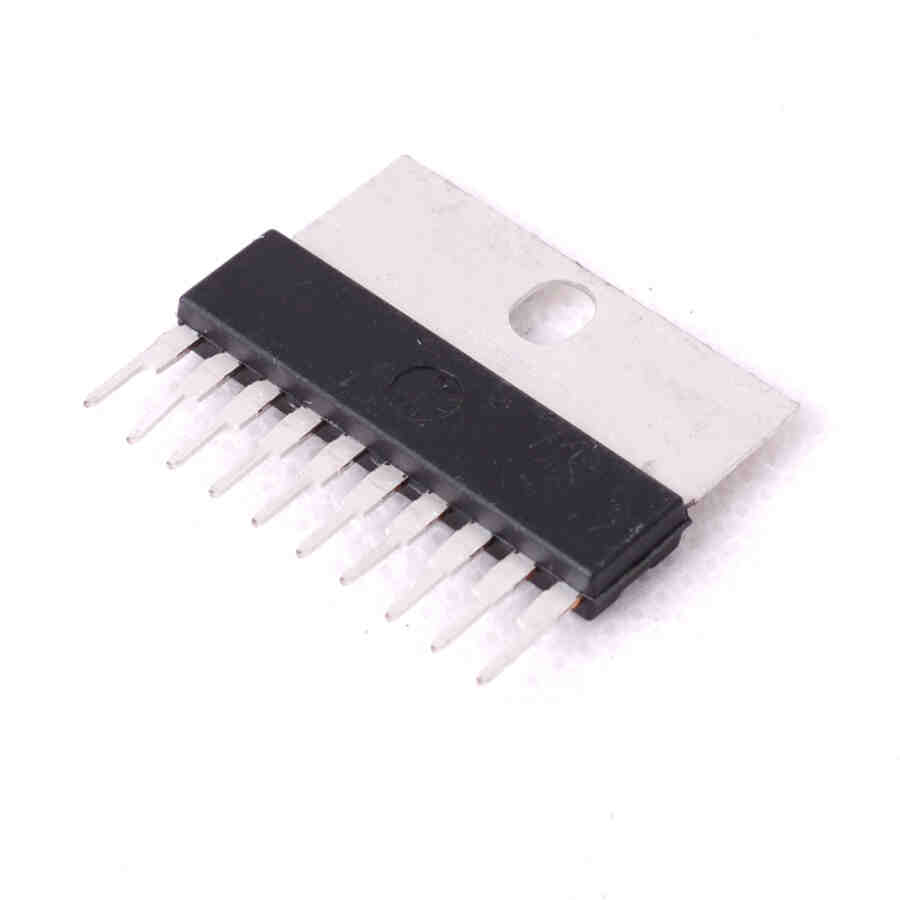

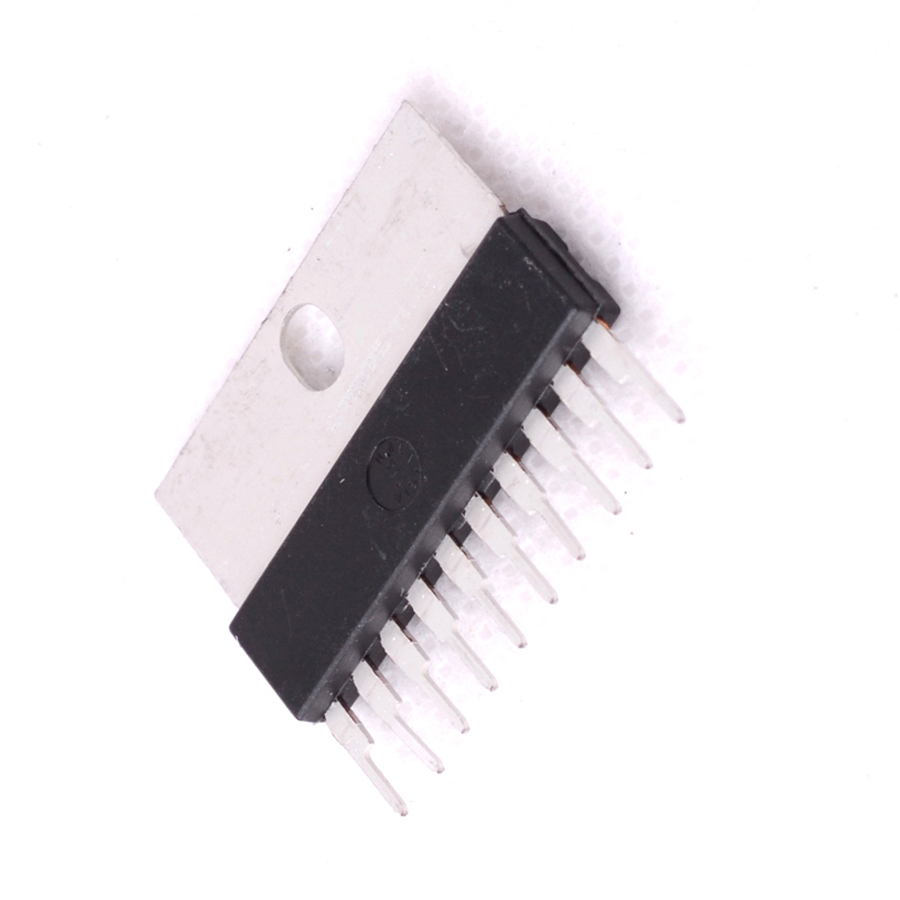

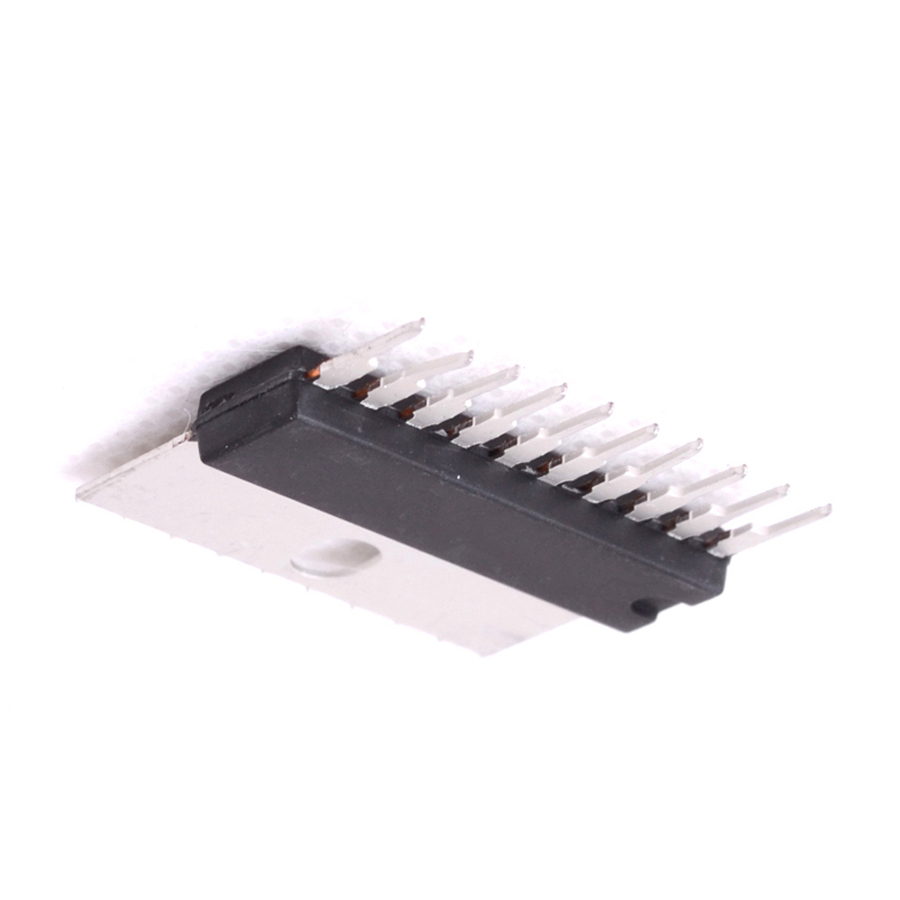

View detailed images (13)

STA460C

SKU: STA460C

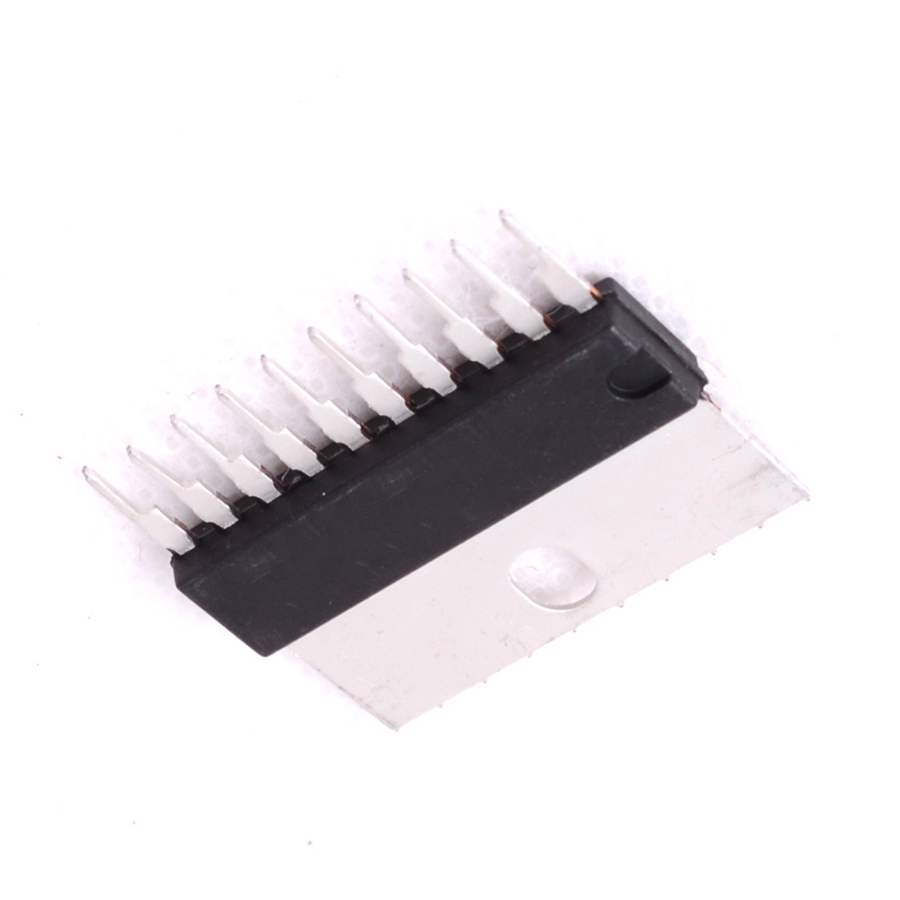

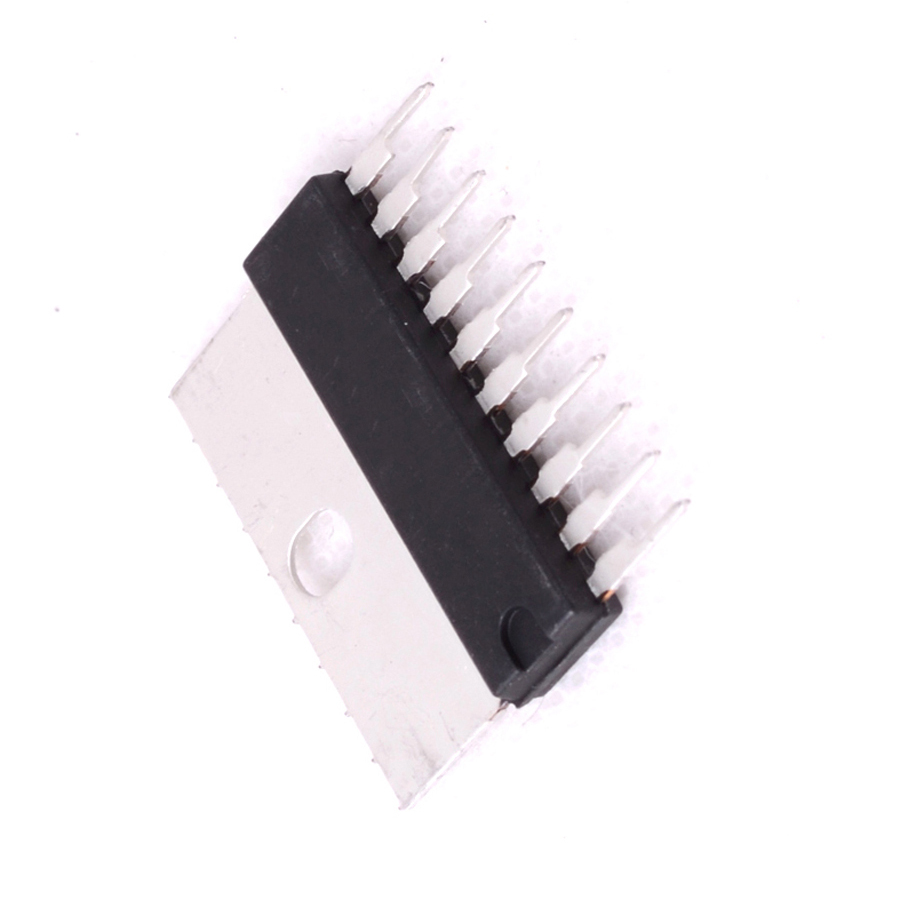

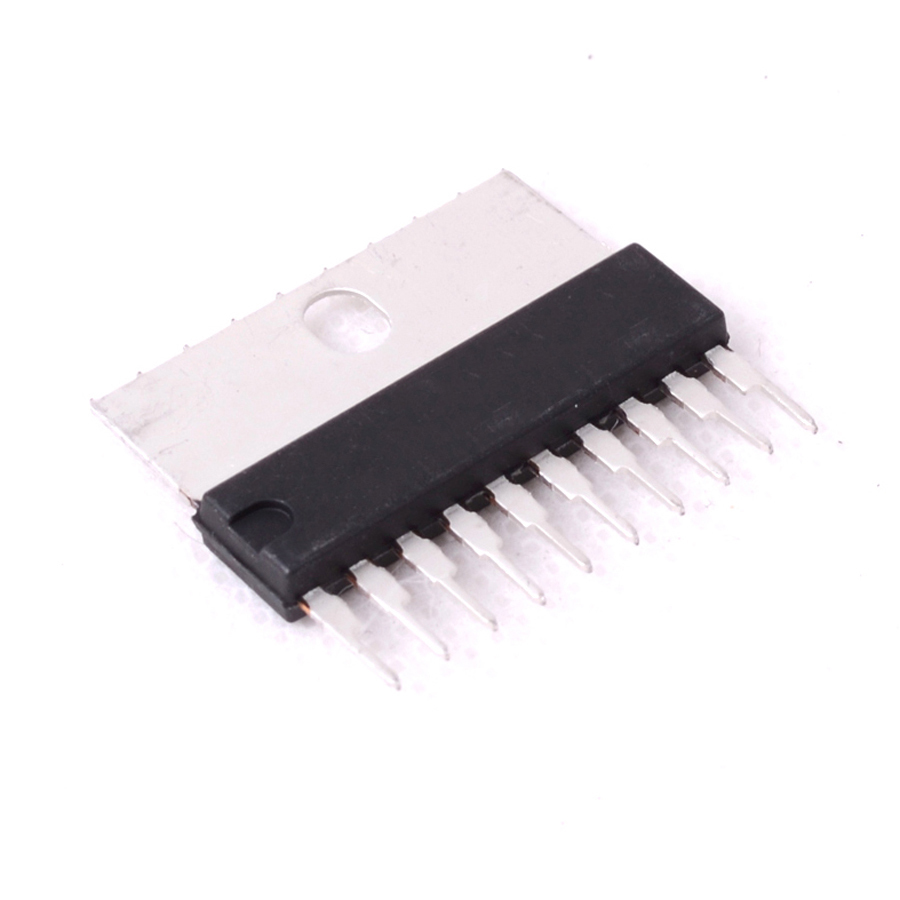

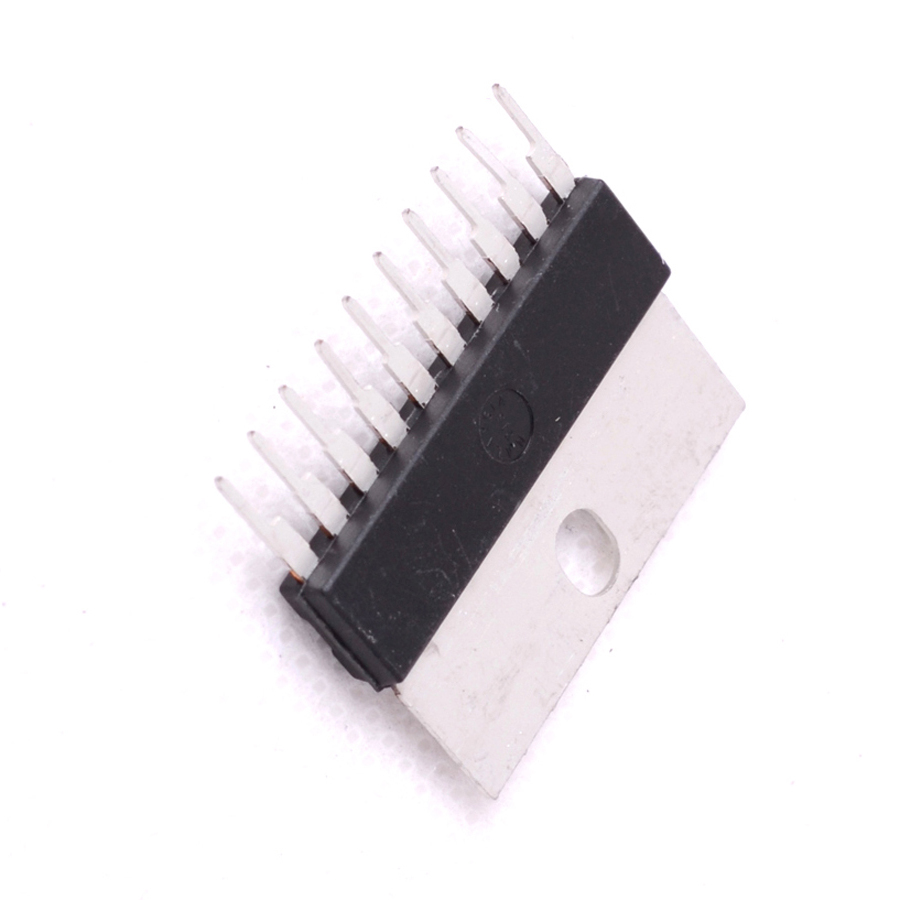

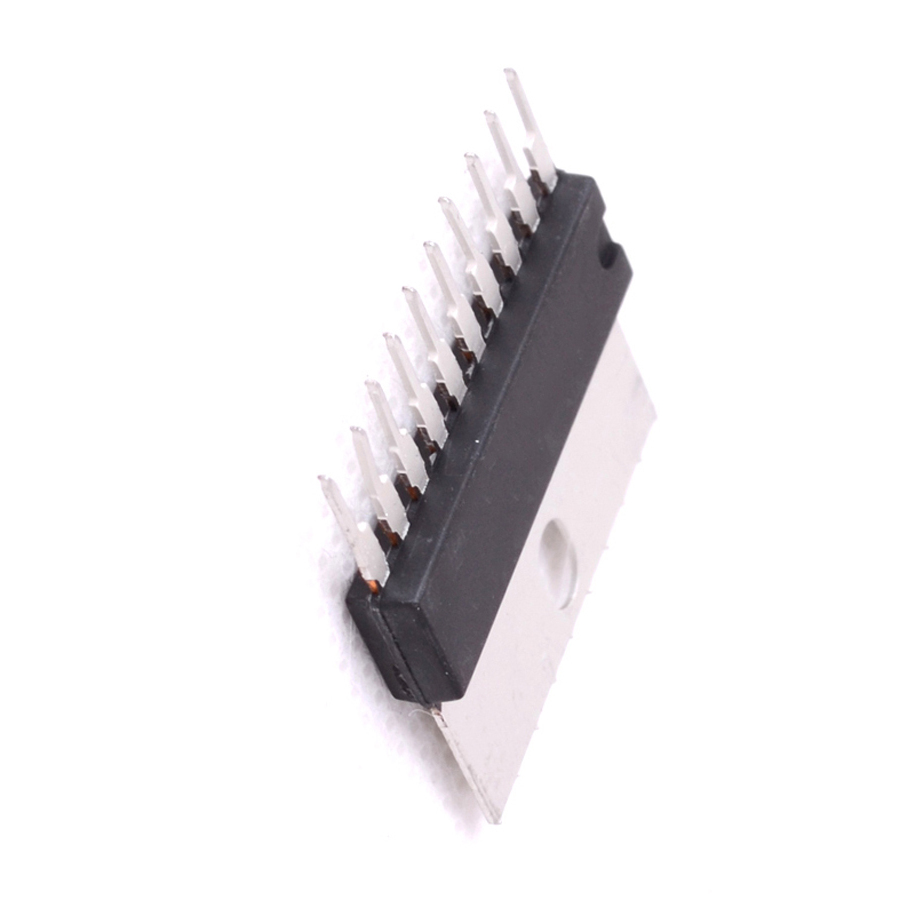

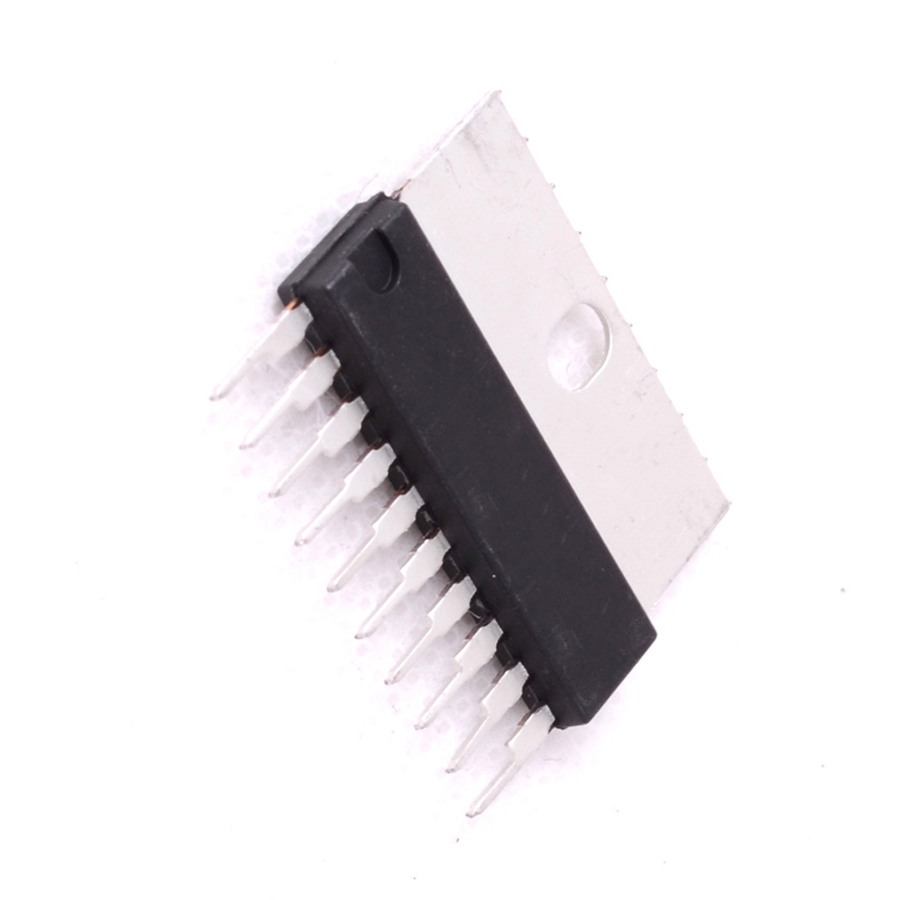

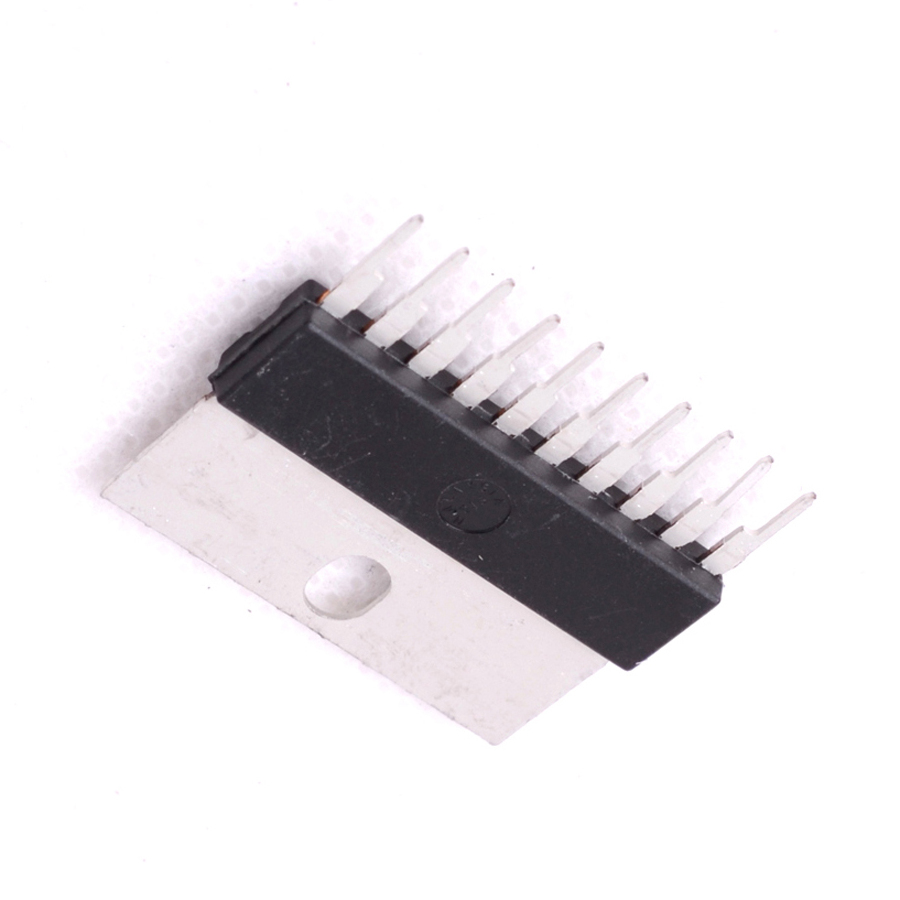

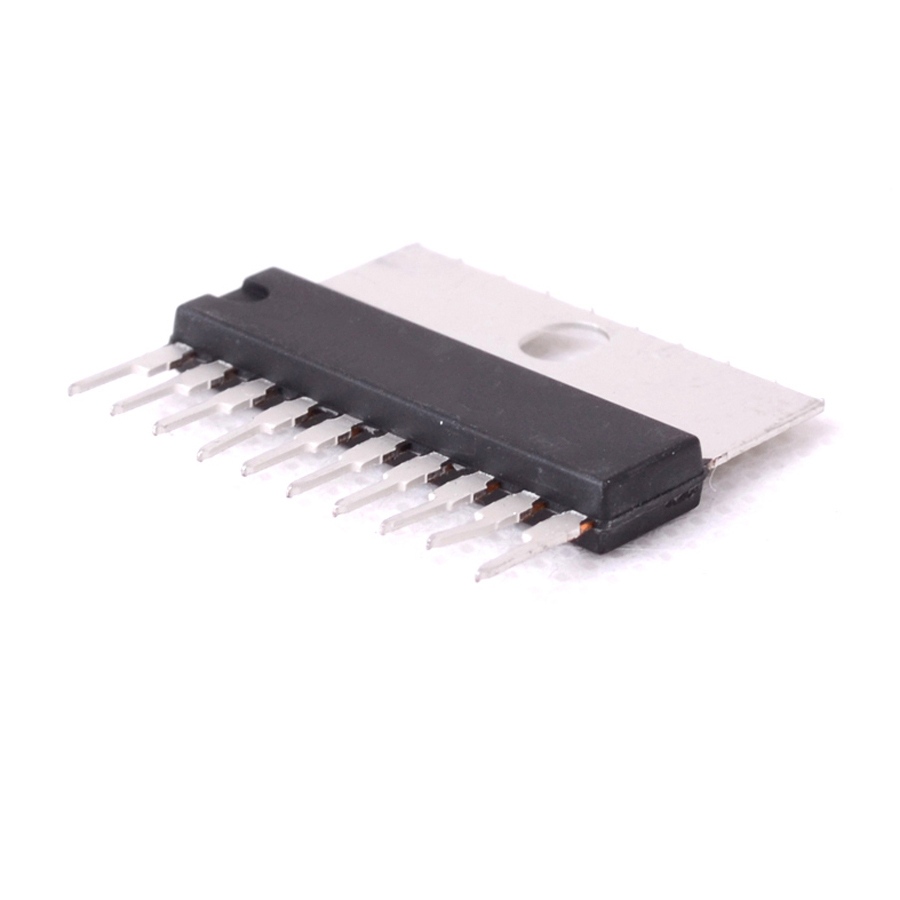

STA460C Transistor Silicon NPN CASE: SIP10 MAKE: Sanken
Datasheet
STA460C Datasheet
Product specifications
Type Transistor Silicon NPN
Case SIP10
Manufacturer Sanken
Min hFE 700
Mat. Silicon Logic
Polarity NPN
PD Max. (W) 3.2
@VCE (test) (V) 1
@Ic (test) 1
Ic Max. 6
Vceo Max. 50
Pinout Equivalence Number 10-73
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 3.2 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 6 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 700
SKU 304202
