STA471A
View detailed images (13)

STA471A

SKU: STA471A

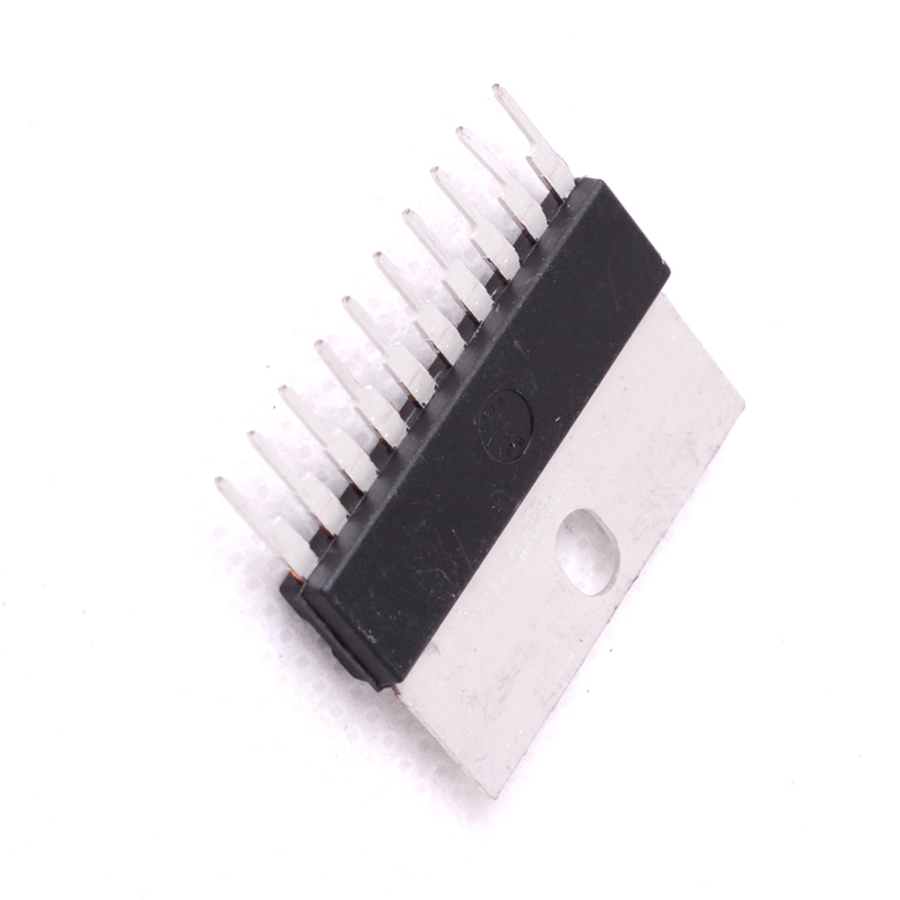

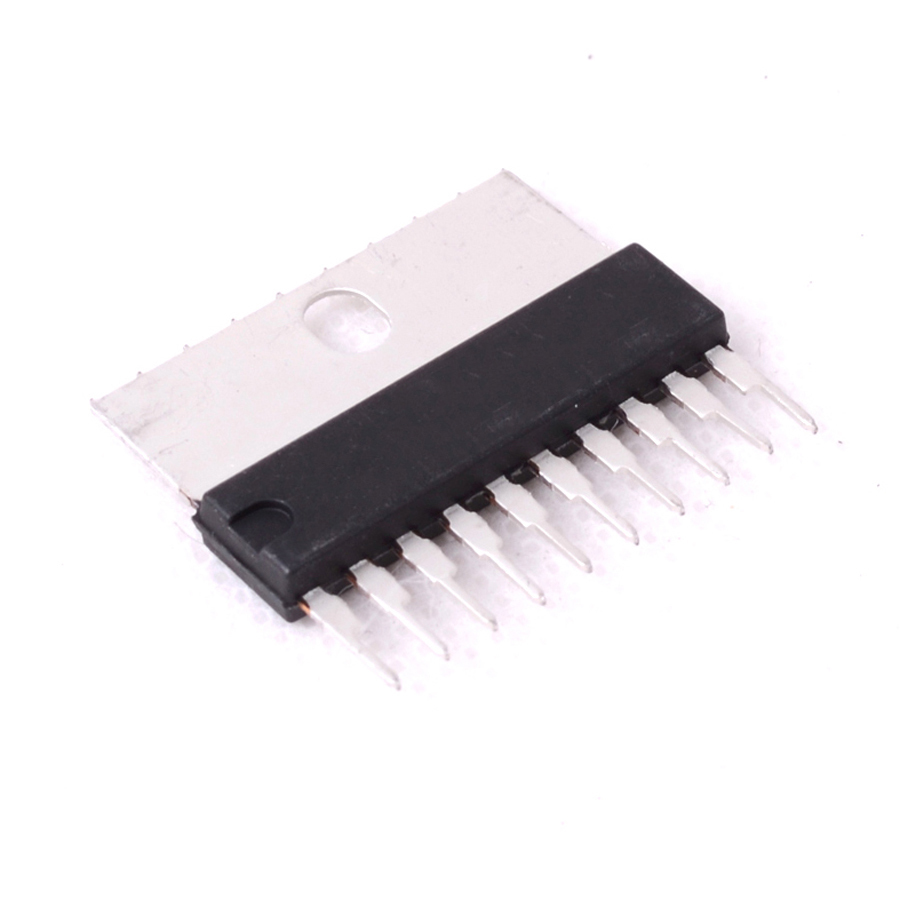

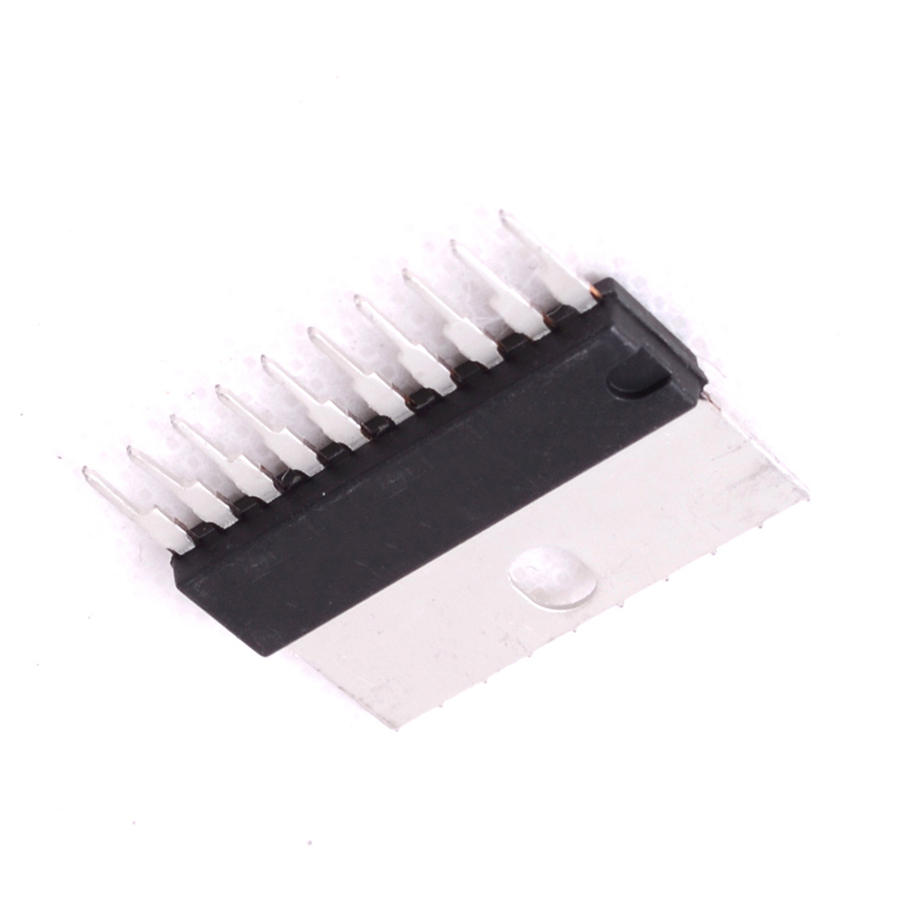

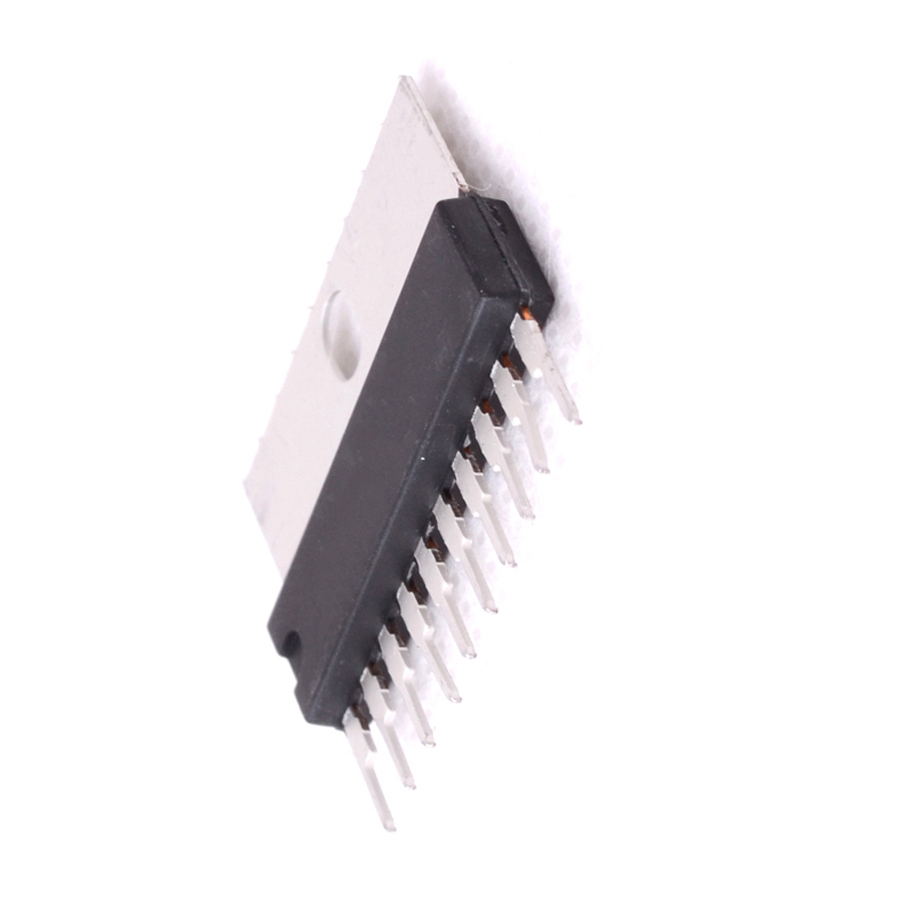

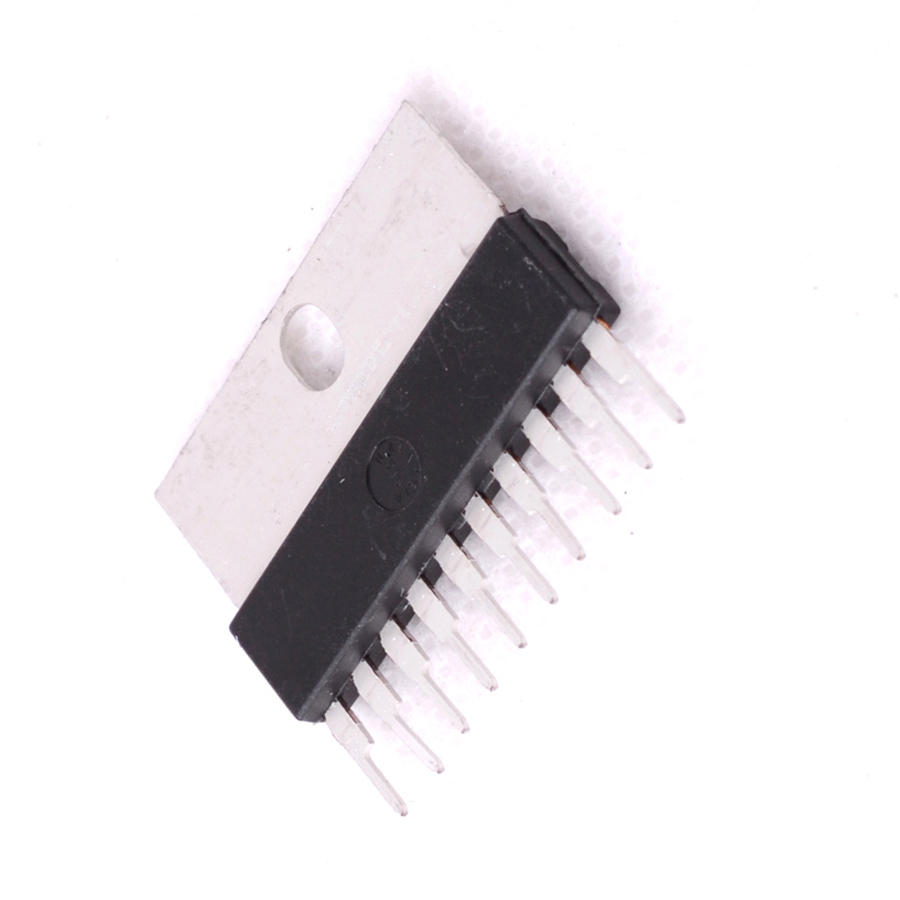

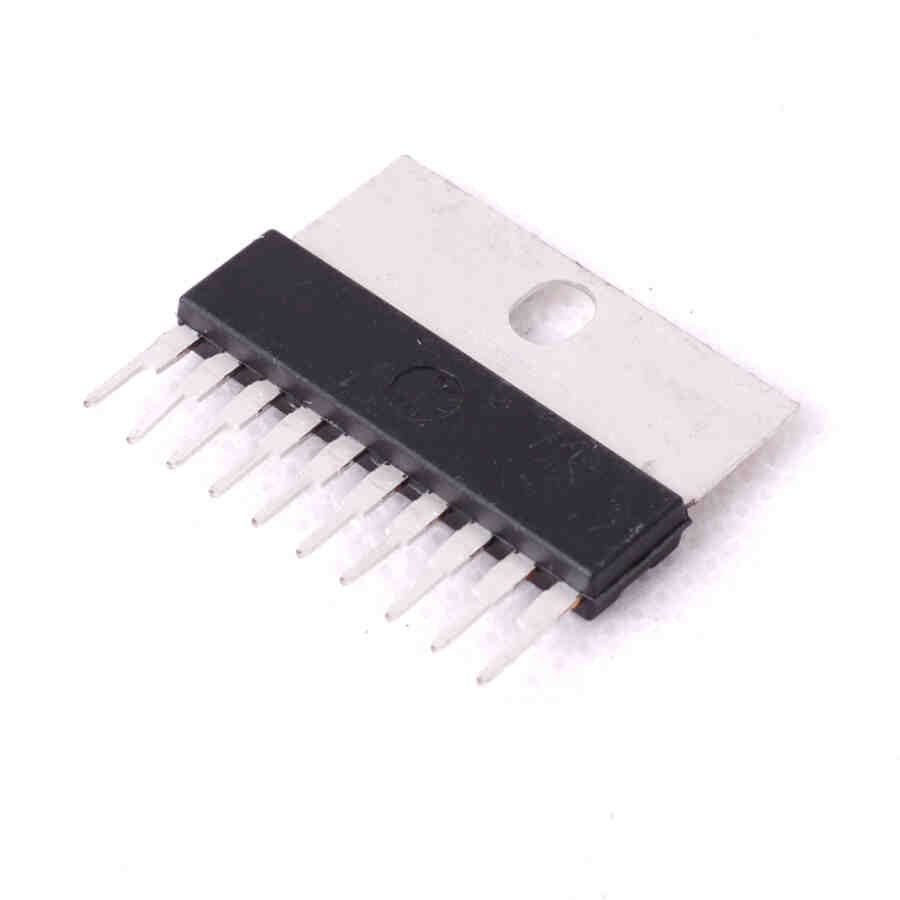

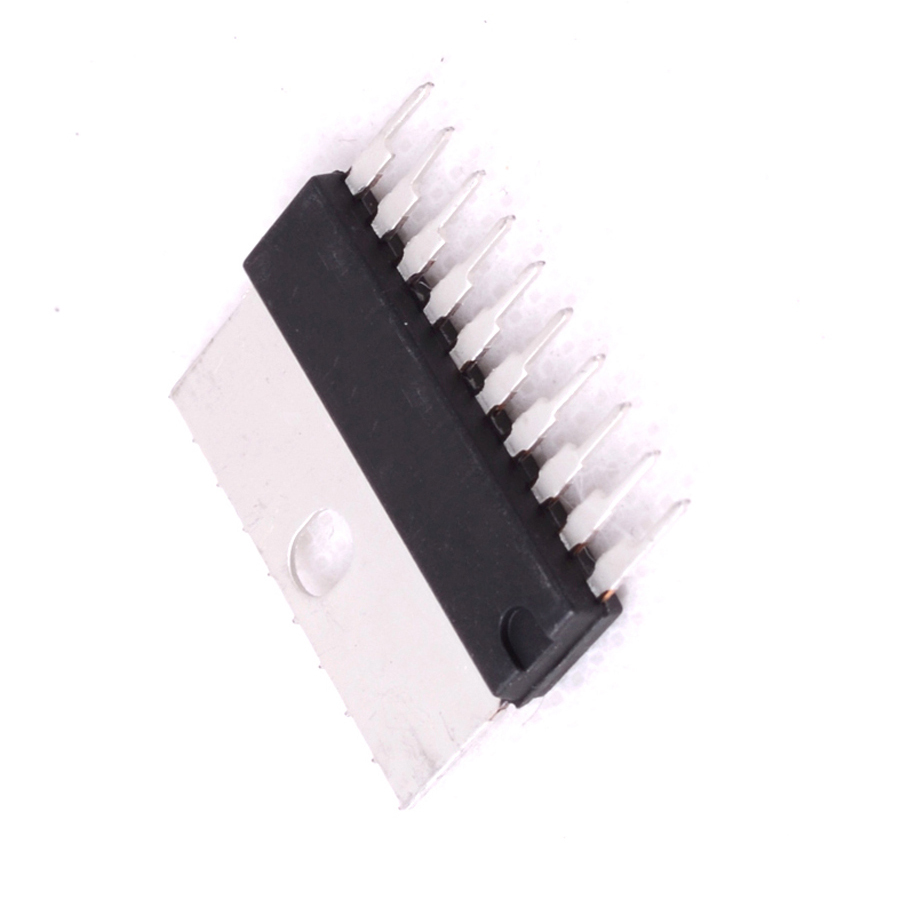

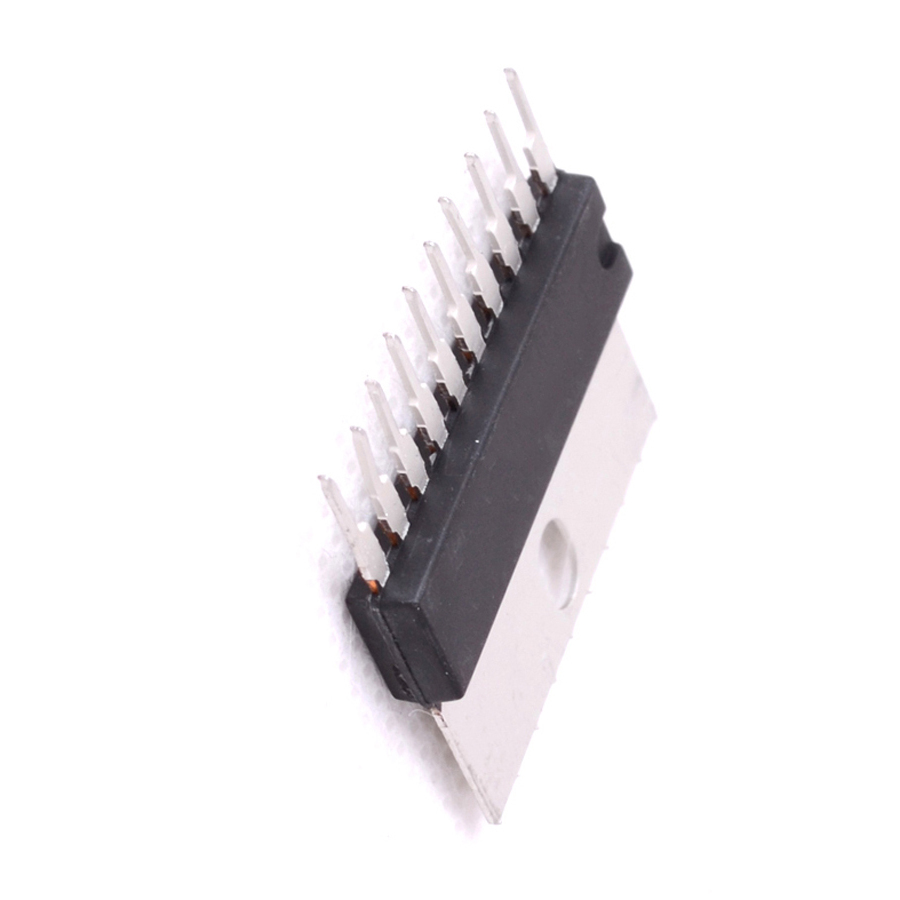

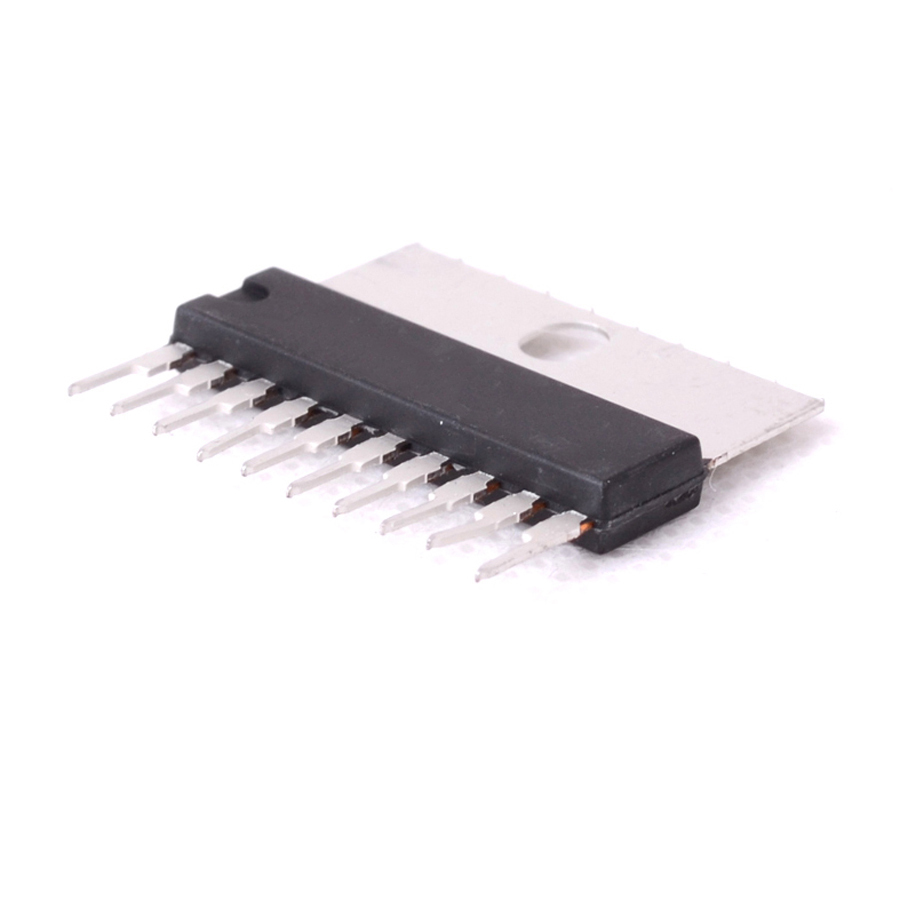

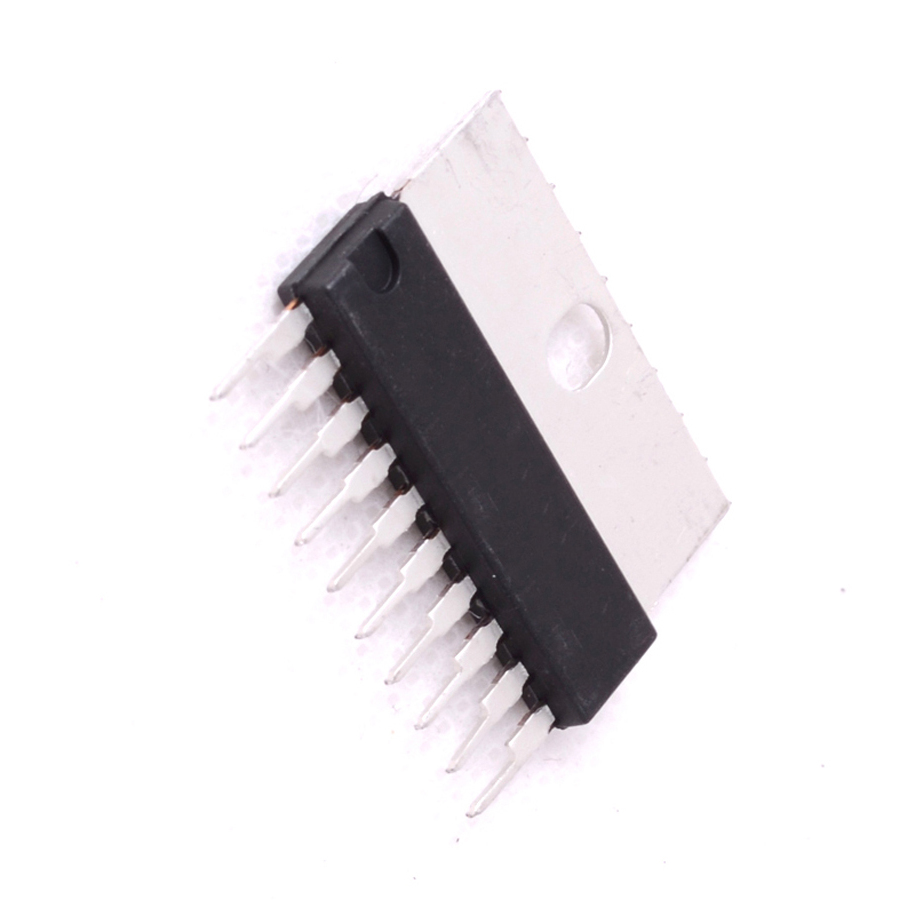

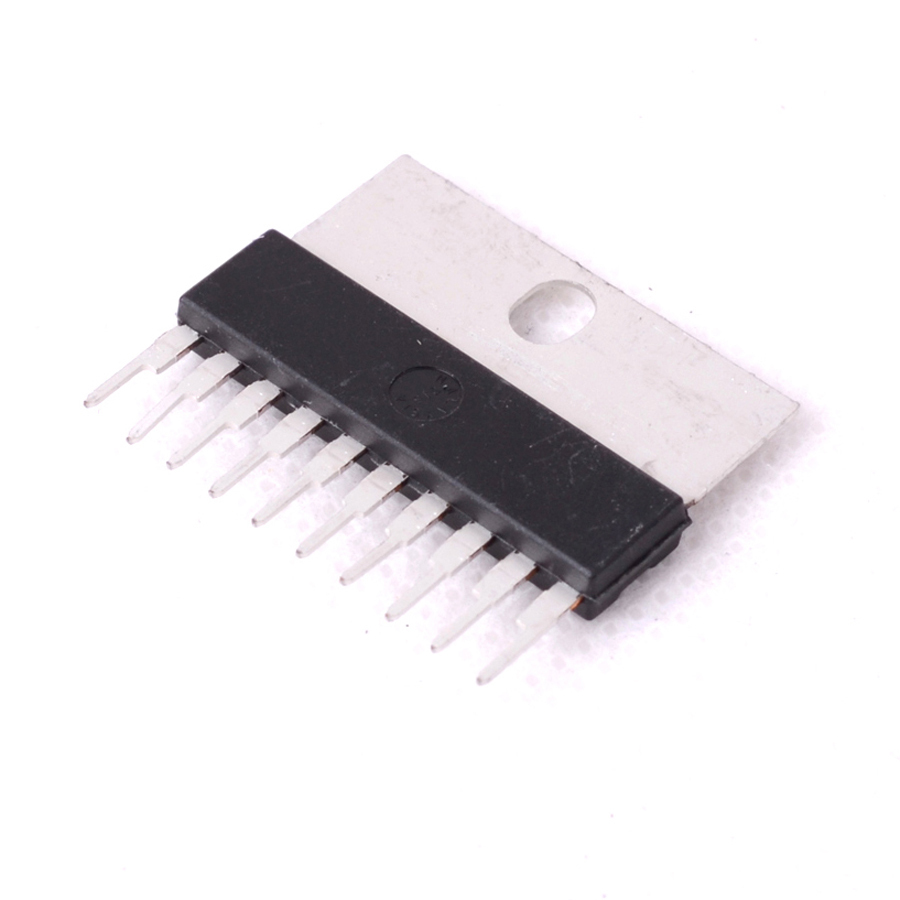

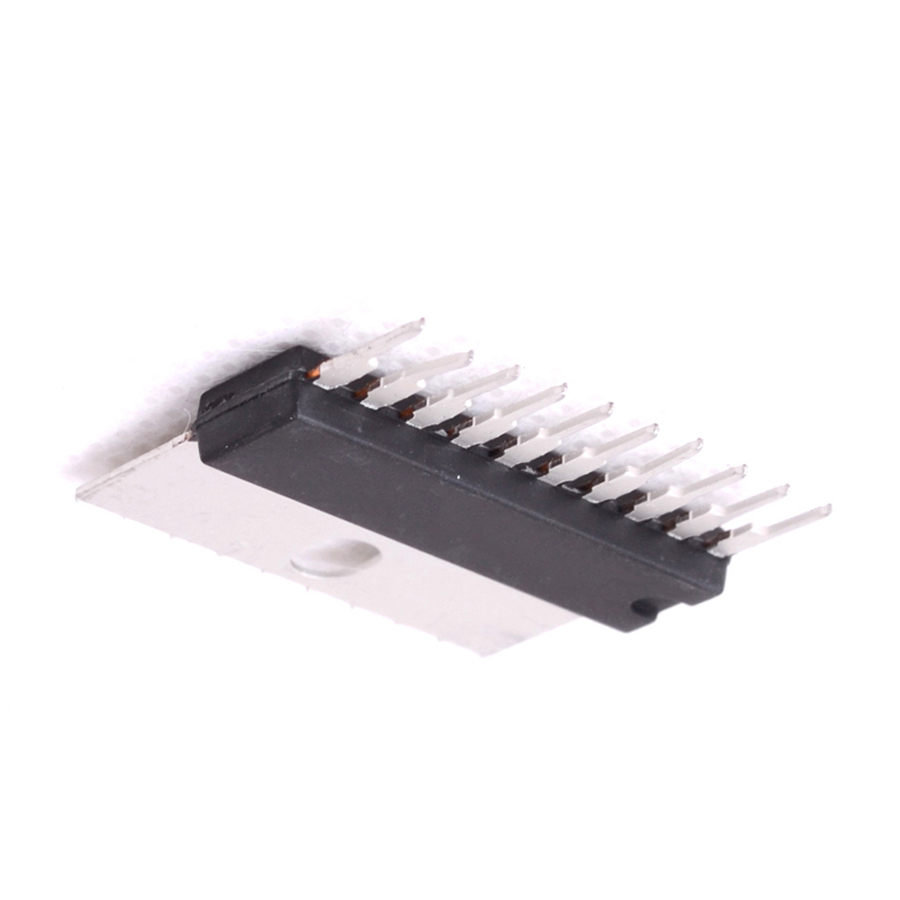

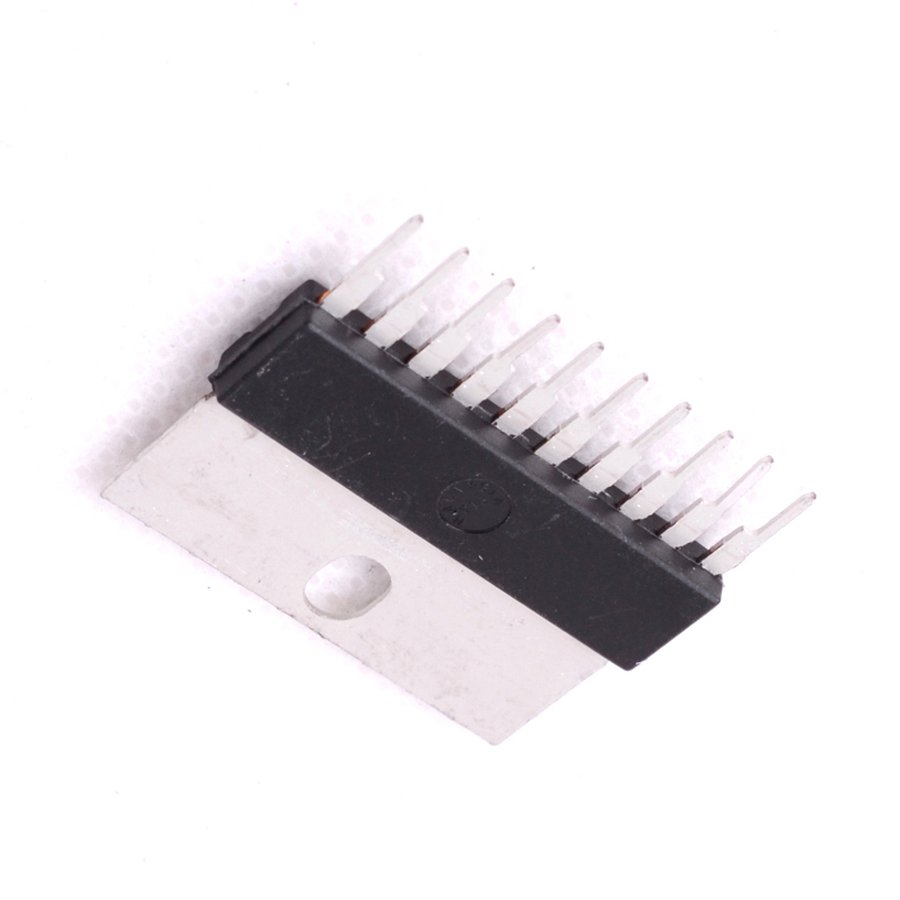

STA471A Transistor Silicon NPN CASE: SIP10 MAKE: Sanken
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 10 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
STA471A Datasheet
Product specifications
Type Transistor Silicon NPN
Case SIP10
Manufacturer Sanken
fT Min (Hz) 50M-
Min hFE 2k
Mat. Silicon Logic
Polarity NPN
PD Max. (W) 4
@VCE (test) (V) 4
@Ic (test) 1
Ic Max. 2
Vceo Max. 50
Pinout Equivalence Number 10-13
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 4 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 25 pF
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 80532
