STA472A
View detailed images (13)

STA472A

SKU: STA472A

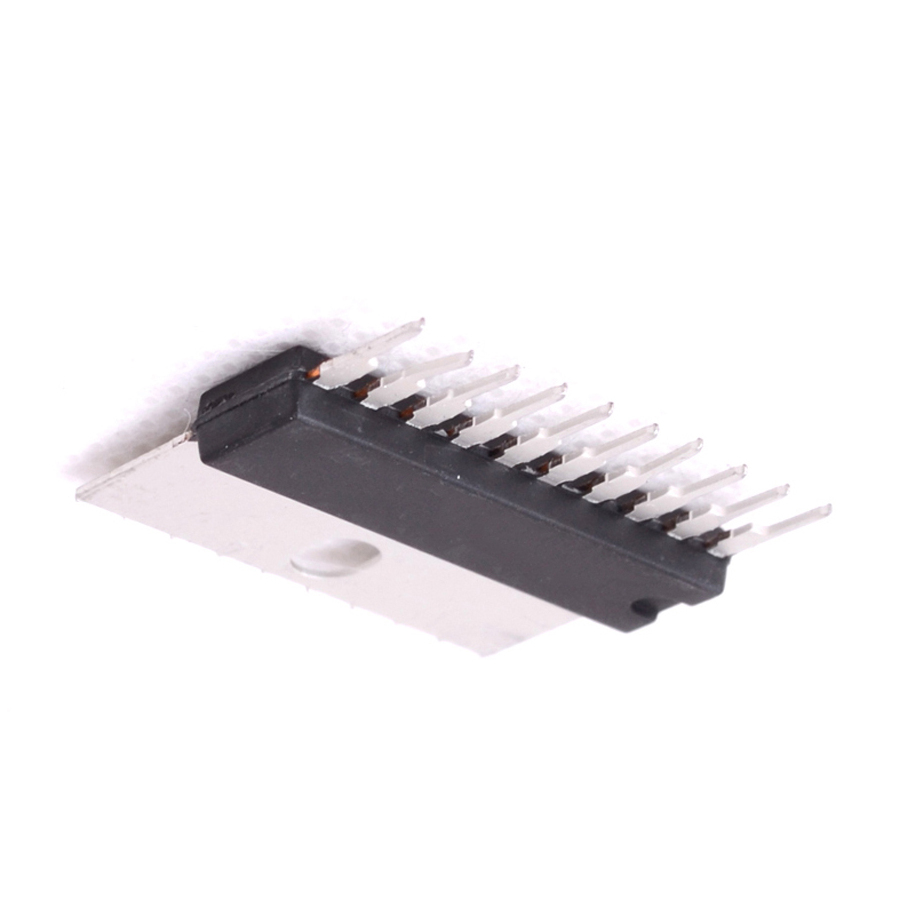

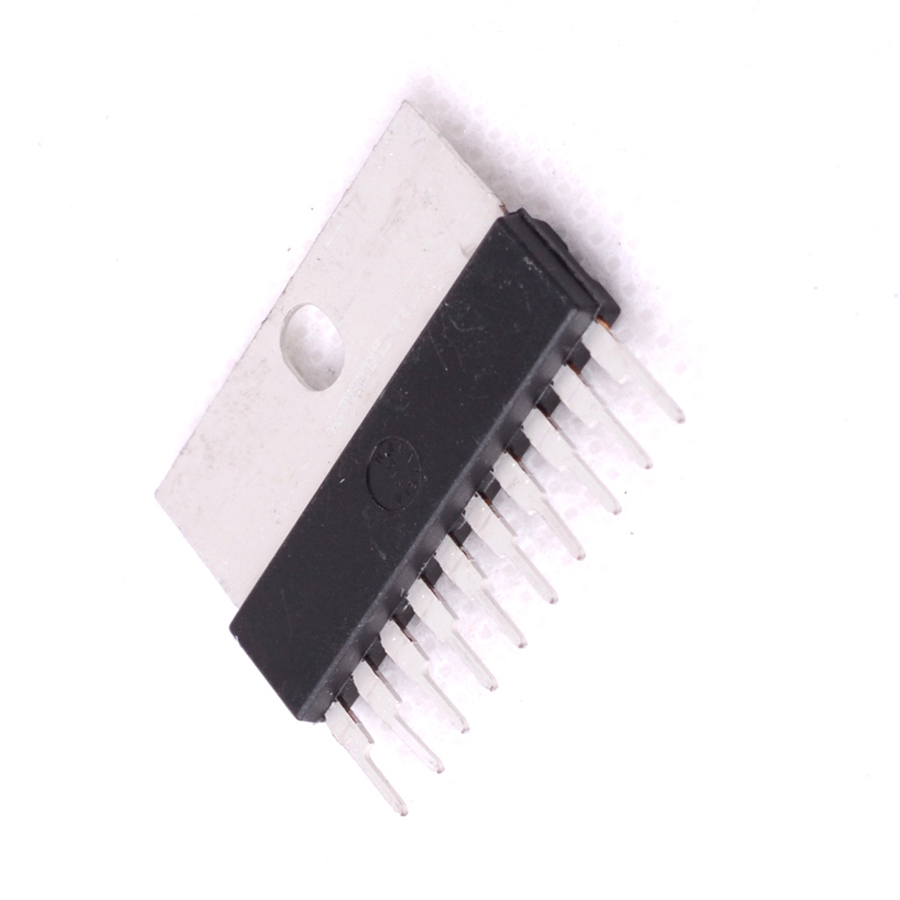

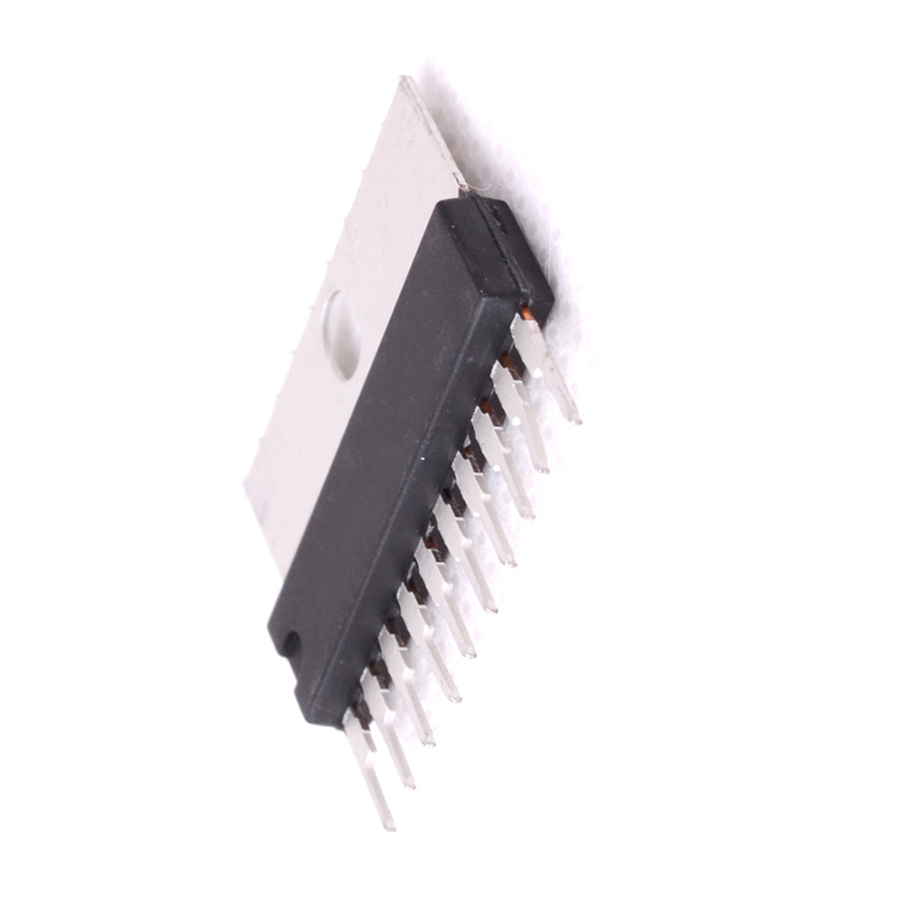

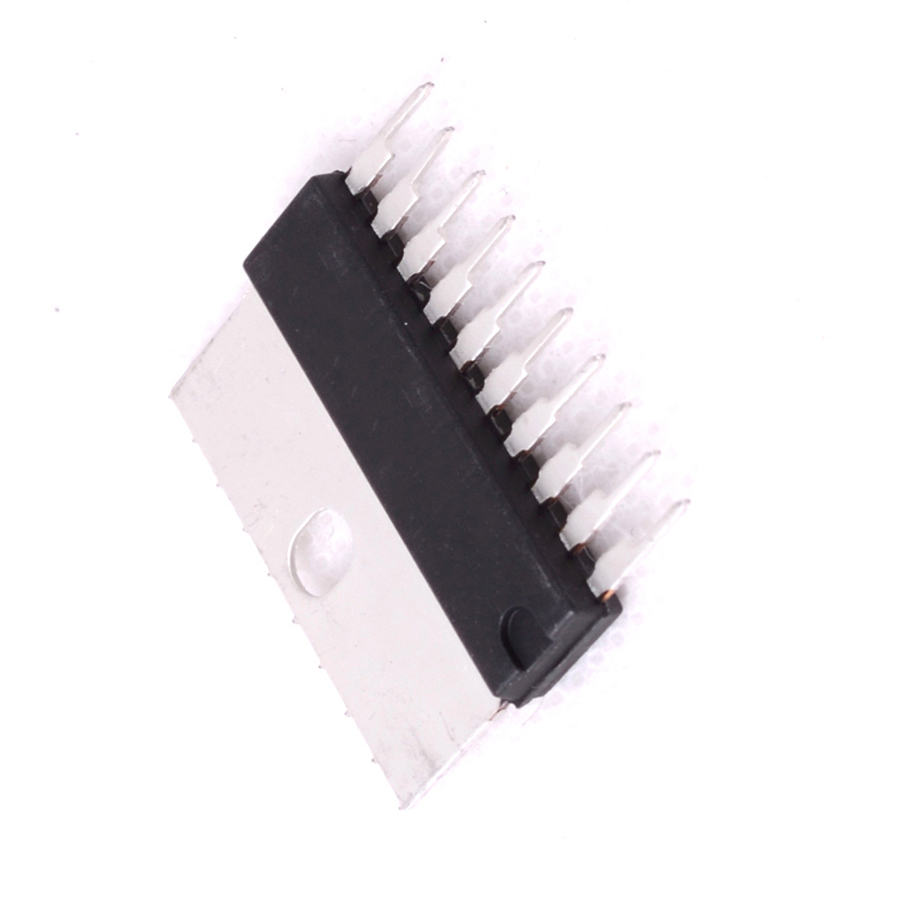

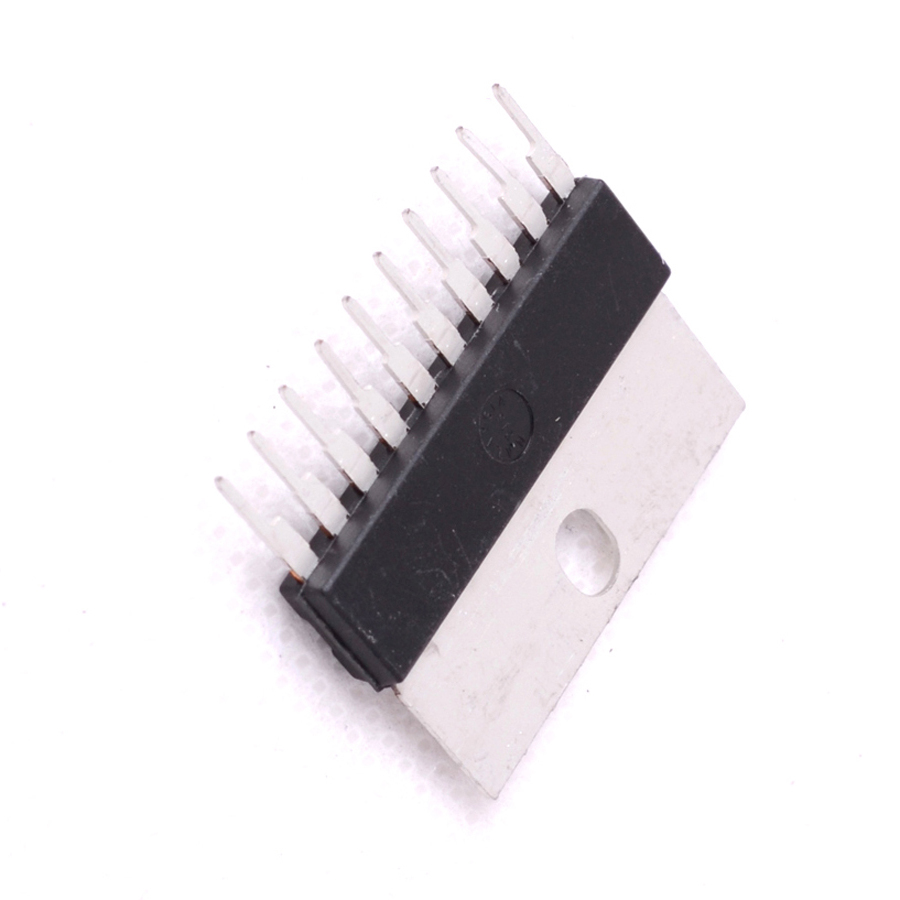

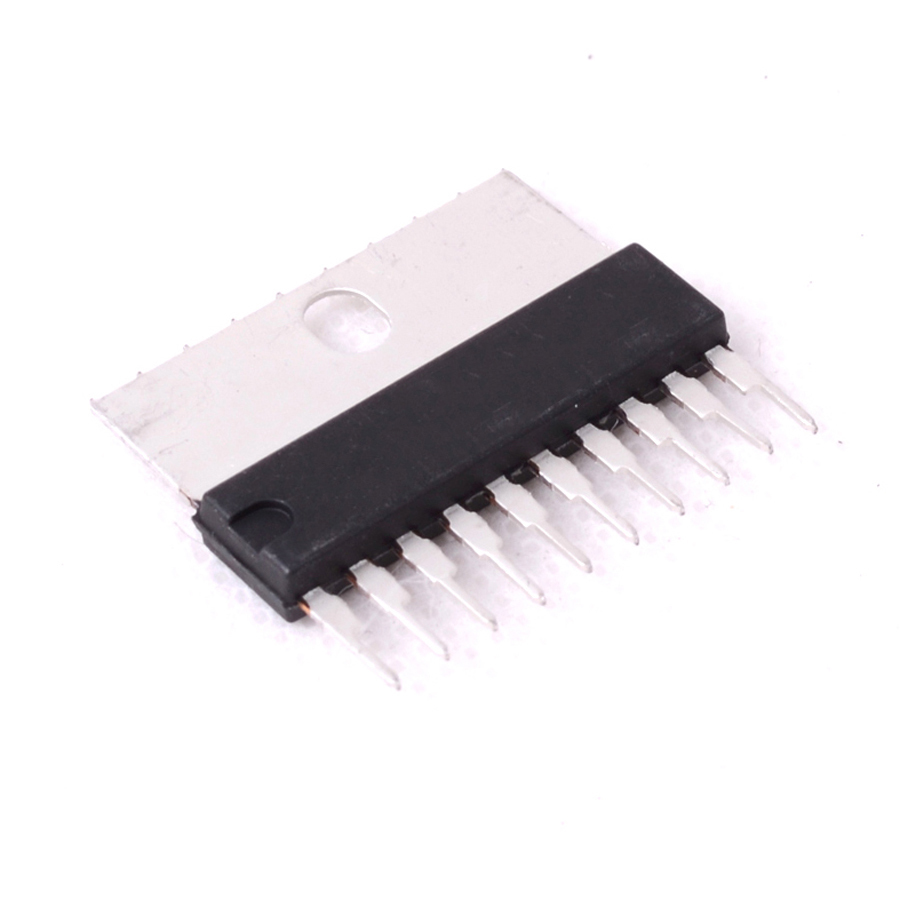

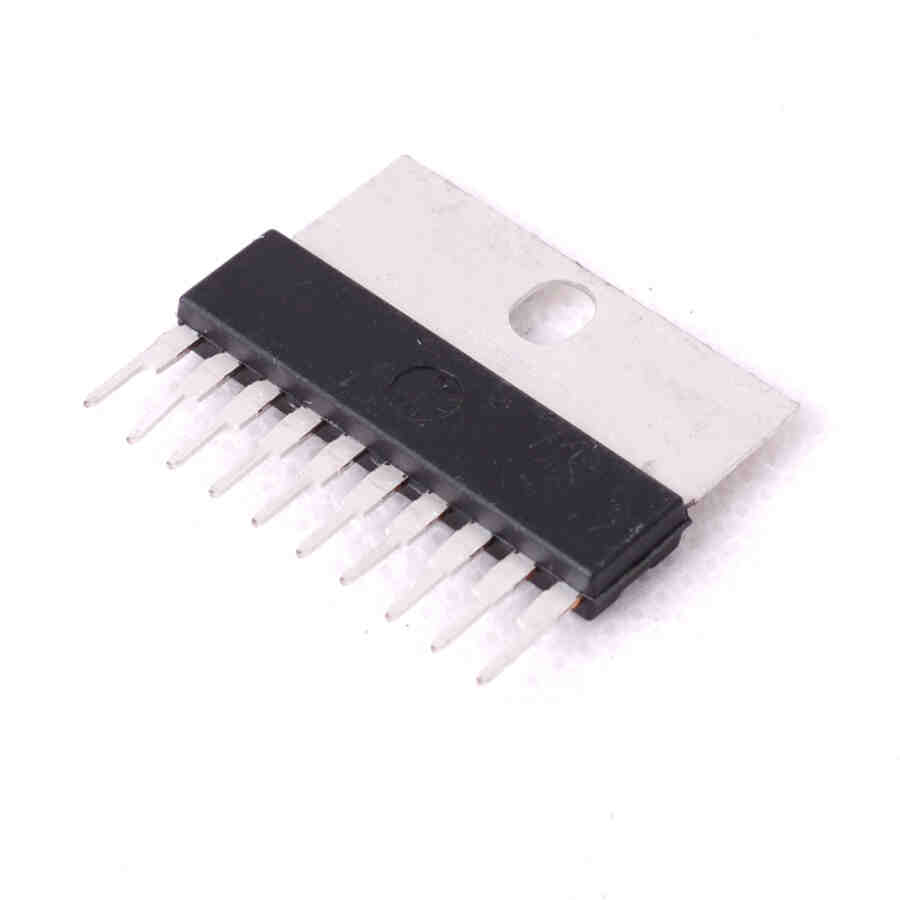

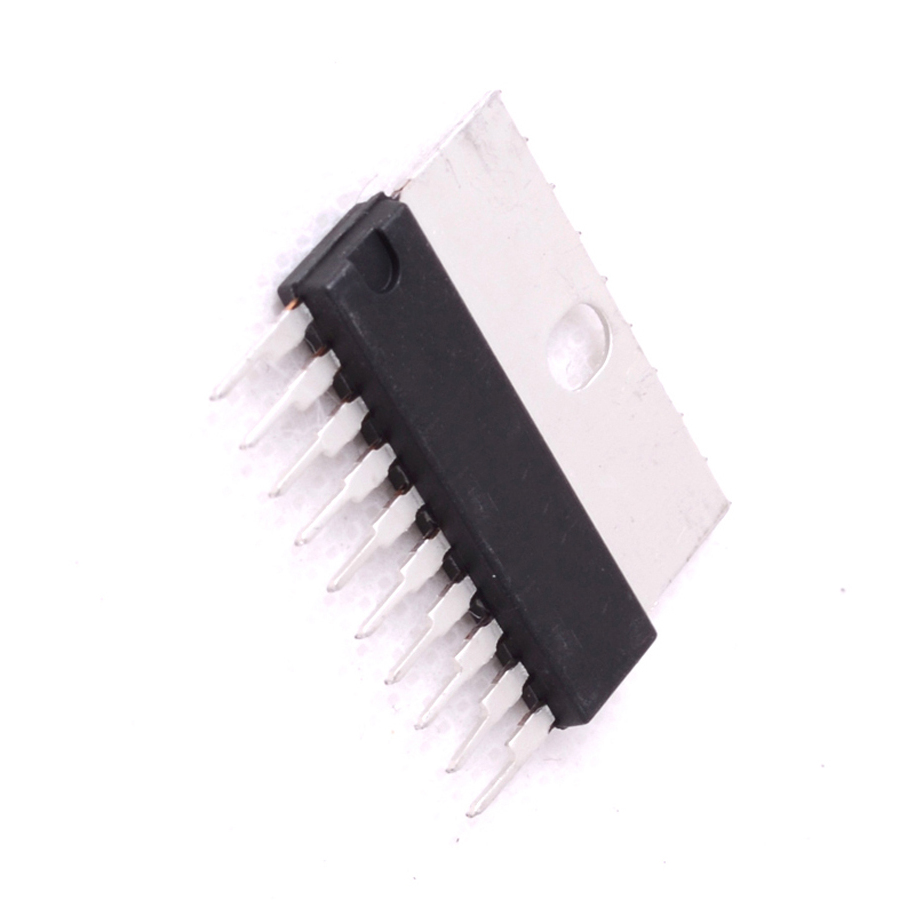

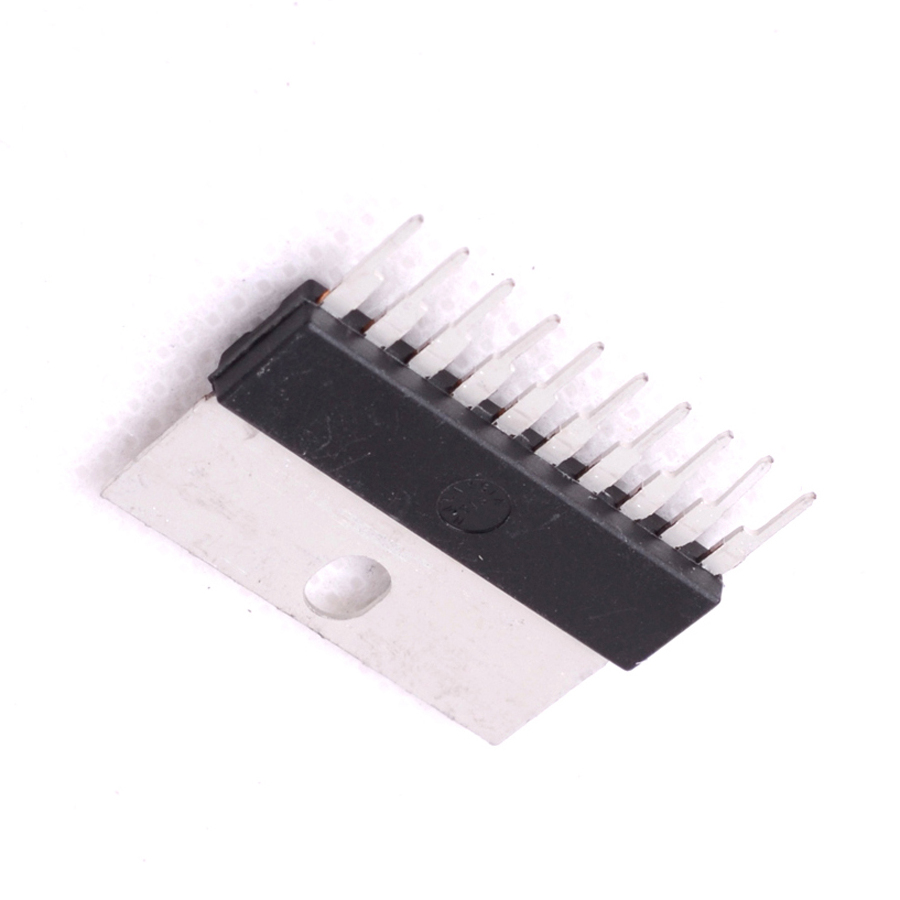

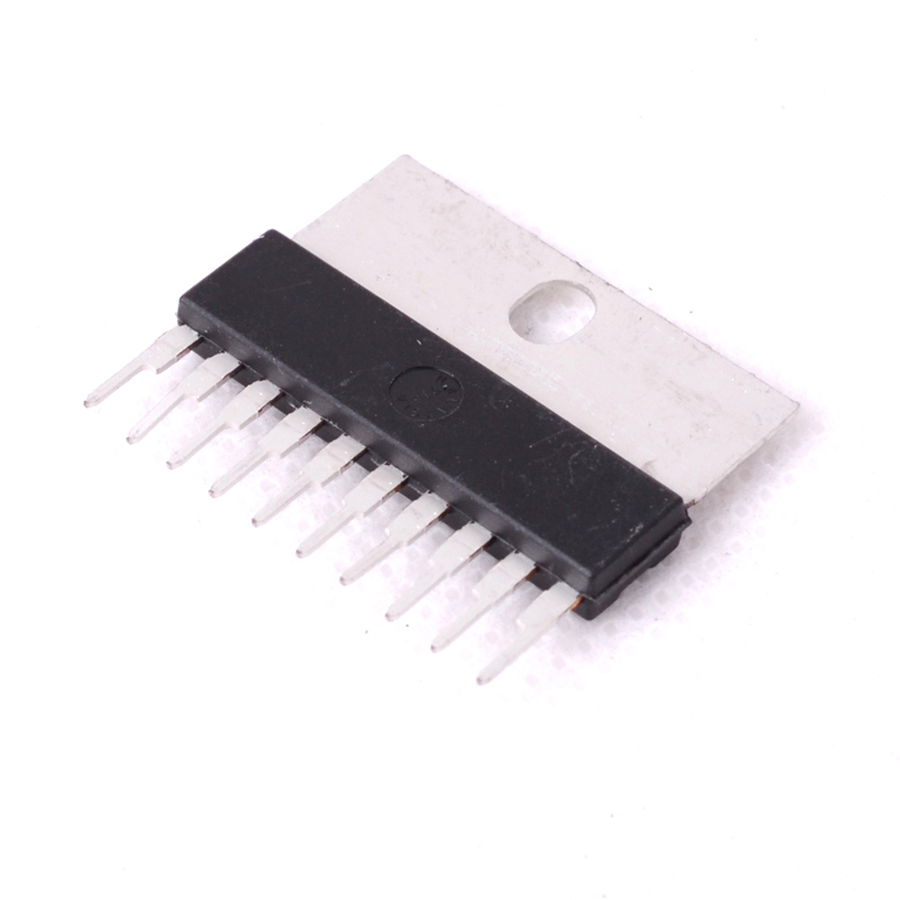

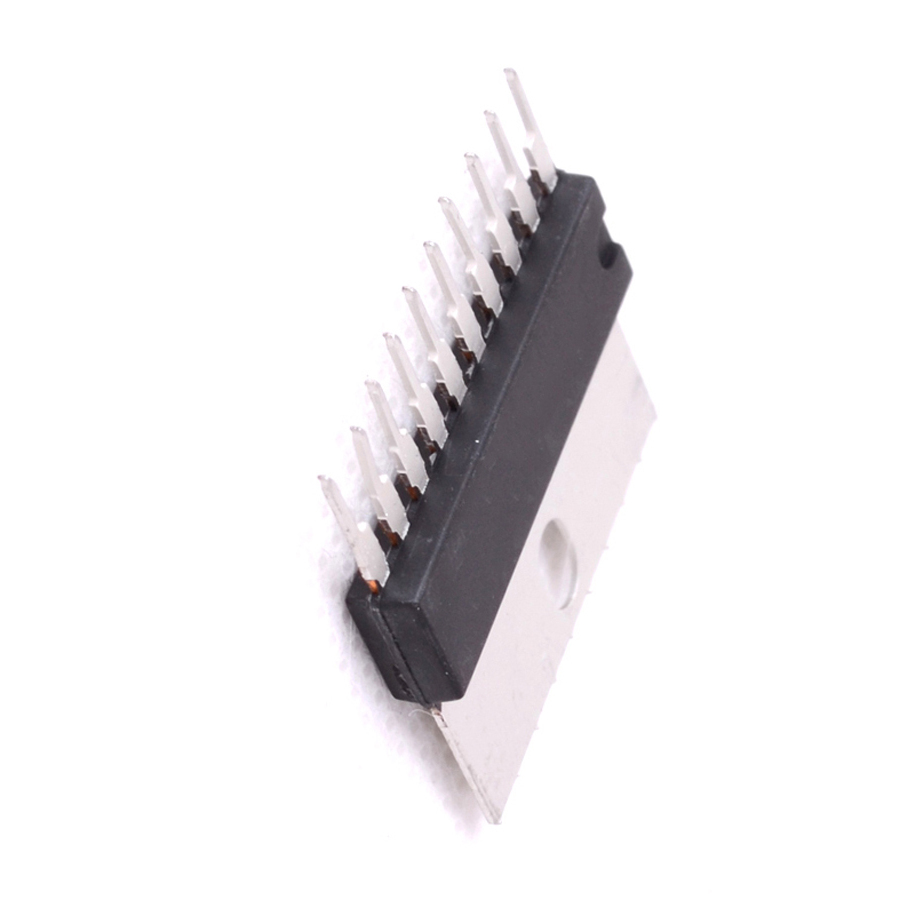

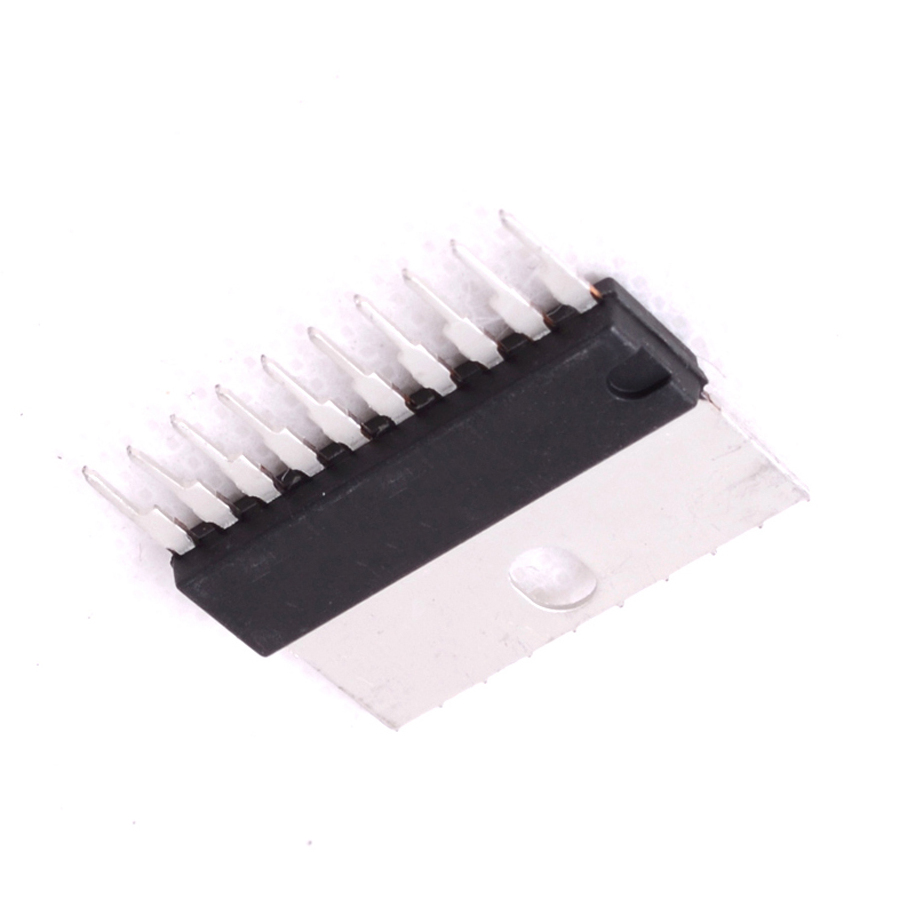

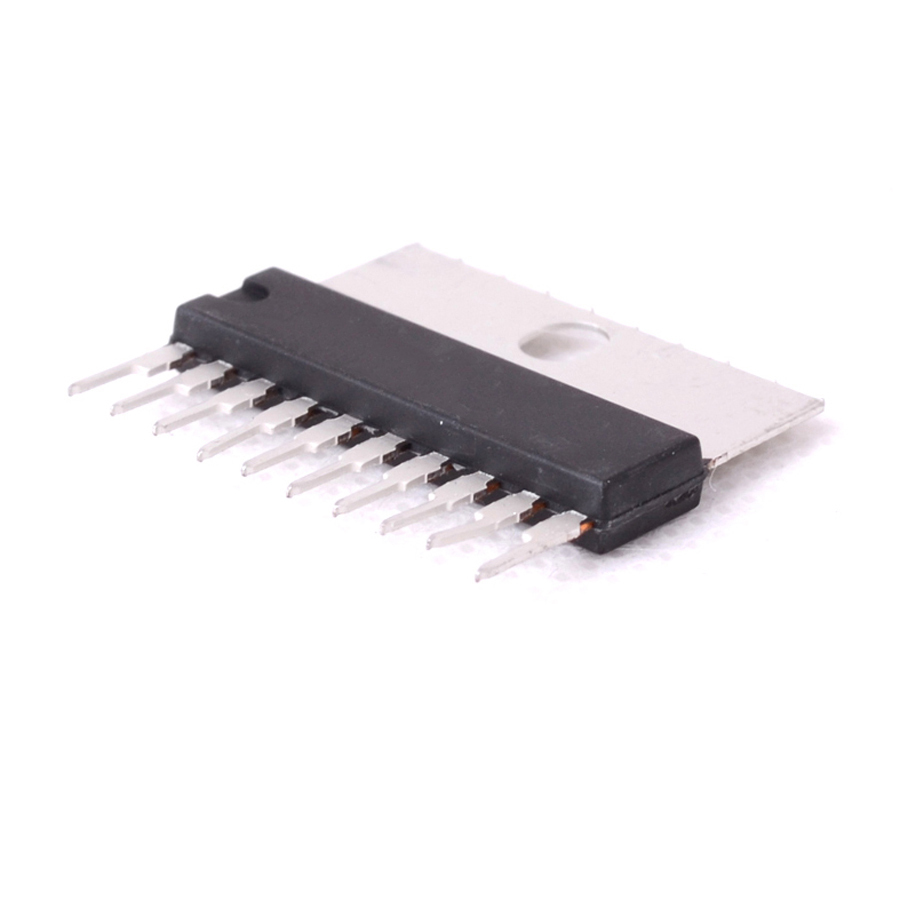

STA472A Transistor Silicon PNP CASE: SIP10 MAKE: Sanken
Datasheet
STA472A Datasheet
Product specifications
Type Transistor Silicon PNP
Case SIP10
Manufacturer Sanken
fT Min (Hz) 100M-
Min hFE 2k
Mat. Silicon Logic
Polarity PNP
PD Max. (W) 4
@VCE (test) (V) 4
@Ic (test) 1
Ic Max. 2
Vceo Max. 60
Pinout Equivalence Number 10-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 4 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 30 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 304209
