STC03DE170HP
View detailed images (4)

STC03DE170HP

SKU: STC03DE170HP

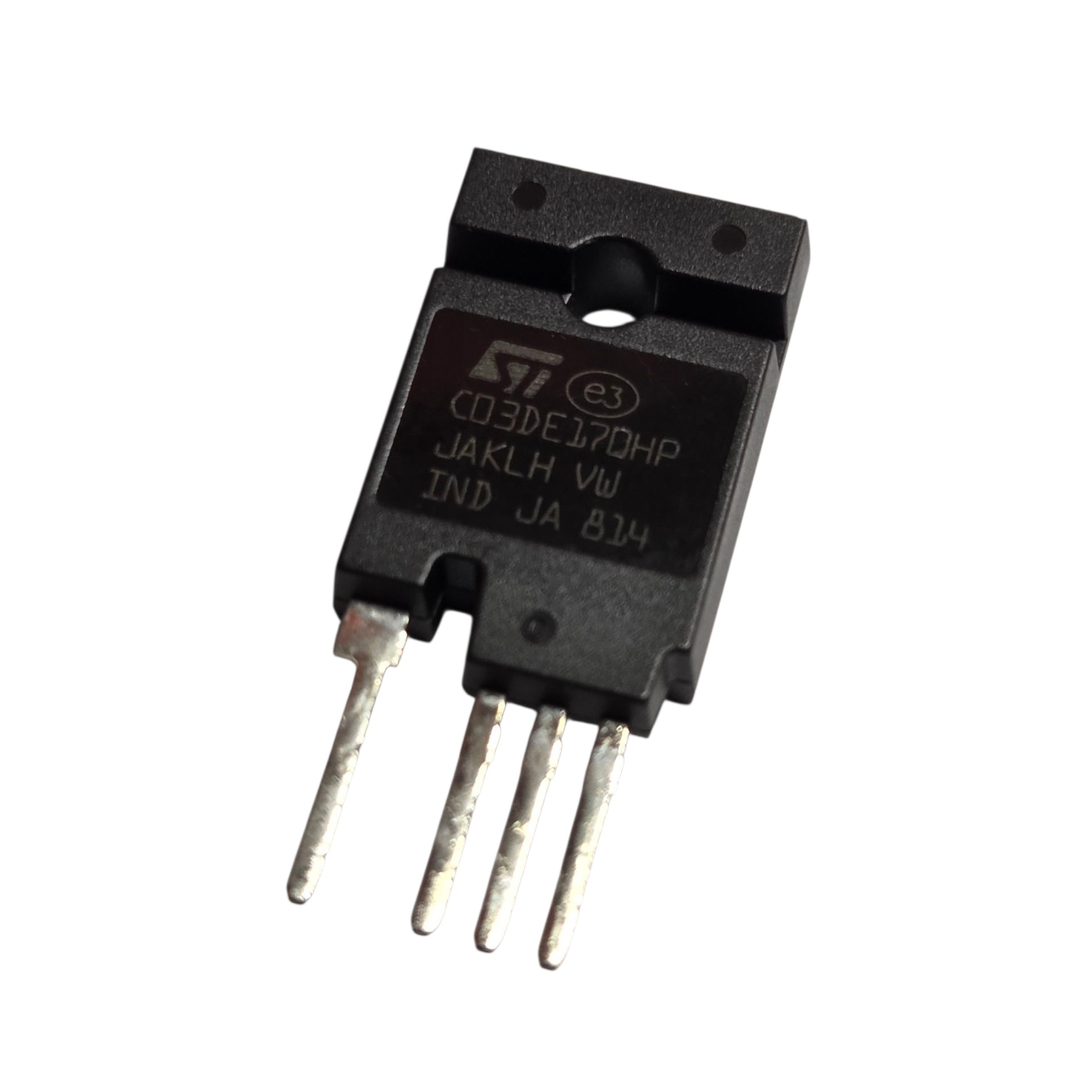

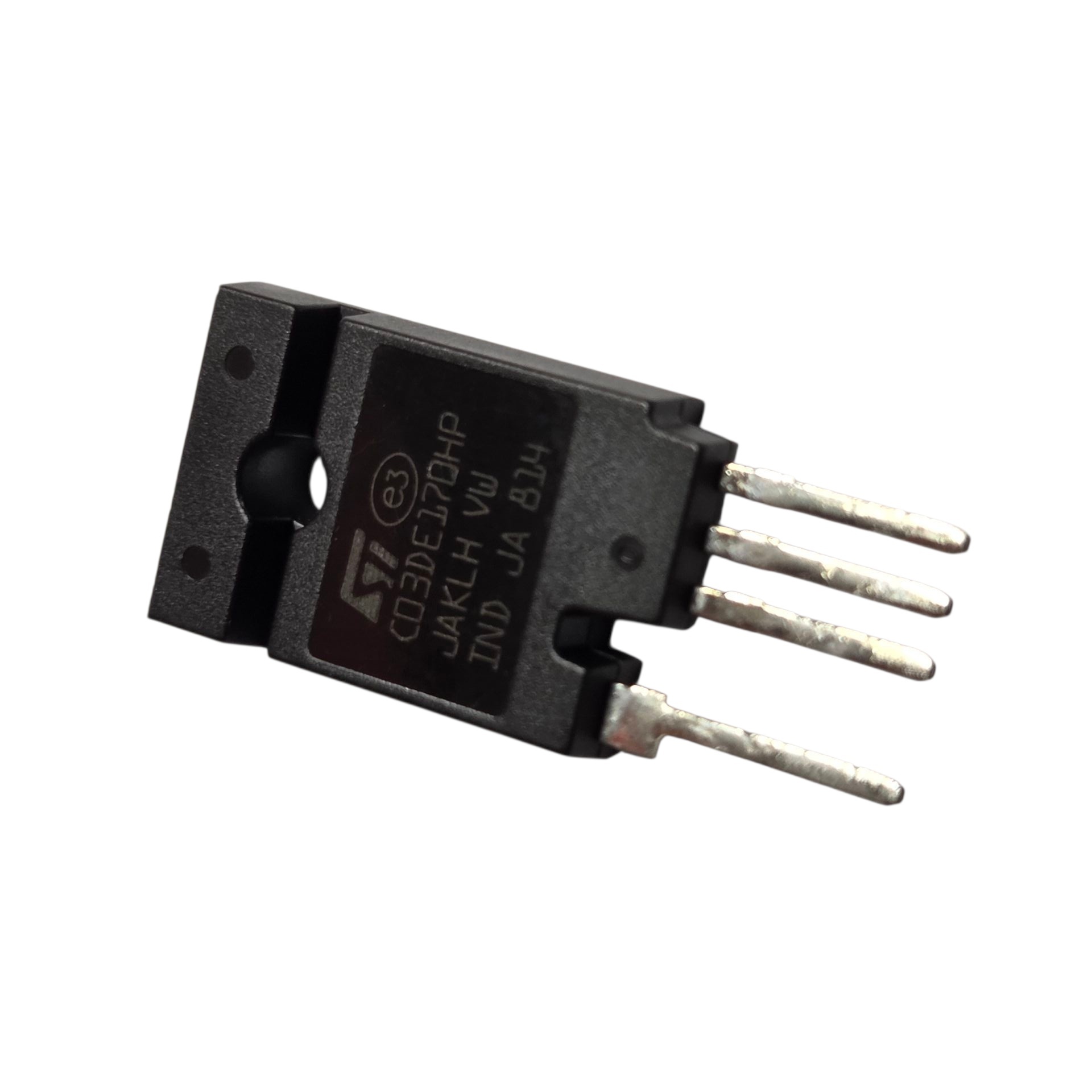

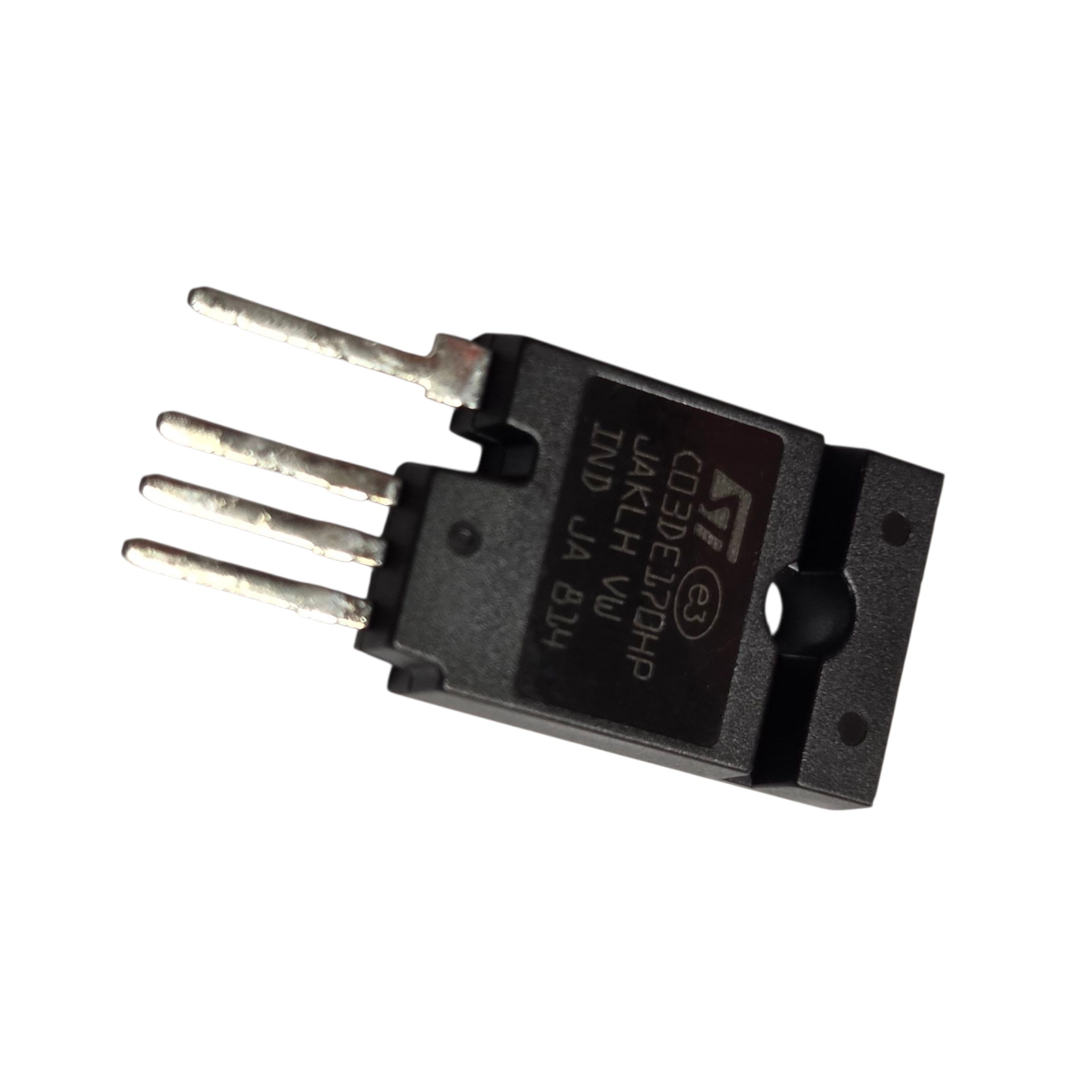

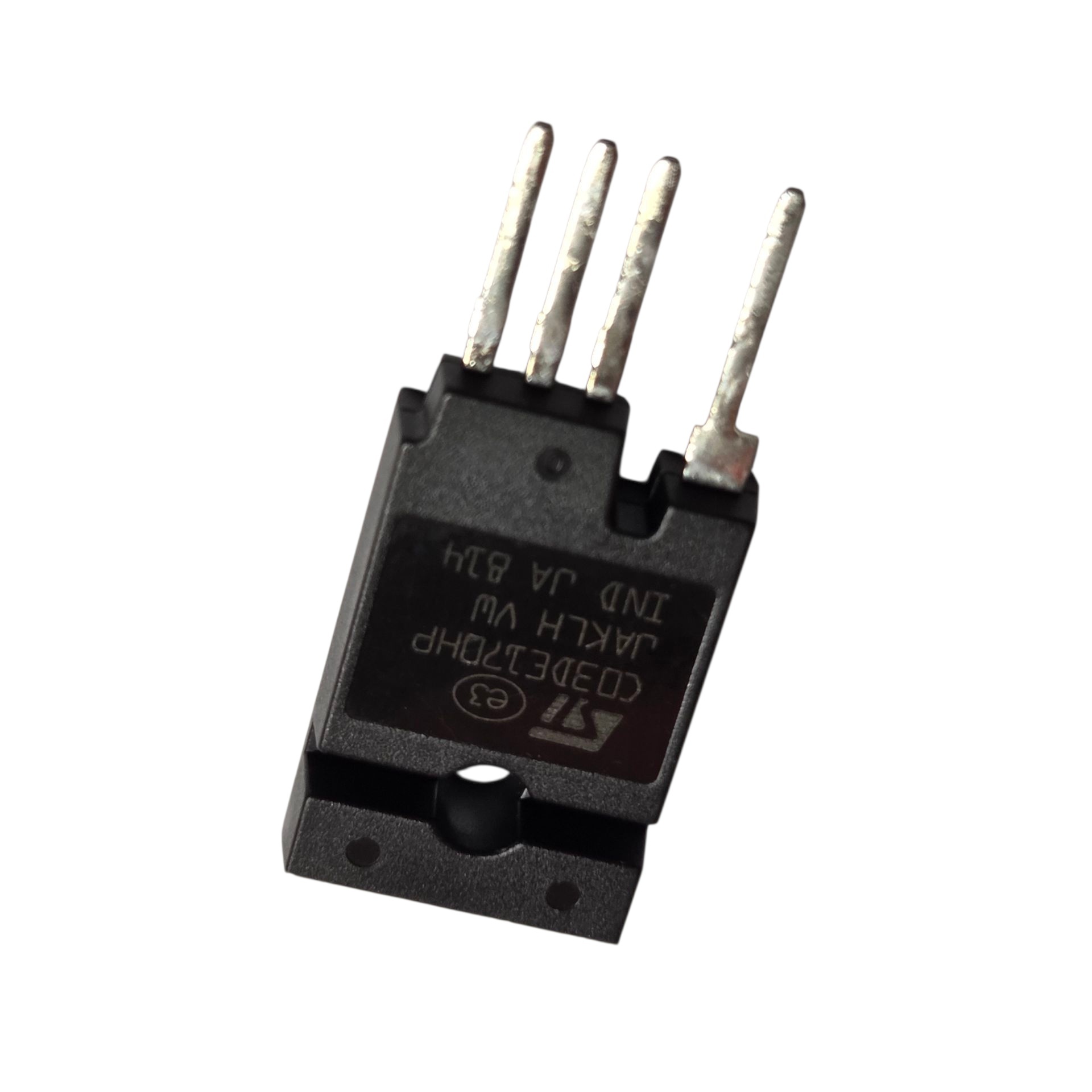

STC03DE170HP Transistor Silicon NPN CASE: TO247-4L MAKE: ST Microelectronics - STM
Price:
£38.39 Inc. VAT (£31.99 Ex. VAT)
£38.39 Inc. VAT (£31.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO247-4L
Manufacturer ST Microelectronics - STM
Polarity NPN
Maximum Collector Power Dissipation (Pc) 35.7 W
Maximum Collector-Base Voltage |Vcb| 1700 V
Maximum Collector-Emitter Voltage |Vce| 1700 V
Maximum Emitter-Base Voltage |Veb| 9 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 125 °C
Forward Current Transfer Ratio (hFE), MIN 10
SMD Transistor Code C03DE170HP
SKU 1441398
