STI13005H
View detailed images (12)

STI13005H

SKU: STI13005H

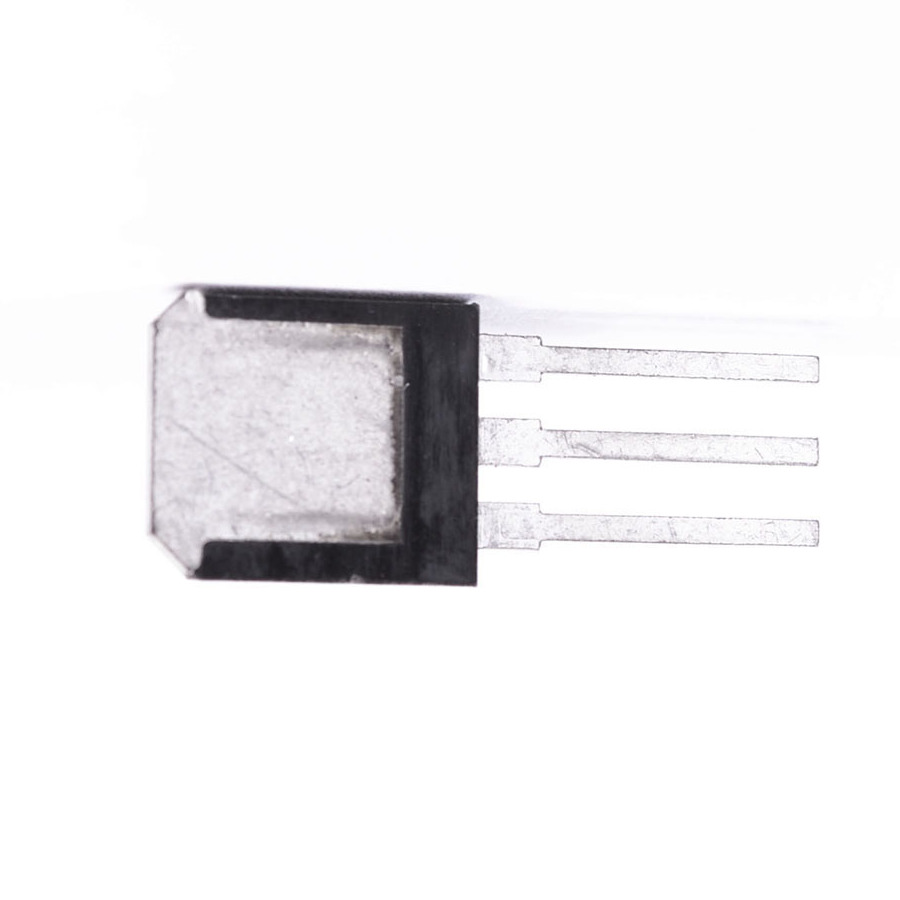

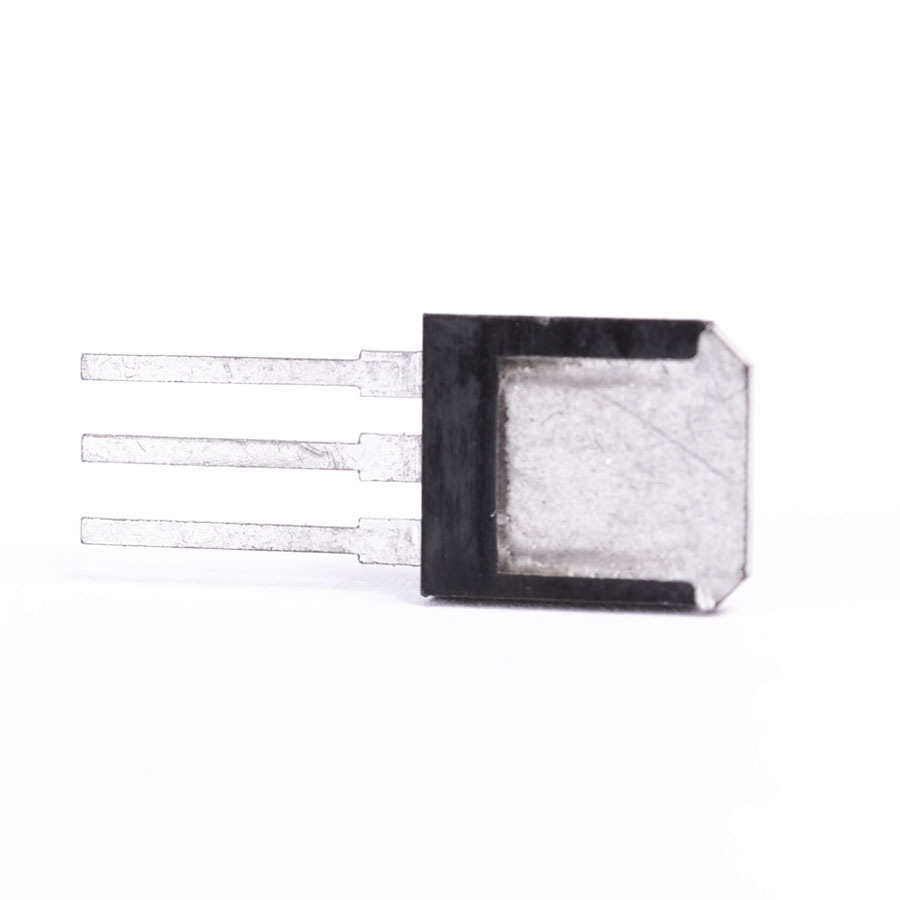

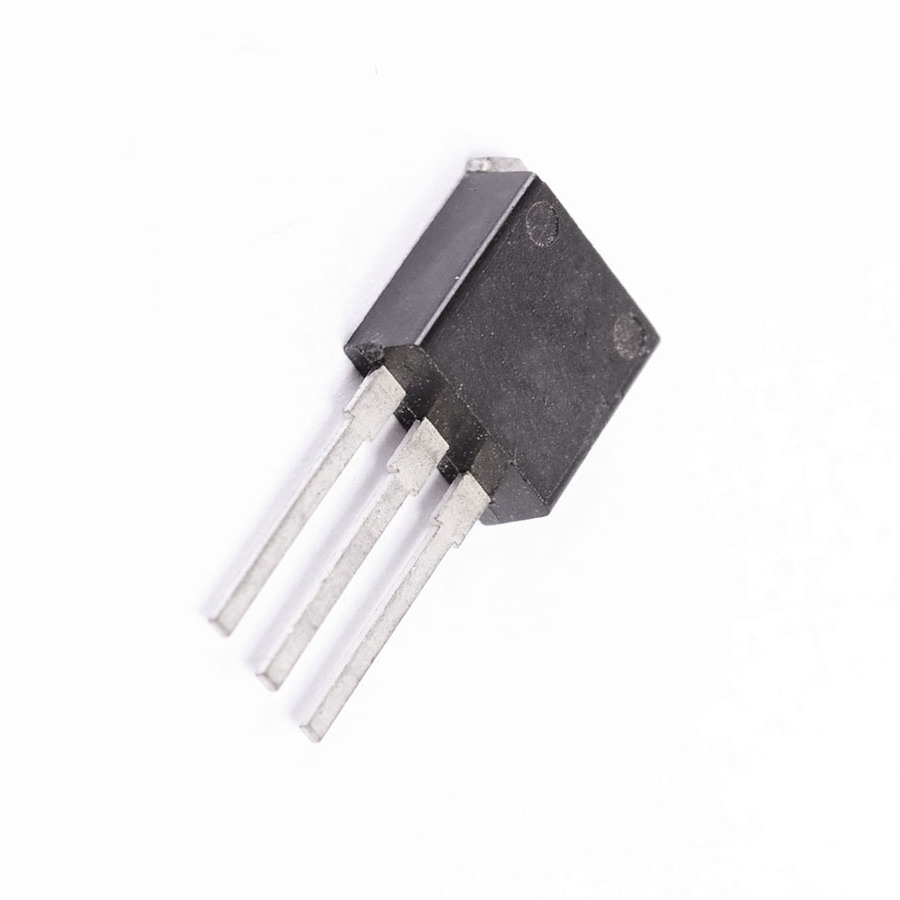

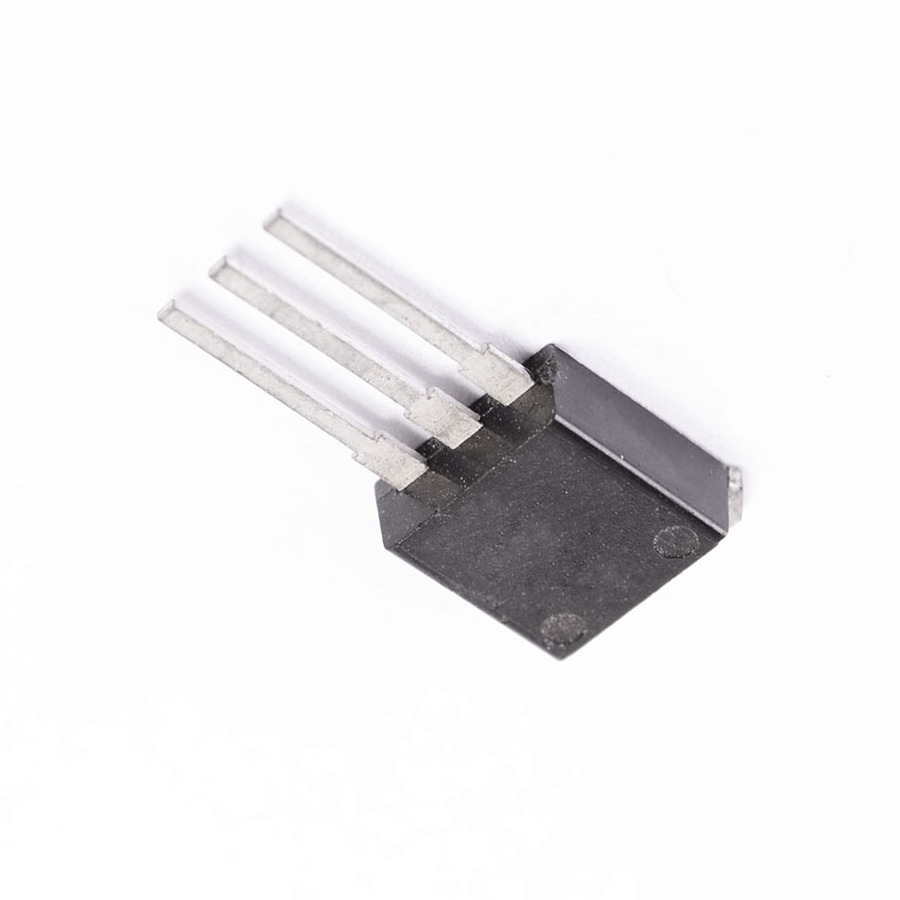

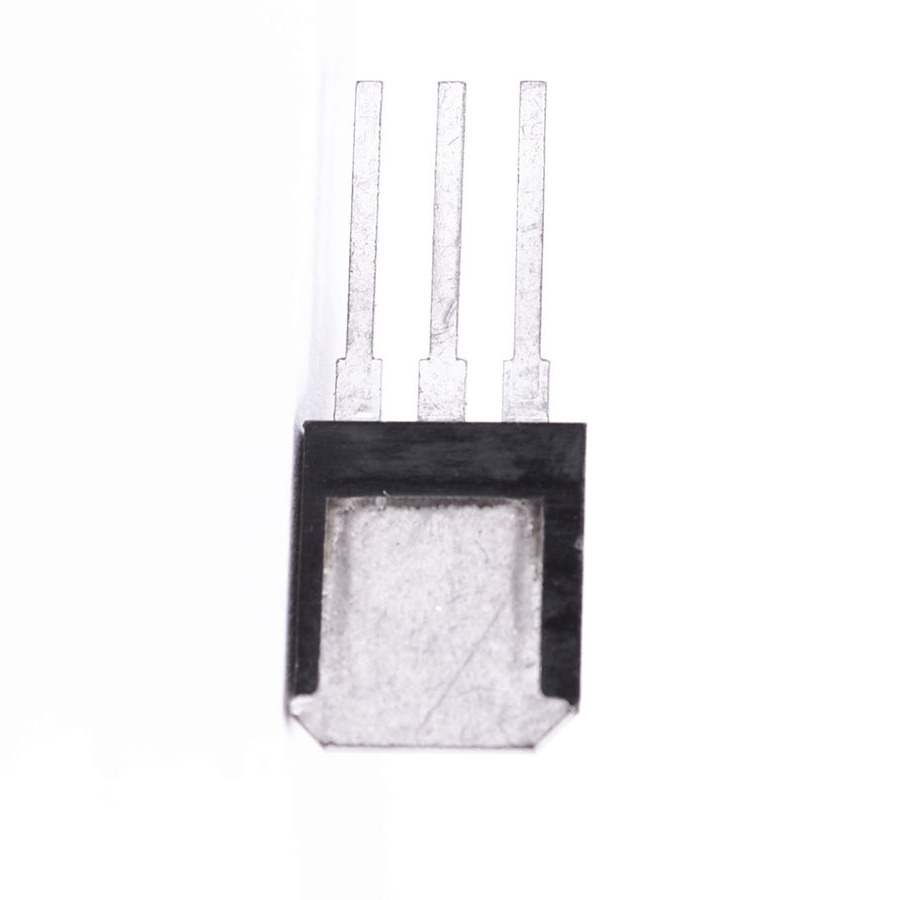

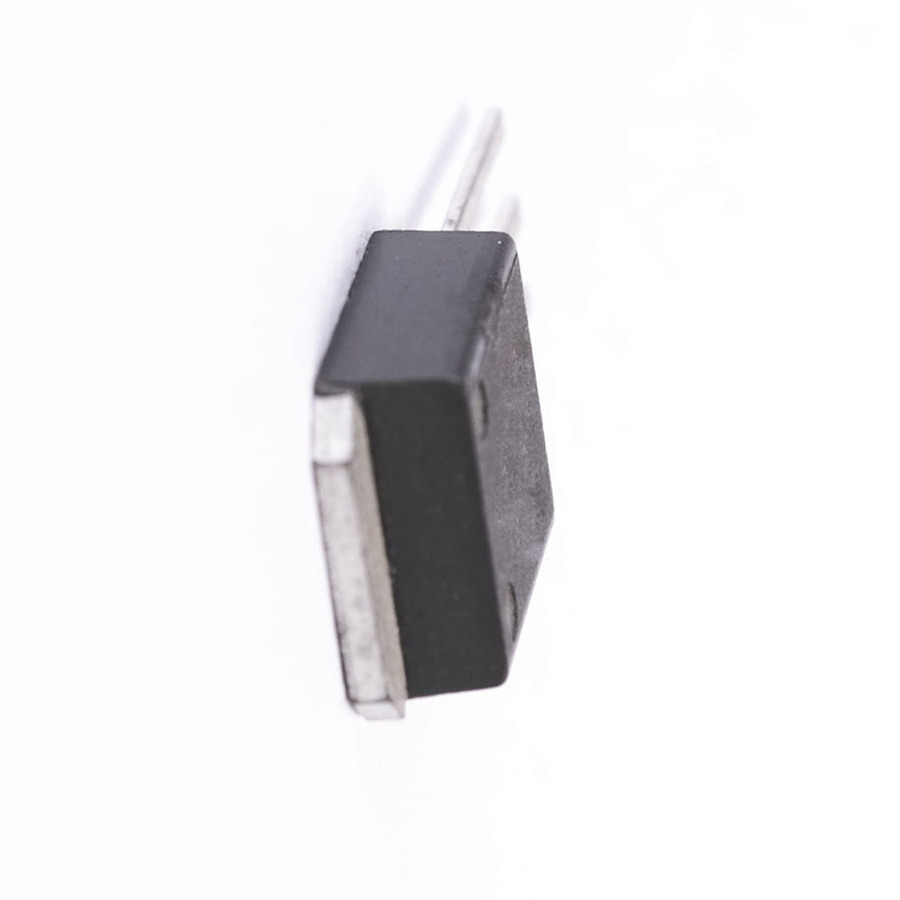

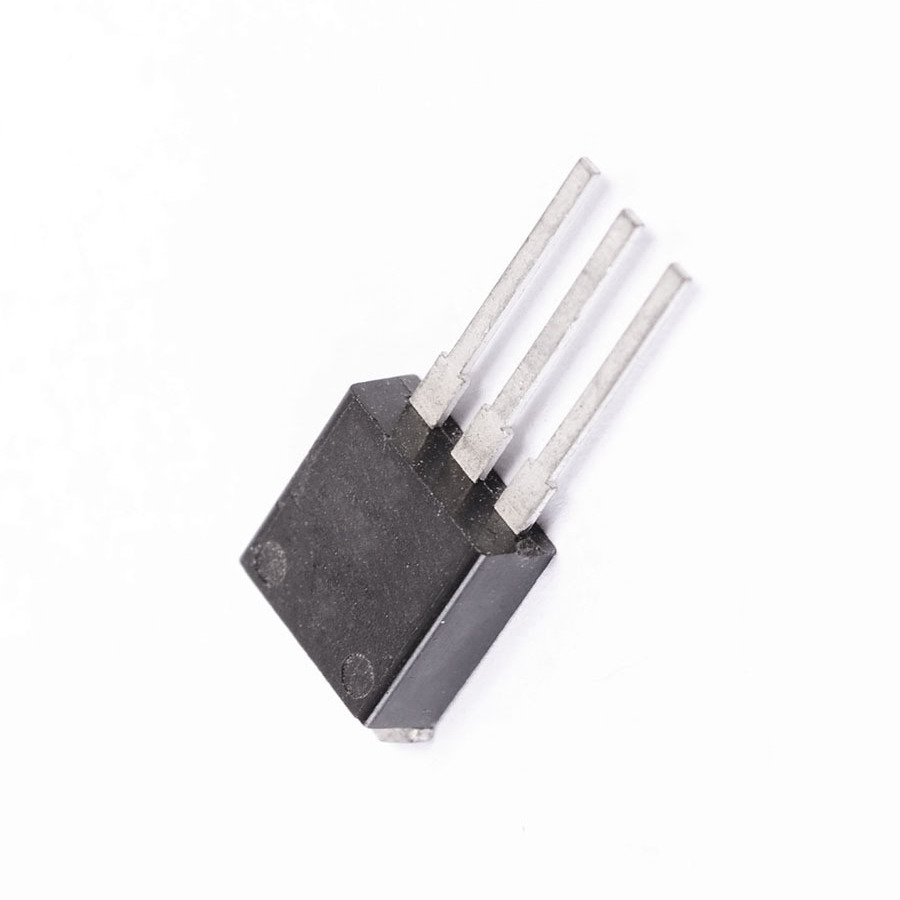

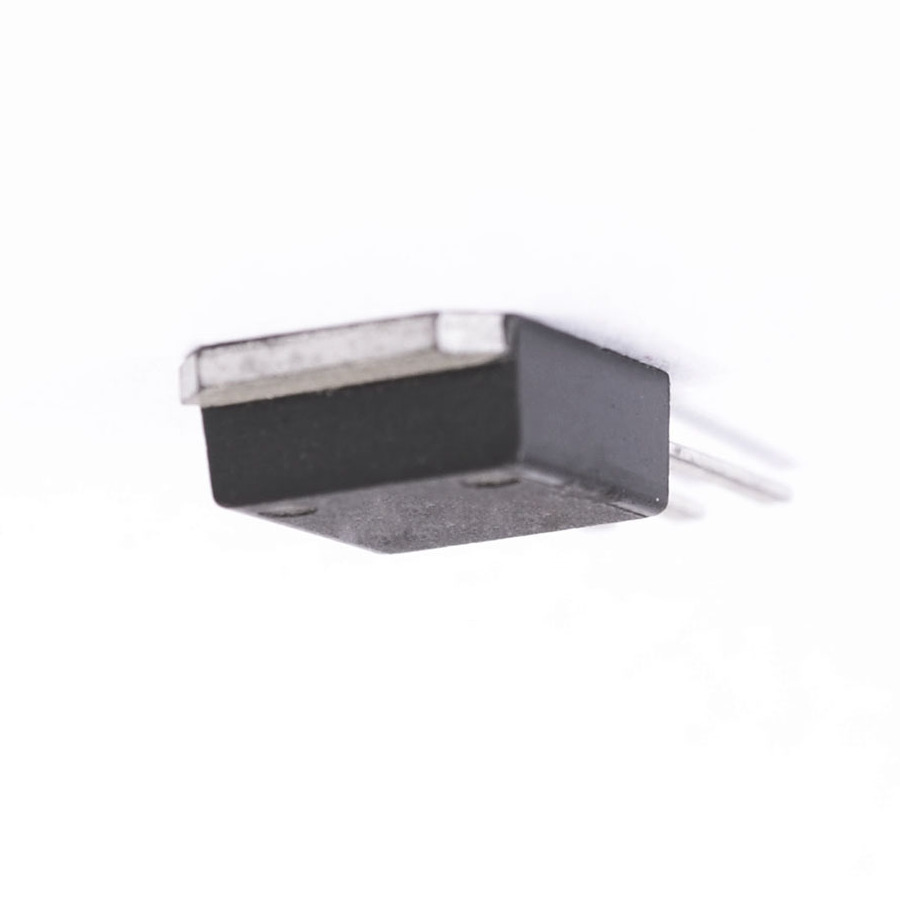

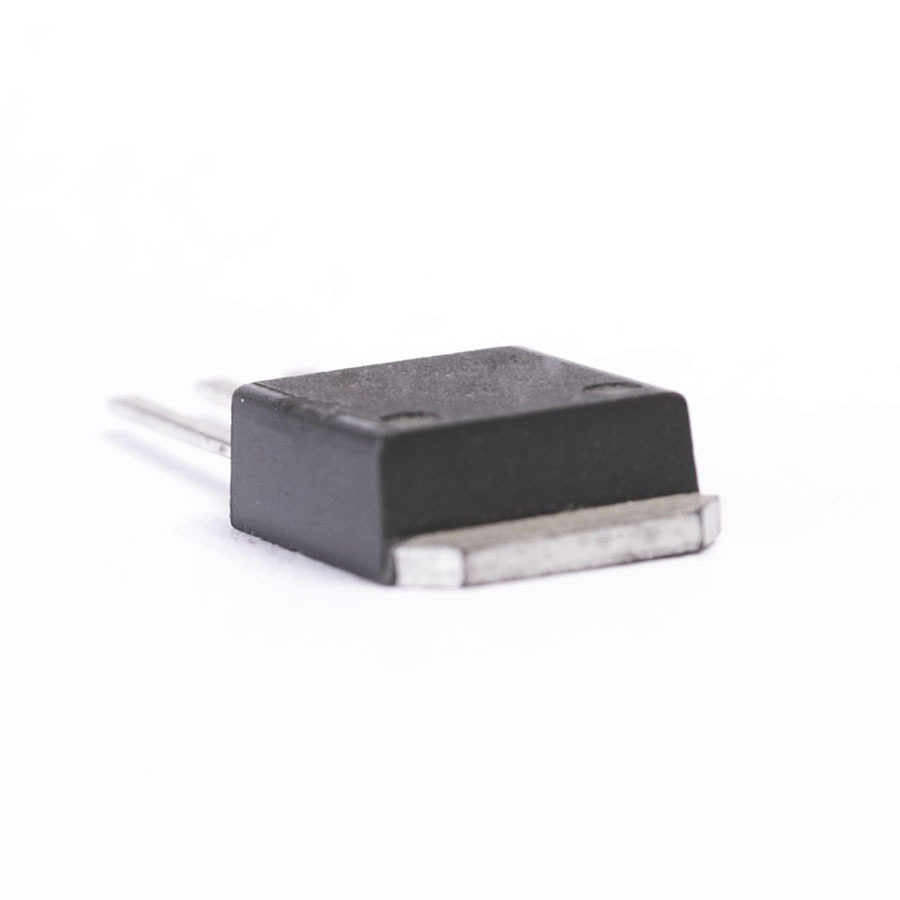

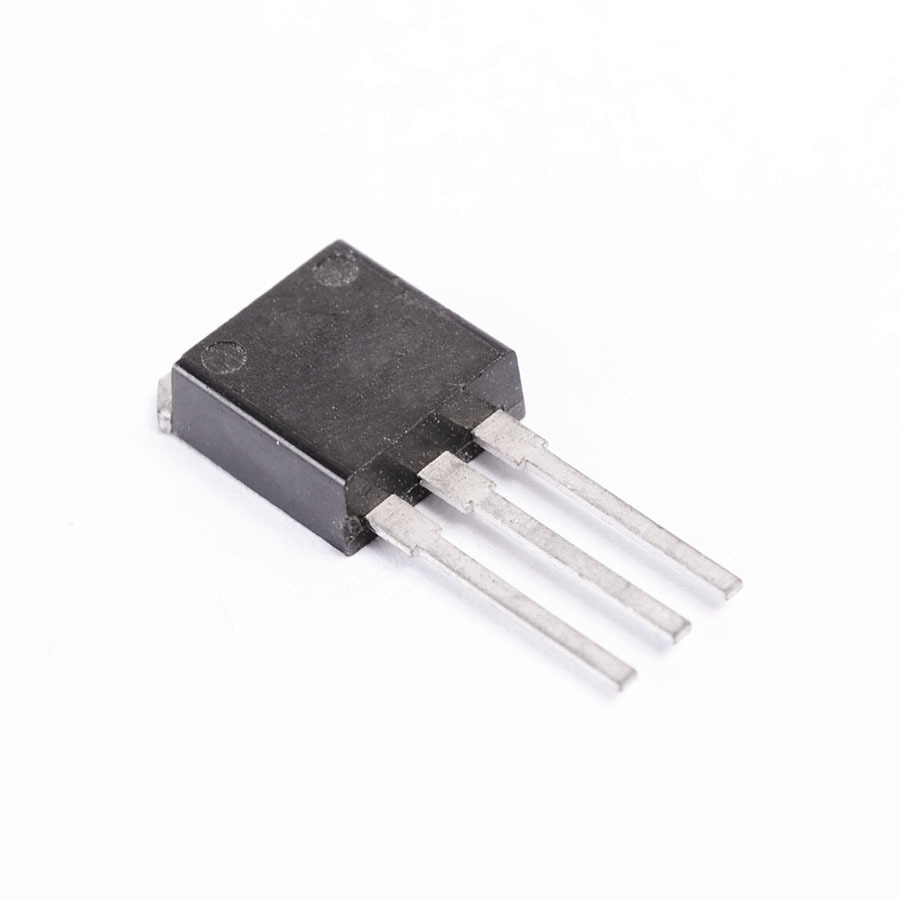

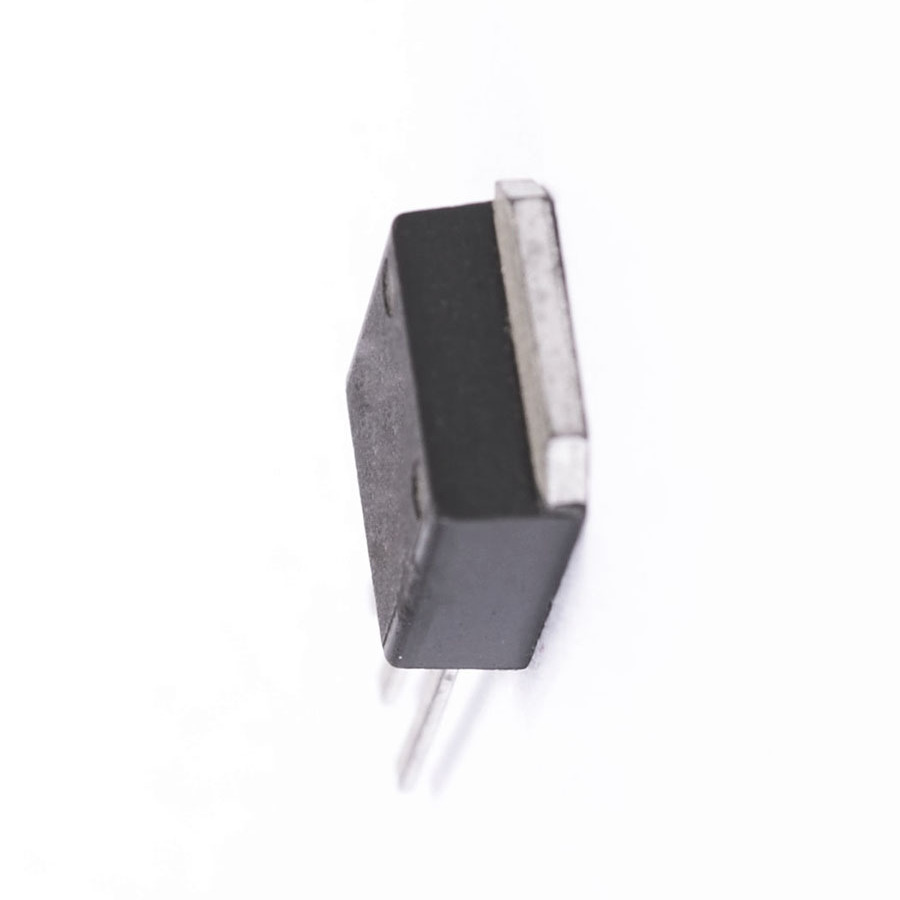

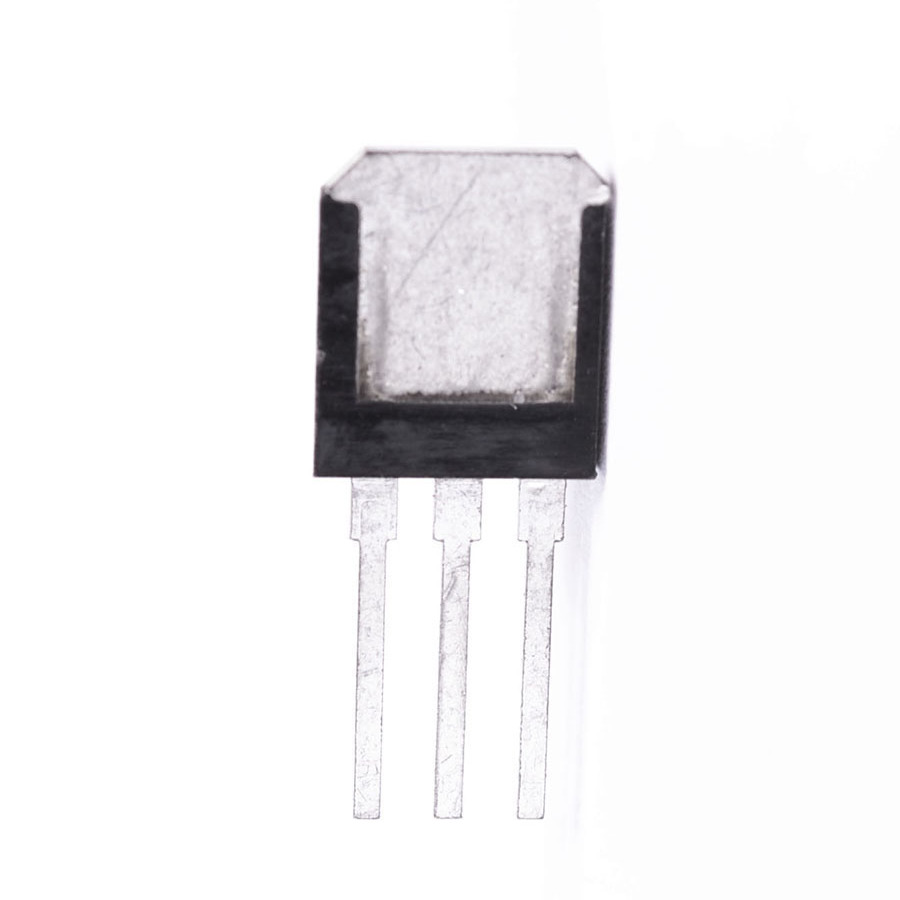

STI13005H Transistor Silicon NPN CASE: TO262 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case TO262
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 75 W
Maximum Collector-Base Voltage |Vcb| 700 V
Maximum Collector-Emitter Voltage |Vce| 400 V
Maximum Emitter-Base Voltage |Veb| 9 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 8
SMD Transistor Code I13005
SKU 1441486
