STR30110
View detailed images (4)

STR30110

SKU: STR30110

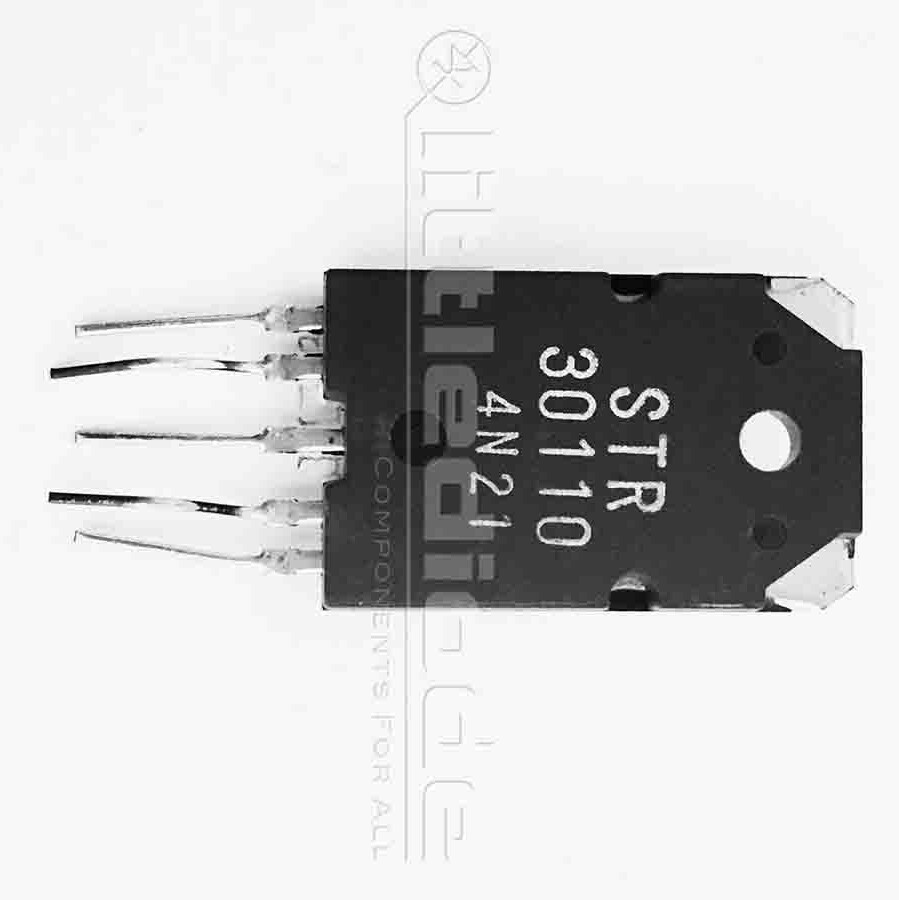

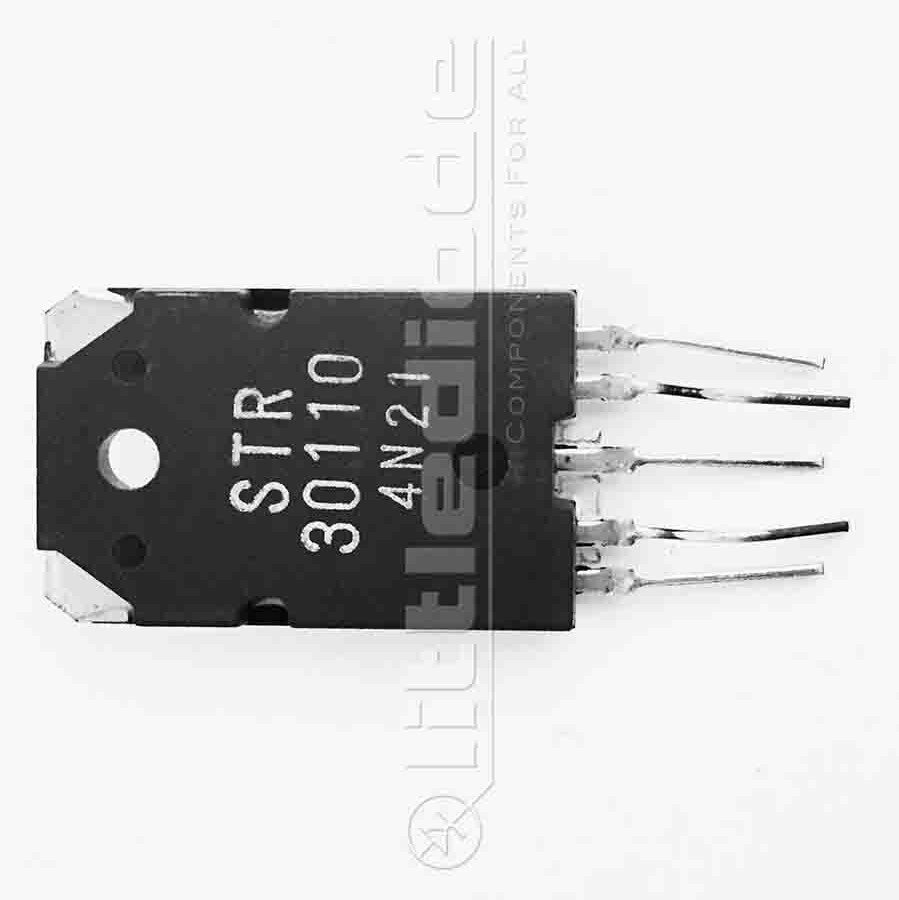

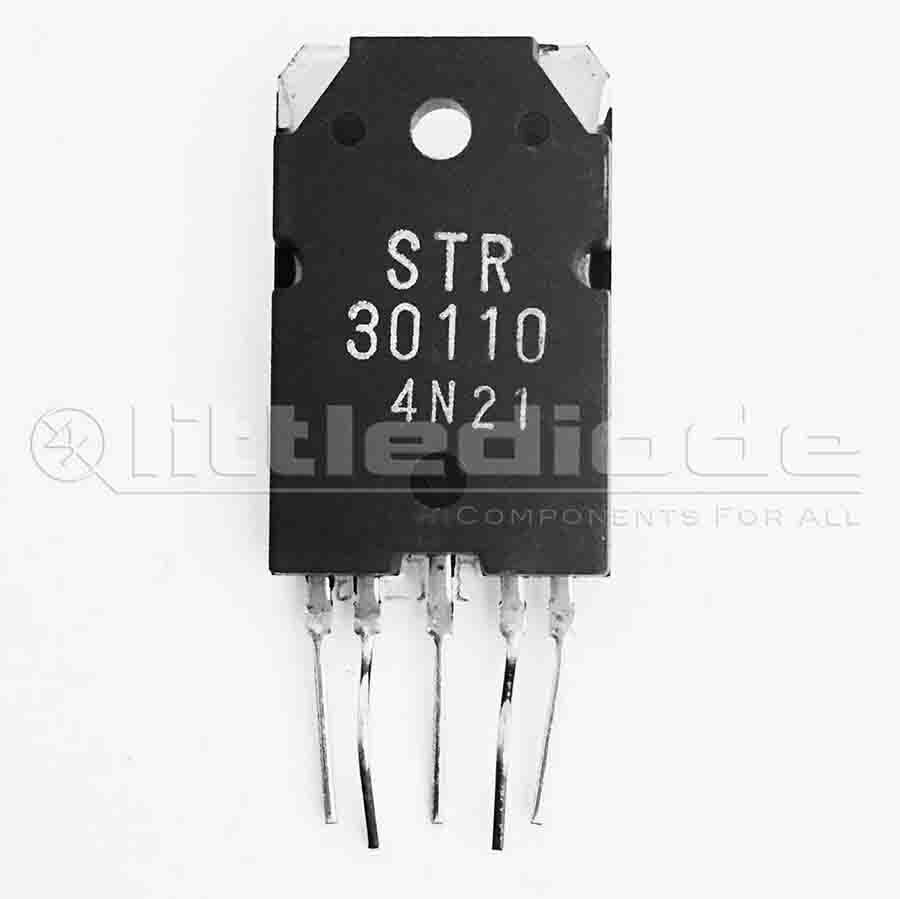

STR30110 is a hybrid IC voltage regulator providing a fixed 110 V nominal output with up to 1.0 A output current and 27 W maximum power dissipation at TC=100°C. Packaged in a plastic molded STR (2GR) 5-lead (ZIP5) package, it is intended for line-operated color television and similar CTV applications.
Price:
£9.59 Inc. VAT (£7.99 Ex. VAT)
£9.59 Inc. VAT (£7.99 Ex. VAT)
Qty
  • Last 12 pieces Ready to Ship
?
Datasheet
STR30110 Datasheet
Product specifications
Type Integrated Circuit
Case ZIP5
Manufacturer Sanken
I(load) Max. (A) 0.5
PD Max. (W) 3.0
Max. Supp (V) 134
Tol. (%) 0.7
Vout Nom. 110
Drop-Out Volt Max. 15
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 5-108
No. of Pins 5
Surface Mounted Yes/No NO
SKU 77912
