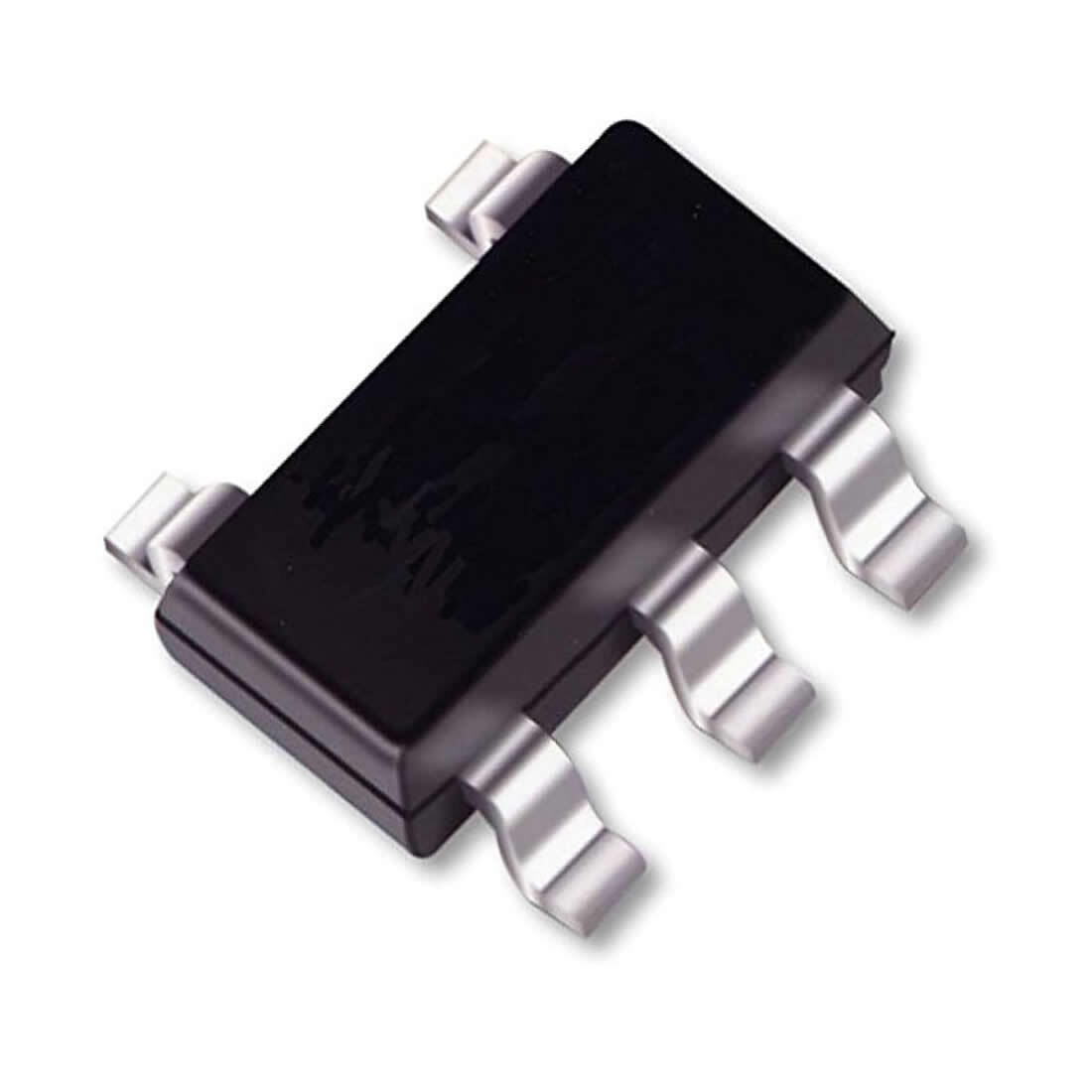

SUT464M

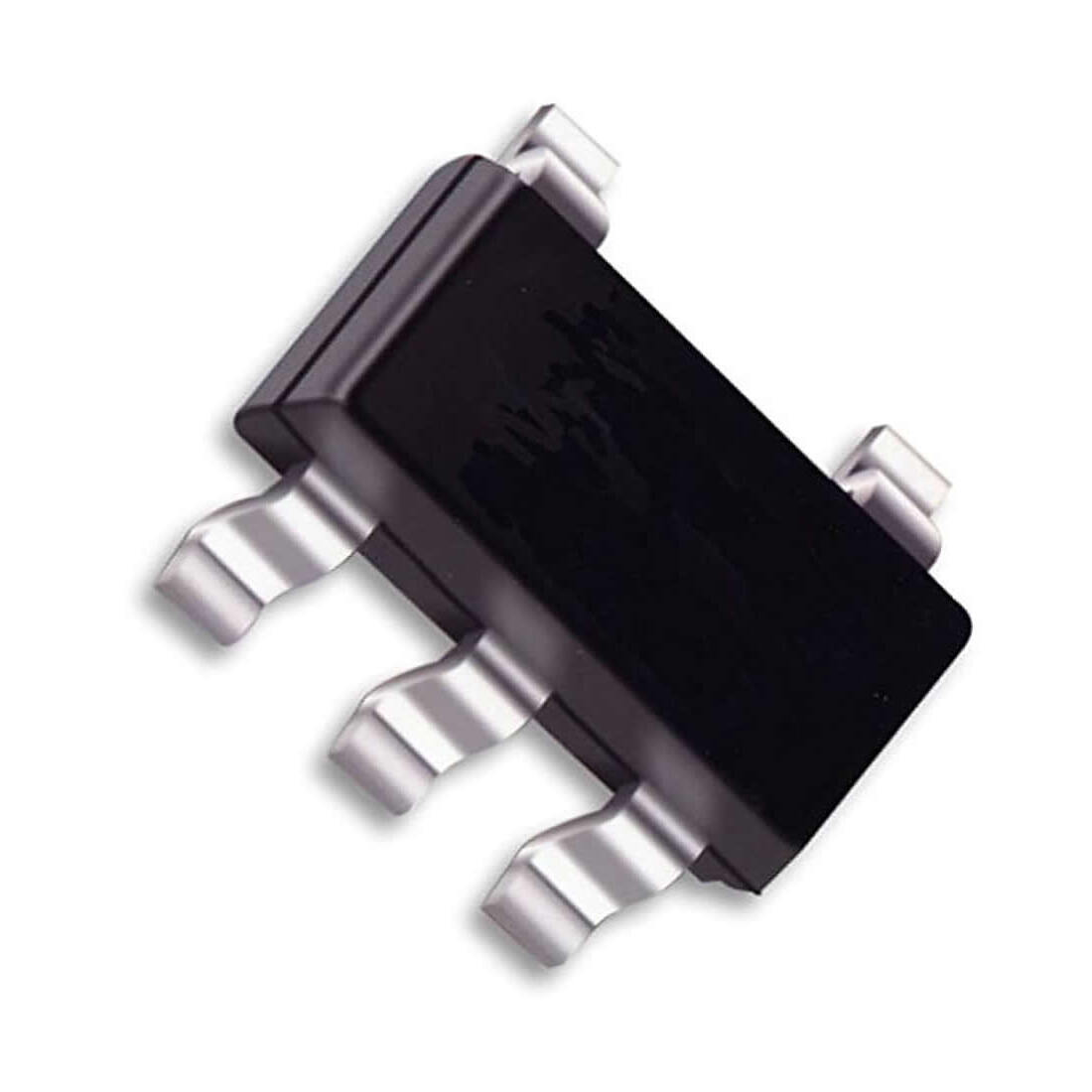

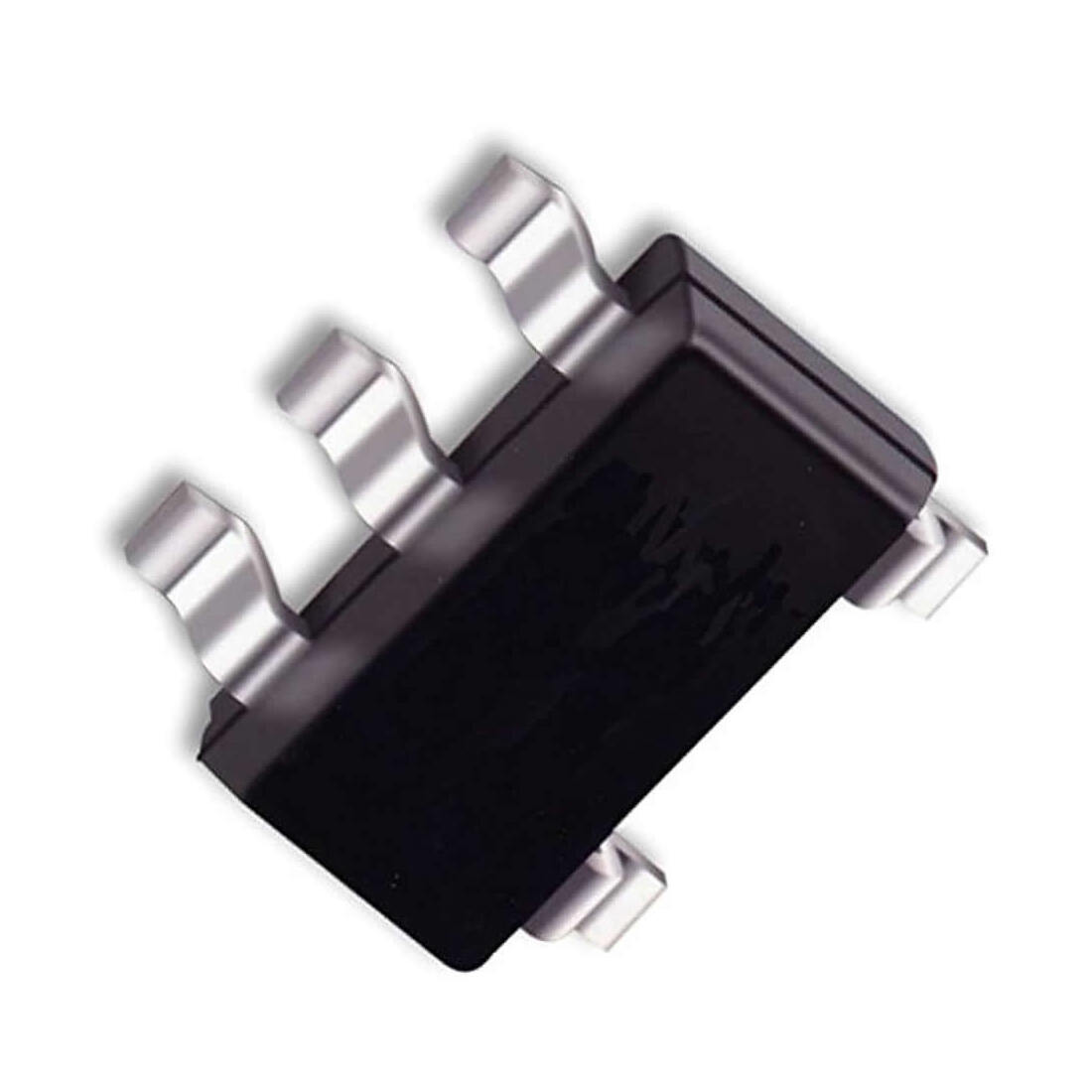

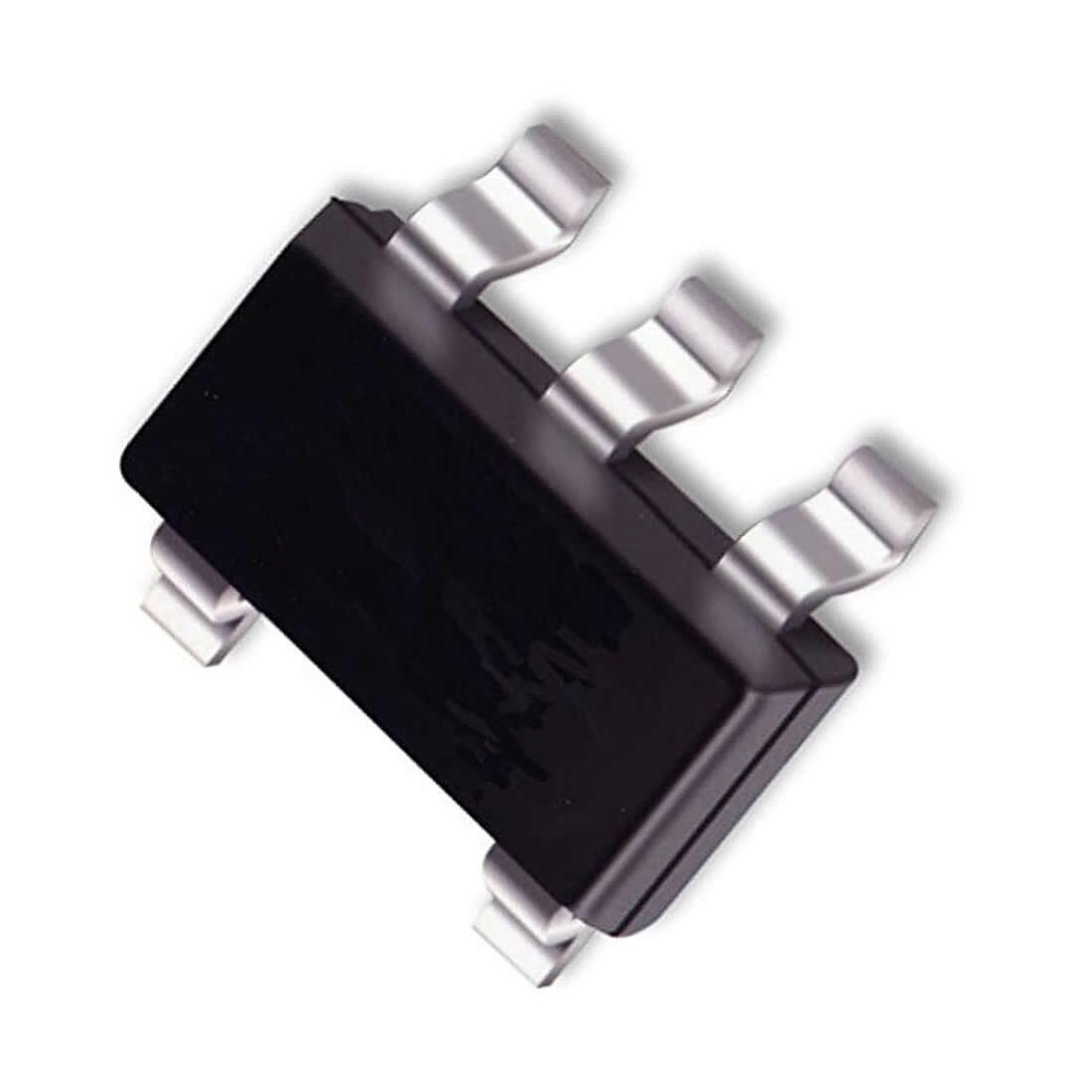

View detailed images (5)

SUT464M

SKU: SUT464M
SUT464M Transistor Silicon NPN - PNP CASE: SOT25 MAKE: Generic
Product specifications
Type Transistor Silicon NPN - PNP

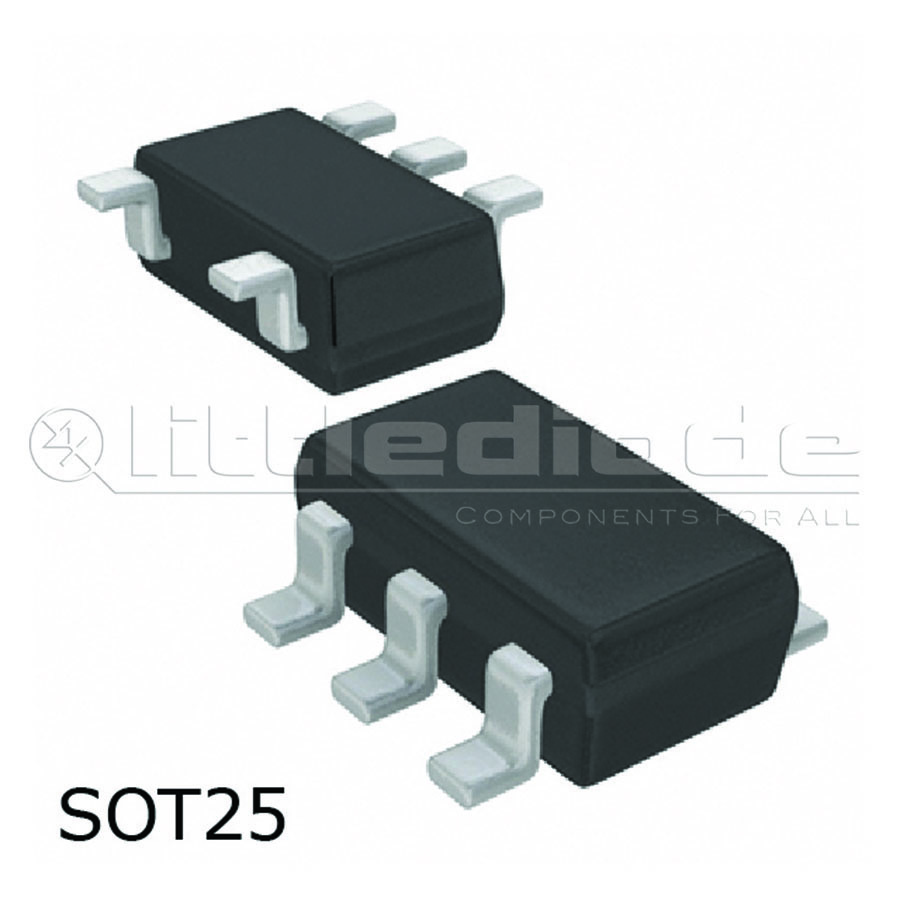

Case SOT25
Manufacturer Generic
Polarity NPN*PNP
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 60(50) V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.15 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 2(4) pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SMD Transistor Code X4
SKU 1441565
