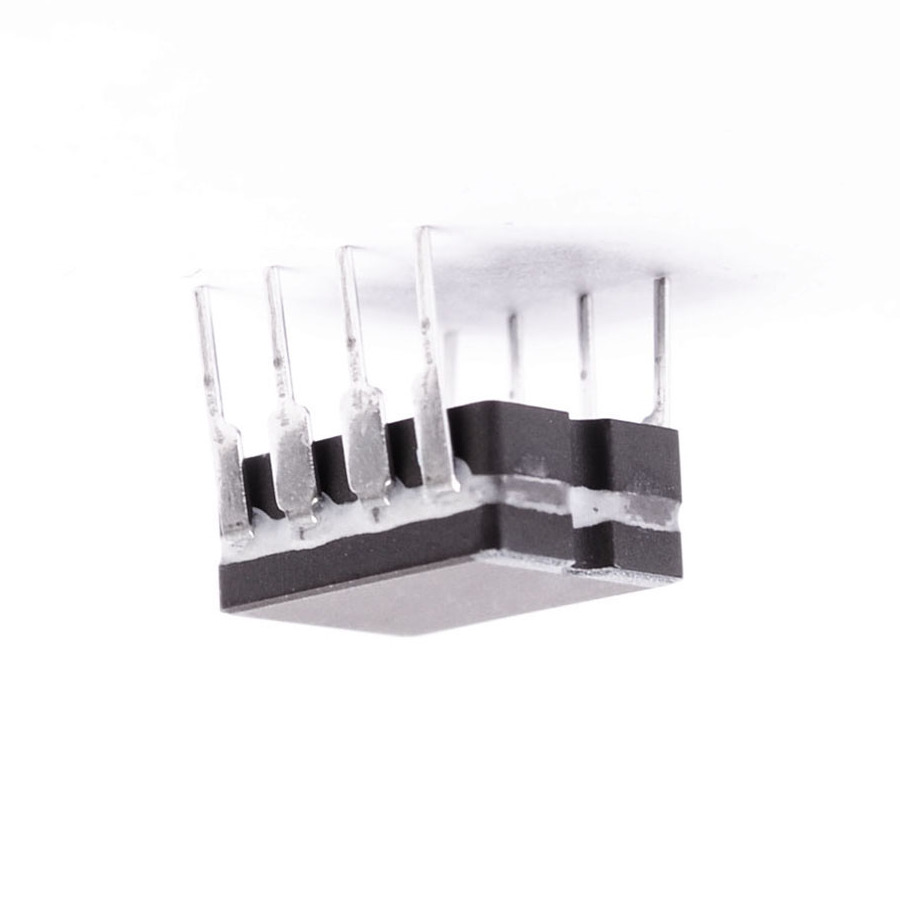

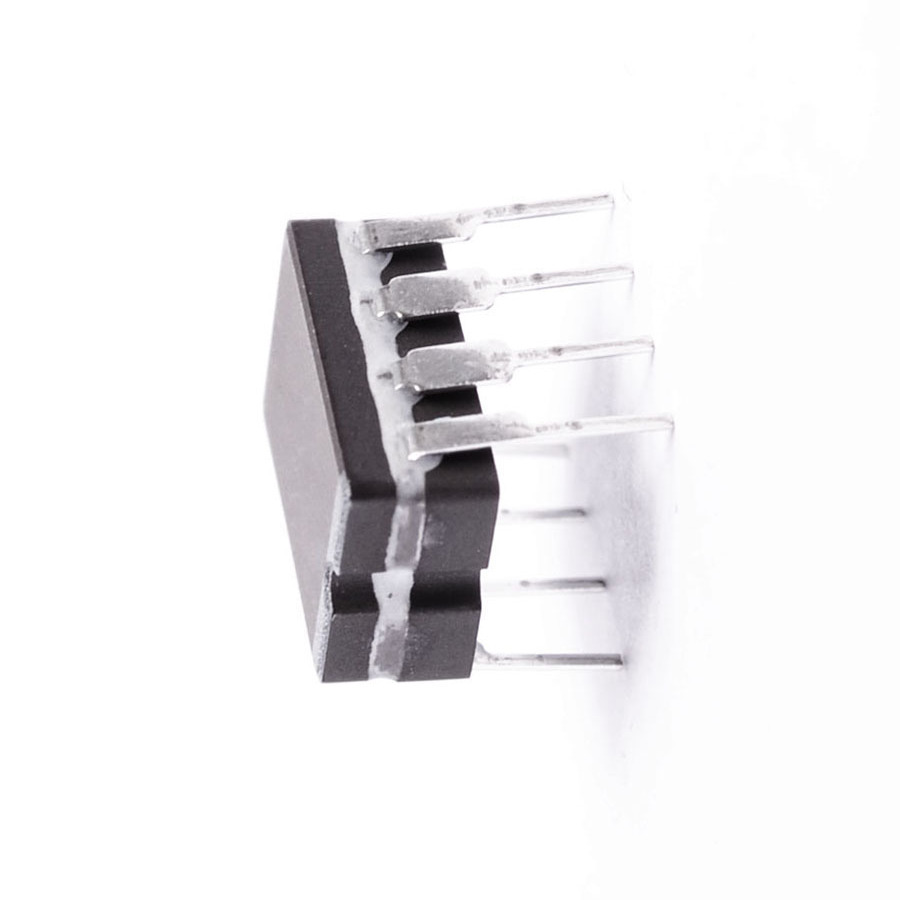

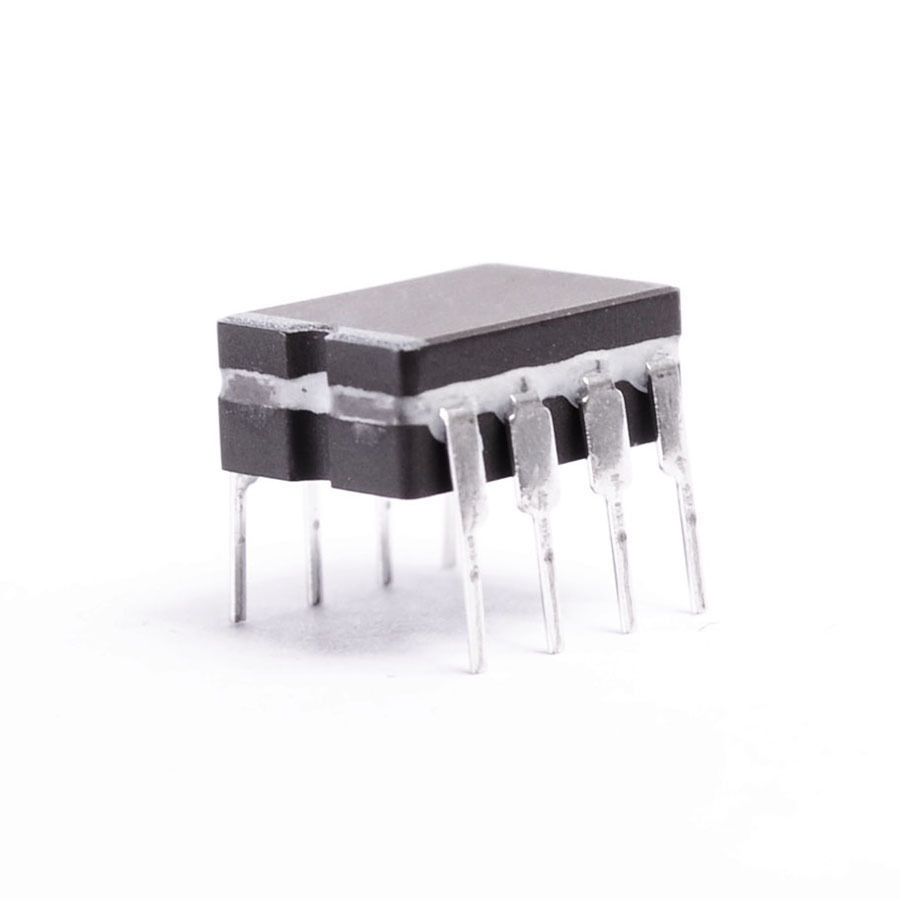

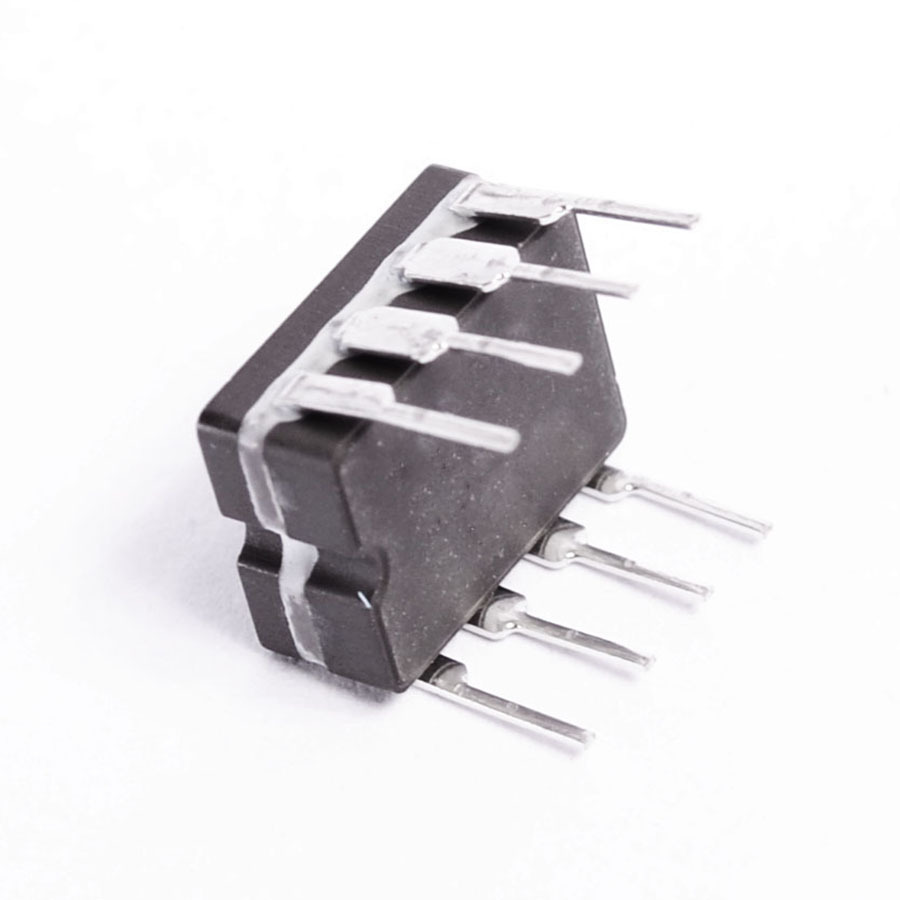

TC4425MJA

TC4425MJA

SKU: TC4425MJA

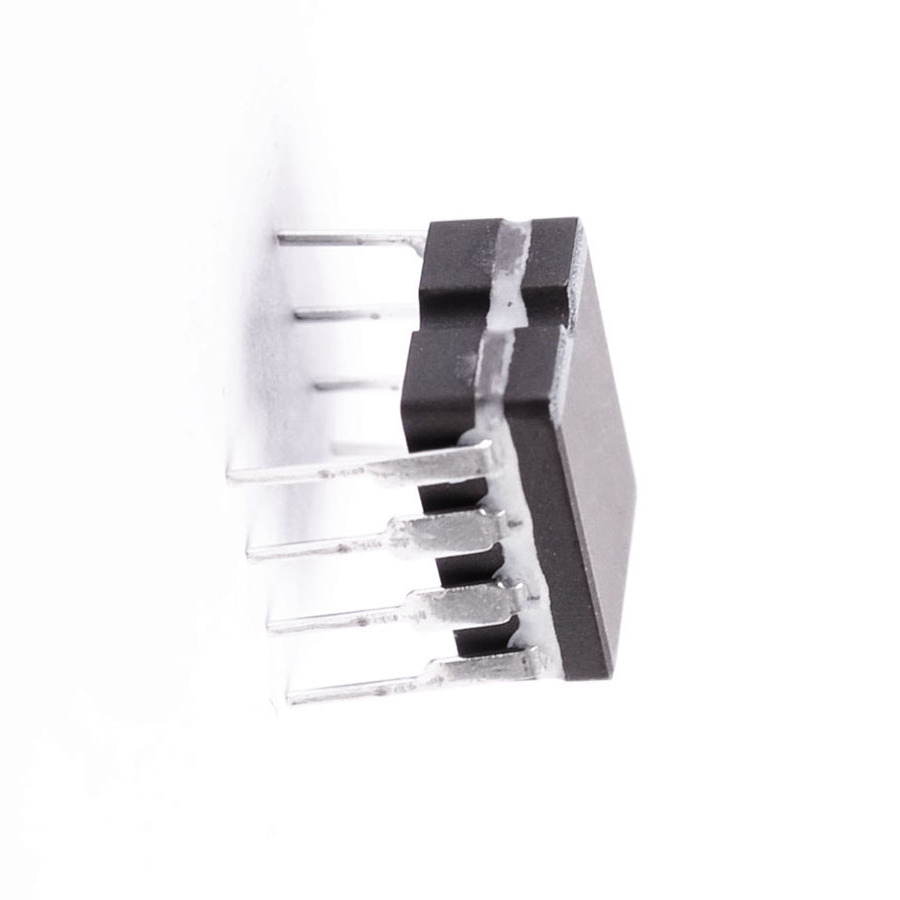

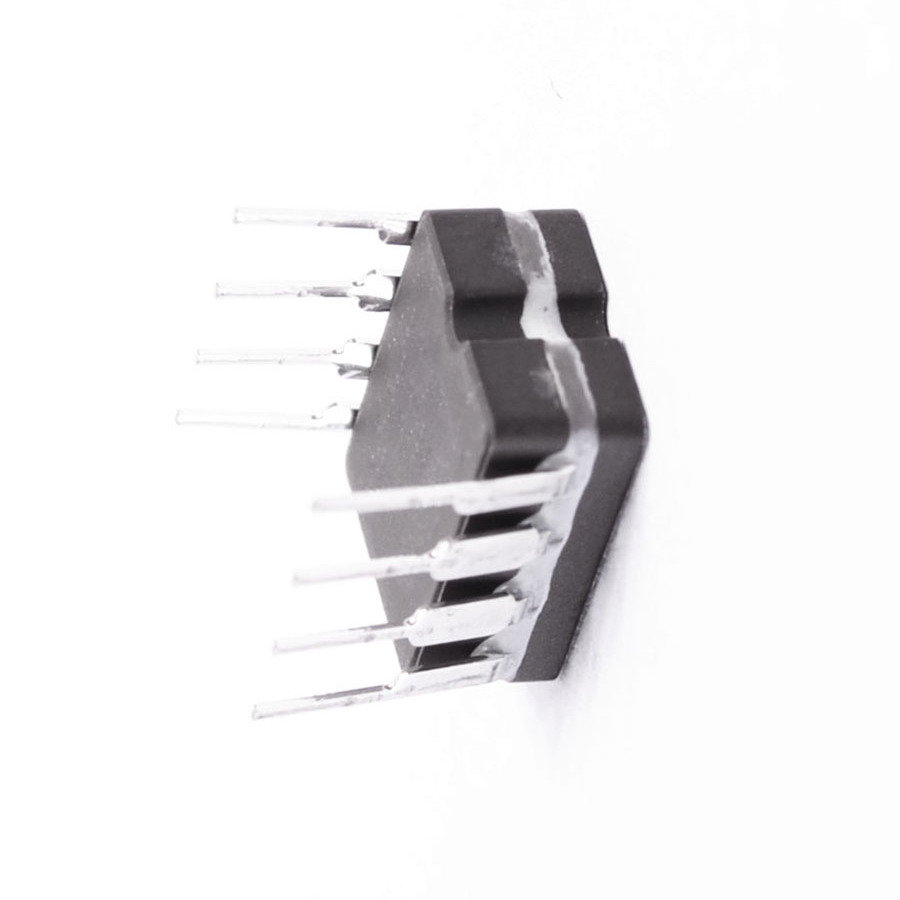

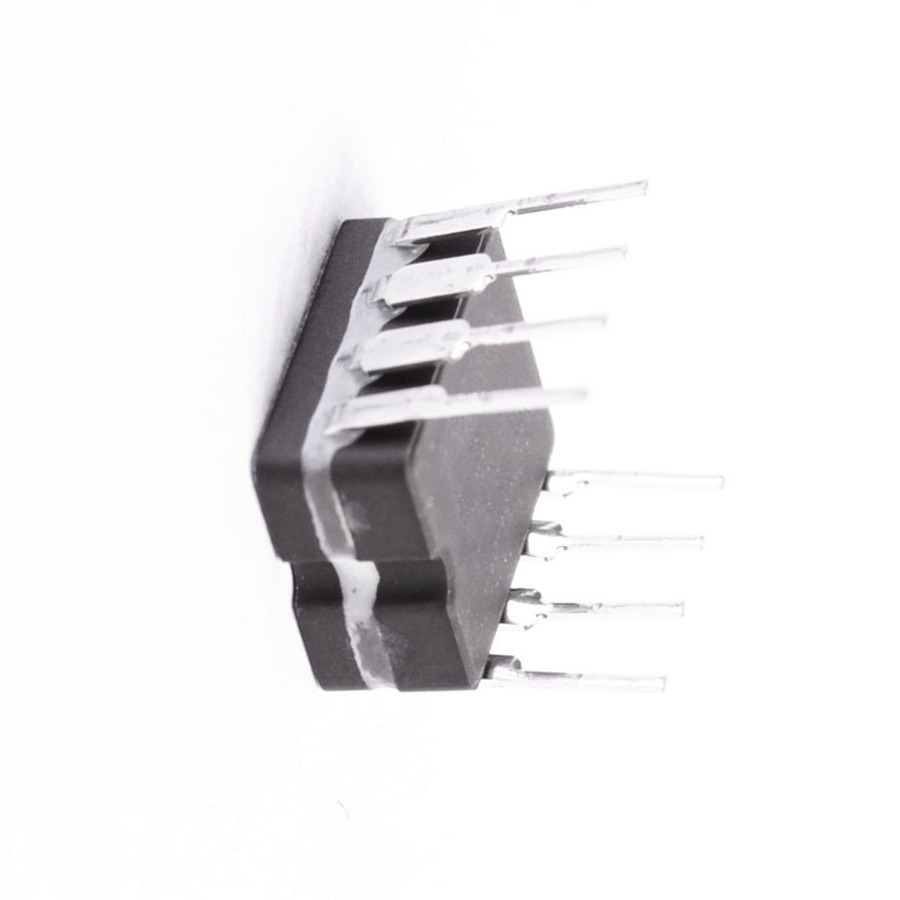

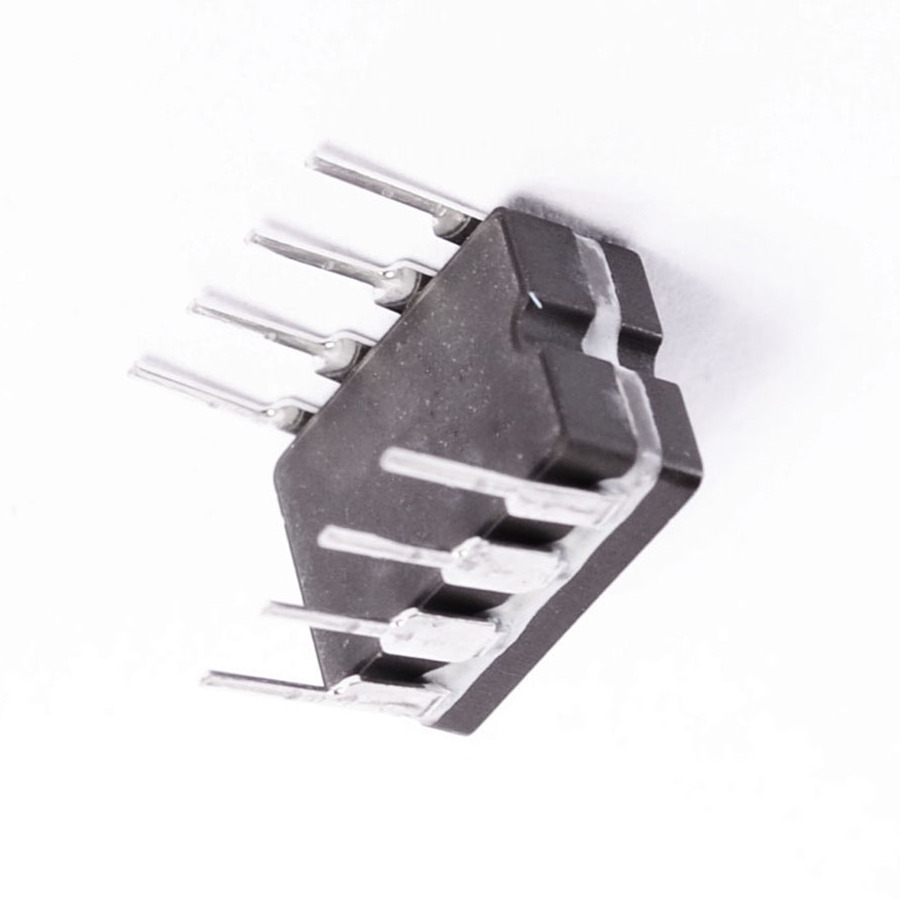

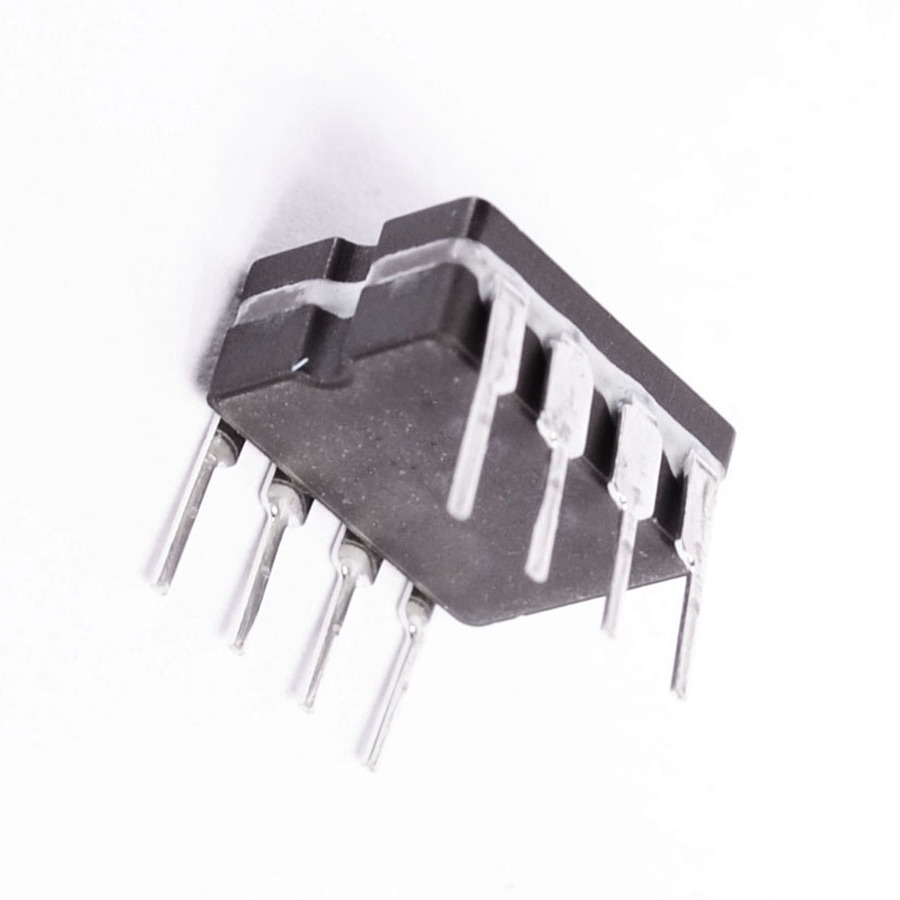

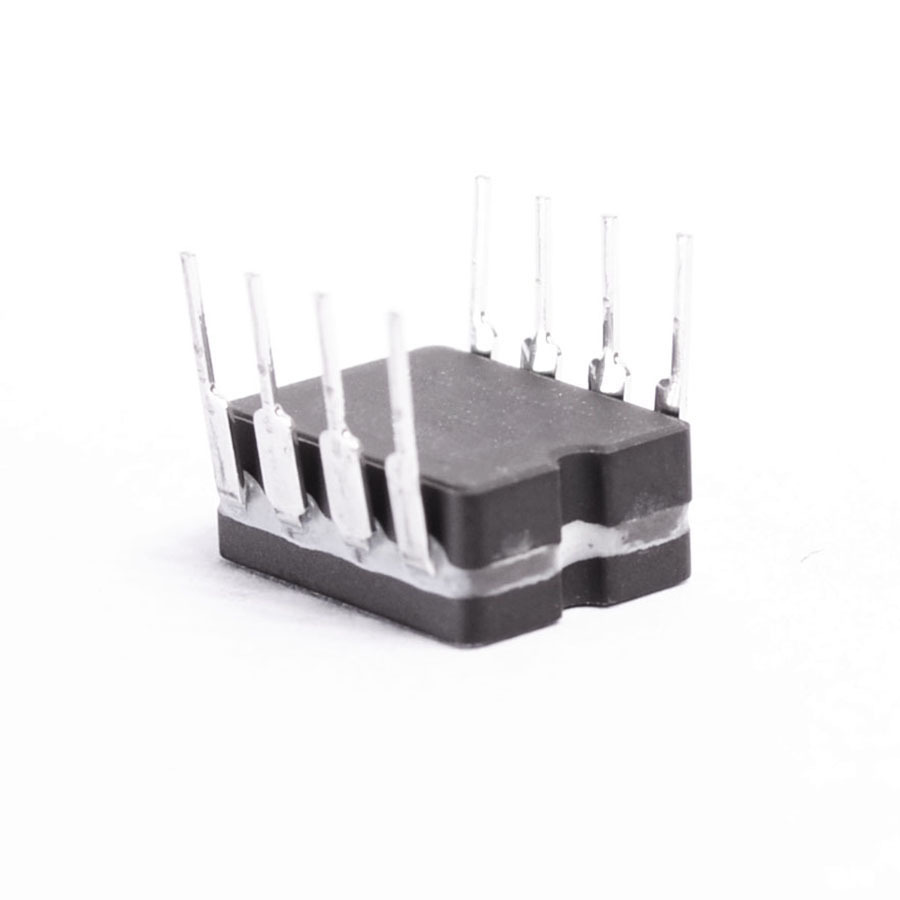

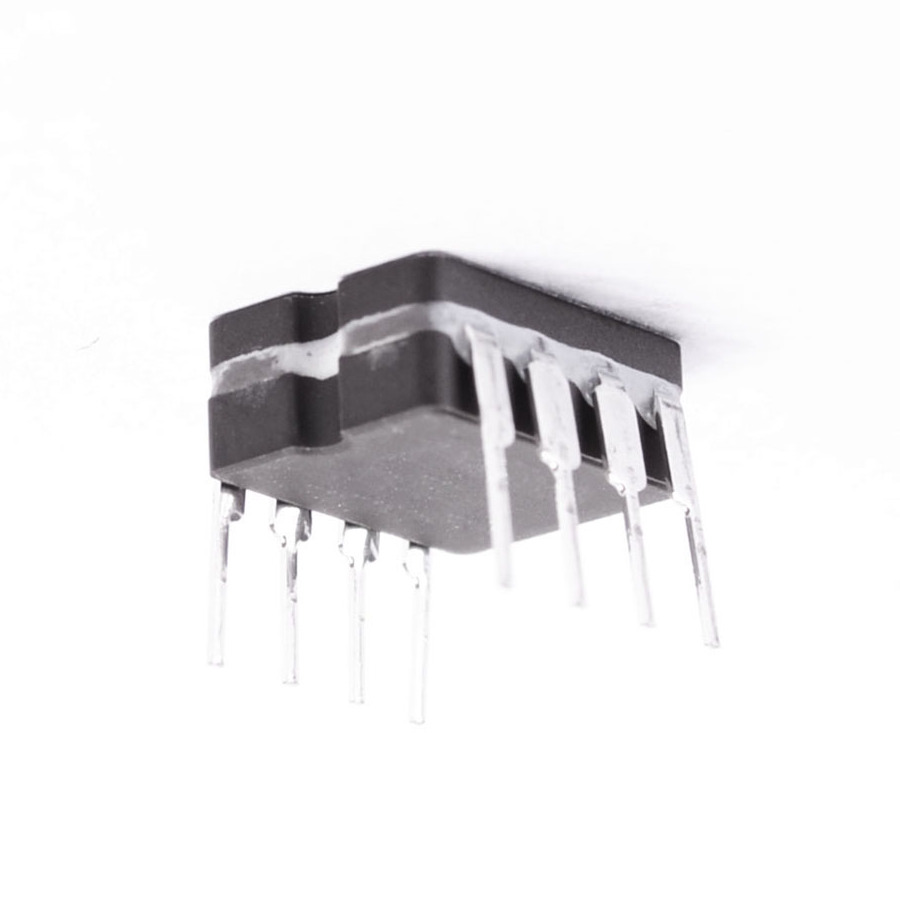

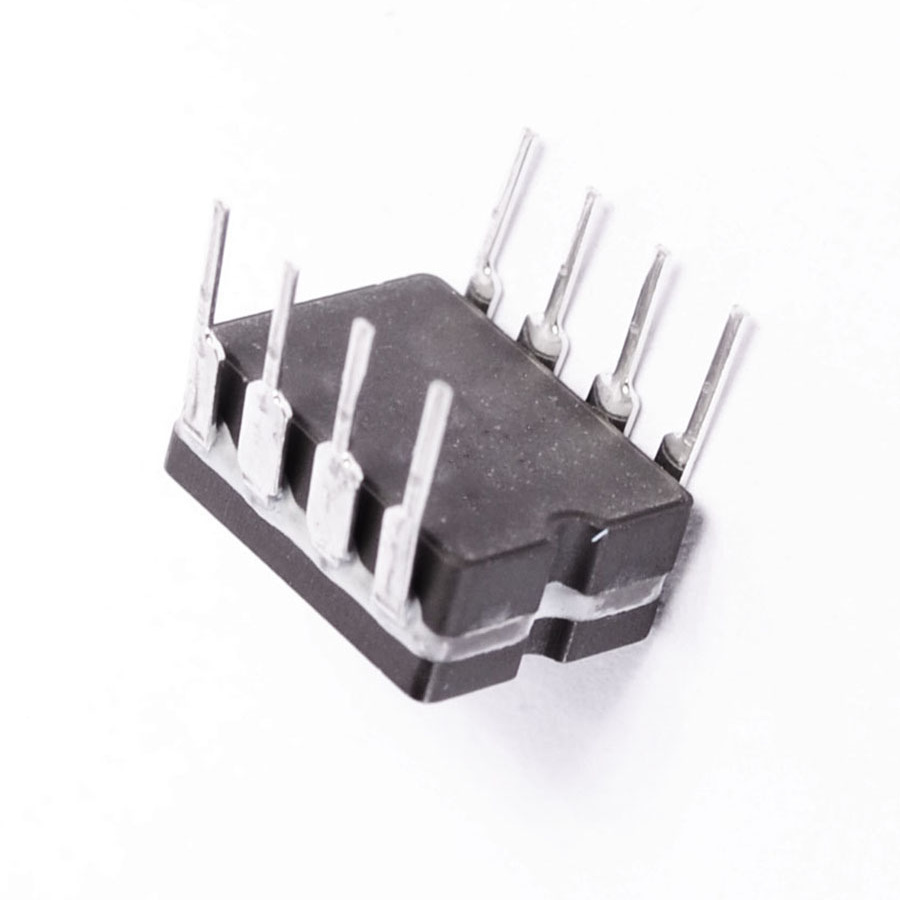

TC4425MJA Integrated Circuit CASE: DIC8 MAKE: TSC
Product specifications
Type Integrated Circuit
Case DIC8
Manufacturer TSC
Vih Min (V) 2.4
Vil Max. (V) 0.8
Output Config Totem-Pole
VOL Max. 25m
Outp Transis. Ion Max. 3.0
PD Max. (W) 800m
tPD Max. (S) 100n
Tech. CMOS Integrated Circuit
Logic Funct. Inv/Noninv
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 8-113
No. of Pins 8
Surface Mounted Yes/No NO
SKU 926716
