Home / Integrated Circuit / TC7109ACKW
TC7109ACKW

TC7109ACKW

SKU: TC7109ACKW

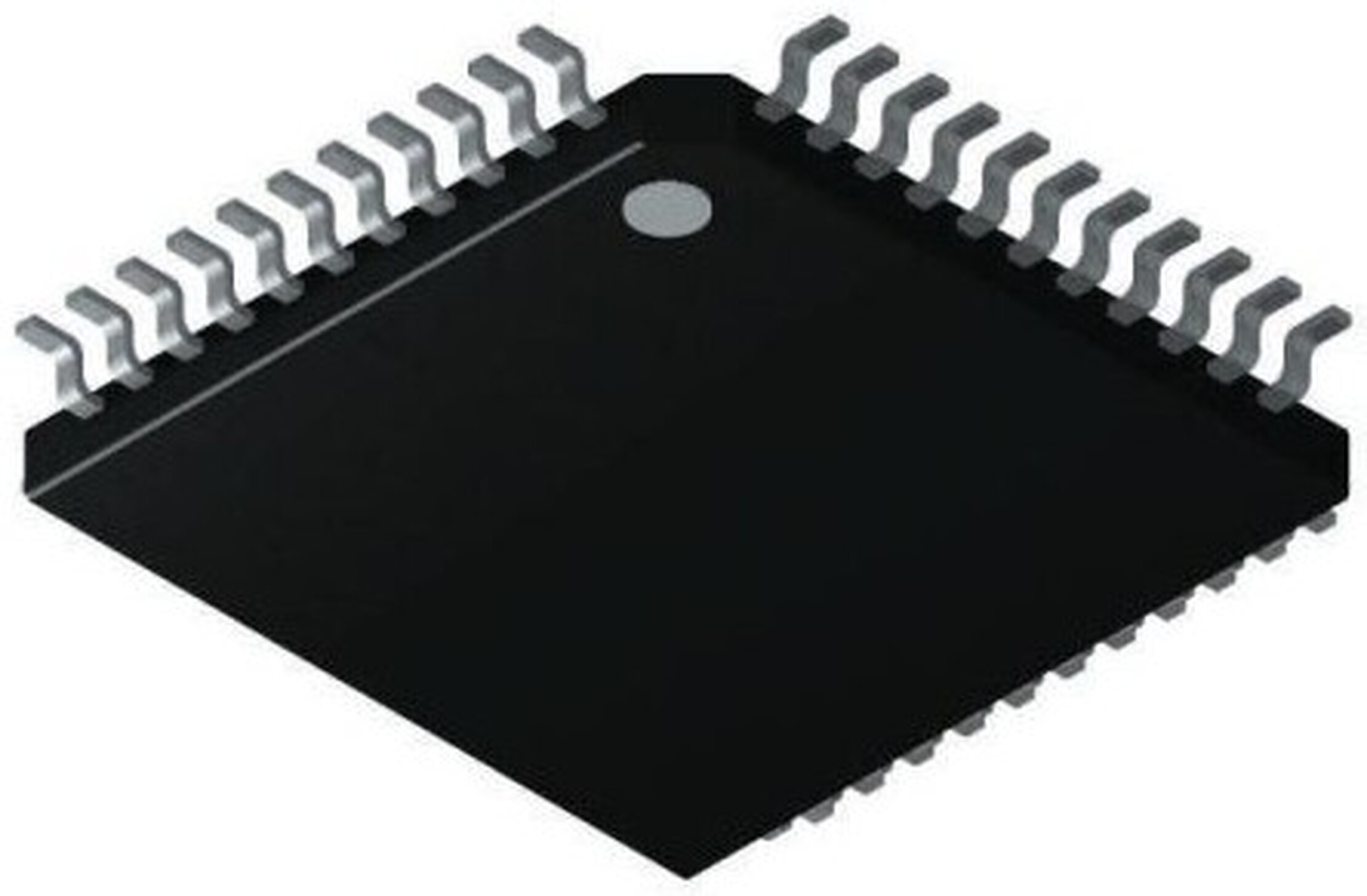

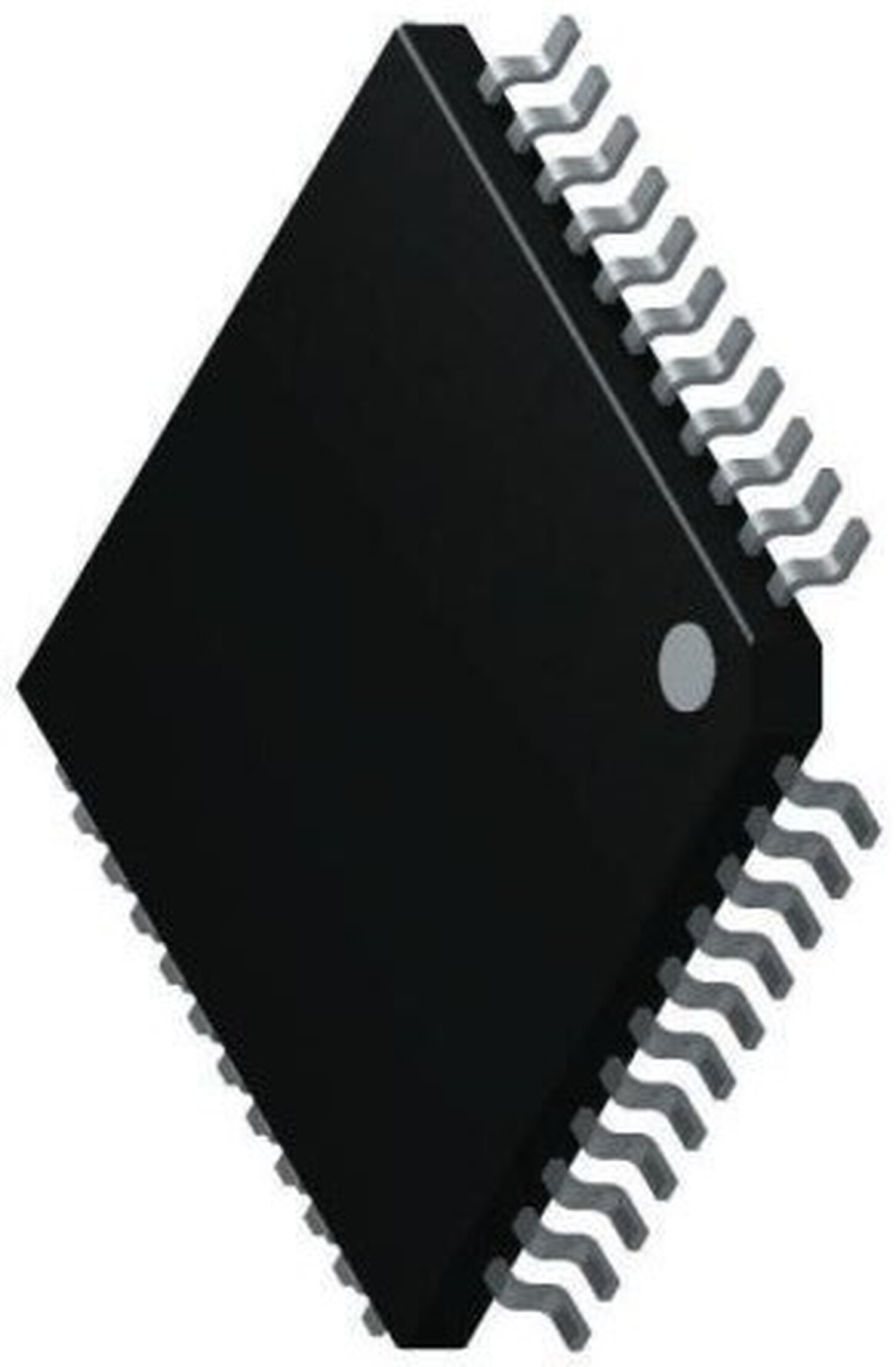

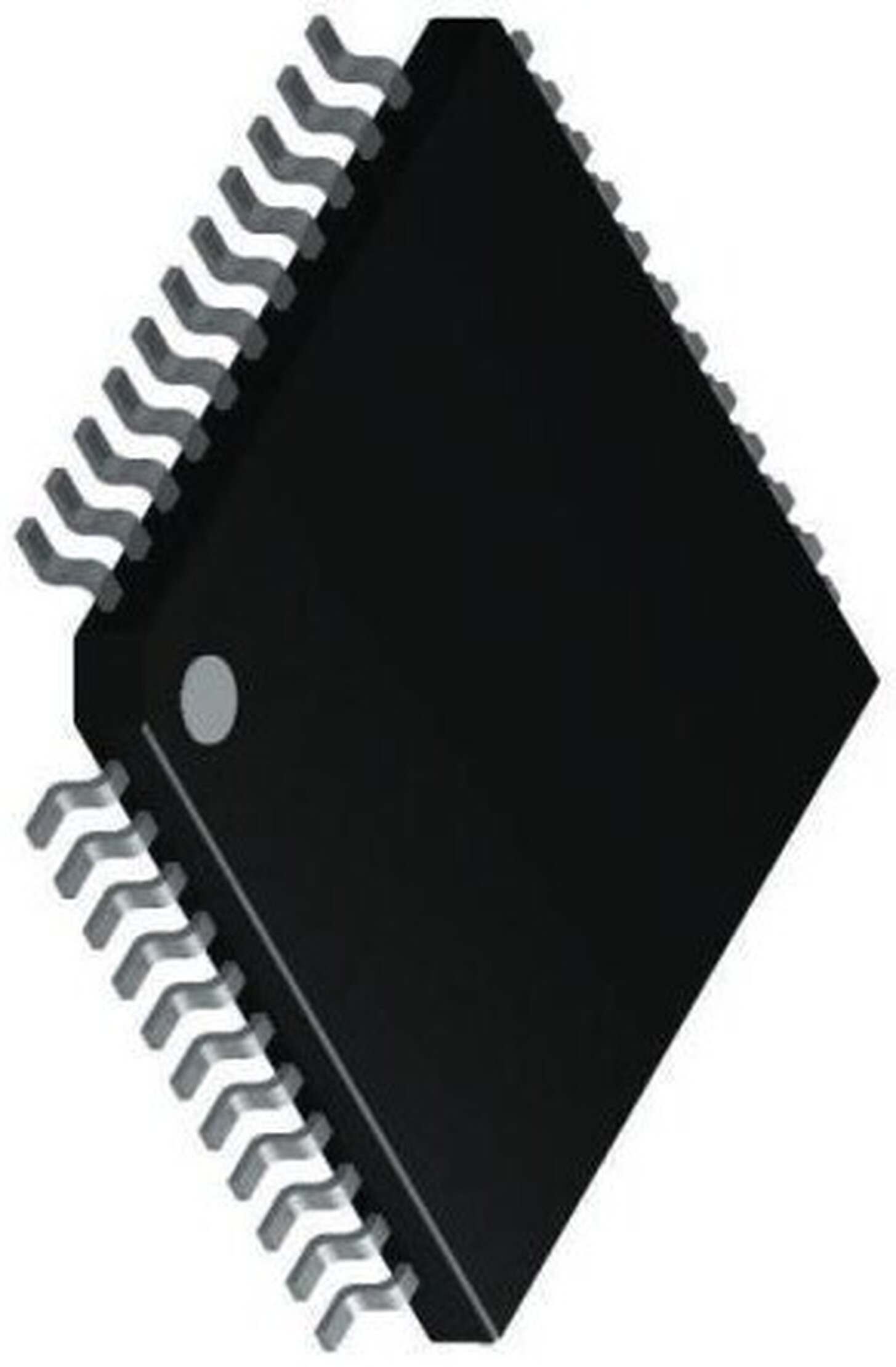

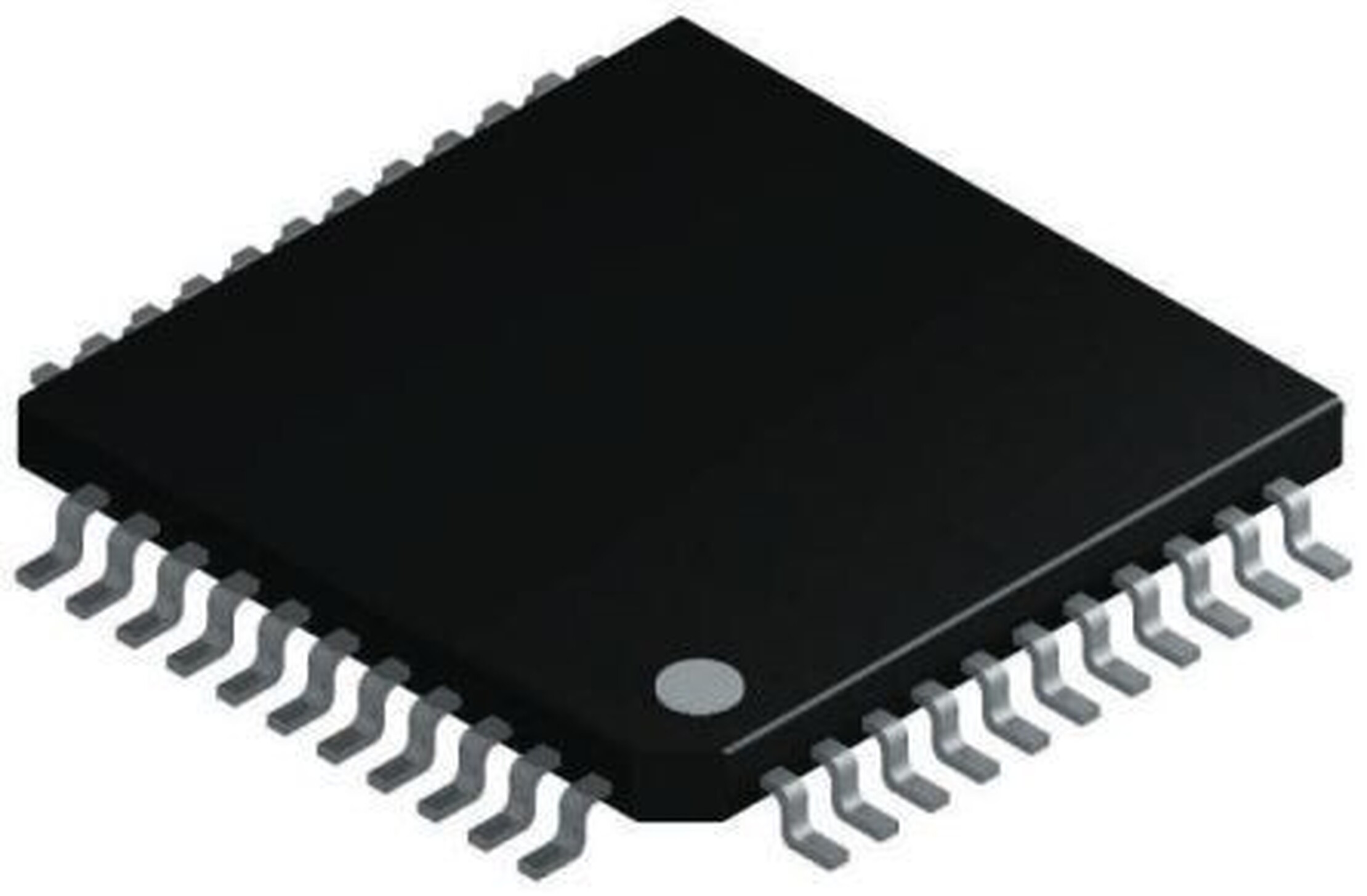

TC7109ACKW Integrated Circuit CASE: QFP44 MAKE: TSC
Product specifications
Type Integrated Circuit
Case QFP44
Manufacturer TSC
FSR Error (LSB/%) 1.0
Vin Range (Vp-p) 4.0
Outp Arith. Code A
VOH Min. 3.5
VOL Max. 0.4
PD Max. (W) 500m
Nom. Neg Supp 5.0
Nom. Pos. Supp 5.0
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 44-241
No. of Pins 44
Surface Mounted Yes/No YES
SKU 938937
