Home / Semiconductors / TCZT8021
TCZT8021

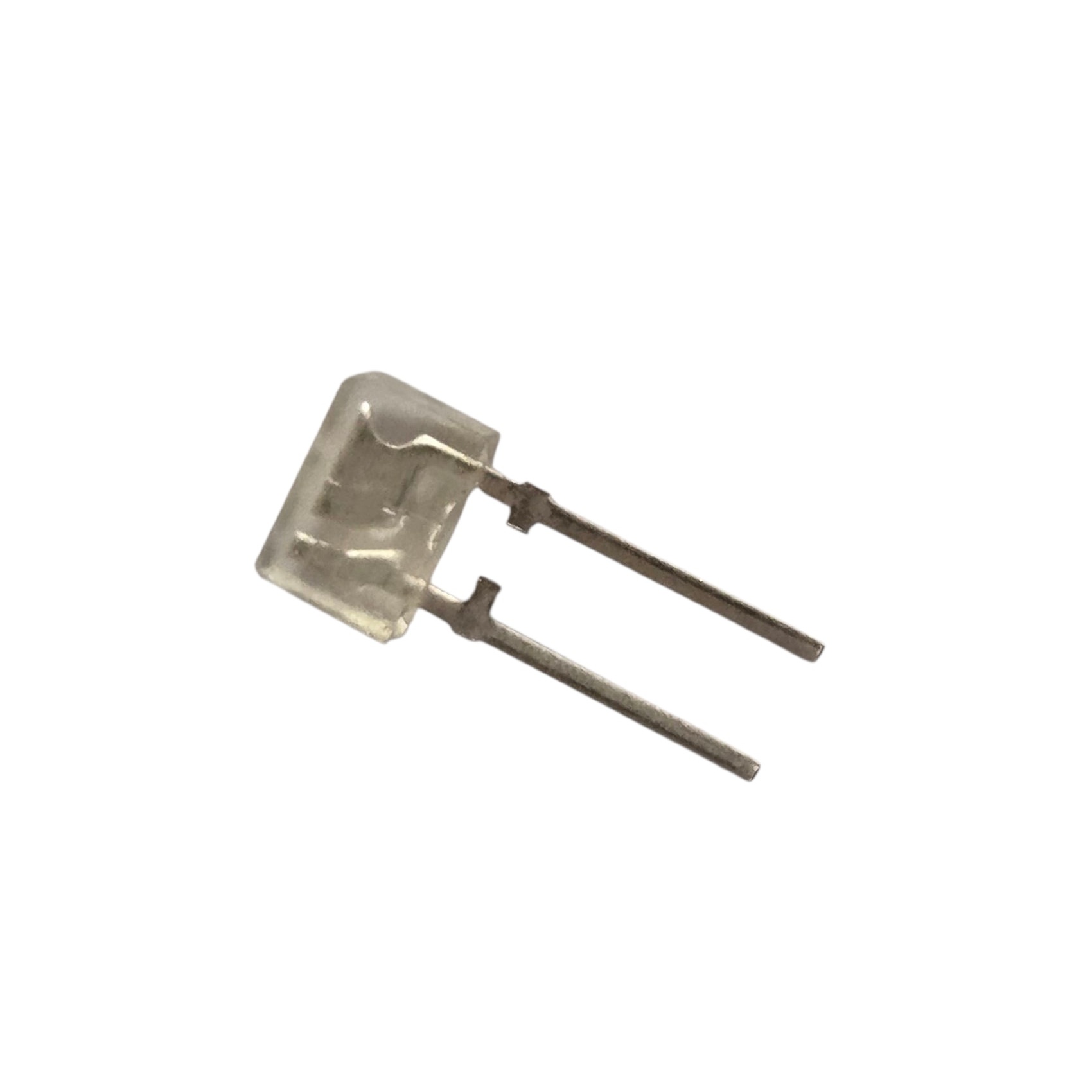

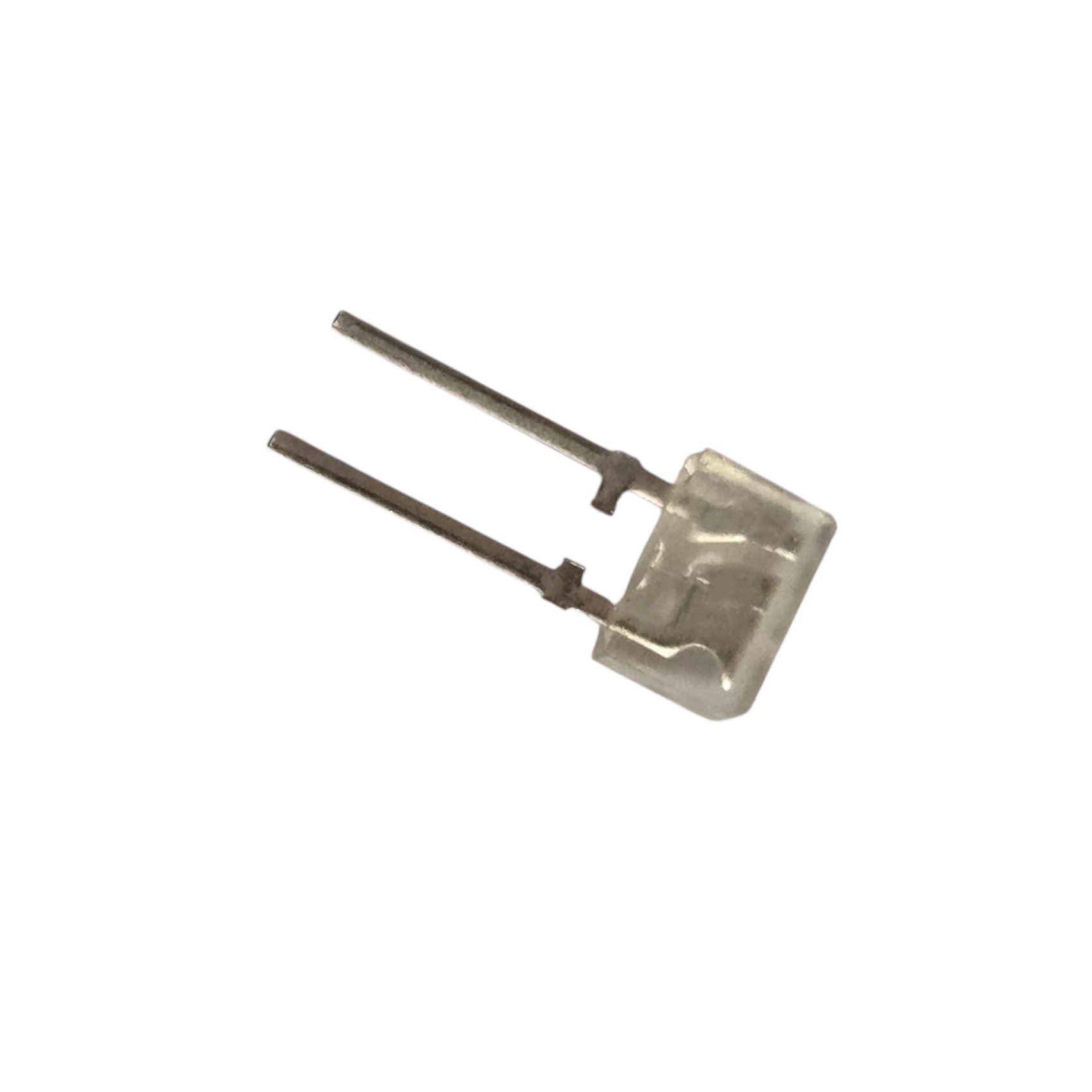

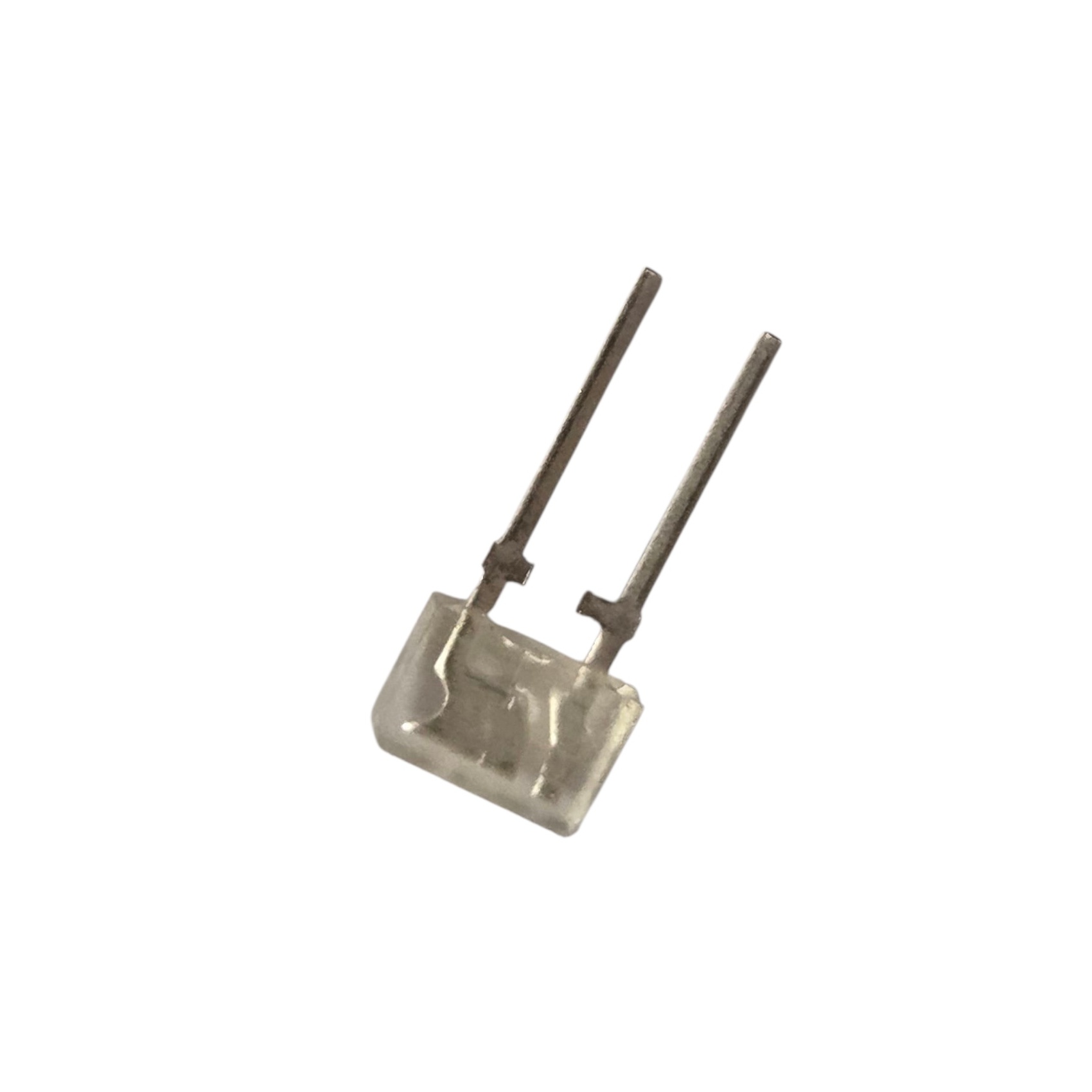

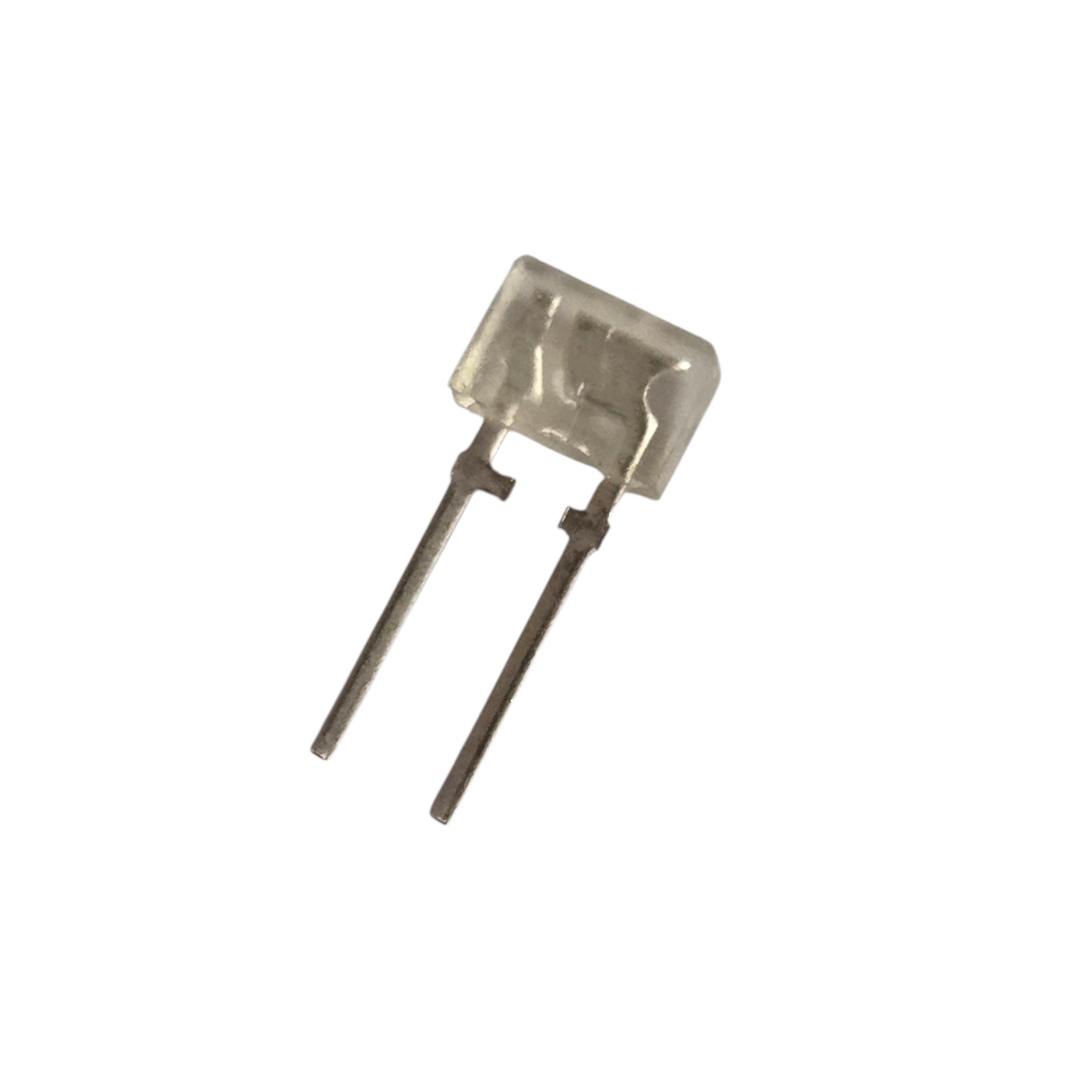

View detailed images (4)

TCZT8021

SKU: TCZT8021
TCZT8021 SemiConductor CASE: Standard MAKE: TFK
Product specifications
Type SemiConductor
Case Standard
Manufacturer TFK
If Max. (A) 60m
I(out) Max. (A) 1.0m
t(resp) (S) 4.0u
Outp Ckt Type Transistor
VCE Max. 70
VCE(sat) Max. 400m
@Vcc (test) (V) 5.0_
Oper. Temp (°C) Max. 100
@If (A) 20m
@If (A) 20m
Number of Chan. 1
Pinout Equivalence Number N/A
Descript Matched Pr
Surface Mounted Yes/No NO
SKU 449456
