TDA1514A
View detailed images (4)

TDA1514A

SKU: TDA1514A

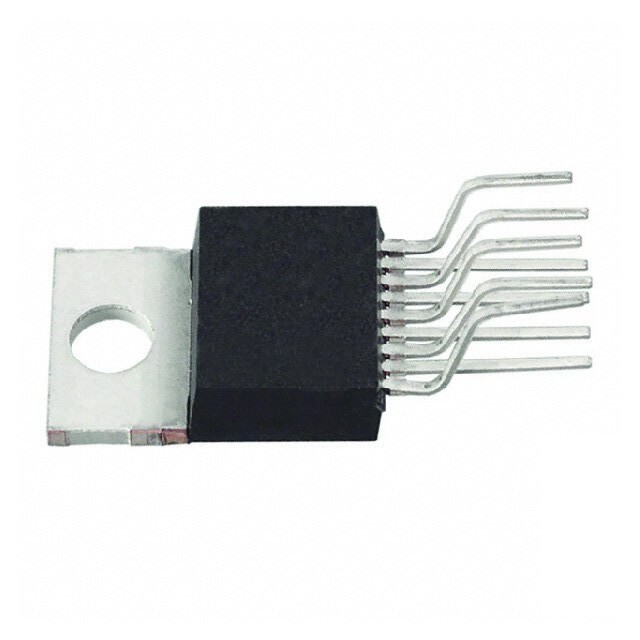

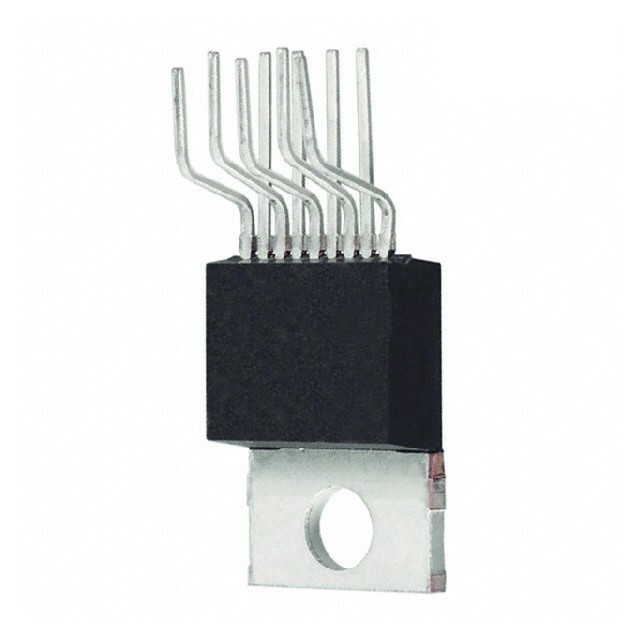

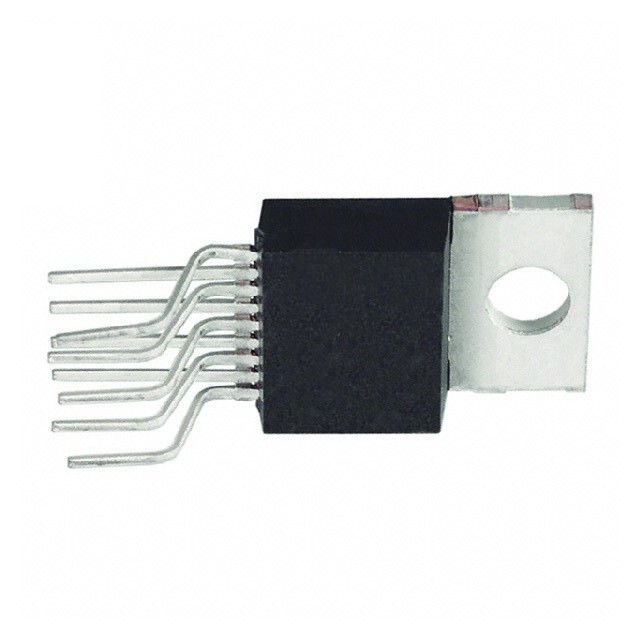

TDA1514A is a 50 W hi‑fi integrated audio power amplifier in a 9‑lead SIL plastic power package (SOT131R). It delivers up to 40 W into 8 Ω at ±27.5 V, runs from ±10 V to ±30 V, has a typical quiescent current of 56 mA, and includes SOAR/thermal protection plus mute and stand‑by facilities.
Price:
£16.79 Inc. VAT (£13.99 Ex. VAT)
£16.79 Inc. VAT (£13.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Semiconductor
Case TO220-911
Manufacturer NXP Semiconductors
Upper 3dB BW (Hz) 25k
R(in) Min (Û) 20k
R(load) (Û) 8.0
Outp Pwr Min. 40
AV (dB) Min. 30
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 140
Pinout Equivalence Number 9-6
No. of Pins 9
Surface Mounted Yes/No NO
SKU 16404
