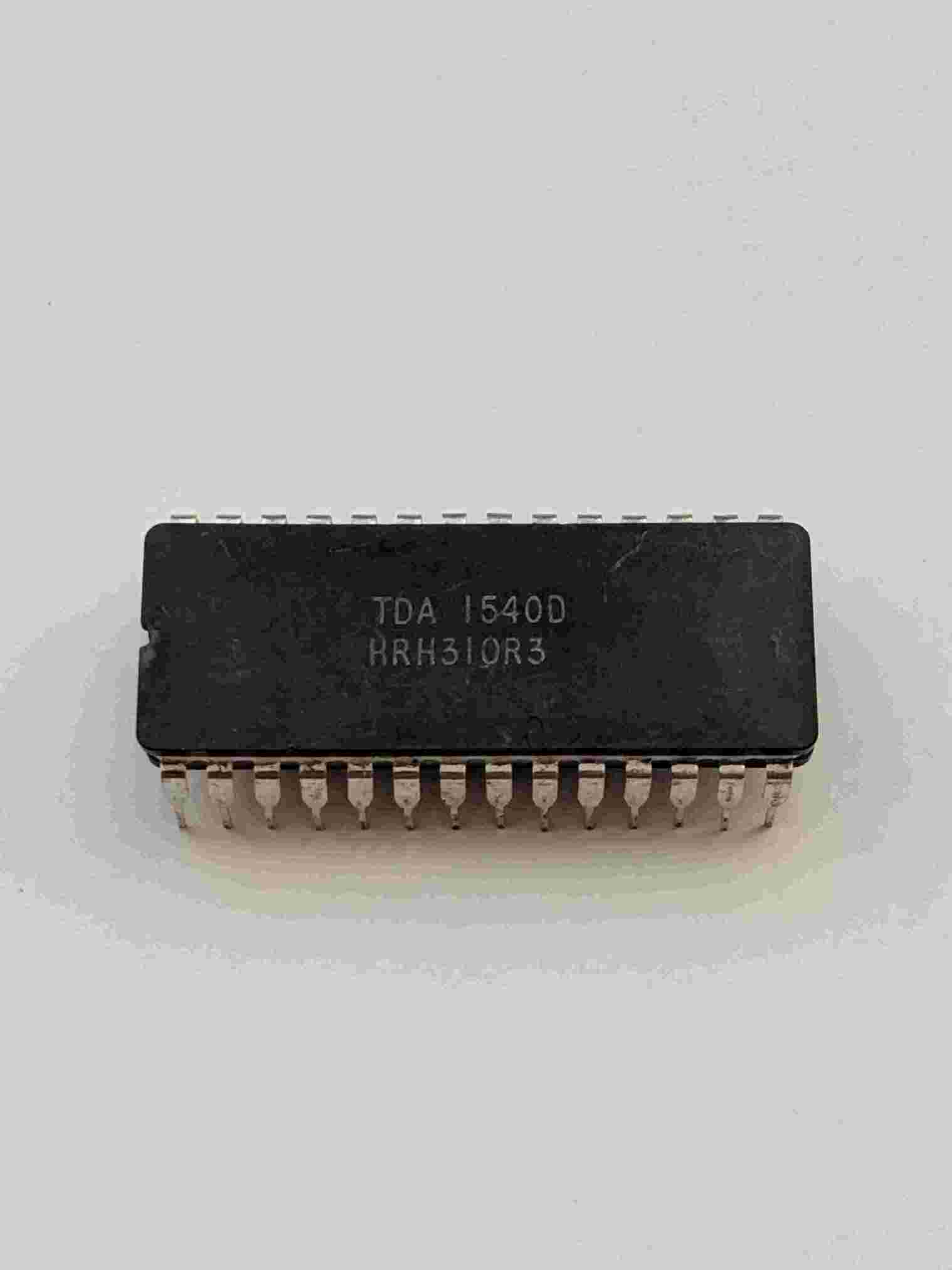

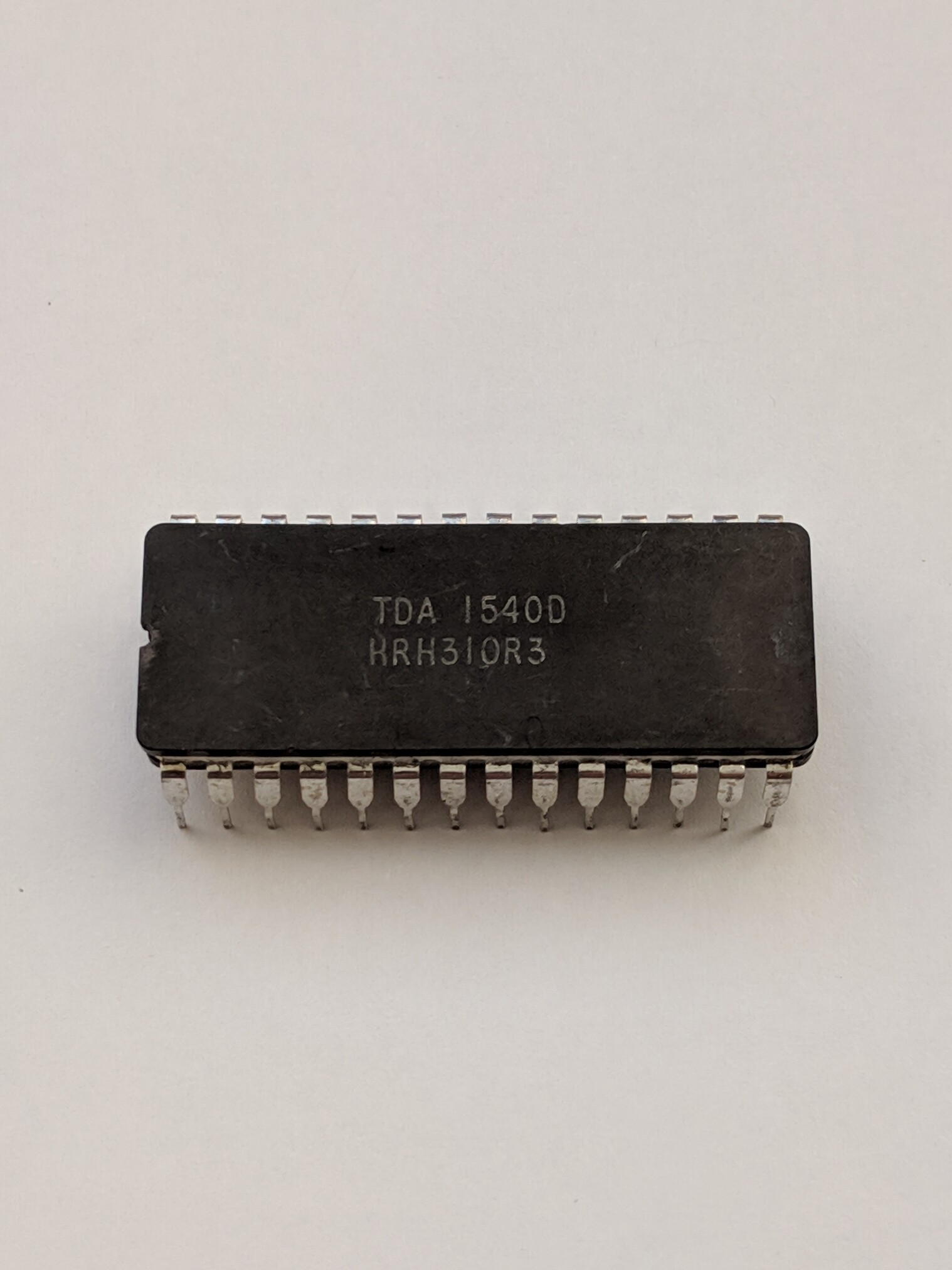

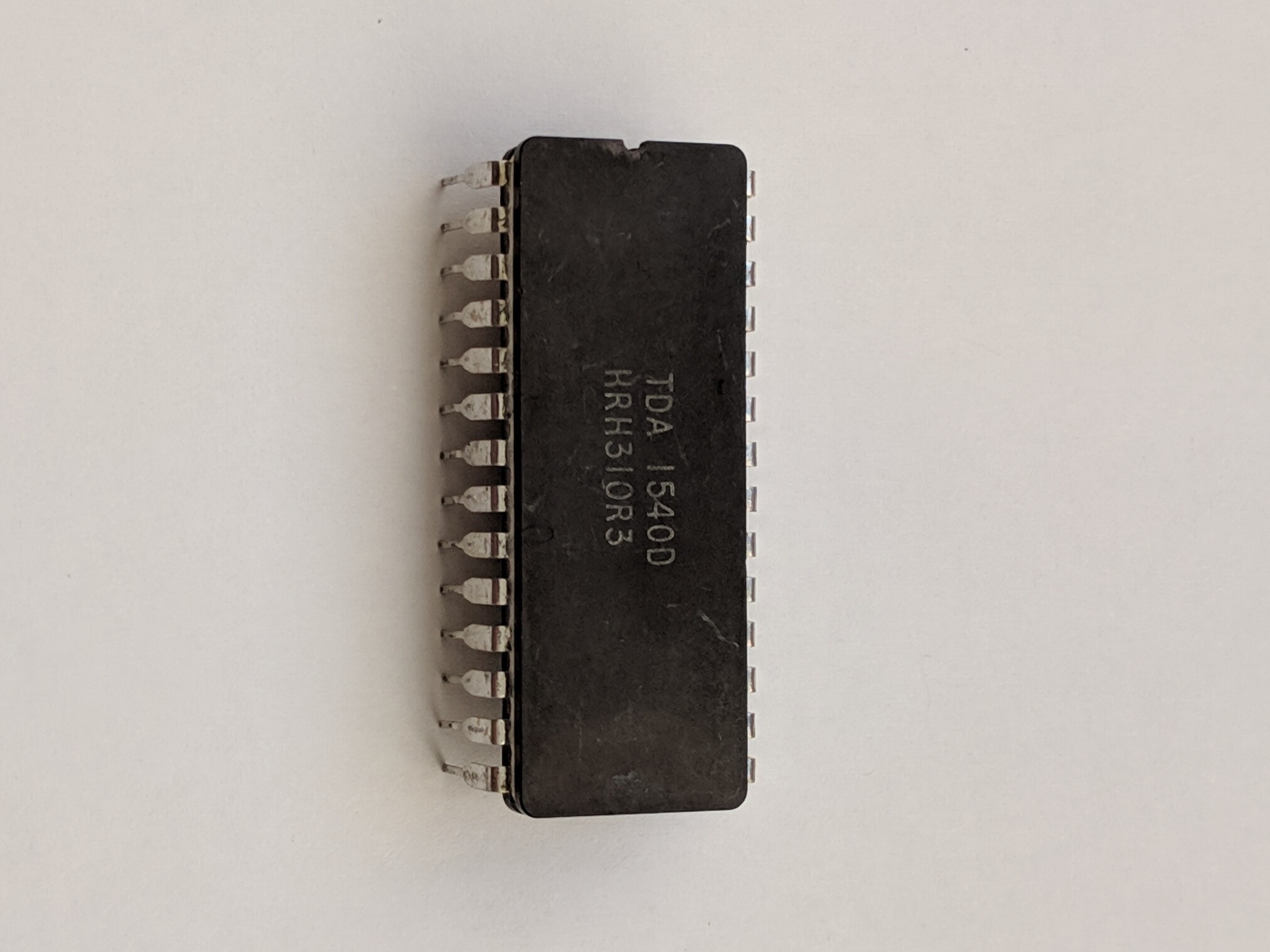

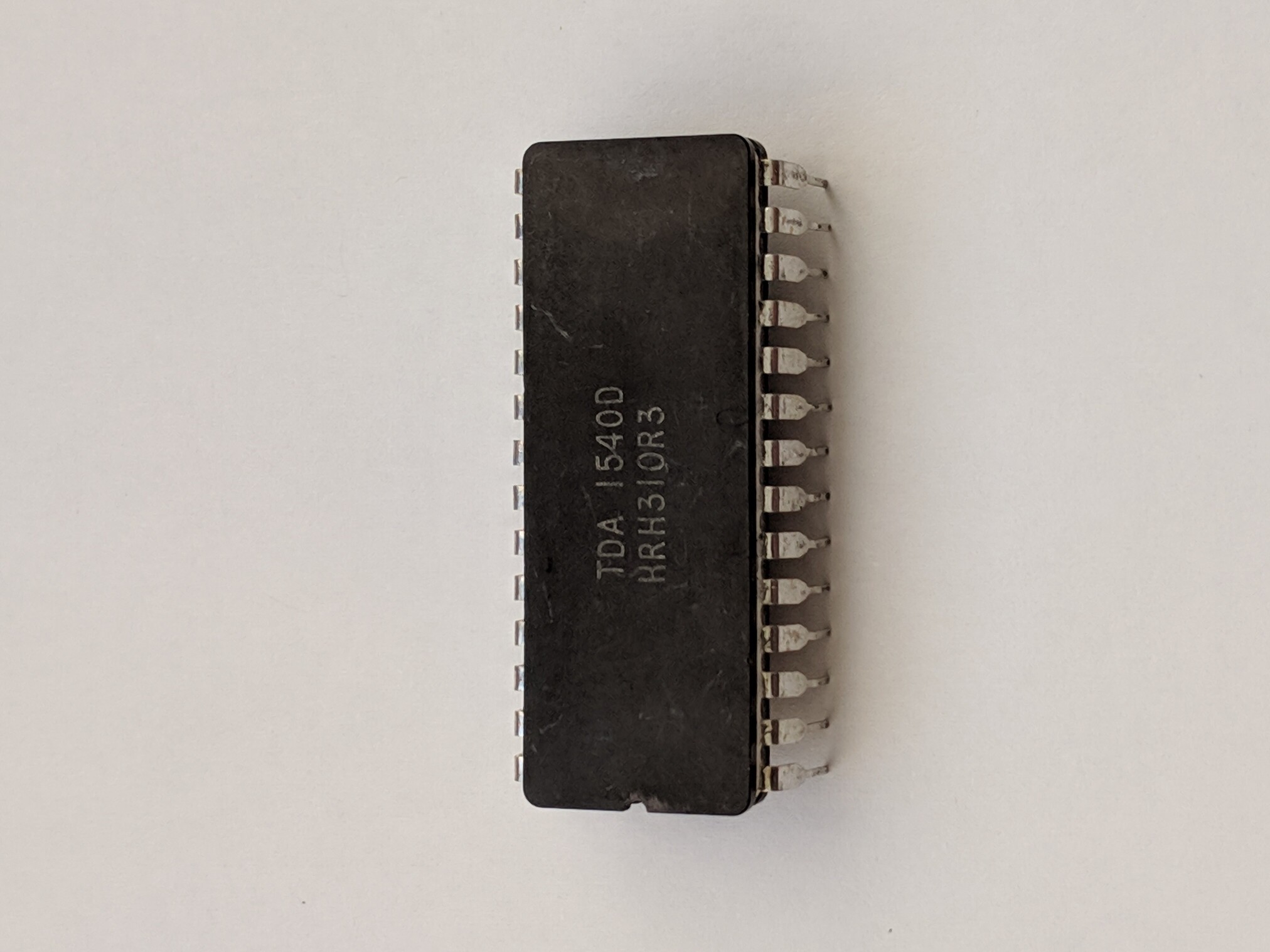

TDA1540D
View detailed images (5)

TDA1540D

SKU: TDA1540D
TDA1540D Integrated Circuit CASE: DIP28 MAKE: NXP Semiconductors
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Equivalent TDA1540
Type Integrated Circuit
Case DIP28
Manufacturer NXP Semiconductors
FSR Error (LSB/%) .50%
Inp Arith. Code A
Vih Min (V) 2.0
Vil Max. (V) 0.8
PD Max. (W) 410m
Nom. Neg Supp 15
Nom. Pos. Supp 5.0
Settling Time (S) 1.0u
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 75
@ Accuracy (% FSR) 0.5
Volt or Cur. Mode Current
Logic Level Family TTL
Pinout Equivalence Number 28-273
No. of Pins 28
Surface Mounted Yes/No NO
SKU 104519
