TDA1556Q

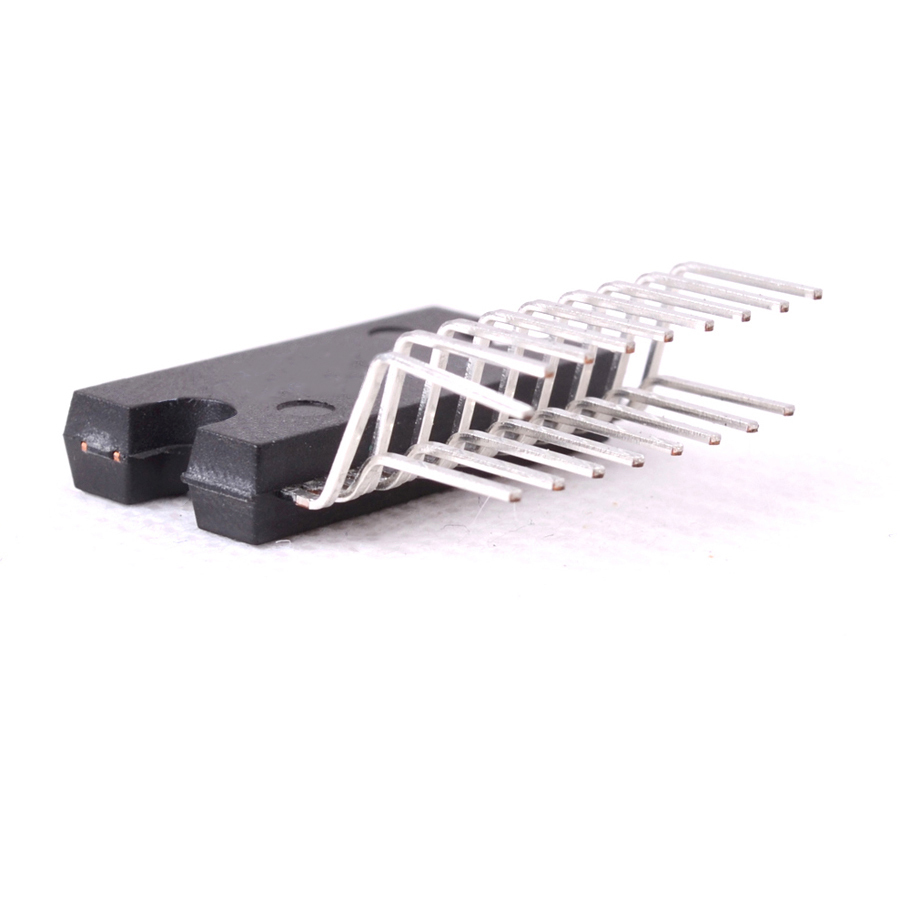

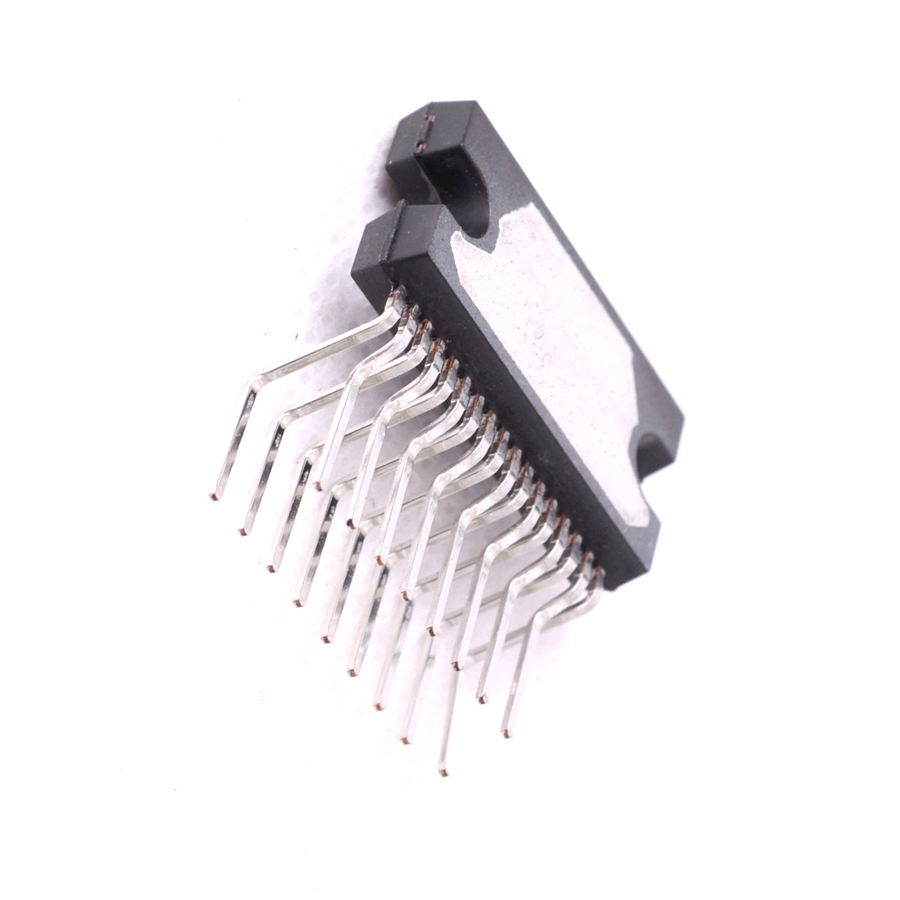

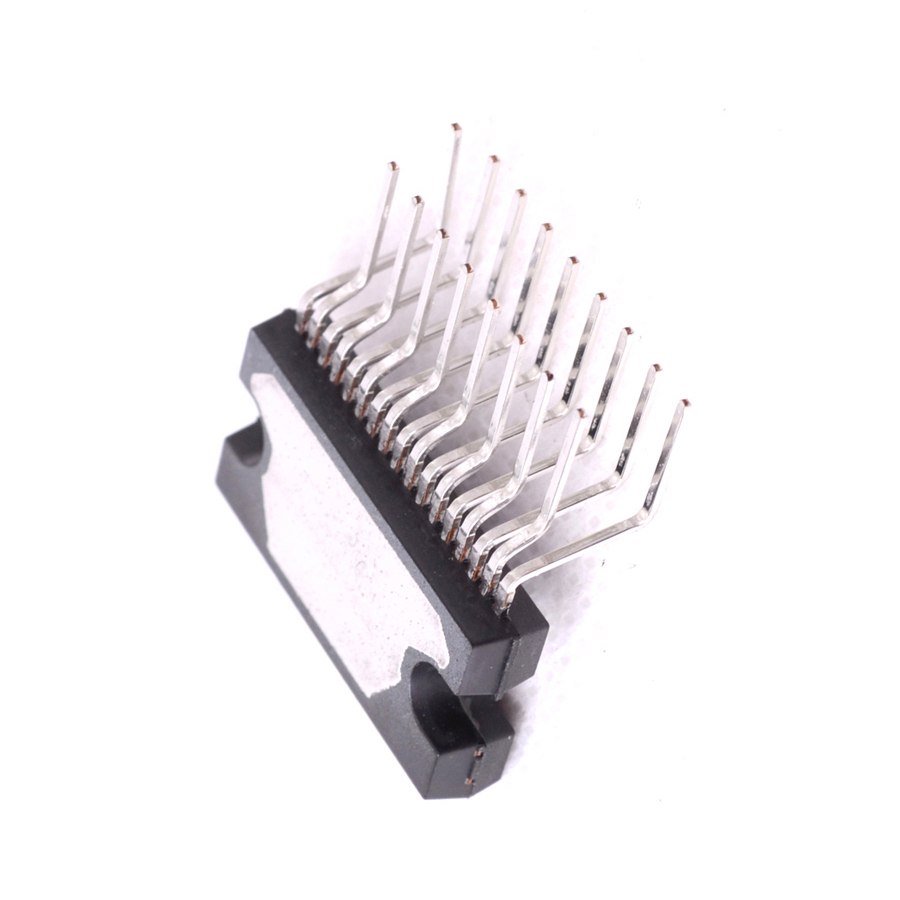

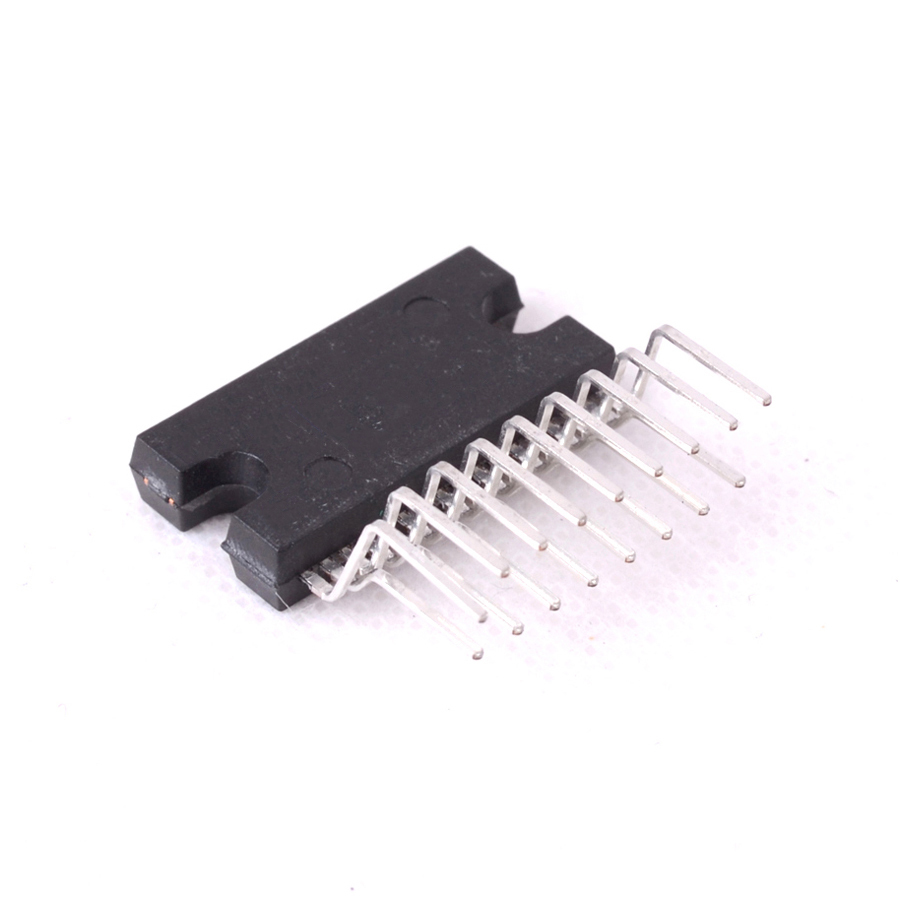

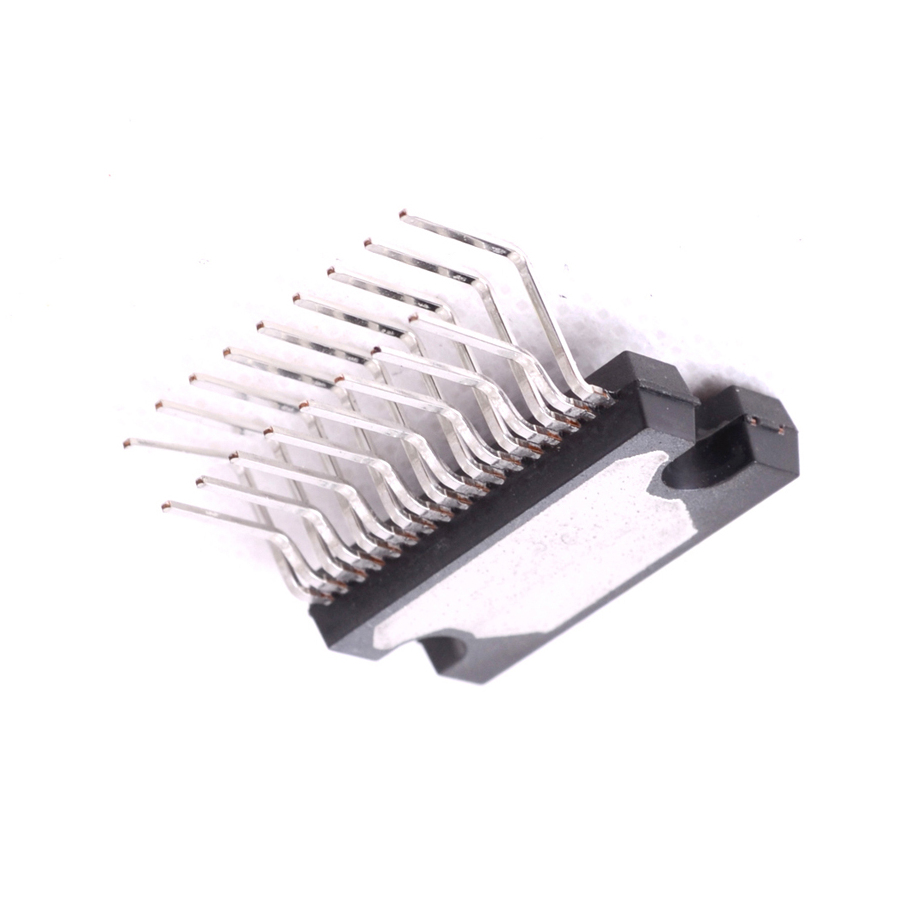

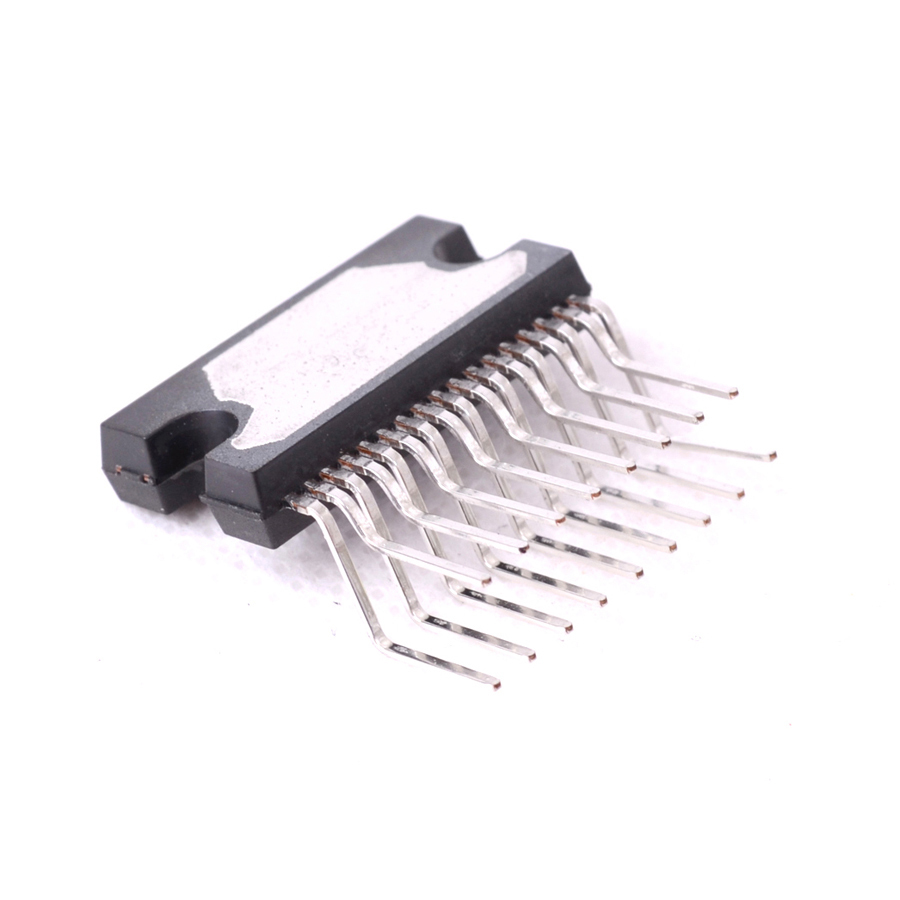

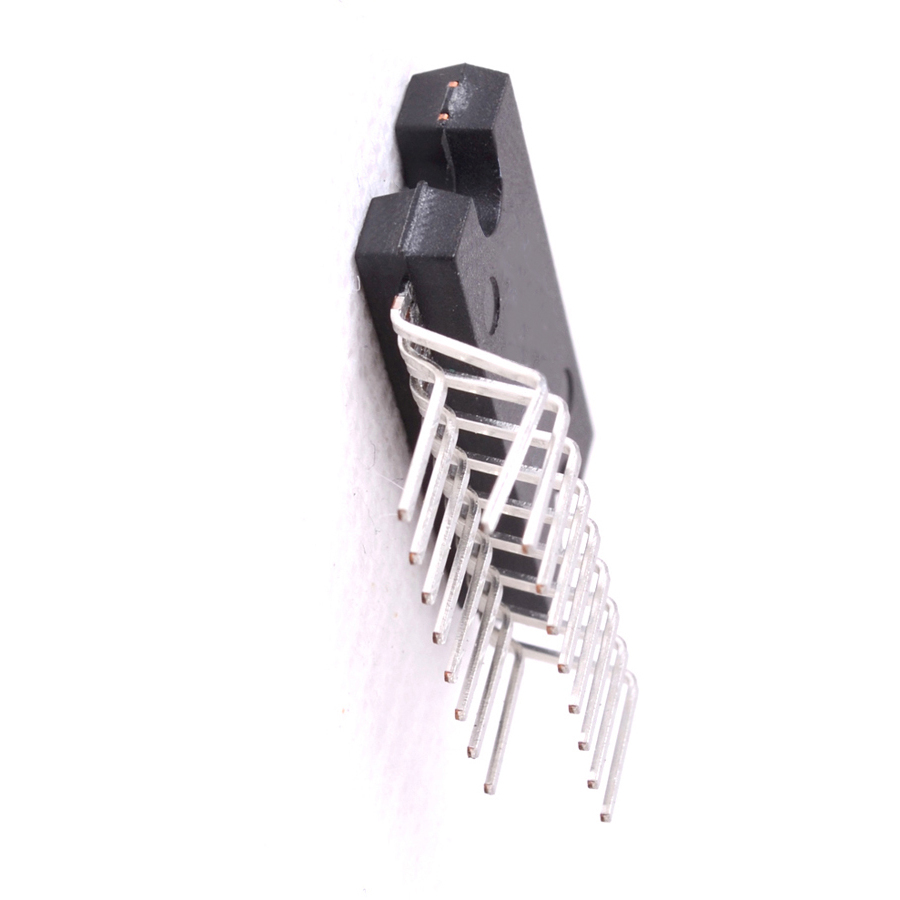

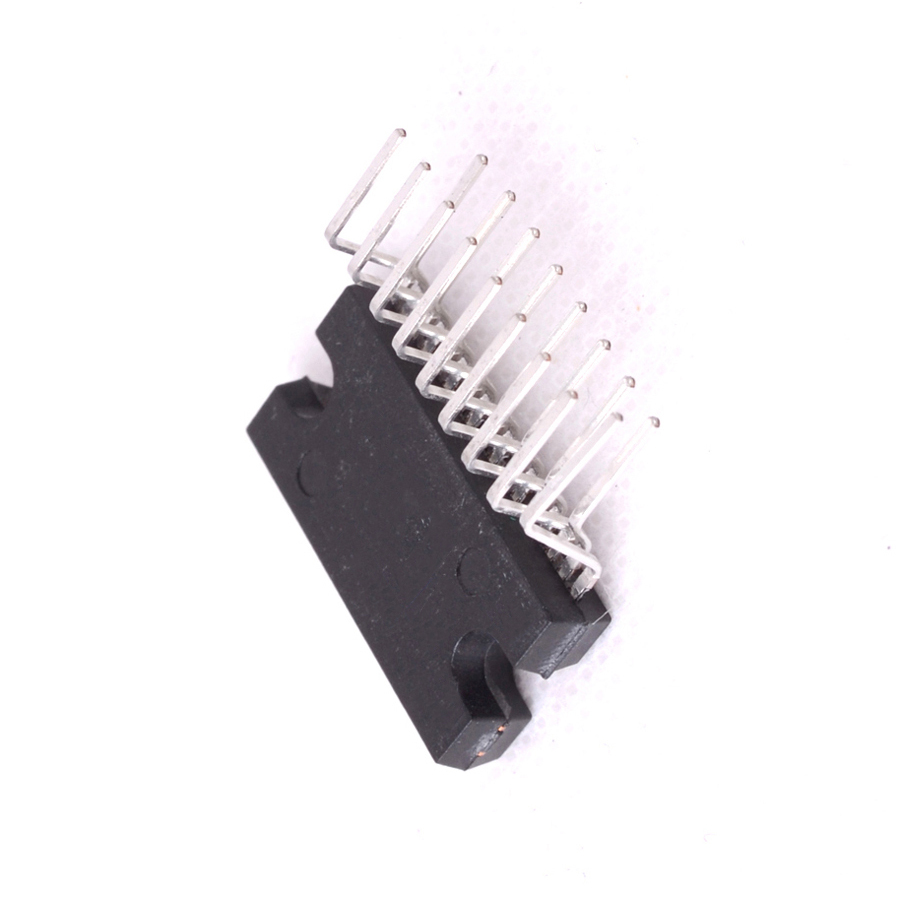

View detailed images (13)

TDA1556Q

SKU: TDA1556Q

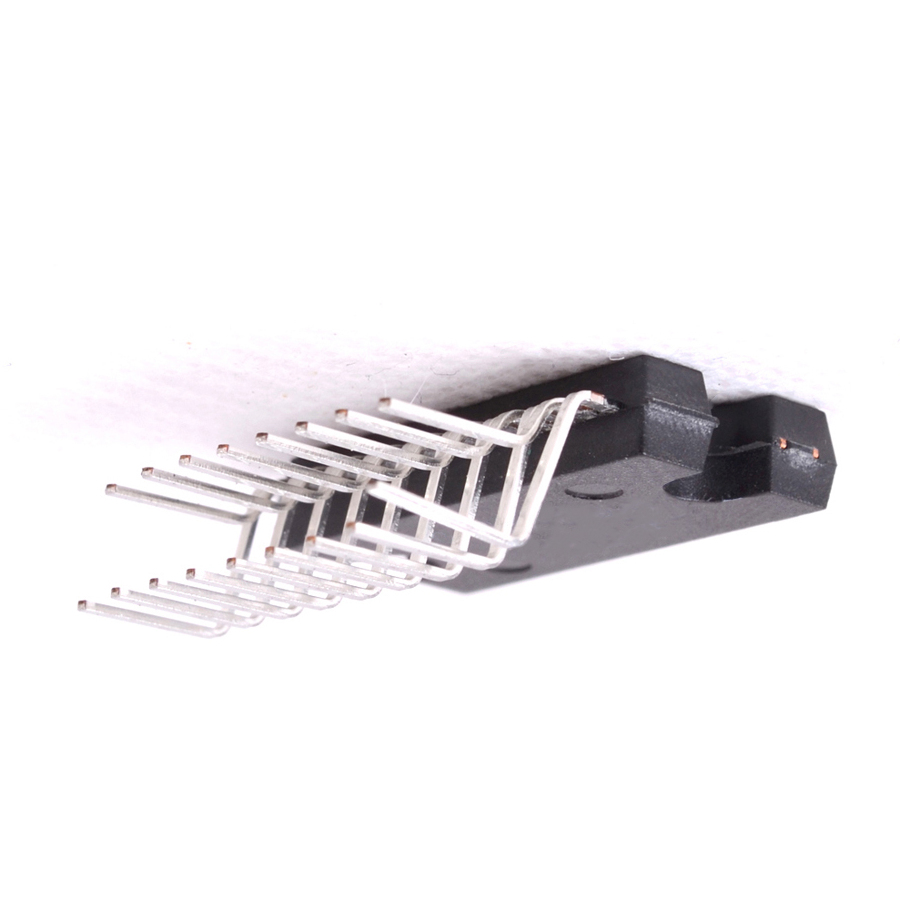

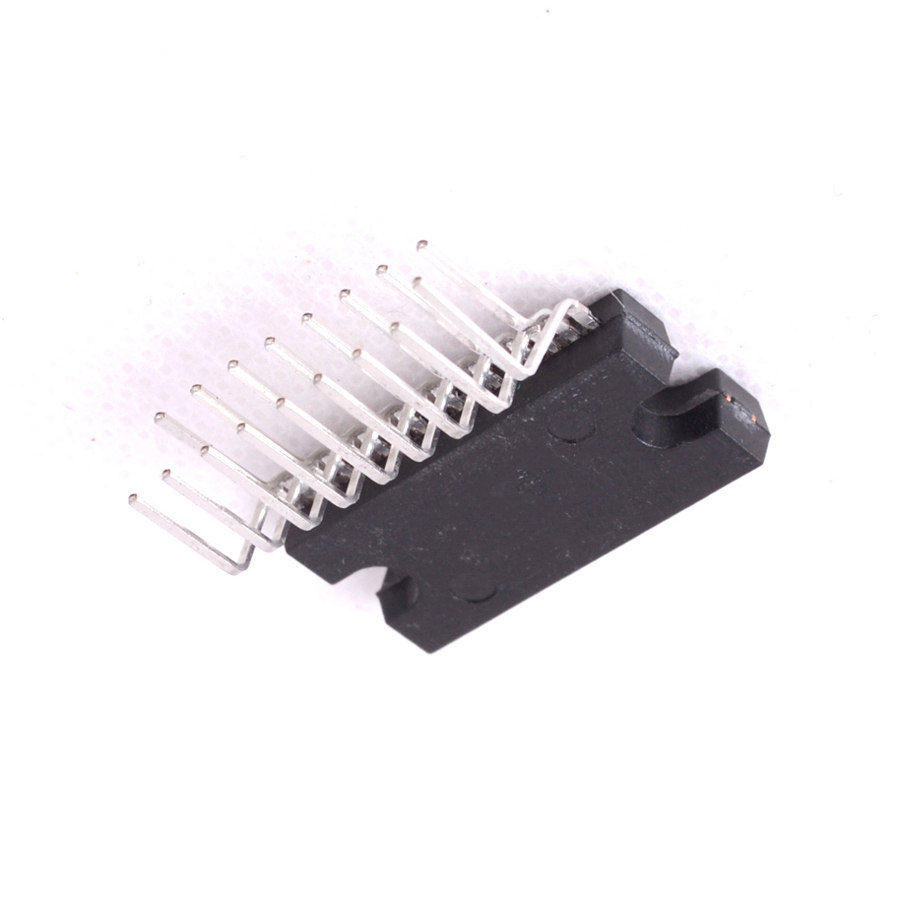

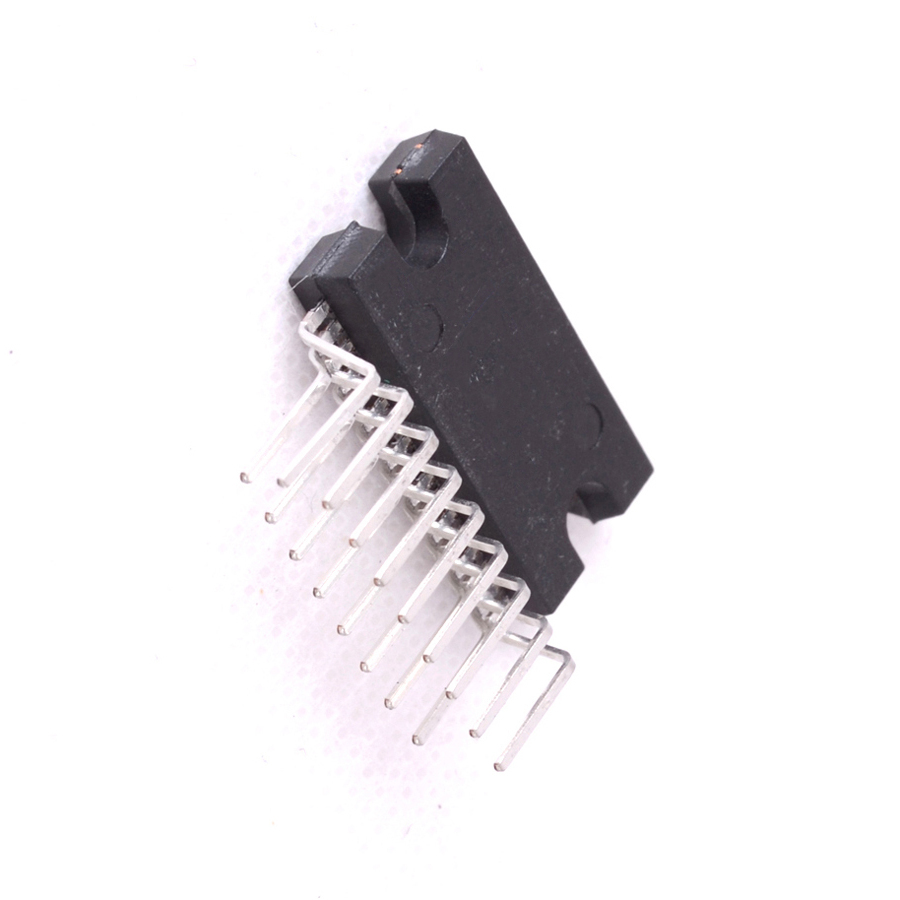

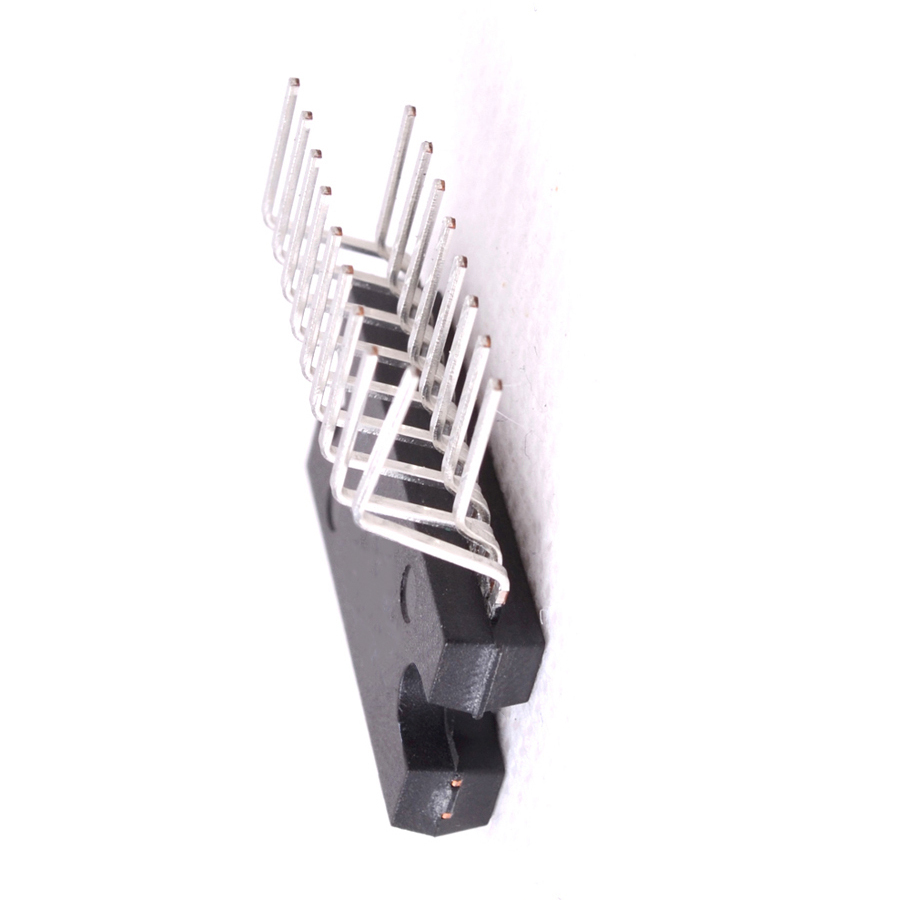

TDA1556Q is a monolithic integrated class-B stereo BTL audio power amplifier providing dual 22 W BTL outputs. It features speaker protection and a dynamic distortion detector and is supplied in a 17-lead SIL plastic power package (SOT243R / outline DBS17P, commonly classified as ZIP17).
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • Last 12 pieces Ready to Ship
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit
Case ZIP17
Manufacturer NXP Semiconductors
Upper 3dB BW (Hz) 20k
R(in) Min (Û) 100k
R(load) (Û) 4
Outp Pwr Min. 15
Quies. Pwr (W) 2.3
THD Max. (%) .1-
AV (dB) Min. 25
Pinout Equivalence Number 17-13
Surface Mounted Yes/No NO
SKU 76297
