TDA1558Q
View detailed images (13)

TDA1558Q

SKU: TDA1558Q

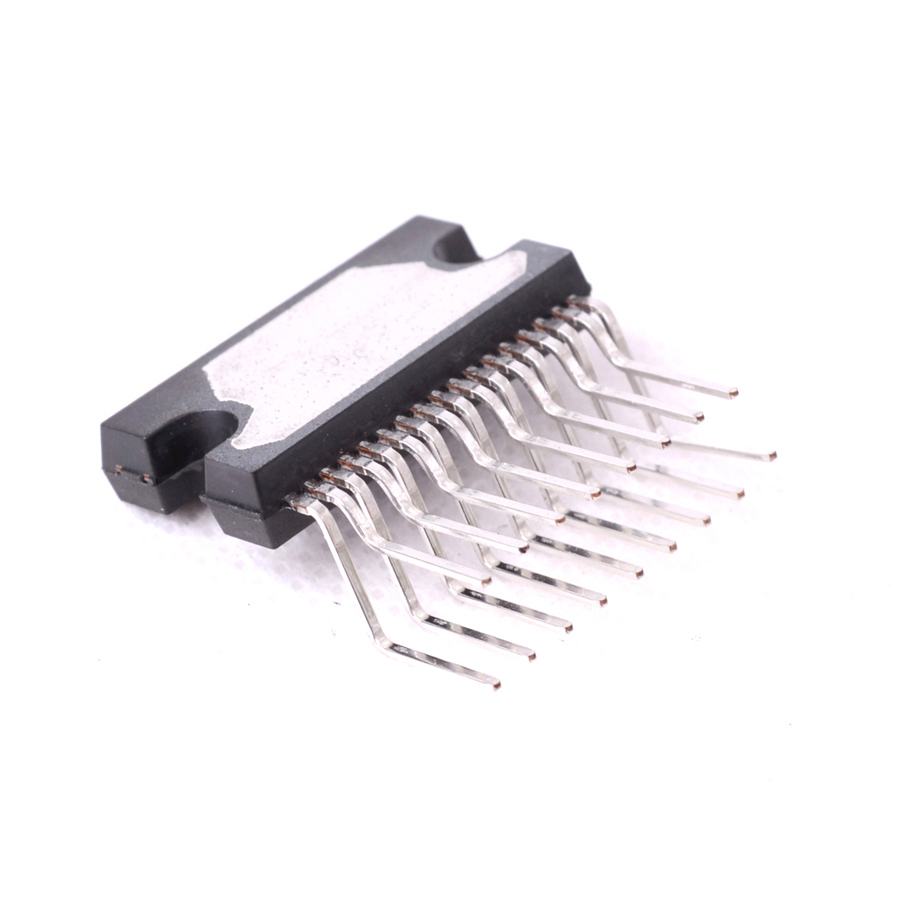

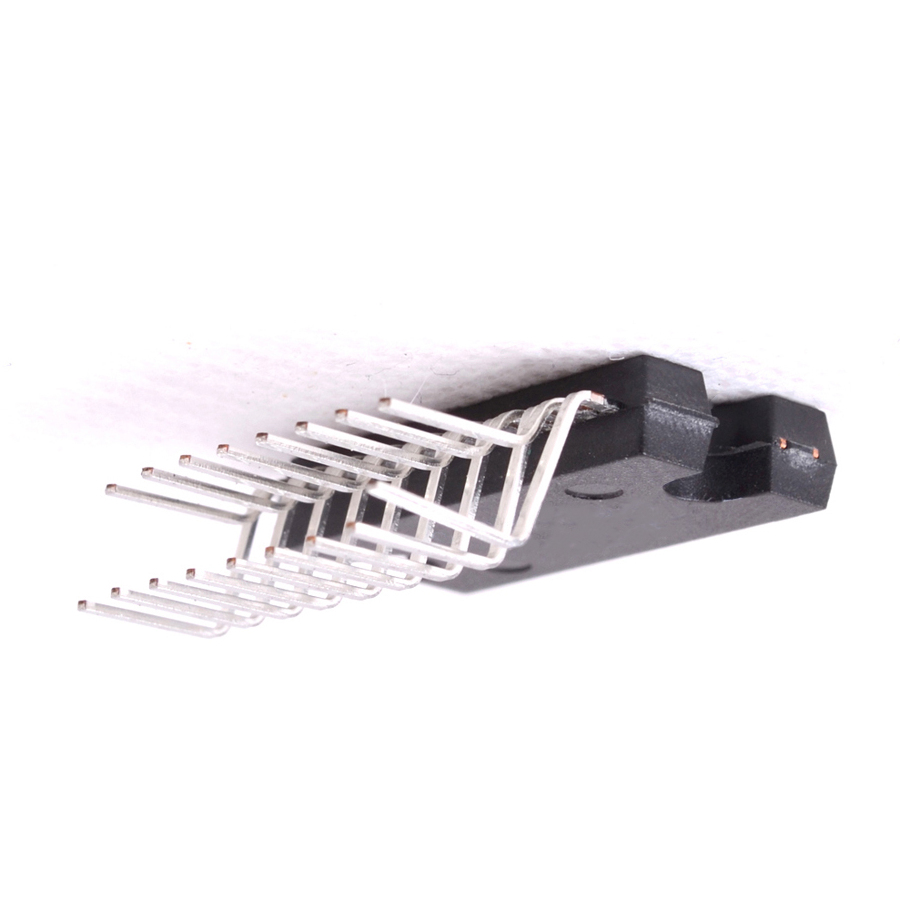

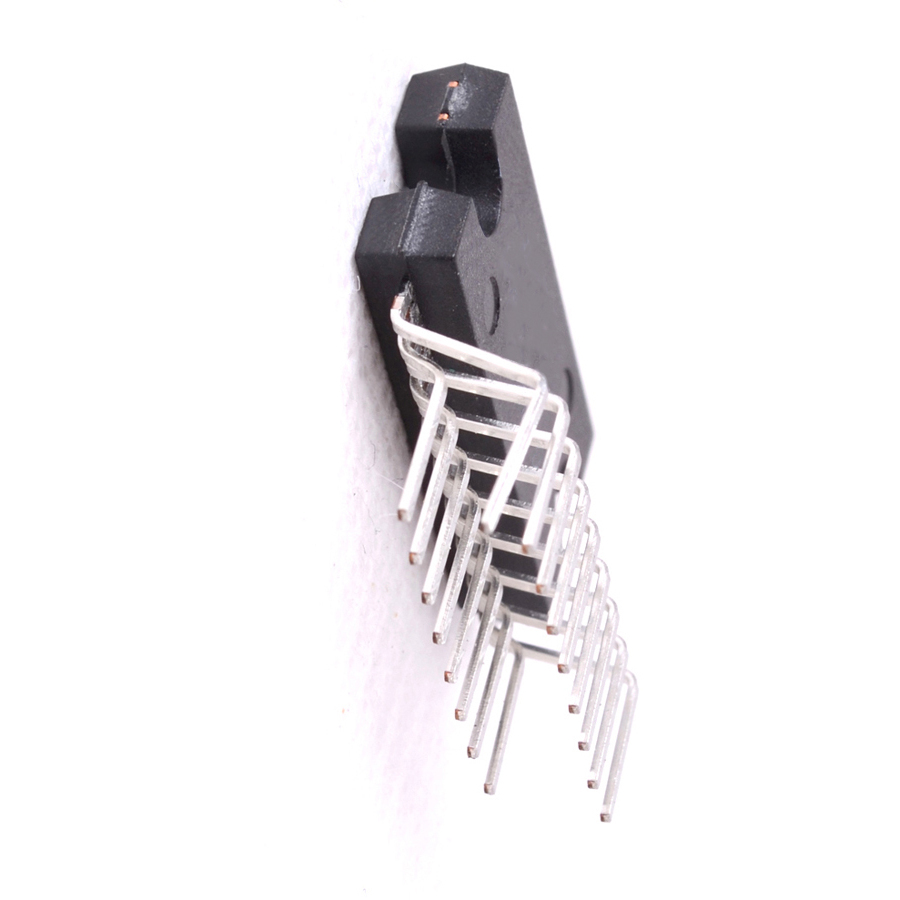

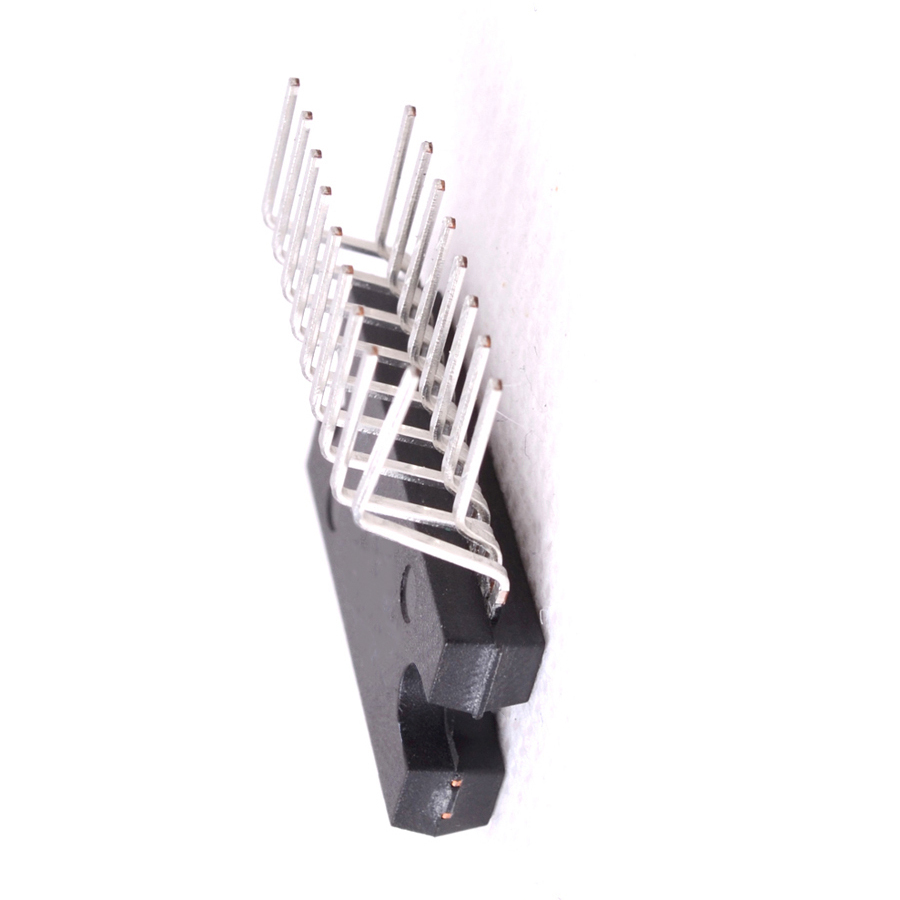

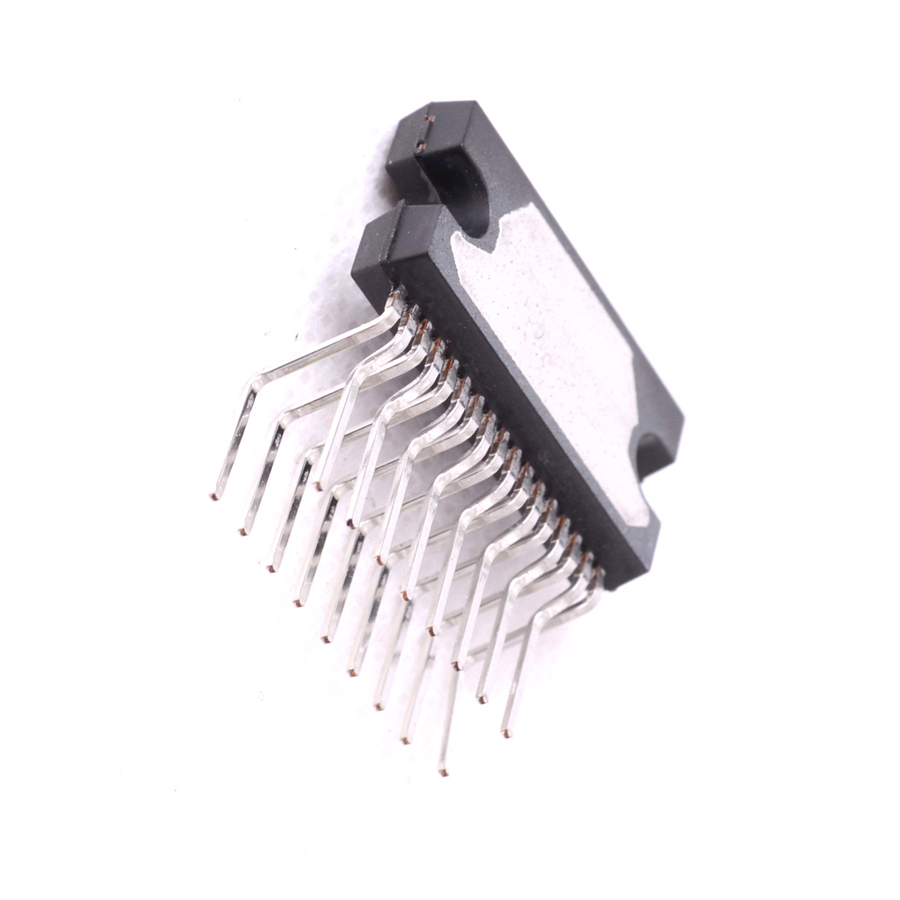

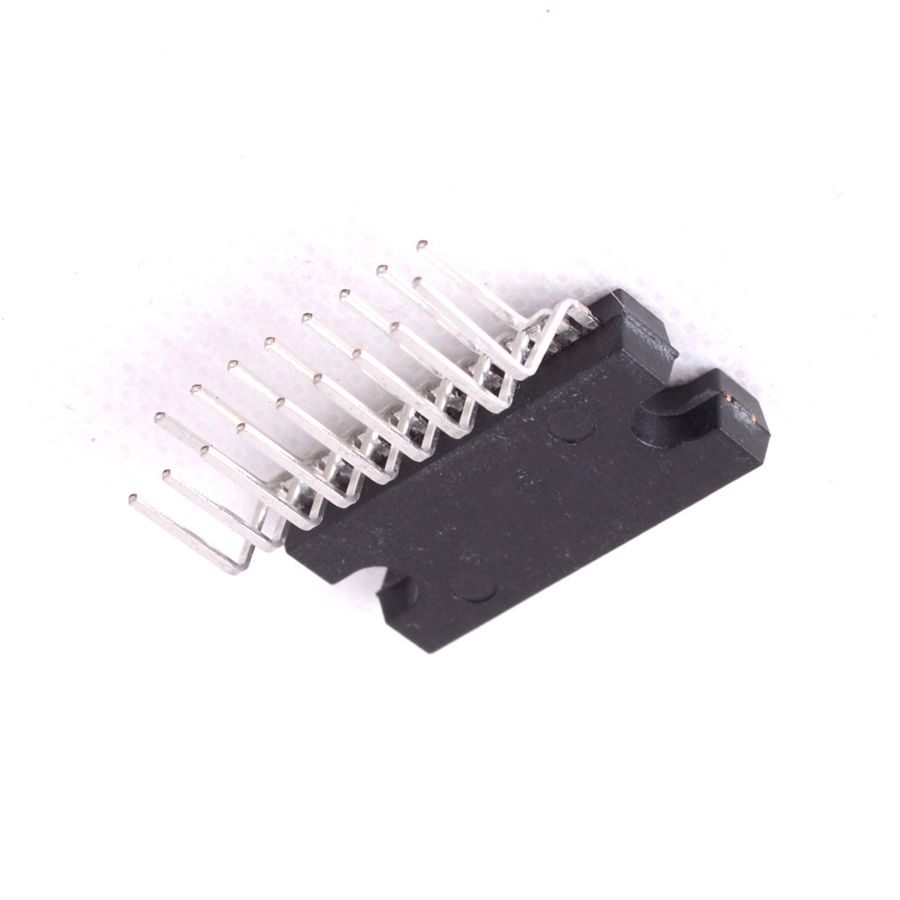

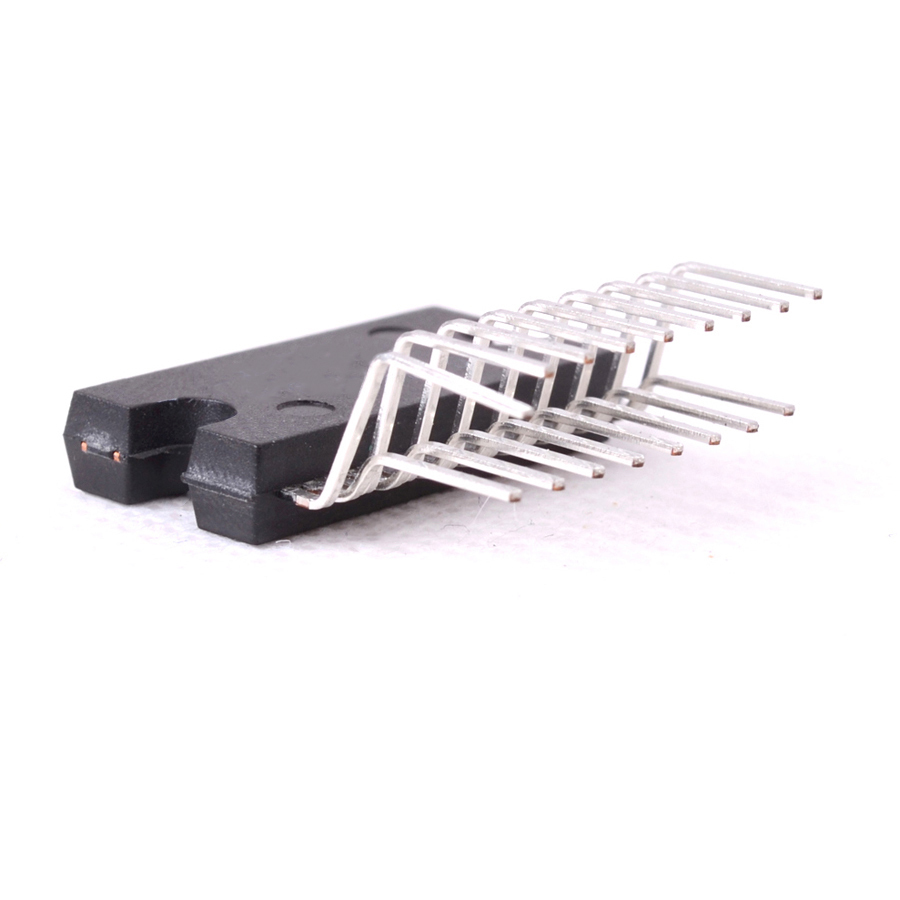

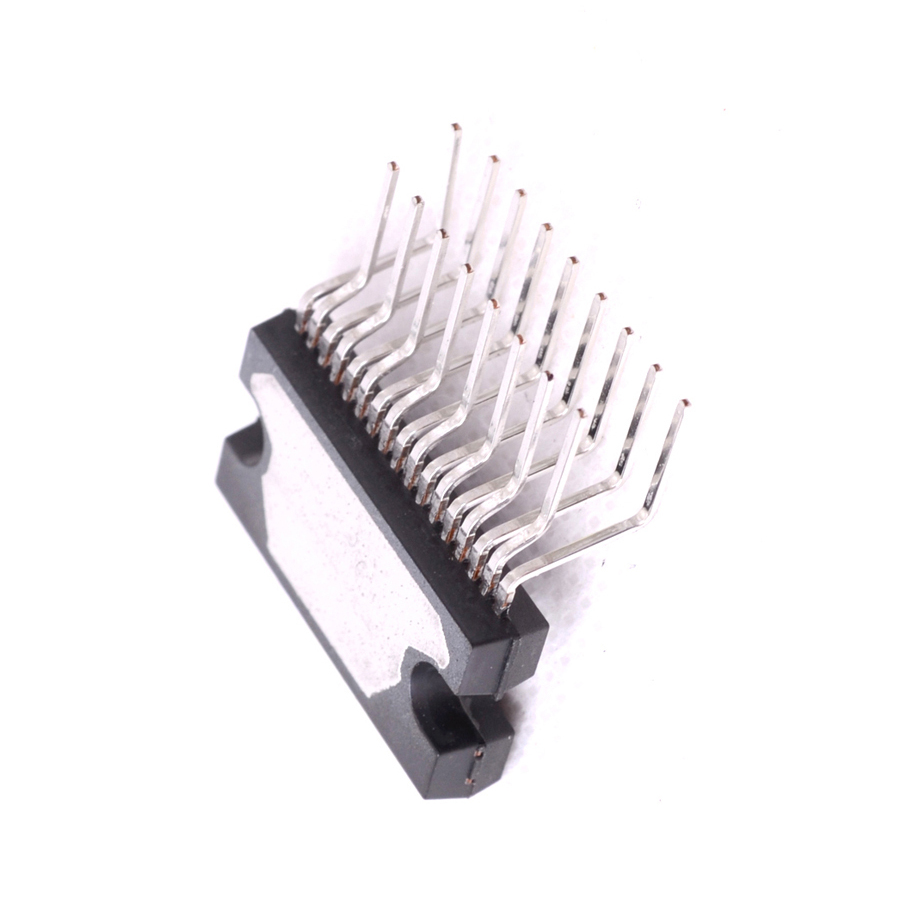

TDA1558Q is a car radio audio power amplifier IC delivering 2 × 22 W or 4 × 11 W single-ended outputs. Supplied in a 17‑lead single‑in‑line plastic power package (DBS17P / SOT243‑1), it provides mute/stand-by control and includes thermal and short‑circuit protection.
Price:
£11.99 Inc. VAT (£9.99 Ex. VAT)
£11.99 Inc. VAT (£9.99 Ex. VAT)
Qty
  • 17 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
TDA1558Q Datasheet
Product specifications
Type Integrated Circuit
Case ZIP17
Manufacturer NXP Semiconductors
Upper 3dB BW (Hz) 20k
R(in) Min (Û) 50k
R(load) (Û) 4
Outp Pwr Min. 4
Quies. Pwr (W) 2.3
THD Max. (%) .1-
AV (dB) Min. 39
Pinout Equivalence Number 17-14
Surface Mounted Yes/No NO
SKU 16400
