TH560
View detailed images (12)

TH560

SKU: TH560

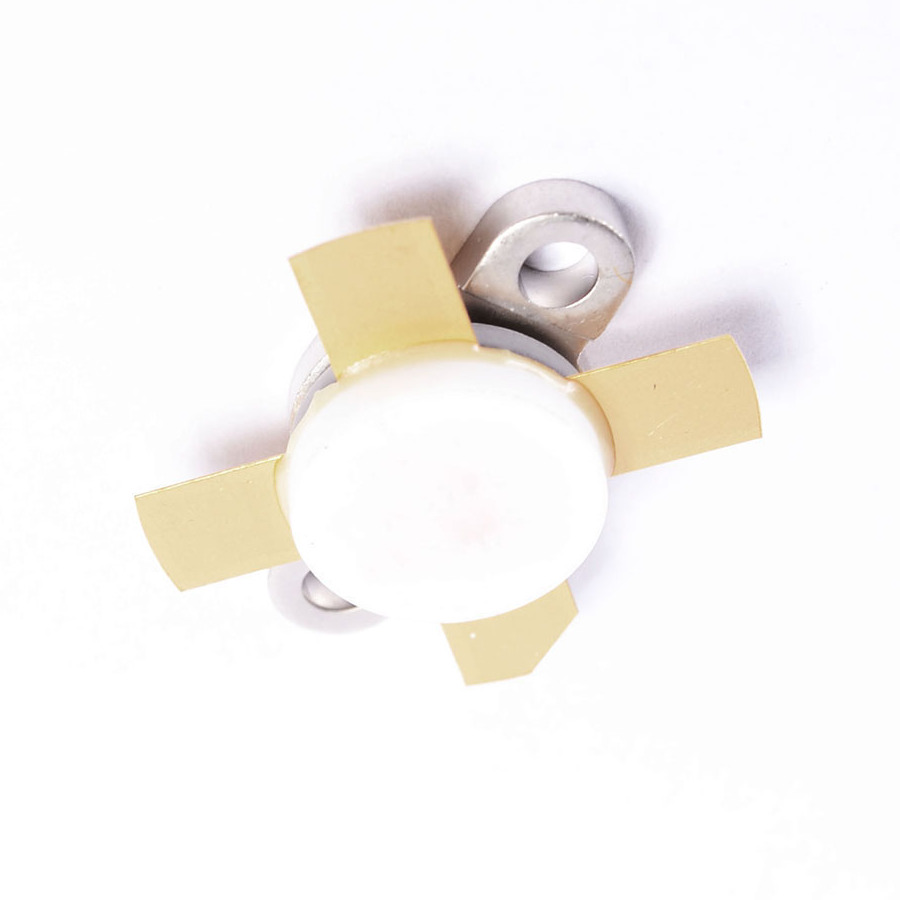

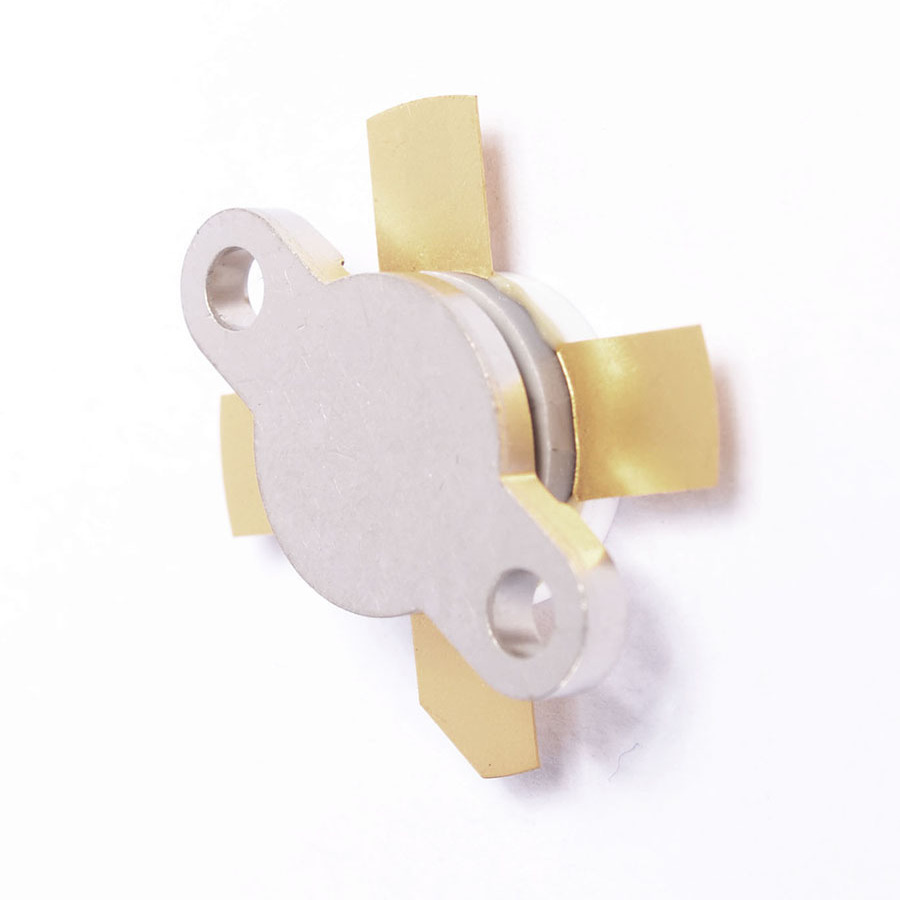

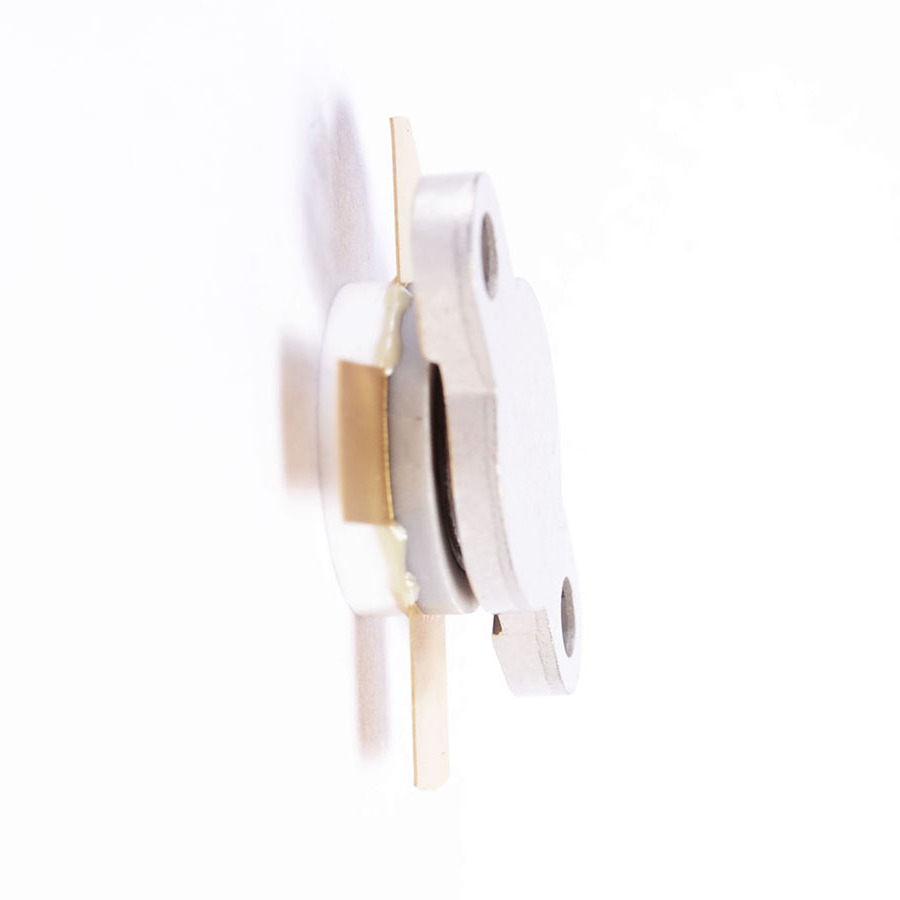

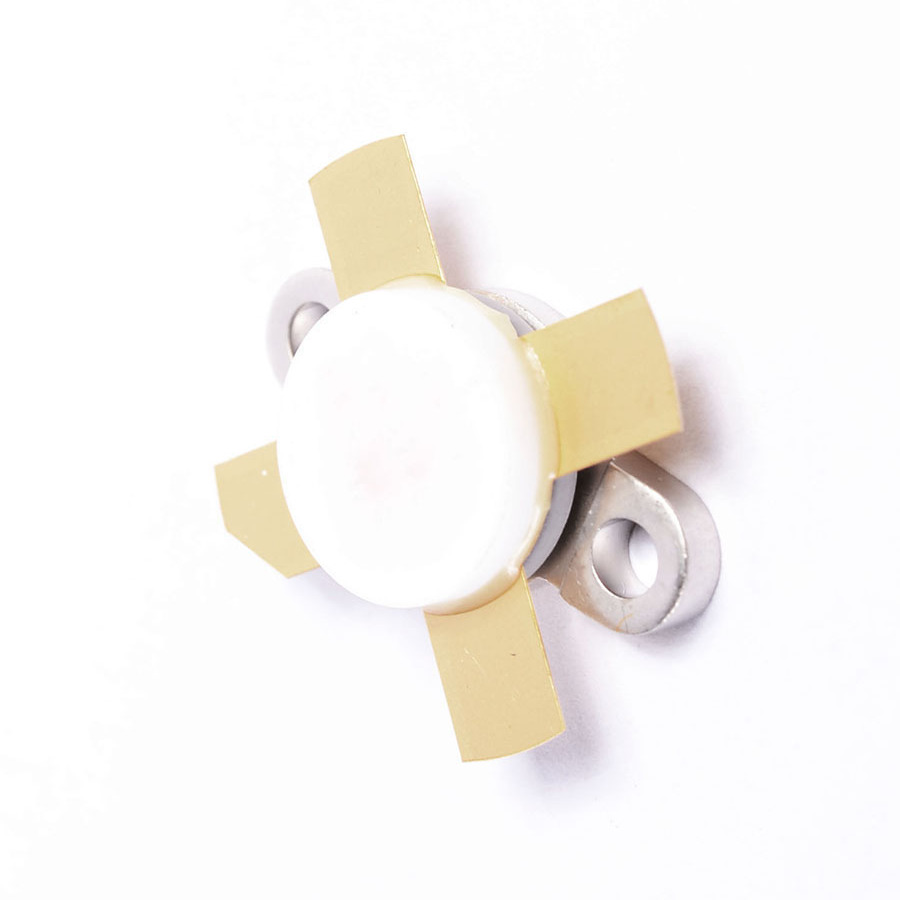

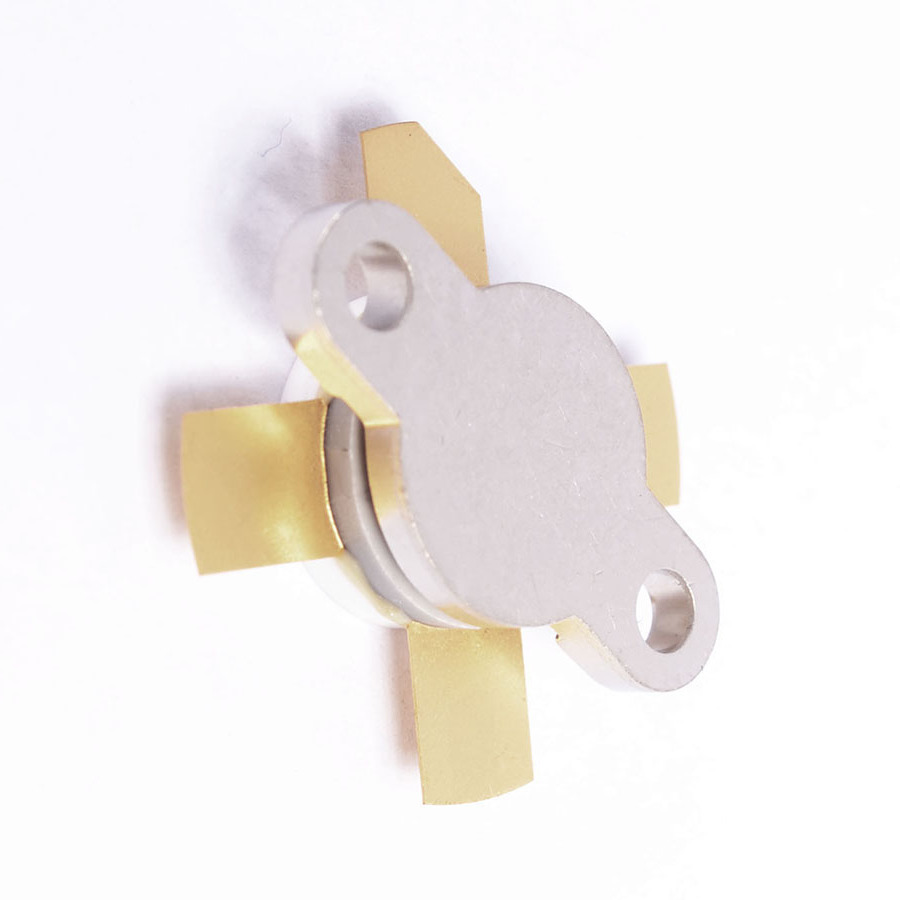

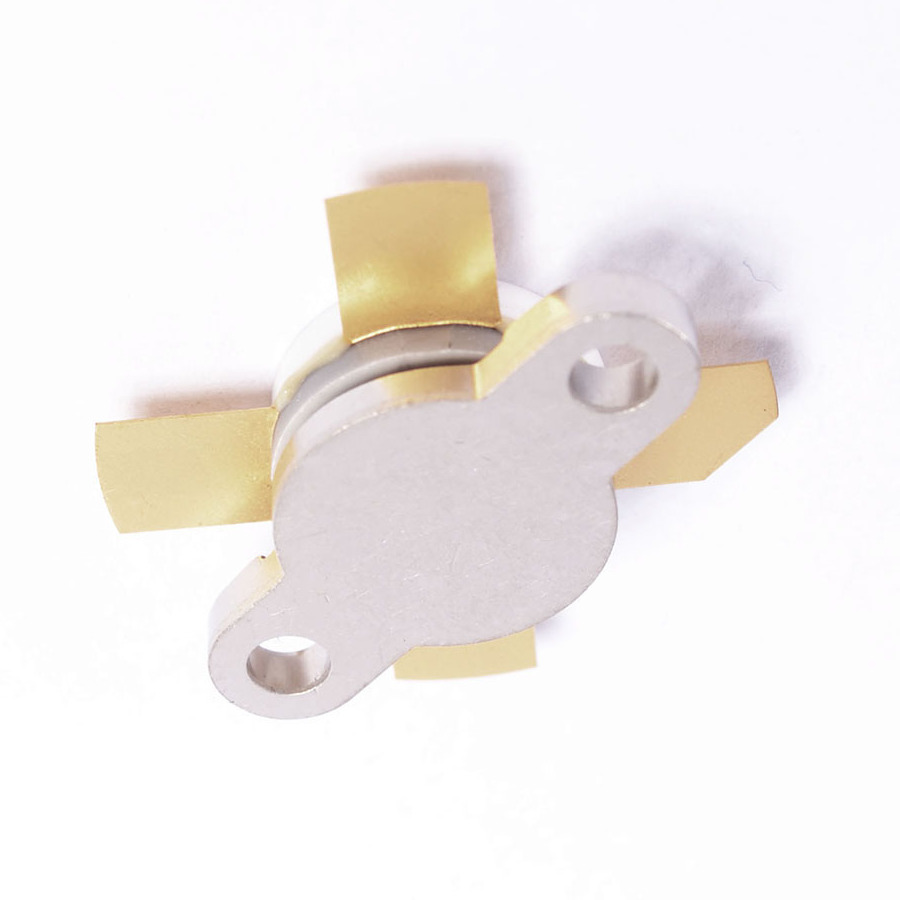

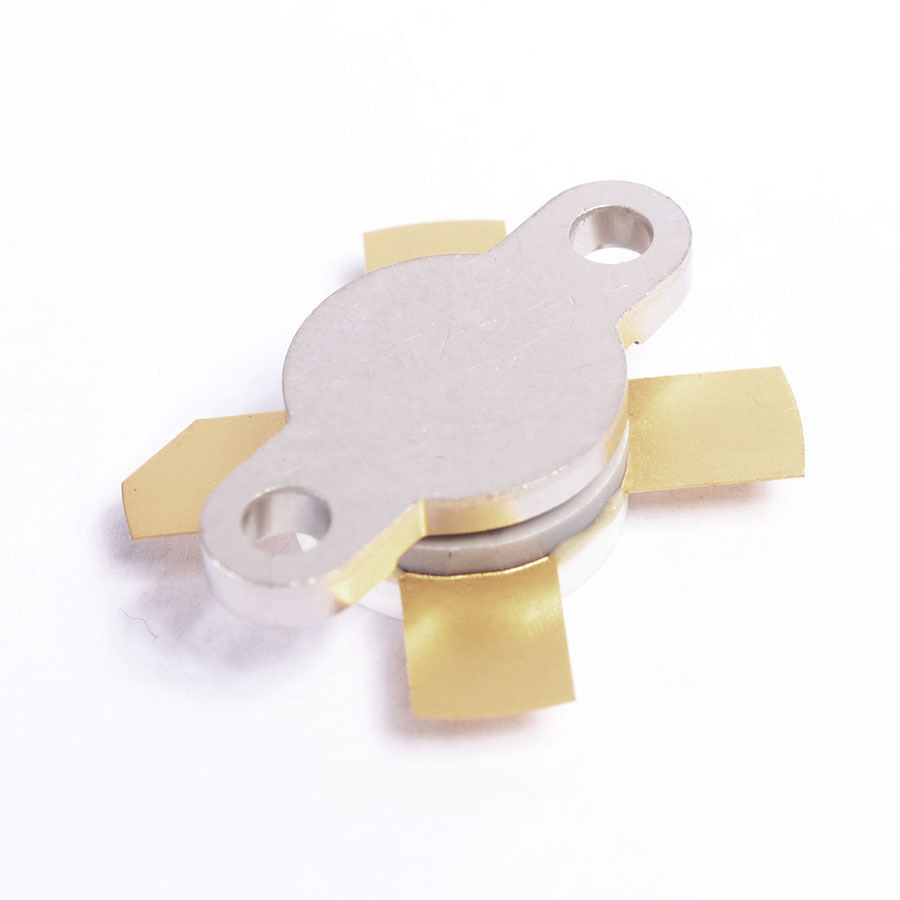

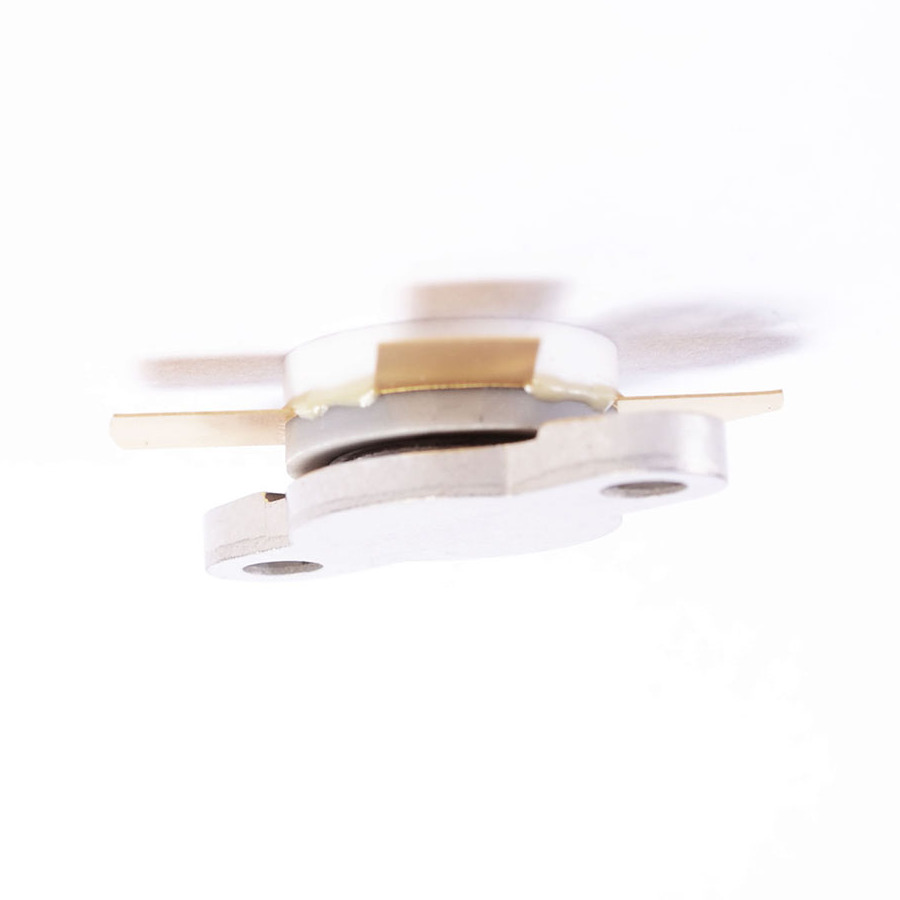

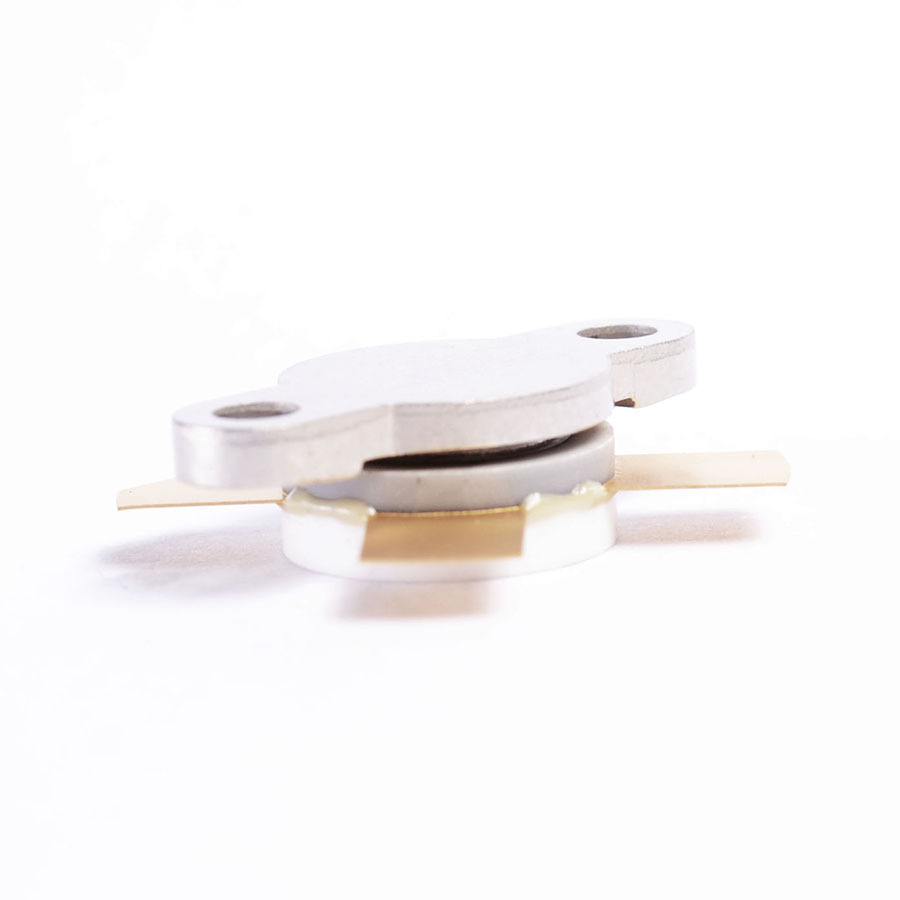

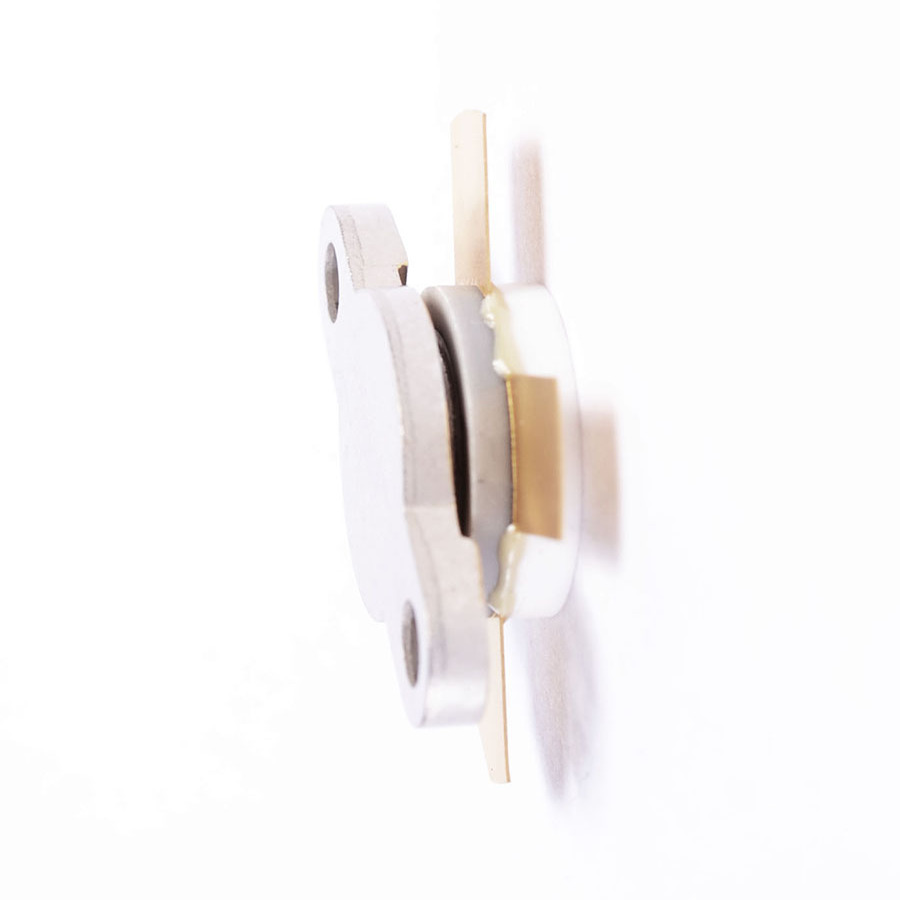

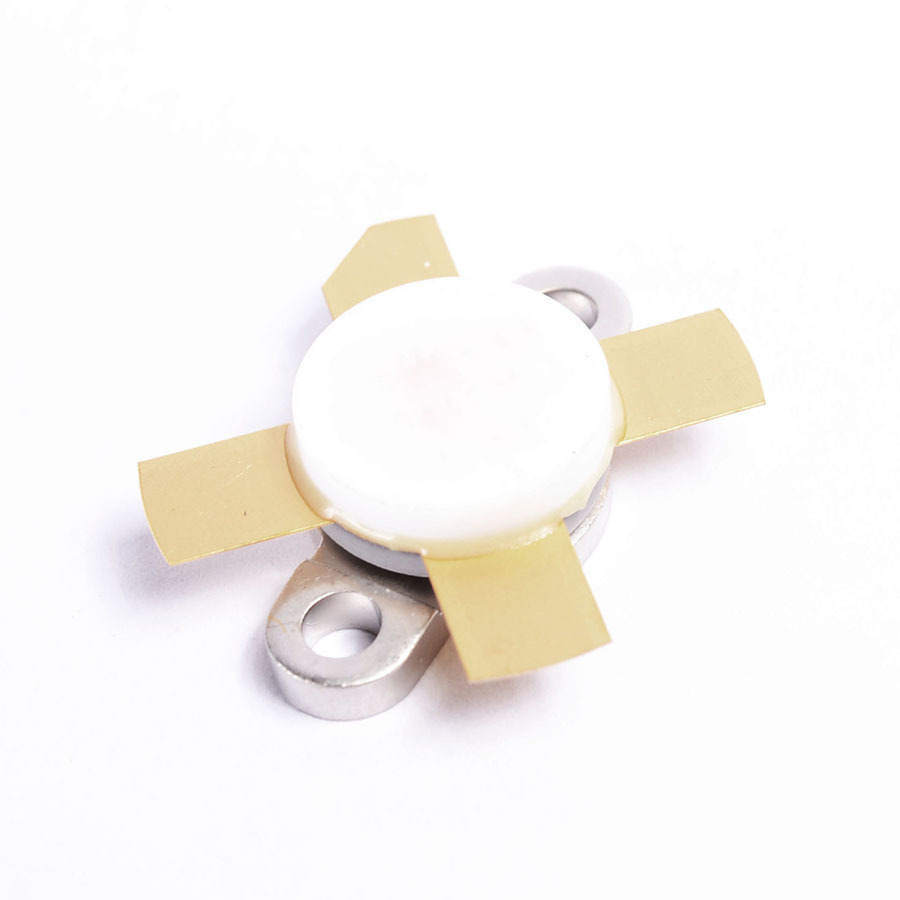

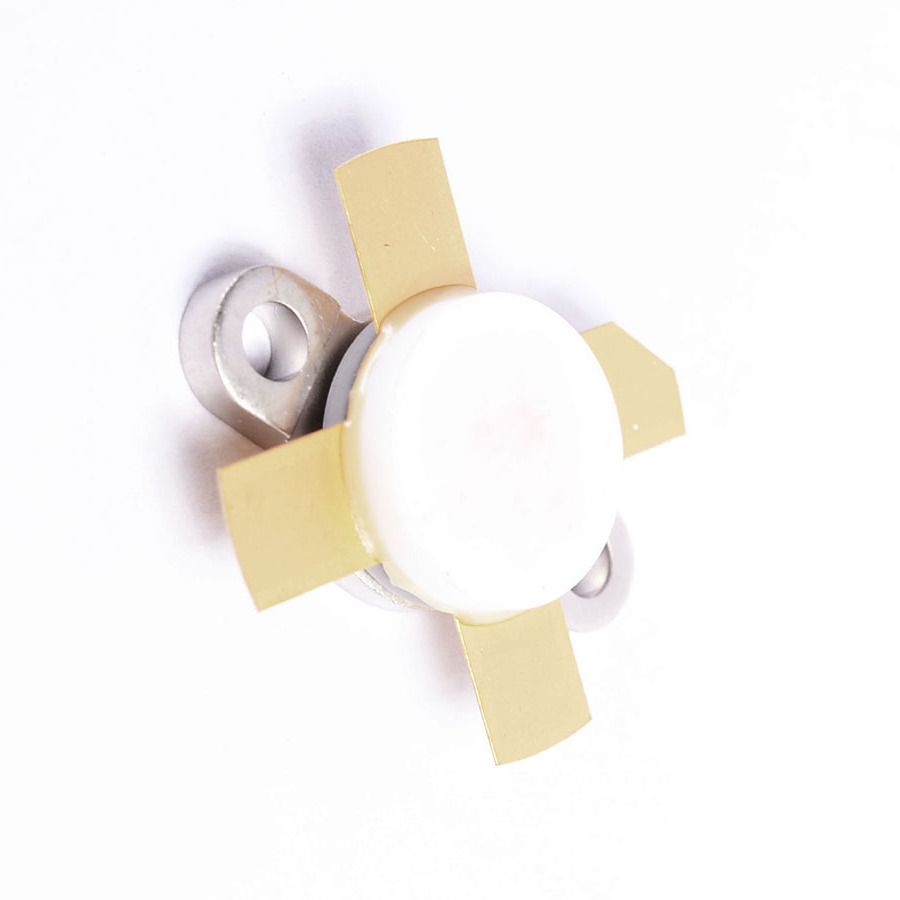

TH560 Transistor Silicon NPN CASE: SOT121 MAKE: SGS Thomson
Product specifications
Type Transistor Silicon NPN
Case SOT121
Manufacturer SGS Thomson
Vbr CBO 70
Vbr CEO 35
Max. PD (W) 200
Max. hFE 100
Min hFE 15
Ic Max. (A) 16
@Ic (test) (A) 7
Icbo Max. @Vcb Max. (A) 100m
Polarity NPN
Derate Above 25°C 1.4
Oper. Temp (°C) Max. 175
@VCE (V) 5
Pinout Equivalence Number 4-28
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 320 W
Maximum Collector-Base Voltage |Vcb| 70 V
Maximum Collector-Emitter Voltage |Vce| 35 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 16 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 450 pF
Transition Frequency (ft): 30 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SMD Transistor Code SD1730
SKU 318038
