TIBPAL16R8-5CFN

TIBPAL16R8-5CFN

SKU: TIBPAL16R8-5CFN

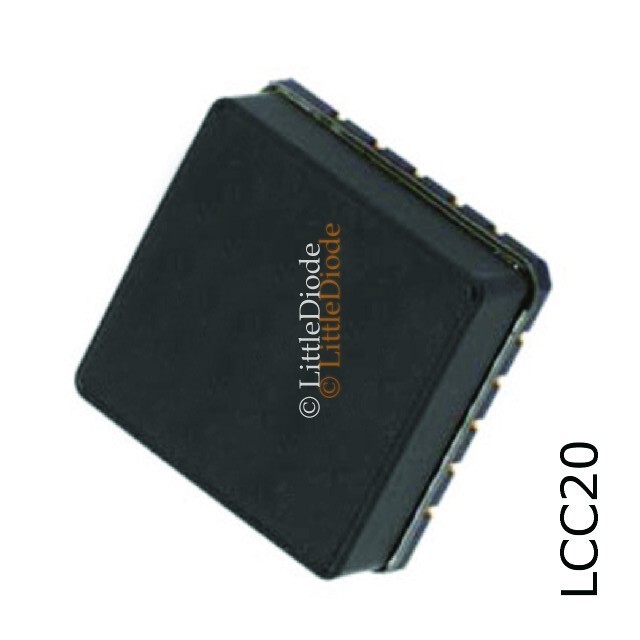

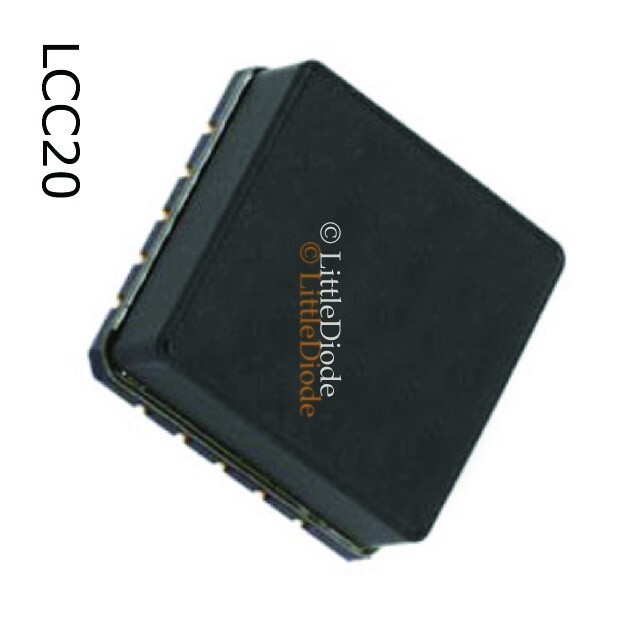

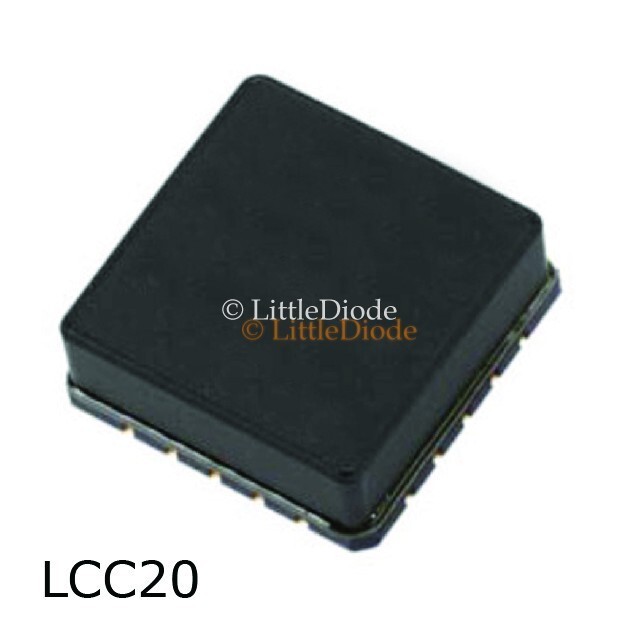

TIBPAL16R8-5CFN Integrated Circuit CASE: LCC20 MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case LCC20
Manufacturer Texas Instruments
No. of Outputs 8
Output Config 3-State
tPD Max. (S) 5.0n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Prod. Terms Max. 8
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Number of Inputs 16
Logic Modes Sequential
Pinout Equivalence Number 20-271
No. of Pins 20
Surface Mounted Yes/No YES
SKU 1148578
