TIC226N

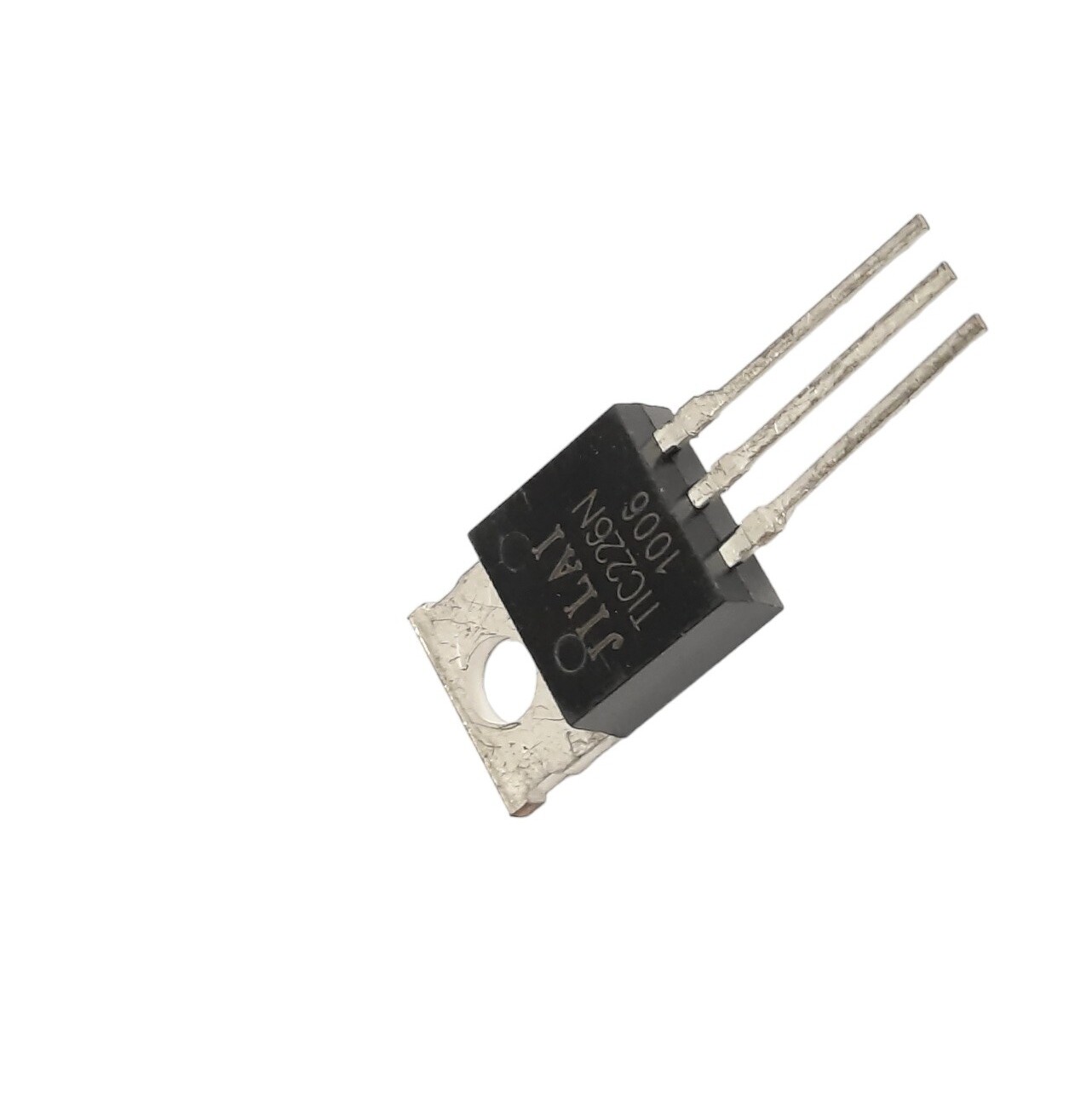

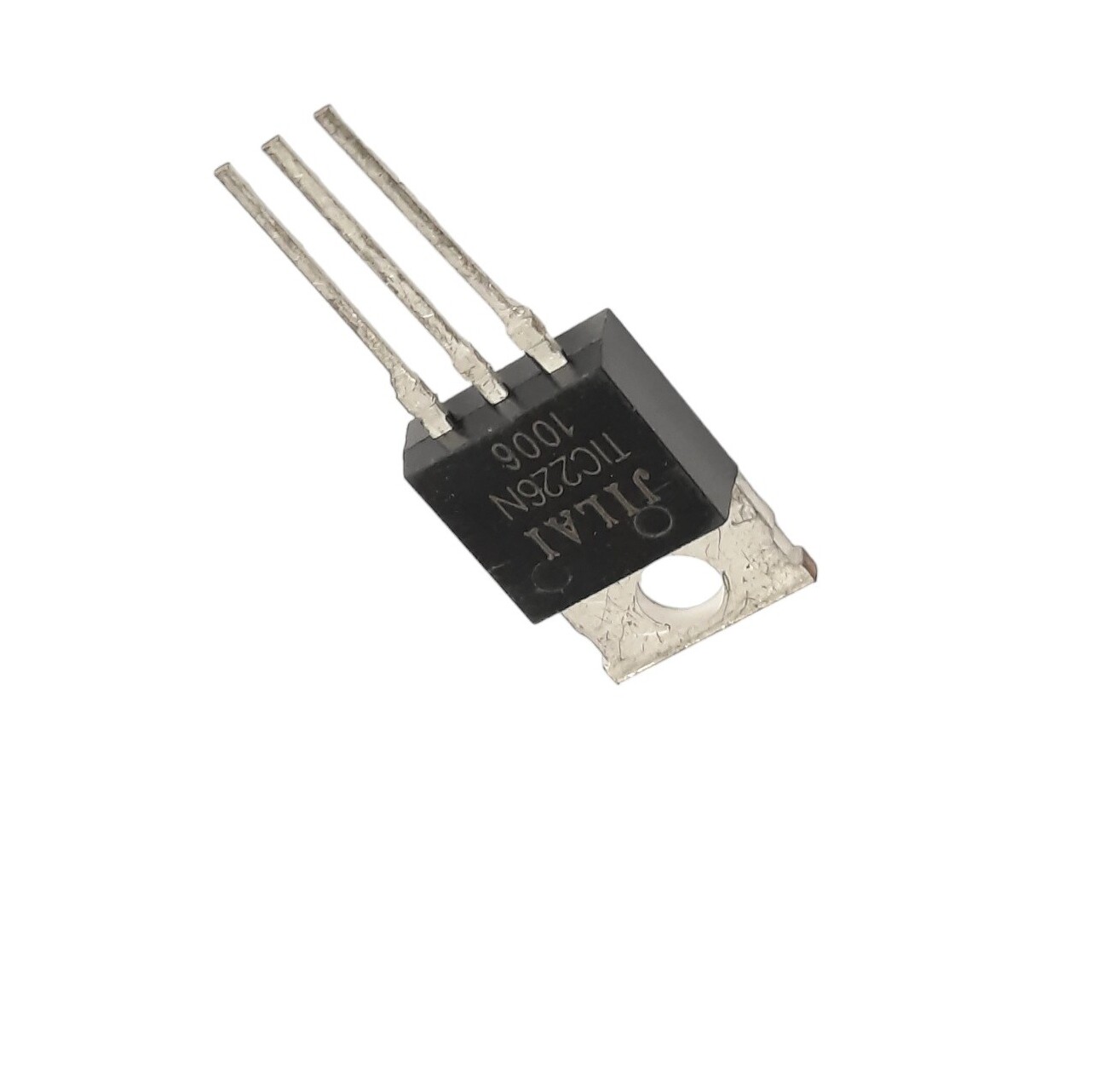

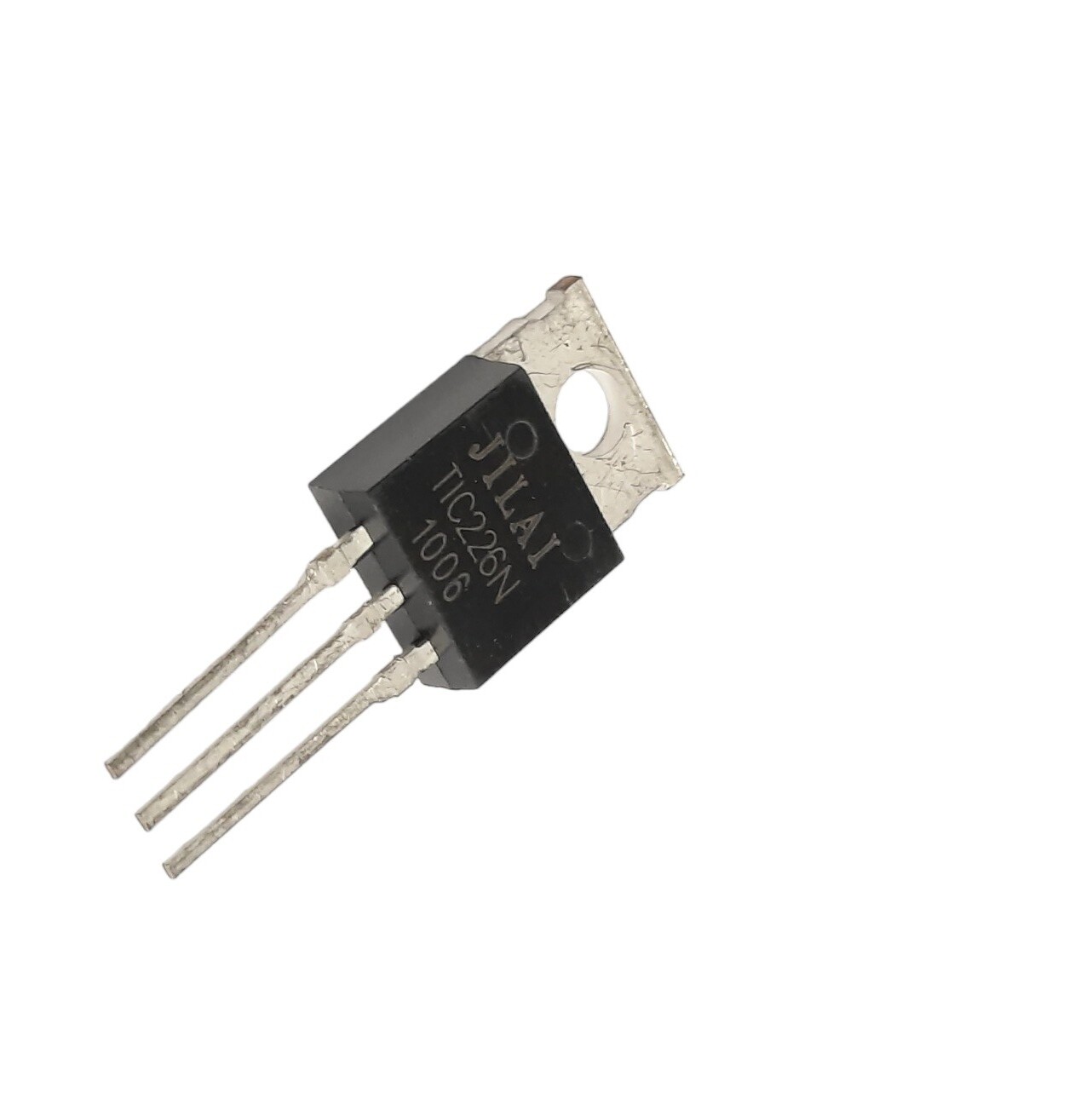

View detailed images (4)

TIC226N

SKU: TIC226N
TIC226N is a silicon TRIAC (bidirectional thyristor) in a TO-220 package from Texas Instruments for bidirectional AC switching and control. It features an 800 V repetitive peak off-state voltage, 8 A RMS on-state current and 70 A peak surge current.
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • Last 113 pieces Ready to Ship
  • More pieces shipped in 14 days
?
Product specifications
Type Rectifier Diode
Case TO220
Manufacturer Texas Instruments
Dv/Dt Worst Case 5.0
Dv/Dt Worst Static 500
Firing Char-Igt Max. 50m
Firing Char-Vgt Max. 2.5
I(h) Max. (A) 60.m
Id(off) Max. (A) 2.0m
It(rms) Max. (A) 8.0
Supp Curr. I(TSM) 70
V(drm) Max. 800
V(T) Max. 2.1
@Temp. (test) 110#
@Temp. (test) 85#
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 110#
@It (A) 12
Surface Mounted Yes/No NO
SKU 79515
