TIP112
View detailed images (4)

TIP112

SKU: TIP112

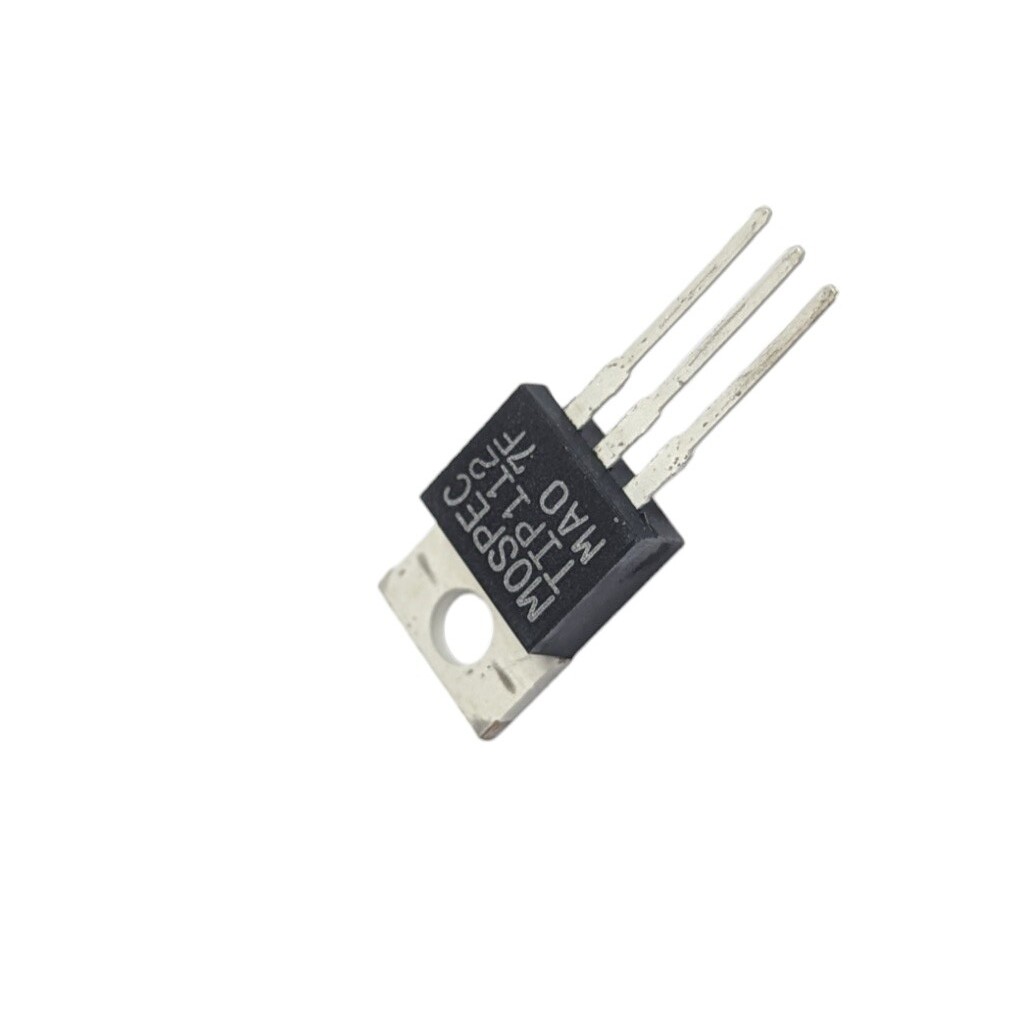

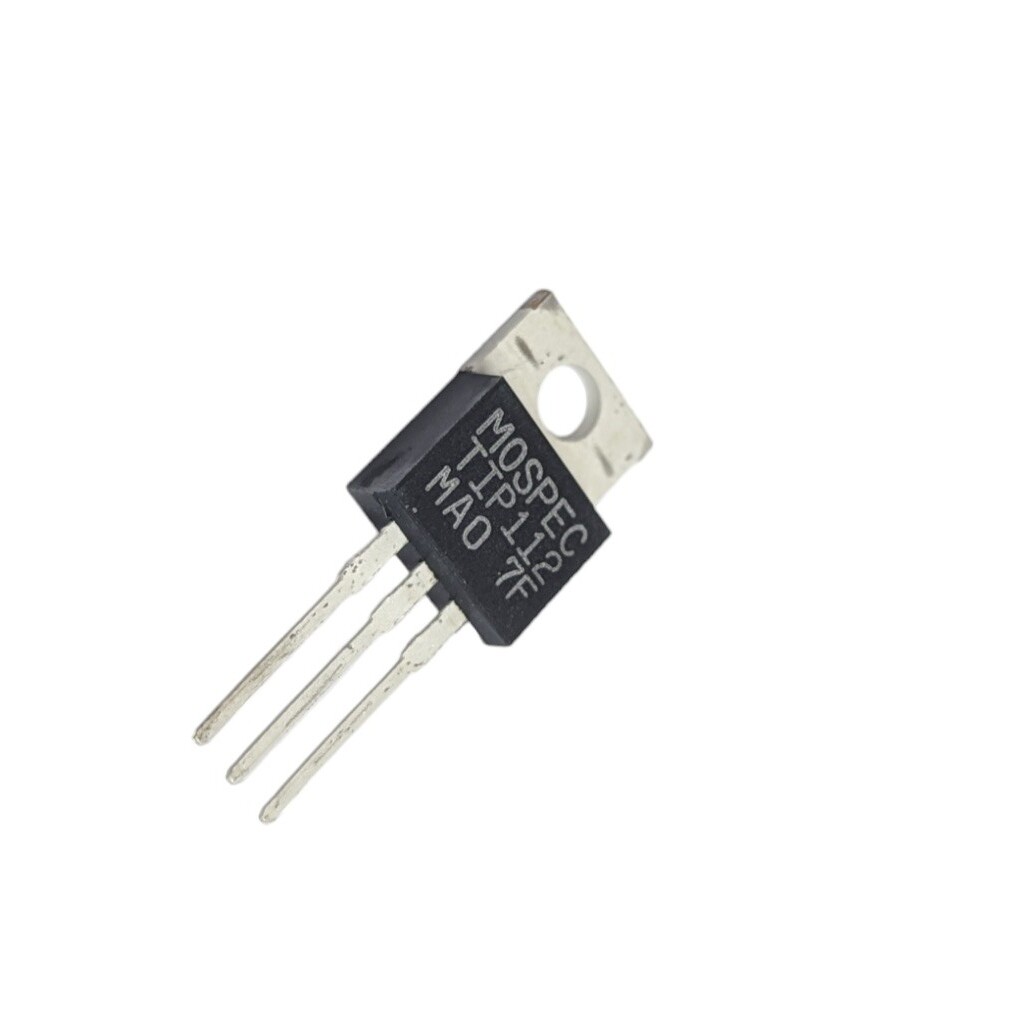

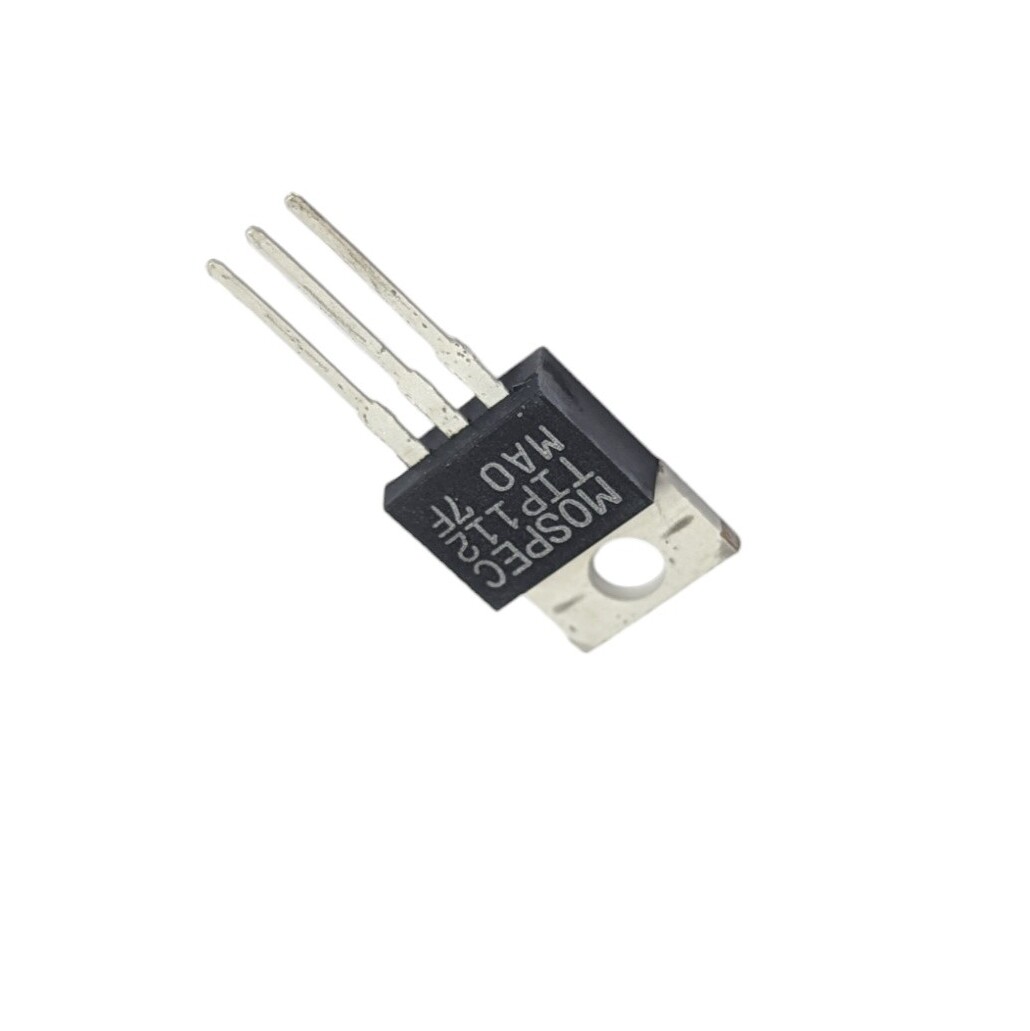

TIP112 Transistor Silicon NPN - Case: TO220 Make: Mospec Semiconductor
Price: £5.99
+ VAT 20% for UK purchases
£5.99
Qty
+ VAT 20% for UK purchases
  • 1083 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
TIP112 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO220
Manufacturer Mospec Semiconductor
Vbr CEO 100
Max. PD (W) 50
t(on) Delay (S) 2.6u-
t(f) Max. (S) 4.5u-+
Min hFE 500
Ic Max. (A) 4.0
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 200u
Mat. Silicon Logic
Polarity NPN
Tr Max. (s) 15n
R(sat) (Û) 1.2
Derate Above 25°C 400m
@VCE (test) 4.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-37
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 50 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 750
SKU 17242
