TIP126

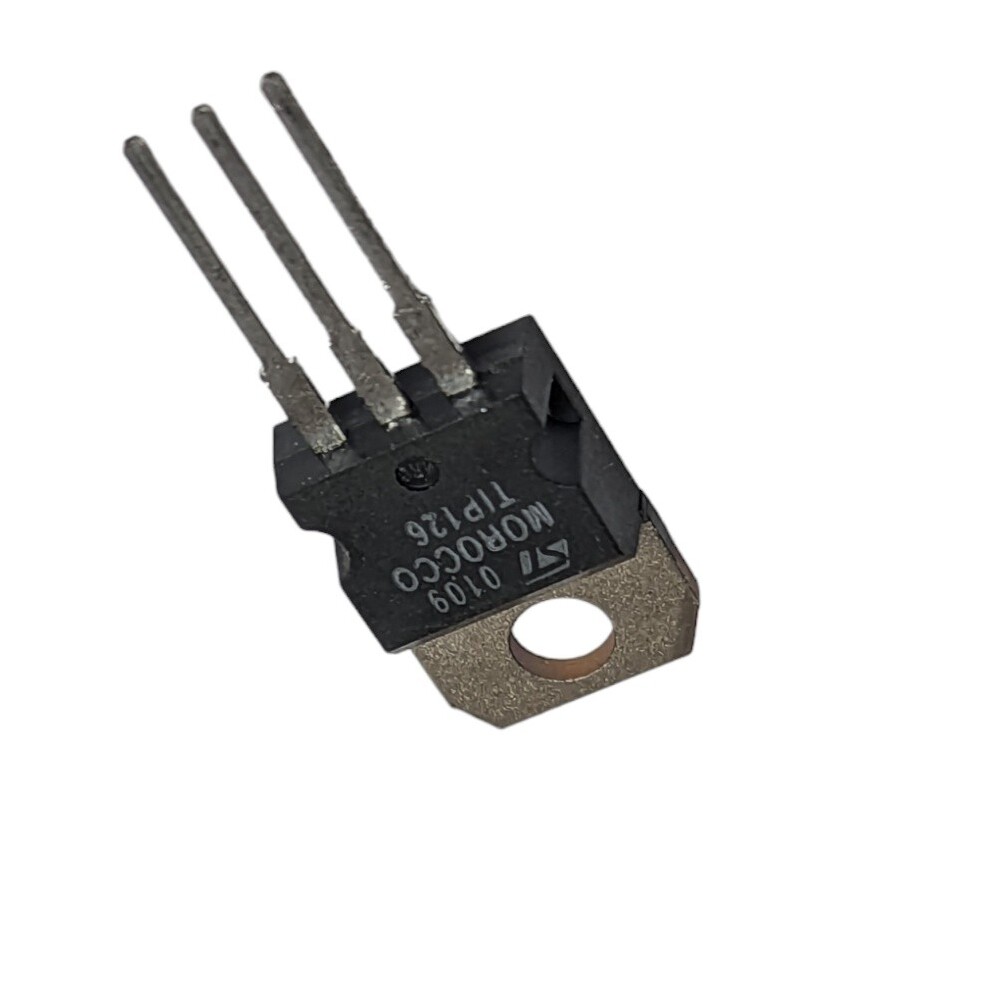

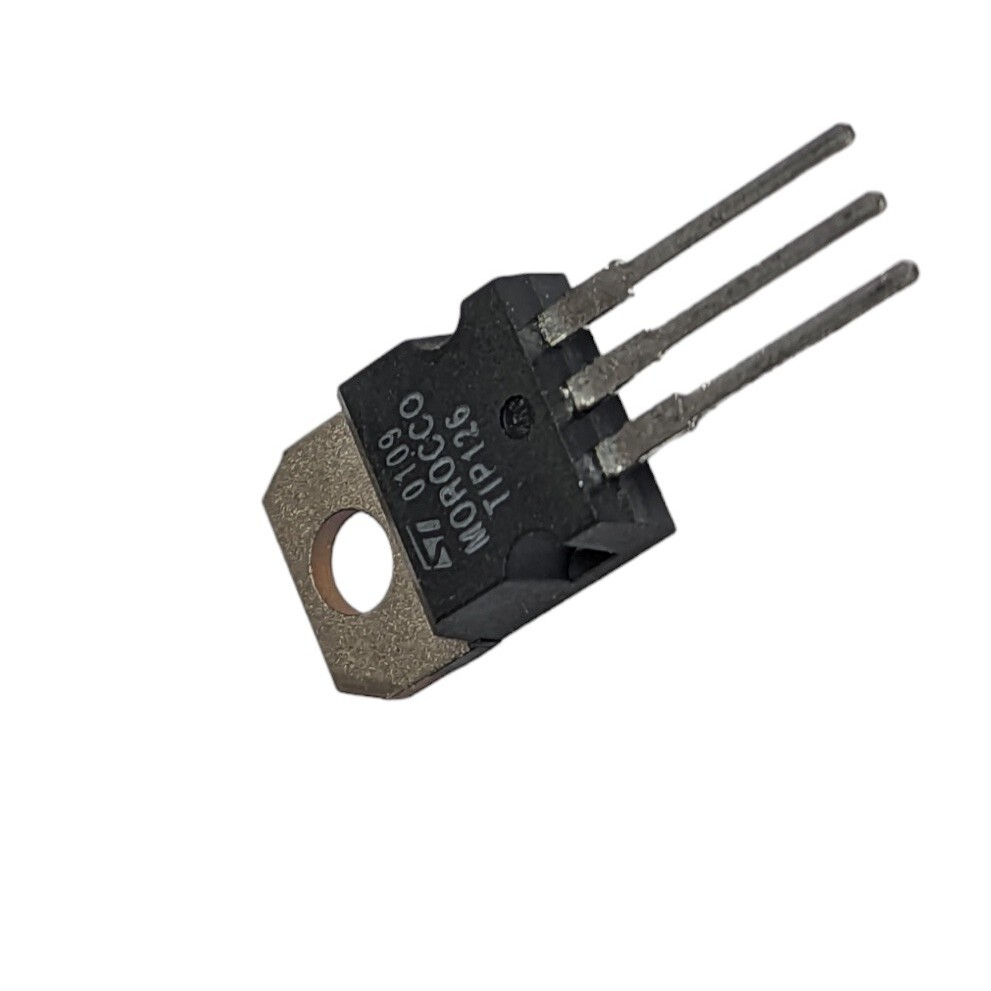

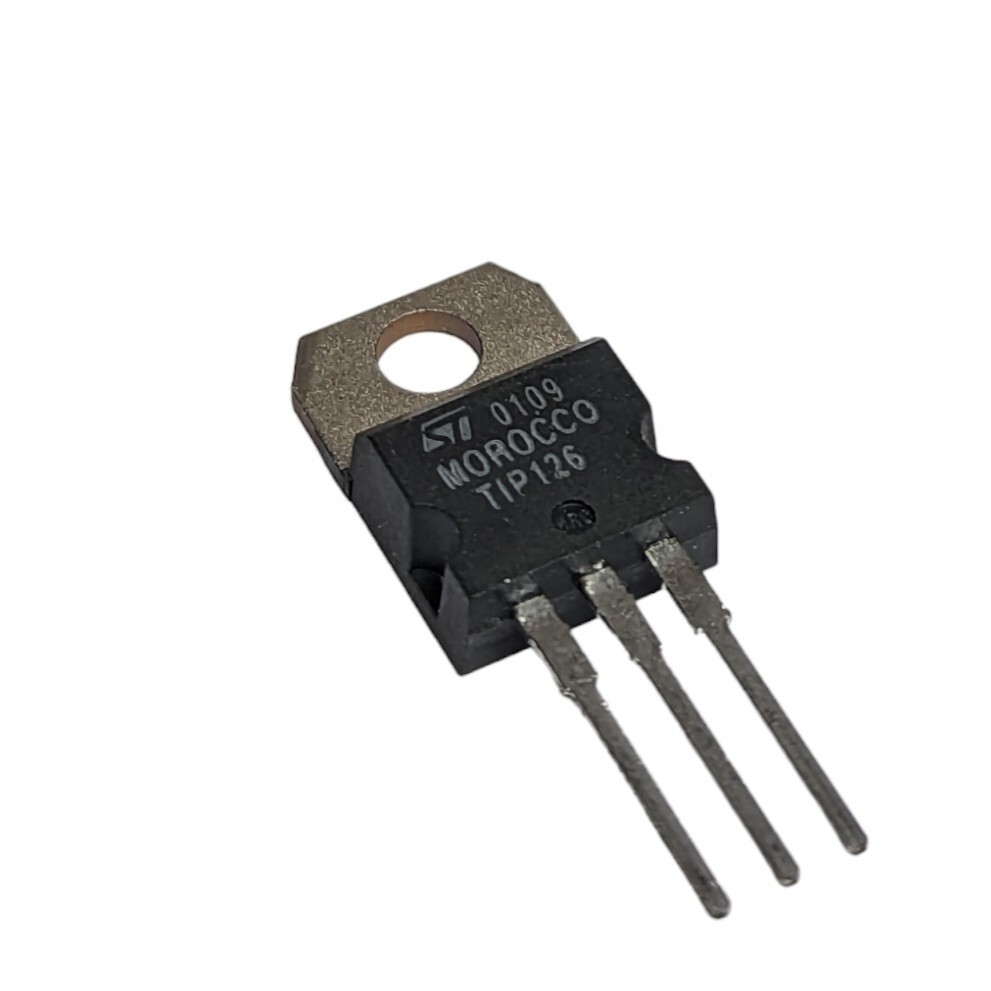

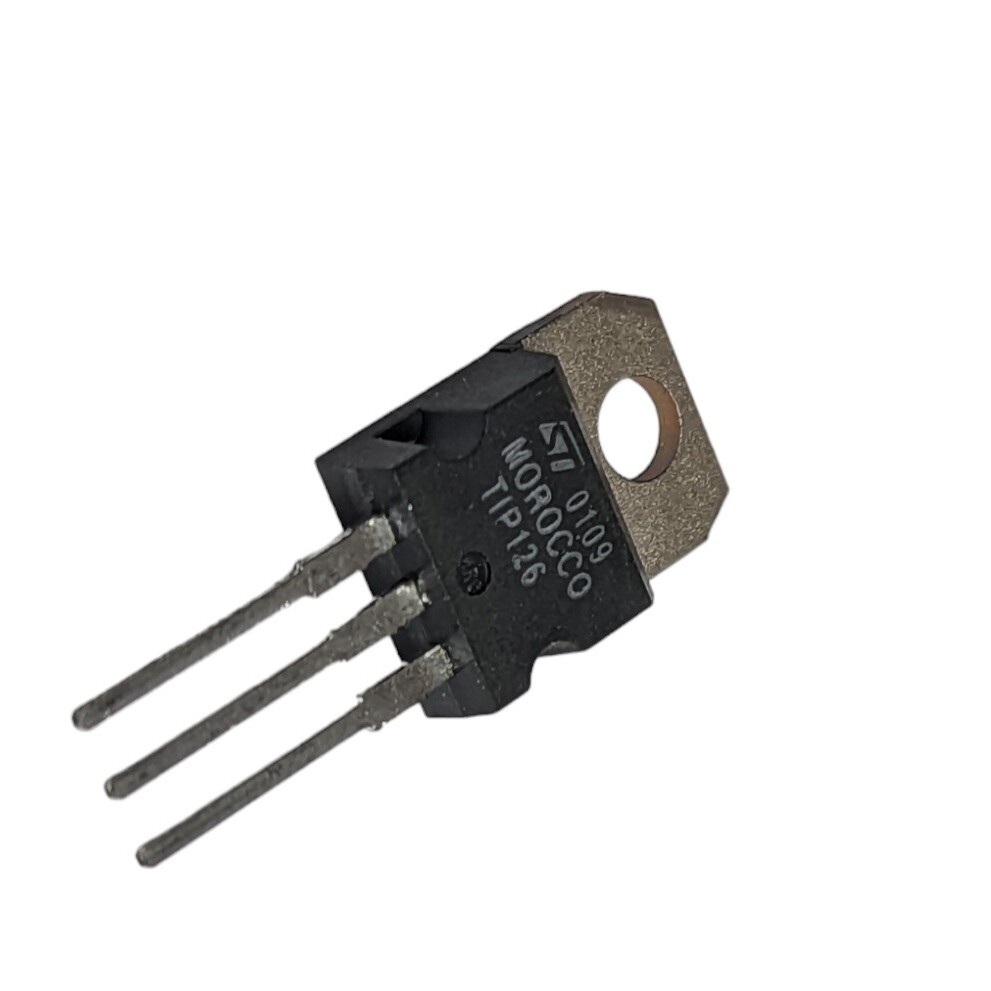

View detailed images (4)

TIP126

SKU: TIP126
TIP126 Transistor - Case: TO220 Make: ST Microelectronics - STM
Price: £5.99
+ VAT 20% for UK purchases
£5.99
Qty
+ VAT 20% for UK purchases
  • 363 pieces in 1-2 Days
  • More pieces shipped in 14 days
Datasheet
TIP126 Datasheet
Product specifications
Case TO220
Type Transistor Silicon PNP
Manufacturer ST Microelectronics - STM
Vbr CEO 80
Max. PD (W) 65
t(on) Delay (S) 1.5u-
t(f) Max. (S) 8.5u-+
Min hFE 1.0k
Ic Max. (A) 5.0
@Ic (test) (A) 3.0
Icbo Max. @Vcb Max. (A) 100u
Mat. Silicon Logic
Polarity PNP
Tr Max. (s) 15n
R(sat) (Û) 800m
Derate Above 25°C 520m
@VCE (test) 3.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-37
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 65 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 1000
SKU 17246
