TIP127
View detailed images (1)

TIP127

SKU: TIP127

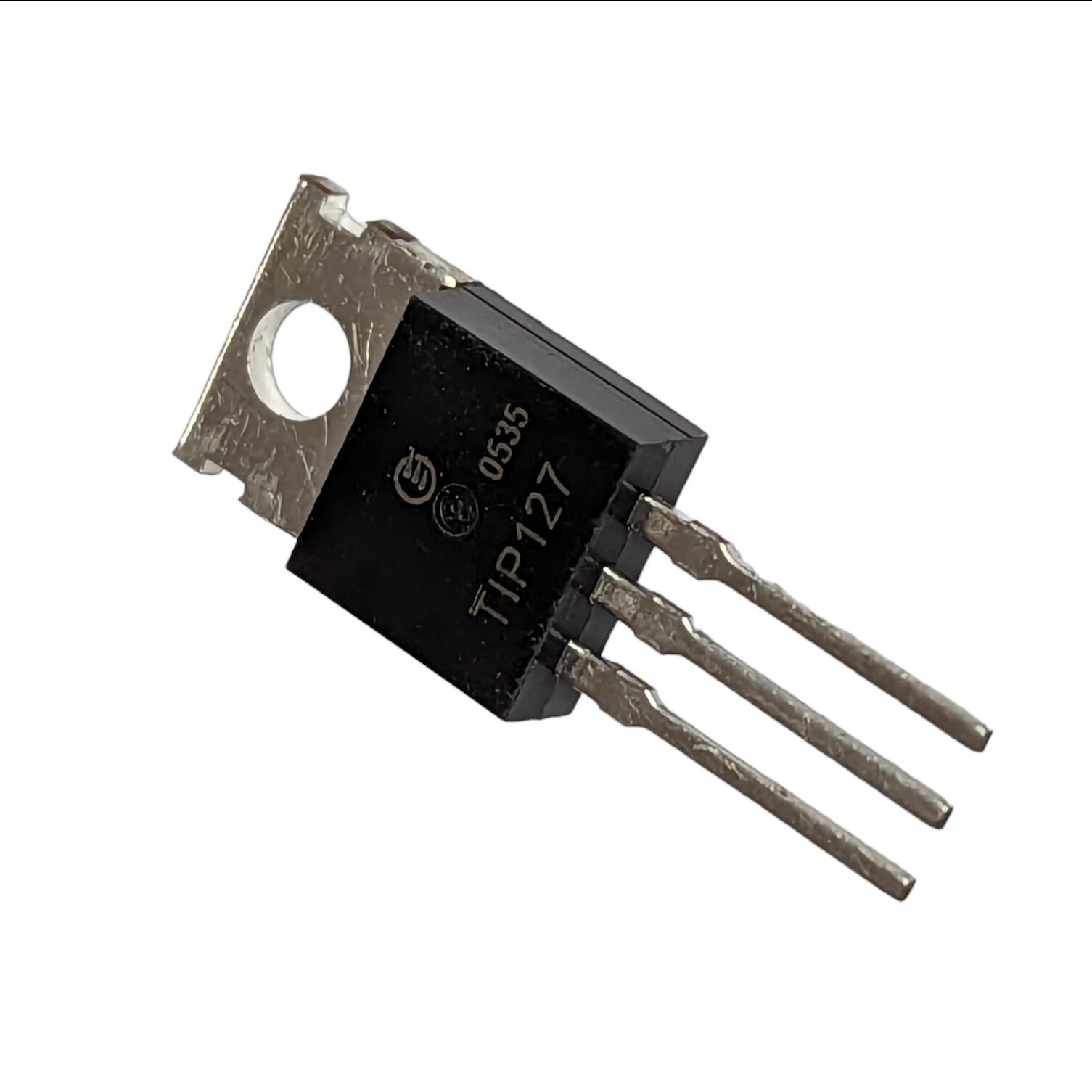

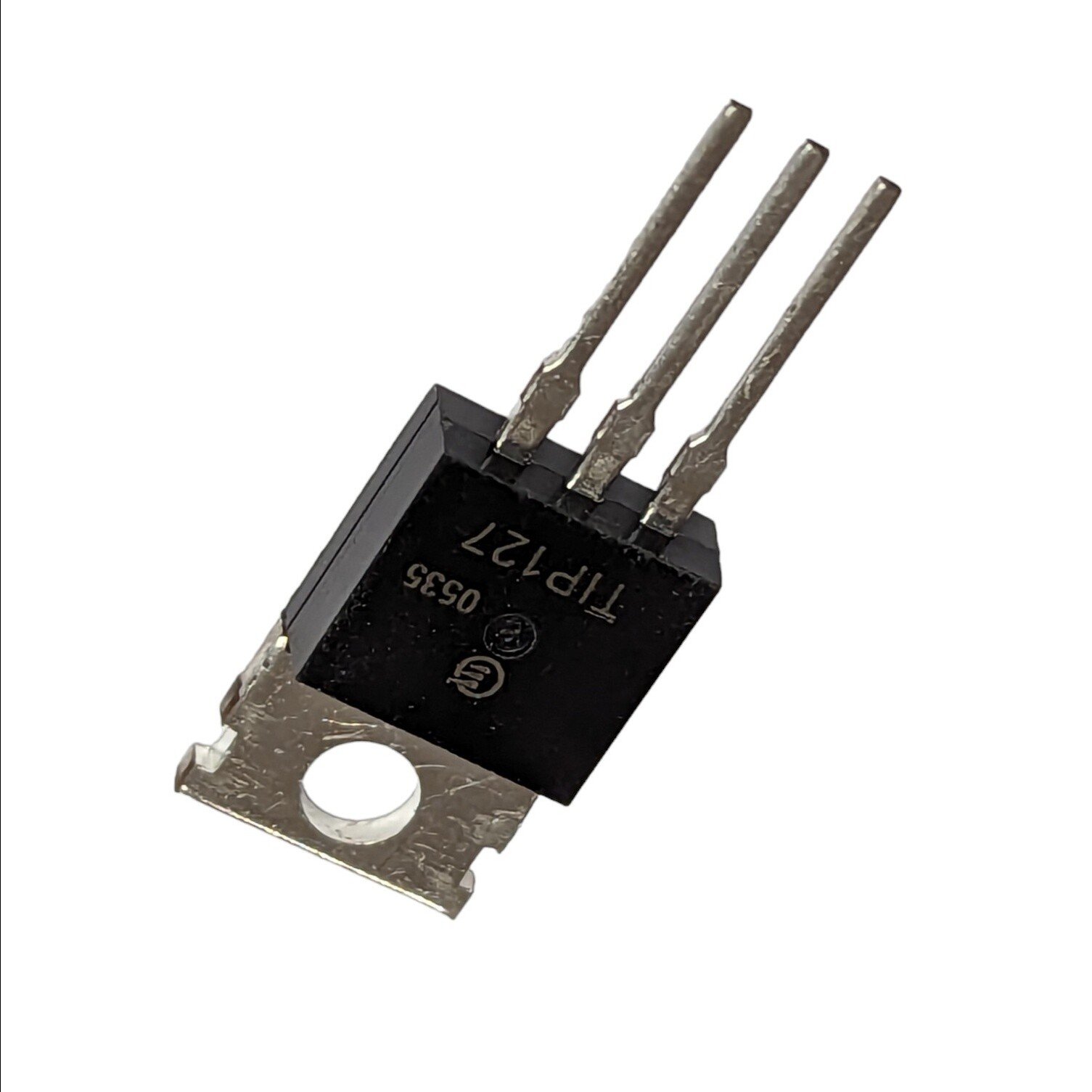

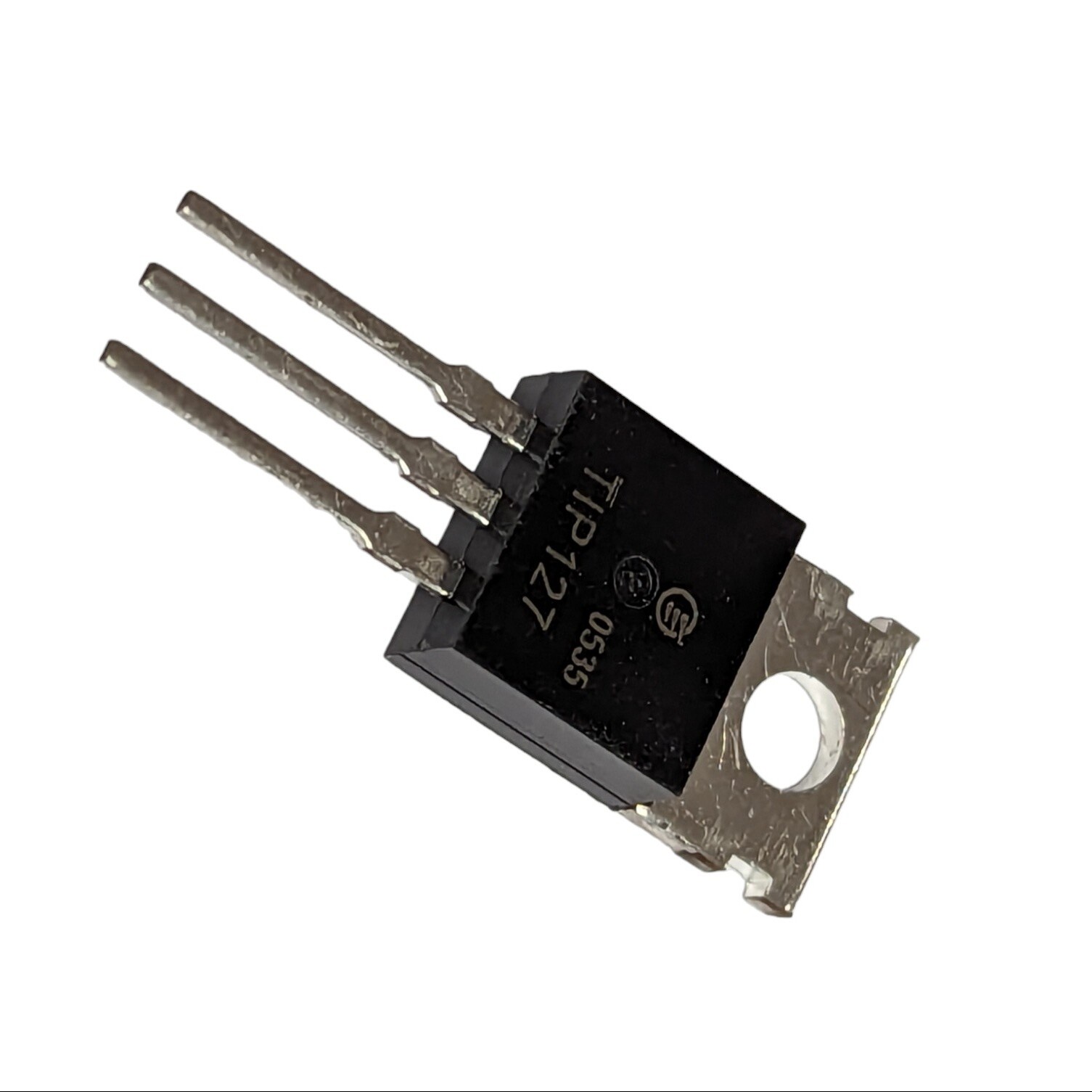

TIP127 Transistor Silicon PNP - CASE: TO220 MAKE: STMicroelectronics
Price: £3.99
Quantity Price
2+ Items £2.00
+ VAT 20% for UK purchases
£3.99
Qty
+ VAT 20% for UK purchases
  • 250 pieces in 1-2 Days
  • 17 pieces in 6 days
  • 1049 pieces in 7 days
  • More pieces in 8-10 days
Product specifications
Type Transistor Silicon PNP
Manufacturer ST Microelectronics - STM
Case TO220
Vbr CEO 100
Max. PD (W) 65
t(on) Delay (S) 1.5u-
t(f) Max. (S) 8.5u-+
Min hFE 1.0k
Ic Max. (A) 5.0
@Ic (test) (A) 3.0
Icbo Max. @Vcb Max. (A) 100u
Mat. Silicon Logic
Polarity PNP
Tr Max. (s) 15n
R(sat) (Û) 800m
Derate Above 25°C 520m
@VCE (test) 3.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-37
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 65 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 1000
SKU 16266
