TIP140F
View detailed images (12)

TIP140F

SKU: TIP140F

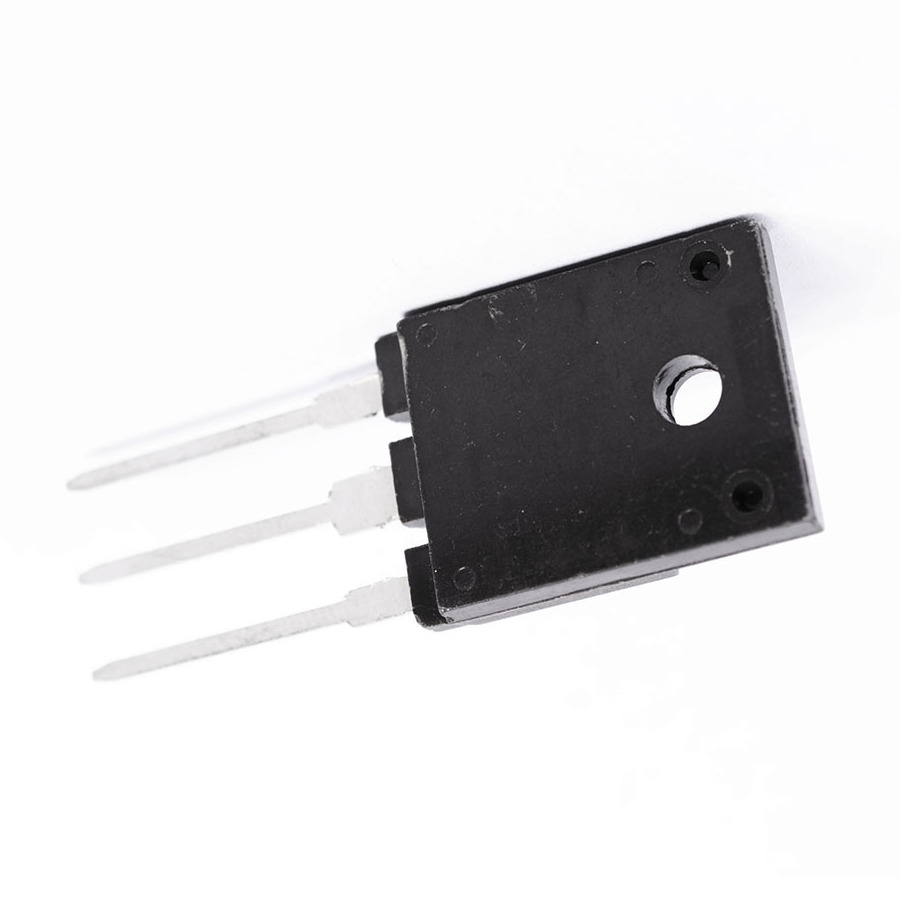

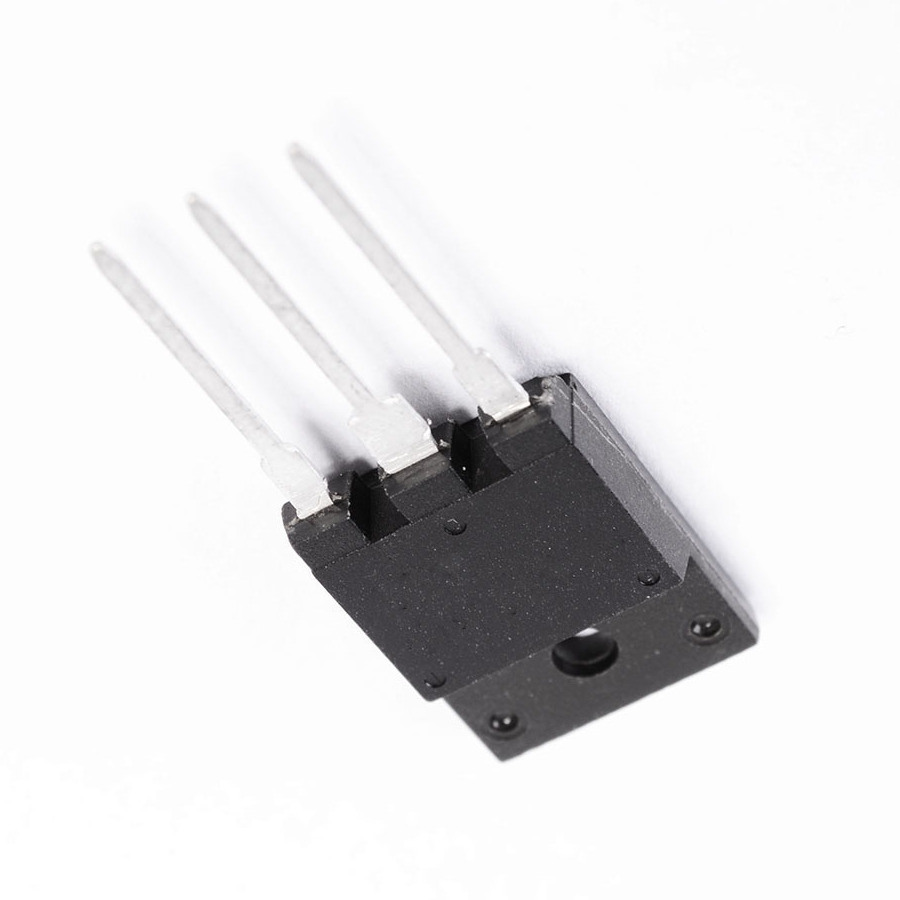

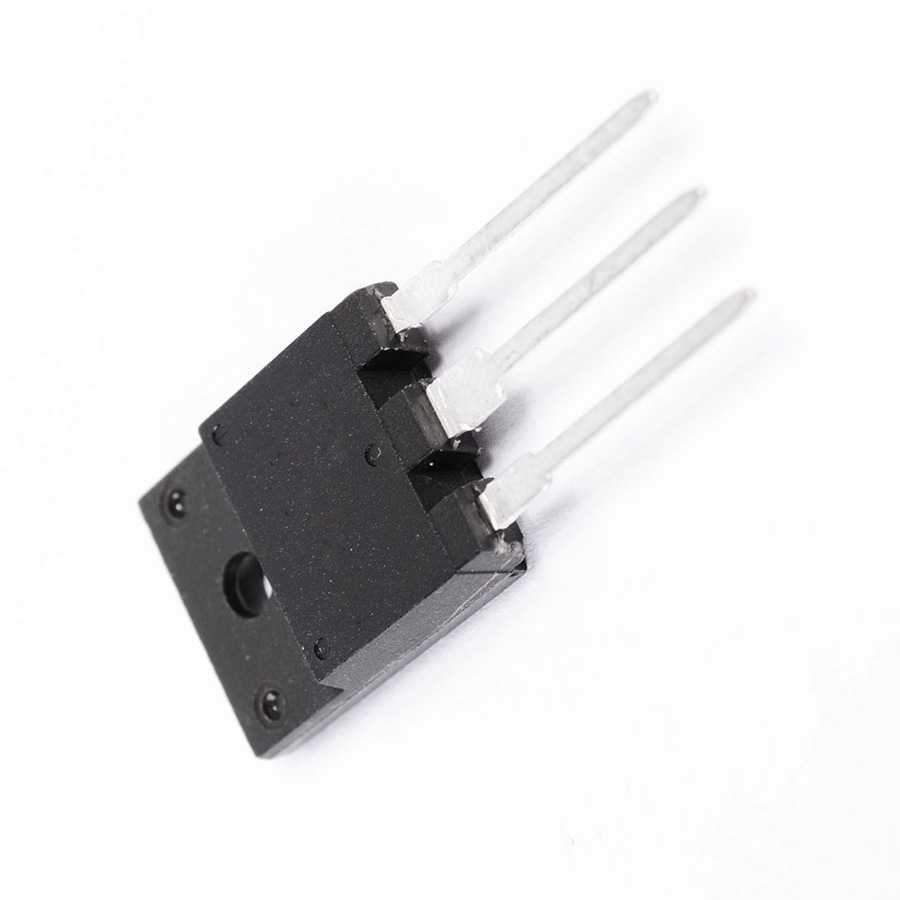

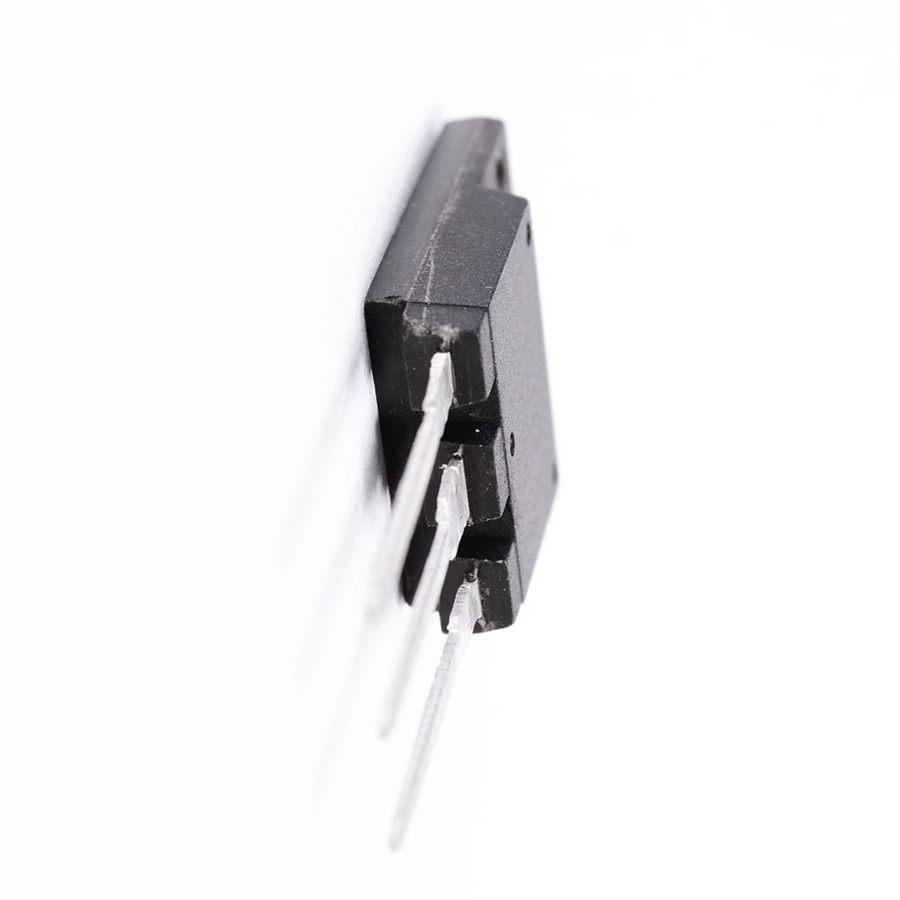

TIP140F Transistor Silicon NPN CASE: TO218F MAKE: Fairchild Semiconductor
Product specifications
Type Transistor Silicon NPN
Case TO218F
Manufacturer Fairchild Semiconductor
Vbr CEO 60
Max. PD (W) 60
t(on) Delay (S) 150n-
t(f) Max. (S) 2.5u
Min hFE 1k
Ic Max. (A) 10
@Ic (test) (A) 5.0
Icbo Max. @Vcb Max. (A) 1.0m
Mat. Silicon Logic
Polarity NPN
Tr Max. (s) 550n-
t(stor) Max. (S) 2.5u-
Derate Above 25°C 480m
@VCE (test) 4.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 60 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 500
SKU 638593
