TIP147
View detailed images (4)

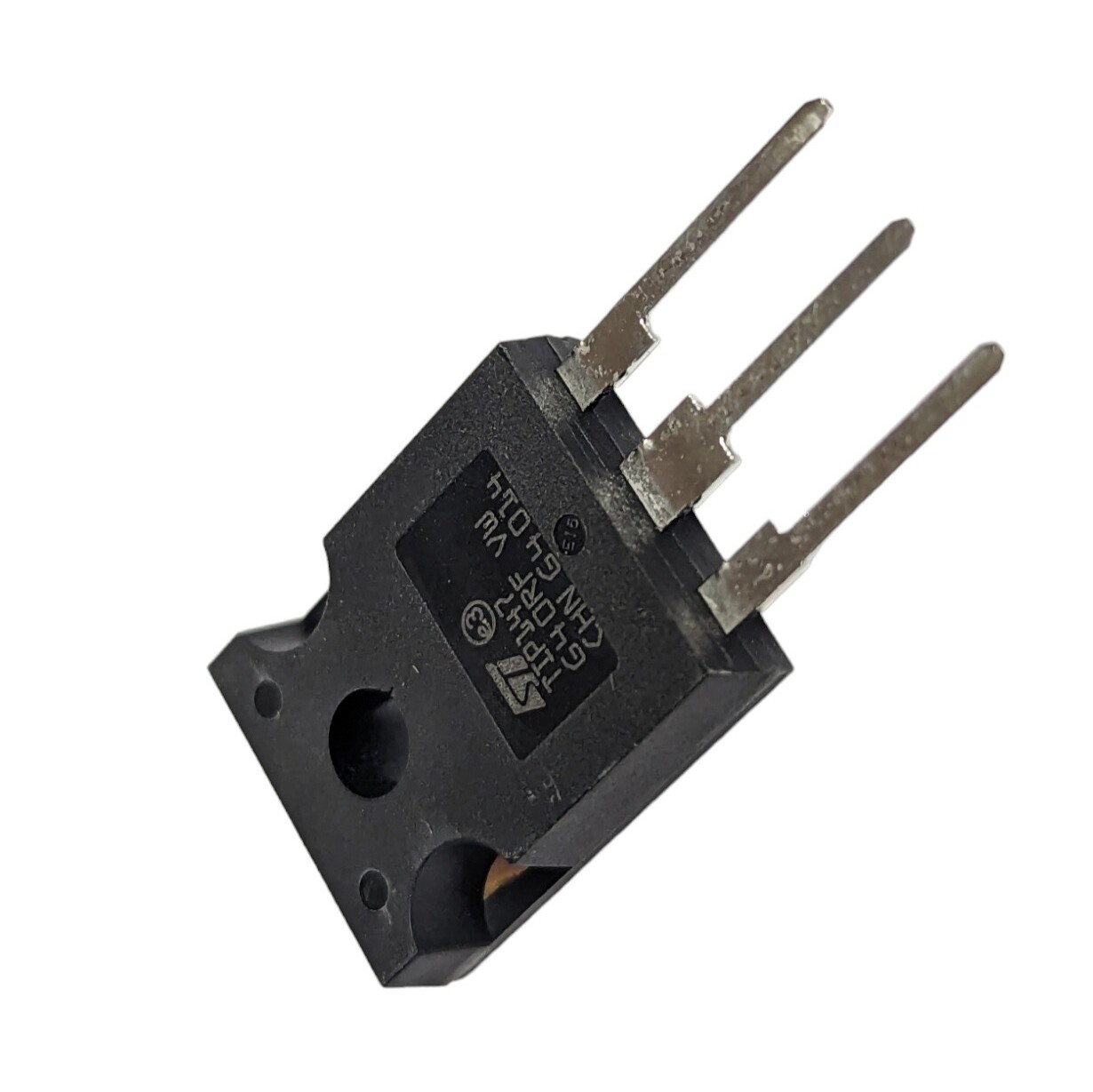

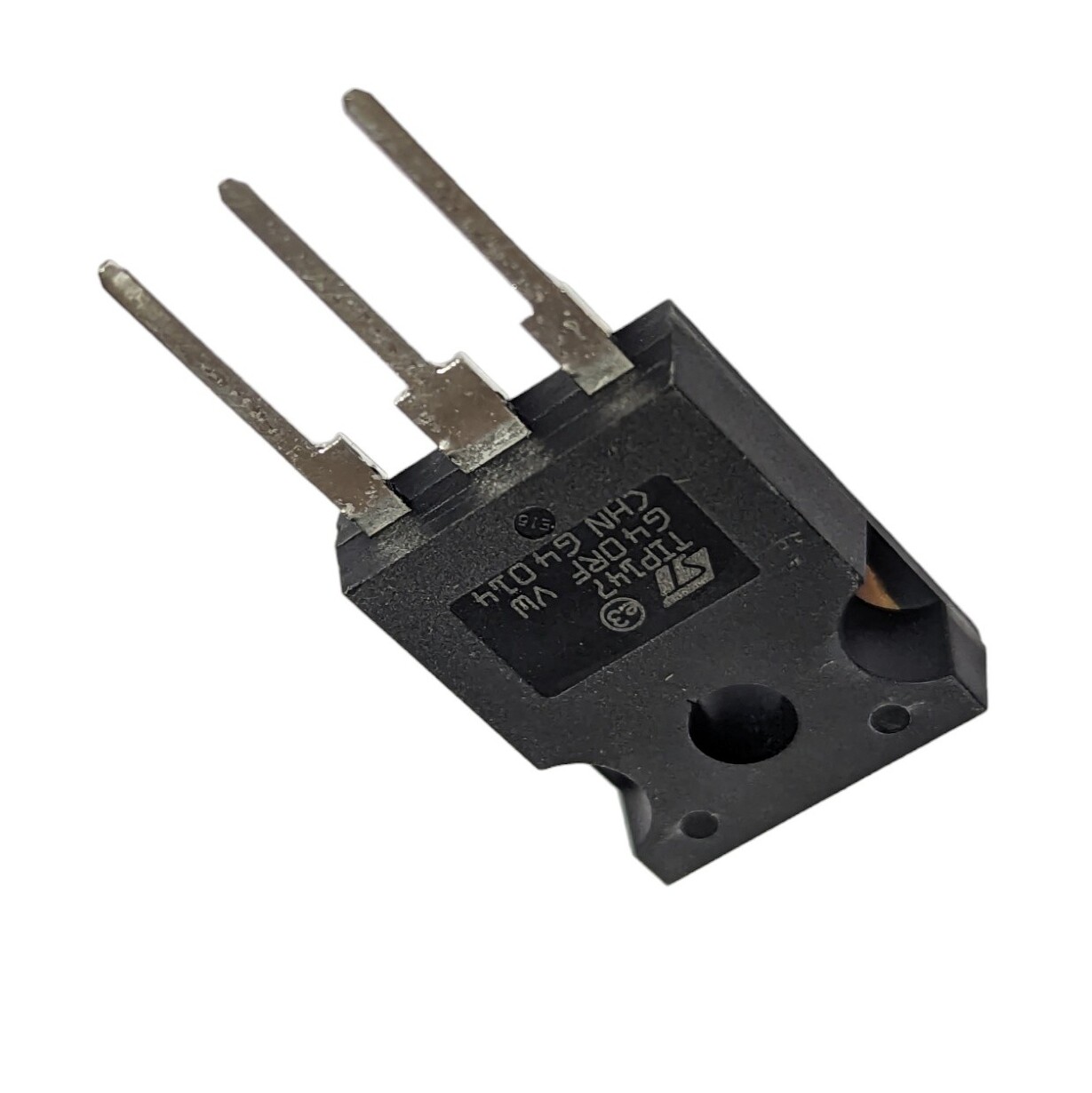

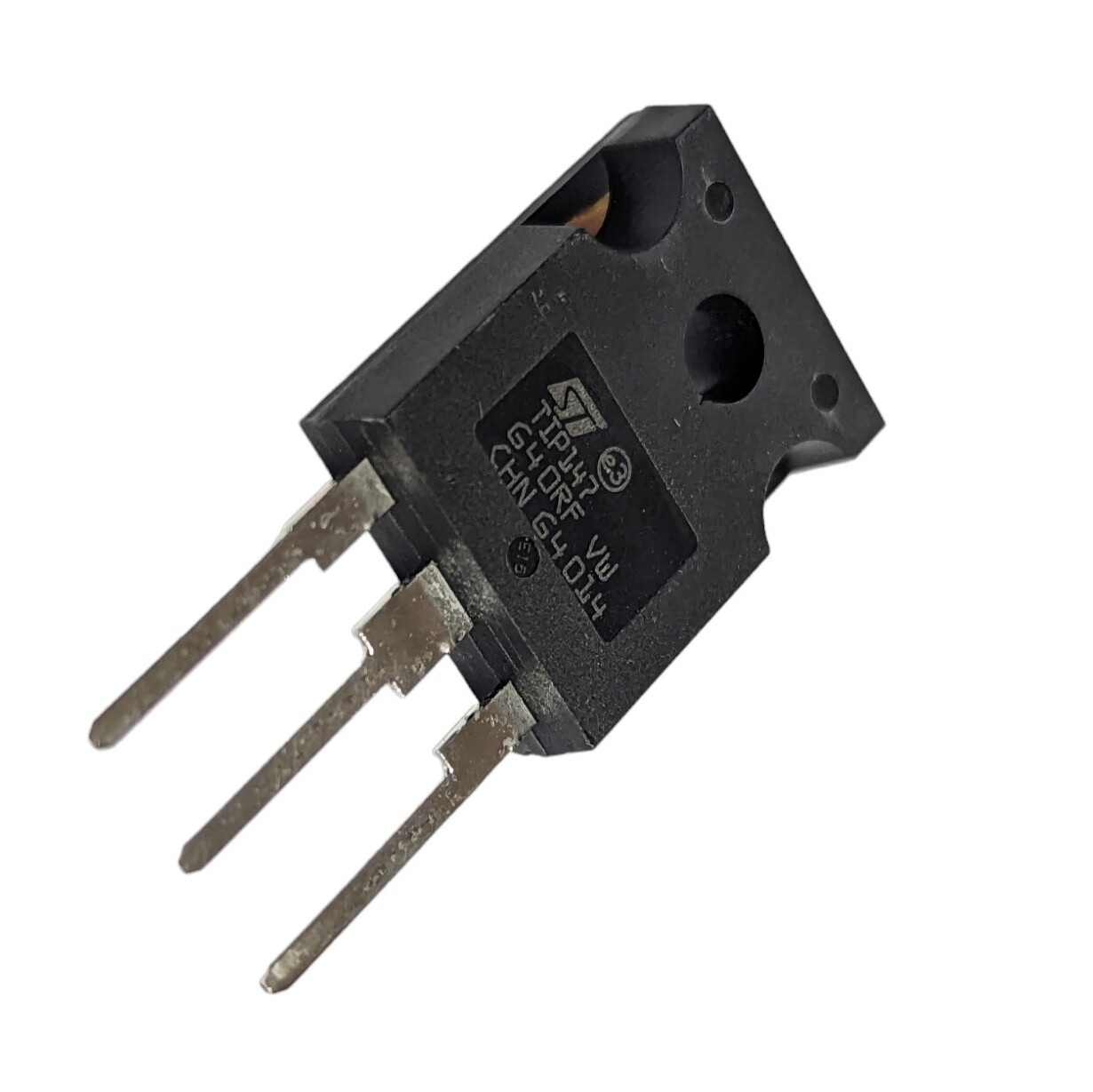

TIP147

SKU: TIP147
TIP147 Transistor Silicon PNP CASE: TO247 MAKE: ST Microelectronics - STM
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 160 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
TIP147 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO247
Manufacturer ST Microelectronics - STM
Vbr CEO 100
Max. PD (W) 125
t(on) Delay (S) 900n-
t(f) Max. (S) 11u-+
Min hFE 1.0k
Ic Max. (A) 10
@Ic (test) (A) 5.0
Icbo Max. @Vcb Max. (A) 400u
Mat. Silicon Logic
Polarity PNP
Tr Max. (s) 15n
R(sat) (Û) 300m
t(stor) Max. (S) 2.5u-
Derate Above 25°C 1.0
@VCE (test) 4.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-37
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 125 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 500
SKU 16268
