TIP2955
View detailed images (4)

TIP2955

SKU: TIP2955

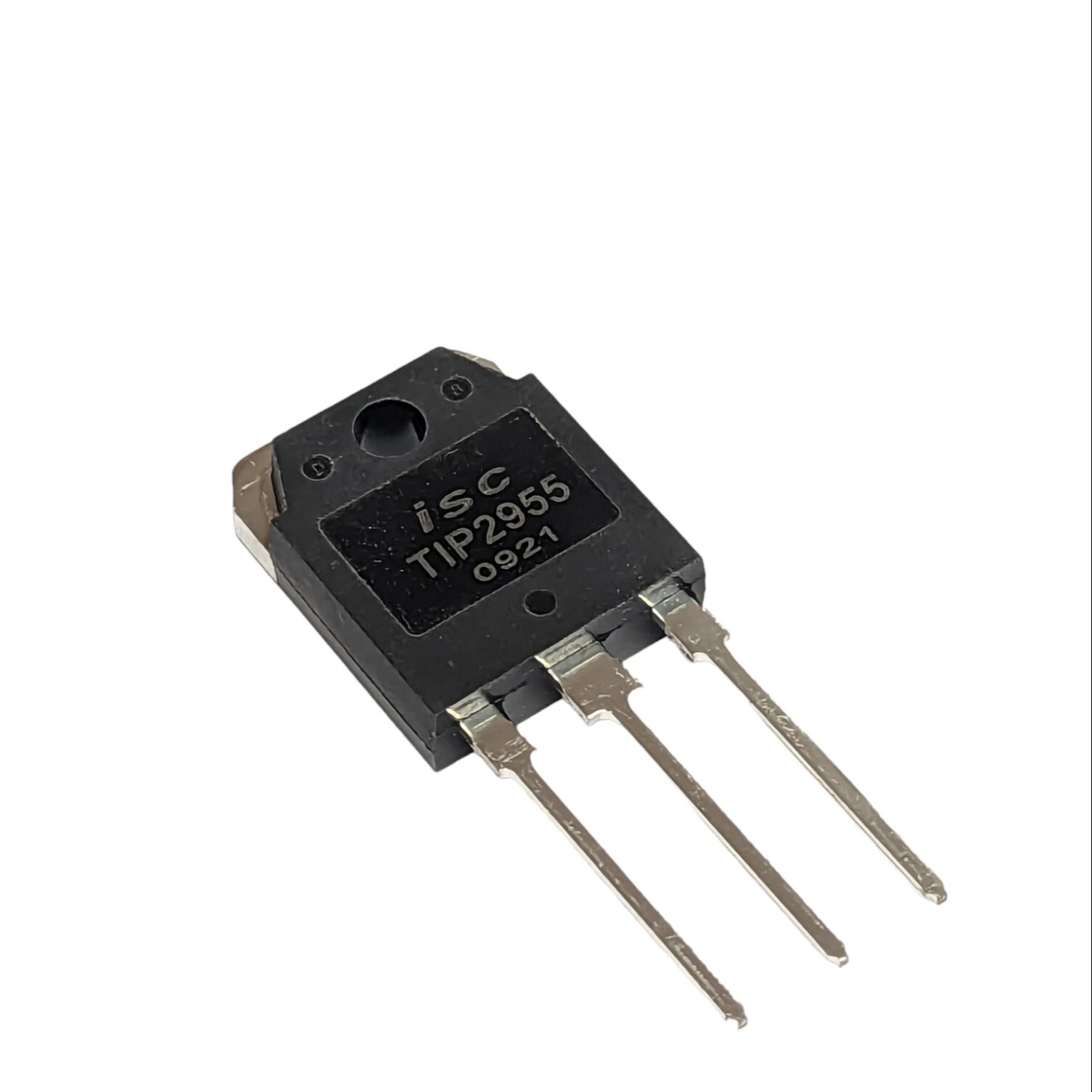

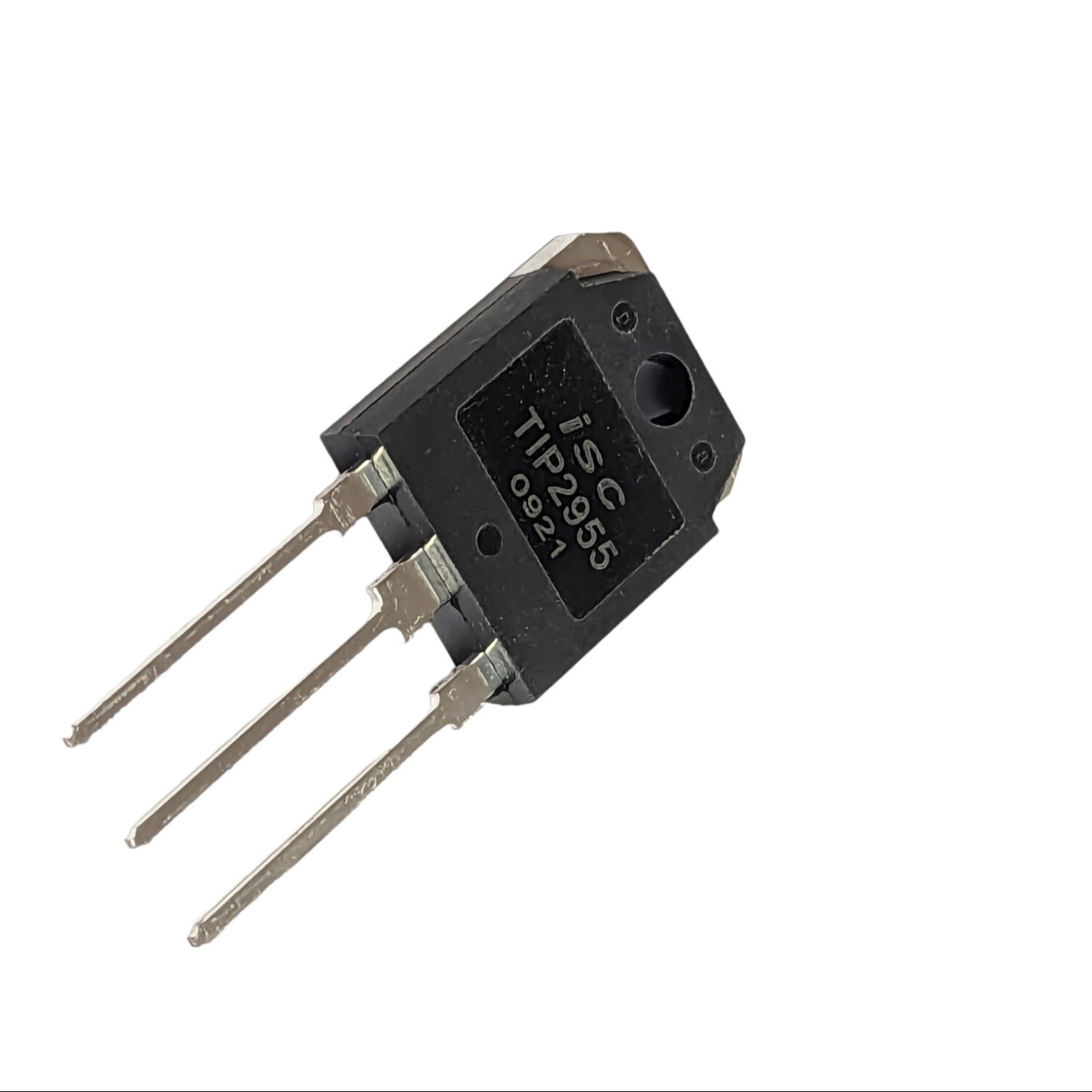

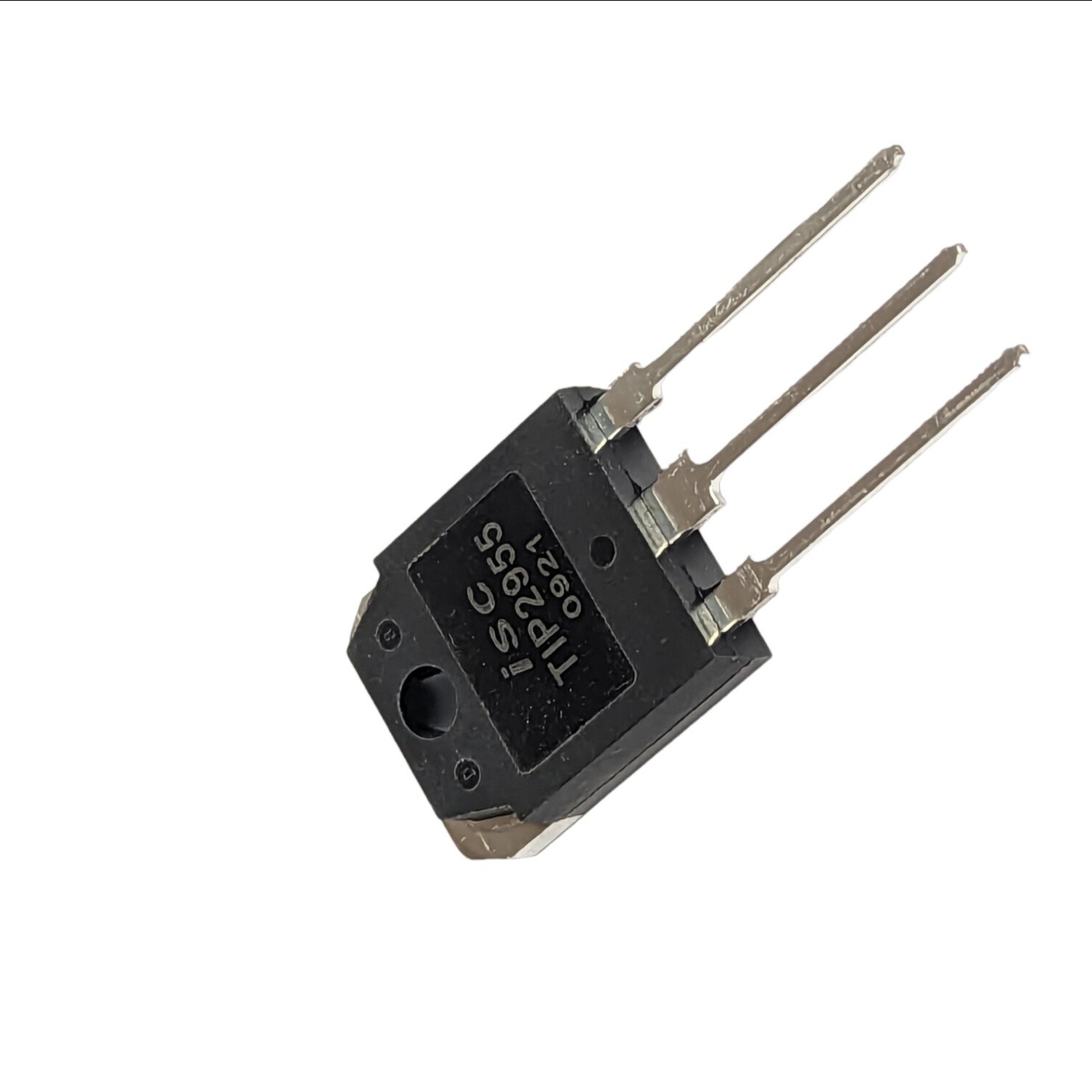

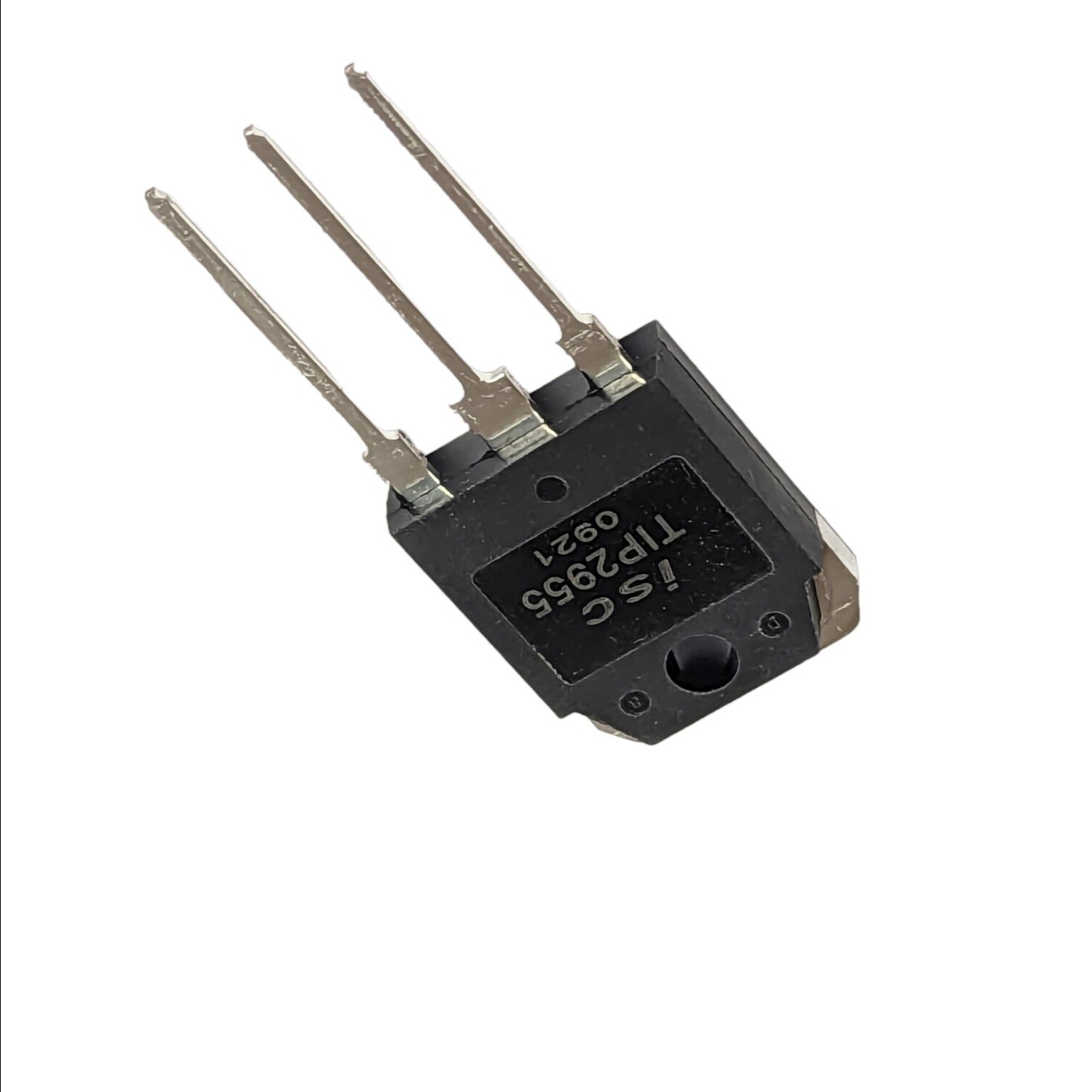

TIP2955 Transistor Silicon PNP CASE: TO3P MAKE: Inchange Semiconductor - ISC
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 151 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
TIP2955 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO3P
Manufacturer Inchange Semiconductor - ISC
Vbr CBO 100
Vbr CEO 70
Max. PD (W) 100
Derate (Amb) (W/°C) 28m
t(f) Max. (S) 700n-+
Max. hFE 70
Min hFE 20
Ic Max. (A) 15
@Ic (test) (A) 4.0
Icbo Max. @Vcb Max. (A) 700u
Polarity PNP
Tr Max. (s) 15n
Trans. Freq (Hz) Min. 3.0M
Oper. Temp (°C) Max. 150
@VCE (V) 4.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 90 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 70 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 80225
