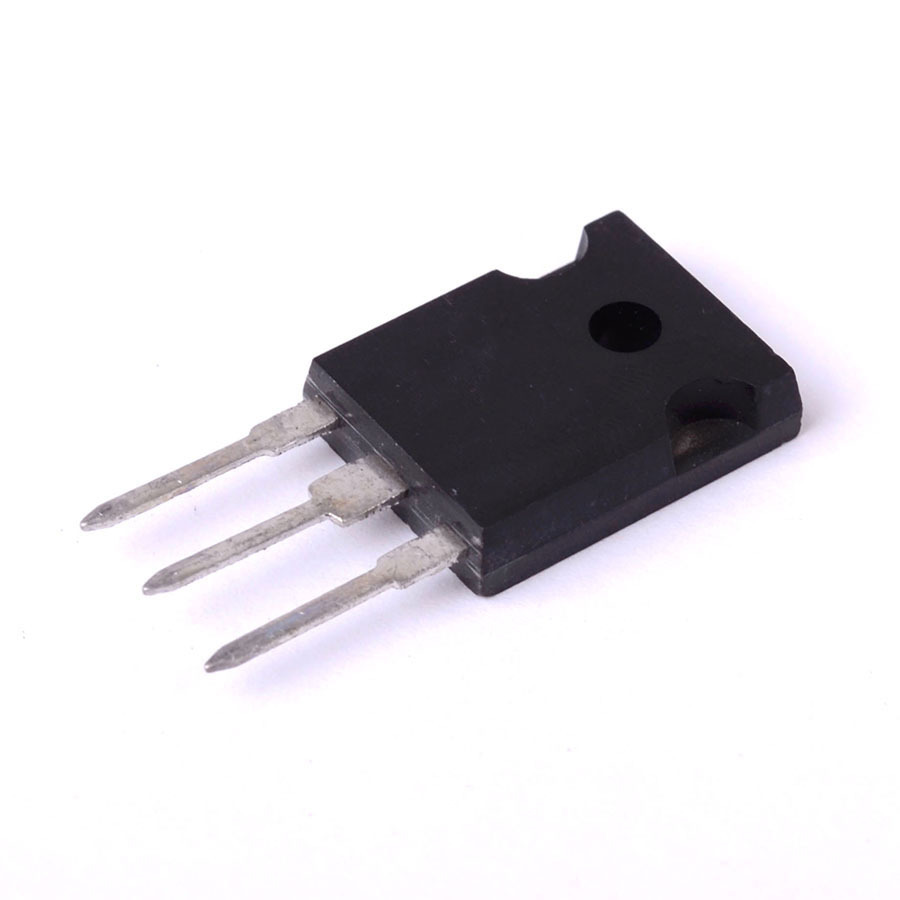

TIP36B

SKU: TIP36B

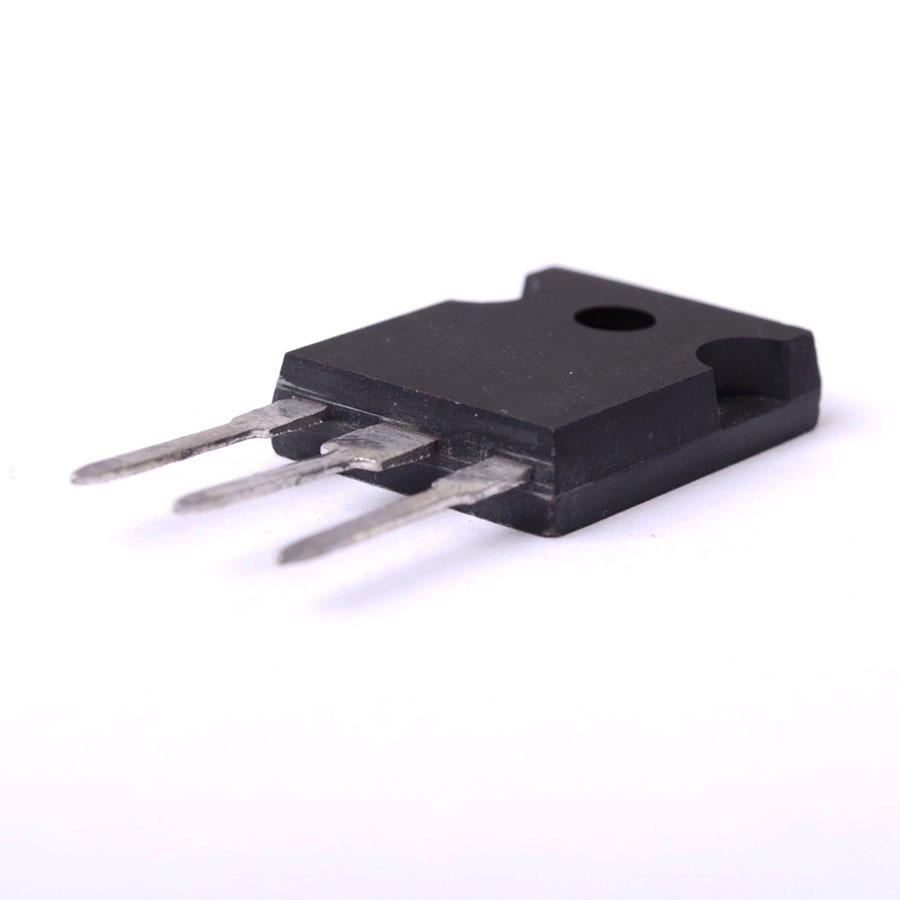

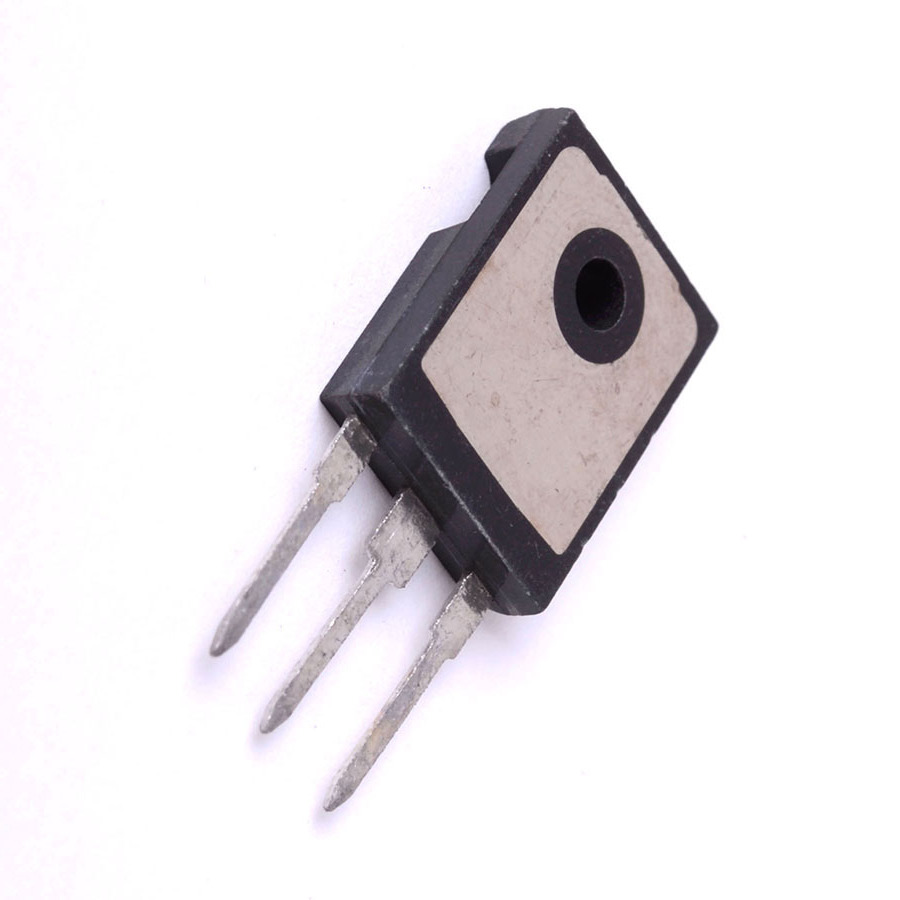

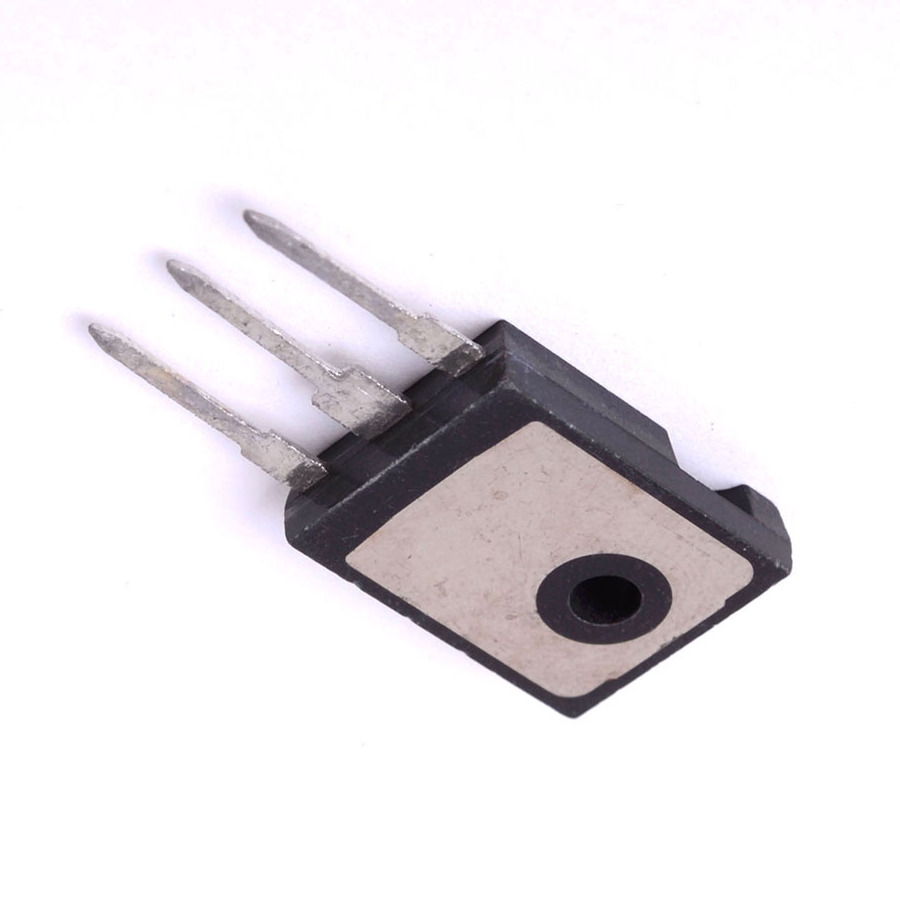

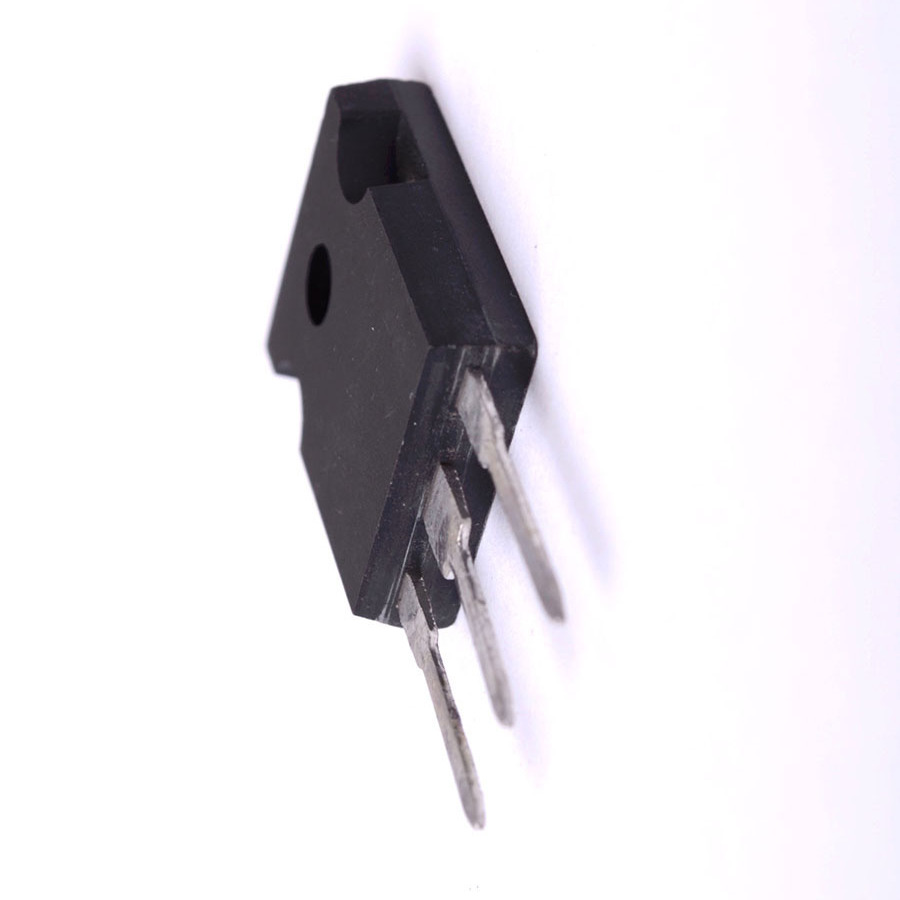

TIP36B Transistor Silicon PNP CASE: SOT93 MAKE: NTE Electronics
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
TIP36B Datasheet
Product specifications
Type Transistor Silicon PNP
Case SOT93
Manufacturer NTE Electronics
Vbr CBO 120
Vbr CEO 80
Max. PD (W) 3.5
Derate (Amb) (W/°C) 28m
t(f) Max. (S) 800n-+
Max. hFE 75
Min hFE 15
Ic Max. (A) 25
@Ic (test) (A) 15
Icbo Max. @Vcb Max. (A) 1.0m
Polarity PNP
Tr Max. (s) 1.1u-
Trans. Freq (Hz) Min. 3.0M
Oper. Temp (°C) Max. 140
@VCE (V) 4.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 90 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 25 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN 20
