TIPP117
View detailed images (12)

TIPP117

SKU: TIPP117

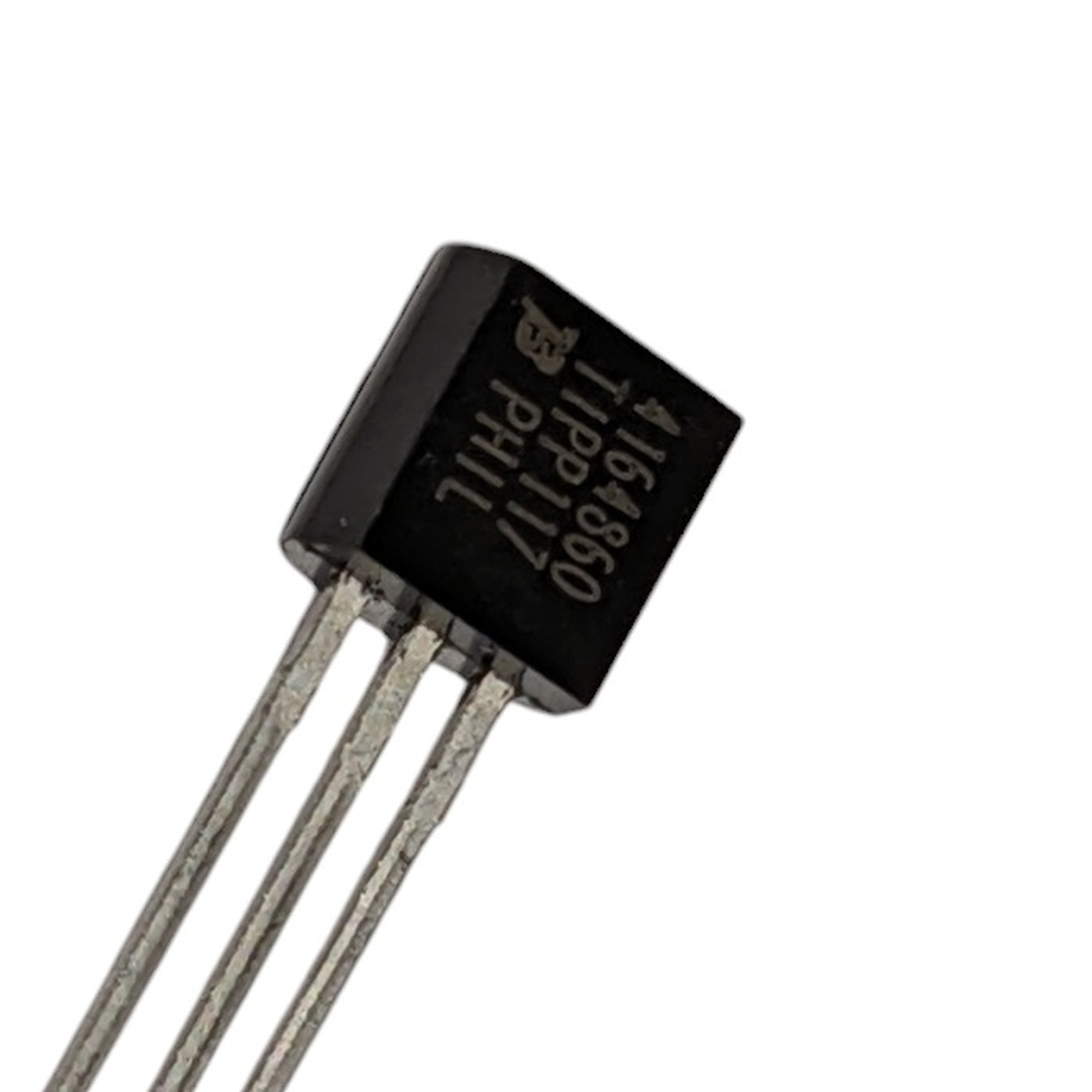

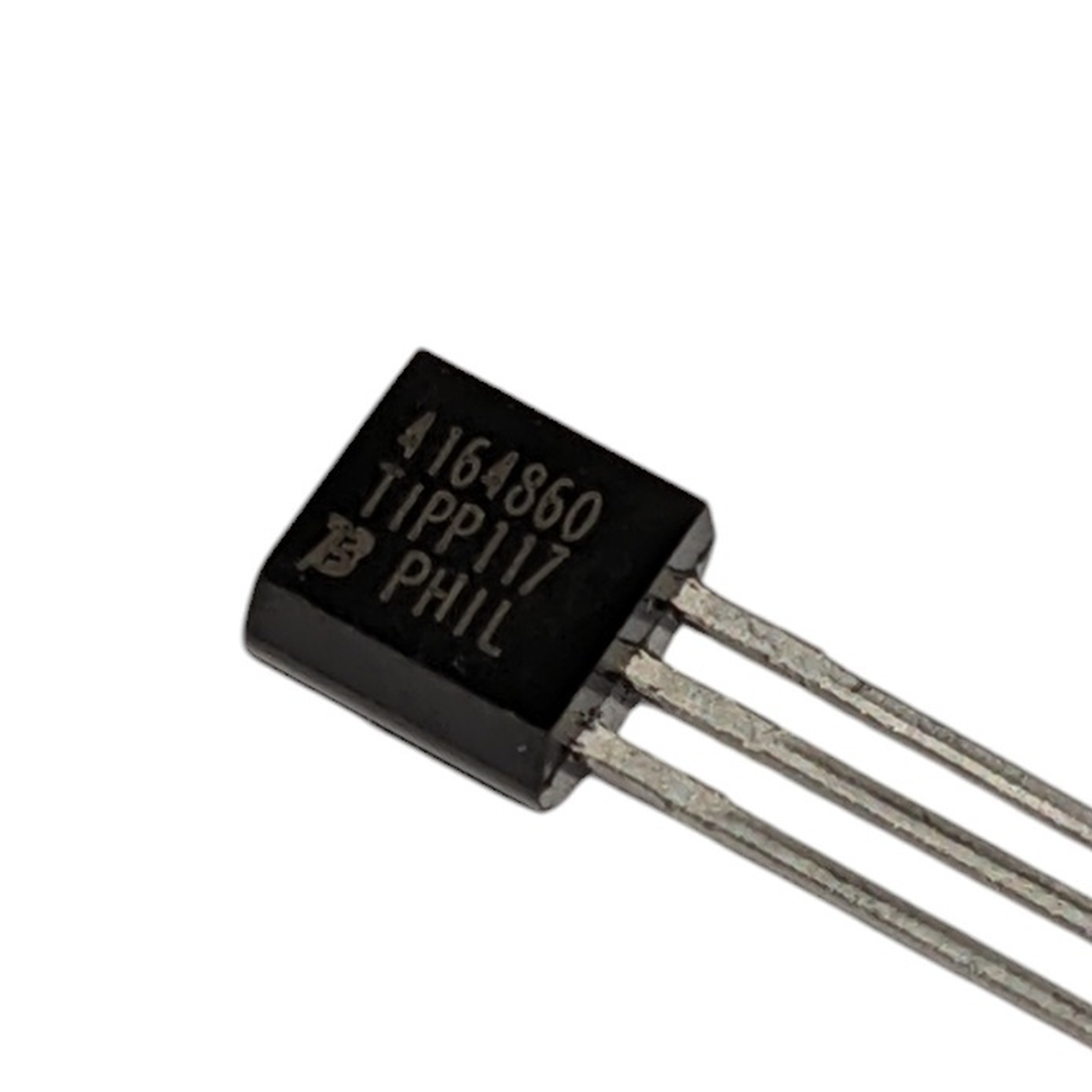

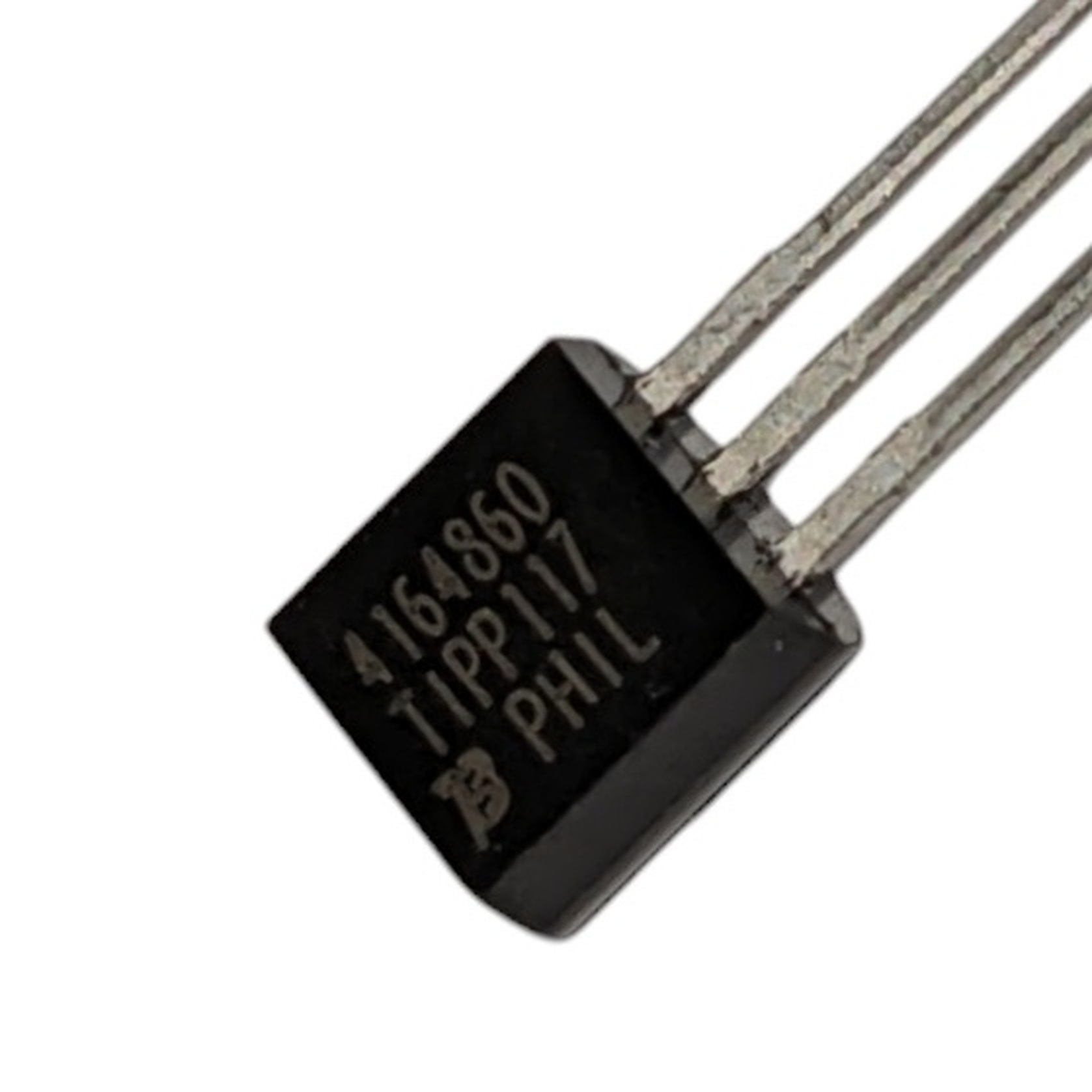

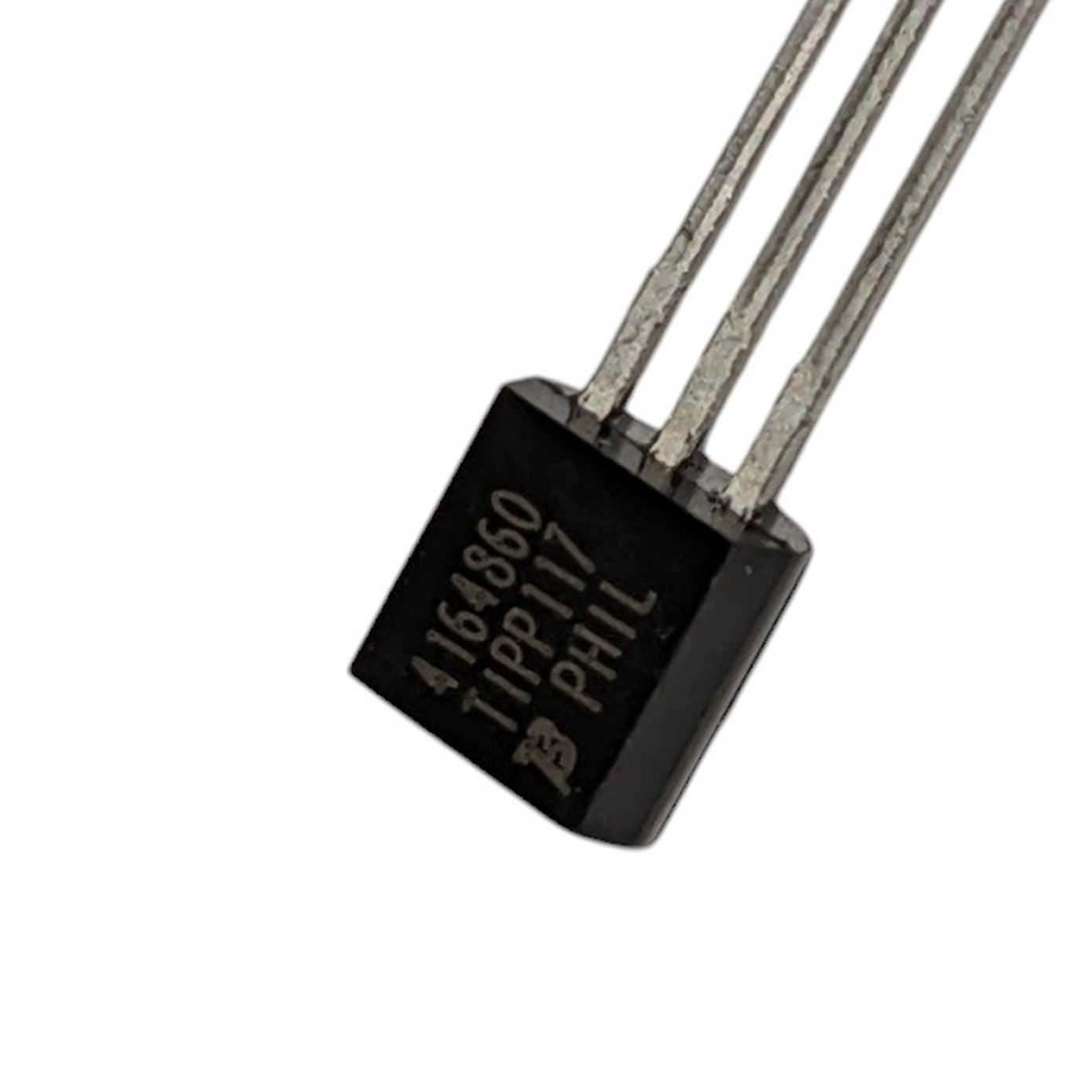

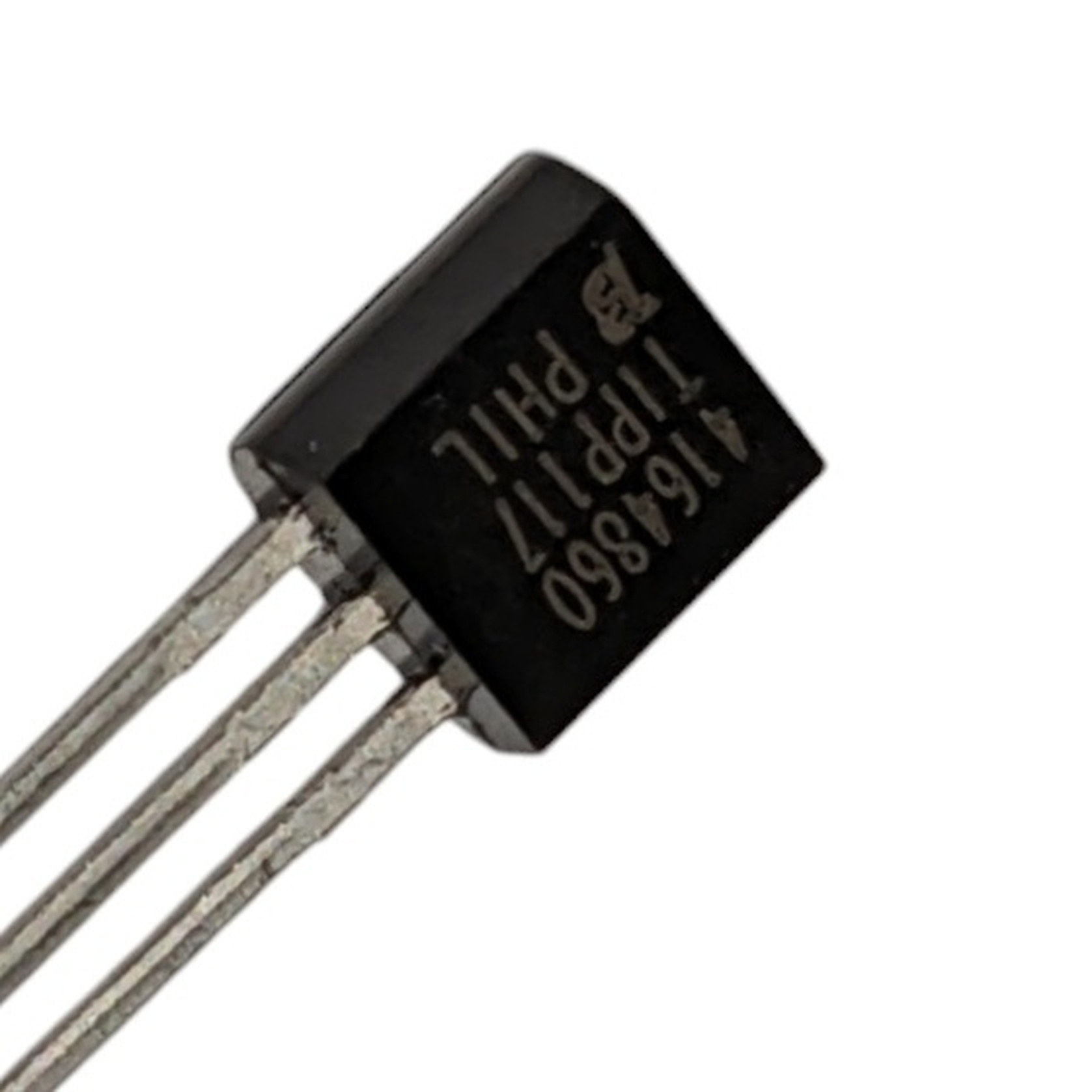

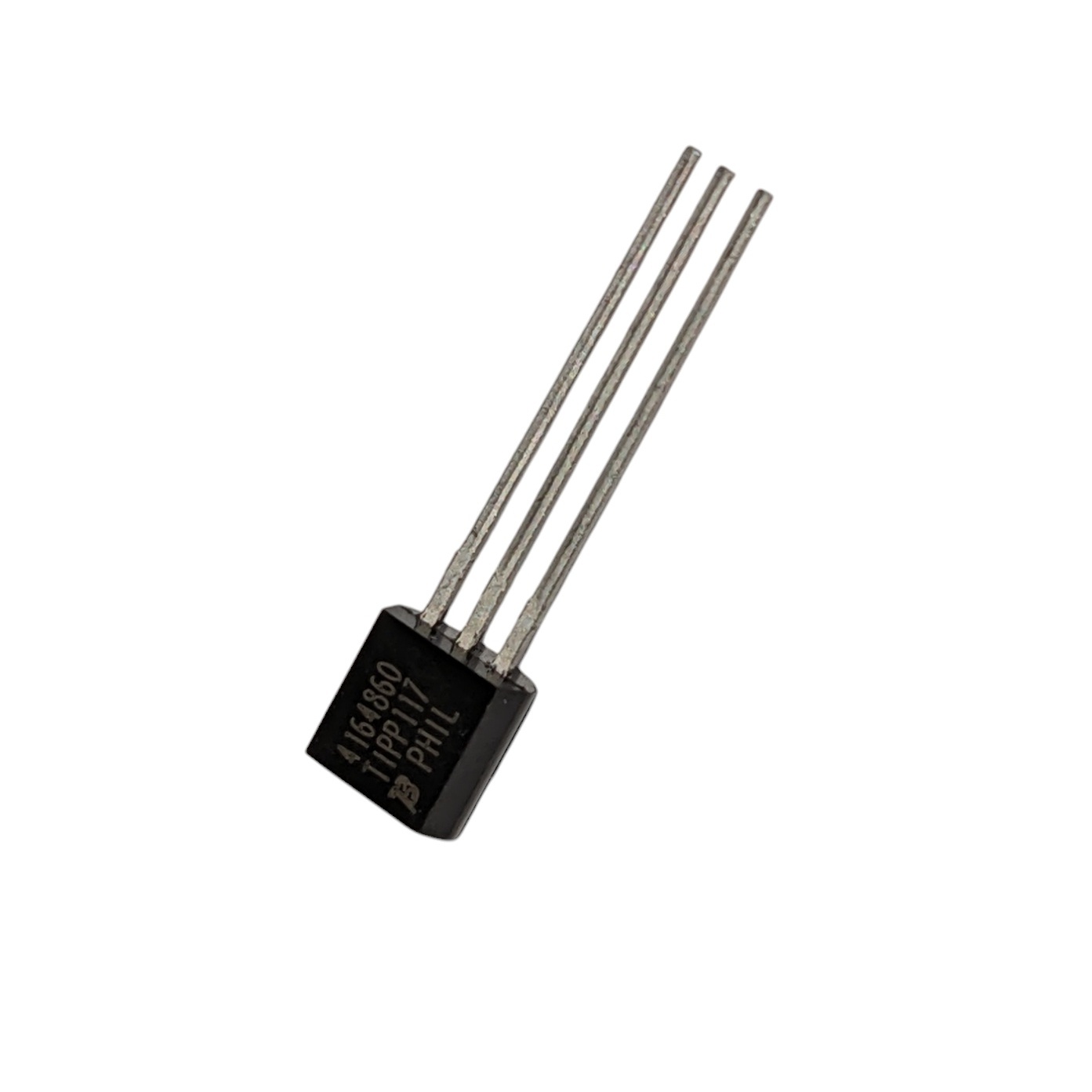

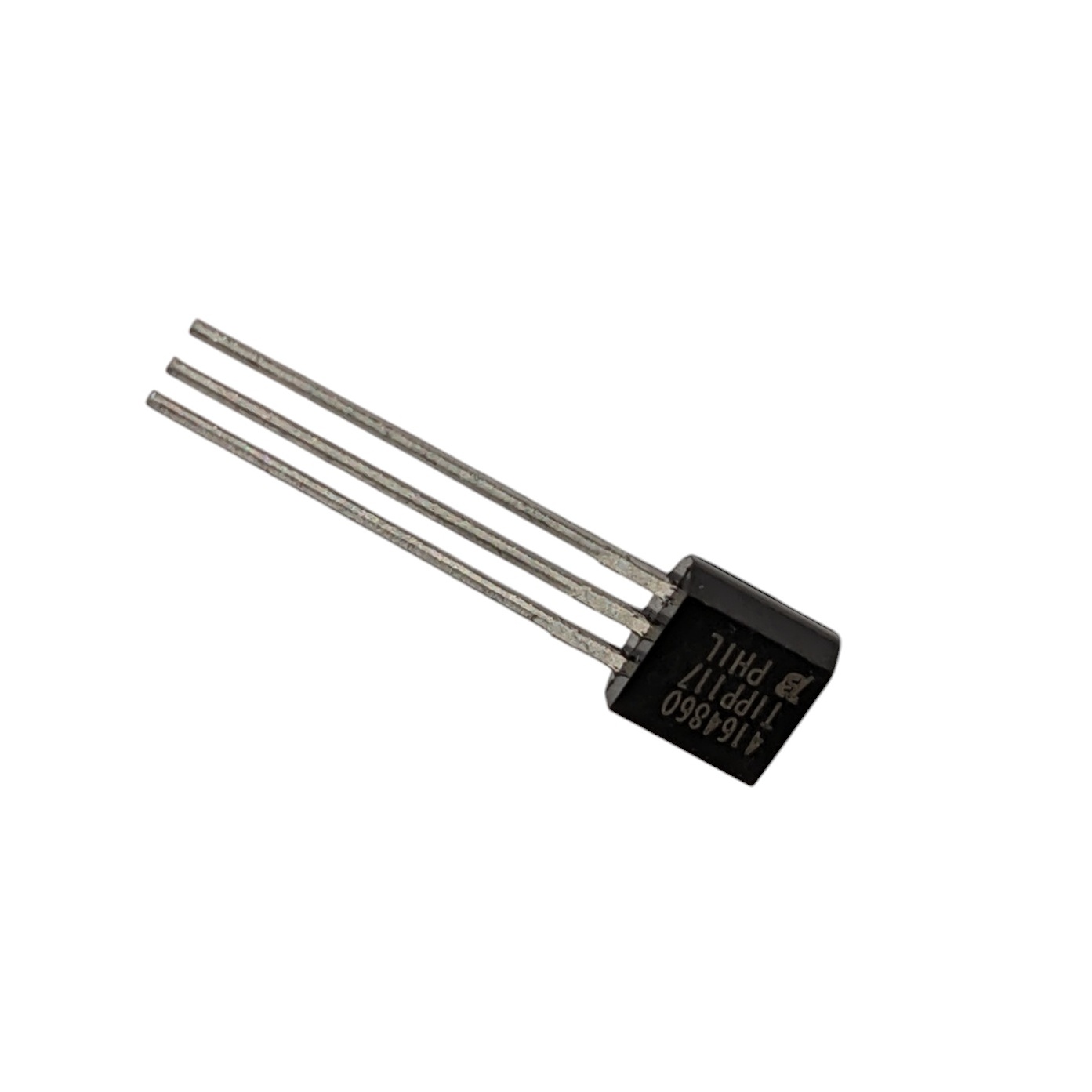

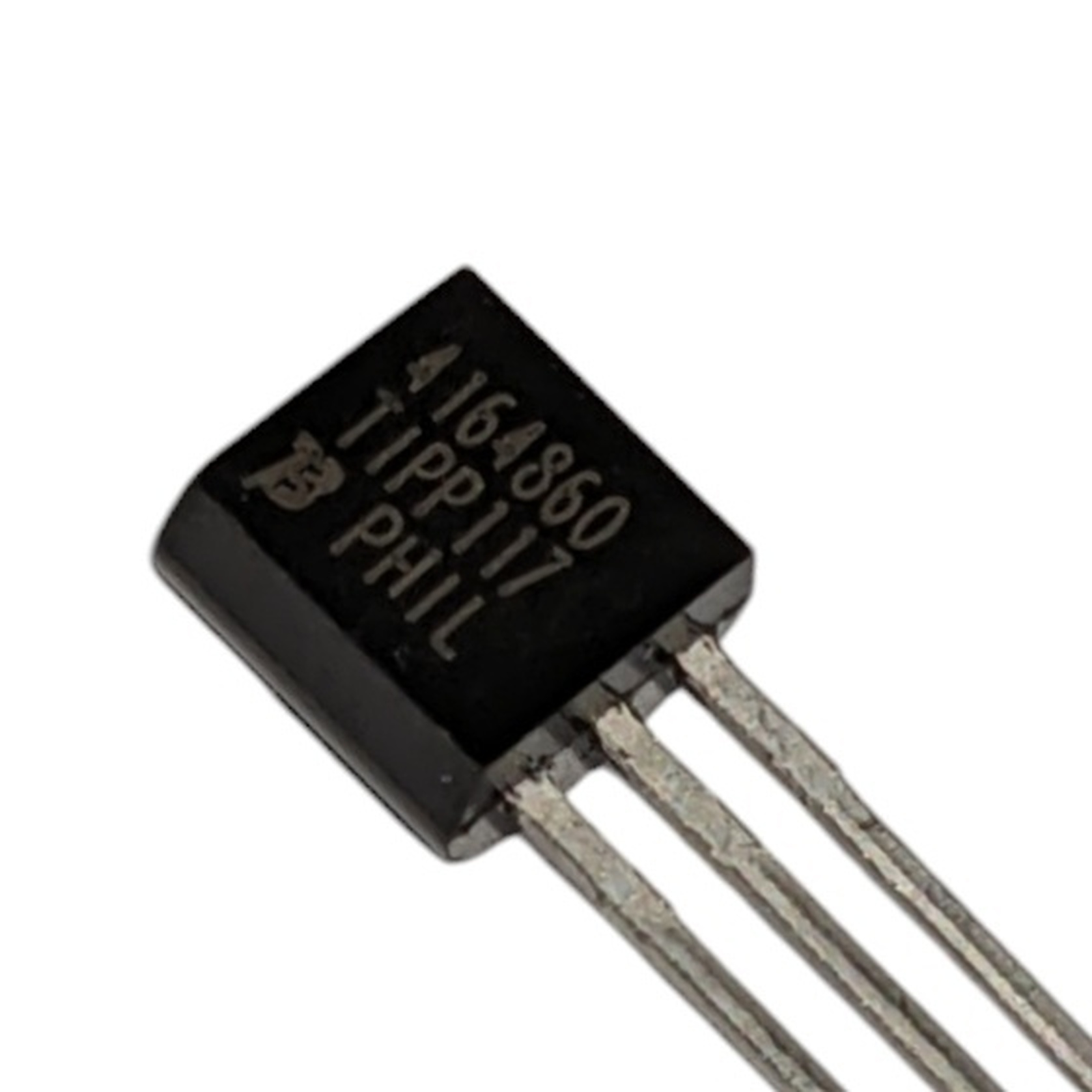

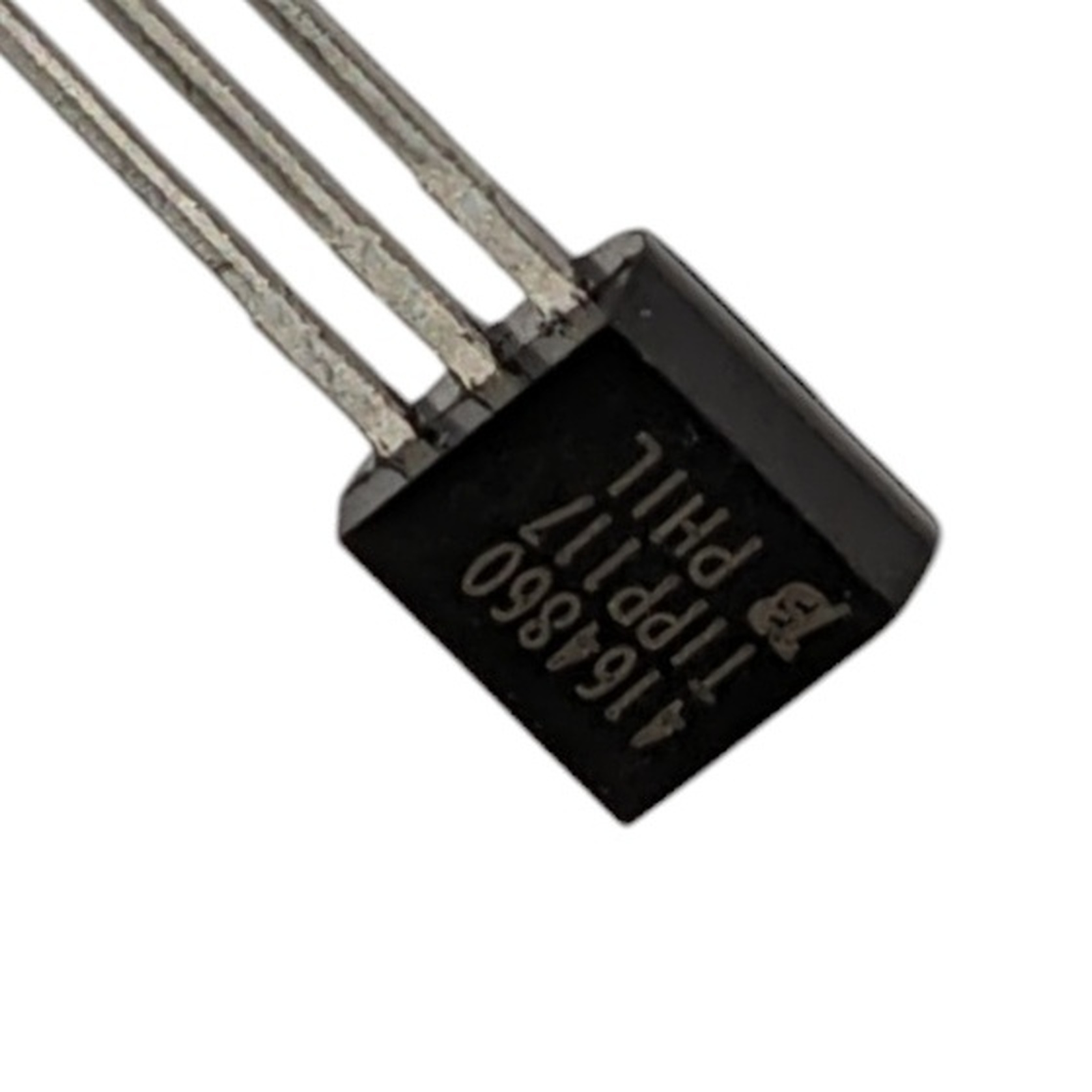

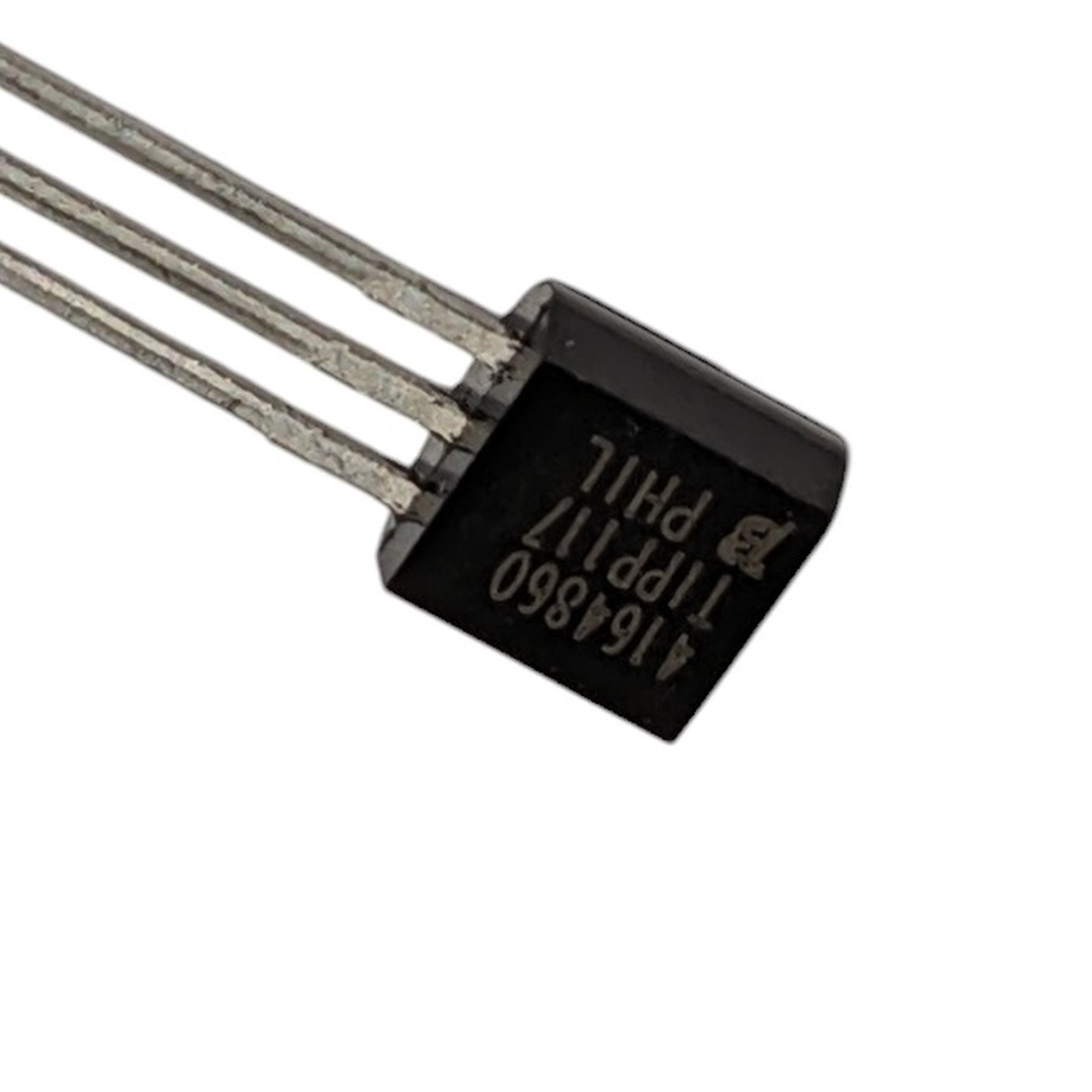

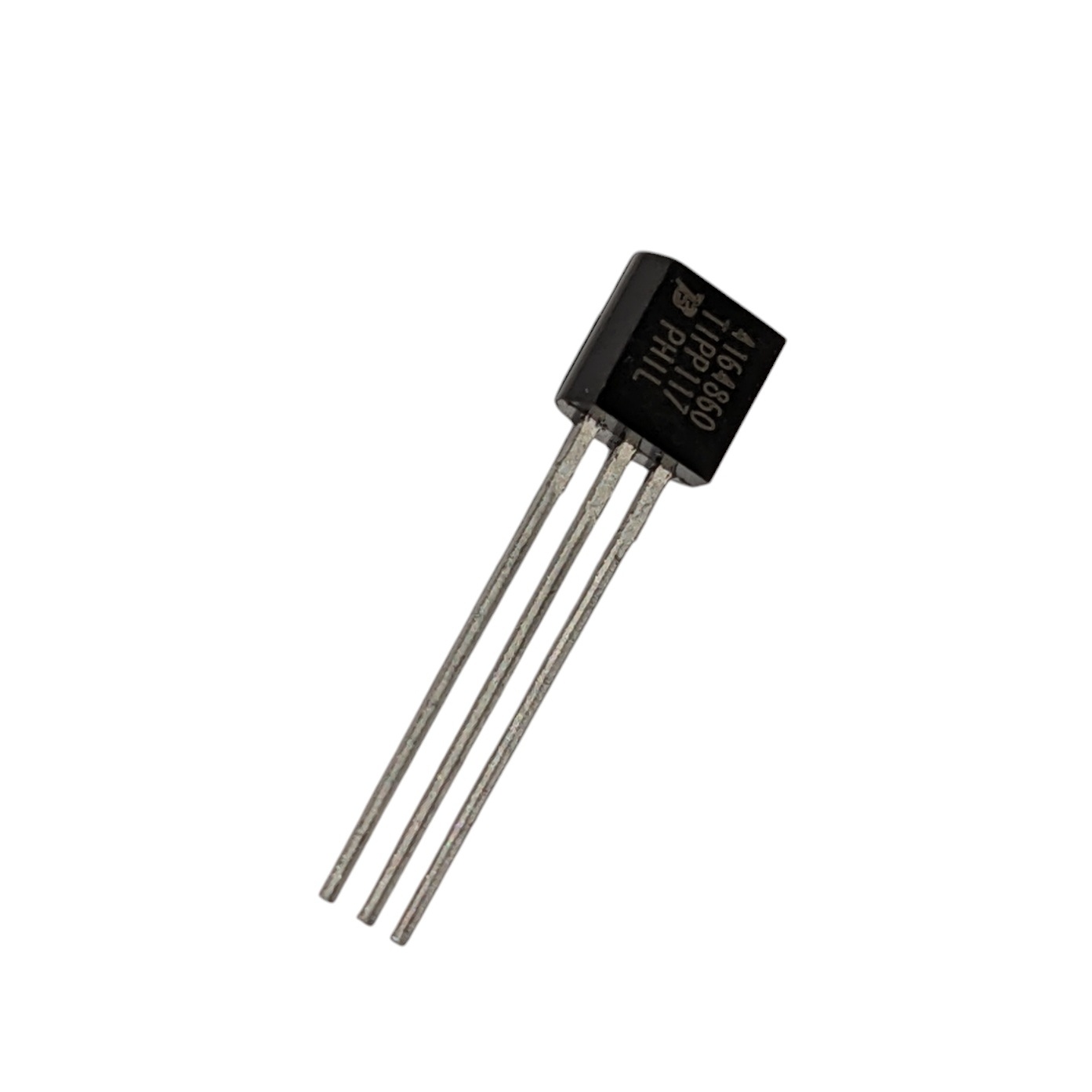

TIPP117 Transistor Silicon PNP CASE: TO92 MAKE: Bourns
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 246 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case TO92
Manufacturer Bourns
Vbr CEO 100
Max. PD (W) 0.8
Min hFE 500
Ic Max. (A) 2.0
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 1.0m
Mat. Silicon Logic
Polarity PNP
@VCE (test) 4.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.8 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 1000
SKU 86707
