TLC0820ACFN

TLC0820ACFN

SKU: TLC0820ACFN

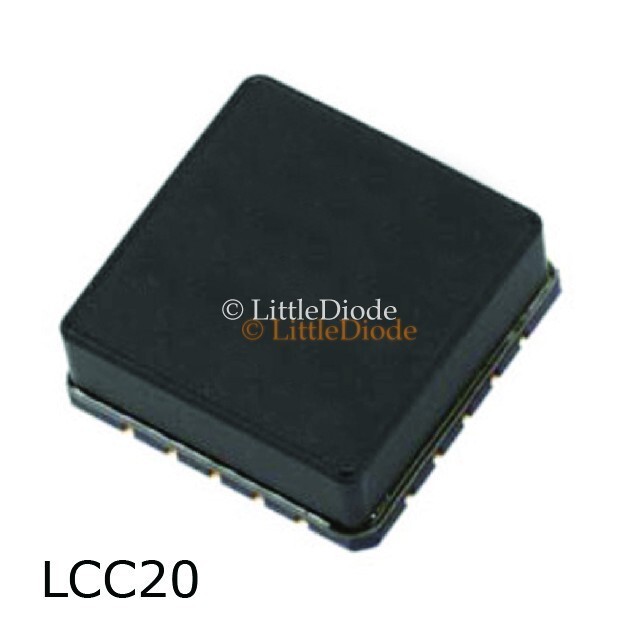

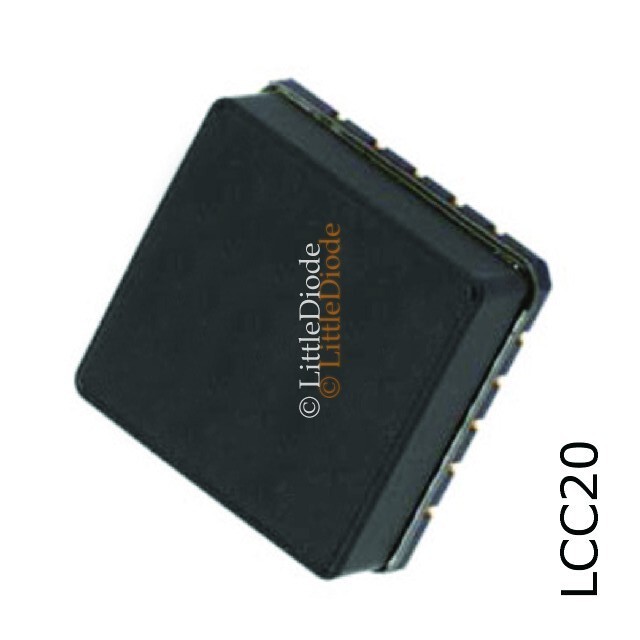

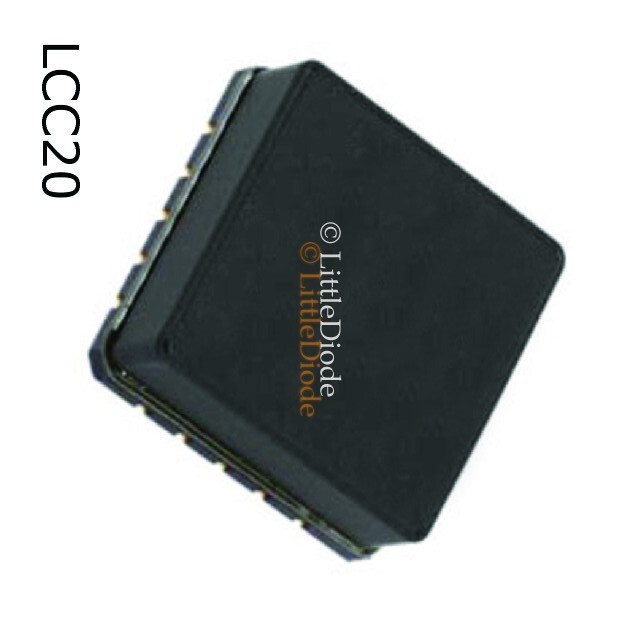

TLC0820ACFN Integrated Circuit CASE: LCC20 MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case LCC20
Manufacturer Texas Instruments
t(conv) (S) 2.5u
FSR Error (LSB/%) 1.0
Vin Range (Vp-p) 10
Outp Arith. Code A
VOH Min. 2.4
VOL Max. 0.4
PD Max. (W) 875m
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 20-78
No. of Pins 20
Surface Mounted Yes/No YES
SKU 935523
