Home / Semiconductors / TLC2201MJG
TLC2201MJG

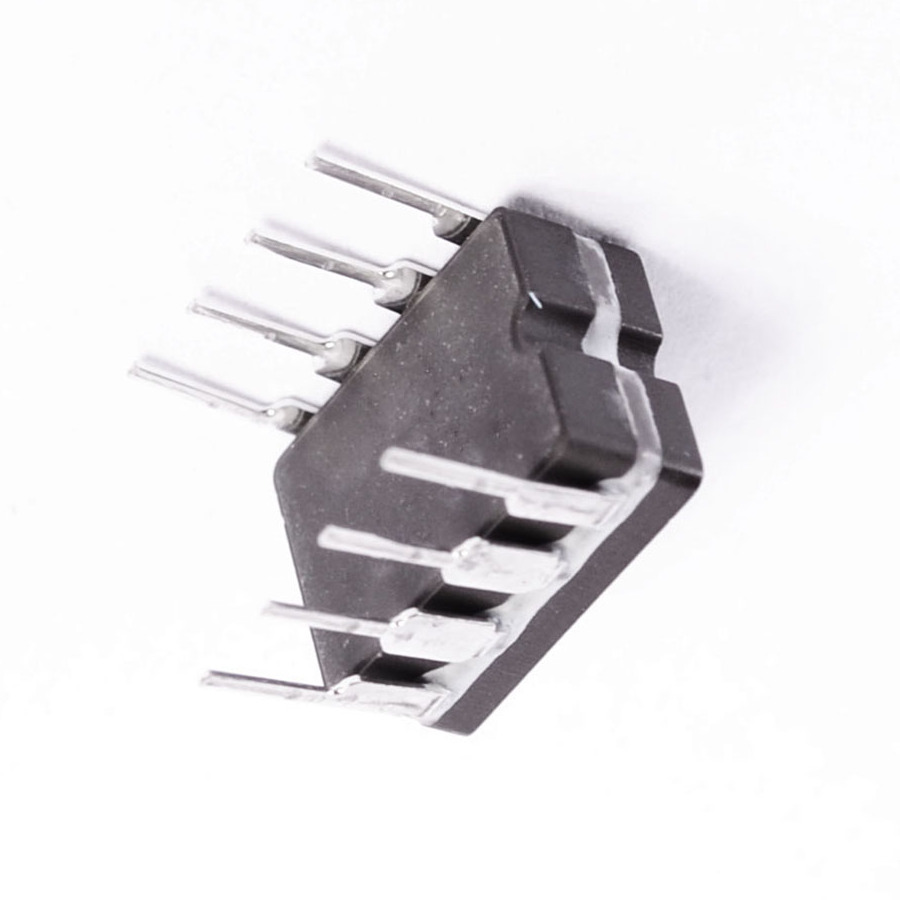

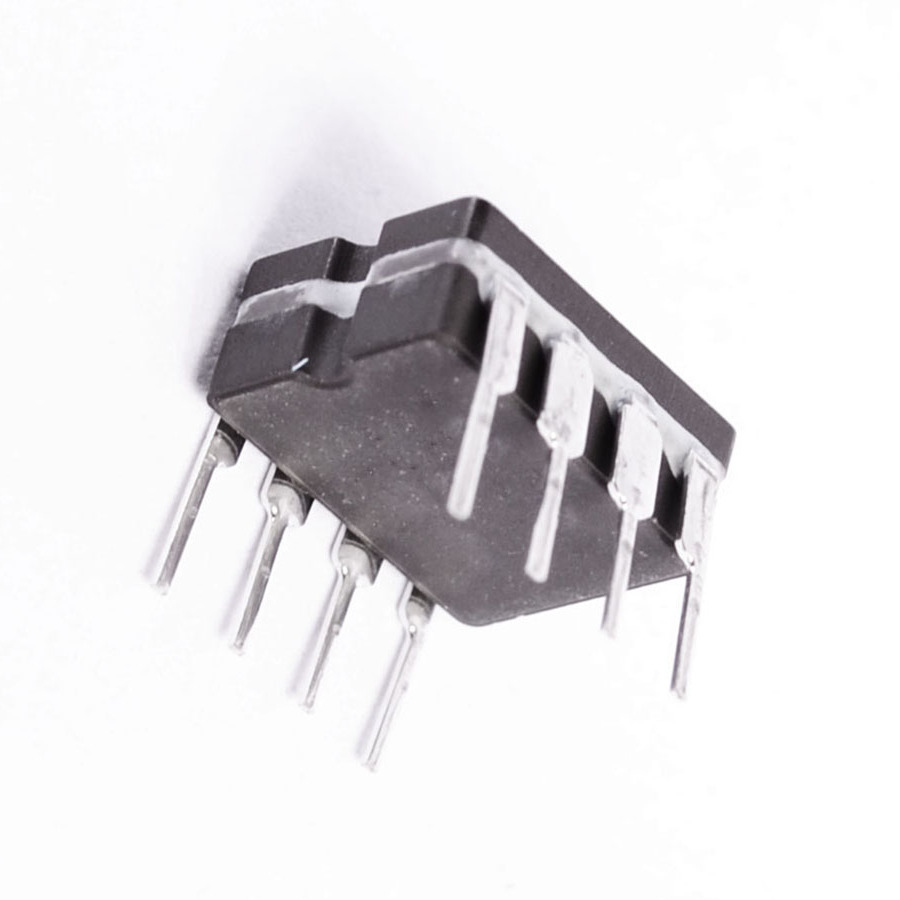

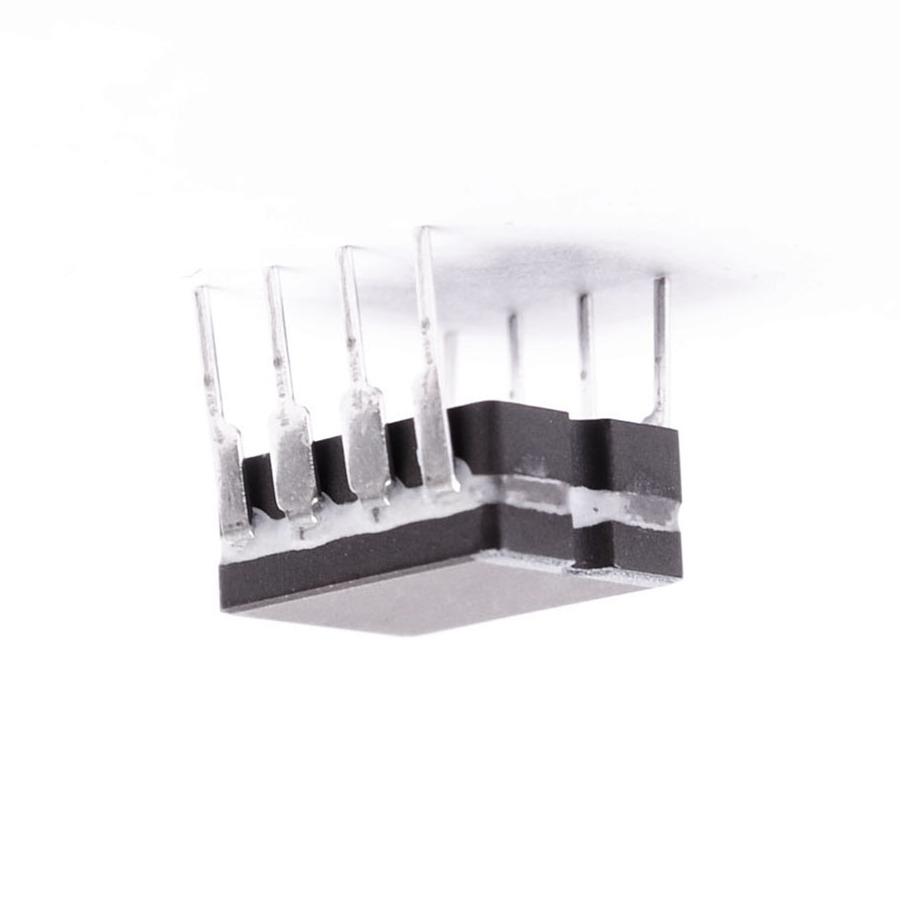

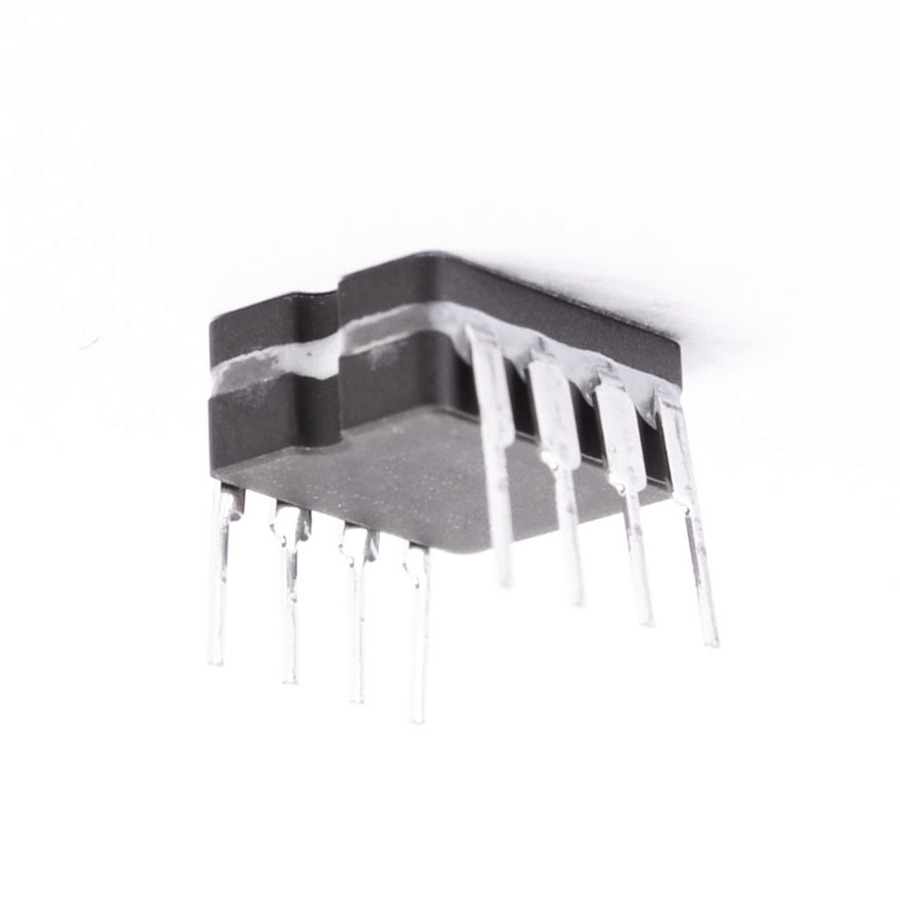

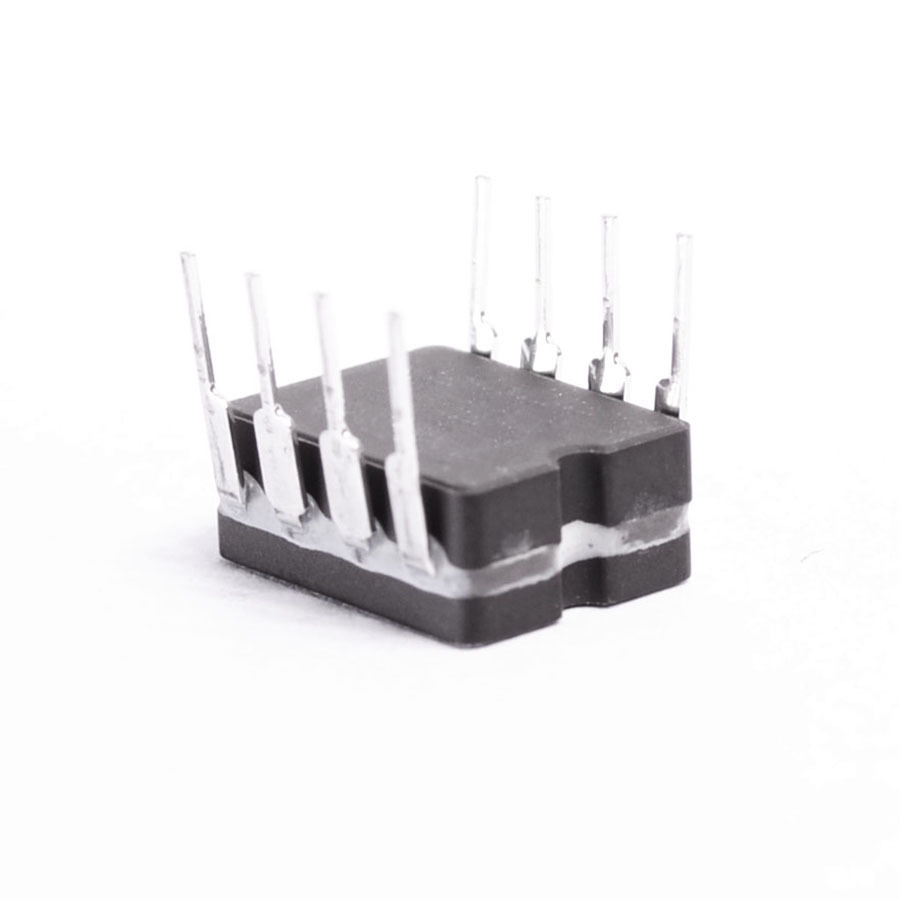

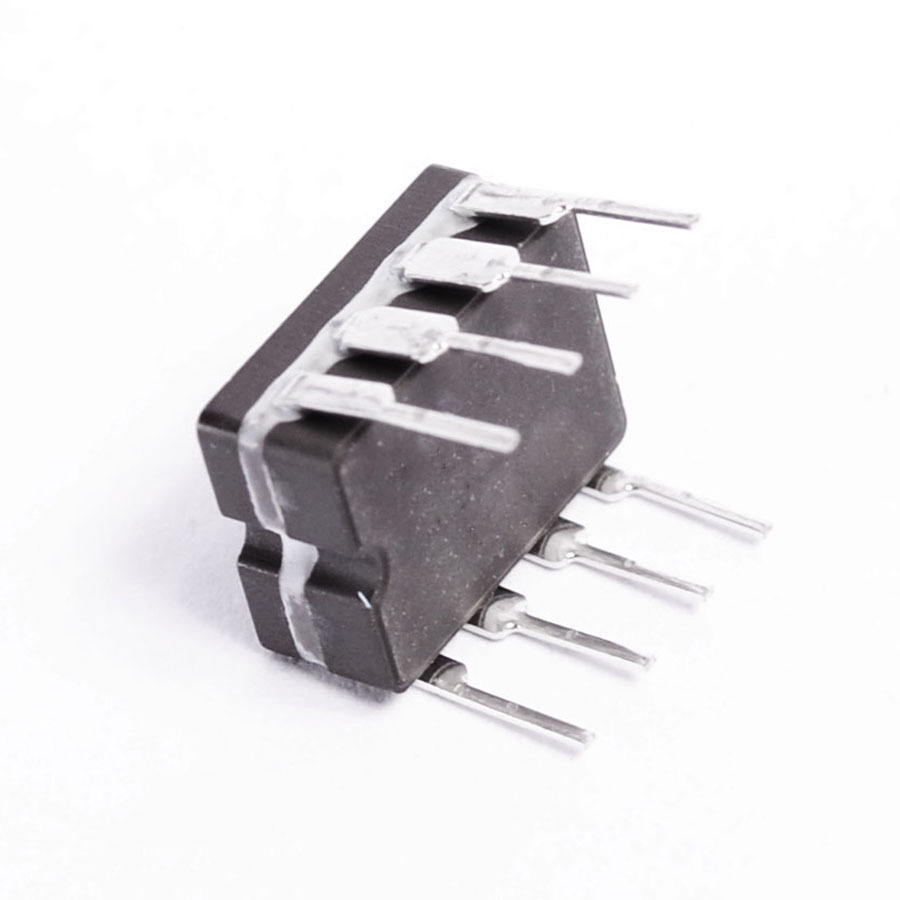

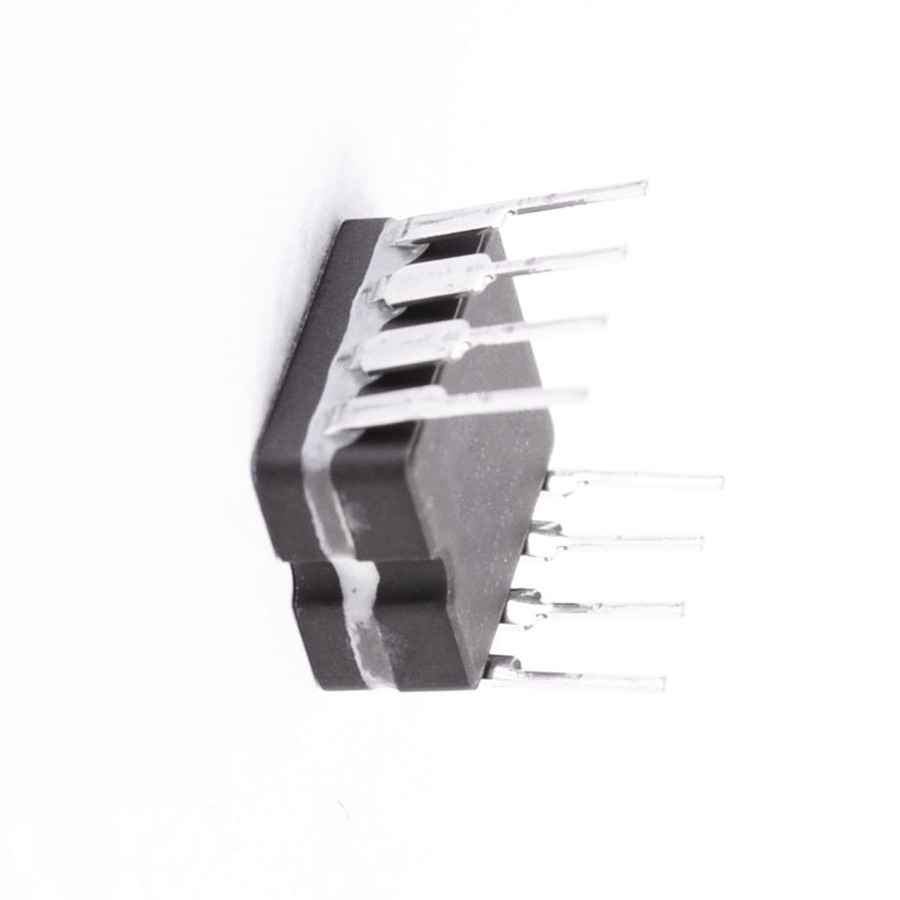

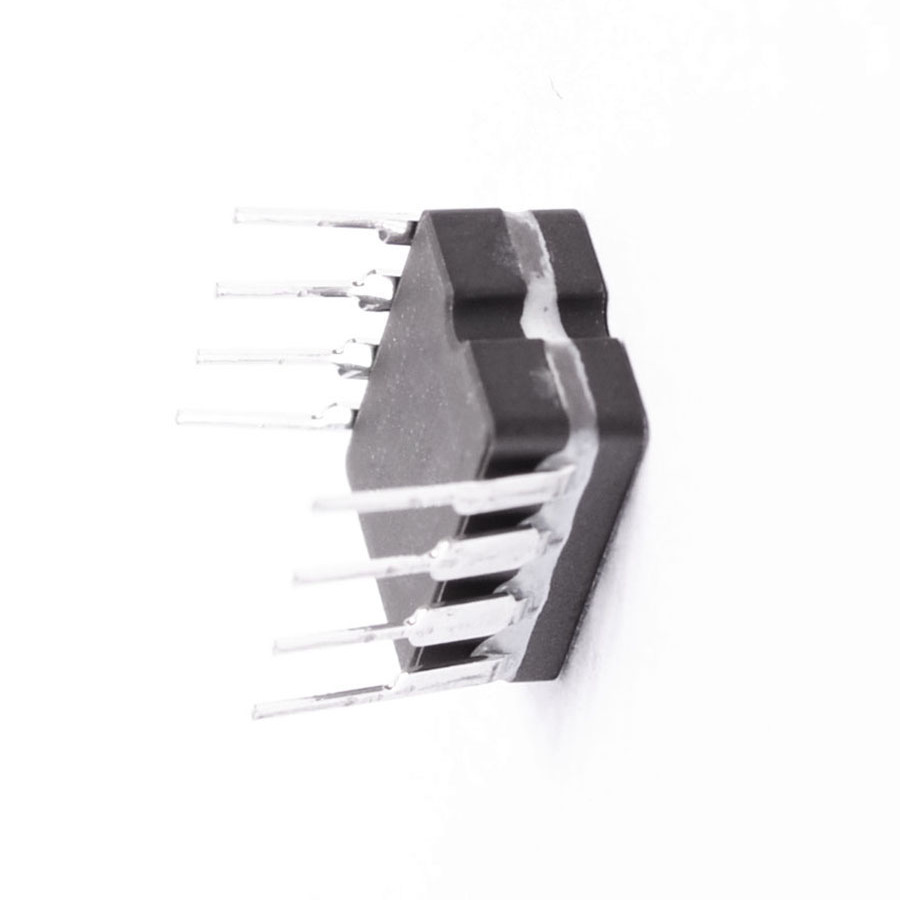

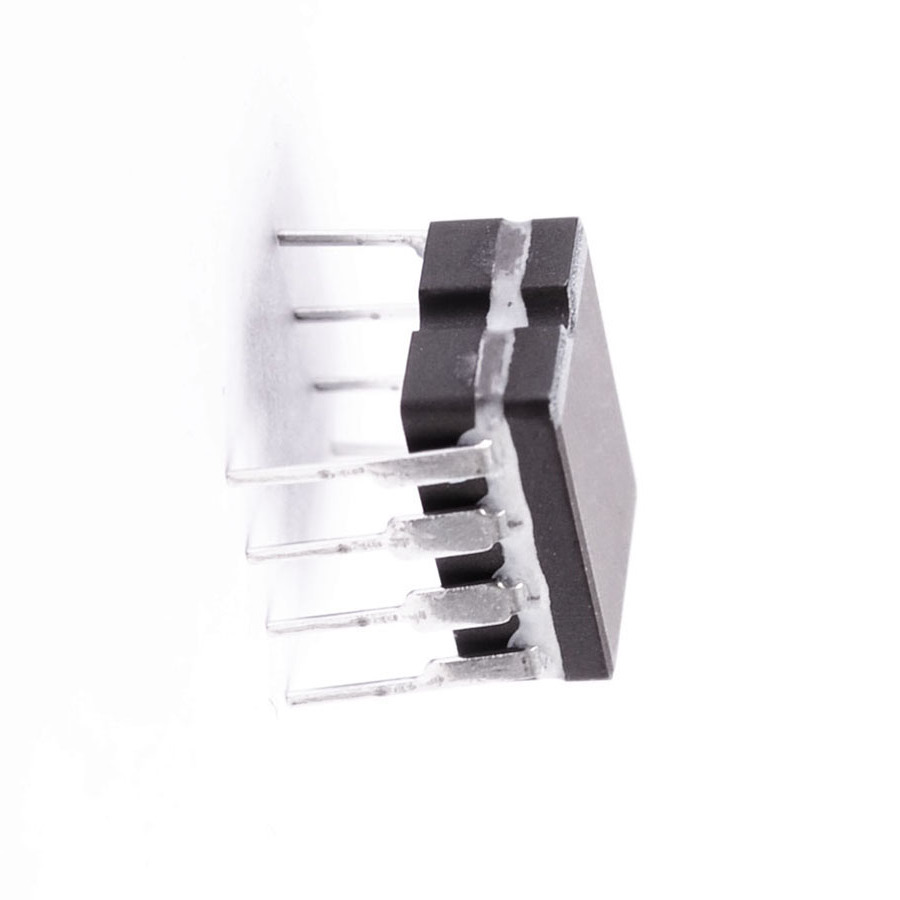

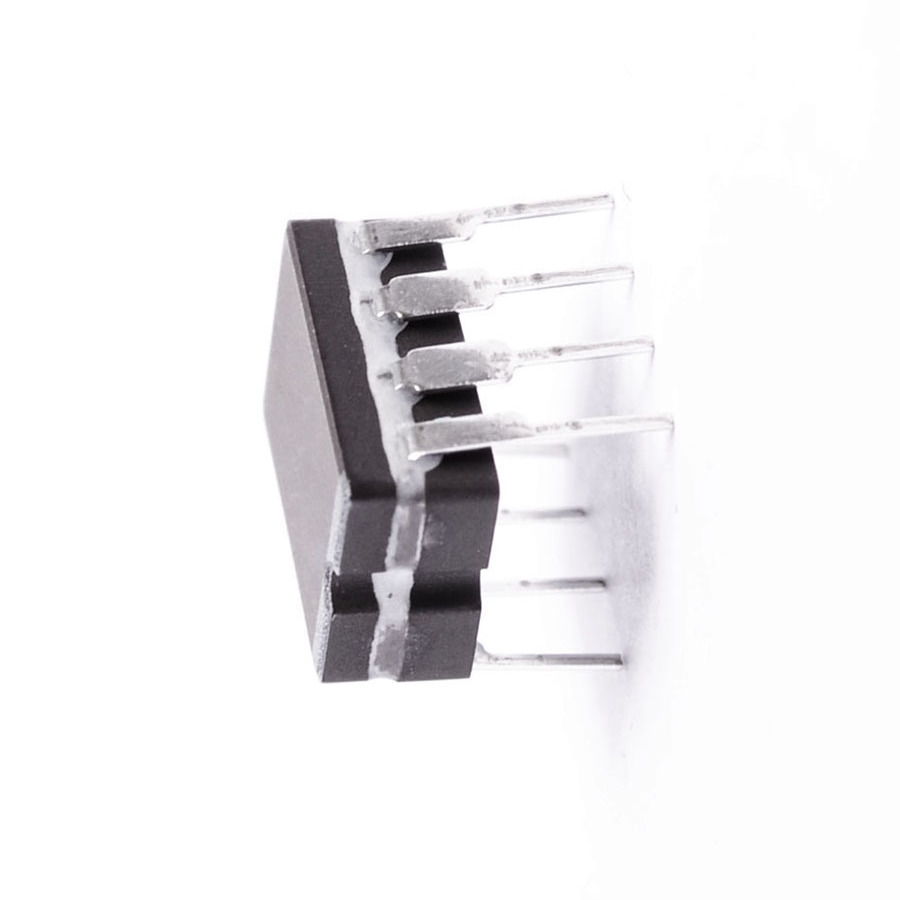

View detailed images (12)

TLC2201MJG

SKU: TLC2201MJG
TLC2201MJG Semiconductor CASE: DIC8 MAKE: Texas Instruments
Product specifications
Equivalent TLC2201MJGB
Type Semiconductor
Case DIC8
Manufacturer Texas Instruments
R(in) (Û) 400k-
I(io) Max. (A) 500p
V(io) Max. (V) 700u
PD Max. (W) 1.0
Nom. Supp (V) 5.0
Inp Bias Curr. Max. (A) 500p
Com Mode Inp Range (VICR) 4.5
Temp Coef. of VIO 0.5u-
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 8-762
No. of Pins 8
Surface Mounted Yes/No NO
SKU 1054579
